The Fluke ii900 is a Sonic Industrial Imager (the Product or
Imager) primarily used to detect and locate leaks in compressed
air, compressed gas, and vacuum systems. The Imager has a
visible light camera that captures a live-view image of the
inspection area. An acoustic sensor-array aligns a sound-source
heatmap with the image. Capture and save still image files and
video files from the inspection for documentation and reports.
A rechargeable battery powers the Imager. The Imager includes
an external battery charger with power adapter and
country-specific cables.
The Imager has a USB-C port that connects to a PC for file
download and firmware updates.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: [phone]
• Japan: [phone]
• Singapore: [phone]
• China: [phone]
• Brazil: [phone]
Anywhere in the world: [phone]
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
Safety Information
For complete information about how to safely use this Product,
read the Safety Information included with the Product or located on
the Fluke website.

ii900
Users Manual
2
Before You Start

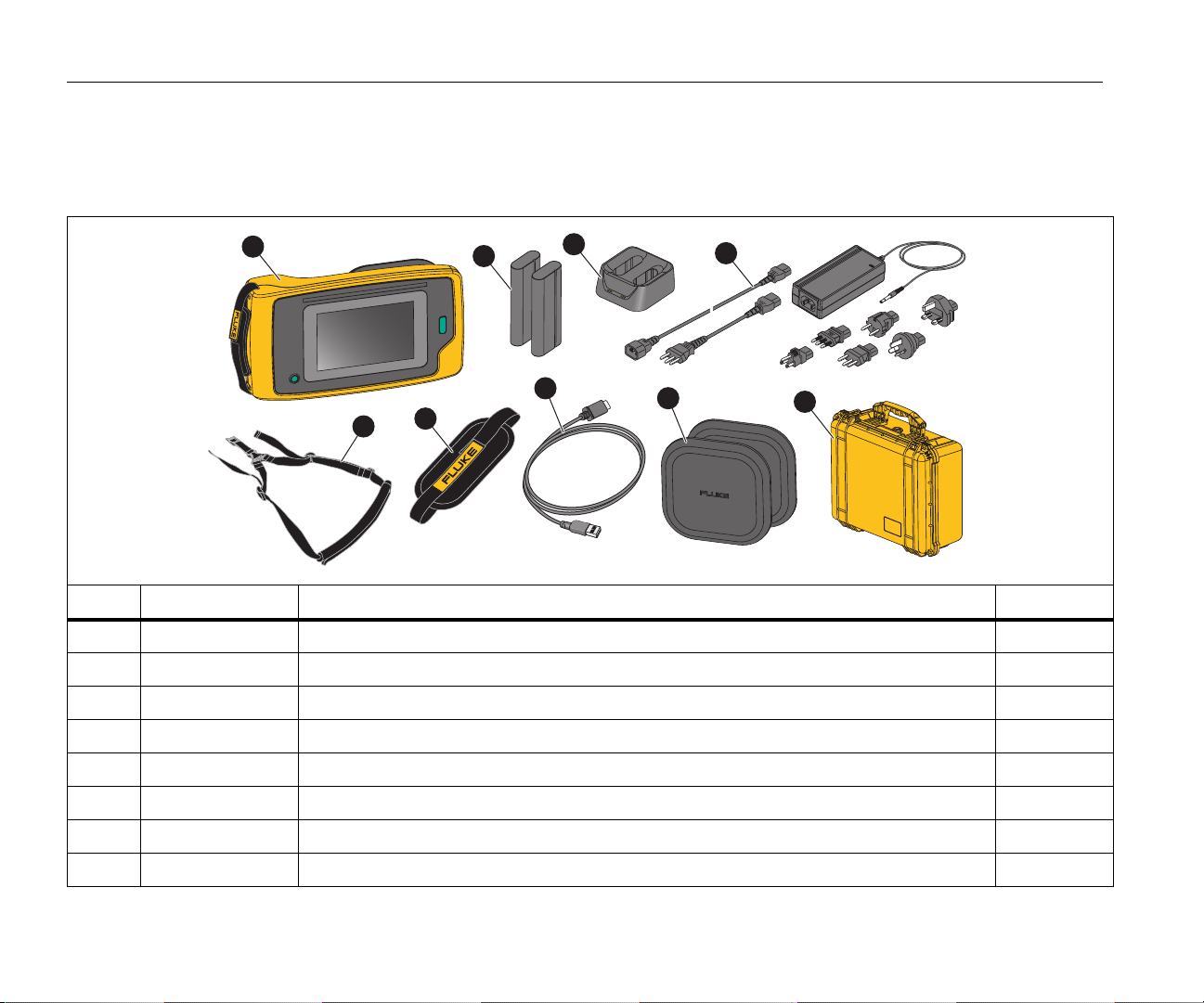

Table 1 is a list of items included with the Imager. Use the part
numbers to order additional accessories.
Table 1. Standard Equipment
Item Model Number Description Part Number
ii900 Imager NA
BP291 Rechargeable Lithium-ion Battery Pack (x2) 3894688
/EDBC290 External Battery Charger/Power Supply with Country-Specific Adapters 5077735
TiX5XX-NECK Neck Strap 4574715
ii900 Hand Strap Hand Strap 5075994
NA USB-C Cable, 1 m (3.3 ft) NA
ii900 Array Covers Acoustic Sensor Covers (includes 1 spare cover) 5075982
CXT1000 Protective/Carry Case 4628917
12
6
789
5
4
3

Sonic Industrial Imager
Before You Start
3
Terms to Know
Use this section to familiarize yourself with these terms that are
unique to this Imager and sound pressure measurements.
Decibel (dB) Sound Pressure Level (SPL). The unit of
measurement for sound pressure changes. Decibel indicates the
intensity (loudness) of the sound and is expressed in terms of
dB SPL.
Distance to target. The distance between the leak source and the
Imager acoustic sensor is critical. The decibel level that the Imager
can measure decreases with the square of this distance.
Sound Frequency / Acoustic Frequency / Frequency Band.
The frequency indicates the pitch of sound. The frequency
corresponds to the number of sound vibrations/second and is
expressed as Hertz (Hz) or thousands of Hertz (kHz).
Frequency Range
Audible (up to 20 kHz). The range that human ear can
perceive sounds.
Ultrasonic (above 20 kHz). Certain issues (leaks, electrical
discharges, mechanical failures) generate sound signatures in
ultrasonic ranges. The human ear cannot perceive the
ultrasonic range that the Imager can detect.
Frequency Selection / Frequency Filtering / Selected
Frequency Band. Select a frequency band for measurement and
visualization of sound. When a frequency band is selected, any
sound outside of that range is filtered and not shown or
considered.
Background Noise. The noise that exists in the surroundings that
the microphone sensors detect along with the sound sources of
possible leaks. Generally, background noise is higher in lower
frequencies. In noisy environments, select higher frequencies to
help discriminate the leak sounds.
Frequency / Spectrum Graph. A graphic chart on the display
shows the intensity of sound detected in all frequency ranges up to
52 kHz.
Frequency Spike. Spike in the frequency / spectrum graph that
indicates a significant source of sound in this specific frequency. If
this spike is within the frequency selection, the Imager visualizes
the source on the display.
Field-of-View (FOV). What is detected by the Imager at a
particular position and orientation in space.
Sound Reflections. Sound signals reflect, particularly on smooth
and flat surfaces. In certain conditions, the Imager shows on the
display a hot spot from the source of noise and one or more hot
spots from reflections.

ii900
Users Manual
4
Battery
XW Warning
To prevent personal injury and for safe operation
of the Product:
• Do not put battery cells and battery packs near
heat or fire.
• Do not put in sunlight.
• Do not disassemble or crush battery cells and
battery packs.
• Remove batteries to prevent battery leakage and
damage to the Product if it is not used for an
extended period.
• Connect the battery charger to the mains power
outlet before the charger.
• Use only Fluke approved power adapters to
charge the battery.
• Keep cells and battery packs clean and dry.
Clean dirty connectors with a dry, clean cloth.
W Caution
To prevent damage to the battery:
• Do not expose battery to heat sources or high-
temperature environments such as an
unattended vehicle in the sun.
• Do not store the battery on the charger for more
than 24 hours as reduced battery life may result.
• Charge the battery for a two-hour minimum at
six-month intervals for maximum battery life.
Without use, the battery will self-discharge in
approximately six months.
• Always operate in the specified temperature
range.
• Do not incinerate the Product and/or battery.
A Li-ion battery powers the Imager. The Imager includes two
batteries for a quick-change during operation.
The battery charges on the 2-bay charging base. The power
supply powers the charging base. Country-specific adapters are
included.
The battery is tested in accordance with and complies to:
• UN Manual of Tests and Criteria Part III Subsection 38.3
(ST/SG/AC.10/11/Rev.5) – also known as the
UN T19.T8 tests
• EN55022 and EN55024
• FCC part 15B
• UL2054/cUL60950-1
• IEC62133
•ROHS

Sonic Industrial Imager
Before You Start
5
The battery has an indicator with four LEDs (25 %, 50 %, 75 %,
and 100 % charge) and a test button. To check the battery charge,
push . The LEDs light to show the battery charge level. If all four
LEDs are on, the battery charge is at 100 % of capacity. See
Figure 1.
To recharge the battery:
1. Connect the ac power supply to the ac wall outlet and connect
the dc output to the charger base.
2. Put one or two batteries into bay of charger base.
3. Charge battery.
4. Remove battery and push  to check the status.
To install the battery:
1. Open the battery door. See Figure 1.
2. Insert the battery.
3. Close the battery door. Make sure the door is firmly closed.
Figure 1. Battery
A
BC
25%
50%
75%
100%
T
-DC+

ii900
Users Manual
6
Features/Buttons
Table 2 is a list of the Imager features.
Table 2. Feature/Control Descriptions
Button Function Button Function
Power On/Off Acoustic Sensor
Hand Strap Battery Compartment
Touchscreen Display USB-C Connector
Capture Button for Image or Start/Stop Video Neck Strap Anchor
1
2 3 4
5
8 7 6

Sonic Industrial Imager
Hand Strap/Neck Strap
7
Hand Strap/Neck Strap
The Imager includes a hand strap and a neck strap that makes it
easy to hold and operate as you take measurements. See Figure 2
for information about setup.

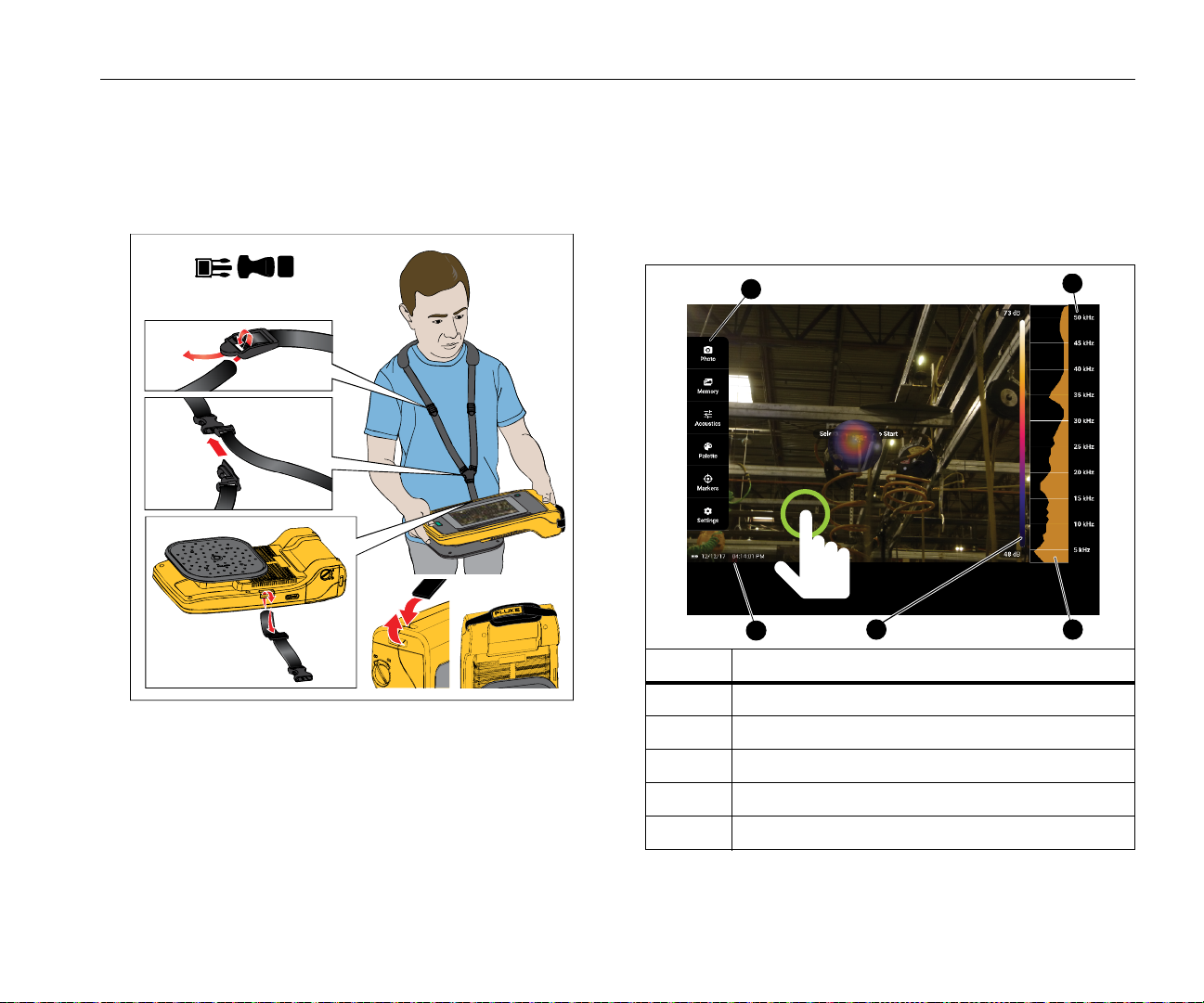

Figure 2. Hand Strap/Neck Strap
Display
The color display is a touchscreen that shows the test area as a
visual image combined with a sound image. See Table 3.
With the touchscreen you are able to set up and adjust all the test
parameters. For more information, see Basic Operation.
Table 3. Touchscreen
Item Description
Tools Menu
Frequency Range of Spectrum
dB SPL of Spectrum (average of all microphones)
Palette of dB SPL Scale
Time/Date Stamp
12
34
5

ii900
Users Manual
8
Menus
To view the tool menu, tap your finger on the display. This action
reveals the menu for parameter settings. Tap anywhere on the
display outside the menu to hide the menu.
Capture Mode (Image/Video)
When you push the Capture button, you save an image as a still
photo or a video of the scene.
To select the capture mode:
1. Open the tool menu.
2. Tap Image/Video to open the Capture Mode menu.
3. Tap either Image or Video.
The icon on the tool menu changes to show the selected
mode.
4. Tap anywhere on the display outside the tool menu to hide the
menu.
Memory
The Memory menu shows an overview of all the still photo and
video captures with a thumbnail image. Each thumbnail includes
an icon to indicate the file type:
 Image
Video
To view an image or video, tap on the image once to open the file
on the display.
To delete a single image file:
1. Tap on the image once to open the file on the display.
2. Tap  to delete the file.
To delete multiple image files:
1. Tap and hold an image file.
The mode changes to multi-file selection.
2. Tap all files to delete.
3. Tap  (see top right of the display) to delete multiple files.
4. Tap Delete to confirm the action.

Sonic Industrial Imager
Menus
9
An icon also identifies the annotation type.
Text Note
To add a text note:
1. Tap on the image file to open the file on the display.
2. Tap  to edit a note.
3. Tap x or the Close Keyboard icon.
To Delete a text note:
1. Tap on the image file to open the file on the display.
2. Tap  to edit a note.
3. Tap  to delete the note.
Photo Note
To add a Photo Note:
1. Tap on the image file to open the file on the display.
2. Tap  to open the Photo Note Menu.
3. Tap + to open the Camera view.
4. Push the Capture button to take the Photo.
The Imager adds the photo as a note.
5. Tap x to close the Photo Note menu.
To Delete a Photo Note:
1. Tap on the image file to open the file on the display.
2. Tap  to open the Photo Note Menu.
3. Tap on the Photo Note icon you want to delete.
4. Tap  to delete the Photo Note.

ii900
Users Manual
10
Acoustics
The Acoustics menu shows all the available settings for
adjustment.
Show dB Scale: On or Off
You can choose to show or hide the dB scale. Turn off the dB
scale to see a larger visual area on the display.
Min dB / Max dB
The minimum/maximum decibel settings determine the sound
level (intensity) that shows on the SoundMap. Decibel level
thresholds help you to visualize leaks in challenging conditions, for
example, very small leaks or a lot of background noise in the same
frequency range as a leak. For more information, see Frequency
Profiles.
Auto On: Automatically adjusts the Color Palette Scale to the
minimum/maximum decibel value for the received sound pressure.
Auto Off: The Color Palette Scale is a user-defined minimum/
maximum decibel value. Levels above the maximum value show
on the display with the same color as the maximum value. Levels
below the minimum value do not show on the display.
Decibel Scaling
Use the slider to manually adjust the minimum and maximum in
decibel values of the Color Palette Scale.
Frequency Profiles
A frequency profile is the band of frequencies that you select as an
overlay on the visual image. The high and low frequency defines
the band.
On: A preset profile is active. The icon in the center bottom of the
display allows you to select a profile or save the current settings as
a profile.
Off: Turn off the preset profile.
Palette
Select the palette for the acoustic image. The palettes offer an
equal, linear presentation of colors for the best presentation of
data detail.
Markers
When the Centerpoint Marker is On, the dB level of the
Centerpoint shows on the display as value on the center of the
display.
Note
The display shows the dB value of the selected
frequencies as received in the center of the Field-of-
View. This is not the dB value of the sound source.

Sonic Industrial Imager
Menus
11
Settings
The Settings menu shows all the available settings for adjustment.
File format
• set image format (JPEG or PNG)
• set video format (MP4 format)
• set the filename prefix
Date & Time
• set date and format
• set time and format
Display
• set the intensity of backlight
• set display timeout to save battery life
• set automatic power-off to save battery life
• display logo on or off
Localization
• select language
• set decimal separator to point or comma
Factory settings
• reset the unit to factory settings
Info
• firmware version
• certificates
• licenses

ii900
Users Manual
12
Basic Operation
The Imager works much like a point-and-shoot camera.
W Caution
Do not place hand on or obstruct the acoustic
sensor. Always use the sensor cover when the
Product is not in use.
1. Remove the sensor cover before use.
2. Aim the Imager at the test area.
Ideal distance is 3 m to 7.6 m (10 ft to 25 ft). With good
line-of-sight, >7.6 m to ≤21 m (>25 ft to ≤70 ft).
3. Select a band on the frequency spectrum on the right side of
the display. See Table 4.
4. Change the width of the band by sliding the edges or move by
sliding the middle of the band.
5. The optimum band depends on the environment and
application. As an example for finding air or gas leaks, start
with a band at 35 kHz and width that spans 5 kHz.

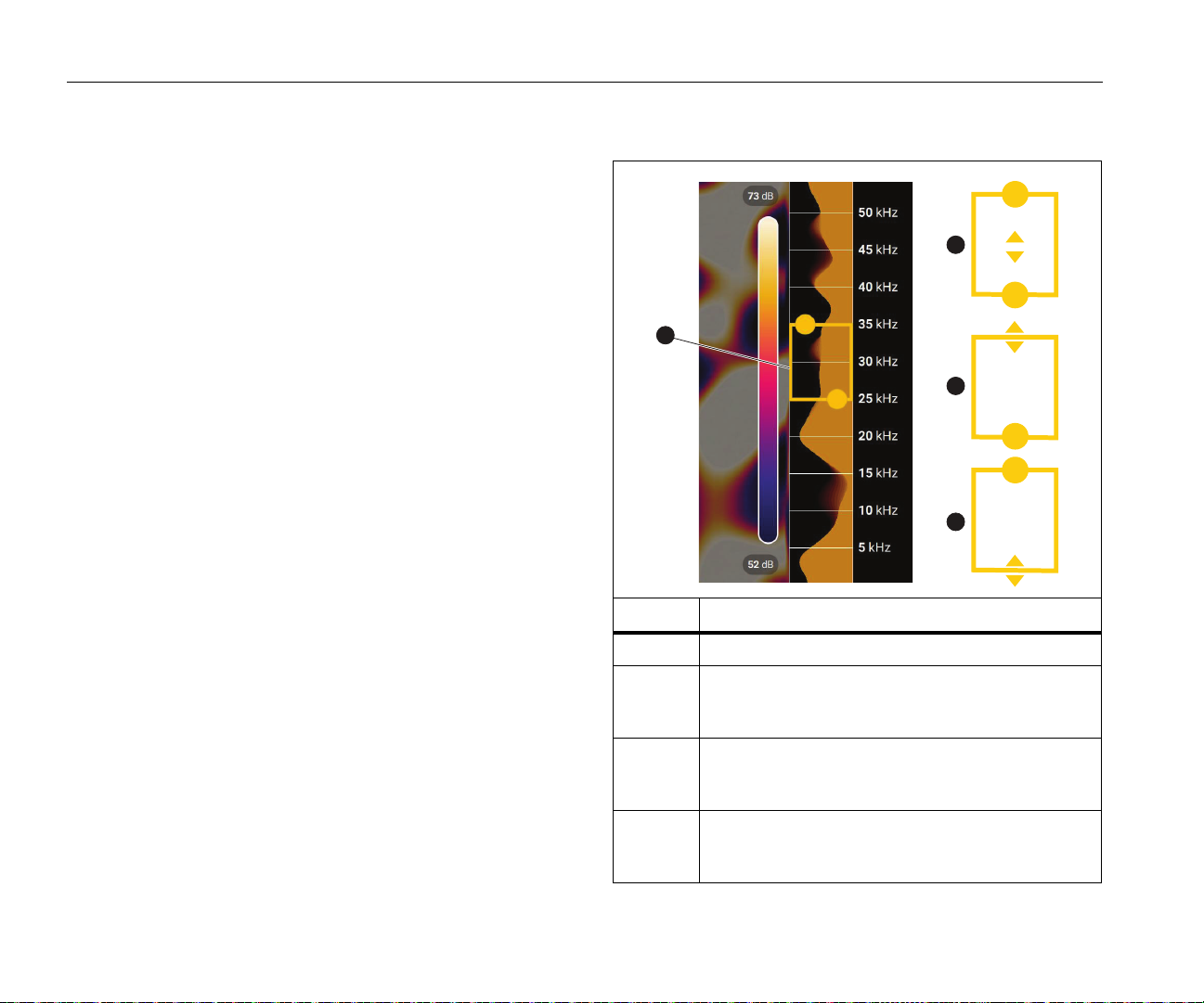

Table 4. Frequency Band Adjustment
Item Description
Frequency Band

Move within the Spectrum: Touch center of box until
arrows show. Slide the box up and down to move
the frequency range.

Adjust high end: Touch upper edge of box until
arrows show. Slide edge up to change high end of
the frequency range.

Adjust low end: Touch lower edge of box until
arrows show. Slide edge down to change low end of
the frequency range.
1
2
3
4

Sonic Industrial Imager
File Transfer
13
Note
High frequency peaks within the selected band may be
caused by sources other than a leak. In this case,
move the band to another frequency range.
If a strong source of sound is off the field-of-view, the display
shows a circular pattern (flower) of hot spots on the
SoundMap. In this case, scan around for the source of
sound.
6. When the area of interest clearly shows, push the Capture
button. The Imager saves the image to memory.
Tip: Sound signals reflect, particularly on smooth and flat
surfaces. In certain conditions, the Imager shows a steady spot on
the source of noise and one or more steady spots from the
reflections. Move the Imager around to help discriminate the sound
source from the reflections. The sound source remains in the
same location, while reflections will move.
For more information about how to view the images in memory,
see Memory.
File Transfer
To transfer saved files from the Imager to a PC:
1. Use the provided USB cable to connect the Imager to the PC.
A USB drive is added to the list of drives on your PC.
2. Open the added USB drive to view the saved images or video
files.
3. Copy the files you want to the local PC drive.
4. When transfer is complete, remove the USB drive from your
PC.

ii900
Users Manual
14
Firmware Update
Firmware updates are available for the Imager. Go to
www.fluke.com to find the most current firmware version.
To update:
1. Download the firmware update from the Fluke website to a
PC.
2. Use the provided USB cable to connect the Imager to the PC
with the new firmware file.
A popup message shows on the Imager display for permission
to accept the USB access.
3. Tap YES to confirm.
A USB drive is added to the list of drives on your PC.
4. Copy the firmware update file from the PC to the root folder of
the added USB drive. This is the memory of the product.
5. When the file copy is complete, safely remove the USB drive
from your PC.
A popup message shows on the Imager display that informs a
firmware update is found.
6. Tap YES to confirm and start the firmware update.
A popup message shows to request you to restart the Imager.
Maintenance
The Imager does not require routine maintenance.
W Caution
The optical surfaces of the lens are equipped with
high-quality optical layers. Avoid any contact with
these surfaces and protect these surfaces against
dirt and damages.
How to Clean the Case
Clean the case with a clean, damp cloth. Do not use abrasives,
isopropyl alcohol, or solvents to clean the case or lens/window.
Acoustic Sensor Care
Always keep the Acoustic Sensor protected with the provided
cover when the Imager is not in use. Avoid grease or liquids on the
microphones. If the microphones are dirty or clogged, carefully
clean with low air pressure from a compressed air duster at 25 cm
to 30 cm (10 in to 12 in) distance. Avoid too much air pressure.
When you turn on the Imager, it does a self-check routine that
detects faulty microphones. If you see a warning message to
service the Acoustic Sensor when you turn on the Imager, clean
the microphones with an air duster, restart the Imager, and check if
the message continues. If yes, contact a Fluke Service Center.
See How to Contact Fluke for more information.

Sonic Industrial Imager
Specifications
15
Environmental
This Imager has electronic printed circuit boards. These
components must be disposed of specifically when the device is at
the end of its use.
The manufacturer offers to take back the Imager from the
customer to ensure that the device is disposed of in an
environmentally-friendly manner when it is at the end of its use.
See How to Contact Fluke for more information.
Service
An authorized Fluke Calibration service center should service the
Imager at two-year intervals to maintain optimum performance.
Contact your equipment distributor or authorized Fluke Calibration
Service Center for any equipment performance failure or to
schedule regular maintenance service. See How to Contact Fluke
for more information.
Specifications
For complete specifications, see the Fluke website.

ii900
Users Manual
16
