Fluke 8808A Parts list manual

®
8808A
Digital Multimeter
Getting Started Manual
Specifications
PN 2716412
July 2007
© 2007 Fluke Corporation, All rights reserved. Printed in China
All product names are trademarks of their respective companies.

LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and
service. The warranty period is one year and begins on the date of shipment. Parts, product repairs, and
services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of
a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in
Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal
conditions of operation or handling. Fluke warrants that software will operate substantially in accordance
with its functional specifications for 90 days and that it has been properly recorded on non-defective media.
Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers
only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is
available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the
applicable international price. Fluke reserves the right to invoice Buyer for importation costs of
repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair,
or replacement of a defective product which is returned to a Fluke authorized service center within the
warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return
authorization information, then send the product to that service center, with a description of the difficulty,
postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following
warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke
determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal
condition of operation or handling, including overvoltage failures caused by use outside the product’s
specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair
costs and obtain authorization before commencing the work. Following repair, the product will be returned to
the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges
(FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR LOSSES,
INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or
limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not
apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other
decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other
provision.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
To register your product online, visit register.fluke.com

i
Table of Contents
Title Page
Introduction........................................................................................................ 1
Manual Set ......................................................................................................... 2
Contacting Fluke................................................................................................ 2
Safety Information ............................................................................................. 2
General Safety Summary............................................................................... 2
Symbols ......................................................................................................... 4
Unpacking and Inspecting the Meter ................................................................. 4
Storing and Shipping the Meter ......................................................................... 4
Power Considerations ........................................................................................ 5
Selecting the Line Voltage ............................................................................ 5
Replacing the Fuses....................................................................................... 5
Line-Power Fuse ....................................................................................... 5
Current-Input Fuses................................................................................... 6
Connecting to Line Power ................................................................................. 8
Turning Power On ............................................................................................. 9
Adjusting the Bail .............................................................................................. 9
Installing the Meter into an Equipment Rack .................................................... 9
Preparing the Meter for Operations via the RS-232 Interface ........................... 10
Setting Communication Parameters (RS-232) .............................................. 10
Options and Accessories.................................................................................... 11
Cleaning the Meter............................................................................................. 12

iii
List of Tables
Table Title Page
1. Safety Information ................................................................................................. 3
2. Safety and Electrical Symbols................................................................................ 4
3. Line Voltage to Fuse Rating................................................................................... 6
4. Line-Power Cord Types Available from Fluke...................................................... 8
5. Factory Settings of RS-232 Communication Parameters....................................... 11
6. Accessories............................................................................................................. 11
List of Figures
Figure Title Page
1. Replacing the Line-Power Fuse ............................................................................. 6
2. Replacing the Current-Input Fuses......................................................................... 7
3. Line-Power Cord Types Available from Fluke...................................................... 8
4. Bail Adjustment and Removal ............................................................................... 9
5. Boot removal.......................................................................................................... 10

8808A
Getting Started Manual
iv

1
Digital Multimeter
Introduction
The Fluke 8808A Digital Multimeter (hereafter referred to as the Meter) is a 5-1/2 digit
dual-display multimeter designed for bench-top, field service, and system applications.
The multiple measurement functions, plus the RS-232 remote interface, make the Meter
an ideal candidate for precision manual measurements and use in automated systems. For
portability, the Meter includes a carrying handle that also serves as a bail for bench-top
operation.
Some features provided by the Meter are:
•A dual vacuum fluorescent display that allows two properties of an input signal to be
displayed at the same time (e.g., ac voltage in one display and frequency in the other)
•5-1/2 digit resolution
•True-rms ac
•2, 4 wire resistance or patented 2x4 wire resistance measurement technique
•200 mV to 1000 Vdc range with 1 μV sensitivity
•200 mV to 750 Vac rms with 1 μV sensitivity
•200 Ωto 100 MΩwith 1 mΩsensitivity
•200 μA to 10 Adc with 1 nA sensitivity
•20 mA to 10 Aac with 100 nA sensitivity
•Frequency measurements from 20 Hz to 1 MHz
•Continuity and diode test
•Measurement rates of 2.5, 20 and 100 samples/second (slow, medium and fast,
respectively)
•Front-panel setup key for single key access to saved setups
•A compare mode to determine if a measurement is within predefined limits.
•Remote operation via the RS-232 interface
•Closed-case calibration (no internal calibration adjustments)

8808A
Getting Started Manual
2
Manual Set
The manual set for this Meter consists of a printed Getting Started Manual and a Users
Manual on a CD-ROM.
This manual contains basic getting started information, contacting Fluke, unpacking, and
general specifications. This manual also provides setup and operation information for the
Meter, descriptions of the Meter’s front and rear-panel features, and information about
setting up and powering up the Meter. Please read this information before operating the
Meter.
The Users Manual contains information on specifications, setup and operating from the
front panel. In addition, it contains information on using the Meter remotely from a PC or
instrument controller.
Contacting Fluke
To order accessories, receive operating assistance, or get the location of the nearest Fluke
distributor or Service Center, call:
USA: 1-888-99-FLUKE (1-888-993-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: [phone]
Japan: [phone]
Singapore: [phone]
Anywhere in the world: [phone]
Or visit Fluke's Web site at www.fluke.com.
To register this product, visit register.fluke.com.
Safety Information
This section addresses safety considerations and describes symbols that may appear on
the Meter or in the manual.
A Warning statement identifies conditions or practices that could result in injury or
death. A Caution statement identifies conditions or practices that could result in damage
to the Meter or equipment to which it is connected.
XWWarning
To avoid electric shock, personal injury, or death, carefully read
the information in Table 1, “Safety Information,” before
attempting to install, use, or service the Meter.
General Safety Summary
This instrument has been designed and tested in accordance with the European standard
publication EN61010-1: 2001 and U.S. / Canadian standard publications UL 61010-
1:2004and CAN/CSA-C22.2 No.61010.1:2004. The Meter has been supplied in a safe
condition.
This manual contains information and warnings that must be observed to keep the Meter
in a safe condition and ensure safe operation.
To use the Meter correctly and safely, read and follow the precautions in Table 1 and
follow all the safety instructions or warnings given throughout this manual that relate to
specific measurement functions. In addition, follow all generally accepted safety
practices and procedures required when working with and around electricity.

Digital Multimeter
Safety Information
3
Table 1. Safety Information
XW Warning
To avoid possible electric shock, personal injury, or death, read the following before
using the Meter:
•Use the Meter only as specified in this manual, or the protection provided by the Meter
might be impaired.
•Do not use the Meter in wet environments.
•Inspect the Meter before using it. Do not use the Meter if it appears damaged.
•Inspect the test leads before use. Do not use them if insulation is damaged or metal is
exposed. Check the test leads for continuity. Replace damaged test leads before using
the meter.
•Verify the Meter's operation by measuring a known voltage before and after using it. Do
not use the Meter if it operates abnormally. Protection may be impaired. If in doubt,
have the Meter serviced.
•Whenever it is likely that safety protection has been impaired, make the Meter
inoperative and secure it against any unintended operation.
•Have the Meter serviced only by qualified service personnel.
•Do not apply more than the rated voltage, as marked on the Meter, between the
terminals or between any terminal and earth ground.
•Always use the power cord and connector appropriate for the voltage and outlet of the
country or location in which you are working.
•Remove test leads from the Meter before opening the case.
•Never remove the cover or open the case of the Meter without first removing it from the
main power source.
•Never operate the Meter with the cover removed or the case open.
•Use caution when working with voltages above 30 V ac rms, 42 V ac peak, or 42 V dc.
These voltages pose a shock hazard.
•Use only the replacement fuses specified by the manual.
•Use the proper terminals, function and range for your measurements.
•Do not operate the Meter around explosive gas, vapor or dust.
•When using probes, keep your fingers behind the finger guards.
•When making electrical connections, connect the common test lead before connecting
the live test lead. When disconnecting, disconnect the live test lead before
disconnecting the common test lead.
•Disconnect circuit power and discharge all high voltage capacitors before testing
resistance, continuity, diodes, or capacitance.
•Before measuring current, check the Meter's fuses and turn OFF power to the circuit
before connecting the Meter to the circuit.
•When servicing the Meter, use only specified replacement parts.

8808A
Getting Started Manual
4
Symbols
Table 2 lists safety and electrical symbols that appear on the Meter or in this manual.
Table 2. Safety and Electrical Symbols
Symbol Description Symbol Description
WRisk of danger. Important
information. See manual. PStandby power ON / OFF
XHazardous voltage. Voltage > 30 V
dc or ac peak might be present. JEarth ground
BAC (Alternating Current) ECapacitance
FDC (Direct Current) GDiode
D
or
C
AC or DC (Alternating or Direct
Current) IFuse
RContinuity test or continuity beeper
tone YDigital signal
YPotentially hazardous voltage UMaintenance or Service
TDouble insulated <Recycle
hStatic awareness. Static discharge
can damage parts. ~
Do not dispose of this product as
unsorted municipal waste. Contact
Fluke or a qualified recycler for
disposal.
CAT II
Measurement Category II is for
measurements performed on
circuits directly connected to the
low voltage installation.
CAT I Measurement Category I is for
measurements not directly
connected to mains.
Unpacking and Inspecting the Meter
Every care is taken in the choice of packing material to ensure that your Meter will reach
you in perfect condition. If the Meter has been subject to excessive handling in transit,
there may be visible external damage to the shipping carton. In the event of damage, keep
the shipping container and packing material for the carrier’s inspection.
Carefully unpack the Meter from its shipping container and inspect the contents for
damaged or missing items. If the Meter appears damaged or something is missing,
contact the carrier and Fluke immediately. Save the container and packing material in
case you have to return the Meter.
Storing and Shipping the Meter
To prepare the Meter for storage or shipping, use the original shipping container if
possible, as it provides shock isolation for normal handling operations. If the original
shipping container is not available, use a box that is 17.5 x 15.5 x 8.0 inches, with
cushioning material that fills the space between the Meter and the sides of the box.

Digital Multimeter
Power Considerations
5
To store the Meter, place the box under cover in a location that complies with the storage
environment specifications described in the “General Specifications” section later in this
manual.
Power Considerations
The Meter operates on varying power distribution standards found throughout the world
and must be set up to operate on the line voltage that will power it. The Meter is packed
ready for use with a line voltage determined at the time of ordering. If the selected line
voltage does not match the power that the Meter will be plugged into, the Meter’s line-
voltage setting must be changed and replacement of the line fuse may be required.
Selecting the Line Voltage
The Meter operates on four different input line voltages. The selected line-voltage setting
is visible through the window in the line-fuse holder on the Meter’s rear panel.
1. Unplug the power cord.
2. Insert a small screwdriver blade into the narrow recess to the left of the fuse
holder and pry it to the right until the holder pops out. See Figure 1.
3. Remove the voltage-selector block from the fuse holder.
4. Rotate the selector block until the desired voltage rating faces outward.
5. Replace the selector block back into the fuse holder.
6. Install the fuse holder back into the Meter and reconnect the power cord.
Changing the line-voltage setting may require a different line-power fuse for proper
operation.
Replacing the Fuses
The Meter uses one fuse to protect the line-power input and two fuses to protect current-
measurement inputs.
Line-Power Fuse
The Meter has a line-power fuse in series with the power supply. Table 3 indicates the
proper fuse for each of the four line-voltage selections. The line-power fuse is accessed
through the rear panel.
1. Unplug the power cord.
2. Insert a small screwdriver blade into the narrow recess to the left of the fuse
holder and pry it to the right until the holder pops out. See Figure 1.
3. Remove the fuse and replace it with a fuse of an appropriate rating for the
selected line-power voltage. See Table 3.
4. Replace the selector block back into the fuse holder.
XW Warning
To avoid electric shock or fire, do not use makeshift fuses or
short-circuit the fuse holder.

8808A
Getting Started Manual
6
Table 3. Line Voltage to Fuse Rating
Line Voltage Selection Fuse Rating
100 / 120 0.125 A, 250 V (slow blow)
220 / 240 0.063 A, 250 V (slow blow)
120
eue20.eps
Figure 1. Replacing the Line-Power Fuse
Current-Input Fuses
The 200 mA and 10 A inputs are protected by user-replaceable fuses.
•The 200 mA input is protected by a fuse rated at 440 mA, 1000 V (fast blow),
10,000 A minimum breaking capacity.
•The 10 A input is protected by a fuse rated at 11 A, 1000 V (fast blow), 10,000 A
minimum breaking capacity.
XW Warning
For protection against fire or arc flash, replace a blown fuse
with a fuse of an identical rating.
To test the current-input fuses:
1. Turn on the Meter and plug a test lead into the INPUT VZYRHI terminal.
2. Press O.
3. Press Vto set the range to 200 Ω. Only the 200 Ω, 2 kΩ, and 20 kΩranges can
be used to test the mA input fuse.
4. Insert the other end of the test lead into the mA terminal. If the fuse is good, the
Meter displays a reading of 0.000 MΩ. If the fuse is blown, the Meter displays 0L
to indicate an overload.
5. Remove the test lead from the mA terminal and insert it into the 10 A terminal.
If the fuse is good, the Meter displays a reading of <1.000 Ω. If the fuse is blown,
the Meter displays 0L to indicate an overload.

Digital Multimeter
Power Considerations
7
XW Warning
To avoid electric shock, remove the power cord and any test
leads from the Meter before opening the current-input fuse
access door.
To replace the current-input fuses:
1. Unplug the power cord.
2. Turn the Meter upside down.
3. Remove the retaining screw on the fuse access door. See Figure 2.
4. Remove the protective cover from the fuse holders by slightly depressing the
back edge of the cover to unlatch it from the printed circuit board. Pull up on the
back edge of the cover and remove it from the fuse compartment.
5. Remove the defective fuse and replace it with a fuse of an appropriate rating. See
Table 3.
6. Replace the protective cover by pushing it over the fuses while aligning the
catches with the holes in the printed circuit board. Press the cover down until the
catches engage the printed circuit board.
7. Replace the fuse access door and install the retaining screw.
Fuses F2
F1
Bottom front
left corner
caw20.eps
Figure 2. Replacing the Current-Input Fuses

8808A
Getting Started Manual
8
Connecting to Line Power
XW Warning
To avoid shock hazard, connect the factory supplied three-
conductor line power cord to a properly grounded power outlet.
Do not use a two-conductor adapter or extension cord, as this
will break the protective ground connection. If a two-conductor
power cord must be used, a protective grounding wire must be
connected between the ground terminal and earth ground
before connecting the power cord or operating the Meter.
1. Verify that the line voltage is set to the correct setting.
2. Verify that the correct fuse for the line voltage is installed.
3. Connect the power cord to a properly grounded three-prong outlet. See Figure 3
for line-power cord types available from Fluke. Refer to Table 4 for descriptions
of the line-power cords.
LC-1 LC-2 LC-3 LC-4
LC-5 LC-6 LC-7
alh3.eps
Figure 3. Line-Power Cord Types Available from Fluke
Table 4. Line-Power Cord Types Available from Fluke
Type Voltage / Current Fluke Model Number
North America 120 V / 15 A LC-1
North America 240 V / 15 A LC-2
Universal Euro 220 V / 16 A LC-3
United Kingdom 240 V / 13 A LC-4
Switzerland 220 V / 10 A LC-5
Australia 240 V / 10 A LC-6
South Africa 240 V / 5 A LC-7

Digital Multimeter
Turning Power On
9
Turning Power On
1. If required, connect the Meter to line power.
2. Toggle the power switch on the rear panel so the “I” side of the switch is
depressed. The Meter will turn on and briefly illuminate all LCD segments.
Note
To save on power consumption, the Meter can be set to a standby mode by
pressing Pon the front panel. Press it again to bring the Meter up to full
power.
Adjusting the Bail
The bail (handle) is adjustable to provide two viewing angles. The bail is also adjustable
for carrying or storing the Meter.
To adjust the bail, pull the ends out to a hard stop (about 1/4-inch on each side) and then
rotate it to one of the four stop positions as shown in Figure 4.
To remove the bail, adjust it to the vertical stop position and pull the ends all the way out.
1 Store
3 Carry
4 Remove
2 Tilt up
eue21.eps
Figure 4. Bail Adjustment and Removal
Installing the Meter into an Equipment Rack
The Meter is mountable in a standard 19-inch rack using a rack mount kit. See the
“Options and Accessories” section later in this manual for ordering information.
To prepare the Meter for rack mounting, remove the bail and remove the front and rear
protective boots. To remove a boot, stretch a corner then slide it off as shown in Figure 5.

8808A
Getting Started Manual
10
To install the Meter into the rack, refer to the instructions provided with the Rack Mount
Kit.
eue22.eps

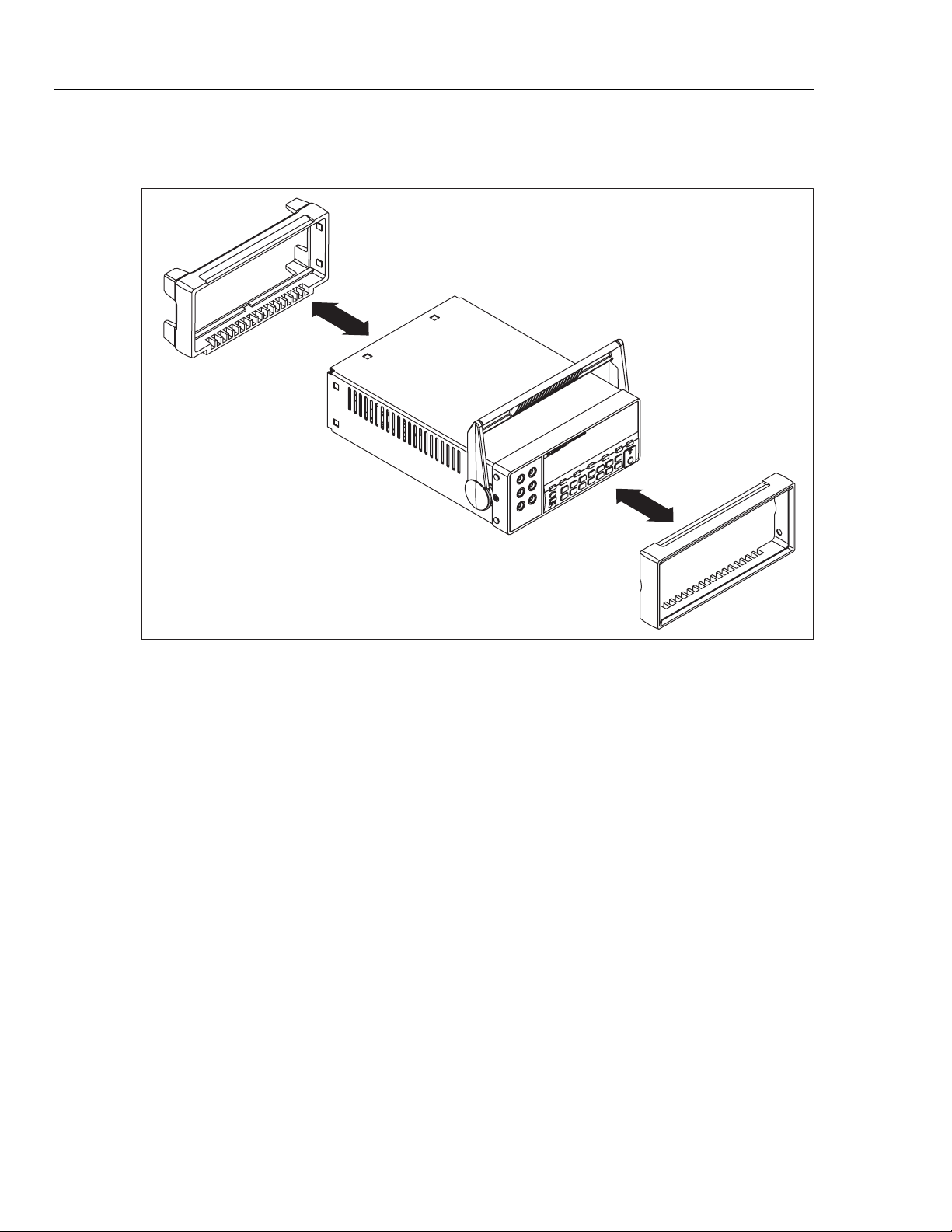

Figure 5. Boot removal
Preparing the Meter for Operations via the RS-232 Interface
The RS-232 interface allows ASCII asynchronous serial communication between the
Meter and a host, serial printer, or terminal. The following section describes setting up
the RS-232 port. Additional information on how to communicate and control the Meter
through the RS-232 port is contained in Chapter 5 of the 8808A Users Manual on the
accompanying CD.
Setting Communication Parameters (RS-232)
Table 5 provides the RS-232 parameters factory settings. Setting RS-232 communication
parameters can only be performed from the front panel.
In order for the Meter and host to communicate via the RS-232 interface, the
communication parameters of the Meter must match those of the host. If the
communications parameters of the host and Meter do not match, set the appropriate baud
rate and parity parameters as follows:
1. Press Pto turn the Meter on.
2. Press Qand K. The baud rate currently selected is shown in the primary
display and baud is shown in the secondary display.
3. Press Uor Vto scroll to the desired baud rate, and then press Rfor 2
seconds to set the RS-232 baud rate.

Digital Multimeter
Options and Accessories
11
4. Press Uor Vto scroll to desired data bits (7 or 8) selection, then press
Rfor 2 seconds to set parity. Echo appears on the secondary display, and 0n
or 0FF appears on the primary display.
5. To select an Echo mode, press Uor Vto select On or OFF, and then press
Rfor 2 seconds to set the selected Echo state. When Echo is on, each
command sent to the Meter over the RS-232 interface is echoed to the host's
display screen. When Echo is off, commands are not echoed.
6. Press Rto review the settings. When you are ready to accept the settings,
press and hold Rfor 2 seconds.
Table 5. Factory Settings of RS-232 Communication Parameters
Parameter Factory Setting
Interface RS-232 (Print-only rate set to 0)
Baud rate 9600
Parity None (parity bit 0)
Number of data bits 8 (7 data bits plus 1 parity bit)
Number of stop bits 1
Echo On
Options and Accessories
Table 6 lists available options and accessories.
Table 6. Accessories
Item Model / Part Number
Premium Test Lead Set TL71
Fuse, .25*1.25, 0.063 A, 250 V, Slow 163030
Fuse, .25*1.25, 0.125 A, 250 V, Slow 166488
F1 - Fuse, 11 A, 1000 V, Fast, 406INX1.5IN, BULK 803293
F2 - Fuse, 440 mA, 1000 V, Fast, 406INX1.375IN, BULK 943121
Rack Mount Kit 8845A & 8846A Single Y8846S
Rack Mount Kit 8845A & 8846A Dual Y8846D
RS-232 Cable (2 m) RS43
Precision Electronic Prob Set TL910
2X4 Wire Ohms 1000 V Test Lead TL2X4W-PTII
FlukeView Forms Basic Software FVF-SC5
FlukeView Forms Software Upgrade to enhanced version FVF-UG

8808A
Getting Started Manual
12
Cleaning the Meter
XW Warning
To avoid electric shock or damage to the Meter, never get water
inside the Meter.
WCaution
To avoid damaging the Meter’s housing, do not apply solvents
to the Meter.
If the Meter requires cleaning, wipe it down with a cloth that is lightly dampened with
water or a mild detergent. Do not use aromatic hydrocarbons, alcohol, chlorinated
solvents, or methanol-based fluids when wiping down the Meter.

®
8808A
Digital Multimeter
Specifications
PN 2716412
July 2007
© 2007 Fluke Corporation, All rights reserved. Printed in China
All product names are trademarks of their respective companies.
