1
ProcessMeter
Introduction
WWarning
Read “Safety Information” before using the
meter.
The Fluke 789 ProcessMeter™(referred to as “the meter”)
is a handheld, battery-operated tool for measuring
electrical parameters, supplying steady or ramping current
to test process instruments, and providing a > 24 V loop
power supply. It has all the features of a digital multimeter,
plus current output capability.
If the meter is damaged or something is missing, contact
the place of purchase immediately. Contact a Fluke
distributor for information about DMM (digital multimeter)
accessories. To order replacement parts or spares, see
Table 13 near the end of this manual.
Contacting Fluke
To contact Fluke, call one of the following telephone
numbers:
•Technical Support USA: 1-800-44-FLUKE (1-800-443-
5853)
•Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-
5853)
•Canada: 1-800-36-FLUKE (1-800-363-5853)
•Europe: [phone]
•Japan: [phone]
•Singapore: [phone]
•Anywhere in the world: [phone]
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.

789
Users Manual
2
To view, print, or download the latest manual supplement,
visit http://us.fluke.com/usen/support/manuals.
Address correspondence to:
Fluke Corporation Fluke Europe B.V.
P.O. Box 9090, P.O. Box 1186,
Everett, WA 98206-9090 5602 BD Eindhoven
U.S.A. The Netherlands
Safety Information
The Meter complies with EN61010-1:2001, ANSI/ISA
S82.01-2004, CAN/CSA C22.2 No. 1010-1:2004,
UL61010-1, Measurement Category III, 1000V, Pollution
Degree 2 and Measurement Category IV, 600V, Pollution
Degree 2.
A Warning identifies conditions and actions that pose
hazard(s) to the user; a Caution identifies conditions and
actions that may damage the meter or the equipment
under test.
International symbols used on the meter and in this
manual are explained in Table 1.
XWWarning
To avoid possible electric shock or personal
injury:
•Do not use the meter if it is damaged.
Before using the meter, inspect the case.
Look for cracks or missing plastic. Pay
particular attention to the insulation
surrounding the connectors.
•Make sure the battery door is closed and
latched before operating the meter.
•Remove test leads from the meter before
opening the battery door.
•Inspect the test leads for damaged
insulation or exposed metal. Check test
lead continuity. Replace damaged test
leads before using the meter.
•Do not use the meter if it operates
abnormally. Protection may be impaired.
When in doubt, have the meter serviced.
•Do not operate the meter around
explosive gas, vapor, or dust.
•Do not use in a damp or wet environment.

ProcessMeter
Safety Information
3
•Use only type AA batteries, properly
installed in the meter case, to power the
meter.
•When servicing the meter, use only
specified replacement parts.
•Use caution when working above 30 V ac
rms, 42 V ac pk, or 60 V dc. Such voltages
pose a shock hazard.
•When using the probes, keep fingers
behind the finger guards on the probes.
•Connect the common test lead before
connecting the live test lead. When
disconnecting test leads, disconnect the
live test lead first.
WCaution
To avoid possible damage to meter or to
equipment under test:
•Disconnect the power and discharge all
high-voltage capacitors before testing
resistance or continuity.
•Use the proper jacks, function, and range
for the measurement or sourcing
application.

789
Users Manual
4
Table 1. International Symbols
Symbol Meaning Symbol Meaning
BAlternating current JEarth ground
FDirect current IFuse
cAlternating or direct current PConforms to European Union directives
WRisk of danger. Important information. See manual. )Conforms to relevant Canadian Standards
Association directives
MBattery TDouble insulated
!
To 61010-1
2nd Edition
Meets Underwriters’ Laboratories safety
requirements ®Inspected and licensed by TÜV Product
Services
CAT III
IEC Overvoltage Category III
Category III equipment is designed to protect
against transients in equipment in fixed equipment
installations, such as distribution panels, feeders
and short branch circuits, and lighting systems in
large building.
;Conforms to relevant Australian standards
CAT IV
IEC Overvoltage Category IV
CAT IV equipment is designed to protect against
transients from the primary supply level, such as an
electricity meter or an overhead or underground
utility service.
~Do not dispose of this product as unsorted
municipal waste. Go to Fluke’s website for
recycling information.

ProcessMeter
How to Get Started
5
How to Get Started
If familiar with the Fluke 80 Series DMM, read “Using the
Current Output Functions,” review the tables and figures in
“Getting Acquainted with the Meter,” and begin using the
meter.
If unfamiliar with Fluke 80 Series DMMs, or DMMs in
general, read “Measuring Electrical Parameters” in
addition to the sections referenced in the previous
paragraph.
The sections following “Using the Current Output
Functions” contain information about the power-up options,
and battery and fuse replacement instructions.
Later, use the Product Overview to refresh your memory
about the various functions and features that can be used.
mA
mA
mA
mA
mV
V
V
A
LOOP POWER
250
HART
OFF
mA
ACOM
V
Rotary
Switch
0%
RANGE HOLD
REL
MIN MAX
%STEP COARSE FINE
SpanCheck
Hz
100%
789
PROCESSMETER
Pushbuttons
Input/Output
Jacks
Display
CAT IV
600 V
anw014f.eps
Figure 1. Fluke 789 ProcessMeter

789
Users Manual
6
Getting Acquainted with the Meter
To become familiar with the features and functions of the
meter, study the following figures and tables.

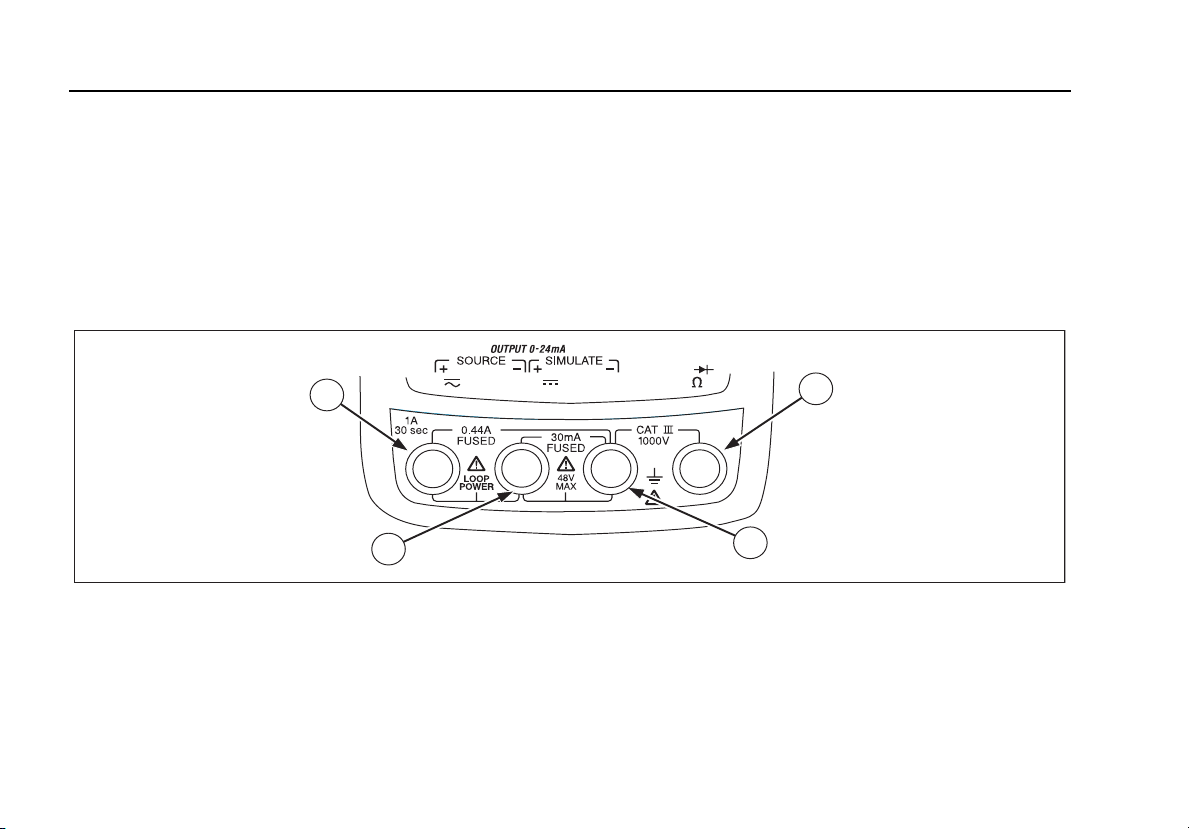

•Figure 2 and Table 2 describe the input/output jacks.

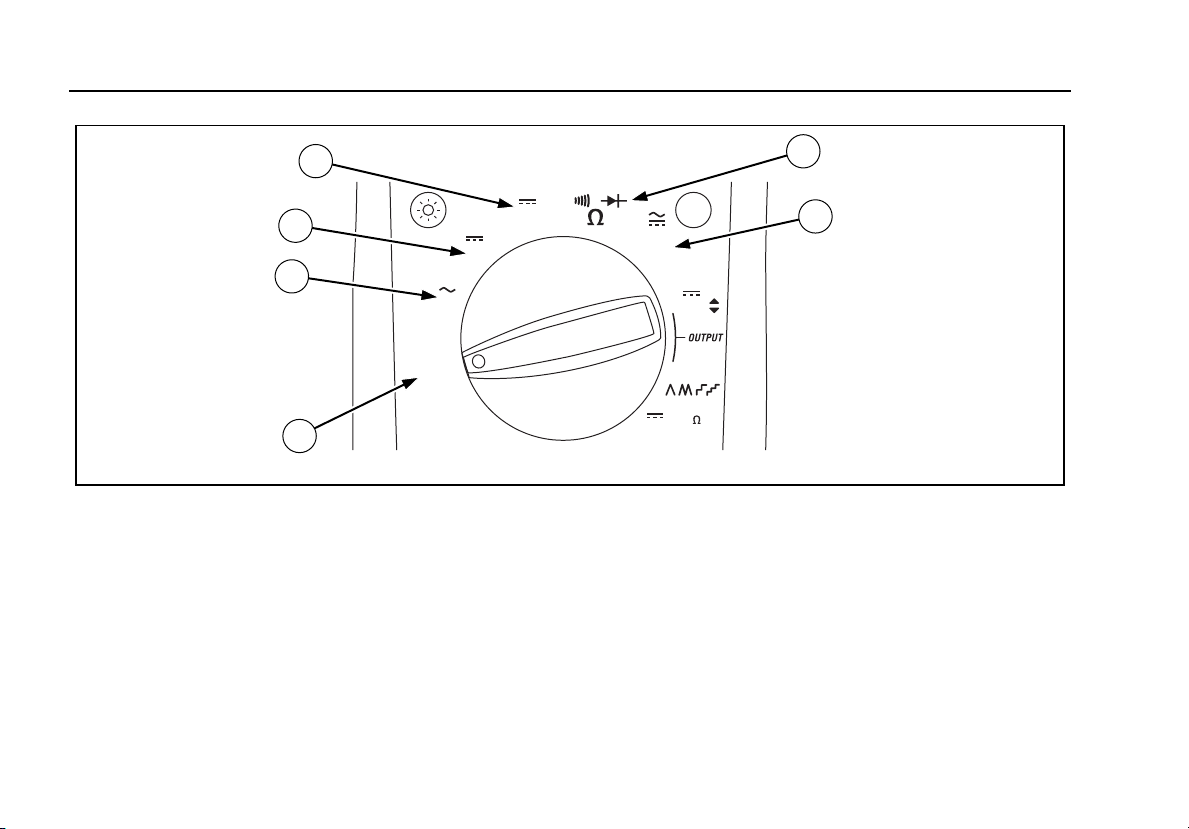

•Figure 3 and Table 3 describe the input functions of
the first six rotary function switch positions.
•Figure 4 and Tables 4 and 5 describe the output
functions of the last three rotary function switch
positions.
•Figure 5 and Table 6 describe the functions of the
pushbuttons.
•Figure 6 and Table 7 explain what all the elements of
the display indicate.
13
4
2
mA
ACOM
V
CAT IV
600 V
anw001f.eps
Figure 2. Input/Output Jacks

ProcessMeter
Getting Acquainted with the Meter
7
Table 2. Input/Output Jacks
Item Jack Measurement Functions Source Current
Function
Simulate Transmitter
Function
AA cInput for current to 440 mA
continuous. (1 A for up to 30
seconds.) Fused with a 440 mA
fuse.
Output for dc current to 24 mA.
Output for loop power supply.
BmA dInput for current to 30 mA.
Fused with a 440 mA fuse.
Common for dc current output to
24 mA. Common for loop power
supply.
Output for transmitter
simulation to 24 mA. (Use in
series with an external loop
supply.)
C
V
Input for voltage to 1000 V, Ω,
continuity, and diode test.
DCOM Common for all measurements. Common for transmitter
simulation to 24 mA. (Use in
series with an external loop
supply.)

789
Users Manual
8
mA
mA
mA
mA
mV
V
V
A
LOOP POWER
250
HART
OFF
2
3
4
1
6
5
anw002f.eps
Figure 3. Rotary Function Switch Positions for Measurements

ProcessMeter
Getting Acquainted with the Meter
9
Table 3. Rotary Function Switch Positions for Measurements
No. Position Function(s) Pushbutton Actions
AOFF Meter off
BSDefault:
Measure ac V
h
Frequency counter
MSelects a MIN, MAX, or AVG action
RSelects a fixed range (hold 1 second for auto range)
HToggles AutoHold
rToggles relative reading (sets a relative zero point)
CTDefault:
Measure dc V
h
Frequency counter
Same as above
DUDefault:
Measure dc mV
h
Frequency counter
Same as above
EVDefault: Measure Ω
Gfor continuity
J(Blue) Dtest
Same as above, except diode test has only one range
FWHigh test lead in cA: Measure A dc
J(Blue) selects ac
High test lead in dmA: Measure mA
dc
Same as above, except there is only one range for each input
jack position, 30 mA or 1 A

789
Users Manual
10
mA
mA
mA
mA
mV
V
V
A
LOOP POWER
250
HART
OFF
2
3
1
anw008f.eps
Figure 4. Rotary Function Switch Positions for mA Output

ProcessMeter
Getting Acquainted with the Meter
11
Table 4. Rotary Function Switch Positions for mA Output
No. Position Default Function Pushbutton Actions
AOUTPUT
X
Test leads in
SOURCE:
Source 0 % mA
Test leads in SIMULATE:
Sink 0 % mA
% STEP Xor W: Adjusts output up or down to the next 25 % step
COARSE Xor W: Adjusts output up or down 0.1 mA
FINE Xor W: Adjusts output up or down 0.001 mA
Esets output to 0 %
Fsets output to 100 %
BOUTPUT
Y
€onp
Test leads in
SOURCE:
Source repeating
0 % -100 %-0 %
slow ramp (€)
Test leads in SIMULATE:
Sink repeating
0 % -100 %-0 %
slow ramp (€)
J(Blue) cycles through:
•Fast repeating 0 % -100 % - 0 % ramp (oon display)
•Slow repeating 0 % -100 % - 0 % ramp in 25 % steps (non
display)
•Fast repeating 0 % -100 % - 0 % ramp in 25 % steps ( pon
display)
•Slow repeating 0 % -100 % - 0 % ramp (€on display)
Table 5. Rotary Function Switch Position for Loop Supply
No. Position Default Function Pushbutton Actions
C
mA
LOOP POWER
250
HART
Test leads in SOURCE:
Supply > 24 V loop power, measure mA
J(Blue) cycles through:
•250 Ωseries resistor for HART
communication switched in
•250 Ωseries resistor switched out

789
Users Manual
12
6
7
0%
RANGE HOLD
REL
MIN MAX
%STEP COARSE FINE
SpanCheck
Hz
100%
3
2
1910 8
4 5
anw003f.eps
Figure 5. Pushbuttons
