Fly Products LUNA User manual

Copyright by FLY Products s.r.l.
Via Perù n. 30
63013 GROTTAMMARE (AP) - ITALY
tel./fax [phone]
www.flyproducts.com - [email protected]
USER’S MANUAL

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
2
Index
Section Description
1
INTRODUCTIONS
2
FEATURES
3
DIMENSIONS
4
TRIKE PARTS
5
ASSEMBLING THE FRAME
6
STANDARD PROCEDURES, CHECKLISTS, ENGINE START
7
PERIODICAL CHECKS
8
MAINTENANCE AND CARE
Section 1. INTRODUCTIONS
This Paratrike must be used within the limits and according to the
instructions in this manual.
The manual must be on board during flying
In addition to some legal issues we added some important operation informations.
In order to fly this paratrike the pilot needs a valid license. There may be additonal
licenses required if a passenger is on board.
Before flight the pilot must make himself familiar with all the features and
characteristics of the Luna.
It is a must to read this handbook properly and to study the Luna trike carefully on
the ground.

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
3
Section 2. FEATURES
- Paratrike with steerable front wheel
- Frame made of T.I.G. welded aluminium tube
- Tandem seater
- Springy landing gear, cable operated front brake
- Two stroke in-line engine Rotax 582 with electric starter and centrifugal clutch
- Three-blade propeller 1600 mm, Type Helix R-L-08-3
- Takeoff-weight (max.) 368 kg
- Fuel capacity L 48
- Paraglider: Luna Wing, 28 m2, wing span 10 m
- Maneuver speed 60 km/h
- Min. recommended approach speed 40 km/h
- Minimum speed 35 km/h
- The maximum allowed speed must not be exceeded.
- The tire pressure must be between 1,5 and 2 bar on the rear axle and 1 bar on the front wheel.
Section 3. DIMENSIONS

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
4
Section 4. TRIKE PARTS
Section 5. ASSEMBLING THE FRAME

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
5

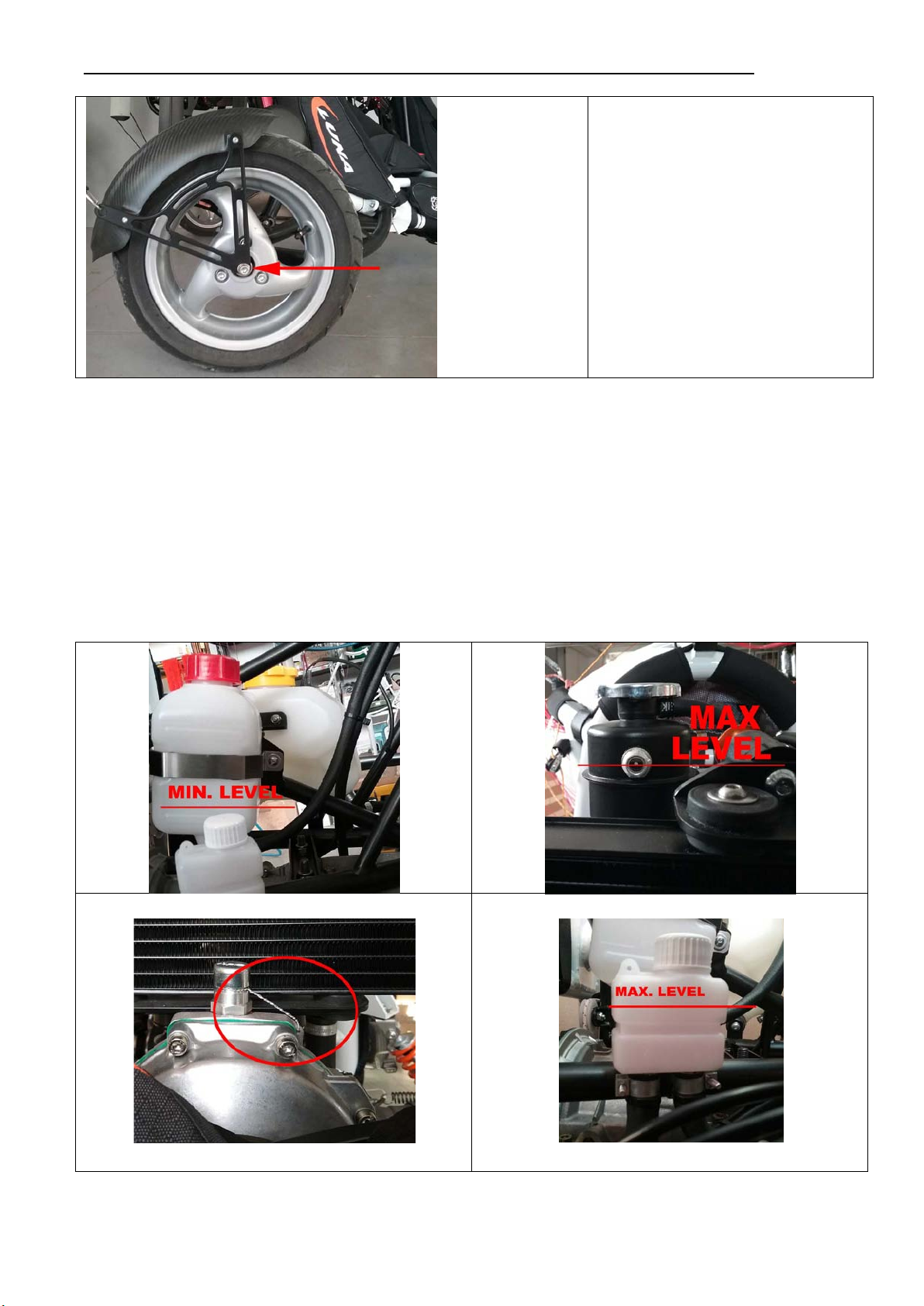

Fix the wheels with
Loctite 243
Section 6. STANDARD PROCEDURES, CHECKLISTS,
ENGINE START
WARNING
Luna Trike comes without oil mixture lubrification (Full Synthetic 2T, ASTM/CEC API-
TC), gear oil (API-GL5 or GL6, SAE 140EP or 85W-140P) 400 cm³, and cooling agent.
Take sure to put the exactly quantity of each agent before starting.
Put the secures on drive tap
Oil full synthetic 2T

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
6

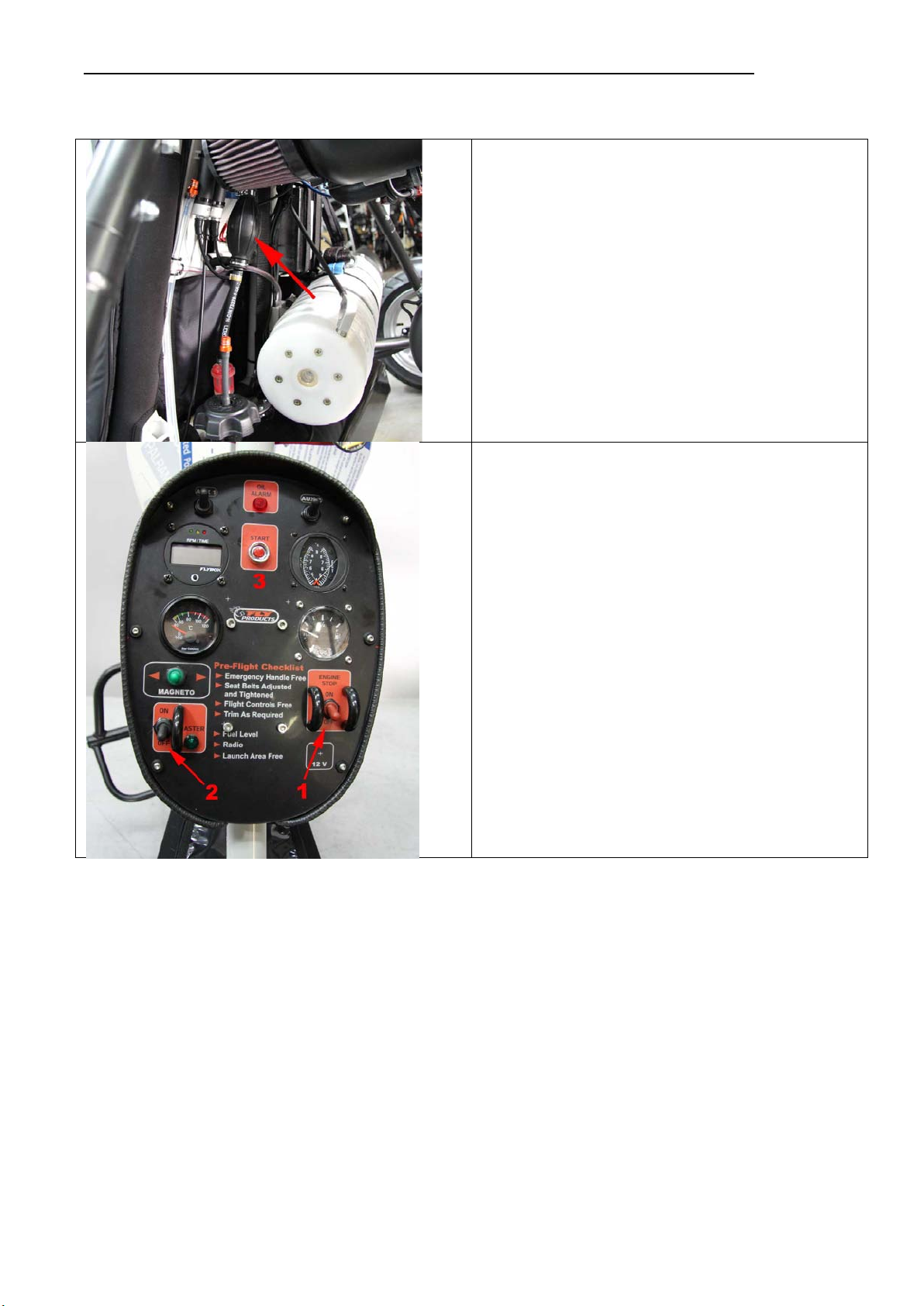

After first start check all the levels (not of the gearbox).
First, pumping fuel in the carburetors.
1- Move the main switch to the upper
ON position.
2 - Move the Master switch to the
upper ON position.
3 - Start the engine by pressing the
red push button or by using the pull
starter on the side of the engine.
ENGINE INSTRUMENTATION
The following figures must not be exceeded:
Rev. per minute Max 6400 Rpm for max 5 minutes.
Water temperature 60 - 80°C (max 90°)
EGT (Exhaust Gas Temp.) 550 - 600 °C

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
7
LUNA WING
This chapter is about the wing of the LUNA trike.
We will focus here on the specialties of the canopy and its suspension system.
The Wing was designed as a part of the Luna system together with the newly
designed trim system, all components were carefully adjusted for maximum
performance and safety.
Therefore the glider man only be flown on the Luna, and the Luna is not allowed
to be used with any other wing as long as Fly Products does not provide any other
information.
THE FIRST FLIGHT
Carry out your first few flights only when the weather is stable, and in a familiar
area.
In the beginning you should steer gently and carefully so that you can get used to
the reactions of the paraglider while you are not in a stressful situation.
Caution!
Do not overestimate yourself! Don't let a paraglider that can easily be manoeuvred
or the behaviour of other pilots make you careless.
Section 7. PERIODICAL CHECKS:
SAFETY ISSUES FOR GROUND TRANSPORTATION
Prior to towing on public roads a safety check has to be carried out.
In particular the main frame has to be checked for cracks, especially in the area of
the coupling tube.
In case of a hard landing the rims could be deformed slightly, causing the wheel
bolts to settle and to become loose.
The tire pressure must be between 1,5 and 2 bar on the rear axle and 1 bar on the front wheel.
DAILY INSPECTION
Flight safety depends mainly on correct checks and maintenance procedures.
1. Engine: Check for any leakage, loose screws, cracks etc.
2. Propeller: Check correct sit, cleaning, tight screws and for damage.
3. Check oil and cooling agent level.
Cooling agent must checked in the expansion bottle.
4. Check the gear box, the cooling system and the fuel system for any
leakage. Especially check the tube connections.
5. Check the electrical connectors, the spark plug socket, the gas cables and
the bowden cable distributor for a tight sit and mechanical integrity.
.CHECK PRIOR TO FLIGHT
Prior to any flight the responsible pilot has to carry out a visual inspection.
The pilot learns the necessary knowledge during his flight training and during a
special briefing for the Luna, done by the dealer or flight school who sells the

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
8
trike.
Section 8. MAINTENANCE AND CARE
Keep the Luna and the wing clean and dry. Don’t use any aggressive solvents.
Use grease or engine oil wherever metal slides over metal (rear suspension struts).
Never use grease or oil between metal and plastic (front struts): The plastic will
swell!
Use there silicone based lubricants instead.
Never use grease or oil or something similar on the upper bearing of the trim
levers.
EVERY 25 HOURS
- visible inspection of all screws
- Check the play and the free movement of any moveable parts like wheels,
suspension system, trim levers etc.
-Lubrication of those parts: Metal to Metal: grease or engine oil,
-Metal to plastic: Silicone spray,
- Check the friction force in the trim lever bearing,
- Check of the front brake,
- Check of the gear oil level,
- Check of all bowden cables,
- Check of all belts, belt buckles, guide rollers,
- Optical check of all weld seams for any cracks
- Check of all rubber-metal-joints for cracks
- Check of the cooling agent level
- Tension check of the water pump tension
- Tightness check of the cooling system (leakage, water loss)
EVERY 100 HOURS
Same as 25h-Check, plus:
- spark plug change NGK - BR-8-ES
- Gear oil change. (read the gear-box manual)
For further information check this link or scan the Qr code
http://www.flyproducts.com/eng/trike/scelta-trike/luna/

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
9
Maintenance overview.
Make a note on this summary table of all maintenance operation for a detailed maintenance overview
refer.
Operation
time (h) Date check Inspector Remarks

LUNA USER’S MANUAL ____ ___ VER. 1.1
___________________________________________________________________________
© Copyright FLY Products s.r.l. Page
10
Warranty
Fly Products (Seller, Our, Us) warrants the original Purchaser that this product shall be free from defects in
materials and workmanship under normal use for a period of 12 months from the date of purchase. If for
any reason this product is powered by fuel that does not meet the criteria stated in the engine manual, or is
used with other equipment, parts or replaceable items (such as consumables) which are neither made nor
approved by Fly products, Fly Products shall not be responsible for any loss of quality, degradation of
performance or actual damage that results from the use of such fuel, equipment, parts or replaceable items.
Seller obligation and liability under this warranty is expressly limited to repairing or replacing, at Seller's
option, any product not meeting the specifications. The dealer, from whom you purchased the product, or
Fly Products, will repair the product free-of-charge. In no event shall Fly Products be liable to the
Purchaser or any other person for any loss or damage whether direct ot indirect or consequentialor
incidental, including without limitation, any damages or claims by third parties caused by defective
products or otherwise arising from the incorrect or otherwise improper use of this product. This w arranty
applies only to defects in parts and workmanship relating to normal use. It does not cover:
• damage arising from improper maintenance or negligence
•damage caused by incorrect pilot operation
• damage caused by wind or adverse weather conditions
• fair wear and tear
Fly Products shall, at its option, repair or replace any defective products. Improper use, that is, use for
purposes otherthan those m entioned in this m anualw illvoid the w arranty. 
Limited warrantyFly Productsshallnotbe liable to the Purchaserorany otherperson fordam age arising
from improper storage, handling or use of this product.R e p a irs to th is P ro d u c t m u s t b e ca rrie d o u t b y
qualified technicians appointed by Fly Products. This Product must be assembled in accordance with the
instructions in this manual.
To obtain warranty service, please contact your dealer or Fly Products directly. Shipping charges are the
responsibility of the purchaser.
Internet info and upgrade
For information, more details and news see our internet site: www.flyproducts.com
