Worksman MG/MGR Unisex Bicycle Owner’s Manual
Worksman Trading Corporation –94-15 100th Street –Ozone Park, NY 11416 –[phone]
www.worksmancycles.com Parts list UNISEXBIKE16
Congratulations! You have purchased an American-made
Worksman Unisex bicycle. Worksman bicycles are considered the
most durable bicycles available. This manual covers the MG and
MGR Unisex Comfort Step-Through 24”Cruisers.
Before assembling and riding, be sure to read this manual
thoroughly. Always follow the rules of safe riding. Always keep
your Worksman in tip-top shape by replacing worn parts as needed
with genuine Worksman Cycles parts. (Do not use generic bicycle
parts.) With simple maintenance, your Worksman will perform
reliably day after day, year after year. Your bicycle has been hand-
made in the USA by our American craftspeople. Our reputation
rides along with you, so your ultimate satisfaction is our goal.
Worksman MG/MGR Bicycle Parts List (Subject to change without notice as we are constantly seeking ways to improve our products.)
Frame, Fork and Headset Parts (Specify color of frames and forks when ordering.)
Part # Description Part # Description
3900R Frame: Unisex reinforced 154 Fork (24”, Silver)
F818 Strap for fork (Drum brake only) 55A Stem for Handlebar
Headset and Other Parts
55F Handlebar 5031 Front Reflector Bracket
48 Headset Cups (pair) 49 Headset Bearings (pair)
50A Headset Complete (48,49,52,53,54) 51 Bottom Cone (Presses on fork)
52 Top Adjusting Cone (threaded) 53 Key Washer
54 Fork Top Locknut 55B Handgrips (pair)
Crank Parts (Pedal Section) and Chains
Part # Description Part # Description
1265 Crank Parts (1266,1268,1269,1271,1272,1273,1274) 1265BMXS Deluxe Sealed Crank Set (Upgrade)
1266 Crank Bearings (pair) 4915 Chain Adjusters (for coaster brake)
1268 Cups for Crank Housing (pair) 1269 Stationary Washer (inside)
1271 Key Washer (outside) 1272 Adjusting Cone (threaded, outside)
1273 Stationary Cone (inside) 1274 Crank Locknut
3275 Crank (One piece, forged, 5.5”) 7217 Pedal Set (pair)
4910P-BLK Chainguard
MGR Specific Parts (Below) MG Specific Parts (Below)
1380 Sprocket 44 Tooth (3/16”) (Standard) 1380B Sprocket 44 Tooth (1/8”) (Standard)
1380D Sprocket 36 Tooth (3/16”) (Optional) 1380C Sprocket 36 Tooth (1/8”) (Optional)
4914A Chain Connecting Link (1/2”x3/16”) 4914M Chain Connecting Link (1/2”x1/8”)
4914R Chain Half-Link (3/16”) 4914R1 Chain Half-Link (1/8”)
4914AA Chain (3/16”x103 links –44T sprocket) 4914W Chain (1/8”x103 links –44T sprocket)
4914BB Chain (3/16”x97 links –36T sprocket) 4914H Chain (1/8”x97 links –36T sprocket)
Baskets (Optional)
Part # Description Part # Description
133WH Removable Front Basket (14.5”x9.5”x9”) 139 Front Wire Basket (18”x13”x6”)
Seats, Seatpost, Kickstand
Part # Description Part # Description
4912V Saddle (10”w/ springs) 6910V Saddle (13”w/o springs)
6911V Saddle (13”extra-wide w/ springs) 4908D Seatpost (1”)
4911D Seatpost Clamp (Post to frame) 7229A Kickstand

Wheels, Tires, and Tubes
Part # Description Part # Description
MGR (24”x 2.125”) Wheels and Parts (Below) MG (24”x 1.75”) Wheels and Parts (Below)
4135QA 24”Front Wheel w/o Tire (No drum brake) M24F 24”x 1.75”Front Wheel w/o Tire
7724A 24”Front Drum Brake Wheel w/o Tire 466A 24”x 1.75”Front Drum Brake Wheel
4135A 24”x 2.125”Rear Wheel w/o Tire M24CB 24”x 1.75”Rear Wheel w/o Tire
SMX243CB 24”x 2.125”Rear 3 SPEED Wheel w/o Tire M243CB 24”x 1.75”Rear 3 SPEED Wheel
4922E 24”x 2.125”Blackwall Tire 6032 24”x 1.75”Blackwall Tire
4922EKV 24”x 2.125”Kevlar Blackwall Tire 6032W 24”x 1.75”Whitewall Tire
4922EWSW 24”x 2.125”Whitewall Tire 6032A 24”x 1.75”Tube (Standard)
4923E 24”x 2.125”Tube (Standard) 1014K Spokes & Nipples (.080”) for 24”Wheels
6023B 24”x 2.125”Tube (Puncture Resistant)
1014C Spokes & Nipples (.120”) for 24”Wheels
1017B 24”Rimstrip (1.75”OR 2.125”) 1018 Valve Cap (Any tube)
Fenders and Parts (MG Only) (Fenders are not available for Heavy-Duty MGR bicycles.)
FSB24 Complete Fender Set (Front & Rear) 95 Fender L-Bracket
4803 Front Fender 4804 Rear Fender
4803K Front Fender Parts Kit (All hardware) 4805 Front or Rear Fender Brace
Safety and Comfort Accessories
Part # Description Part # Description
3979 Ding Dong Chime Bell 303 Squeeze Bulb Horn
3973 Mega-Horn (battery operated) 201 Cable and Lock set
4963 Rear View Mirror 5032 Reflector Kit (Does not include 5031)
3978 Safety Flag on Pole P19 Bicycle Helmet
101710 Flashing Strobe Light (clear lens) 101714 Flashing Strobe Light (red lens)
7217-41197 Pedals with Velcro Foot Straps (pair) 3975 Generator Light Set
1006 Air Foot Pump 1000 Spoke Wrench
2000 Chain Rivet Remover Tool 1265TW Crank Cone Wrench
1001 Pedal Wrench
6001A Patch Kit (50) 3976 Battery Operated Headlight
7217GS12 “Glowspeck”Flashing Pedals –Flash without batteries!
ASSEMBLY INSTRUCTIONS
Please read this manual carefully prior to performing the simple finishing assembly and prior to riding. We recommend
that a qualified bicycle mechanic assemble any cycle. Carefully remove the bicycle from the carton. You will notice the
bicycle is mostly pre-assembled at the factory.
TO ATTACH FRONT FORK/WHEEL ASSEMBLY TO THE FRAME:

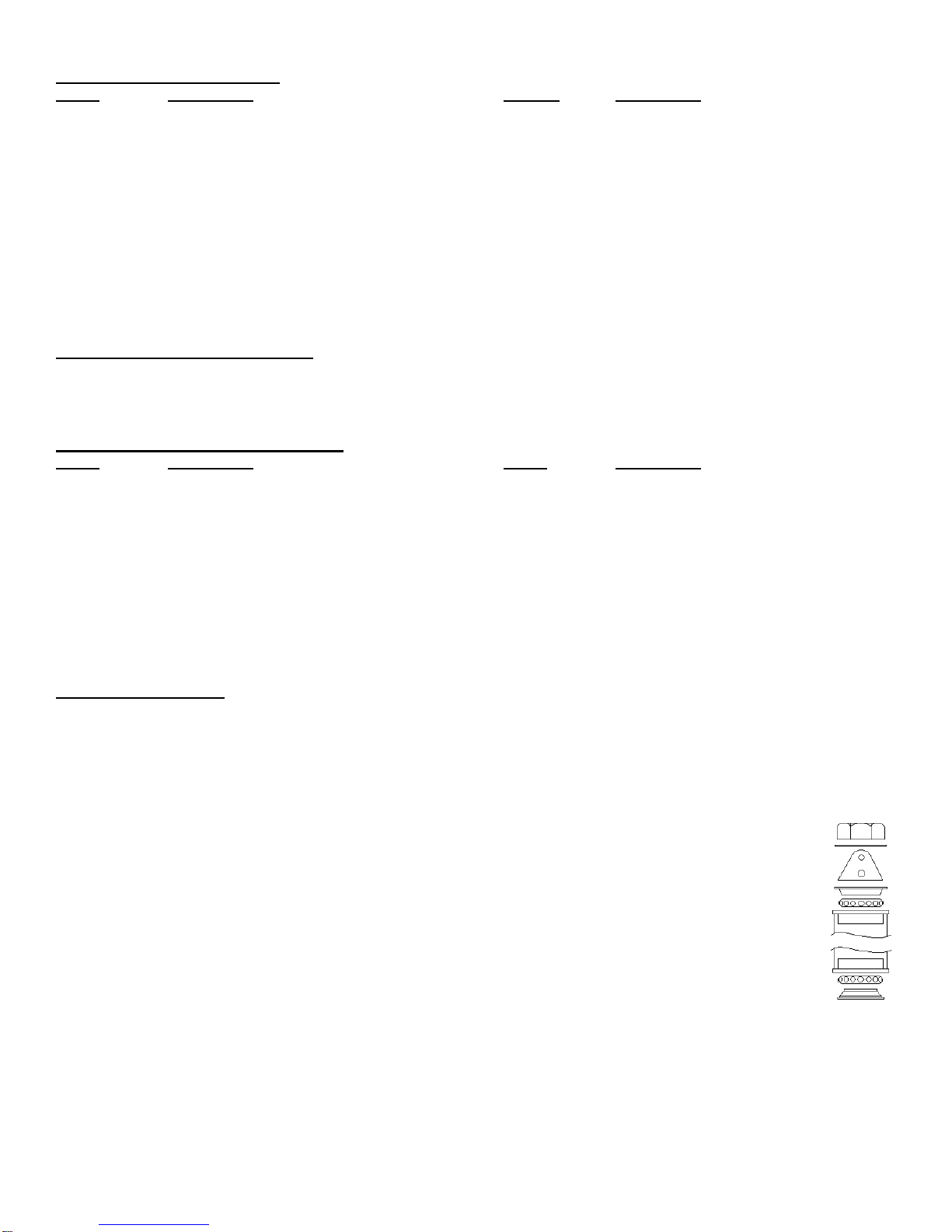

Headset Assembly:
1) Grease headset cups (48) with Rustolene 200 (light grease) or equal. Bearings (49) are pre-greased at the
factory, but it is wise to add lubrication before assembly.
2) Place one headset bearing (49) onto fork steerer tube with balls facing up. Slide steerer tube into frame.
3) Place the other bearing on top of fork tube with balls facing down towards the cup (#48), which is already
pressed onto the frame.
4) Install top-adjusting cone (52) onto treaded fork steering tube. Hand-tighten, making sure bearings do not
bind. Turn back ¼ turn.
5) Install fork key washer (53) and reflector bracket on top of the adjusting cone with tip of washer in slot on
steering tube.
6) Install head lock nut (54) and securely tighten. Make sure that the fork rotates freely without being loose.
Excess play or resistance must be adjusted. Failure to adjust properly can lead to improper steering
response.
7) Install handlebar stem (55A) into the fork steering tube with the handlebar clamp facing forward. The stem must be
inserted far enough to reach the minimum insertion line. Tighten the stem bolt slightly at this point. Loosen the handlebar
clamp nut and slide the handlebar through the clamp, centering the knurled center section of the handlebar into the clamp.
8) Position the handlebar to the desired angle and tighten clamp securely. Recommended torque is 300 IN. LBS. Adjust
the handlebar rotation so that it is straight with the front wheel. Tighten stem bolt securely. Recommended torque 240 IN.
LBS. Be sure not to over tighten, as damage to the parts may occur causing steering failure.
9) If a drum brake was ordered, attach brake lever to handlebar Make sure brake cable is not tangled in any way.

INSTALLING PEDALS AND KICKSTAND:
1)Install kickstand.
2)Pedals are marked on the shaft with either an “L”or “R”denoting left or
right. The “R”pedal fits on the right (sprocket side) of the crank arm.
Tighten clockwise. The “L”pedal fits on the left side of the crank arm.
Tighten counter-clockwise (left-hand thread). Securely tighten.
Recommended torque 275 IN. LBS. CAUTION: Tightening in the wrong
direction will damage the crank threads, and will not be covered under
warranty.
SEAT ADJUSTMENTS:
Adjust the seat height to your desired level by loosening the seat clamp nut at the top of the frame’s seat tube. Re-tighten
at desired height. Make sure a minimum of 3 1/2”of the post remains in the frame tube. Never adjust post above this
level. Adjust angle of seat with nose raised slightly. Tighten seat clamp securely. (240 IN. LBS.)
MAINTENANCE TIPS:
Always inspect your Worksman Cycle to ensure that all nuts, bolts, screws and hardware are tight and that no parts are worn or damaged. Do not
attempt to straighten bent forks or frames.
Chain:
Lubricate chain once a month or as needed with light oil. Replace sprockets when teeth become worn,
bent or broken. Keep chain adjusted so there is no more than 3/8”slack. Note that we make the chains
tight at the factory, as we do know they will stretch during the break-in period. Lubricate crank parts
every six months. Replace pedals when the surface is worn or if axle becomes “tight”or frozen.
Drum Brake:
Some Worksman bicycles are equipped with a front drum brake. It is engaged by squeezing the hand lever on the
handlebar. To use “Park”feature, when cycle is completely stopped, squeeze hand lever and push in parking plunger
button on lever. To disengage, simply squeeze lever until parking plunger button releases. Drum brakes are pre-adjusted
at the factory. Readjust the cable tension as necessary using the adjusting barrel so that wheel spins freely and stops
when brake is applied. Always replace worn brake cables and damaged hand levers.
Coaster Brake (if applicable):
Foot activated coaster brakes are easy to use and reliable. To activate this internal brake, reverse the pedaling motion
until the brake engages. To avoid skidding and maintain control, apply care when braking. This is especially true on wet
surfaces. Apply brakes gently, gradually increasing pressure. Replace coaster brakes when they become worn. Check
chain tension regularly. Coaster brake hubs may make a vibrating noise under braking until they are broken in.
Tires:
Always check for wear or damage. We recommend 40PSI as proper level of inflation. Replace worn or cut tires and leaking tubes immediately.
LIMITED WARRANTY:
THIS CYCLE IS WARRANTIED AGAINST FAULTY PARTS UNDER THE FOLLOWING CONDITIONS: THIS WARRANTY DOES NOT COVER ANY FAILURE DUE TO ACCIDENT, ABUSE, MISUSE,
NEGLECT OR AS THE RESULT OF NORMAL WEAR AND TEAR, OR IMPROPER ASSEMBLY. THE ENTIRE FRAME, INCLUDING ALL WELDED JOINTS, IS WARRANTED TO BE FREE FROM
DEFECTS AND MATERIAL FOR ONE YEAR WHILE IN POSSESSION OF THE ORIGINAL PURCHASER. ALL OTHER PARTS ON THIS CYCLE, EXCEPT TIRES AND TUBES, ARE WARRANTIED
FOR 90 DAYS FROM THE DATE OF PURCHASE. REPAIR AND REPLACEMENT OF THESE PARTS IS TO BE ACCORDING TO THE WORKSMAN CYCLES PARTS AND SERVICE PROCEDURES
AND MUST BE HANDLED DIRECTLY THROUGH THE SOURCE WHERE THE CYCLE WAS PURCHASED. IF UPON EXAMINATION OF THE PARTS IN QUESTION, THE WORKSMAN CYCLE
DEALER DETERMINES THAT IT IS DEFECTIVE, EITHER REPAIR OR REPLACEMENT WILL BE MADE AT NO COST EXCEPT THE COST OF TRANSPORTATION AND LABOR CHARGES (IF
ANY). UNAUTHORIZED REPAIRS OR REPLACEMENT AUTOMATICALLY VOIDS WARRANTY. PROPER MAINTENANCE IS REQUIRED FOR WARRANTY TO BE VALID. IN THE EVENT THAT IT
WAS DETERMINED THAT THE WARRANTY CLAIM IS THE RESULT OF MISUSE, ABUSE, IMPROPER MAINTENANCE OR SIMPLY NOT DEFECTIVE OR BEYOND THE WARRANTY PERIOD,
WORKSMAN CYCLES OR THE DEALER WILL ADVISE YOU AS TO THE COST OF REPAIR, REPLACEMENT OR LABOR PRIOR TO PERFORMING ANY WORK OR REPLACING ANY PARTS. IF
YOU CHOOSE NOT TO HAVE THE DEALER OR WORKSMAN CYCLES PERFORM THE WORK, THE PARTS WILL BE RETURNED TO YOU AT YOUR EXPENSE OR DISCARDED IF NO REPLY IS
RECEIVED WITHIN 2 WEEKS OF NOTIFICATION. THE SOLE RESPONSIBILITY OF THE MANUFACTURER TO THE TERMS OF THIS WARRANTY, IF ANY, SHALL BE THE REPAIR AND/OR
REPLACEMENT OF THE PARTS AS INDICATED ABOVE. THE LIABILITY OF THE MANUFACTURER SHALL IN NO EVENT EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT, AND
THE MANUFACTURER SHALL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT BY WAY OF LIMITATION, DAMAGES FOR PERSONAL
INJURY OR PROPERTY. THIS STATEMENT CONSTITUTES THE EXCLUSIVE EXPRESSION OF WARRANTIES BY THE MANUFACTURER AND IS IN LIEU OF ANY OR ALL OTHER
WARRANTIES SUCH AS EXPRESSED WARRANTIES, IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, AND FITNESS OR PURPOSE, ARE
LIMITED IN DURATION FOR ONE YEAR FROM THE DATE OF PURCHASE OF THE FRAME ONLY AND 90 DAYS FOR ALL OTHER PARTS, EXCEPT TIRES AND TUBES WHICH ARE NOT
WARRANTIED. WORKSMAN TRADING CORPORATION IS THE MANUFACTURER. MISUSE OF THE CYCLES INCLUDING OFF ROAD RIDING, INSTALLATION OF MOTORS OR POWER
ASSISTS, ALTERATIONS, REPAIRS USING PARTS OTHER THAN WORKSMAN CYCLE PARTS VOIDS WARRANTY. WORKSMAN TRADING CORPORATION IS NOT RESPONSIBLE FOR
MAINTAINING RECORDS OF SERIAL NUMBERS. VOID WHERE PROHIBITED BY STATE LAW.
RULES FOR SAFE RIDING AND RESPONSIBLE OPERATION: Carefully read this manual before operating the cycle.
·It is the responsibility of the assembler to properly install all parts included and to inspect the cycle prior to riding to insure proper operation.
·Wear a helmet!
·Operator is responsible for required maintenance and for observing all traffic regulations in the operating environment. (Stop signs, etc.)
·Keep to the right and in a straight line. Ride in single file. Operate cycle at slow speeds, particularly in high traffic areas.
·Do not ride outdoors at night, and use appropriate signaling methods as needed. (We recommend the 3973 Mega Horn and P122 light kit.)
·Give pedestrians the Right of Way. Always look around you to understand the riding environment and hazards.
·Do not carry passengers, and check brakes prior to riding. Never ride the cycle if there are known repairs required.
·Slow down when approaching turns or intersections.
·Recommended safety options include, but are not limited to, an approved helmet, audible warning device, front/rear lights and/or reflectors.
·Do not exceed the recommended weight capacity. (MG: 210 lbs. / MGR: 350 lbs.) Always secure cargo with appropriate tie down straps.
·Wipe surface of cycle clean and dry when exposed to corrosive substances or environment.
·Operators of cycles should be in good physical condition. Ride at your own risk.
·Wear proper riding attire. Check shoelaces and pant legs prior to riding so they do not become engaged in the chain and sprocket.
·Ride only on smooth, paved surfaces. Do not use off road. Always keep both hands on the handlebars.
·Always replace worn parts with genuine Worksman Cycle Repair Parts.
Visit us online at www.worksmancycles.com or call us at 888-3WHEELER!
