OPERATORS MANUAL
AH260MEK –AH380MEK
ORIGINAL

OPERATORS MANUAL D00011C
MECHANICAL OPEN SWEEPER
Page 2
ORIGINAL
EY-VAATIMUSTENMUKAISUUSVAKUUTUS TUOTTEESTA
LLP Farm Machinery Group Oy vakuuttaa, että markkinoille saatettu kone täyttää direktiivin
2006/42/EY ja standardit SFS-EN ISO 12100 ja SFS-ISO730-1.
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
LLP Farm Machinery Group Oy försäkrar härmed att tillförda maskin uppfyller
maskindirektivet 2006/42/EY och standard SFS-EN ISO 12100 och SFS-ISO730-1.
CERTIFICATE OF CONFORMITY FOR A PRODUCT
LLP Farm Machinery Group Oy certifies that the following machine, which has been brought into
the market, conforms to directives 2006/42/EY and standards SFS-EN ISO 12100 and SFS-ISO730-1.
SAMSVARSERKLÆRING FOR MASKIN
LLP Farm Machinery Group Oy bekrefter herved at følgende maskin, som er sendt ut på markedet, er i
samsvar med direktivene 2006/42/EF, SFS-EN ISO 12100 og SFS-ISO730-1.
Tuote / Produkt / Product / Produkt:
Valmistusnumero / Tillverkningsnummer
/ Serial number / Serienummer:
Teknisen tiedoston kokoaja / Teknisk
dokumentation samlare / Technical file collector: Sakari Ruotanen
Valmistaja / Tillverkare / Manufacturer LLP Farm Machinery Group Oy
/Produsent:
Osoite / Adress / Address / Adresse: Levytie 4, FIN-74510 Iisalmi
Puhelin / Telefon / Telephone: [phone]
Paikka / Ort / Place / Sted: Iisalmi
Aika / Datum / Date / Dato:
Allekirjoitus / Underskrift / Signature
/ Signatur:
Nimenselvennys / Namnförtydligande Markku Lappalainen
/ Clarification of signature
/ Tydeliggjøring av signatur:

OPERATORS MANUAL D00011C
MECHANICAL OPEN SWEEPER
Page 3
WARRANTY TERMS
All the products produced by LLP Farm Machinery Group Oy have twenty four (24) months
warranty.
During the warranty period all the defects in material and in workmanship will be covered, in
practical life FMG will replace defected parts with the new parts. Travelling expenses and
freight of partsare not included in warranty.
Warranty will start in the beginning of usage of the product, if nothing else has been agreed.
Warranty is not covering damages due to misuse of product or use in the purposes where it
has notbeen designed, lack of services or product has been modified without the permission of
FMG.
Wearing of the normal usage is not covered by the warranty.
Losses in income, costs and loosen working hours caused by the defected part is not covered
by the warranty.
Warranty repairs should be done by the FMG service dealer or service dealer appointed by the
manufacturer.
In case the defects shown in reclamation is not valid or if case otherwise is not in the warranty
area FMG has right to reject from the compensation.
Warranty reclamation should be done in written form by the FMG seller within one (1) month
after notifying the defect.
In case of defect procedure is as follows:
- clarify the defect and defected area
- be prepared to deliver defected parts to the manufacturer
- contact FMG seller and make reclamation as follows:
•type of the product and serial number
•delivery date of the product (invoicing date)
•date of the damage
•description of the damage and pictures
•description of the working conditions and the type of the base machine

OPERATORS MANUAL D00011C
MECHANICAL OPEN SWEEPER
Page 4
TO THE OPERATOR
The purpose of this is manual is to provide support and instructions to sweeper users. Manual
contains detailed instructions for driving, operating and maintaining the sweeper. Make sure
that your new sweeper is always handled and maintained in the correct way in order to ensure
reliability and economical operation for many years.
We recommend that you read the manual thoroughly. Follow the maintenance and service
program carefully and include the daily maintenance in your normal routine. This is both you
and your tractor interest.
Maintenance, repairs and adjustments which are not described in this Operator Manual require
the use of special tools and exact technical data. In case of that kind need please contact your
FMG seller or factory.
Use only genuine FMG spare parts for optimum performance from yourtractor and sweeper.
Spares will be sold through the FMG seller.

OPERATORS MANUAL D00011C
MECHANICAL OPEN SWEEPER
Page 5
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................................................................................................... 5
1. SAFETY INSTRUCTION........................................................................................................................... 6

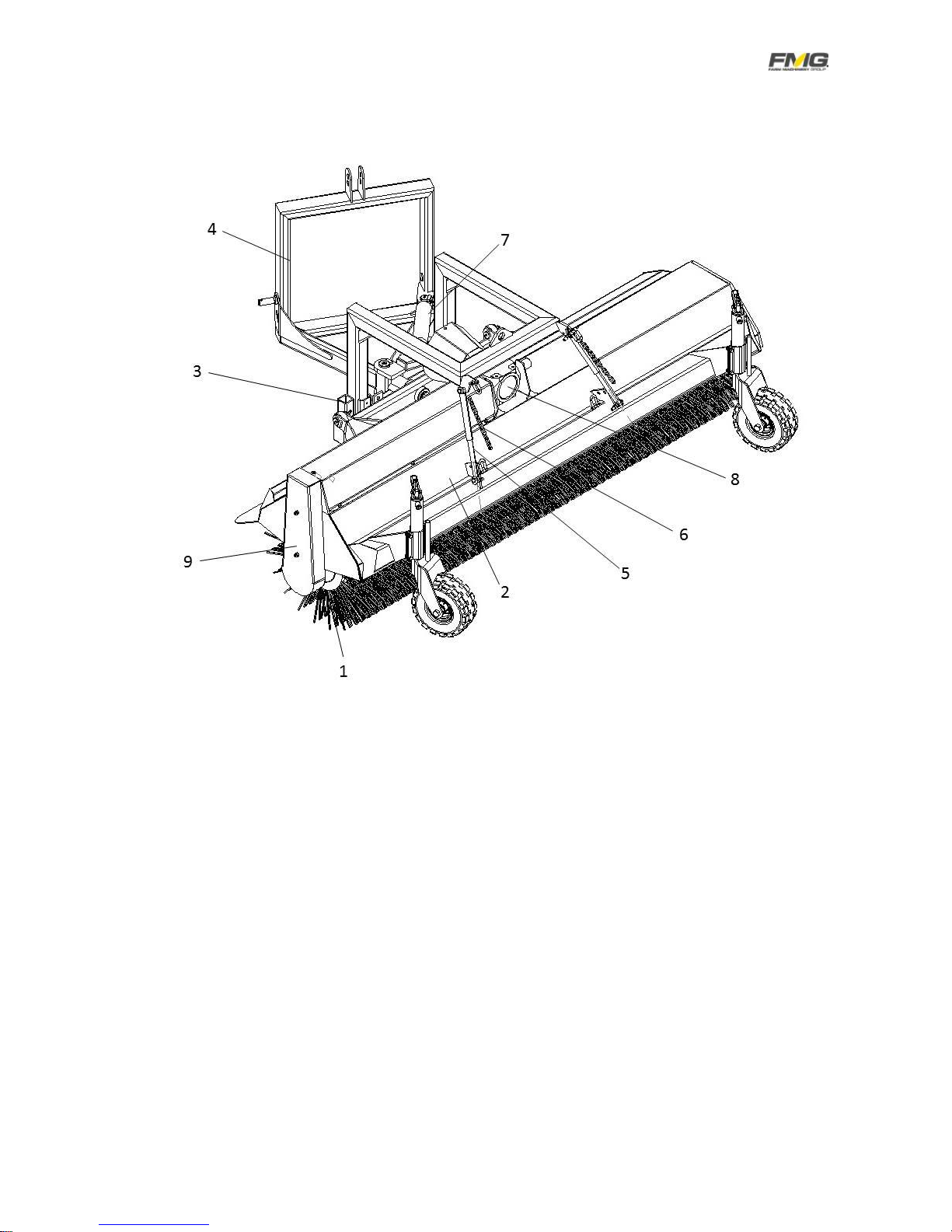

2. CONSTRUCTION...................................................................................................................................... 8
3. TECHNICAL SPECIFICATION ................................................................................................................. 9
4. USE OF THE SWEEPER .......................................................................................................................... 9
4.1. Using area.......................................................................................................................................... 9
4.2. Instructions......................................................................................................................................... 9
4.3. Working position .............................................................................................................................. 10
5. SERVICE................................................................................................................................................. 10
5.1. Daily service..................................................................................................................................... 10
5.2. Weekly service................................................................................................................................. 11
5.3. Service after 500 hours.................................................................................................................... 11
5.4. Annual service ................................................................................................................................. 11
5.5. Lubrication points............................................................................................................................. 12
5.6. Screws to be tighten........................................................................................................................ 13
5.7. Tightening instruction of conical sleeve........................................................................................... 14

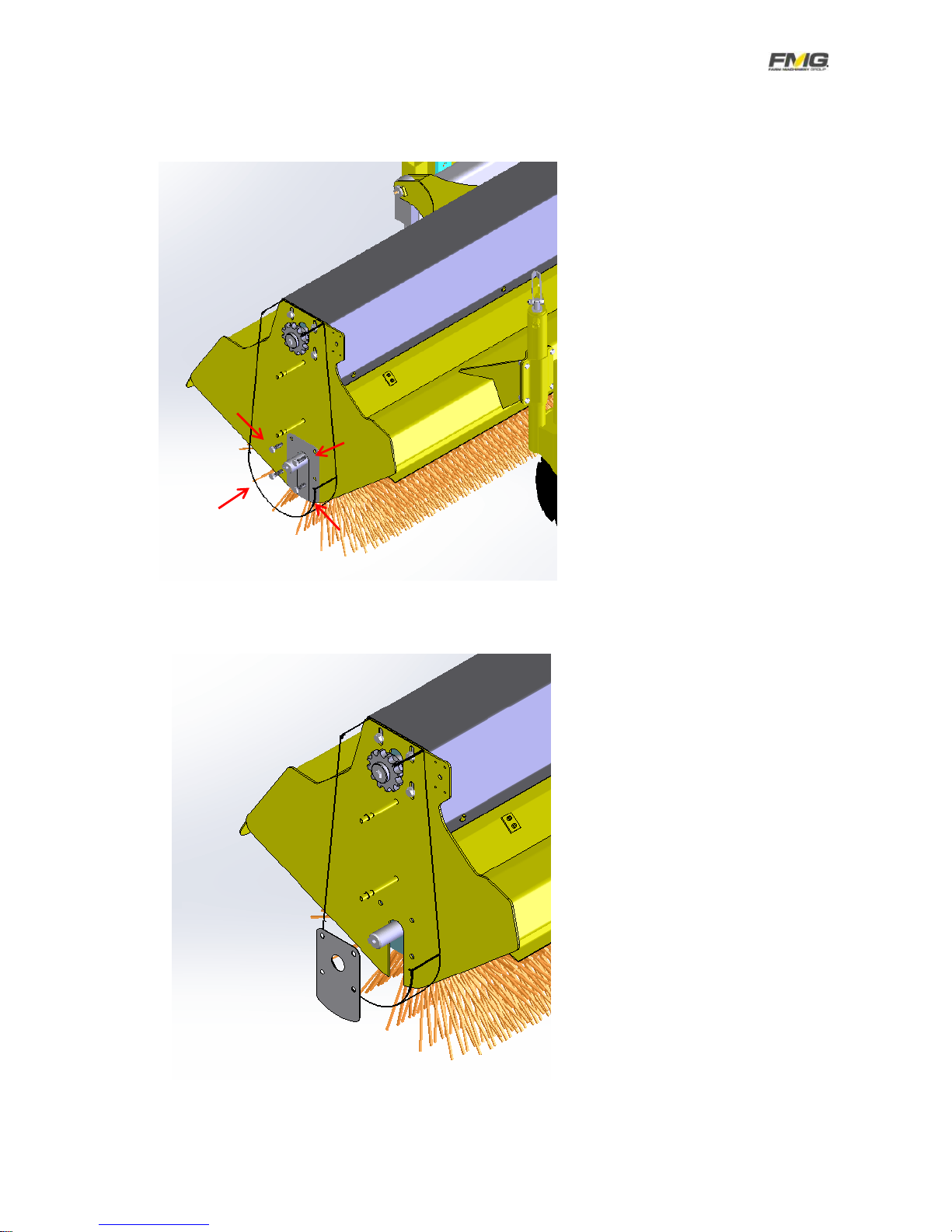

6. BRUSH REPLACEMENT........................................................................................................................ 15
