FMG TLN370 User manual

EQUIPMENT
LLP FARM MACHINERY GROUP OY
LEVYTIE 4 ● 74510 IISALMI
PUH. [phone] ● FAX [phone]
OPERATORS MANUAL
TLN370/ TLN430
/ TLN570
ORIGINAL

OPERATOR MANUAL D00055EN_A (CE 16116→)
ROAD DRAGGER
Page 2
ORIGINAL
EY-VAATIMUSTENMUKAISUUSVAKUUTUS TUOTTEESTA
LLP Farm Machinery Group Oy vakuuttaa, että markkinoille saatettu kone täyttää direktiivin
2006/42/EY ja standardit SFS-EN ISO 12100 ja SFS-ISO730-1.
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
LLP Farm Machinery Group Oy försäkrar härmed till marknader att tillförda maskin uppfyller
maskindirektivet 2006/42/EY och standard SFS-EN ISO 12100 och SFS-ISO730-1.
CERTIFICATE OF CONFORMITY FOR A PRODUCT
LLP Farm Machinery Group Oy certifies that the following machine, which has been brought into
the market, conforms to directives 2006/42/EY and standards SFS-EN ISO 12100 and SFS-ISO730-1.
SAMSVARSERKLÆRING FOR MASKIN
LLP Farm Machinery Group Oy bekrefter herved at følgende maskin, som er sendt ut på markedet, er i
samsvar med direktivene 2006/42/EF, SFS-EN ISO 12100 og SFS-ISO730-1.
Tuote / Produkt / Product / Produkt:
Valmistusnumero / Tillverkningsnummer
/ Serial number / Serienummer:
Teknisen tiedoston kokoaja / Teknisk
dokumentation samlare / Technical file collector: Sakari Ruotanen
Valmistaja / Tillverkare / Manufacturer LLP Farm Machinery Group Oy
/Produsent:
Osoite / Adress / Address / Adresse: Levytie 4, FIN-74510 Iisalmi
Puhelin / Telefon / Telephone: [phone]
Paikka / Ort / Place / Sted: Iisalmi
Aika / Datum / Date / Dato:
Allekirjoitus / Underskrift / Signature
/ Signatur:
/ Clarification of signature
/ Tydeliggjøring av signatur:

OPERATOR MANUAL D00055EN_A (CE 16116→)
ROAD DRAGGER
Page 3
WARRANTY TERMS
•All the products produced by LLP Farm Machinery Group Oy have twenty-four (24) months warranty.
•During the warranty period all the defects in material and in workmanship will be covered, in practical life
FMG will replace defected parts with the new parts. Travelling expenses and freight of parts are not in-
cluded in warranty.
•Warranty will start in the beginning of usage of the product, if nothing else has been agreed.
•Warranty is not covering damages due to misuse of product or use in the purposes where it has not been
designed, lack of services or product has been modified without the permission of FMG.
•Wearing of the normal usage is not covered by the warranty.
•Losses in income, costs and loosen working hours caused by the defected part is not covered by the war-
ranty.
•Warranty repairs should be done by the FMG service dealer or service dealer appointed by the manufac-
turer.
•In case the defects shown in reclamation is not valid or if case otherwise is not in the warranty area FMG
has right to reject from the compensation.
•Warranty reclamation should be done in written form by the FMG seller within one (1) month after notifying
the defect.
IN CASE OF DEFECT PROCEDURE IS AS FOLLOW:
•clarify the defect and defected area
•be prepared to deliver defected parts to the manufacturer
•contact FMG seller and make reclamation as follows:
- type of the product and serial number
- delivery date of the product (invoicing date)
- date of the damage
- description of the damage and pictures
- description of the working conditions and the type of the base machine

OPERATOR MANUAL D00055EN_A (CE 16116→)
ROAD DRAGGER
Page 4
TO THE OPERATOR
•The purpose of this is manual is to provide support and instructions to road dragger
users. Manual contains detailed instructions for driving, operating and maintaining
the road dragger. Make sure that your new road dragger is always handled and
maintained in the correct way in order to ensure reliability and economical operation
for many years.
•We recommend that you read the manual thoroughly. Follow the maintenance and
service program carefully and include the daily maintenance in your normal routine.
This is both you and your tractor interest.
•Maintenance, repairs and adjustments which are not described in this Operator
Manual require the use of special tools and exact technical data. In case of that kind
need please contact your FMG seller or factory.
•Use only genuine FMG spare parts for optimum performance from your tractor and
road dragger. Spares will be sold through the FMG seller.

OPERATOR MANUAL D00055EN_A (CE 16116→)
ROAD DRAGGER
Page 5
TABLE OF CONTENT
1. SAFETY INSTRUCTIONS......................................................................................................................... 6
2. CONSTRUCTION...................................................................................................................................... 8
3. TECHNICAL SPESIFICATIONS............................................................................................................... 9
4. INSTRUCTIONS........................................................................................................................................ 9
4.1. Usage area ........................................................................................................................................ 9
4.2. Instructions......................................................................................................................................... 9
4.3. Basic adjustments............................................................................................................................ 10
5. SERVICE................................................................................................................................................. 10
5.1. Daily service..................................................................................................................................... 10
5.2. Weekly service................................................................................................................................. 10
5.3. Service after 500 hours.................................................................................................................... 10
5.4. Annual service ................................................................................................................................. 11

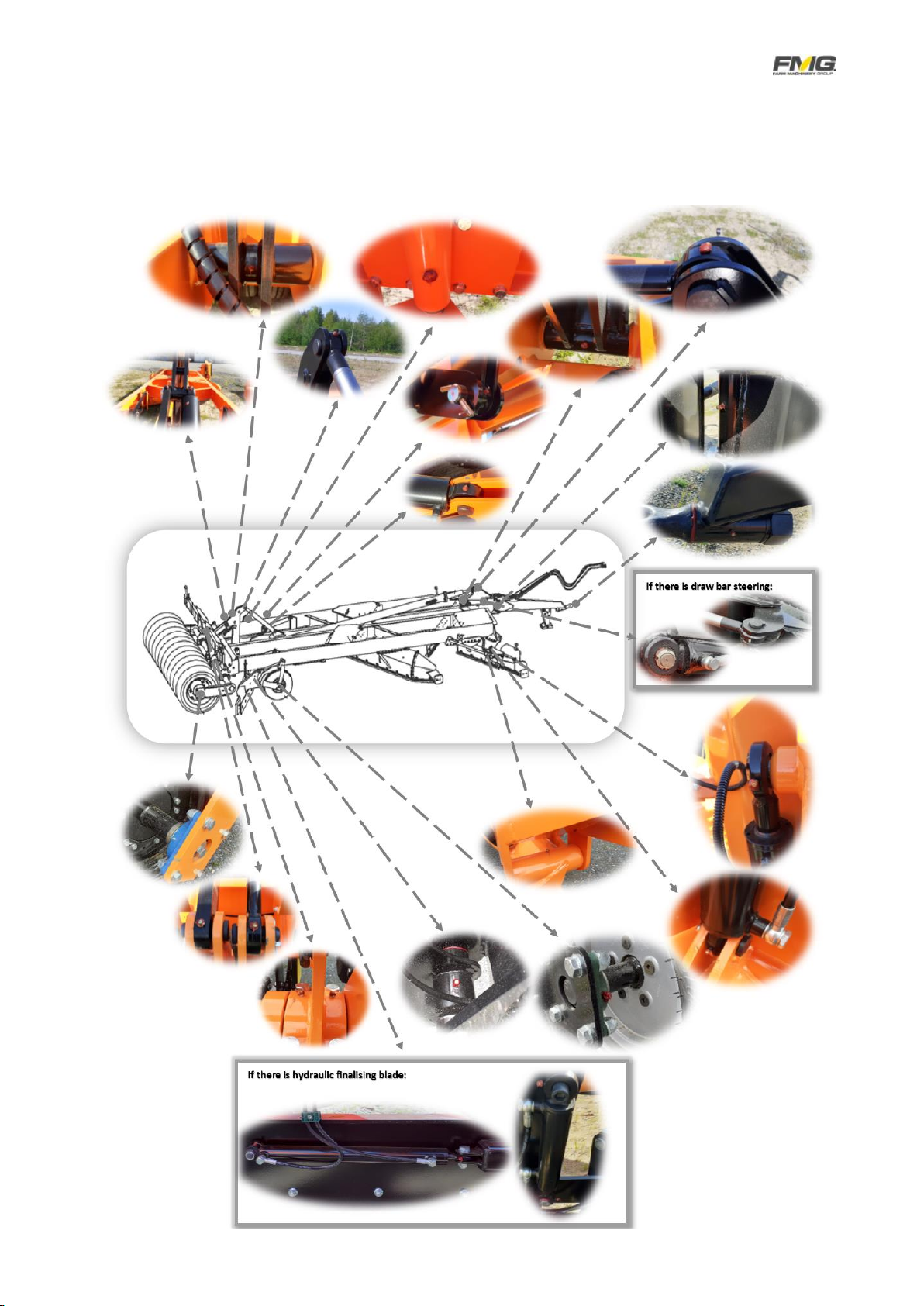

5.5. Lubrication points............................................................................................................................. 12
5.6. Screws to be tighten........................................................................................................................ 13

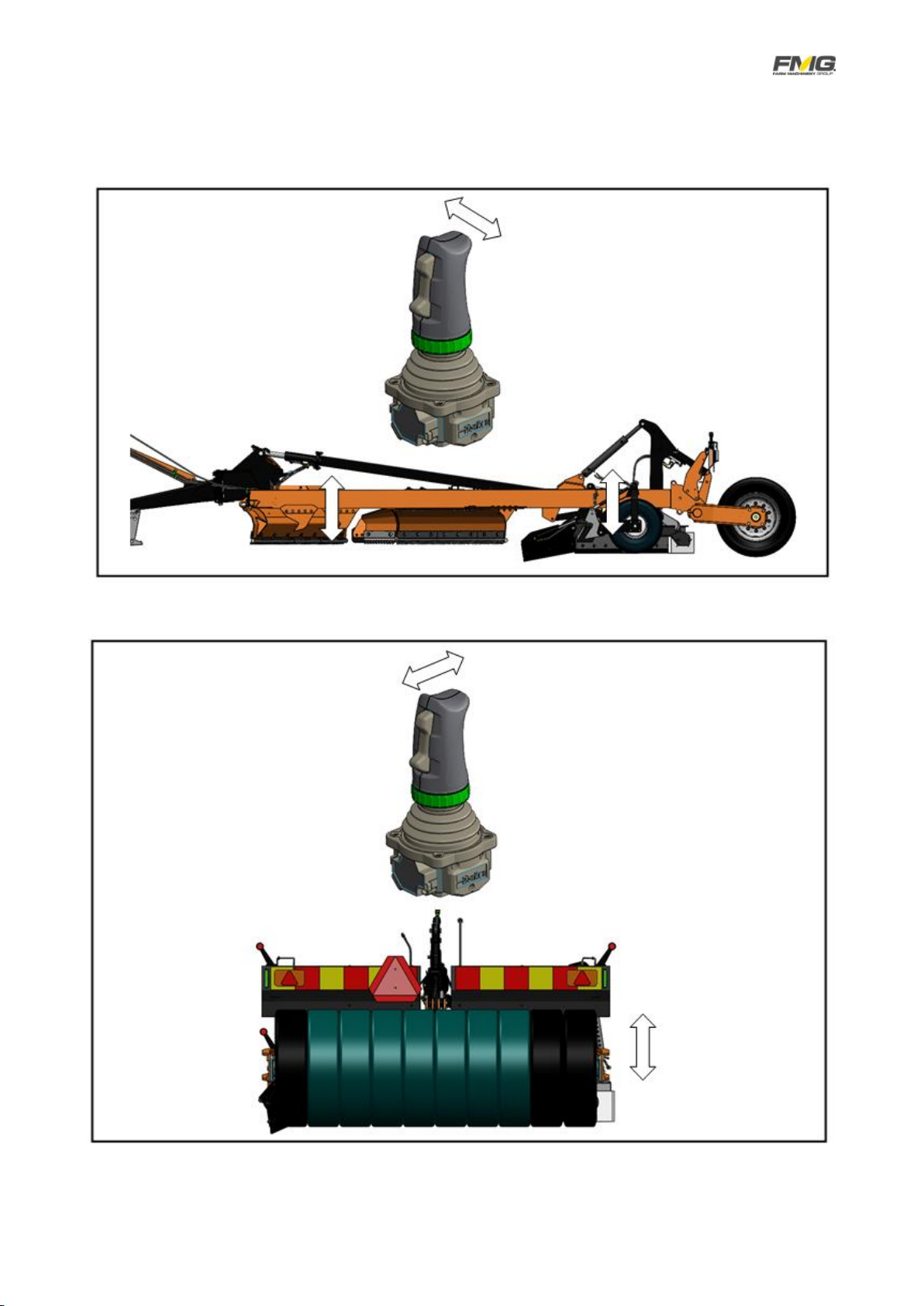

6. JOYSTICK STEERING ........................................................................................................................... 14
