Foamit F5.0L User manual

1.3 Gallon Pump-Up Foam Unit
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code
for user manual
F5.0L | F5.0L-PSG
User Manual
F5.0L
F5 .0 L- PSG

V20231208 •Page 2 of 9Model: F5.0L | F5.0L-PSG
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper use
in accordance with the instructions.
Using or servicing the unit without appropriate personal protective equipment (PPE)
may result in serious injury such as burns, rashes, eye, throat or lung damage and
death. Always wear PPE as indicated in the Safety Data Sheet (SDS) when using or
servicing the unit. Protect eyes, skin, and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions provided
by the chemical manufacturer and the SDS associated with the chemical solution before using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death. Always
depressurize and clean the unit after each use. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury or
death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious injury
or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may cause
it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush the unit with
fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline.
WARNING
!
Safety
Servicing, or modification, of this unit with parts not listed in this manual may cause the unit to operate improperly.
Do not use unauthorized parts when servicing the unit.
Only lift and carry unit by the carrying handle. Do not lift or carry the unit by the pump handle, hose, wand, or other
components.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations.
NOTICE

V20231208 •Page 3 of 9Model: F5.0L | F5.0L-PSG
Product Overview
Requirements
Liquid temperature range 40-100˚F (4.4-37.8˚C)
Chemical compatibility
Chemical products used with this equipment must be formulated for this
type of application and compatible with unit materials and pump seals.
For more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
F5.0L F5.0L-PSG
Power type Manual
Chemical pickup type Draws from pre-mixed solution
Number of products unit can draw from One product
Suction line length/diameter 11.5 in. (29.2 cm) clear poly tubing with ⁄ in. (3.2 mm) inner diameter
Capacity 1.3 gallons (5 liters)
Discharge line length/diameter 6.5 ft. (2 m) hose, with ⁄ in. (6.4 mm) inside diameter
Discharge wand/tip type
Polypropylene trigger handle with
17 in. (43.2 cm) wand extension
and 110˚ fan tip
Polypropylene trigger handle with
65˚ fan tip
Output distance* 1-3 ft. (0.3-0.9 m) 3-5 ft. (0.9-1.5 m)
Output volume* 1 gal/min (3.8 l/min) 2.5 gal/min (9.5 l/min)
Flow rate* 0.2 gal/min (0.8 l/min) 0.5 gal/min (1.9 l/min)
Pump seals Viton
Specifications
*Rates given are based on chemical with viscosity of water and factory air pressure settings. These rates can vary
based on viscosity of product and fan tip size.

V20231208 •Page 4 of 9Model: F5.0L | F5.0L-PSG

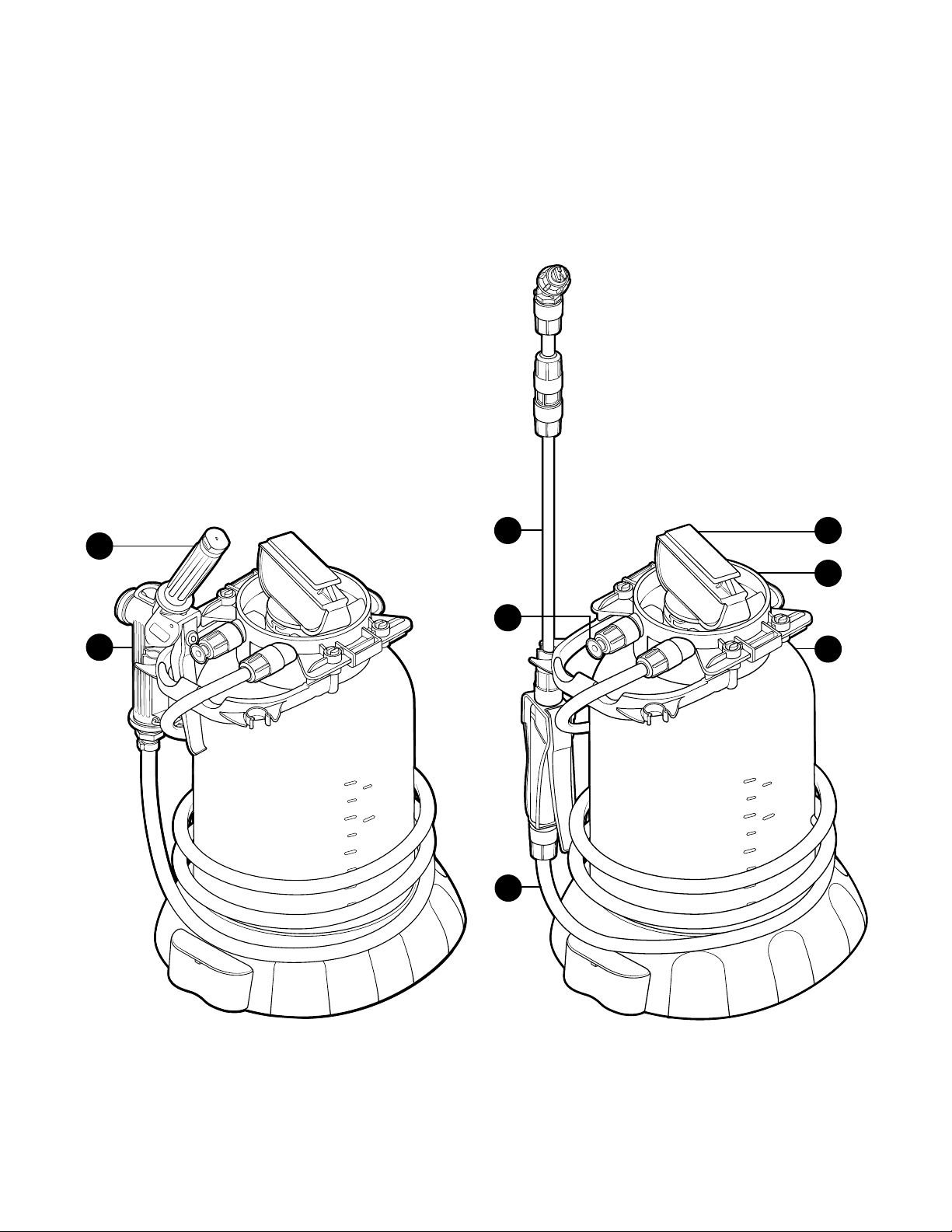

Product Components
Get to know the components that you will need to use, adjust or assemble.
Pump-Up Foam Unit • 1.3 Gallon
1. Discharge wand
2. Trigger gun
3. Pressure relief valve
4. Discharge hose
5. Pump handle
6. Tank head
7. Solution tank
F5 .0 L- PSG F5.0L
3
7
4
6
5
2
1
1

V20231208 •Page 5 of 9Model: F5.0L | F5.0L-PSG
2

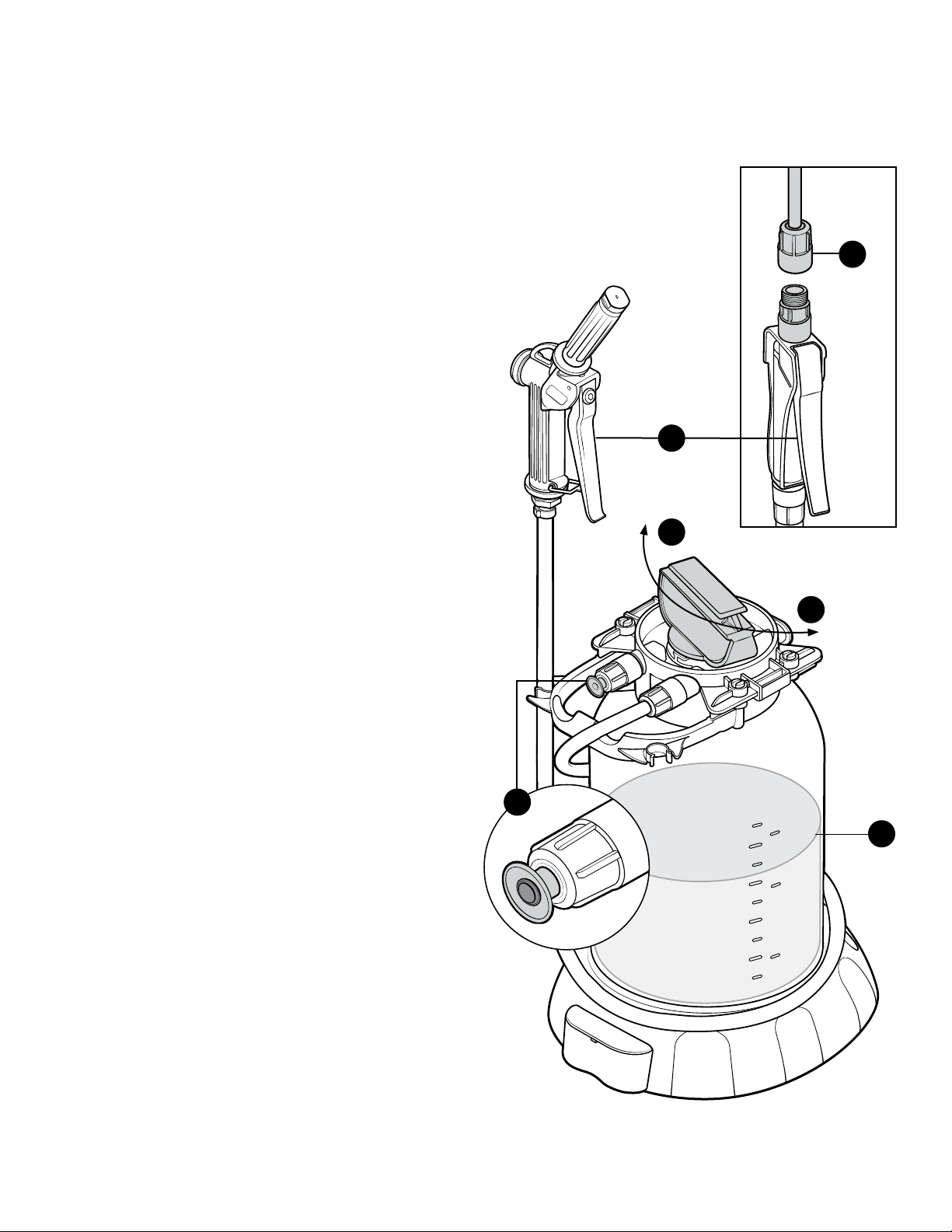

Using your unit
Operating Instructions
1. Remove components from packaging.
2. For F5.0L: Attach wand assembly to trigger handle.
For F5.0L-PSG: Continue to step 3.
3. Pull the green pressure release valve until the red
portion of the stem is showing to confirm the unit is
not pressurized.
4. With the pump handle pressed fully down, hold the
unit and unscrew the pump assembly from the tank
head to access the filler hole.
5. Follow all instructions from the chemical
manufacturer when filling the unit. Fill the tank ¾ full
with pre-mixed solution. Do not overfill the tank.
6. With the pump handle pressed fully down, hold the
unit and screw the pump assembly back into the
tank head to close the unit.
7. To pressurize the tank, rotate the handle of the
pump assembly until it is free then pump up the unit.
The pressure relief valve will begin leaking air when
the tank is fully pressurized.
8. Once the desired pressure has been achieved,
push the pump handle down and rotate to lock
it in place.
9. To begin foaming, point the discharge wand towards
the area you wish to foam and squeeze the trigger
handle. Release the handle to stop.
After Use Instructions
10. Release air pressure from unit after each use by
activating the pressure relief valve.
11. Empty out remaining solution and run fresh water
through the unit to rinse all parts thoroughly after
each use and before storage.
F5.0L
F5 .0 L- PSG
9
6
4
5
2
3

V20231208 •Page 6 of 9Model: F5.0L | F5.0L-PSG
Using your unit
Maintenance Instructions
To keep your unit operating properly, periodically
perform the following maintenance procedures.
NOTE: Before servicing your unit, release air pressure
from the unit by activating the pressure relief valve.
• Check the pump assembly for wear and leaks.
• Check the suction line for debris and clean as
needed.
• Periodically lubricate the pump seal with food safe
lubricant. To lubricate the pump seal, raise the handle
of the pump assembly and apply 5-10 drops of food
safe lubricant between the pump and pump sleeve.
• If foam quality decreases, replace wadding with the
following steps:
F5.0L:
1. Unthread the wand retaining nut (a) from the wand.
2. Remove old wadding (b), and insert new wadding.
3. Thread the wand retaining nut (a) back onto wand.
F5.0L-PSG:
4. Unthread the wand (c) from the trigger gun.
5. Remove old wadding (d), and insert new wadding.
6. Thread the wand (c) back onto the trigger gun.
Attachment Instructions
F5.0L-PSG attachments:
7. Remove wand (c) from the trigger gun, leaving the
wadding (d) and o-ring (e) in the gun.
8. Install the attachment by threading it into the trigger
gun. An additional o-ring will be supplied in the parts
package of the attachment.
Drain tube attachment:
9. Remove wand retaining nut (f) and o-ring (g) from the
lance. Set aside to use with the drain tube.
10. Remove spray tip (h), leave wadding (i) in the lance.
11. Insert press fit adapter (j) into retaining nut (f), then
place the o-ring (g) behind the press fit adapter (j).
12. Thread the lance into the wand retaining nut (f),
securing the o-ring (g) and press fit adapter (j) place.
13. Press the drain tube (k) into the press fit adapter (j).
1
ba
2
F5.0L
F5 .0 L- PSG
Drain tube attachment
4
c
e
9
12
13
f
g
h
ij
k
5d

V20231208 •Page 7 of 9Model: F5.0L | F5.0L-PSG
Item number Description
6LC-LLA Long lance (10 in.) assembly for
5L / 10L - with retaining nuts
7LC-PRV Pressure relief valve for 5L / 10L
8LC-PSG Poly spray gun for 5L / 10L - blue
9LC-HA Hose assembly for 5L / 10L
10 LC-PA Manual pump assembly for
5L / 10L - Viton
11 LC-THA-F5.0L
Tank head assembly for 5L foam
unit - with pressure relief valve
and 5L poly supply tube
12 TANK5L 5 liter tank
13 LC-HNDL-CLP Tank handle for 5L / 10L - with
clips
Servicing your unit
F5.0L
Item number Description
1LC-SLA Short lance (2 in.) assembly - no
retaining nut, o-ring, spray tip
2LC-WD Wadding disk for 5L/10L (1 piece)
3LC-WA-OR O-ring for 5L / 10L wand assembly
4LC-STB Button spray tip for 5L/10L
5LC-WA-RN Retaining nut for 5L / 10L wand
assembly
54
32
1
10
11
9
8
12
13
7
6
LC-SLA-F
F5.0L:
5 liter pump-up foam unit
LC-SLA-F:
Short lance assembly - for 5L foam unit - includes spray
tip, wadding, gasket, and retaining nut

V20231208 •Page 8 of 9Model: F5.0L | F5.0L-PSG
Item number Description
8LC-PRV Pressure relief valve for 5L / 10L
9LC-PA Manual pump assembly for
5L / 10L - Viton
10 LC-THA-F5.0L
Tank head assembly for 5L foam
unit - with pressure relief valve
and 5L poly supply tube
11 TANK5L 5 liter tank
12 LC-HNDL-CLP Tank handle for 5L / 10L - with
clips
Servicing your unit

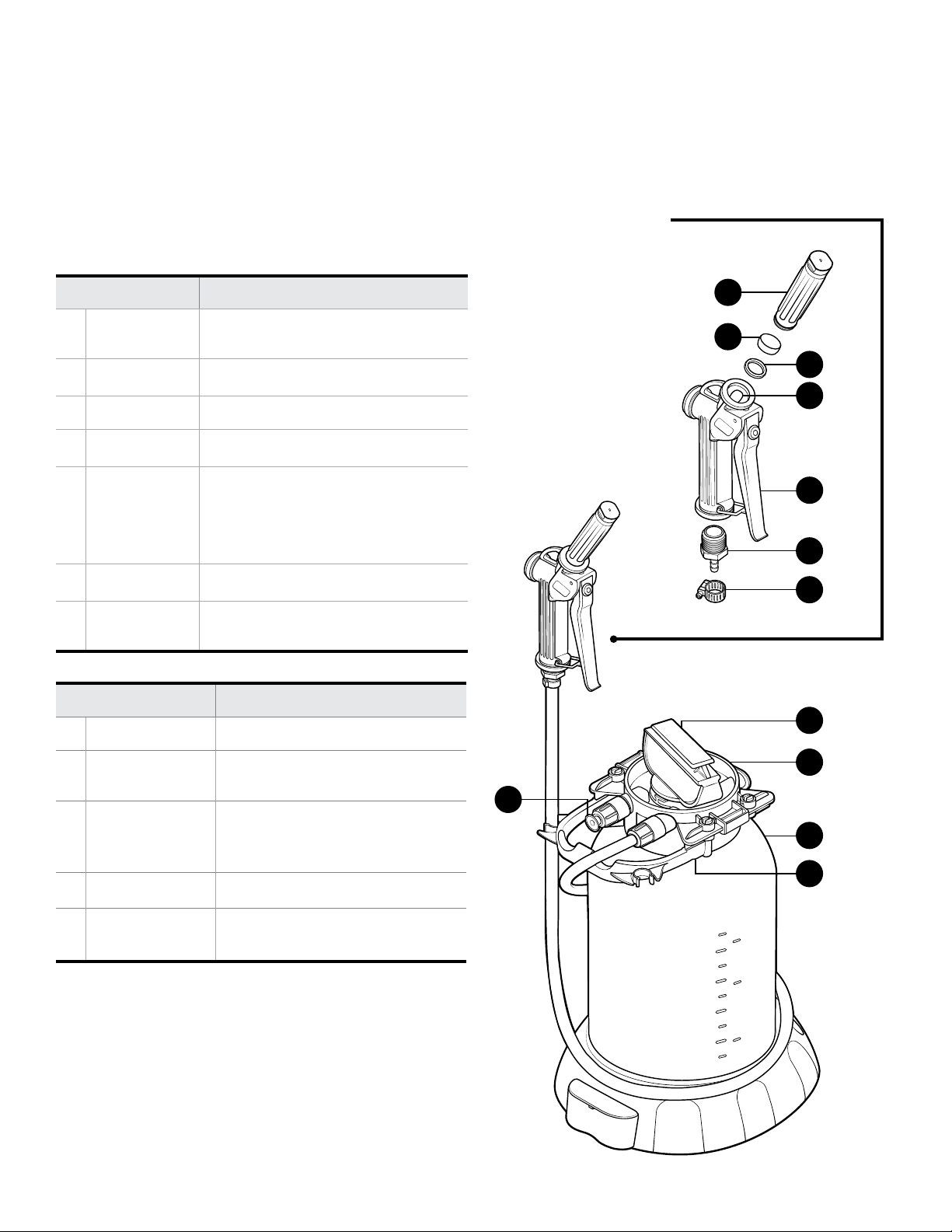

F5.0L-PSG
Item number Description
1PUWAND ⁄ in. MPT poly wand with integrated
65 degree fan tip
2WAAD-.625 ⁄ in. dia wadding for foam units
3PSGORV O-ring for poly spray gun
4WAAD-.5 ⁄ in. dia wadding for foam units
5PSG12
Poly spray gun with 2x ⁄ in. straight
thread - gray handle with red clip -
316SS internal spring - includes 2x
o-ring
6HBSS1214 Stainless hose barb ½ MPT x ⁄ barb
7SSC14 Stainless screw band clamp for ⁄ in.
hose
5
2
3
4
1
7
6
9
10
11
12
8
PSGA14PU-MX
F5.0L-PSG:
5 liter pump up foam unit with PSG12 trigger gun
PSGA14PU-MX:
Poly spray gun assembly for ⁄ in. hose - includes 4 in.
black poly wand, spray tip, mixing media, hose barb, and
screw band clamp

V20231208 •Page 9 of 9Model: F5.0L | F5.0L-PSG

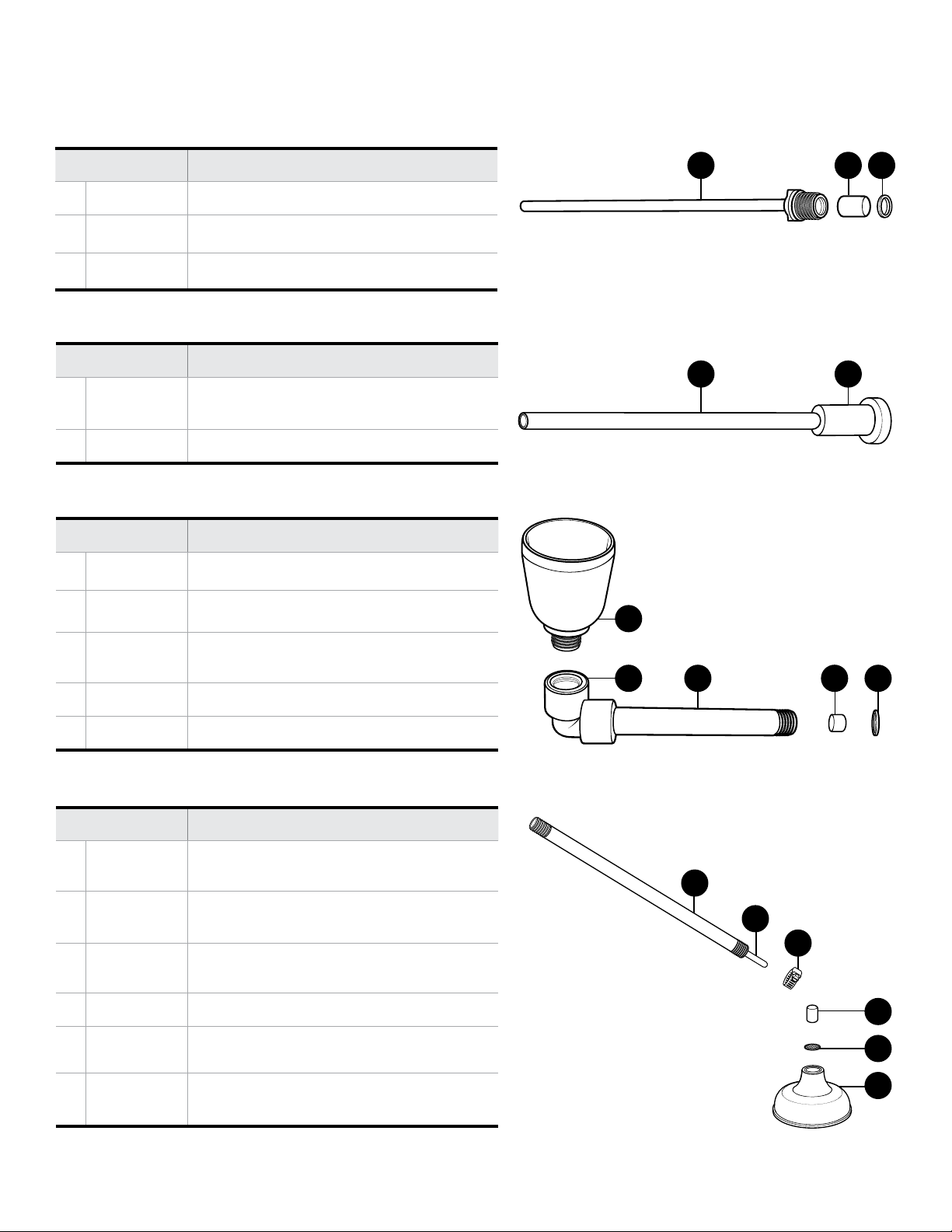

Drain Tube: LC-DT
Hoof Attachment
Item number Description
4LST14 Rigid white polypropylene tubing -
⁄ in. od - 0.17 in. id - 15 in. long
5PFA-DT Press fit adapter for ⁄ in. tubing
Item number Description
1PWH ⁄ in. MPT x open tube - 18 in. long
2WAAD-.75 ⁄ in. dia wadding for foam units
3PSGORV O-ring for PSG12 - Viton
Drain Plunger Assembly: DPA-PUF
Item number Description
11 PN1218 ⁄ in. NPT pipe nipple - black
polypropylene - 18 in. long
12 TB38N-PE ⁄ in. od natural tube - polyethylene -
available per ft.
13 SSC34 Screw band clamp for ⁄ in. hose -
stainless
14 WAAD-.75 ⁄ in. dia wadding for foam units
15 SSST Screen disc - 0.69 dia - 10 x 10 mesh -
stainless
16 PLG-B5 Drain plunger - black with 5 in. diameter -
6 pack
Teat Dip Cup: DCWA-2DC
Item number Description
6DC12 Foam dip cup - ⁄ in. MPT - pp
7PEL12F ⁄ in. female poly pipe elbow 90 degree
8PN126 ⁄ in. NPT pipe nipple - black
polypropylene - 6 in. long
9WAAD-1 1 in. x 1 in. x 1 ⁄ in. wadding for foam units
10 PSGORV O-ring for PSG12 - Viton
Attachment options
21 3
11
13
12
4 5
14
15
16
7
6
8109
