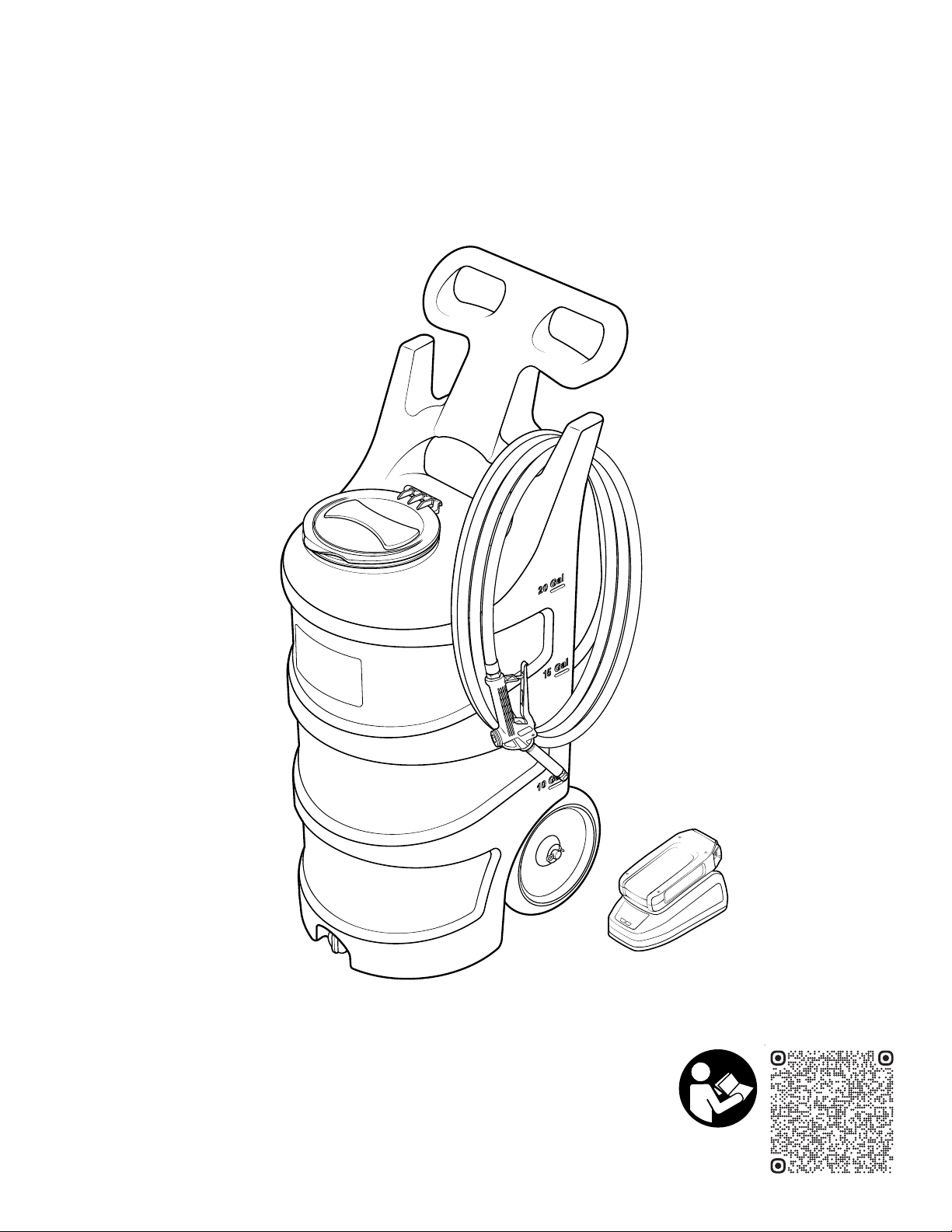

Foamit FI-BP-20N User manual

20 Gallon Battery Powered
Portable Foam Unit
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
operation manual
FI-BP-20N
Operation Manual

V20240117 • Page 2 of 8Model: FI-BP-20N
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Never leave the unit unattended while
pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Some components may be hot during and after use. Use caution when servicing or handling the
equipment.
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Keep battery box lid closed and latched at all times unless accessing battery. Do not use with lid open
or damaged. Do not expose unit to liquids, cleaning solutions, foam, or rain. The battery pack is not
waterproof. Do not submerge in liquid. If battery pack gets wet, allow to dry before further use.
Using the unit with unapproved devices may result in a risk of fire, shock or personal injury. Only use
with 24V Equip Series compatible equipment.
When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To
prevent premature battery failure, do not store battery in a depleted state for long periods of time.
WARNING
Safety

V20240117 • Page 3 of 8Model: FI-BP-20N
Safety
WARNING
• Failure to follow first aid instructions may result in
death or serious personal injury.
• If battery liquid comes in contact with skin, wash
immediately with soap and water, then neutralize with
lemon juice or vinegar.
• If battery liquid gets in your eyes, flush with clean
water for a minimum of 10 minutes, then seek
immediate medical attention.
• If battery liquid is swallowed, seek immediate medical
attention.
State of California Proposition 65 Warning:
• The battery can expose you to chemicals, including cobalt, lithium, manganese, nickel, oxide, and carbon black,
which are known to the State of California to cause cancer and reproductive harm. For additional information, go
to www.P65Warnings.ca.gov.
First Aid Instructions:
Refer to the separate manuals supplied with the battery and charger for additional safety precautions and
instructions.
Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Protect the Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
NOTICE

V20240117 • Page 4 of 8Model: FI-BP-20N
Product Overview
Requirements
Liquid temperature range 40-100˚F (4.4-37.8˚C)
Electical requirements 100-240 VAC at 60 Hz, 3 amp max (GFCI protected outlet) for battery
charger only
Operating voltage 24 VDC
Chemical compatibility
Chemical products used with this equipment must be formulated for this
type of application and compatible with unit materials and pump seals.
For more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
Power type Lithium-ion battery
Battery charge time 1 hour 10 minutes
Battery run time Up to 45 minutes of continuous use
Chemical pickup type Draws from pre-mixed solution
Number of products unit can draw from One product
Suction line diameter ⅜ in. (9.5 mm) inside diameter
Capacity 20 gallons (75.7 liters)
Discharge line length/diameter 12 ft. (3.7 m) hose, with ⁄ in. (9.5 mm) inside diameter
Discharge wand/tip type Polypropylene spray gun with 80° fan tip or
Stainless steel ball valve (SSBV) with 80° fan tip
Output distance 2-6 ft. (0.3-1.8 m)
Output volume Polypropylene spray gun: 3 gal/min (11.4 l/min)
Stainless steel ball valve: 4-5 gal/min (15.1-18.9 l/min)
Flow rate* 0.5 gal/min (1.9 l/min)
Pump seals Santoprene diaphragm, Viton check seals
Wheel type Two 10 inch (25.4 cm) non-marking wheels.
Specifications
*Flow rates given are based on chemical with viscosity of water.

V20240117 • Page 5 of 8Model: FI-BP-20N
Product Components
Get to know the FI-BP-20N components that you will need to use, adjust or assemble.

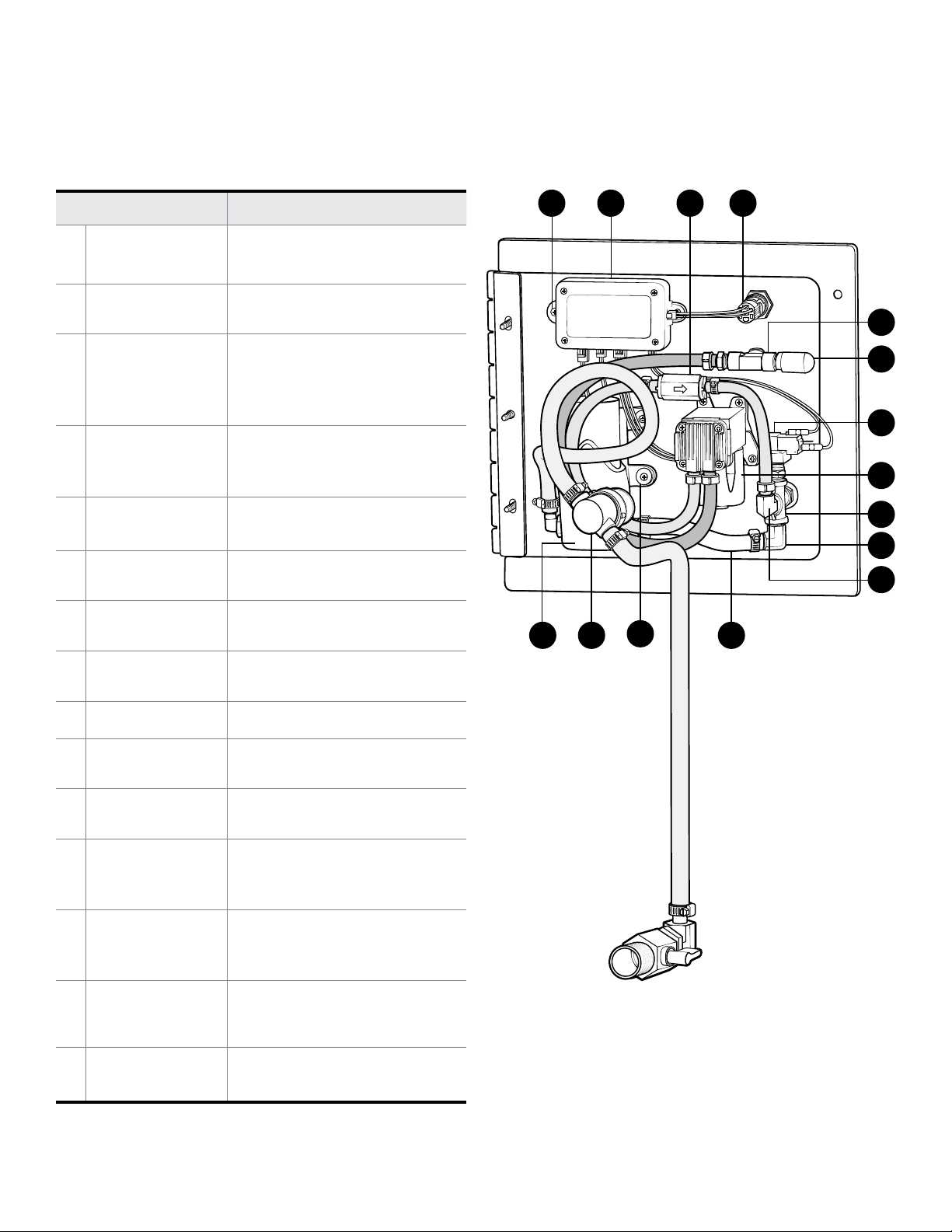

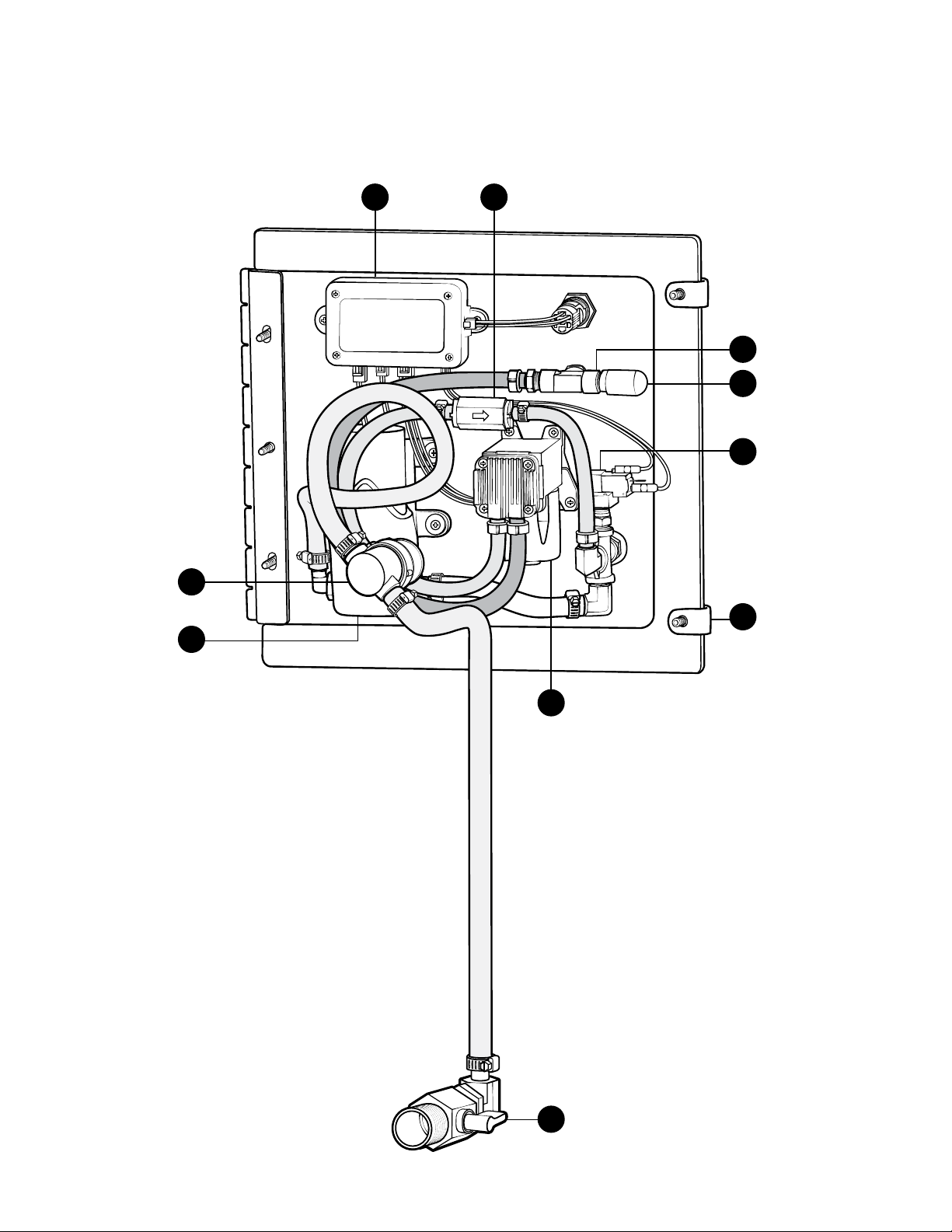

Back plate assembly • Inside view
1. In-line strainer
2. Electric fluid pump
3. Relay controller
4. Check valve
5. Needle valve
6. Muer
7. Pressure switch
8. Back plate thumb nuts
9. Electric air compressor
10. Suction line valve
1
3 4
7
9
8
10
6
5
2

V20240117 • Page 6 of 8Model: FI-BP-20N

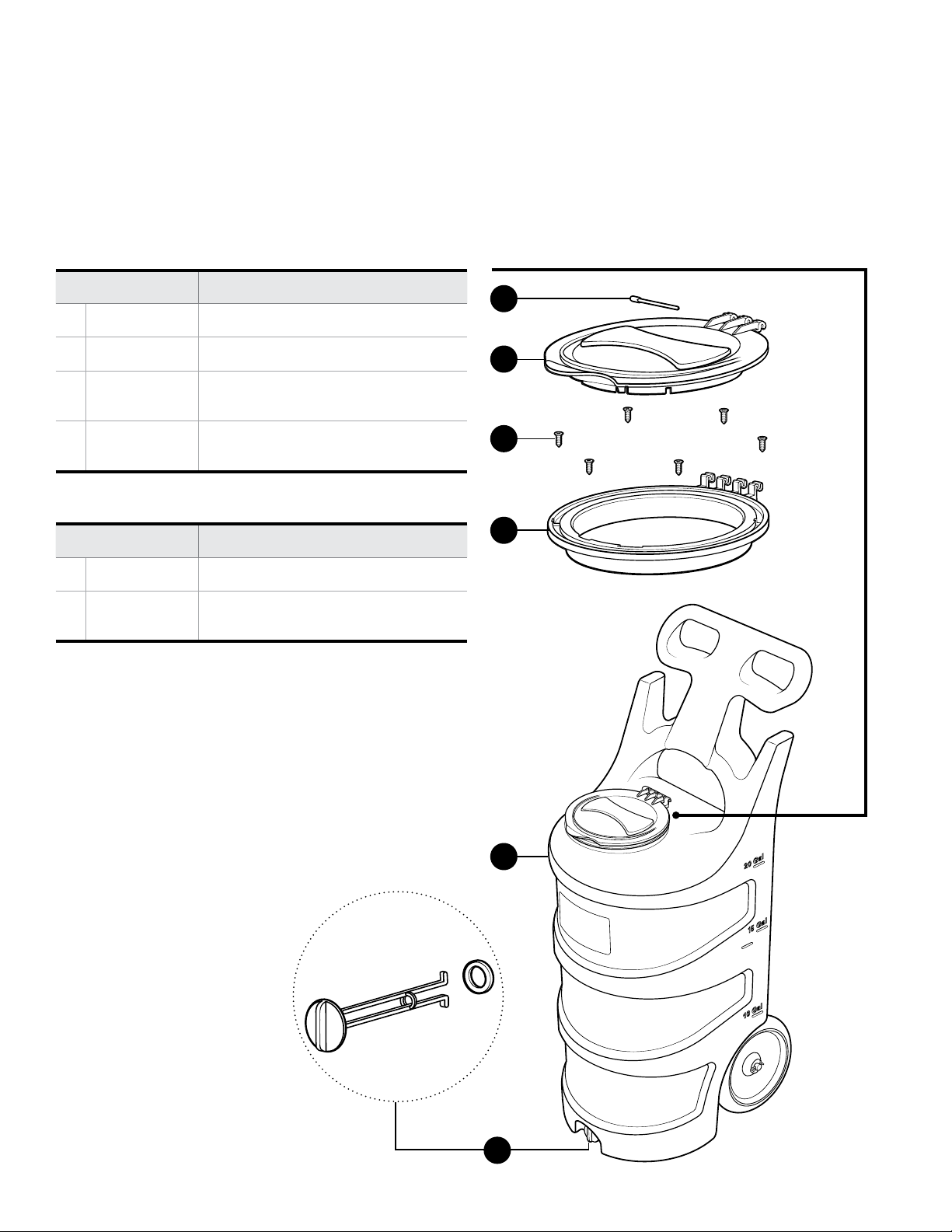

Tank Assembly
11. Hinged lid
12. Solution tank
13. Drain plug
14. Discharge wand
15. Trigger gun
16. Discharge hose
17. Power button
18. Needle valve
19. Battery
20. Battery box
21. Suction line valve
Front view Back view
15
11
16
17
18
21
13
12
19
20
14

V20240117 • Page 7 of 8Model: FI-BP-20N

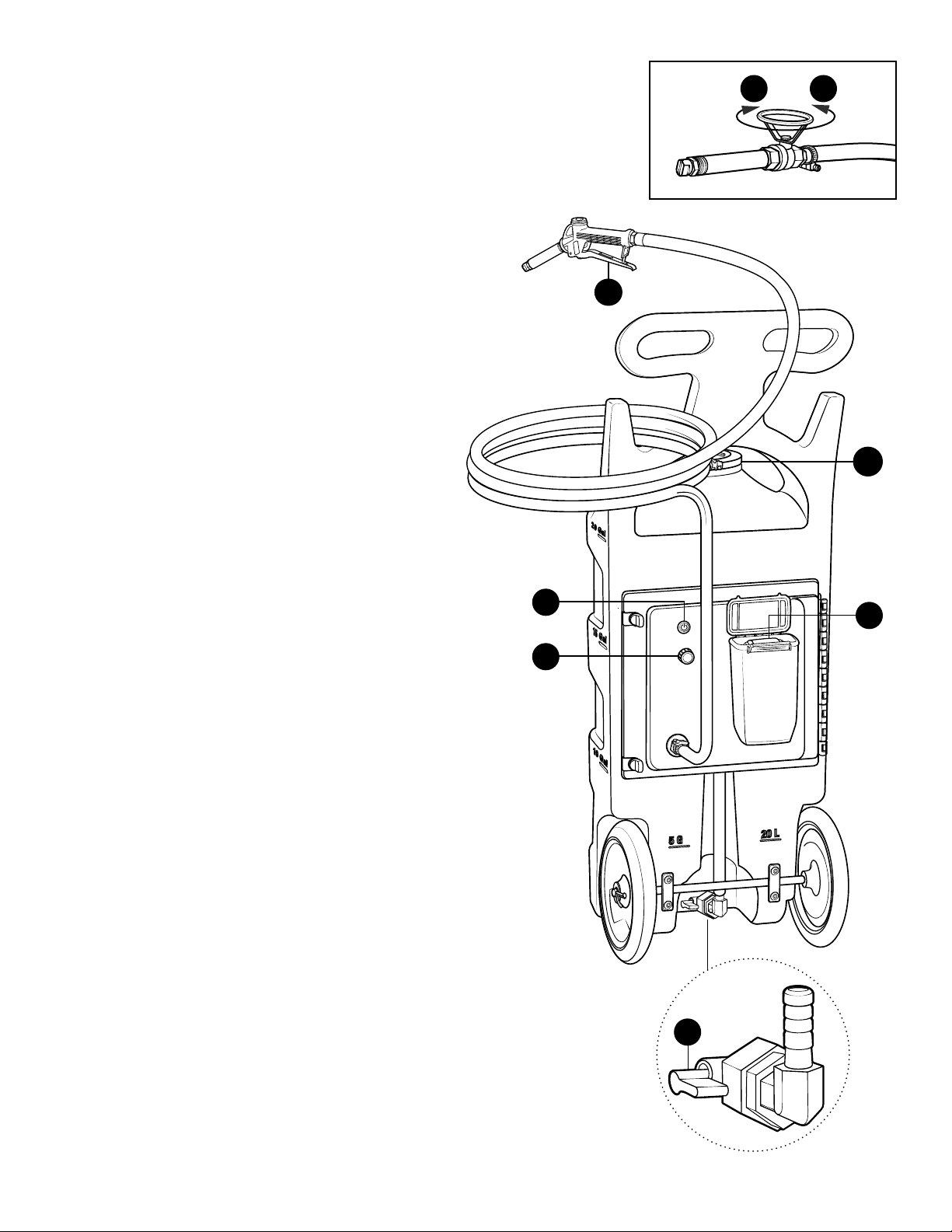

Using your unit
Operating Instructions
1. Remove battery and charger from packaging. Ensure
battery is fully charged. Refer to charge level indicator
table in battery manual for more information.
2. Once fully charged, insert battery into the receiver until
properly secure. Close lid and secure the latch.
NOTE: Keep battery box lid closed and latched unless
accessing battery. Do not operate unit with lid
open or damaged.
3. Verify drain plug is securely closed.
4. Following all instructions from chemical manufacturer,
fill the solution tank with pre- mixed solution.
5. Verify suction line valve at the base of the suction
line is open, allowing fluid into the suction line.
6. Press the power button to turn on the unit.
7. Slowly open the discharge ball valve or squeeze
trigger handle to begin foaming.
8. While the unit is running and discharging product,
adjust the needle valve to regulate the wetness or
dryness of the foam following the steps below:
a. Close needle valve completely in clockwise
direction.
b. Open needle valve in counter-clockwise direction
3 complete turns.
c. Continue to open needle valve in ¼ turn increments,
allowing 30 seconds between adjustments, until
desired consistency of foam is achieved.
9. Close the discharge ball valve, or release trigger handle
to stop foaming.
After Use Instructions
NOTE: For proper handling and disposal procedures
refer to chemical SDS.
10. Solution should be removed from unit after each use.
This can be done in two ways:
a. Unthread drain plug from front of tank and drain
solution into an approved location.
b. Place discharge wand into approved container.
Turn the needle valve to the wet setting and activate
unit until all solution has been flushed from the unit.
11. Press power button to turn o unit. Open the discharge
ball valve or trigger handle to relieve remaining pressure.
12. Before using unit with another chemistry, thoroughly
flush with water.
7
5
6
8
2
79
SSBV
4

V20240117 • Page 8 of 8Model: FI-BP-20N
Performing any maintenance with the unit pressurized, may result in serious injury or death. Always ensure that the
unit has been depressurized, before conducting any maintenance. Servicing or modifying unit with parts not listed in
this manual may cause the unit to operate improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear. Verify all hose clamps are in good condition and properly secured.
• Check the suction line and strainer for debris. Clean as needed.
• If foam quality beings to decrease, inspect the wadding. Replace as needed.
• Store battery in a half-charged state and maintain battery every 3-6 months.
To service your unit, refer to the service manual which includes:
• Troubleshooting procedures.
• Detailed parts breakdowns and illustrations.
• Part numbers of serviceable components and assemblies.
WARNING
Maintenance
Maintaining Your Unit
Servicing Your Unit
Scan this code for
service manual

20 Gallon Battery Powered
Portable Foam Unit
FI-BP-20N
Service Manual
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
service manual

V20231110 • Page 2 of 14Model: FI-BP-20N
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Never leave the unit unattended while
pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Some components may be hot during and after use. Use caution when servicing or handling the
equipment.
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Keep battery box lid closed and latched at all times unless accessing battery. Do not use with lid open
or damaged. Do not expose unit to liquids, cleaning solutions, foam, or rain. The battery pack is not
waterproof. Do not submerge in liquid. If battery pack gets wet, allow to dry before further use.
Using the unit with unapproved devices may result in a risk of fire, shock or personal injury. Only use
with 24V Equip Series compatible equipment.
When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To
prevent premature battery failure, do not store battery in a depleted state for long periods of time.
WARNING
Safety

V20231110 • Page 3 of 14Model: FI-BP-20N
Refer to the separate manuals supplied with the battery and charger for additional safety precautions and
instructions.
Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Protect the Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
NOTICE
WARNING
Safety
• Failure to follow first aid instructions may result in
death or serious personal injury.
• If battery liquid comes in contact with skin, wash
immediately with soap and water, then neutralize with
lemon juice or vinegar.
• If battery liquid gets in your eyes, flush with clean
water for a minimum of 10 minutes, then seek
immediate medical attention.
• If battery liquid is swallowed, seek immediate medical
attention.
State of California Proposition 65 Warning:
• The battery can expose you to chemicals, including cobalt, lithium, manganese, nickel, oxide, and carbon black,
which are known to the State of California to cause cancer and reproductive harm. For additional information, go
to www.P65Warnings.ca.gov.
First Aid Instructions:

Performing any maintenance with the unit pressurized may result in serious injury or death. Always ensure the unit
has been depressurized before conducting any maintenance. Servicing or modifying this unit with parts not listed in
this manual may cause the unit to operate improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear. Verify all hose clamps are in good condition and properly secured.
• Check the suction line and strainer for debris. Clean as needed.
• If foam quality beings to decrease, inspect the wadding. Replace as needed.
• Store battery in a half-charged state and maintain battery every 3-6 months.
Maintaining Your Unit
V20231110 • Page 4 of 14Model: FI-BP-20N
WARNING
Service Guide
Most repairs on the unit can be performed with the following tools:
• Crescent wrench (2x)
• ⁄ in. (7 mm) hex bit
• Flat head screwdriver
• Thread seal tape
• #2 Phillips head screwdriver
• #3 Phillips head screwdriver
• Hose cutters
• Knife
Servicing Your Unit

If your unit is not operating properly, try using these troubleshooting tips:
Troubleshooting Your Unit
V20231110 • Page 5 of 14Model: FI-BP-20N
Issue Solution
Pump is cycling improperly • Verify pump did not fail from chemical attack, or electrical malfunction.
• Ensure proper chemical and concentration are being used.
• Inspect suction line and strainer for debris or damage.
• Needle valve may be open too far. Close and readjust the needle valve.
Foam comes out wet, no matter
where the needle valve is
positioned
• The check valve may need to be replaced.
• Verify correct chemical concentration is being used.
• If only the fluid pump is running, the electric air compressor may need to be
replaced.
• Check if the wadding is plugged. Remove and inspect it by following the
instructions below:
1. Verify the unit does not have the battery installed or the power on.
2. Relieve all stored pressure in the unit by opening the ball valve, or
squeezing the trigger handle.
3. Unthread the discharge wand from the ball valve or spray gun.
4. Remove and inspect the wadding from inside the wand.
Note: Ensure tubing stays inside of wand when removing wadding.
5. Replace wadding if necessary. Attach wand back onto the ball valve or
spray gun.
Sporadic wet foam • Verify correct chemical concentration is being used.
• Ensure discharge hose is not kinked or damaged.
• Inspect wadding. Replace wadding if it is clogged.
• If wadding is next to spray tip, replace tubing inside the discharge wand.
Sporadic dry foam • Inspect suction line and strainer for debris or damage.
• If pump is cycling improperly or has failed, replace the pump.
The unit operates at a
reduced pressure
• Inspect suction line and strainer for debris or damage. Clean or replace as
needed. To prevent damage to the unit, the strainer must always be used.
• Inspect wadding. Replace wadding if necessary.
Battery will not completely
charge
• Place a secondary battery on the charger. If the secondary battery charges as
expected, it indicates that the initial battery is faulty and should be replaced.
• If the problem continues to occur, the charger is bad. Replace battery charger.
Battery discharges too quickly • Battery has reached life expectancy. Replace battery.
Power button LED slow flashing • Dead battery, charge battery.
Power button LED fast flashing • Compressor startup failure. Reset with a power cycle.
• A faulty pump or compressor may need to be replaced.
Battery/charger fault light is
flashing
• Refer to the separate manuals supplied with the battery and charger for more
information regarding indicator and fault lights.

V20231110 • Page 6 of 14Model: FI-BP-20N
Item number Description
5TNK-20N 20 gallon natural tank
6DPA Drain plug assembly for portable
units - includes gasket
Tank Assembly
TNKA-20N-BK:
20 gallon natural tank assembly - black* lid - includes drain
plug, wheels, suction valve, and backplate thumb nuts
LDA-7BK:
Lid assembly - includes 7 in. black* lid, lid flange, hinge pin,
and mounting screws
Front view
* Additional colors available, see datasheet for options.
Item number Description
1LD-PIN Hinge pin for 7 in. lid and flange
2LD-7BK-LID 7 in. cap - polyethylene - black*
3S812-FH #8 x ½ in. screw - stainless - flat
head Phillips
4LD-7BK-FLNG 7 in. lid flange - polyethylene -
black*
3
1
2
4
5
LDA-7BK
6

V20231110 • Page 7 of 14Model: FI-BP-20N
TNKA-20N-BK:
20 gallon natural tank assembly - black* lid - includes drain
plug, wheels, suction valve, and backplate thumb nuts
BPTNA:
Back plate thumb nut assembly - includes bolt, thumb nut,
and tether
Back view
Item number Description
1BST1420118-VS ¼-20 x 1 ⁄ in. set bolt - stainless -
Vibra-Seal
2TN1420 ¼-20 thumb nut - brass insert -
assembled with tether
VLVA- PVCV34:
Suction valve assembly - includes valve, bushing, and elbow
Item number Description
3PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
4HHPB3414 Hex head poly bushing ¾ MPT x ¼ FPT
5HBSSEL1438 Stainless hose barb ¼ MPT x ⅜ barb
elbow
WHLA-AXL15:
10 in. wheel assembly - includes 15 in. axle, axle plate, bolts,
washers, and cotter pins
Item number Description
6COT Cotter pin - stainless - ⅛ in. x 1 in.
7PLSS-AXL Axle plate - stainless - 2.5 in. x 1 in.
- 2 holes
8AXL15 Axle - stainless - 0.625 dia. x 15.45 in.
9B142012-VS ¼-20 x ½ in. bolt - stainless - truss head
Phillips - Vibra-Seal
10 W10 Wheel - non-marking - 10 in.
11 FW58 Flat washer for ⅝ in. pipe - stainless -
0.687 id x 1.5 od x 0.07 thk
3
1
11
2
54
VLVA- PVCV34
WHLA-AXL15
6897 10
BPTNA

V20231110 • Page 8 of 14Model: FI-BP-20N
Item number Description
1S1034-HL #10 x ⁄ in. screw - stainless -
truss head Phillips - hi-lo thread
2LV RC -24V- M C Low voltage relay controller -
24 volt - with motor controller
3CV14-HT
Check valve - ⁄ in. barbs - 1 lb. -
stainless spring and ball - Viton
seals - PVC body - gray - high
temp
4PBSA-24V
Push button switch assembly -
includes 24V LED locking switch
and wire harness
5NV14 Needle valve - ¼ in. NPT -
includes black knob
6MFLRPE14 ⁄ in. male NPT muer -
polyethylene
7PS14QFV-55 Pressure switch - ⁄ quick fit -
55 PSI - Viton membrane
8AC24VDC-1.4 24 VDC, 1.4 CFM open flow, 90
PSI max electric air compressor
9SSCR14 SS cross ⁄ in. FPT
10 HBSSEL1438 Stainless hose barb ⁄ MPT x
⁄ barb elbow
11 HBSSEL1414 Stainless hose barb ⁄ MPT x
⁄ barb elbow
12 EP24VDC-1
24 VDC, 1 GPM open flow, 40
PSI max electric fluid pump,
Viton seals, Santo diaphragm
13 STR38-IL
In-line strainer - ⅜ barb - EPDM
gasket - 20 mesh SS - black
bowl
14 FW8
Flat washer for #8 screw -
stainless - 0.17 in. id x 0.63 in.
od x 0.07 in. thk
15 H3 8 BL- F ⅜ in. blue hose - hybrid TPE -
available per ft.
Back Plate Assembly
PA-PF38-BP:
Plate assembly for portable foam battery unit - 24 Volt
battery and air compressor - ⁄ in. discharge hose barb
Inside view
21 4
11
14
13 15
3
12
5
7
6
9
10
8

V20231110 • Page 9 of 14Model: FI-BP-20N
NOTE: Refer to battery and charger user manuals for more information.
*not included with backplate assembly
8
9
7
Back view
Item number Description
8BLI-24V-4AH Lithium ion battery - 24V 4Ah
9BLI-24V-CHRGR Lithium ion battery charger -
24V - includes NA power cord
Battery and Charger*
*not included with backplate assembly
2
3
5 6
4
1
Item number Description
1PBSA-24V
Push button switch assembly -
includes 24V LED locking switch
and wire harness
2NV14-HNDL Black knob for needle valve
3SSSFN12 Serrated flange nut - stainless -
½ in.
4SSA14BKH Bulkhead adapter - stainless -
¼ NPT x ¼ NPSM
5HBSS1438 Stainless hose barb ½ MPT x ½
barb
6BLI-24V-BB Battery box - includes box, lid,
latch, pins, and gasket
7 BLI-24V-RCVR Battery receiver interface plate for
BLI-24V system
Back Plate Assembly
PA-PF38-BP:
Plate assembly for portable foam battery unit - 24V battery
and air compressor - ⁄ in. discharge hose barb

V20231110 • Page 10 of 14Model: FI-BP-20N
Item number Description
1PSH-BP Pressure switch harness for 24V
battery power
2PS14QFV-55 Pressure switch - ⁄ quick fit -
55 PSI - Viton membrane
3QF14P Quick fit - ⁄ MPT x ⁄ od tube -
polypropylene
Back Plate Sub-assemblies
PSHA-BP:
Pressure switch harness assembly - includes pressure
switch, harness for 24V battery power, and quick fitting
5 6 7
4
2
3
NVA-NV14-BP
PSHA-BP
8
1
Item number Description
4NV14-HNDL Black knob for needle valve
5SSC14 Stainless screw band clamp for
⁄ in. hose
6HBSS1414 Stainless hose barb ¼ MPT x ⁄ barb
7NV14 Needle valve - ¼ in. NPT -
includes black knob
8MFLRPE14 ⁄ in. male NPT muer -
polyethylene
NVA-NV14-BP:
Needle valve assembly - includes needle valve,
polyethylene muer, hose barb, and screw band clamp

V20231110 • Page 11 of 14Model: FI-BP-20N
Item number Description
1SSC14 Stainless screw band clamp for
⁄ in. hose
2CV14-HT
Check valve - ⁄ in. barbs - 1 lb. -
stainless spring and ball - Viton
seals - PVC body - gray - high temp
3H14BK-HT ⁄ in. black hose - high temp EPDM
rubber - available per ft.
4AC24VDC-1.4 24 VDC, 1.4 CFM open flow, 90 PSI
max electric air compressor
5H1 4B L- F ⁄ in. blue hose - hybrid TPE -
available per ft.
Back Plate Sub-assemblies
ACA-AC24VDC-1.4:
Air compressor assembly - includes 24V air compressor,
1 lb. SS check valve, hoses, and screw band clamps
ACA-AC24VDC-1.4
2
1
3
4
5

Item number Description
1H38BK-HT ⁄ in. black hose - high temp EPDM
rubber - available per ft.
2STR38-IL In-line strainer - ⅜ barb - EPDM
gasket - 20 mesh SS - black bowl
3SSC38 Stainless screw band clamp for
⅜ in. hose
4HBSSEL1438 Stainless hose barb ¼ MPT x ⅜
barb elbow
5HHPB3414 Hex head poly bushing ¾ MPT
x ¼ FPT
6PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
V20231110 • Page 12 of 14Model: FI-BP-20N
Suction Assembly
SCTNA-PF-BP:
Suction assembly for battery equipped units - includes
suction valve, hose, and in-line strainer
5
2
SCTNA-PF-BP
1
3
6 4
