USE AND CARE GUIDE
CHESTNUT HILL ELECTRIC FIREPLACE
1002 347 601/102952/23MM90356-PD01
1002 347 590/102969/23MM90456-PG76
1002 347 575/102976/23MM90556-PO98
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2

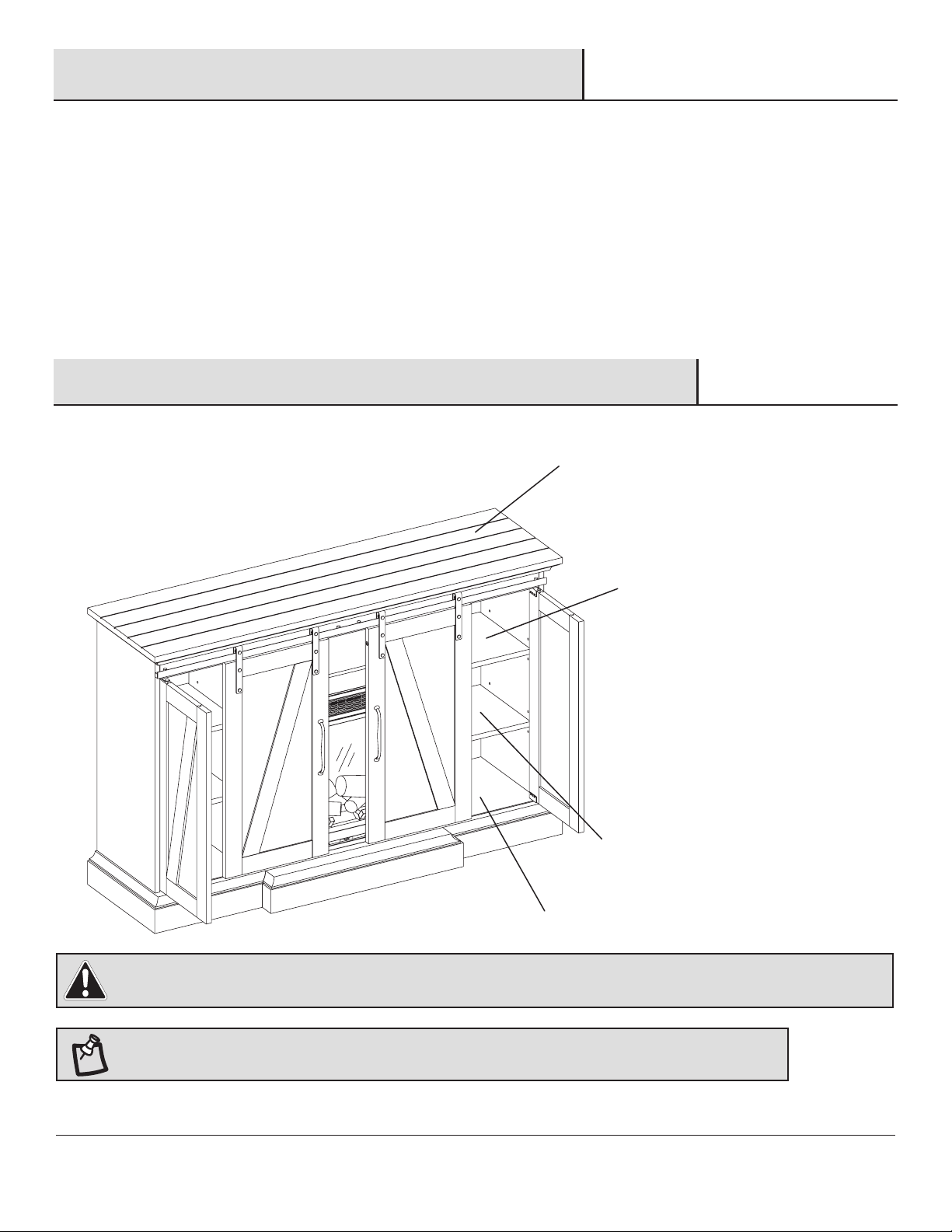

MAXIMUM LOAD 75 lb. (34.0 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................22
FCC/IC Information......................................................... 25
Care & Cleaning.......................................................25
Troubleshooting.......................................................26
Replacement Parts.................................................. 28
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at service at 1-800-986-3460, 8 a.m.-7 p.m., EST,
Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
Pre-Assembly
HARDWARE INCLUDED
Part Description Part Number Quantity
AA Wood Dowel PH-DWLNTL001 37
BB Cam Lock Screw PH-KDBZNC002 25
CC Cam Lock Connector PH-KDCZNC001 25
DD Shelf Pin PH-SPNPCSPLB2 16
EE Handle with Screws Handle with Screws 2
FF Screw- 3 x 12 mm Screw- 3 x 12 mm 40
GG Screw- 4 x 16 mm Screw- 4 x 16 mm 20
HH Slider PH-BDRBLK002 4
II Screw- 4 x 50 mm PH-SCRBLK006 10
JJ Flat Washer-15 mm Flat Washer-15 mm 8
KK Rolling Door Hanger PH-BDRBLK002 4
LL Door Stopper PH-BDSBLK003 2
MM Bolt- 4 x 19 mm Bolt- 4 x 19 mm 2
NN Tipping Restraint Hardware PH-BKTWHT003 2
OO Magnetic Door Latch PH-MTLBLK001 2
PP Right Pin Hinge PH-HNGBLK001 2
QQ Left Pin Hinge PH-HNGBLK001 2
RR Screw- 3.5 x 15 mm Screw- 3.5 x 15 mm 8
SS Screw- 3 x 15 mm Screw- 3 x 15 mm 12
TT Door Bumper PH-BMPBLK002 2
UU Plastic Connector Block PH-BKTBLK010 2
VV Bolt- 6.3 x 12 mm PH-BLTBLK002 32
WW Levelers (pre-attached) PH-LVRBLK001 4
XX Magnetic Door Catch (pre-attached) PH-MGTBLK002 4
YY Insert Mounting Bracket (pre-attached) PH-BKTZNC001 2
ZZ Metal Plate (pre-attached) PH-PLTBLK001 4
AAA Floor Glide (pre-attached) PH-GLDBRW001 4
BBB Touch-up pen (For models 28MM90368 and 28MM90468) Touch-up pen 1
BBB Touch-up pen (For model 28MM90568) Touch-up pen 2
CCC 2 Hole Plastic Connector Block PH-PCBBLK001 12
DDD Screw PH-BLTBLK001 8
EEE Washer PH-WSRBLK001 8
AA
OO PP QQ RR SS TT UU VV WW XX
YY
BBB
DDD EEE
AAA
CCC
ZZ
BB CC DD
EE
FF GG HH II JJ
KK
LL MM NN

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE:
Hardware not shown to actual size.
Phillips Screwdriver
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 90 Minutes
TOOLS REQUIRED

8

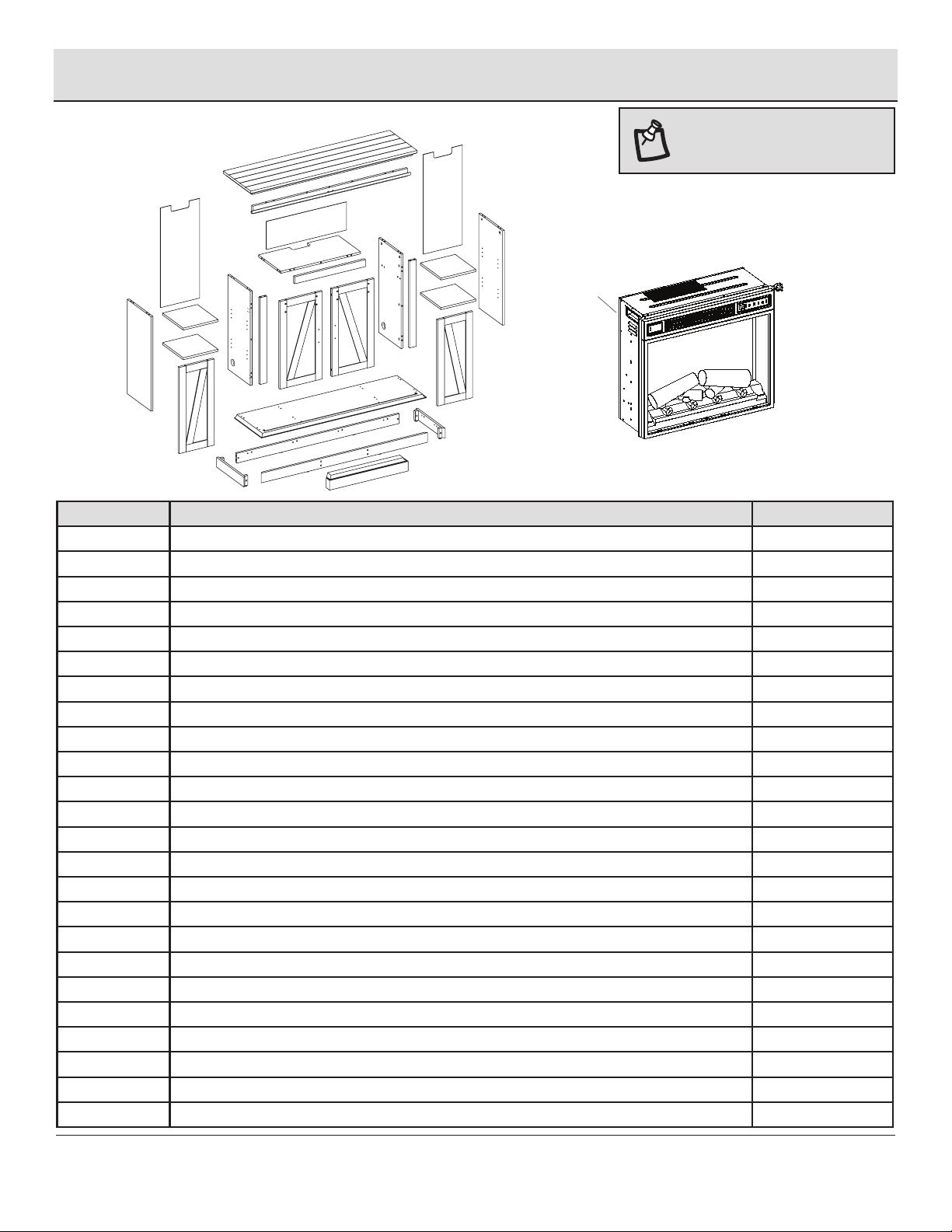

PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
S
Part Description Quantity
A Base 1
B Left Side Door 1
C Right Side Door 1
D Left Side Panel 1
E Left Center Panel 1
F Right Center Panel 1
GTop Assembly 1
H Right Side Panel 1
I Left Decorative Front Panel 1
J Left Sliding Door 1
K Right Sliding Door 1
L Right Decorative Front Panel 1
M Side Back Panel 2
N Adjustable Shelf 4
OTop Apron 1
P Center Back Panel 1
Q Center Shelf Front Panel 1
R Center Shelf 1
S Fireplace Insert 1
T Back Base Panel 1
U Left Base Panel 1
V Right Base Panel 1
W Front Base Panel 1
X Decorative Base Panel 1
J
A
C
F
H
O
G
D
E
I
L
P
Q
R
N
N
M
N
N
M
B
T
U
V
WX
K

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
2
Place the Left Center Panel (E) and Right Center
Panel (F) on a at surface.
Insert Wood Dowels (AA) into the pre-drilled holes
along the edges as shown.
Preparing the center panels
3
Locate the Left Decorative Front Panel (I) and Right
Decorative Front Panel (L) from step 1.
Using the Left Decorative Front Panel (I) and the Left
Center Panel (E), align the pre-installed dowels and
cam lock screws into the holes.
Secure by inserting Cam Lock Connectors (CC) into
the pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam
Lock Connectors (CC).
Repeat until all have been secured.
Attaching the decorative front panels
1
Place the Left Decorative Front Panel (I) and Right Deco-
rative Front Panel (L) on a at surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes in
the Left Decorative Front Panel (I).
Continue until all Cam Lock Screws (BB) are secured on
the Left Decorative Front Panel (I) and Right Decorative
Front Panel (L) as shown.
Preparing the decorative front panels
Assembly
F
F
L
I
L
CC
I
E
E
AA
BB

10

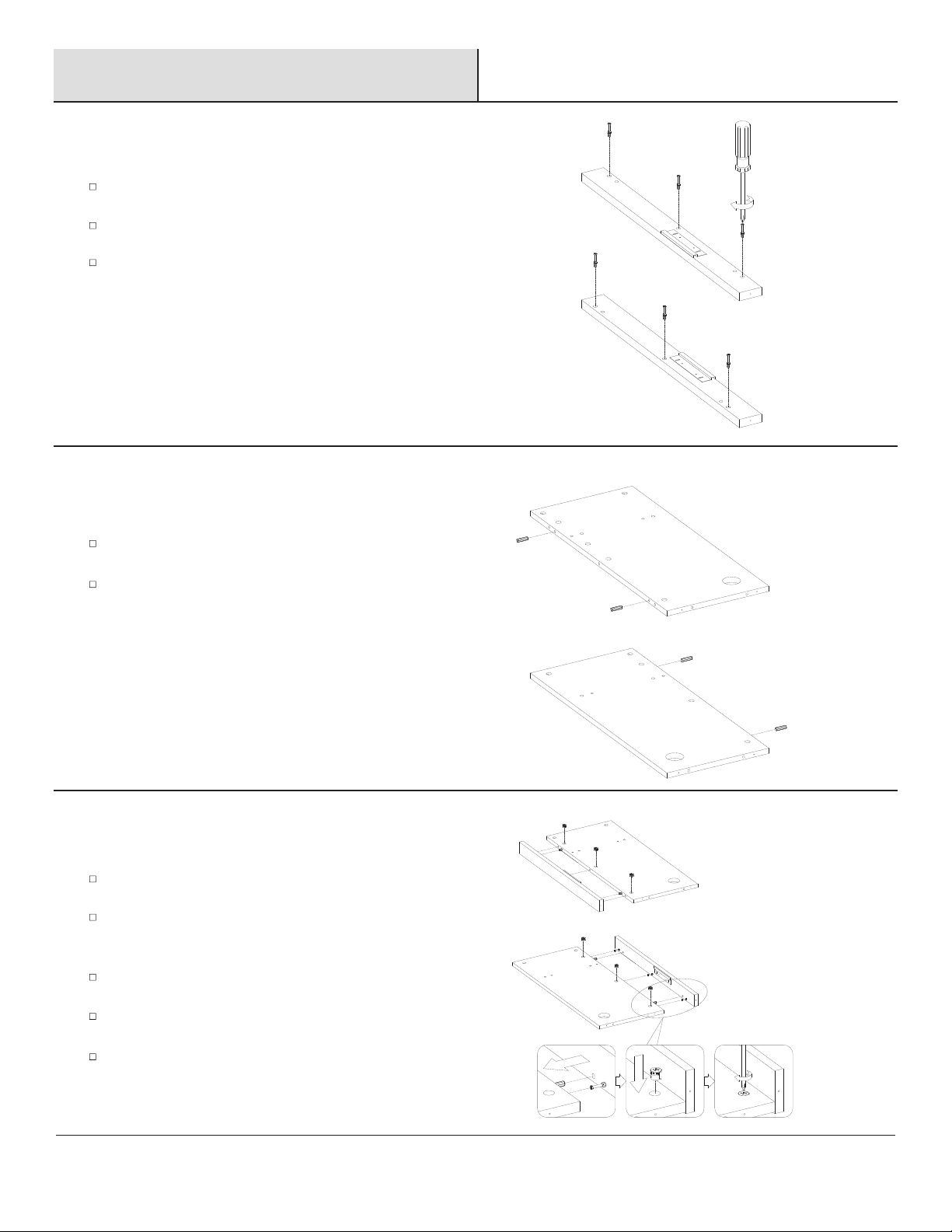

4
Assembly (continued)
Flip the right and left center panel assemblies
from step 3 over.
Locate the Magnetic Door Catch (OO) and
secure it to the assembly using Screws (SS).
Repeat on the other assembly.
Locate the Door Bumper (TT) and secure it to
the assembly using the Screws (SS).
Repeat on the other assembly.
Attaching the door catch
F
OO
TT
ESS
SS
5
Flip the right and left center panel assemblies
from step 4 over.
Insert Cam Lock Screws (BB) into the pre-drilled
holes in the left center panel assembly and
secure using a Phillips screwdriver.
Repeat until all Cam Lock Screws (BB) have been
installed as shown.
F
BB
E
Preparing the center panels

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

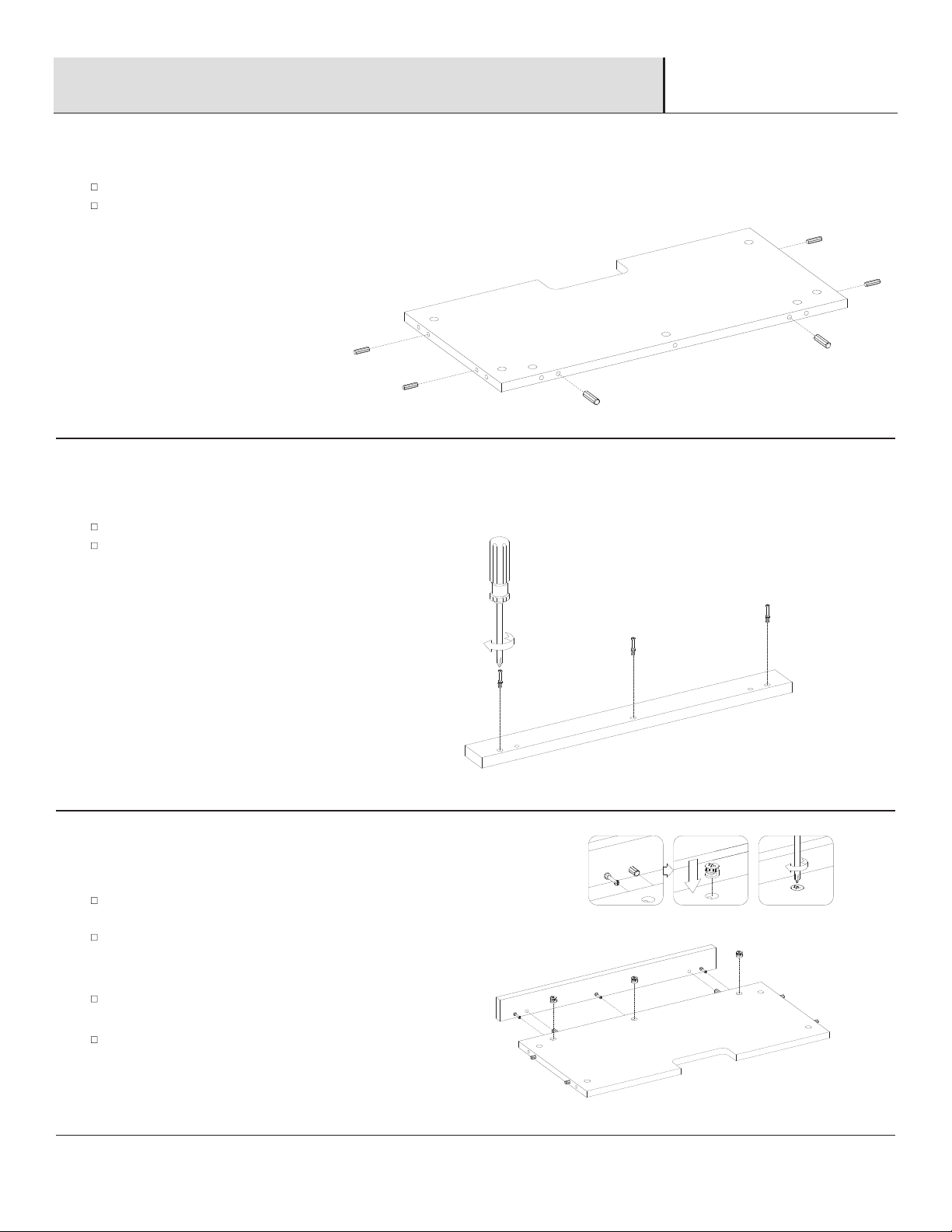

7
8
6
Assembly (continued)

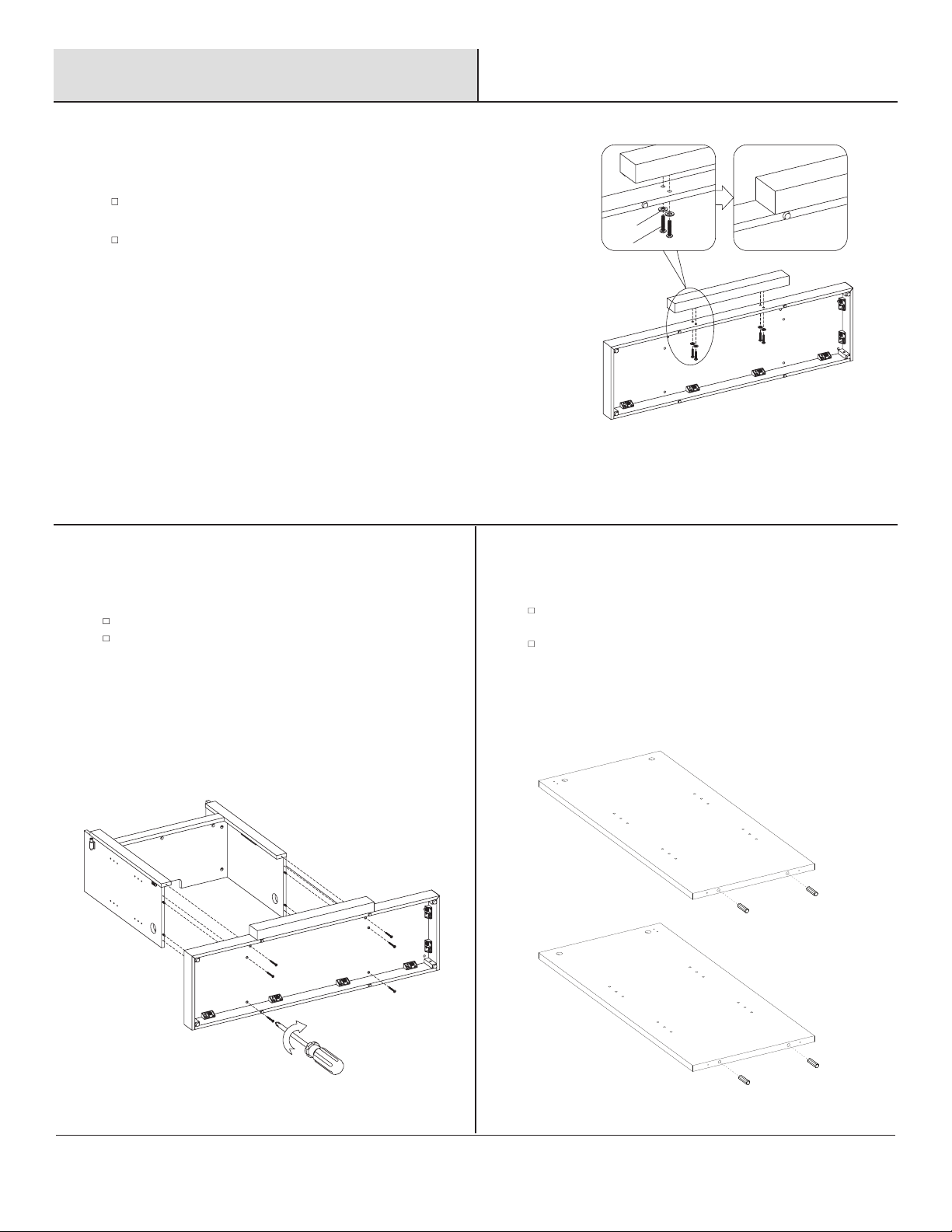

Locate the Center Shelf Front Panel (Q).
Insert Cam Lock Screws (BB) into the pre-
drilled holes in the Center Shelf Front Panel (Q)
and secure using a Phillips screwdriver.
Locate the Center Shelf (R) and Center Shelf
Front Panel (Q).
Align the pre-installed dowels in the Center
Shelf (R) to the holes in Center Shelf Front
Panel (Q) as shown.
Insert the Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Repeat until all have been inserted and secure
using a Phillips screwdriver.
Locate the Center Shelf (R).
Insert Wood Dowels (AA) into the pre-drilled
holes along the edges of the Center Shelf (R).
Q
R
Q
CC
AA
BB
Preparing the center shelf
Assembling the center shelf
Preparing the center shelf
R

12
1110
9
Preparing the center assembly

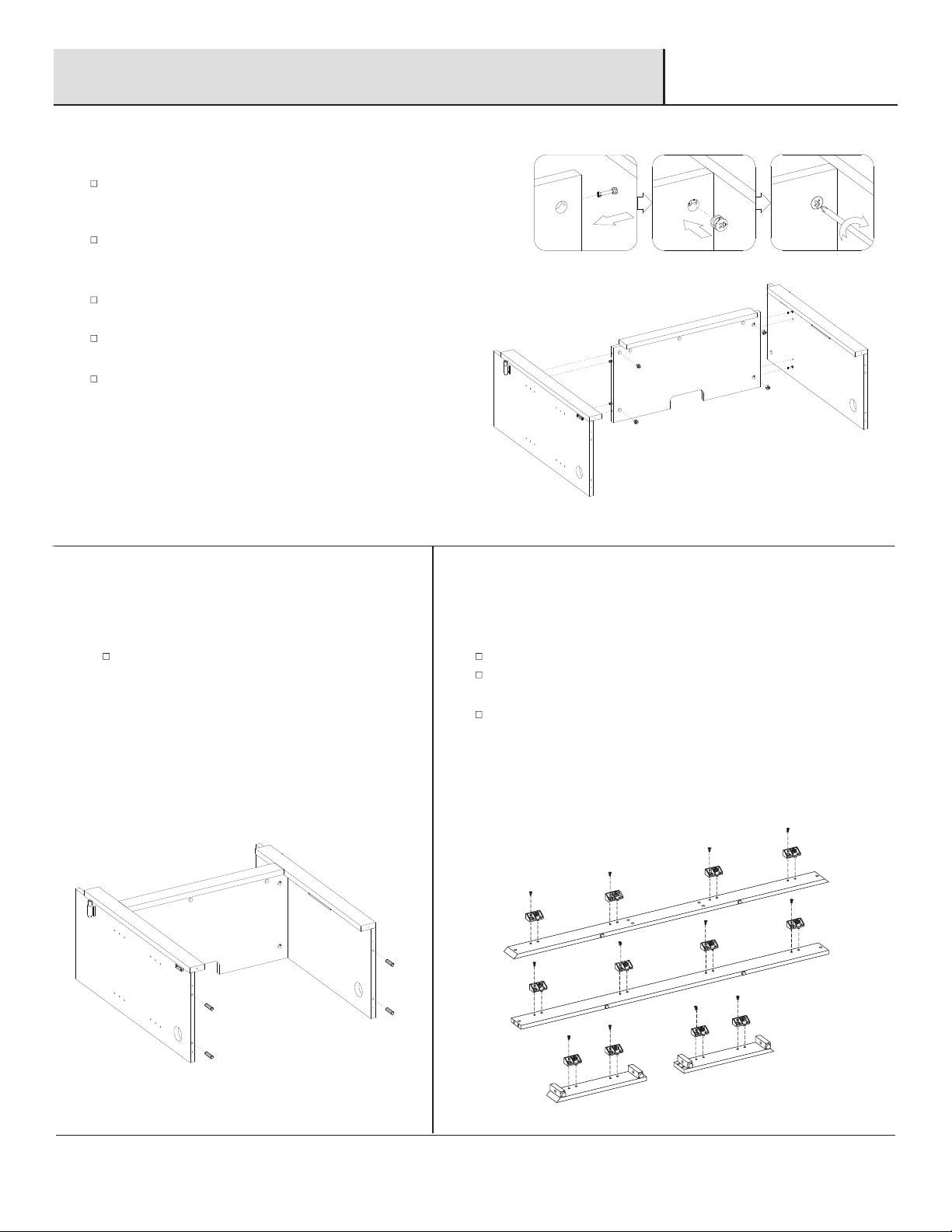

Locate the Left Center panel assembly (E) and Right
Center panel assembly (F) from Step 5, and Center Shelf
assembly (R,Q) from Step 8.
Using the Left Center panel assembly (E) and the Center
Shelf assembly (R,Q) align the pre-installed dowels and
cam lock screws into the holes.
Secure by inserting Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam Lock
Connectors (CC).
Repeat to secure the Right Center panel assembly (F).
Preparing the center assembly
Assembly (continued)
V
T
W
U
F
E
CC
Insert Wood Dowels (AA) into the pre-drilled
holes along the edges of the Center Assembly.
AA
CCC
VV
Preparing the base panel
Place the Base Panels (T,U,V,W) on a at surface.
Insert Bolts (VV) through the 2 Hole Plastic Connector
Blocks (CCC).
Tighten with the Phillips screwdriver.

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

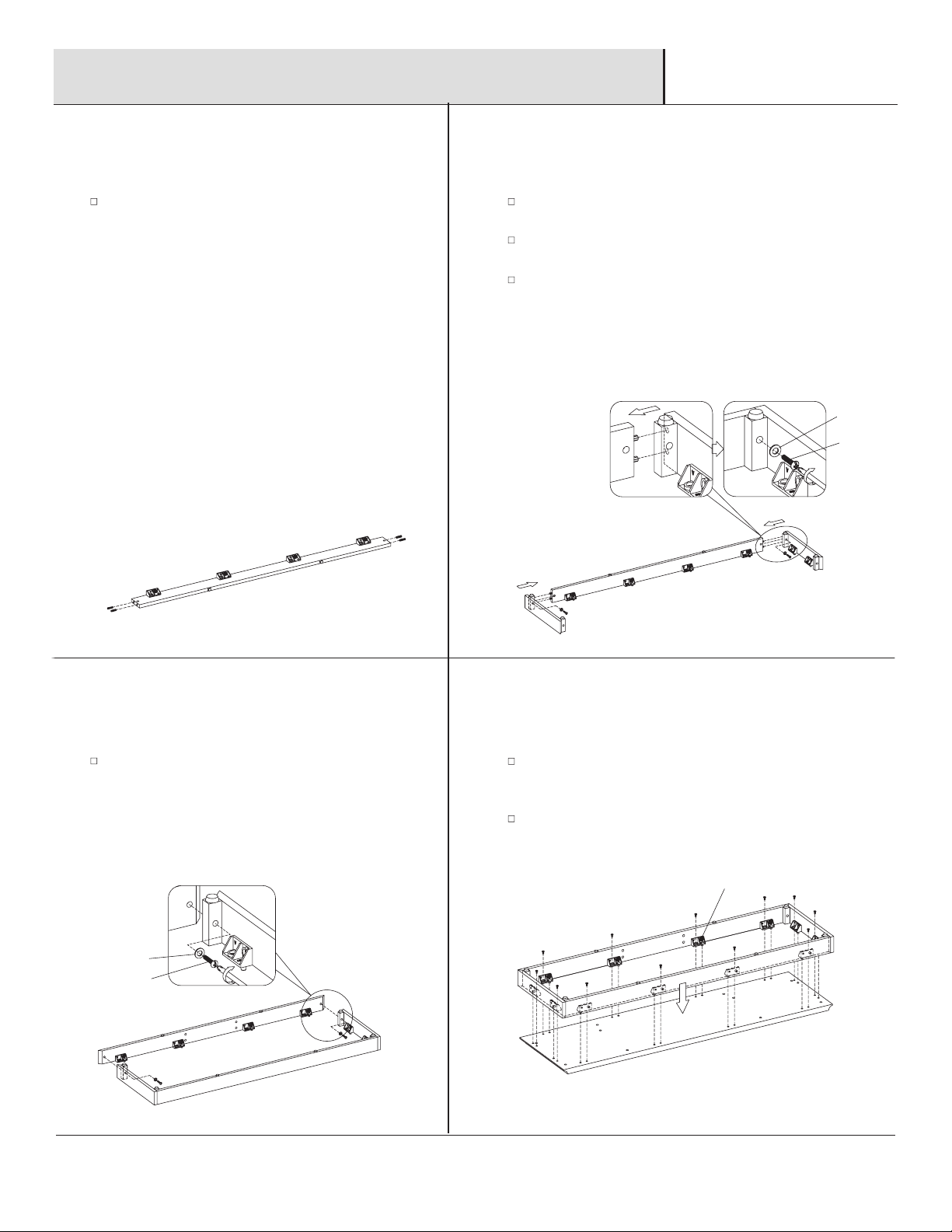

12
14
13
15
Assembly (continued)
TT
V
U
W
DDD
EEE
A
AA
VV
DDD
EEE
Preparing the back base panel
Insert Wood Dowels (AA) into the pre-drilled
holes along the edges of the
Back Base Panel (T).
Attaching the base panels
Align the Right Base Panel (V) with the Back Base Panel
(T), push together.
Secure with the Washers (EEE) and Screws (DDD) using a
Phillips screwdriver.
Repeat to attach the Left Base Panel (U).
Attaching the front base panel
Align the Front Base Panel (W) with the
previously assembled base panels.
Secure with Washers (EEE) and Screws (DDD) using
a Phillips screwdriver.
CCC
Attaching the base panels
To attach the previuosly assembled panels to the Base
(A), insert Bolts (VV) through the 2-Hole Plastic Connector
Blocks (CCC).
Tighten with a Phillips screwdriver.

14
16
Assembly
X
17Attaching the base

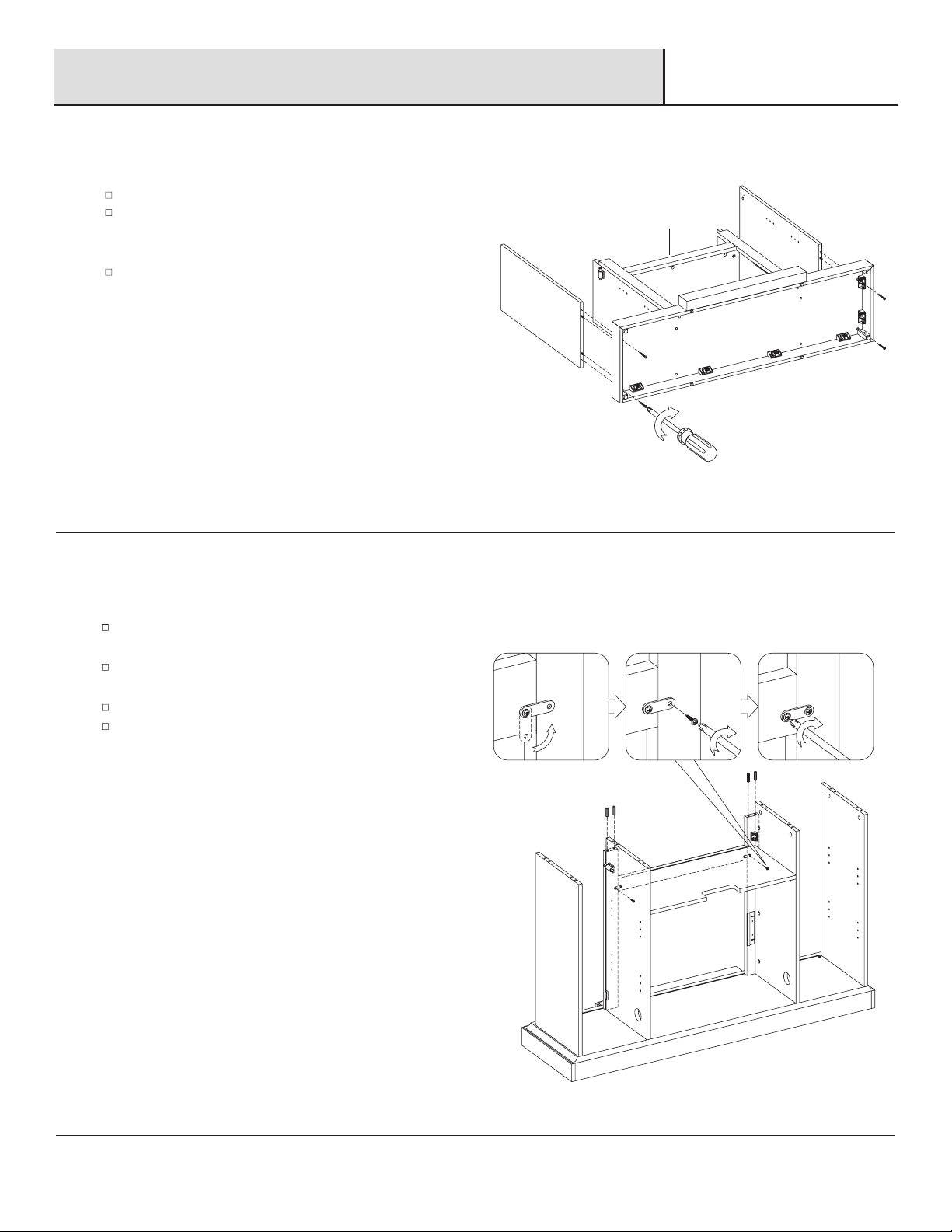

Align the Base (A) and the center assembly together.
Insert Screws (II) through the bottom of the Base (A)
and securely tighten using a Phillips screwdriver.
A
II
18Insert Wood Dowels (AA) into the pre-drilled holes
in the Left Side Panel (D).
Repeat for the Right Side Panel (H).
Preparing the side panels
D
H
AA
DDD
EEE
Attaching the decorative base panel
Insert Screws (DDD) and Washers (EEE) to
secure the Decorative Base Panel (X).
Tighten using a Phillips screwdriver.

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
20
19

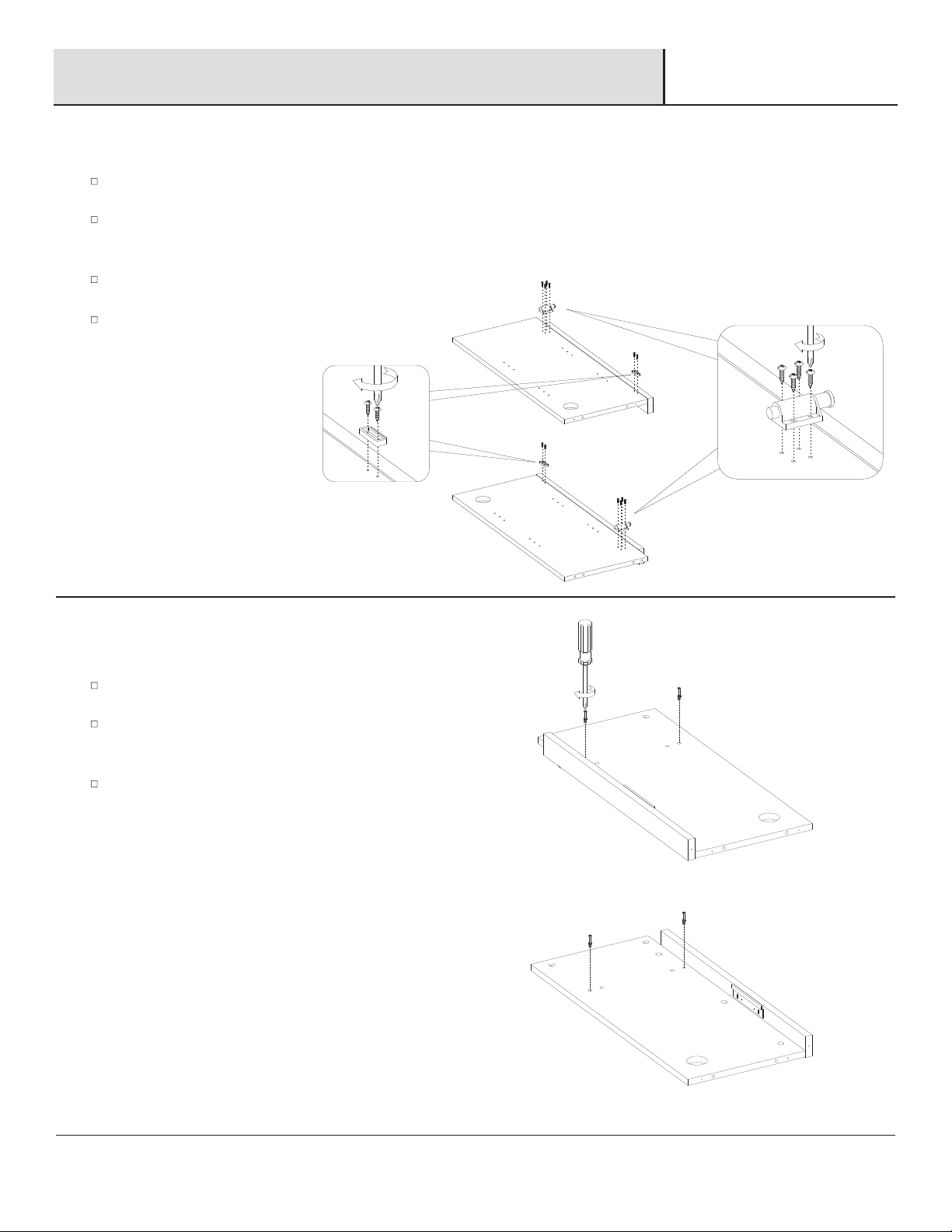

Align the Metal Plate (ZZ) onto the back of the center shelf
(Q) and secure with a Screw (FF).
Rotate the Metal Plate (ZZ) to span the joint and secure with
another Screw (FF).
Repeat to secure the other side.
Insert Wood Dowels (AA) into the pre-drilled holes in the top
edge of the Base/Center assembly as shown.
Attaching the surround bracket
Locate the Base/Center assembly from step 8.
Align the Left Side Panel (D) to the base/center assembly
and secure together using Screws (II) and a Phillips
screwdriver.
Repeat to attach the Right Side Panel (H).
Base/Center assembly
(Step 8)
Securing the side panels
Assembly (continued)
D
H
II
ZZ
FF
Q
F
E
AA

16

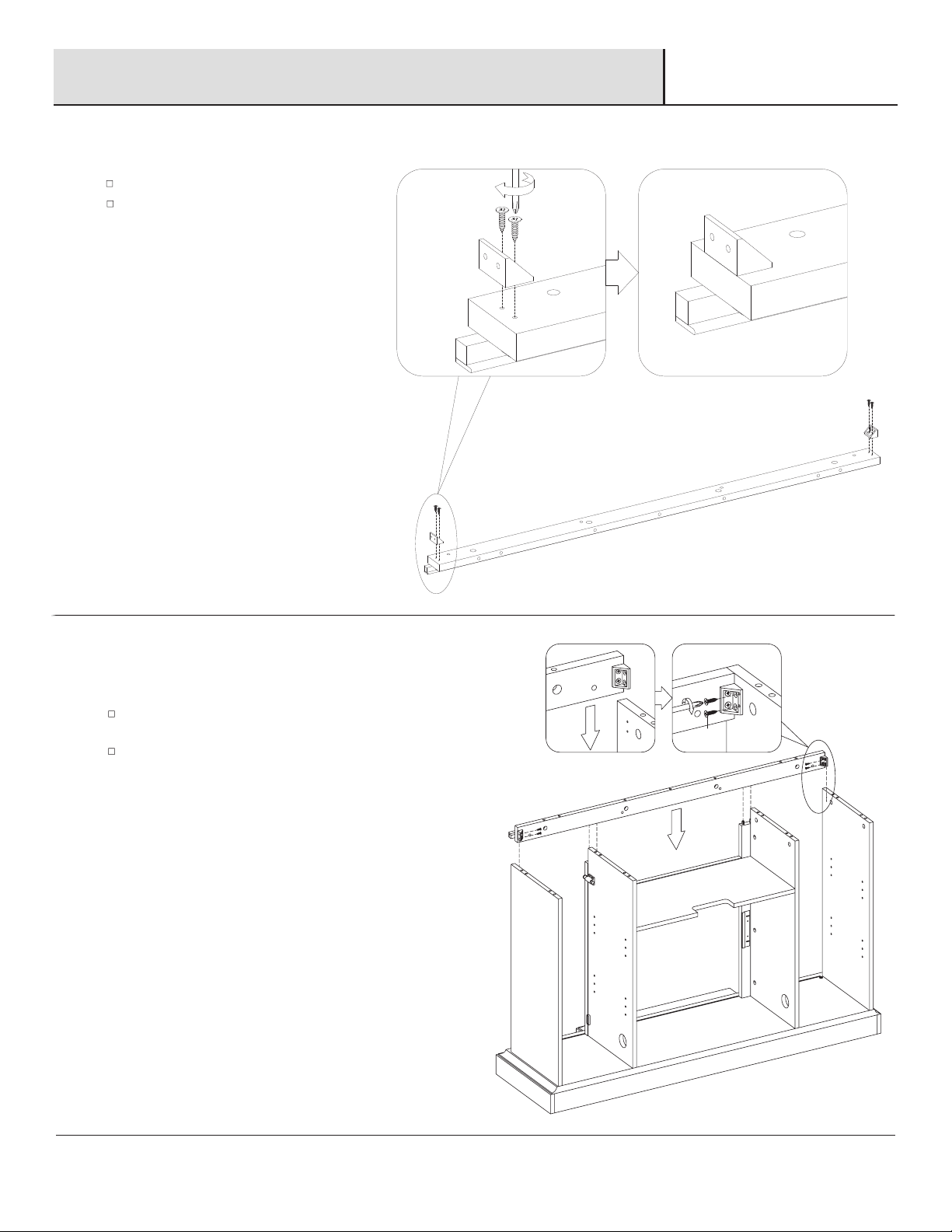

21
22
Place the Top Apron (O) on a at surface.
Insert the Screws (GG) through the Plastic
Connector Blocks (UU).
Preparing the top apron
Align the Top Apron (O) to the main assembly and
slide it down onto the pre-installed wood dowels.
Secure Plastic Connector Blocks (UU) to the Top Apron
(O) and main assembly using Screws (GG) and a
Phillips screwdriver.
Installing the top apron
Assembly (continued)
O
O
GG
UU
GG

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

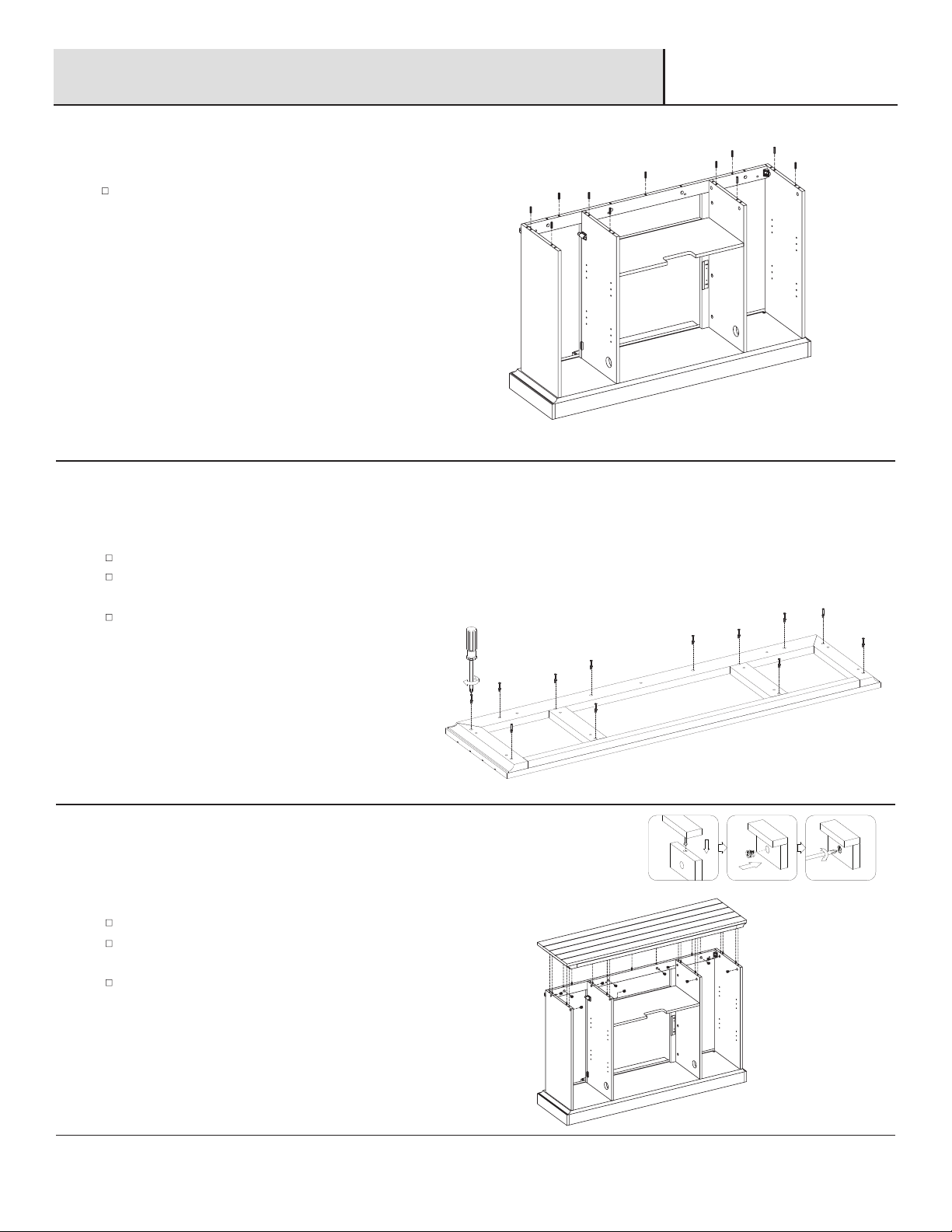

Insert Wood Dowels (AA) into the pre-drilled holes
in the top edges of the main assembly.
23 Preparing the top of the assembly
Assembly (continued)
Place the Top Assembly (G) onto a at surface.
Insert the Cam Lock Screws (BB) into the pre-drilled
holes in the bottom of the Top Assembly (G).
Tighten using a Phillips Screwdriver.
Place the Top Assembly (G) on top of main assembly.
From underneath, insert Cam Lock Connectors (CC) into
the pre-drilled holes.
Tighten using a Phillips Screwdriver.
24
25
Preparing the top assembly
Attaching the top assembly
AA
G
G
CC
BB

18

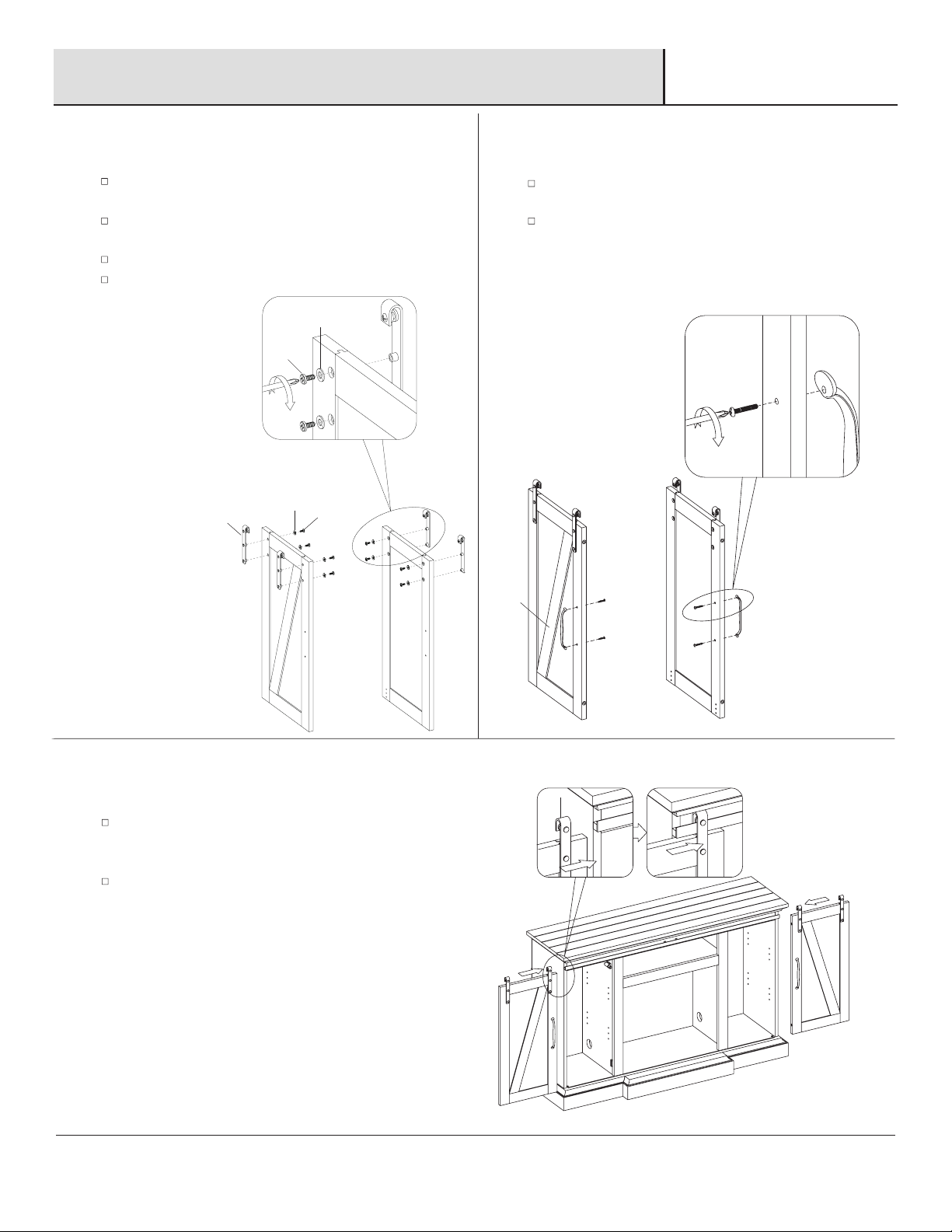

Place the Rolling Door Hangers (KK) on the outside of
the Left Sliding Door (J).
Insert Bolts (VV) with Flat Washers (JJ) into the pre-
drilled holes.
Tighten using a Phillips Screwdriver.
Repeat for the Right Sliding Door (K).
Align the Left Sliding Door (J) with the roller track.
With the Rolling Door Hanger (KK) latched onto the
roller track, push the Left Sliding Door (J) to the right.
Repeat to attach the Right Sliding Door (K).
Remove the pre-assembled screws from the Handles
(EE), then attach to the Left Sliding Door (J).
Repeat for the Right Sliding Door (K).
26
28
27
Attaching the rolling door hanger
Attaching the sliding doors
Attaching the handles
Assembly (continued)
KK
EE
EE
KK
J
K
K
J
K
J
VV
JJ
JJ
VV
KK

19
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

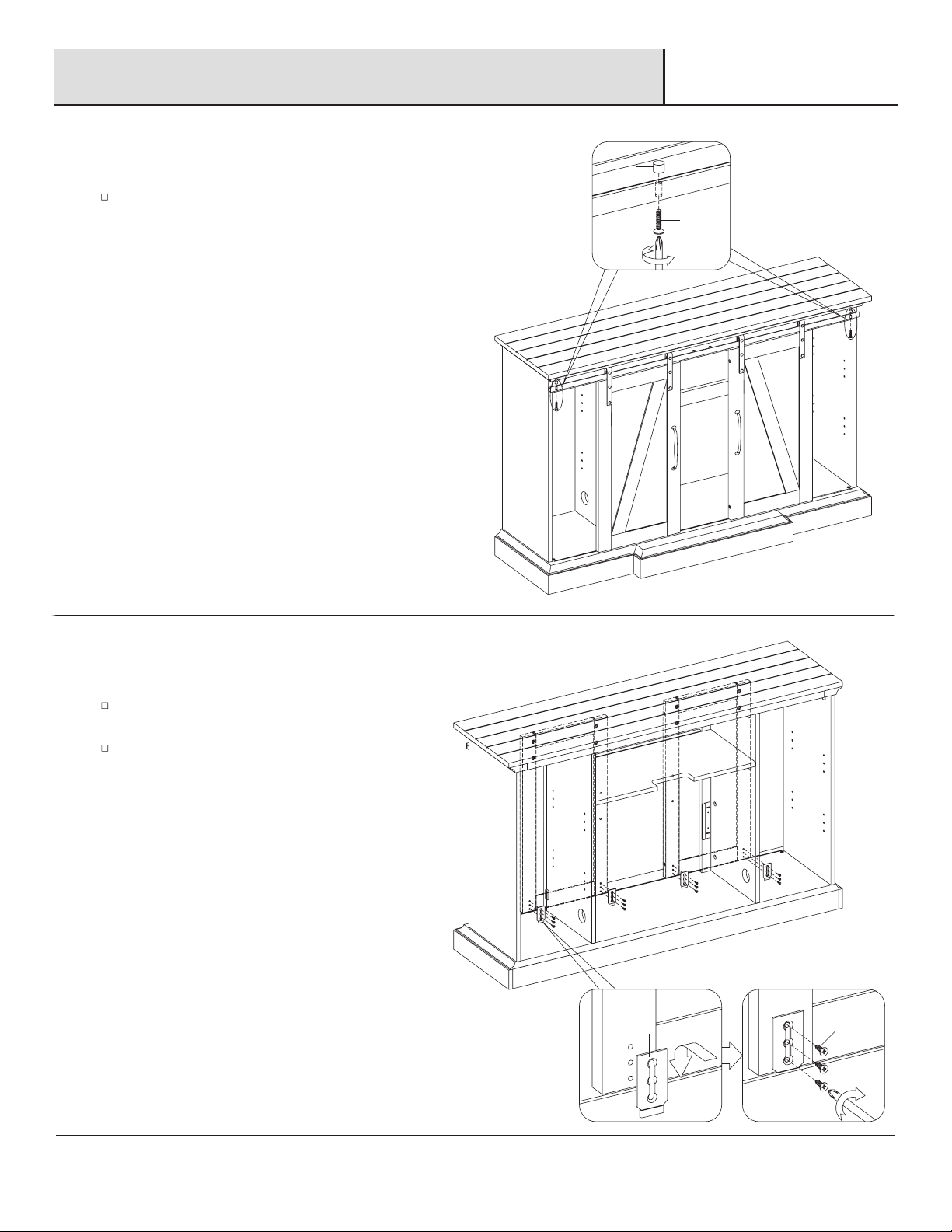

Insert the Bolts (MM) through the roller track to secure
the Door Stoppers (LL).
Insert Screws (GG) through the Sliders (HH) into the pre-
drilled holes in the Right Sliding Door (K).
Repeat for the Left Sliding Door (J).
29
30
Attaching the door stopper
Attaching the track guide
Assembly (continued)
LL
MM
GG
HH
J
K

20
N
DE
N
N
N

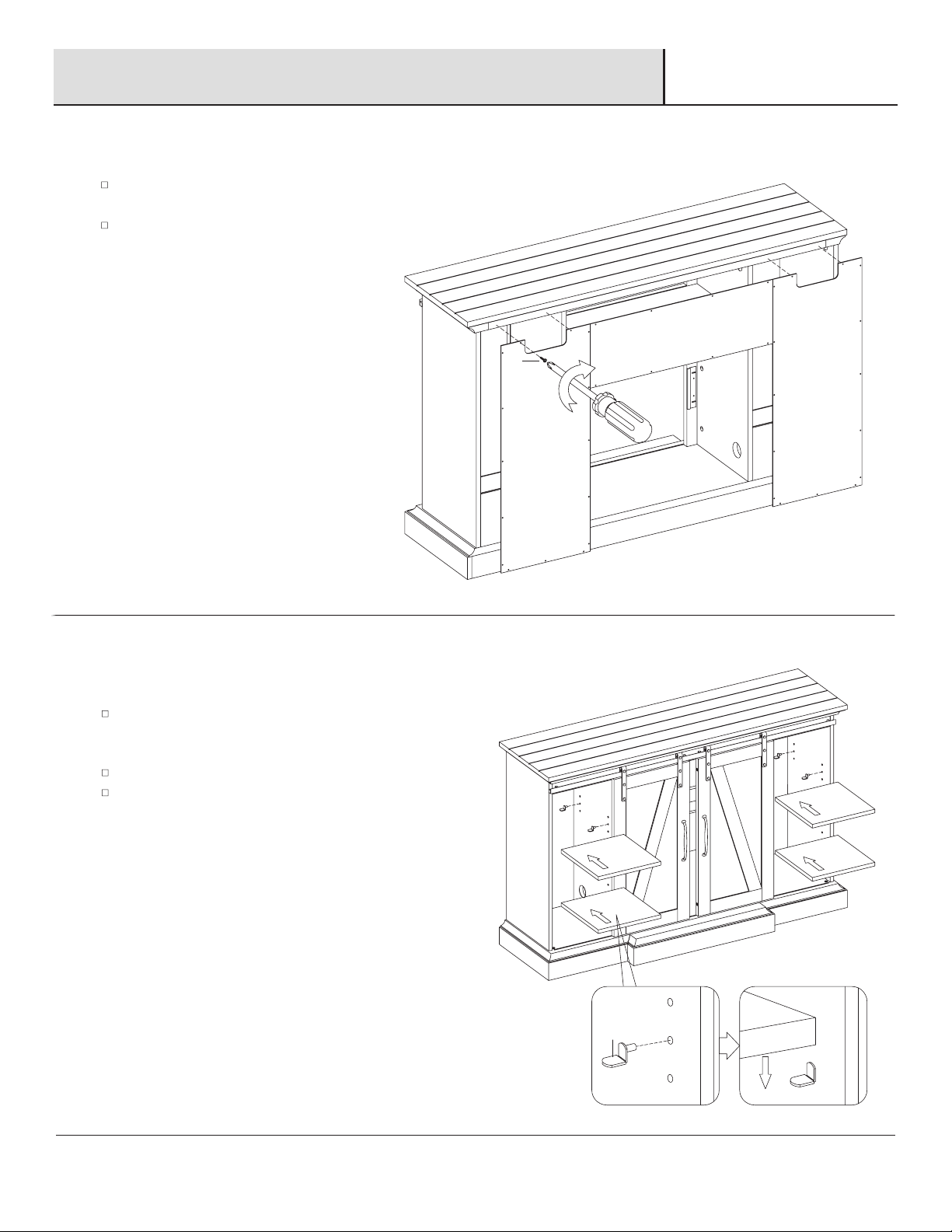

Insert the Screws (FF) through the pre-drilled holes in
the Center Back Panel (P) and the Side Back Panels (M).
Tighten using a Phillips Screwdriver.
31
32
Installing the back panels
Attaching the adjustable shelves
Insert the Shelf Pins (DD) into the pre-drilled holes on
the inside of the Left Side Panel (D) and the Left Center
Panel (E).
Rest the Adjustable Shelf (N) on the Shelf Pins (DD).
Repeat for the right side.
Assembly (continued)
FF
DD
M
M
P
