I N S T A L L A T I O N IIN S T R U C T I O N S
IMPORTANT NNOTES
This appliance is a high efficiency, flueless catalytic flame effect gas fire. It provides radiant and convected
warmth both efficiently and safely utilising the latest type catalytic converter and burner technology. The appli-
ance does not require a flue system of any type as the catalytic converter cleans the flue products to provide a
complete combustion system, which is intrinsically safe. It is designed to operate on Natural Gas and is factory
set for operation on the gas type, and at the pressure stated on the appliance data plate.
The appliance incorporates a combustion monitoring system (Oxygen Depletion System). It must not be adjust-
ed or put out of operation. If replaced then manufacturer’s original parts must be used.
It is the LAW that all gas appliances and fittings are installed by a competent person and in accordance with the
Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards for Installation, Codes of
Practice and the Manufacturers' Instructions.
At the time of writing, CORGI registered operatives are the only class of person considered as 'competent' by
the HSE under the above regulations. The installation shall also be carried out in accordance with the following:
Failure to comply with the above could lead to prosecution and deem the manufacturer’s warranty invalid.
This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated
space. The appliance is designed to fit various types of situations as described in sections 3.0 and 4.0. The appli-
ance must be installed in a correctly sized room (see section 3.1), and the correct purpose provided ventilation
must be provided (see section 4.1).
It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the
heater. Installing the heater next to vinyl or cloth wall coverings or operating the heater where impurities in the
air (such as tobacco smoke, candle smoke etc.) exist, may cause the walls to become discoloured.
This appliance is intended as a secondary source of heat only and should not be used in a room without some
form of background heating present. If the appliance is used in a room as the sole source of heat, then con-
densation may occur on colder surfaces within the room.
On first light up of a new appliance, initial curing of high temperature paint and burning off of lubricants may
occur for the first few hours of operation. During this period some smoke may be emitted from the outlet grille,
this should be no cause for concern. Accordingly, the room should be well ventilated with all windows and
doors open during this period. During this period the appliance may cause smoke alarms to sound. If this hap-
pens, reset the alarms, but do not remove the batteries.
Consult ALL instructions before installation and use of this appliance. This appliance is free from any asbestos
material.
1
Secction ContentssPaggeNNo.
1.0 Important NNotes 1
2.0 Appliance DData 2
3.0 Installation RRequirements 2
3.1 Room Sizing 2
4.0 Site RRequirements 2
4.1 Ventilation 3
5.0 Unpacking tthe AAppliance 4
5.1 Component Checklist 4
6.0 Gas SSupply RRoutes 4
7.0 Fixing tthe AAppliance 5
7.1 Checking the Burner 6
Secction ContentssPaggeNNo.
8.0 Testing aand CCommissioning 7
8.1 Operating the Appliance 7
8.2 Spark Failure 7
8.3 Setting pressure 7
8.4 Fitting the Decorative Facia 8
9.0 Briefing tthe ccustomer 8
10.0 Servicing 8
10.1 Servicing the Burner Unit 8
10.2 Pilot Assembly 9
10.3 Catalyst 9
10.4 Testing for Firebox Leakage 10
11.0 Troubleshooting GGuide 10
User IInstructions
1.0
•Manufacturers' Instructions.
•The Building Regulations issued by the Department for Communities and Local Government, the Building
Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department.
•Relevant British standards insofar as the relevant areas are not covered by these instructions.
•For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards gov-
erning installation).
©2007 Focal Point Fires plc.

INSTALLATION RREQUIREMENTS
If the appliance is to be sited near a disused or unserviceable fireplace served by a natural draught flue then the
old flue must be sealed off. It will be necessary to ventilate the old flue to prevent condensation and dampness
forming, however any air vent used to ventilate the old flue must not be sited within 500mm of this appliance.
If the flue can be ventilated to the outside of the building then this is usually the best solution. If in doubt then
advice should be sought from a local building control officer. The appliance is designed to be wall mounted. If
the appliance is to be mounted on a newly fabricated area of wall that also serves the purpose of sealing off the
old flue then it is very important that there are no holes, gaps or otherwise in this wall that will allow draughts
from the old flue to enter the room, especially directly behind the appliance. Such draughts could affect the per-
formance of the ODS system and result in nuisance cutting out, for example. If the gas supply pipe is to enter
the appliance from the rear, i.e. emerge from the wall behind the appliance, then any hole in the wall from which
the pipe emerges must be tightly sealed.
Any existing under grate draught device should be sealed off to prevent loss of heat or creation of draughts. It
is possible to install the appliance onto certain types of combustible materials - see section entitled 'Clearances
to combustible materials'.
ROOM SSIZING
The room size should be a minimum of 23m3(e.g. 10’2” x 10’2” x 8’) to allow adequate circulation of air and
ensure the correct operation of the fire. This volume may include adjacent spaces but these spaces must not
be separated by a door. To calculate a room size in cubic metres (m3) divide the room volume in cubic feet
(ft3) by 35.3.
SITE RREQUIREMENTS
This aappliance iisddesigned ttobbewwall-hhung. DDonnot rrecess aany ppart ooftthe aappliance iinto tthe wwall.
This appliance may be installed in any room in a home, however there are exceptions, and the appliance may
not be used in bedrooms or bathrooms.
Installation in living rooms is common, however other rooms such as kitchens, dining rooms and hallways are
permitted, providing a suitable natural gas supply is available, and rooms sizing and ventilation requirements are
strictly adhered to (see section 4.1).
The appliance is designed to be versatile, and as such will operate correctly when exposed to normal gentle
draughts experienced within the home. It is not recommended, however that the appliance be installed in areas
where it is likely to be exposed to persistent strong draughts, that may be generated by outside doors, windows,
air vents, air conditioning units etc. See section 4.1 for information on positioning of air vents.
2
APPLIANCE DDATA
Gas Group G20 Natural Gas CAT I2H
Inlet Pressure 20 mbar (± 2.0 mbar).
Max Energy Input Gross 2.0 kW
Net 1.8 kW
Max Gas Rate 0.20 m3/h
Min Energy Input Gross 1.0 kW
Net 0.9 kW
Pilot Energy Input Gross 166 W
Net 150 W
Burner Pressure High 18.0 mbar. (± 1.5 mbar). Hot
17.5 mbar. ± 1.5 mbar). Cold
Low 4.4 mbar. (± 0.75 mbar). Hot
4.5 mbar (± 0.75 mbar). Cold
Main burner flow restrictor Stereo 1.03mm (1/4” BSP)
Oxypilot SIT/Bray 9082
Gas Inlet Connection 8mm inlet restrictor elbow
Ignition Piezo spark
Spark Gap 4.0 mm (± 1.0mm)
Please see Data Badge affixed to appliance for current data.
This appliance is for use only with the gas type, and at the pressure stated on the appliance Data Badge.
2.0
3.0
3.1
4.0
©2007 Focal Point Fires plc.

SITE RREQUIREMENTS ((continued)
Clearances ttonnon-ccombustibles
Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made
materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro-
ceeding with installation.
Clearances to the sides of the appliance are 100mm (4”). Clearance to the front of the appliance is 500mm (20”).
The back of the appliance may be installed directly onto a non-combustible wall, providing the area behind the
appliance is flat and does not interfere with the various vent holes in the back panel of the appliance.
A non combustible shelf of any depth may be positioned above the appliance provided it is no closer than
400mm from the top of the appliance glass panel and the wall above the appliance is non combustible.
The appliance must not be positioned vertically within 60mm ( 2.4”) of a solid floor (i.e. wood or stone) or
hearth. This dimension is measured vertically to the bottom of the appliance firebox.
Clearances ttoccombustible mmaterials
Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame.
Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should
be considered as a combustible material or surface.
Clearance to the sides of the appliance are 100mm (4”) but curtains, drapes and other fabrics are not permitted
within a distance of 500mm(20in) of the appliance sides. No such materials are permitted directly above the
appliance regardless of distance.
The minimum clearance to the ceiling above the appliance is 800mm (31.5”) measured from the top of the appli-
ance glass panel.
Combustible materials should not be positioned directly in front of the appliance within a distance of one metre.
Under no circumstances should any electrical equipment e.g. plasma screen TV sets etc. be positioned on the
wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any
type of combustible fire surround. No combustible shelves should be positioned on the wall above the appli-
ance. It should be established that any mirrors or picture frames etc. to be positioned on the wall above the appli-
ance are able to withstand prolonged exposure to moderate heat and moisture before proceeding with their
installation.
The back of the appliance may be installed directly onto a combustible wall, providing it is relatively flat and does
not interfere with the various vent holes in the back panel of the appliance. The wall must be structurally sound
and constructed from a material capable of withstanding moderate heat. Brick, concrete, finished plaster, most
types of conventional wall paper and dry-lined plasterboard are examples of suitable materials. Materials such
as flock, blown vinyl and embossed paper which are sensitive to even small amounts of heat should be avoided
as scorching and or discolouration may occur over time.
If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then the integrity and
ability of the wall to carry the weight of the appliance must be confirmed. It is important in these circumstances
that any vapour control barrier is not damaged, and that any structural members of the house frame are not dam-
aged - refer to section 7.0.
The appliance must not be positioned vertically within 100 mm (4”) of a carpeted floor, rugs or fabric materials
of any kind. This dimension is measured vertically to the bottom of the appliance firebox.
VENTILATION
A minimum of 100 cm2purpose provided ventilation is required for this appliance. This may be achieved either
with one vent 100 cm2at a high or low position in the room, or split ventilation i.e. 50cm2 be installed at high
level and 50cm2 be installed at low level within the room. An openable window or equivalent is also required.
To reduce the possibility of draughts, road noise or insects entering the room via the air vent, we recommend
the use of “Black Hole”, “Vortex” or “Centurion” type vents featuring internal baffles. The requirements of other
flued appliance operating in the same room or space must be taken into consideration when assessing ventila-
tion.
3
4.0
4.1
©2007 Focal Point Fires plc.

VENTILATION ((continued)
Any ventilation fitted must comply with BS 5871 part 2 (BS5871 part 4 when published) and BS 5440 part 2.
Ventilation fitted under, or within immediate vicinity of the appliance must not be used as it may adversely effect
performance of the ODS system. The appliance MUST NOT be installed in a bedroom, bathroom or any sleep-
ing area. For Republic of Ireland, see relevant rules in force. The appliance shall not be installed within 1metre
of any air vent, and any air vent shall not be installed within 1 metre of the appliance.
UNPACKING TTHE AAPPLIANCE
Remove the outer packaging, remove any instructions or fixing kits.
Read ALL these instructions before continuing to unpack or install this appliance.
If the decorative frame is supplied attached to the firebox, remove the frame by removal of the lower two secur-
ing thumbscrews on either side of the firebox, and then unhook the frame from the top two thumbscrews.
Lift off the remaining packaging components and remove the contents of the box.
Check that the components supplied correlate with the component checklist. Please dispose of all the packag-
ing materials at your local recycling centre.
COMPONENT CCHECKLIST
QUAANTITY DESCRIPTION
1 Firebox and burner assembly
1 Set of manufacturers instructions
1 Decorative frame assembly
1 Screw and wall plug pack
1 Corner fixing brackets
1 Rubber grommet
1 Fitting template
GAS SSUPPLY RROUTES

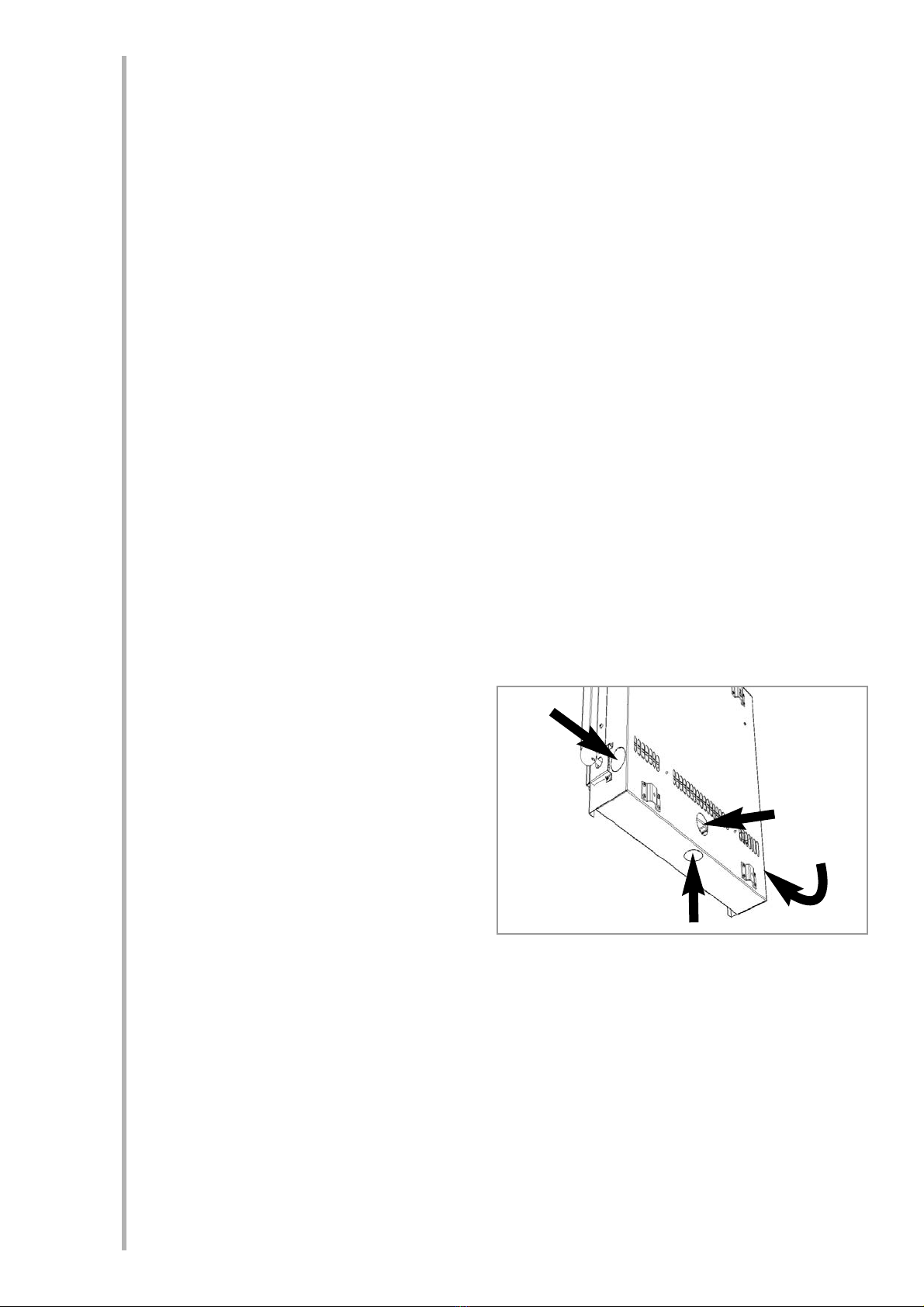

There are four possible entry points for the gas sup-
ply pipework to enter the appliance firebox. These
entry points are ‘knock out’ type holes (shown in fig-
ure 1).
Non-concealed gas connections may be made using
the entry points at either end of the firebox or the
one in the bottom of the firebox. A concealed gas
connection may be made using the knock out hole
in the centre back of the firebox. Select the most
appropriate entry point and knock out the relevant
hole.
No more than 1.5m of 8mm diameter pipe must be used to avoid unnecessary pressure drops. All installation
pipework must be in accordance with BS 6891.
If a concealed gas connection is to be made, the supply pipe should always be sleeved through walls and floors
using the shortest possible route.
For concealed supply pipe routing, pipes must (where possible) be vertical and providing there is sufficient wall
thickness available, they should be placed in pipe chases. Horizontal pipe runs should be avoided. Prior to chas-
ing a solid wall, an inspection should be made to note the proximity of any cables/sockets outlets which may
already be buried.
Pipes must be secured using suitable clips and protected against corrosion. Ideally factory finished protected
pipework and fittings should be used. Joints should be kept to a minimum and compression fittings must not be
used. The pipework installation must be tested for soundness before any protection is applied and/or the
pipework and fittings are buried.
4
5.0
5.1
6.0
4.1
Figure 1
©2007 Focal Point Fires plc.

FIXING THE APPLIANCE
Remove any protective film coatings from the finished/decorative surfaces of the appliance. If the decorative
facia is supplied fitted to the firebox, remove it by following section 8.4 in reverse order. After having selected
the final mounting position of the appliance, taking into account the requirements as specified in sections 3 and
4 of these instructions, the integrity of the wall, and the feasibility of the proposed supply pipe routing, the fire-
box of the appliance may be secured to the wall.
To ensure customer safety, be sure to design the installation so that the
strength of both the wall and any wall fixings used are sufficient.
Focal Point Fires plc. assumes absolutely no responsibility for injuries and
damages that may occur due to improper installation or handling. The
appliance should not be installed until all wet plastering and/or dry wall
sanding and wall painting has been completed. Do not block the venti-
lation holes of the appliance. The wall onto which the appliance is
installed must be flat. Install only on a vertical surface. Avoid sloped sur-
faces. Installation onto anything other than a vertical wall may result in
fire, damage or injury.
If the appliance is to be mounted on the inner leaf of a conventional cavity brick wall, or a solid wall, then the
fibre wall plugs and fixing screws provided may be used. Depending on the condition of the wall it may be nec-
essary to use additional fixings. In this situation, any additional fixings and wallplugs should be of the same size
and type as the ones provided. At the appropriate stage of the installation, drill four holes using only a 6.5mm
masonry bit to a depth of 39mm. Insert the fibre wallplugs provided ensuring
they are flush to the wall.
If the appliance is to be mounted on a dry lined wall or a timber framed con-
struction wall then efforts should be made to fix in at least two positions verti-
cally, into one of the wooden studs, or supporting wooden members of the wall
using two of the fixing screws provided. If this is not achievable then the wall should be strengthened using
appropriate building materials.
If there is no alternative than to rely on some plasterboard fixings then special cavity screw fixings or hollow wall
anchors will be required which are not supplied with this prod-
uct. These should be constructed from metal and not plastic and
of the design indicated in figure 2. For further guidance for wall
fixing in timber framed buildings, refer to the current edition of
IGE/UP/7.
Flat WWall FFixing
To assist with fixing the
appliance, a template is
provided, as shown in
figure 3.
Mark the positions
shown as “P23G Fixing
points” on the wall.
If a concealed gas connection is to be made ensure the gas sup-
ply pipe is in it’s final
position and can enter
the appliance in the cor-
rect position when the
appliance is hung on the wall.
Drill the wall as appropriate for the type of wall as previously described
in this section, and insert the chosen type of wall fixings. Insert the wall fixing screws into the top wall plugs, tak-
ing care to leave the screws protruding approximately 5mm from the wall. Now hang the appliance onto these
screws through the two keyhole shaped holes in the upper brackets on the back panel of the appliance.
Insert the lower fixing screws into the lower wall plugs through the corresponding fixing holes in the lower part
of the back panel. Do not tighten fully.
5
7.0
THE WWALL WWHERE TTHE AAPPLIANCE IIS
TO BBEIINSTALLED MMUST BBECCAPABLE
OF LLONG-TTERM SSUPPORT OOFTTHE
TOTAL LLOAD OOFTTHE AAPPLIANCE.
MEASURES SSHOULD AALSO BBETTAKEN
TO EENSURE SSUFFICIENT SSTRENGTH
TO WWITHSTAND TTHE FFORCE OOF
EARTHQUAKES, VVIBRATION AAND
OTHER EEXTERNAL FFORCES.
WARNING
IMPORTANT
THIS FIRE IS TO BE WALL HUNG ONLY.
DO NOT RECESS OR INSET ANY PART OF THE FIRE.
THIS TEMPLATE IS FOR THE MARKING OF FIXING POINTS ONLY.
DO NOT INSTALL THE FIRE WITH THIS TEMPLATE IN PLACE.
FIREBOX OUTLINE
F860059 ISSUE A - 25/5/06
WALL MOUNTED P23G & P23E
FITTING TEMPLATE
POSITION SPIRIT LEVEL ALONG THIS EDGETO LEVEL
TEMPLATE BEFORE MARKING OUTWALL
GAS MODEL P23G
PIERCE TEMPLATE
TO MARK HOLE
POSITION ON WALL X 4
CENTRE LINE
515mm (20.27”)
CONCEALED
GAS INLET
28mm
(1.1”)
234mm (9.21”)
FIXING POINTS FOR GAS MODEL P23G
FIXING POINTS FOR ELECTRIC MODEL P23E
FIXING POINT FOR
ELECTRIC MODEL
P23E
FIXING POINTS FOR GAS MODEL P23G
ELECTRIC MODEL P23E
PIERCE TEMPLATE
TO MARK HOLE
POSITION ON WALL X 3
304mm (11.97”)
416.5mm (16.4”)
Figure 2
PLASTERBOARD AALONE IISNNOT CCON-
SIDERED TTOBBEAASSTRUCTURAL MMATE-
RIAL. IITIISNNOT RRECOMMENDED TTO
RELY OONPPLASTERBOARD FFIXINGS
ALONE TTOSSUPPORT TTHE WWEIGHT OOF
THE AAPPLIANCE.
WARNING
ENSURE THAT ANY WALL FIXINGS
DO NOT PENETRATE OR DAMAGE
ANY HIDDEN CABLES, PPIPES OR
OTHER UNSEEN SERVICES DDURING
INSTALLATION
WARNING
Figure 3
©2007 Focal Point Fires plc.

FIXING THE APPLIANCE ((continued)
Before tightening the wall mounting screws fully, at this stage it
is recommended to check the horizontal alignment of the appli-
ance with a spirit level, as small adjustments can still be made if
necessary. When this has been checked, tighten all four fixing
screws fully. To access the upper fixing screws insert a screw-
driver through the round access holes in the front face of the
outlet grille (as shown in figure 4). These access holes are locat-
ed in the same position on all models.
Corner FFixing
A fixing template is not provided for corner fixing as the corner
fixing bracket itself may be used for the purposes of marking out.
The corner that the appliance is to be installed into must be
square and the walls must be flat. The corner fixing bracket is
supplied pre-assembled.
If a concealed gas connection is to be made ensure the gas sup-
ply pipe is in it’s final position and can enter the appliance in the
correct position when the appliance is mounted on the corner
bracket.
In order to facilitate concealed gas connections a hole is provid-
ed in the corner bracket that is in line with the rear supply pipe
knock-out in the fire box. Remove the corner fixing bracket from
the protective packaging. Position the corner mounting bracket
in the desired location, and using a spirit level, ensure the brack-
et is square and not twisted.
With the bracket held in position mark the required fixing positions on the wall. It is recommended that the
bracket is fixed to the wall in at least six positions as shown in fig-
ure 5.
Note: Use of the horizontally slotted fixing holes may allow some
fine adjustment before finally tightening the fixing screws. Drill
the wall as appropriate for the type of wall as previously
described in this section, and insert the chosen type of wall fix-
ings and attach the corner bracket to the walls, using the fixing
screws. Before finally tightening the screws, use a spirit level
again the check the bracket is square and not twisted.
With the corner mounting bracket in position, now hang the
upper mounting brackets on the back panel of the appliance
onto the two corresponding hooks on the upper cross section of
the corner mounting bracket (see figure 6). Remove the glass
door from the appliance by removing the four retaining screws,
and remove the lower burner cover plate by removing the four retaining screws. Remove the burner (refer to
section 10.1).
Ensure the two lower retaining studs of the corner mounting bracket (shown in figure 6) are protruding through
the lower mounting brackets on the lower back panel of the appliance, and into the lower inner firebox. Check
that the studs are fully engaged, and then using M5 washers, and either the M5 nuts or M5 wingnuts provided,
secure the appliance to the lower retaining studs of the corner mounting bracket. Tighten the nuts/wingnuts
fully. The firebox is now secured to the corner mounting bracket. Refit the burner.
CHECKING TTHE BBURNER
There are no imitation fuel bed components to install. The appliance features a ribbon burner which is
designed to produce a continuous band of flame over it’s length. The burner should be visually inspected to
ensure it is free from any foreign matter.
If it is necessary to clean or dust off the burner then the glass door should be removed by removal of the four
retaining screws. Re-fit the glass door after cleaning or inspection, ensuring the correct orientation and a good
seal.
7.1
Supply pipe route - concealed connections
TOP
Upper
mounting
hooks
Lower
retaining
studs

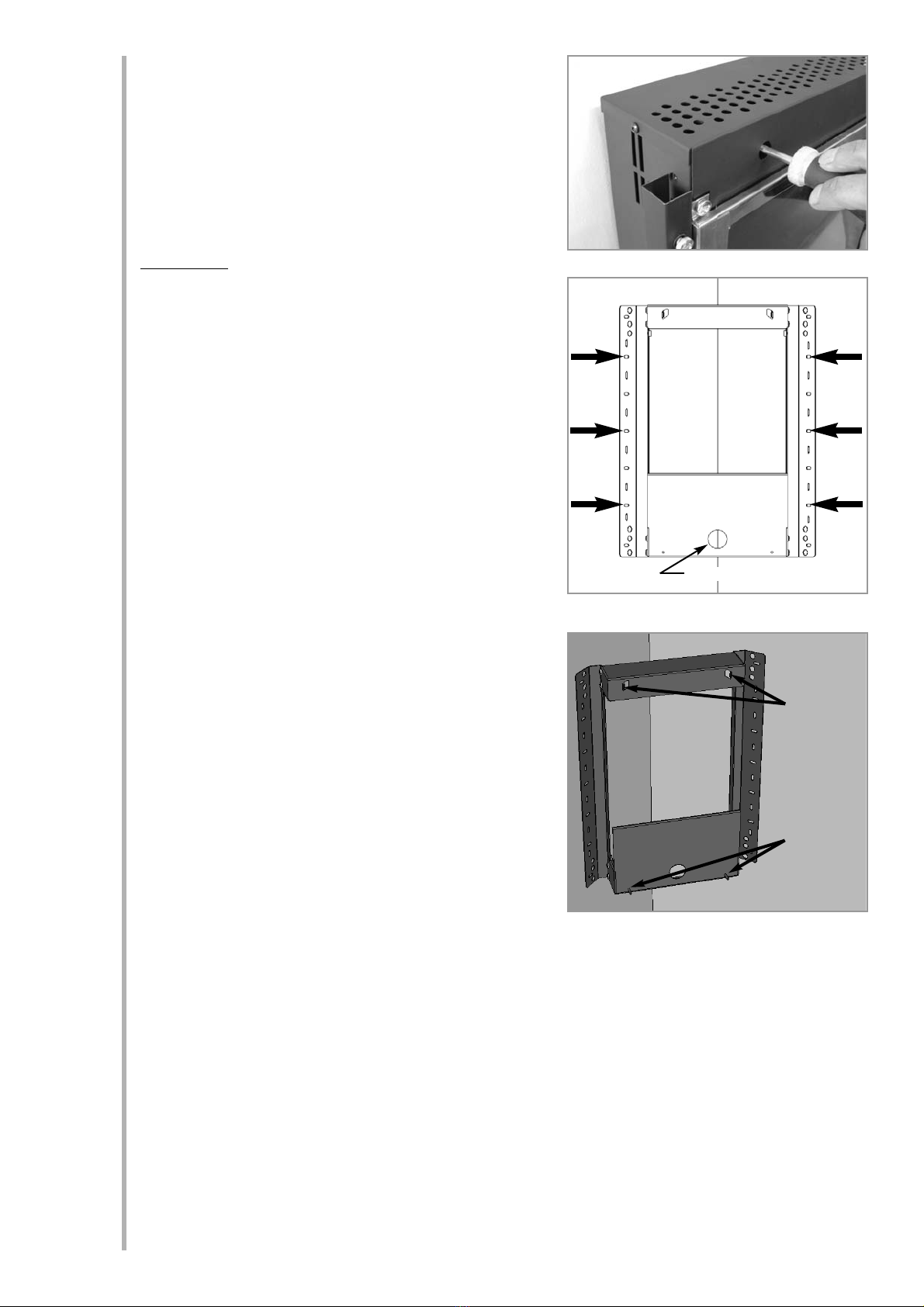

7.0 Figure 4
Figure 5
Figure 6
6
©2007 Focal Point Fires plc.

TESTING AAND CCOMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS6891.
OPERATING TTHE AAPPLIANCE
The pilot is visible behind the left hand side of the burner.
The control knob is located in the centre of the appliance and is normally
accessed by swinging the metal facia panel upwards from the bottom. The
facia panel is not fitted until section 8.4. The control knob is marked as
shown in figure 7.
Push in and turn the control knob to the SPARK position, and hold there for
a few seconds. Continue turning anti-clockwise through the spark click to
the PILOT light position, ensuring the pilot has lit. If not, return the knob
clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approximately ten seconds. Now release the
knob and the pilot should stay alight. If the pilot is extinguished during use, wait three minutes before repeating
the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high
position. The main burner should light after a few seconds. To decrease the setting to LOW, turn the control
knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.
SPARK FFAILURE
The gap between the spark electrode and the pilot should be 3 - 5mm to produce a good spark. There should
be no need to adjust this. If under any circumstances the piezo electric spark fails, the pilot cannot be lit man-
ually.
SETTING PPRESSURE
The pressure test point is located on the left hand side of the appliance, on the main burner pipe, next to the
brass restrictor/connector as shown in figure 8. Release the setting pressure test point screw, and attach a pres-
sure gauge. Light the fire on the HIGH setting.
To commission the appliance, the burner pressure must be in accordance with the figures stated in the data sec-
tion of these instructions.
The fire is factory set to achieve these pressures and any
significant variation could indicate a supply problem. If
the pressure is too high, the gas supply meter may be set
incorrectly. This should be checked with the fire running
and if necessary reset by the gas supplier.
If the burner pressure is too low, then check the inlet
pressure with the appliance running. If this is less than
approximately 20mbar it will need to be reset by the gas
supplier. If the setting pressure is too low, but the meter
pressure is acceptable, then a problem in the supply
pipework is to be suspected.
This will be dirt and debris, kinked or inadequate size
pipes, restriction in a fitting, shut off elbow not fully open or solder flashing across a joint. Identify the cause of
the restriction and rectify. Switch the fire off, disconnect the pressure gauge and refit the test nipple screw. Light
the fire and check for gas soundness.
In the event that the burner pressure is not in accordance with the figures stated in the data section of these
instructions, the appliance must not be commissioned, and the manufacturer should be contacted for guidance.
77
8.3
8.0
8.1
8.2
Figure 7
Figure 8
©2007 Focal Point Fires plc.

FITTING TTHE DDECORATIVE FFACIA
ASSEMBLY
The metal facia panel is supported by two self-locking M6
screws, one on each side of the fire as shown in figure 9. The
facia panel must be held in position while the screws are insert-
ed on each side - it is recommended to seek assistance for this
operation. The screws should be screwed in fully and then
undone one turn to allow the facia panel to swing openforaccess
to the controls.
BRIEFING TTHE CCUSTOMER
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the
need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annu-
ally. Advise that cleaning of the fire may be achieved when the fire is cold using a damp cloth and mild deter-
gent on most surfaces. Advise that the fire will emit a "newness" smell for a time after initial commissioning and
that extra ventilation may be needed during this time. Recommend that a guard be used for the protection of
the young, pets, the elderly and the infirm
SERVICING
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested pro-
cedure for servicing is detailed below.
1. Lay out the dustsheet and tools.
2. Remove the decorative frame assembly. Removal is reverse of section 8.4.
3. Remove the glass door assembly (4 screws) and clean carefully.
4. Inspect the burner and the catalyst and clean if necessary with a soft brush.
5. Disconnect the gas supply.
6. Detatch the burner front cover plate by removal of the four retaining screws. Undo the four screws
retaining the burner support brackets to the base and rear of the firebox. Remove the control knob.
7. Remove the burner unit, strip off the burner pipes and clean thoroughly.
8. Clean the in-line restrictor, pilot assembly and the burner tube. Do not attempt to remove the pilot
injector as this can cause damage.
9. Re-assemble components.
10. Turn on the gas supply and leak test. Check pilot and burner for good ignition.
11. Refit the glass door assembly, ensuring correct orientation and a good seal.
12. Refit the decorative facia/frame assembly as detailed in section 8.4.
13. Check the purpose provided ventilation is un-obstructed.
14. Light the fire and test setting pressures.
15. Check safe operation of the appliance.
For specific servicing instructions, see relevant sections.
SERVICING TTHE BBURNER UUNIT AAND GGAS AASSEMBLY
Firstly, remove the decorative frame assembly per the reverse of section 8.4, the glass panel, and disconnect the
gas connection inside appliance. The gas connections to the gas valve can now be released. Detatch the burn-
er front cover plate by removal of the four retaining screws. Undo the four screws retaining the burner support
brackets to the base and rear of the firebox, and remove the control knob and spindle assembly by removal of
the spindle retaining clip. The burner may now be removed.
Remove the pilot and main burner pipes and blow through to dislodge any debris. Now remove the restrictor
elbow and blow through to make sure it is entirely clear.
Unclip the pilot lint gauze and clean with a soft brush. Clean the exterior of the pilot assembly with a soft brush
and blow through the flame ports on the pilot head. Check the aeration holes are free from lint or dirt. The pilot
assembly can be removed if required by disconnecting the electrode HT lead, gas pipe and unscrewing the
mounting screws and lifting away.
8
9.0
10.0
8.4 Figure 9
10.1
©2007 Focal Point Fires plc.

SERVICING TTHE BBURNER UUNIT AAND GGAS AASSEMBLY ((continued)
The pilot assembly is a non-serviceable item and should not be taken apart. Aeration holes must be absolutely
clear internally for proper operation. NEVER MMODIFY OORBBEND TTHE TTHERMOCOUPLE TTOMMAKE TTHE PPILOT
STAY AALIGHT. Modifications are dangerous and can have serious unseen effects on safety. If the pilot will not
stay lit there is a problem with dirt, the gas supply to it, or the thermocouple needs replacement.
The gas valve is a non-serviceable item. If this needs replacement, remove M4 securing screw holding the valve
in place, remove all pipe unions, electrode lead, thermocouple lead and then the complete valve. Replacement
must be original manufacturers parts. Re-assemble is the reverse of removal. Ensure setting pressures are as stat-
ed in Section 2; Appliance Data.
PILOT AASSEMBLY
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or
lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two span-
ners to make cleaning easier. Do not damage or try to dismantle the pilot injector.
The unit is factory set and the only check necessary is to ensure the spark gap is correct. See specifications for
gas setting.
NEVER MMODIFY OORBBEND TTHE TTHERMOCOUPLE TTOMMAKE TTHE PPILOT SSTAY AALIGHT. If the pilot will not stay
lit there is a problem with dirt, the gas supply, or the thermocouple needs replacement. Modifications are dan-
gerous and can have a serious unseen effect on safety and therefore MUST not be done. Replacements must be
original manufacturers parts. Re-assemble is the reverse of removal. Ensure setting pressures are as stated in
Section 2; Appliance Data.
CATALYST
It is recommended that the catalyst is inspected for signs of damage and dirt during routine servicing proce-
dures. The expected life of the catalyst is in excess of 11,000 hours (10 years of normal use). After this time the
catalyst should be replaced.
If there are any deposits of dirt or soot on the catalyst they should be cleaned with a soft brush and a vacuum
cleaner. If removed for cleaning ensure the seal is in good condition before replacing the catalyst. A new seal
will usually be required.
The performance of the catalyst may be checked using a combustion gas analyser as follows. Any analyser used
should conform to BS7927 : 1998 + A1 : 1999.
Ignite the fire as per the operating instructions, and run at maximum setting for 15 minutes. Position gas sample
probe directly over the catalyst via the outlet grille, on top of the appliance. Record the carbon dioxide (CO2)
concentration and then the carbon monoxide (CO) concentration as displayed by the analyser - also noting the
units in which the values are expressed.
Most analysers display carbon dioxide (CO2) concentrations in percentage (%) terms and carbon monoxide
concentration in parts per million (ppm) terms. In order to calculate the combustion ratio for the appliance
(CO/CO2) it is first necessary to express both gas concentrations in terms of percentage. To convert from parts
per million (ppm) to a percentage (%) divide the ppm figure by 10,000. Examples : 35ppm = 0.0035%, 15ppm
= 0.0015%, 5ppm = 0.0005%.
Now divide the concentration of carbon monoxide (CO) expressed in percent by the concentration of carbon
dioxide (CO2) to obtain the appliance combustion ratio.
The ccombustion rratio ooftthe ggasses eemitted bbytthe ccatalytic cconvertor sshould nnot eexceed 00.0015.
If replacing, firstly, remove the decorative fireframe by following section 8.4 in reverse. Remove the outlet grille
by removing the two retaining screws. The catalyst is located on the top of the internal firebox and can be
removed be unscrewing the retaining nuts securing the clamping plate. Remove the catalyst and its seal and dis-
card. Refit a new catalyst and seals in reverse order, ensure the catalyst and door have a good seals.
9
10.2
10.3
10.1
CO (%)
CO2 (%) = ratio
©2007 Focal Point Fires plc.

TESTING FFOR FFIREBOX LLEAKAGE
Appliances that are several years old or have been extensively dismantled should be checked for soundness. It
is important that all the products of combustion pass through the catalytic converter at the top of the firebox
before leaving the appliance. The firebox is heated by lighting for a few minutes to provide a flow through the
firebox. The burner is then shut off and a smoke pellet or match introduced at the base of the fire underneath
the burner tray. Large quantities of smoke will emerge from the top of the appliance, but none should emerge
from the joints or gasket faces, especially around the door. It is important to note that the appliance can never
be expected to be 100% smoke tight and small quantities of smoke may be seen in corners of joints and gas-
ket faces etc without affecting safety when the fire is in operation.
TROUBLESHOOTING GGUIDE
Fire ssparkssbbut ppilot ddoessnnot lligght
No gas to fire, check isolators are open.
Pipe work blockage, clean out.
Air not fully purged, re purge supply or wait longer.
Spark earthing to metal work, reset gap correctly.
Blocked pilot, clean out internally.
Pilot lligghtssbbut tthen ggoessoout
Severe restriction in gas supply: clear obstruction.
Faulty thermocouple, replace pilot unit.
Blocked pilot, clean out.
Blocked lint gauze, clean.
Hold control knob in for longer.
Check control knob does not foul indicator plate.
If the pilot will not stay lit there is a problem with dirt, the gas sup-
ply, or the thermocouple needs replacement. Modifications are
dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE
PILOT STAY ALIGHT.
Fire ddoessnnot sspark aatppilot
HT lead detached, refit.
Check the spark gap (see section 8.2).
Faulty piezo unit, replace.
Debris shorting out electrode, clean.
Spark shorting to metalwork under tray, realign HT lead.
Fire rrunssffor aattime aand tthen ccutssooff
Loose or faulty thermocouple, rectify.
Blocked pilot, clean out.
Dirt or lint in pilot aeration hole or on the lint gauze, clean
thoroughly.
If the pilot will not stay lit there is a problem with dirt, the gas sup-
ply, or the thermocouple needs replacement. Modifications are
dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE
PILOT STAY ALIGHT.
Pilot fflame sshrinksswwhen ffire iissoonhhiggh
Poor gas flow to fire, check pressure with fire on high.
If pressure is low, remove any restriction in pipework or valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
If the pilot will not stay lit there is a problem with dirt, the gas sup-
ply, or the thermocouple needs replacement. Modifications are
dangerous and can have a serious unseen effect on safety.
NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE
PILOT STAY ALIGHT.
Fire ssmellsswwhen ffirsstllit ooriinuusse
Newness smell from brand new appliance.
Leakage occurring. Carry out leakage test and rectify any problems.
Combustible materials used in incorrect positions.
10
10.4
11.0
©2007 Focal Point Fires plc.

U S E R IIN S T R U C T I O N S
Secction Content PaggeNNo
1.0 Important Notes 1
2.0 Clearances to Combustibles 2
3.0 Ventilation & Room Size 3
4.0 Operating Instructions 3
5.0 Combustion Monitoring System 3
6.0 Cleaning 4
7.0 Servicing 4
8.0 List of Replacement Parts 4
IMPORTANT NNOTES
The installation and Servicing of this fire MUST only be carried out by a competent person (such as a CORGI
registered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British
Standards, Codes of Practice, the Building Regulations and the manufacturer's instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance
warranty.
Always keep a note of the installer's name and address, CORGI registration number, the original purchase
receipt and the date of installation for future reference. Failure to produce these documents may invalidate the
warranty.
The appliance should be serviced regularly to ensure continued safe operation. See the servicing section for
further reference.
Parts of this appliance become naturally hot during use. It is recommended that a suitable fireguard conform-
ing to BS 8423 : 2002 is used, especially where young children, pets, the elderly or infirm are concerned.
The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control
knob and indicator plate.
Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed
paper), low temperature surrounds etc may discolour if fitted too close to the fire. See relevant section for fur-
ther details on clearances to combustibles. No combustible materials or flooring should protrude onto the
hearth (if fitted).
This appliance incorporates a combustion monitoring system (ODS).
DO NOT burn any foreign material on this fire. Under no circumstances shall the appliance be used if the
glass front door or panel has been removed, damaged or is open.
DO NOT place any objects on top of the appliance, or cover the outlet grille in any way. DO NOT operate the
appliance with any parts removed or missing.
The integral catalyst should be checked by the installer upon servicing to ensure there are no defects or
obstructions that may prevent the satisfactory flow of combustion products.
The expected life of the catalyst is in excess of 11,000 hours (10 years of normal use). After this time the cata-
lyst should be replaced.
This appliance is only suitable for the gas type for which it is supplied.
It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the
heater. Installing the heater next to vinyl or cloth wall coverings or operating the heater where impurities in the
air (such as tobacco smoke, candle smoke etc.) exist, may discolour walls.
WARNING: Due to the nature of this product the area around the top of the appliance (i.e. the grille) gets very-
hot. Care should be taken when operating the appliance.
1
1.0
©2007 Focal Point Fires plc.

CLEARANCES TTOCCOMBUSTIBLES
Clearances ttonnon-ccombustibles
Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made
materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro-
ceeding with installation.
Clearances to the sides of the appliance are 100mm (4”). Clearance to the front of the appliance is 500mm (20”).
The back of the appliance may be installed directly onto a non-combustible wall, providing the area behind the
appliance is flat and does not interfere with the various vent holes in the back panel of the appliance.
A non combustible shelf of any depth may be positioned above the appliance provided it is no closer than
400mm from the top of the appliance glass panel and the wall above the appliance is non combustible.
The appliance must not be positioned vertically within 60mm ( 2.4”) of a solid floor (i.e. wood or stone) or
hearth. This dimension is measured vertically to the bottom of the appliance firebox.
Clearances ttoccombustible mmaterials
Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame.
Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should
be considered as a combustible material or surface.
Clearance to the sides of the appliance are 100mm (4”) but curtains, drapes and other fabrics are not permitted
within a distance of 500mm(20in) of the appliance sides. No such materials are permitted directly above the
appliance regardless of distance.
The minimum clearance to the ceiling above the appliance is 800mm (31.5”) measured from the top of the appli-
ance glass panel.
Combustible materials should not be positioned directly in front of the appliance within a distance of one metre.
Under no circumstances should any electrical equipment e.g. plasma screen TV sets etc. be positioned on the
wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any
type of combustible fire surround. No combustible shelves should be positioned on the wall above the appli-
ance. It should be established that any mirrors or picture frames etc. to be positioned on the wall above the appli-
ance are able to withstand prolonged exposure to moderate heat and moisture before proceeding with their
installation.
The back of the appliance may be installed directly onto a combustible wall, providing it is relatively flat and does
not interfere with the various vent holes in the back panel of the appliance. The wall must be structurally sound
and constructed from a material capable of withstanding moderate heat. Brick, concrete, finished plaster, most
types of conventional wall paper and dry-lined plasterboard are examples of suitable materials. Materials such
as flock, blown vinyl and embossed paper which are sensitive to even small amounts of heat should be avoided
as scorching and or discolouration may occur over time.
If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then the integrity and
ability of the wall to carry the weight of the appliance must be confirmed. It is important in these circumstances
that any vapour control barrier is not damaged, and that any structural members of the house frame are not dam-
aged - refer to section 7.0.
The appliance must not be positioned vertically within 100 mm (4”) of a carpeted floor, rugs or fabric materials
of any kind. This dimension is measured vertically to the bottom of the appliance firebox.
2
2.0
©2007 Focal Point Fires plc.

VENTILATION AAND RROOM SSIZE
Purpose provided ventilation of 100cm2is required for this appliance. An openable window or equivalent is
also required. The appliance should not be installed within 500mm of any air vent.
Any ventilation fitted must comply with BS 5871 part 2 (BS5871 part 4 when published) and BS 5440 part 2.
Ventilation fitted under, or within immediate vicinity of the appliance must not be used as it may adversely
effect performance of the combustion monitoring system (ODS) system.
The requirements of other appliances operating in the space or room must be taken into consideration when
assessing ventilation requirements, this will have been carried out by your CORGI registered installer.
A supply of fresh air into the room is advisable to maintain temperatures within limits.
The appliance MUST NOT be installed in a bedroom or bathroom.
For Republic of Ireland, see relevant rules in force.
The room size should be a minimum of 23m3(e.g. 10’2” x 10’2” x 8’) to allow adequate circulation of air and
ensure the correct operation of the fire. This volume may include adjacent spaces but these spaces must not
be separated by a door. To calculate a room size in cubic metres (m3) divide the room volume in cubic feet
(ft3) by 35.3. This appliance is intended as a secondary source of heat only and should not be used in a room
without some form of background heating present.
OPERATING IINSTRUCTIONS
The pilot is visible behind the left hand side of the burner.
The control knob is located in the centre of the appliance and is normally
accessed by swinging the metal facia panel upwards from the bottom. The
control knob is marked as shown in figure 1.
Push in and turn the control knob to the SPARK position, and hold there for
a few seconds. Continue turning anti-clockwise through the spark click to
the PILOT light position, ensuring the pilot has lit. If not, return the knob
clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approximately ten seconds. Now release the
knob and the pilot should stay alight. If the pilot is extinguished during use, wait three minutes before repeating
the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high
position. The main burner should light after a few seconds. To decrease the setting to LOW, turn the control
knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release.
COMBUSTION MMONITORING SSYSTEM
This fire is fitted with a combustion monitoring safety device (ODS). If the appliance shuts down during use for
no apparent reason then several reasons may be suspected. If a door or window has been opened creating a
draught, then pilot disturbance could be the problem and removal of the draught should resolve this. The appli-
ance can then be re-lit in accordance with the previous section.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF,
call in your installer to check the appliance and ventilation. Remedial work must be carried out as required. DO
NOT allow the appliance to be used until the appliance and installation is passed as safe. If the pilot continues
to be extinguished, you must call your installer to check the operation of the complete appliance.
3
3.0
4.0
5.0
Figure 1
©2007 Focal Point Fires plc.

CLEANING
Before carrying out any of the following operations, ensure that the appliance is OFF and completely cold.
GLASS PANEL - This can be cleaned with a suitable glass cleaner, or proprietary ceramic hob cleaner. Test on
a small area first.
PAINTED AREAS - These can be cleaned using a dry cloth.
METAL SURFACES - These can either be cleaned using a proprietary metal polish or baby oil. Test on a small
hidden part before cleaning.
SERVICING
The appliance should be checked on an annual basis to ensure it is working safely. The frequency of service
will depend on usage, but MUST be carried out at least once annually. Servicing must be carried out by a
competent person, such as a CORGI registered installer. The Installation instructions carry full servicing details
for the use of the installer.
LIST OOFSSPARE PPARTS
PAART NNO. ITEM PAART NNO. ITEM
FB/F960001 Glass door assembly FT/F730023 Pilot assembly
FT003155/0 Gas valve Please enquire Burner tray
FB/F780079 Catalyst IN/F940136 Seal kit for Catalyst
4
6.0
7.0
8.0
As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain
the right to amend details and/or specifications without prior notice.
DO/F860093
©2007 Focal Point Fires plc.
