Fohhn Linea Focus DLI-130 User manual

FOCUS-SERIES
LINEA-FOCUS
BEAM STEERING SYSTEMS
DLI-130 / DLI-230 / LFI-350 / LFI-450
USER MANUAL
EN
Please read this user manual through carefully before putting the system into operation and keep it for future reference.

2
Contents
1. Introduction and General Instructions................................................................................................ 4
1.1 Important Safety Instructions ....................................................................................................... 4
1.1.1 Explanation of Terms.............................................................................................................. 4
1.1.2 General Safety Instructions .................................................................................................... 5
1.1.3 Electrical Safety Information .................................................................................................. 6
1.1.4 Acoustic Safety Information ................................................................................................... 6
1.1.5 Connections and Cabling ........................................................................................................ 7
1.2 Operating Conditions .................................................................................................................... 7
1.2.1 Information on Abnormal Operation ..................................................................................... 8
1.3 Storage and Transportation .......................................................................................................... 8
2. The Product ......................................................................................................................................... 9
2.1 Product Description....................................................................................................................... 9
2.2 Delivery and Accessories ............................................................................................................. 10
2.3 Unpacking.................................................................................................................................... 13
3. Setting up .......................................................................................................................................... 14
3.1 Installation................................................................................................................................... 14
3.1.1 Tools for installation............................................................................................................. 14
3.2 Cabling......................................................................................................................................... 15
3.2.1 DLI-130 and DLI-230 connections......................................................................................... 16
3.2.2 LFI-350 and LFI-450 connections.......................................................................................... 22
3.2.3 Opening the service flap....................................................................................................... 25
3.3 System Set-up.............................................................................................................................. 27
3.3.1 Configuration........................................................................................................................ 28
3.3.2 System Requirements for the Computer ............................................................................. 32
3.3.3 Downloading and Installing FOHHN AUDIO SOFT ................................................................ 32
3.3.4 FOHHN-NET Cabling and ID Allocation................................................................................. 33
3.3.5 Identifying Connected Systems ............................................................................................ 34
3.3.6 Renaming Devices / Channels .............................................................................................. 35
3.3.7 Graphically Arranging the Loudspeaker Systems................................................................. 36
3.3.8 Loading Loudspeaker Presets............................................................................................... 36
3.4 Further Options ........................................................................................................................... 38
3.4.1 Auto Power Save .................................................................................................................. 38
3.4.2 Pilot Tone Detection............................................................................................................. 39

3
3.4.3 Switching Contacts ............................................................................................................... 40
3.4.4 Password Lock ...................................................................................................................... 41
3.4.5 Tilt Sensor............................................................................................................................. 41
4. Control via FOHHN AUDIO SOFT ....................................................................................................... 42
4.1 Beam Steering –the functional principle.................................................................................... 42
4.1.1 Side Lobe Free Technology................................................................................................... 43
4.1.2 Two Beam Technology (Two Beam-Modus)......................................................................... 44
4.1.3 Acoustic Centre .................................................................................................................... 45
4.2 Setup in the Beam Steering View ................................................................................................ 46
4.3 Adjustment of DSP Functions...................................................................................................... 48
4.4 Saving projects ............................................................................................................................ 49
5. Technical documentation.................................................................................................................. 50
5.1 Technical Specifications............................................................................................................... 50
5.1.1. DLI-130 (all product versions) ............................................................................................. 50
5.1.2 DLI-230 (all product versions) .............................................................................................. 53
5.1.3 LFI-350 .................................................................................................................................. 56
5.1.4 LFI-450 .................................................................................................................................. 58
5.2 Technical Drawings...................................................................................................................... 60
5.2.1 DLI-130.................................................................................................................................. 60
5.2.2 DLI-230.................................................................................................................................. 61
5.2.3 LFI-350 .................................................................................................................................. 62
5.2.4 LFI-450 .................................................................................................................................. 63
6. Troubleshooting ................................................................................................................................ 64
7. Service and Repair............................................................................................................................. 65
7.1 Maintenance Measures............................................................................................................... 65
8. Glossary ............................................................................................................................................. 66
9. Appendix............................................................................................................................................ 67
9.1 Environmental Information......................................................................................................... 67
9.2 CE Marking and Declaration of Conformity................................................................................. 67
9.3 Trademarks.................................................................................................................................. 67
9.4 Protection Classes and Protection Types .................................................................................... 67
9.5 Disclaimer and Copyright ............................................................................................................ 68
9.6 Contact Address .......................................................................................................................... 68

4
1. Introduction and General Instructions
Congratulations on the purchase of your FOHHN® LINEA FOCUS system. As with all our FOCUS-
SERIES systems, LINEA FOCUS loudspeakers are equipped with the very latest FOHHN BEAM
STEERING TECHNOLOGY. This allows users to adjust the system’s vertical beam dispersion
characteristics in real time, enabling optimum sound coverage –even in the most acoustically
challenging venues.
All the functions of a LINEA FOCUS system can be controlled using a single piece of software, FOHHN
AUDIO SOFT.
All LINEA FOCUS systems are available in both mobile and fixed installation variants.
In order to benefit from all the advantages of your LINEA FOCUS system and to guarantee smooth
operation, please read the following instructions carefully before using the system and keep this
manual for future reference!
1.1 Important Safety Instructions
Please read the following safety instructions in their entirety before using this device. Keep these
instructions near the device at all times. Reading the instructions does not replace the need for
awareness of and compliance with currently applicable national safety regulations and standards, or
the observance of safe on-site working methods.
All information and technical specifications published here are based on data that was available at
the time of publication. We expressly reserve the right to make any changes.
1.1.1 Explanation of Terms
Danger
This signal word indicates a hazard with a high risk level, which, if not avoided, could result in death
or serious injury.
Warning
This signal word indicates a hazard with a medium risk level, which, if not avoided, could result in
death or serious injury.
Caution
This signal word indicates a hazard with a low risk level, which, if not avoided, could result in minor
to moderate injury.

5
1.1.2 General Safety Instructions
Danger:
To avoid danger to life or limb, please ensure that all personnel involved in installing or dismantling
this system have read and understood the contents of this manual.
The information presented here should, however, be regarded as accompanying advice and it does
not affect the ultimate responsibility of the user to ensure safe on-site operation of a LINEA FOCUS
system.
Warning:
To prevent injury caused by a fallen system,
this device must be securely mounted in accordance with the assembly instructions and
current safety guidelines. Only use the specially designed FOHHN mounting accessories or
components, which are explicitly specified in the assembly instructions.
this device must be regularly inspected for any signs of wear or loosening of the load-bearing
connections.
it is necessary to ensure that the mounting points on a building or structure have sufficient
load-bearing capacity and are structurally viable.
all components of a hung (i.e. “flown”) device must be visually inspected before installation.
Any part showing signs of deformity, cracks, rust, fractured welds or other signs of wear must
not be used under any circumstances.
the load limit of any component that will be used for system suspension (including shackles,
chains and hoists) must not be exceeded. In order to comply with local safety regulations,
these load limits may, in certain circumstances due to underlying safety factors (operating
ratios), need to be recalculated and, if necessary, reduced.
All components required for the mounting or suspension of a LINEA FOCUS system have
been designed and constructed in accordance and compliance with the following regulations
that are applicable in Germany: BGV-C1, BGI 810-3, DIN EN 1993-1-1, DIN EN 1999-1-1 and
DIN 18032-2. The safety factor (operating ratio) is therefore equal to or better than 10:1. If
the system is to be used in countries that have stricter requirements, the permissible load
capacity must be reduced accordingly.
To avoid injury, the device must be stored, installed and operated well away from children.
To avoid injury, this device must be taken out of operation, marked appropriately and protected
against accidental use if it
shows visible signs of damage,
appears to contain loose parts,
is not working correctly,
has been subjected to unfavourable conditions (e.g. moisture) for a prolonged period,
has been subjected to poor transportation conditions (e.g. with unsuitable packaging or
humidity).
If necessary, please contact your FOHHN dealer or the transport company immediately.

6
1.1.3 Electrical Safety Information
LINEA FOCUS systems are Protection Class 1 appliances. They are built and certified in accordance
with the VDE safety measures for electronic devices and, safety-wise, leave our factory in perfect
condition. The devices comply with all currently applicable EMC directives, confirmed by the
attached CE marking.
The relevant guidelines can be found in the appendix to this user manual!
Warning:
To minimize the risk of electric shock,
the mains plug grounding pin must never be separated and under no circumstances should
the plug be taped up.
the device must only be connected to a professionally tested shockproof socket.
the device enclosure must never be opened. The device does not contain any components
that can be repaired by the user. In the unlikely case of a defect, please consult qualified
service personnel and/or the dealer from whom you purchased the system.
Please also ensure that the local mains supply voltage matches the power supply voltage specified on
the device.
To minimize the risk of an electric shock or fire,
the device must not be subjected to moisture.
containers filled with liquid (e.g. beverage containers) must not be placed on the device.
ventilation slots must not be covered with objects (e.g. protective rain covers).
the device must not be subjected to excessive heat, sunshine, fire or similar.
no open sources of flame (e.g. pyrotechnics) must be placed on the device.
Caution
To avoid damaging the device,
do not leave the power cable plugged in if the device is not going to be used for a while.
(Remove the plug from the mains socket in order to completely disconnect the device!)
1.1.4 Acoustic Safety Information
LINEA FOCUS loudspeaker systems are capable of generating very high sound pressure levels, which
can cause irreparable damage to hearing.
Warning:
To avoid potential hearing impairment,
never stand in close proximity (1 metre or less) to a device while it is in operation.
To prevent both hearing impairment and damage to the device, avoid the following while the device
is in operation:
acoustic feedback,

7
high powered, permanently distorted signals,
impulse noises, which can occur when a device is switched on or off, connected or
disconnected from the system.
1.1.5 Connections and Cabling
Please note the following when wiring up your system:
Check that your cable is working faultlessly and only use cables with a sufficient cross
section.
Only use cabling- and connector materials that meet professional standards.
Only use properly shielded cables and plugs for the audio and data connections.
Only use power cables with a fully intact grounding pin and make sure that the device’s
mains plug is accessible at all times so that it can be quickly removed from the mains supply
in the event of a malfunction.
Lay and secure the cabling so that it cannot be damaged by tools, or through being trapped
by the device or by a fixing bracket.
Protect any laid cables from mechanical damage, or unnecessary traction.
Avoid excessive tightening of the screws on connection terminals! (This only applies to fixed
installation variants.)
The wiring up of loudspeakers should only be carried out by suitably qualified personnel!

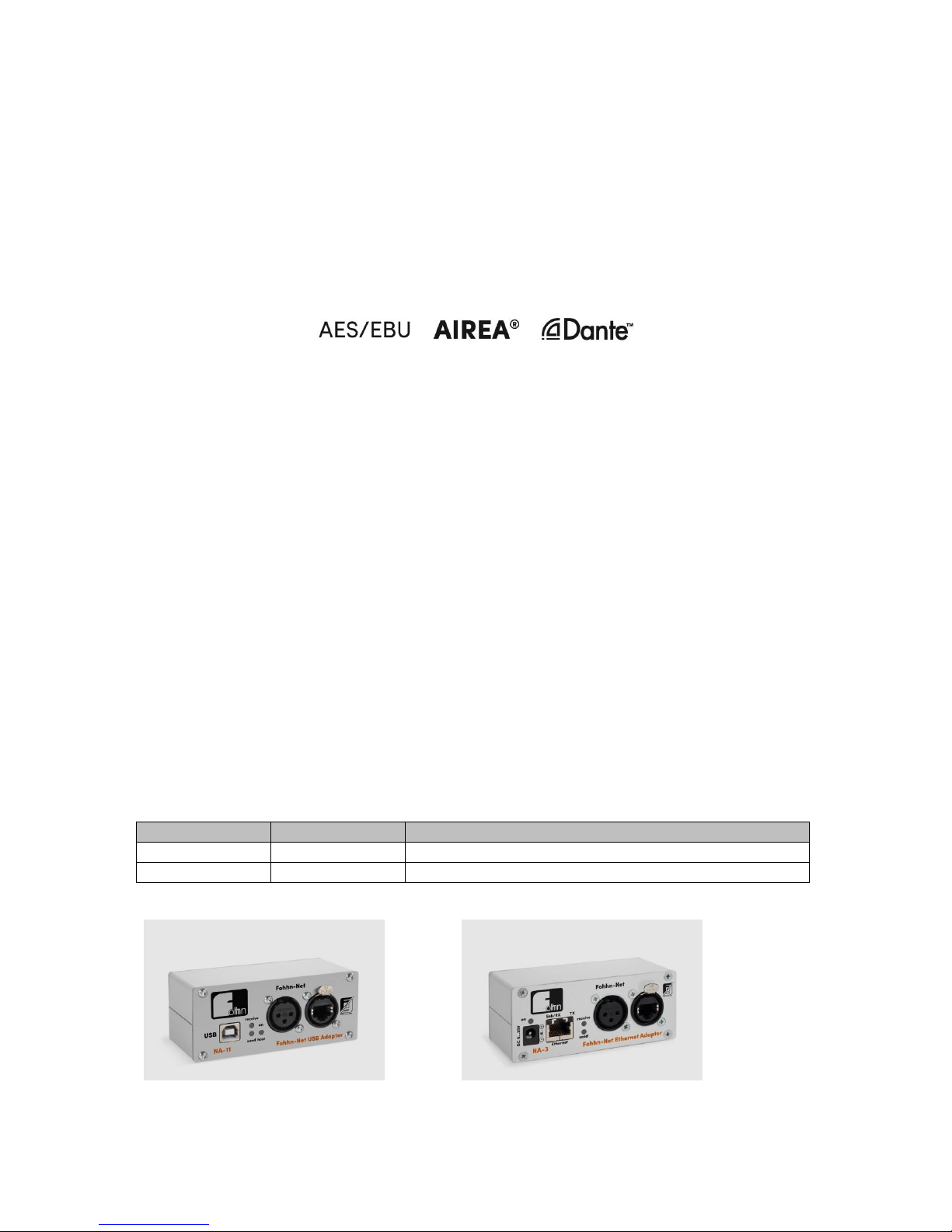

Important: To enable communication between a Windows PC with Fohhn Audio Soft installed and
LINEA FOCUS DLI-130/230 AES, DLI-130/230 ANA, LFI-350 and LFI-450 loudspeaker systems, a
FOHHN® network adapter (e.g. NA-11 FOHHN-NET USB ADAPTER or NA-3 FOHHN-NET ETHERNET
ADAPTER) is required.
More information can be found in Chapter 3 of this user manual!
1.2 Operating Conditions
Please note the following when operating your LINEA FOCUS system:
The permitted ambient temperature of the device during operation ranges from 0 °C to
+40 °C. A short period of use outside this temperature range is possible, but not advisable.
The device is intended for use in a dry environment with normal levels of dust and humidity
in the air.
If any moisture has formed on the back of the device during transportation or storage, allow
the device to acclimatise for approximately 2 hours before use.
Never expose the device to any aggressive chemical fluids or vapours.
Always make sure that heat can be dissipated via the outer surface of the device enclosure.

8
Always make sure that the device is well ventilated. In order to ensure adequate cooling, the
device must not be covered with towels or cloths. Avoid letting the enclosure become hot
through exposure to sunlight or strong spotlights.
Never expose the device to strong vibration.
1.2.1 Information on Abnormal Operation
If the permissible operating temperature is too high (over 75 °C), the device will shut down. As soon
as the temperature returns to within the normal operating range, the device will automatically
power up again.
The temperature of the LINEA FOCUS loudspeaker system will be displayed in FOHHN AUDIO SOFT.
Shutdown can also occur if the product is exposed to direct sunlight or very high environmental
temperatures. Reliable operation is only guaranteed in compliance with the permissible ambient
temperature range.
The device should be immediately inspected by a FOHHN AUDIO AG approved service partner if
the mains cable or power socket is damaged,
a foreign body or liquid has got into the interior of the device,
the device has been exposed to rain,
the device is not working normally, i.e. it is showing marked differences in performance,
the device is damaged (e.g. after a fall).
1.3 Storage and Transportation
Please note the following:
The device should only be transported in its original packaging.
Store the device in a dry environment, with a constant ambient temperature, in order to
avoid condensation.
The permitted ambient temperature range for storing the device is -10 °C to +70 °C.
Due to fluctuations in temperature during transportation and storage, condensation may
start to build up on the surface of the device. Before operating the device, examine its
surface for any signs of moisture. If this is the case, allow the unpacked device to acclimatise
for two hours in the environmental temperature before using it.

9
2. The Product
2.1 Product Description
FOHHN® LINEA FOCUS loudspeakers are active, high performance line source systems that can be
remotely controlled and monitored. Equipped with coated 4” long excursion drivers, the systems
have integrated CLASS-D amplifiers and DSP technology specially developed for this area of
application.
The main feature of these systems is their BEAM STEERING TECHNOLOGY. This enables intuitive
control of the systems’ vertical beam dispersion characteristics - in real time –using FOHHN AUDIO
SOFT (Version 5.0.3 or later): the vertical beam width is adjustable from 0° and 90° and the vertical
inclination angle from -40° to +40°, in precise 0.1° increments. This helps to avoid unwanted
reflections from floors and ceilings, while enabling precise, even coverage of audience areas.
Conventional mechanical tilting, i.e. the physical adjustment of the loudspeaker at the venue, is no
longer necessary.
The current version of FOHHN AUDIO SOFT can be downloaded free of charge from
www.fohhn.com .
If higher sound pressure levels are required in the low frequency range, LINEA FOCUS systems can
easily be combined with FOHHN active or passive subwoofers.
LINEA FOCUS has been developed for both mobile and fixed installation applications. The models
described in this manual are fixed installation variants, e.g. for use in churches and cathedrals,
congress halls and exhibition centres, airports and railway stations, theatres, TV studios, university
lecture theatres and auditoria, conference rooms or museums.
The following applies to all LINEA FOCUS models: The longer the line source system, the further its
reach –and the better its ability to precisely control low frequencies.
Loudspeaker system overview (fixed installation)
The following models are available:
Model
Components
Amplifier channels
Unit length
DLI-130
8 x 4″
long excursion driver
8 x 100 W,
Class-D
1358 mm
DLI-230
16 x 4″
long excursion driver
16 x 100 W,
Class-D
2308 mm
LFI-350
24 x 4″
long excursion driver
24 x 100 W,
Class-D
3490 mm
LFI-450
32 x 4″
long excursion driver
32 x 100 W,
Class-D
4490 mm

10
Input Interfaces
LINEA FOCUS DLI-130 and DLI-230 systems are available as standard with different input interface
options, as per the following product variants:
DLI-130/230 AES –with digital AES/EBU and AIREA® signal inputs
DLI-130/230 ANA –with analogue signal inputs
DLI-130/230 DAN –with an interface for the Dante network protocol
2.2 Delivery and Accessories
Every product is examined according to the highest quality and safety standards prior to despatch.
Please check your product carefully for any signs of transport damage and, in the event of any
damage having occurred, inform your dealer and the transportation company immediately. Please
also check that the packaging contains all the components belonging to the device.
Your LINEA FOCUS system is delivered with the following:
1 × DLI-130 / DLI-230 / LFI-350 or LFI-450 speaker system
1 × quick start guide
If the delivery does not appear to be complete, please contact your FOHHN® dealer!
Accessories
Setting up a DLI-130/230 AES, DLI-130/230 ANA, LFI-350 or LFI-450 system requires a Windows PC
with FOHHN AUDIO SOFT (min. Version 5.x ) installed and one of the two following FOHHN network
adapters:
Product ID
Article number
Description
NA-11
6115-00000
FOHHN-NET USB Adapter
NA-3
6104-00000
FOHHN-NET Ethernet Adapter
NA-11 FOHHN-NET USB ADAPTER NA-3 FOHHN-NET ETHERNET ADAPTER

11
The following accessories are available for LINEA FOCUS products:
Product ID
Article number
Description
LC-50
8301-00000
Clamp for safe and easy mounting on traverses, ø 50 mm
(TV spigot no. 8011-00000 needed)
SA-9
8220-00000
Tripod/stand adapter 36 mm (2-part) with spacer, black,
for LINEA FOCUS DLI-130/230, LF-120/220 and
LFI-120/220
SA-10
8212-00000
Adapter with throughbores for M10 screws (without tripod
adapter) for flown applications e.g. with optional LC-50
clamp and TV spigot with M10 internal thread, black, for
LINEA FOCUS DLI-130/230, LF-120/220 and LFI-120/220
WAL-1
8428-B0000 /
8428-W0000
Angled wall mounting bracket pair for LINEA FOCUS
DLI-130/230, black/white
WLF-1
8435-B0000 /
8435-W0000
Wall mounting bracket for LINEA FOCUS DLI-130/230,
LFI-120/220/350/450* and LF-120/220, black/white
WLF-2
8438-B0000 /
8438-W0000
Wall mounting bracket for LINEA FOCUS DLI-130/230,
LFI-120/220/350/450* and LF-120/220, black/white
CB-LX-150
8118-00000
Padded carrying bag for LINEA FOCUS DLI-130,
LF/LFI-120 and also LINEA LX-150
*Note: For more secure mounting of LFI-350/450 systems, 2 × WLF-1/2 are required.
WLF-1 (left) and WLF-2 (right) wall mounting brackets

12
WAL-1 wall mounting bracket
SA-9 stand adapter (2-part), with spacer (left), with stand (right)
SA-10 stand adapter (left), LC-50 clamp and TV spigot

13
2.3 Unpacking
When unpacking the system, we recommend the following procedure:
1. Open the packaging and take out the product.
2. Examine the product for any visible signs of transport damage.
If the product has been damaged, inform the transportation company immediately. A claim
for transport damage can only be made by the recipient (that is to say, you). Keep the
packaging for examination by the transportation company.
3. As a general rule, always retain the packaging. Despatch the product in appropriate outer
packaging or in a suitable flightcase.

14
3. Setting up
3.1 Installation
Installation instructions for commercial loudspeaker stands and mounting brackets:
To guarantee stability, the device must be installed and secured at the installation site using
appropriate tools and accessories. Please therefore use the specified system accessories (see
Chapter 2.2 “Delivery and Accessories“).
3.1.1 Tools for installation
The following tools are required for installing and wiring up a LINEA FOCUS loudspeaker system:
(1) an 8 mm spanner (for the grounding screw [LFI-350 and LFI-450 only])
(2) a 4 mm Allen® key (for wall brackets)
(3) a small screwdriver (for Phoenix connectors)
(4) a screwdriver (for opening the front grille)
(5) a 5.5 socket spanner (for the 4 strain relief nuts)
(6) a Philips® screwdriver (for opening the service flap; for the grounding screws [on DLI-130 and
DLI-230])
(7) a knife (for widening the rubber profile slot if necessary)

15
3.2 Cabling
All connectors are internally mounted and can be accessed from behind one of the service flaps on
the front of the loudspeaker. This means that all connection cables must be fed into the speaker
enclosure from behind, via a cable duct. It also means that no unsightly cabling will be visible. The
internal strain relief guarantees safe operation.
Widening the rubber profile slot
Depending on the dimensions of the cable harness, the slot in the cable duct’s rubber profile can
easily be widened using a small knife.
Cable duct on a LINEA FOCUS system

16
3.2.1 DLI-130 and DLI-230 connections
DLI-130 and DLI-230 loudspeaker systems are available in different product variants with the
relevant input options, i.e. input interfaces:
DLI-130/230 AES –AES/EBU and AIREA connection variant
(1) AIREA-NET Input
The DLI-130/230 AES is connected to the AIREA-NET via its RJ-45 input. AIREA-NET is a network that
enables transmission of digital remote control signals (FOHHN-NET) and digital audio signals
(AES/EBU).
AIREA-NET signals cannot be further routed (no signal link)!
Using the AIREA-NET input, AIREA BREAK OUT/IN EXTENSIONS (ABX) can also be supplied with
power!
(2) AES/EBU Input
Digital audio signals (AES/EBU) can be fed in via these two 3-pin Phoenix connectors.
When connecting digital audio signals, please use either the AIREA-NET Input (1) or one of the two
3-pin Phoenix connectors (2). Both connectors are designed for Channels 1 and 2 respectively.
AES/EBU signals cannot be further routed (no signal link)!

17
(3) Fault message contact (2x)
An error status can be reported via these open/closed contacts. The fault contact relay (2 x UM)
should be operated with a maximum of 50 V and 500 mA.
One of the two 3-pin Phoenix connectors can be used as a link!
(4) FOHHN-NET Input (2x)
The DLI-130/230 AES can be connected to the FOHHN-NET remote control network via these 3-pin
Phoenix connectors
One of the two 3-pin Phoenix connectors can be used as a link!
(5) Switching contact
This 3-pin Phoenix connector serves as a switching contact for changing presets. This can be
configured in FOHHN AUDIO SOFT (see Chapter 3.4.3 “Switching contacts“).
(6) Mains connection
Mains connection is via a 2-pin WAGO (grounding screwed). The switching power supply (with Power
Factor Correction) allows a supply voltage of 100 V –240 V AC / 4 A / 50/60 Hz.
WAGO terminal for mains connection with two pins (1) and (3) and grounding screw (2)

18
DLI-130/230 ANA –analogue connection variant
(1) Analogue Input 1
Analogue audio signals can be fed in via these 3-pin Phoenix connectors.
One of the two 3-pin Phoenix connectors can be used as a link!
(2) Analogue Input 2
Analogue audio signals can be fed in via these 3-pin Phoenix connectors.
One of the two 3-pin Phoenix connectors can be used as a link!
(3) Fault message contact (2x)
An error status can be reported via these open/closed contacts. The fault contact relay (2 x UM)
should be operated with a maximum of 50 V and 500 mA.
One of the two 3-pin Phoenix connectors can be used as a link!
(4) FOHHN-NET Input (2x)
The DLI-130/230 AES can be connected to the FOHHN-NET remote control network via these 3-pin
Phoenix connectors
One of the two 3-pin Phoenix connectors can be used as a link!

19
(5) Switching contact
This 3-pin Phoenix connector serves as a switching contact for changing presets. This can be
configured in FOHHN AUDIO SOFT (see Chapter 3.4.3 “Switching contacts“).
(6) Mains connection
Mains connection is via a 2-pin WAGO (grounding screwed). The switching power supply (with Power
Factor Correction) allows a supply voltage of 100 V –240 V AC / 4 A / 50/60 Hz.
WAGO for mains connection with two pins (1) und (3) and grounding screw (2)

20
DLI-130/230 DAN –Dante connection variant
(1) Dante Primary und FOHHN-NET
Digital audio signals (Dante) and remote control signals (FOHHN-NET) are fed in via this RJ-45 input
(1000 Base-T Ethernet).
(2) Dante Secondary und FOHHN-NET
This RJ-45 input (1000 Base-T Ethernet) is exclusively used for redundant cabling (see Chapter 3.3.1
“Configuration“).
(3) Mains connection
Mains connection is via a 2-pin WAGO (grounding screwed). The switching power supply (with Power
Factor Correction) allows a supply voltage of 100 V –240 V AC / 4 A / 50/60 Hz.
