FONESTAR FO-14M44E User manual

FO-14M44E
4 x 4 HDMI MATRIX
INSTRUCTION MANUAL
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 1

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 2

EN
- 3-
.SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 3

EN
- 4-
DESCRIPTION
- 4 x 4 HDMI matrix (4 inputs x 4 outputs) with remote control. It allows the connection of up to 4 HDMI input
signals and individual selection of the input to be sent to each of the HDMI outputs to be visualized in 4
monitors, conditioning the signal for optimum playback through the EDID function. Maximum resolution up
to 4k x 2k, compatible with all types of 3D formats.
-The EDID function negotiates between the player device and the screen the resolution, frequency, colour
and audio formats neccessary in order to obtain the best visualization.
-It has port RS-232 to activate the communication protocol and to make the matrix work controlling it using
the software deigned for this purpose.
CONTROLS AND FUNCTIONS
1.- ON/OFF: matrix on/off switch.
2.- POWER: ED power switch.
3.- IR: remote control infrared signal receiver.
4.- SELECT: button to select the input signal that is sent to the corresponding output.
5.- OUTPUT: ED indicators that show which of the HDMI input signals is being sent to the corresponding
output.
6.- INPUT 1-4: signal inputs, HDMI connectors.
7.- OUTPUT A-D: signal outputs, HDMI connectors.
8.- RS-232: serial port for connecting to a computer, D9 connector.
9.- Power supply input for the mains adapter provided.
10.- EDID: selection of EDID mode in the matrix. Consult the following table to select the best visualization
in all the screens.
Place the DIP microswitches in the required position to select one of the following options:
0000 Modo automático 1000 3D, DO BY/DTS 5.1
0001 1080i, audio 2CH 1001 3D, audio HD
0010 1080i, DO BY/DTS 5.1 1010 4k x 2k, audio 2CH
0011 1080i, audio HD 1011 4k x 2k, DO BY/DTS 5.1
0100 1080p, audio 2CH 1100 4k x 2k, audio HD
0101 1080p, DO BY/DTS 5.1 1101 1024 x 768, DVI
0110 1080p, audio HD 1110 1920 x 1080, DVI
0111 3D, audio 2CH 1111 Control vía PC
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 4

EN
- 5-

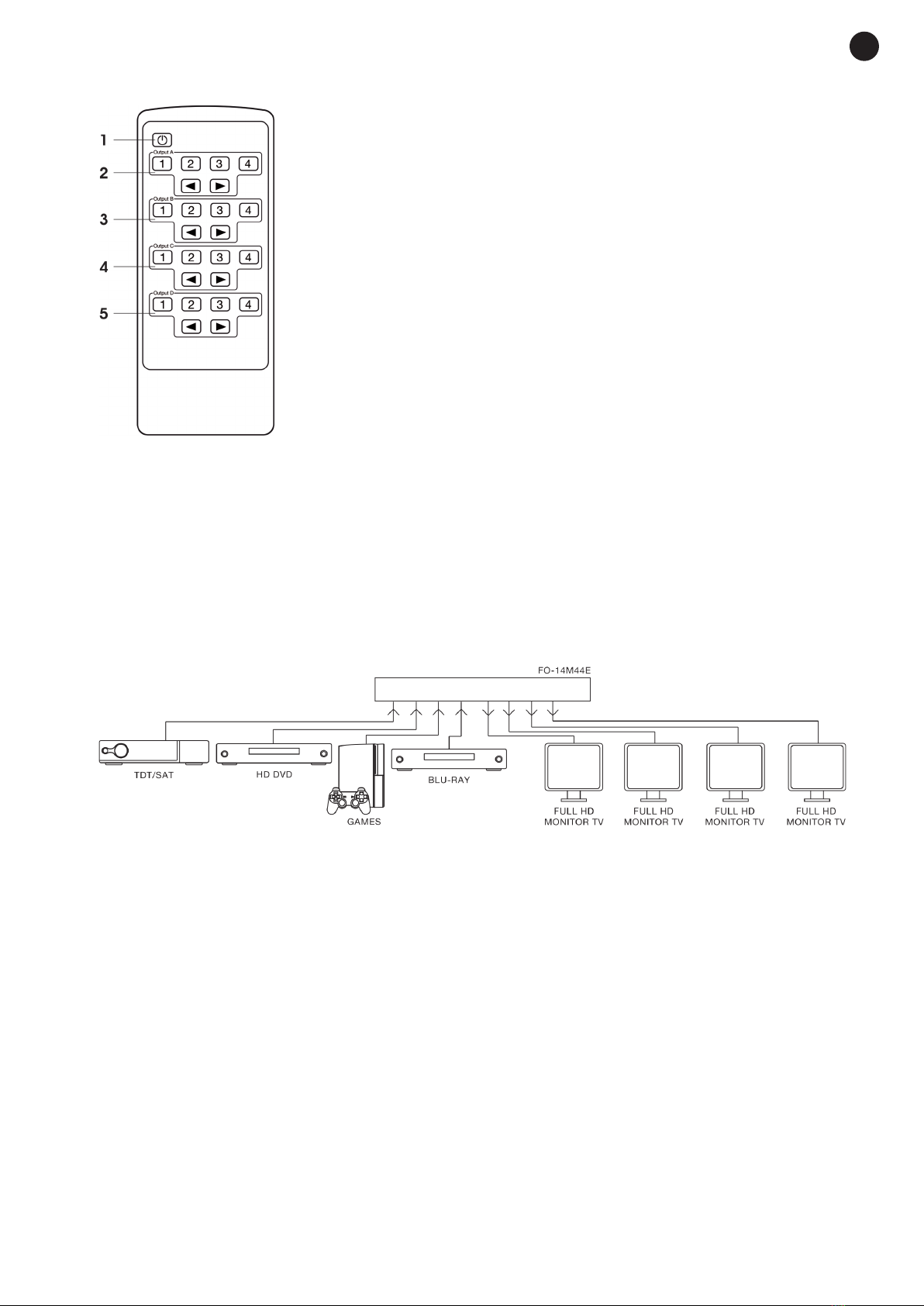

REMOTE CONTROL
1.- Matrix on/standby mode button.
2.- Buttons for assigning the required input in output A.
3.- Buttons for assigning the required input in output B.
4.- Buttons for assigning the required input in output C
5.- Buttons for assigning the required input in output D.
CONNECTION AND OPERATING
- Connect the HDMI signal sources to the matrix INPUT.
- Then connect the matrix OUTPUT to the monitors.
- Power the FO-14M42E matrix with the mains adapter provided.
- Select the required EDID mode with the matrix DIP microswitches.
- If required, connect the matrix to a computer to be able to control via serial port RS-232.
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 5

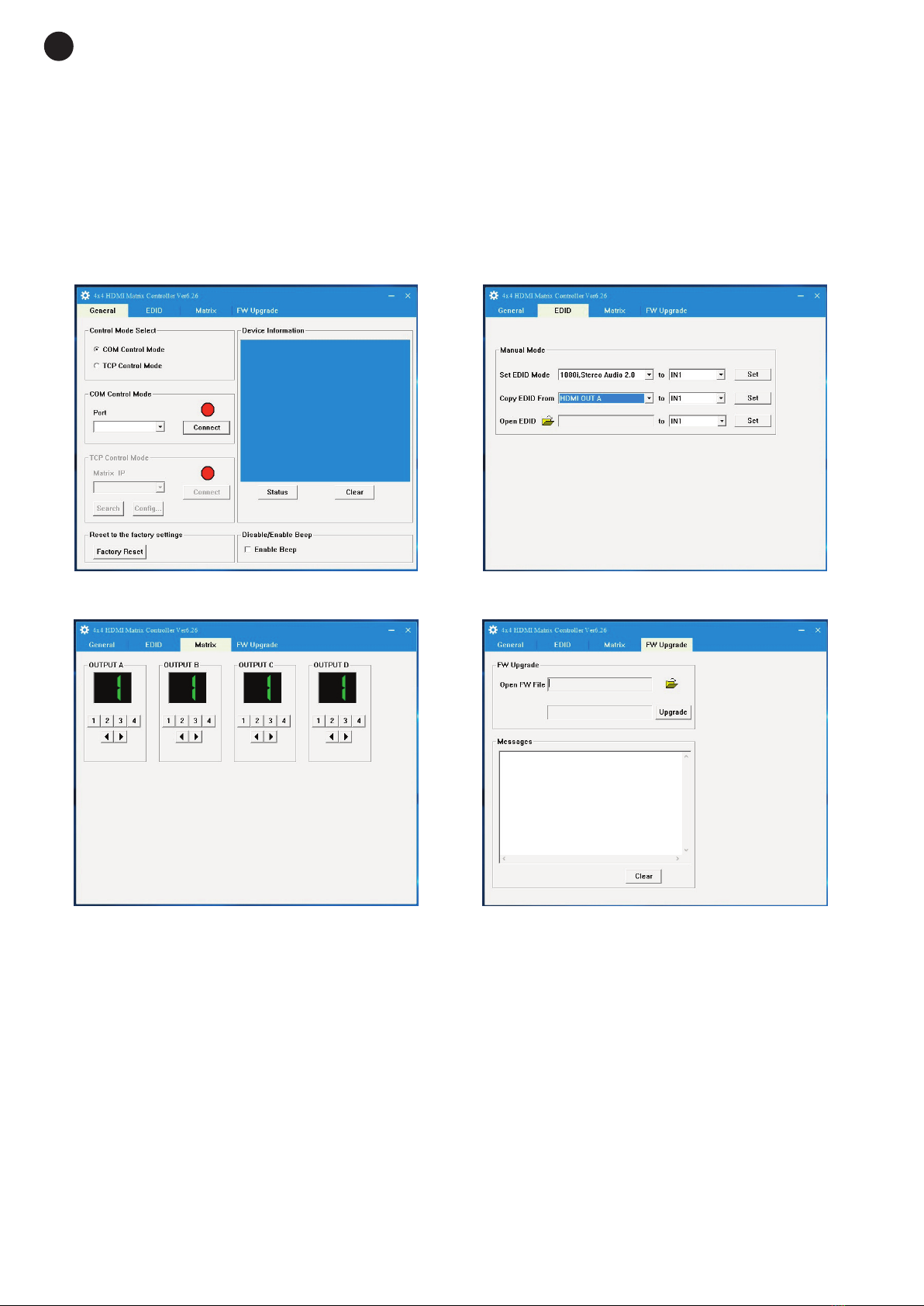

RS-232 COMMUNICATION
It is possible to control the FO-14M44E HDMI matrix with the software available on our website
www.fonest r.com. In order to do so, download the software in your computer and then, connect the matrix
to the computer using the serial port with the cable provided.
Switch on the matrix and run the program. It is not necessary to configurate the serial port.
Select the corresponding COM port and activate the Connect button. Then the required options in different
tabs (EDID function selection in the matrix, direct assignation of inputs to outputs, etc). The changes in the
matrix are instantaneous.
- 6-
EN
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 6

TECHNICAL SPECIFICATIONS
FO-14M44E
CHARACTERISTICS 4 x 4 HDMI matrix.
Compatible with 4k x 2k, Full HD 1080p, Full 3D.
EDID function, automatically or manually selects optimum resolution for
all TVs.
Remote control.
Communication protocol through port RS-232.
HDMI amplifier bandwidth 2.97 Gbps.
INPUTS 4 gold-plated female HDMI connectors
1 RS-232, D9
OUTPUTS 4 gold-plated female HDMI connectors
CONTROLS Input selection buttons for each output
INDICATORS ED power indicator, selected input in each output
POWER SUPPLY 12 V DC, 2.5 A with adapter included
DIMENSIONS 267 x 37 x 120 mm depth
- 7-
EN
160617_FO-14M44E_MANUAL_(EN)_Maqu tación 1 28/2/17 12:30 Página 7

DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A.
Polígono de Trascueto s/n
39600 Revilla de Camargo, Cantabria (Spain)
Declares, under its responsibility, that the following equipment:
Description: 4 x 4 HDMI matrix
Br nd: FONESTAR
Model: FO-14M44E
complies with the European Community directives 2004/108/EC on Electromagnetic Compatibility,
2006/95/EC on ow Voltage and 2011/65/EU on the restriction on the use of electrical and electronic
appliances (RoHS).
Santander, 4th February 2016
Juan Vallejo
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a ey General
para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. It
is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007
16 Noviembre’
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our
products carry the symbol, backed by our membership and subscription to the above mentioned organization with
the recycling and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Apartado 191 - 39080 Santander, Cantabria (SPAIN) www.fonest r.com
