FONESTAR FS-2925CDD User manual

FS-2925CDD
DOUBLE CD/USB/SD/MP3 PLAYER
INSTRUCTION MANUAL
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. eep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
eep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
- 2-
EN
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 2

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
EN
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 3

DESCRIPTION
- Double CD/USB/SD/MP3 player.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- ON/OFF: player on/off switch.
2.- USB storage device connection port.
3.- Player information display.
4.- Lector de CD: CD loading/ejection slot.
5.- PROG: activates the programming mode. Allows a playback program to be configured. With playback
in STOP select a track and press the PROG button again. Repeat these steps until the playback list has
been completed and press PLAY to start playback. To stop a program that is in progress, press STOP.
6.- RE -SKIP-F R: a short press of these buttons changes to the previous/following track or file. Pressing
and holding starts the rewind/fast forward function.
7.- STOP: stops playback.
8.- PLAY/PAUSE: starts and pauses playback.
9.- EJECT: ejects the CD.
10.- LED on/off indicators for players 1 and 2.
11.- SD: SD memory card connection slot.
12.- PO ER: button to switch each player on/off individually.
13.- 5 FOLDER 6: in STOP mode changes to the previous/next folder.
In playback mode (PLAY) it changes playback to the first file of the previous/next folder.
In all cases, when it reaches the last or first folder, it cyclically selects either the first or the last folder
respectively.
14.- A-B: one press of this button starts a loop. Press this button again to end the loop. Then the selected
section will be continuously repeated.
Press this button again to return to the previous playback mode.
15.- REPEAT: pressing this button changes cyclically among the different playback modes. If an audio CD
is being played, the playback modes are:
-4-
EN
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 4

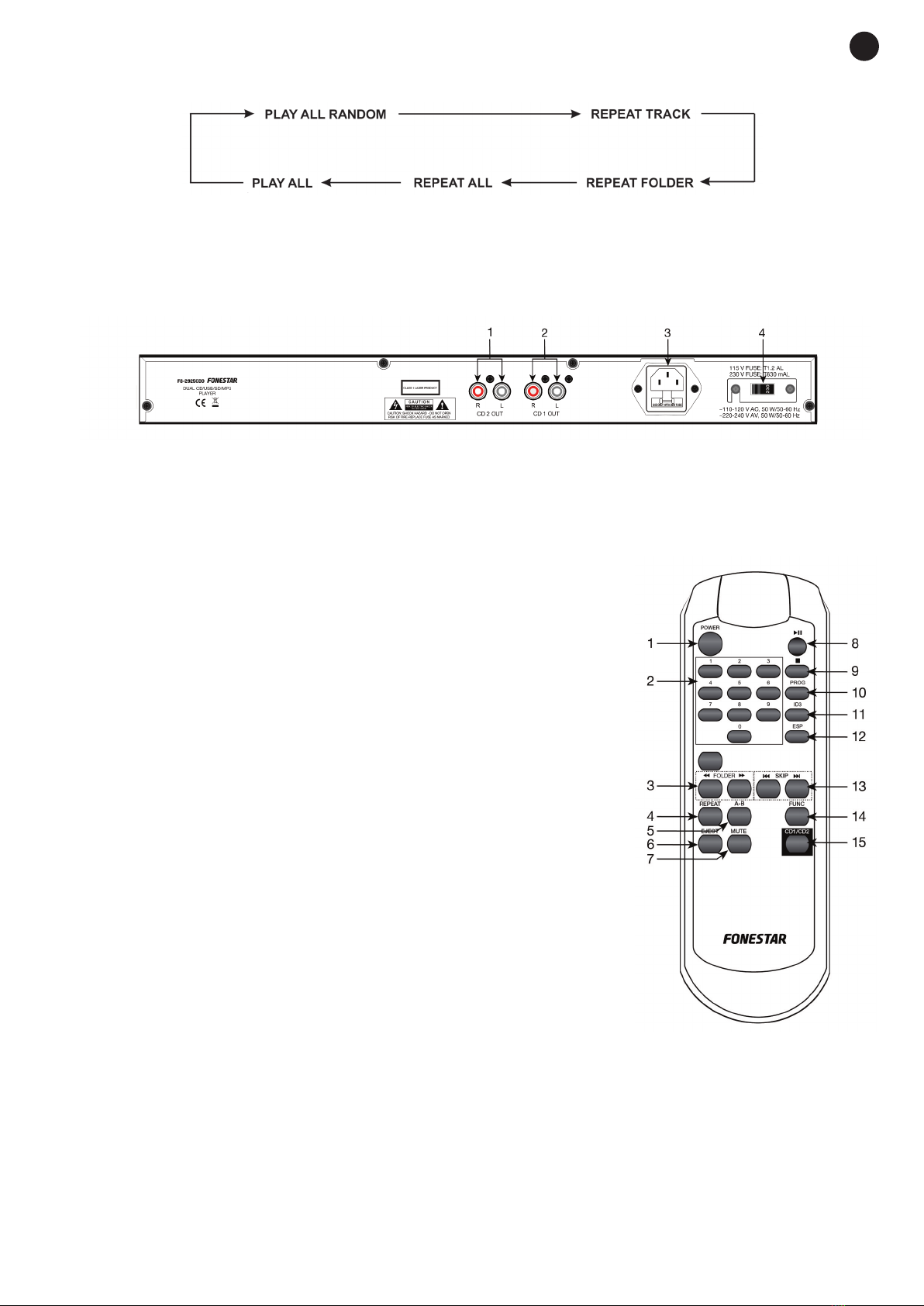

If MP3 files are being played, the playback modes are:
16.- CD/USB/SD: button which allows selection of available audio sources.
17.- IR: remote control infrared sensor.
REAR PANEL
1.- CD 2 OUT: output for the second CD/MP3/SD/USB player. 2 x RCA connectors.
2.- CD 1 OUT: output for the first CD/MP3/SD/USB player. 2 x RCA connectors.
3.- Mains supply socket.
4.- Power supply voltage selector.
REMOTE CONTROL
1.- PO ER: player on/off switch.
2.- 1 - 9 / 0: direct selection number buttons.
3.- 5 FOLDER 6: in STOP mode changes to the previous/next
folder.
In playback mode (PLAY) it changes playback to the first file of
the previous/next folder.
In all cases when it reaches the last or first folder, it cyclically
selects either the first or the last folder respectively.
4.- REPEAT: pressing this button changes cyclically among the
different playback modes.
5.- A-B: one press of this button starts a loop. Press this button again
to end the loop. Then the selected section will be continuously
repeated.
Press this button again to return to the previous playback mode.
6.- EJECT: ejects the CD.
7.- MUTE: pressing this button activates the MUTE mode which
silences the audio output. Press this button again to deactivate it.
8.- 12: starts or pauses playback.
9.- 3: stops playback.
10.- PROG: activates the programming mode. Allows a playback program to be configured. With playback
in STOP select a track and press the PROG button again. Repeat these steps until the playback list has
been completed and press PLAY to start playback. To stop a program that is in progress, press STOP.
11.- ID3: activates or deactivates display of ID3 tag file information on the screen.
12.- ESP: to activate the anti-shock buffer memory. The player cyclically memorises approximately 40
seconds of music which can be played if the player cannot read the CD due to vibrations.
-5-
EN
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 5

EN
-6-
13.- 7 SKIP 8: one press of this button changes to the next/previous track or file. Pressing and holding
starts the fast forward/rewind function.
14.- FUNC: button which allows selection among the available audio sources.
15.- CD1/CD2: allows selection between player 1 and player 2.
CONNECTION
- Switch off the equipment and unplug it from the mains before connecting it.
- Connect the equipment according to your needs.(see example). Connect the outputs CD 1 OUT and CD
2 OUT to the line level inputs in your amplifier.
- Connect the equipment to the mains again and switch it on.
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 6

TECHNICAL SPECIFICATIONS
FS-2925CDD
CHARACTERISTICS Double CD/USB/SD/MP3 player.
CD reading mechanism with front slot in system.
USB port for flash drive connection and hard discs with FAT32
format.
SD card reader.
ID3 tag in MP3 files. Indexes up to 1999 tracks.
40-second anti-shock buffer memory. Remote control.
RESPONSE 20-20,000 Hz
OUTPUTS 2 aux, 2 x RCA
PO ER SUPPLY 230/115 V AC, 50 W
DIMENSIONS 430 x 44.5 x 250 mm depth. 1 U 19" rack.
ACCESSORIES 2 x 2 RCA cables
Mounts for assembly in 19" rack
Batteries for remote control
EN
-7-
FS-2925CDD_MANUAL_(EN)_20170301_Maqueta ión 1 1/3/17 13:29 Página 7

DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A.
Polígono de Trascueto s/n
39600 Revilla de Camargo, Cantabria (Spain)
Declares, under its responsibility, that the following equipment:
Description: Double CD/USB/SD/MP3 player
Brand: FONESTAR
Model: FS-2925CDD
complies with the European Community directives 2004/108/EC on Electromagnetic Compatibility,
2006/95/EC on Low Voltage and 2011/65/EU on the restriction of certain dangerous substances in
electrical and electronic appliances (RoHS).
Santander, 23rd February 2015
Juan Vallejo
Technical Engineer, Sales Department
ARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date
and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more
than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being
sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections
or crossing out
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Poligono Trascueto - 39600 - Revilla de Camargo, Cantabria (SPAIN)
www.fonestar.com
