FONESTAR PAR-60L User manual

PAR-60L
PAR SPOTLIGHT 30 x 2 W RGBAUV
INSTRUCTION MANUAL

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

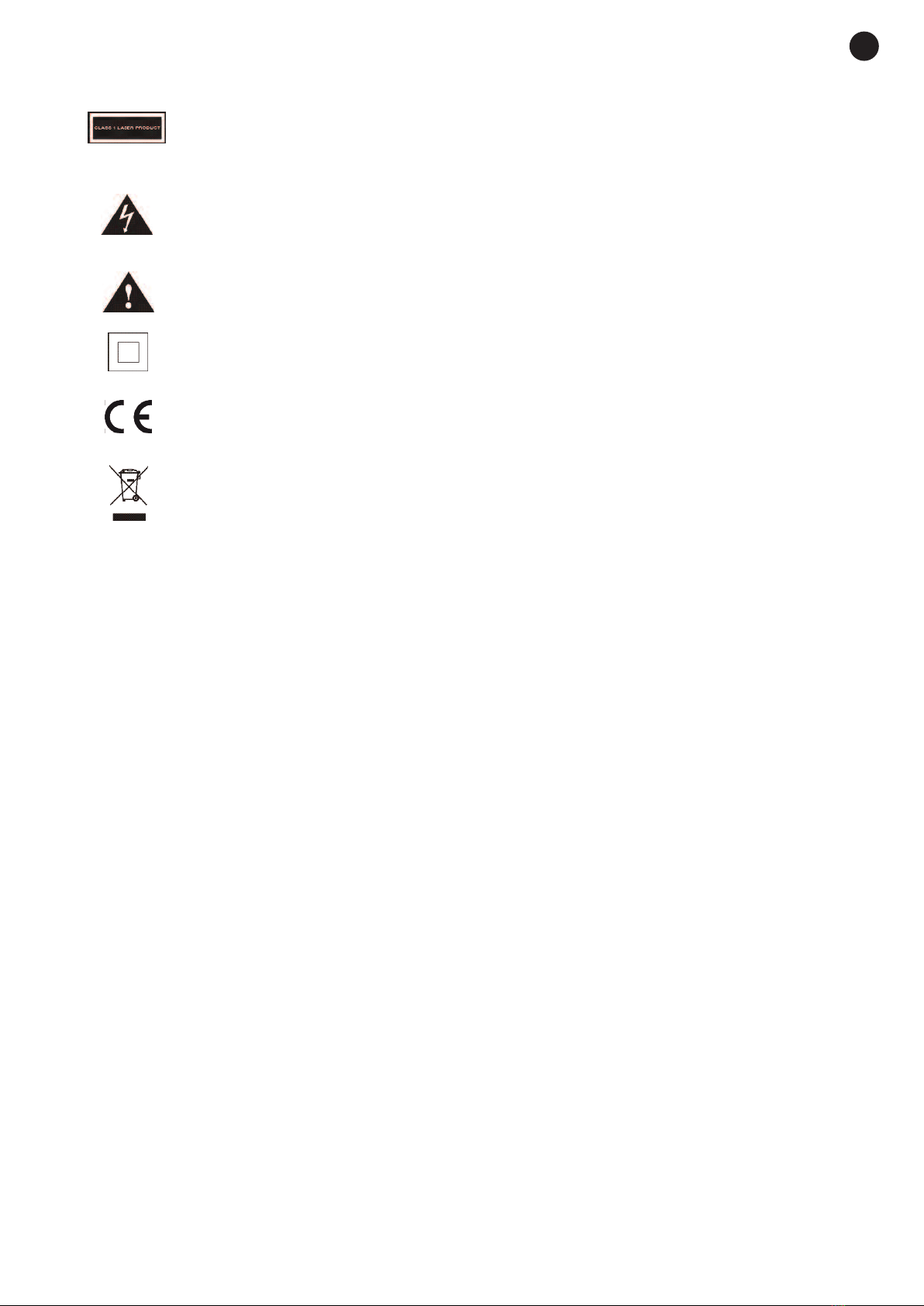

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
EN

DESCRIPTION
Flat PAR spotlight RGBAUV.
DMX control via 9 channels, automatic mode, sound activation or master/slave mode. Colour, dimmer, strobe
adjustment and speed adjustable via DMX control console.
Microphone incorporated.
CONTROLS AND FUNCTIONS

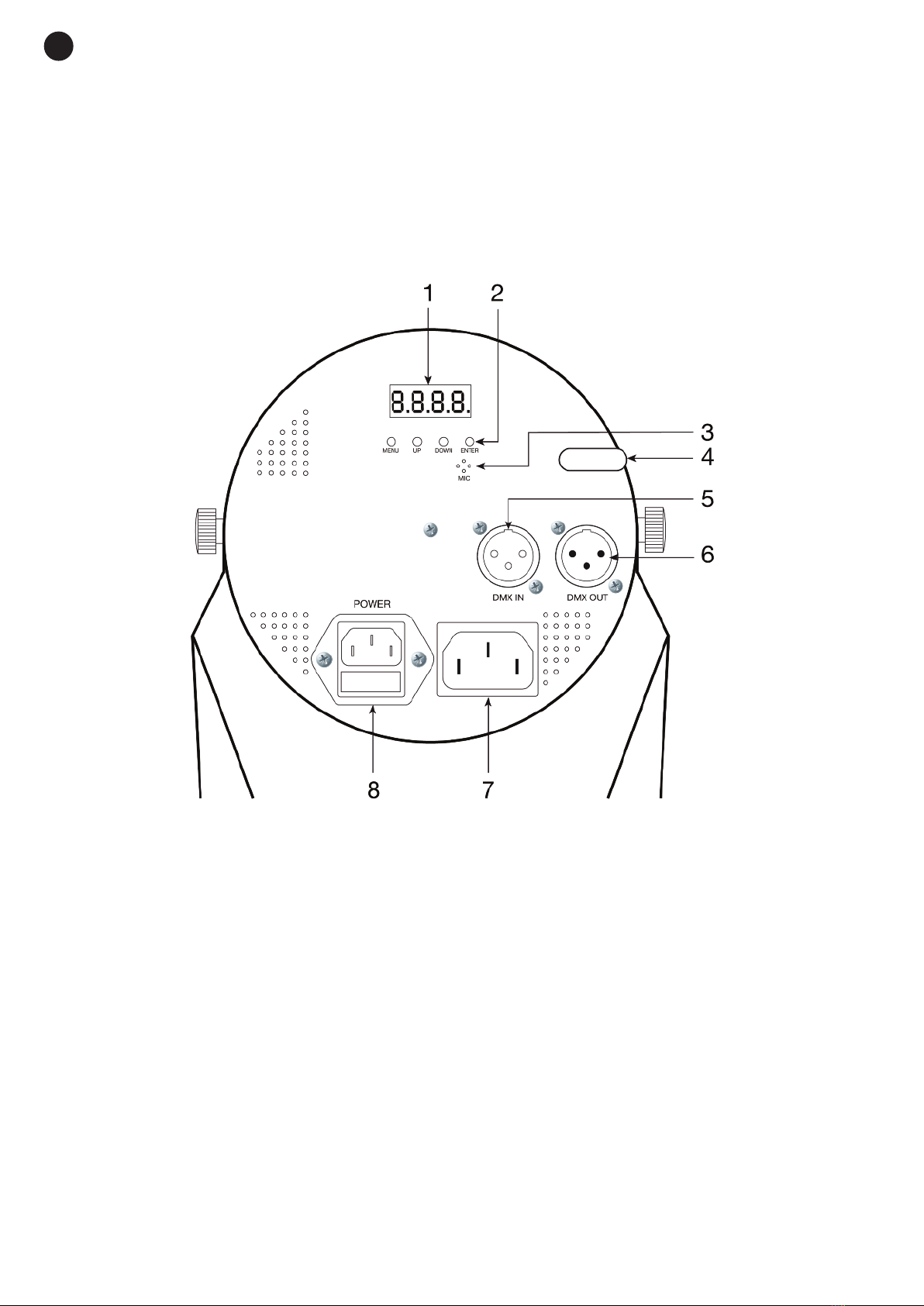

REAR PANEL
1.- DISPLAY: shows the device’s current operating mode.
2.- Control p nel buttons:
MENU: allows the parameter to be changed in order to modify.
UP: increases the value of the parameter to be modified. To confirm selection press ENTER.
DOWN: decreases the value of the parameter to be modified. To confirm selection press ENTER.
ENTER: confirms the current value of the configured parameter.
3.- Microphone.
4.- Safety eyebolt.
5.- DMX IN: control signal input, 3-pin X R connector.
6.- DMX OUT: control signal output, 3-pin X R connector.
7.- Power supply output, 4.5 A maximum.
8.- 100-240 V AC power supply.
- 4-
EN

CONNECTION AND OPERATING
Select the operating mode using the MENU button, according to the table below. The chosen mode can be
varied using the UP and DOWN buttons. Press ENTER to select the required mode.
In order to control the device using the DMX control console, select the A001-A511 mode and the DMX
address with a value between 1 and 512 using the UP, DOWN buttons and confirm with the ENTER button.
In the following table, the functions performed by the device’s DMX channels are displayed. It is possible to
alternate freely among several channels simultaneously.
FUNCTIONS VIA DMX 512 CONTROL CONSOLE
DMX CH DMX VALUE FUNCTION
1 0-255 DIMMER
2 0-255 Red intensity adjustment
3 0-255 Green intensity adjustment
4 0-255 Blue intensity adjustment
5 0-255 White intensity adjustment
6 0-255 Amber intensity adjustment
70-9 STROBE OFF
10-255 STROBE
8
0-50 MANUA MODE
51-100 Colour change
101-150 Gradual colour change
151-200 Colour change by pulses
201-250 AUTO
251-255 Sound mode
9 0-255 Speed change for channel 8 effects
MODE DISPLAY FUNCTION
A001-A511 A001-A511 Control via DMX
Au Au 1-Au31 Static colours
FF FF 1-FF99 Colour change 1
CC CC 1-CC99 Gradual colour change
EEEE 1-EE99 Colour change 2
FF001-F009 Without stroboscope
F010-F255 ow to high speed stroboscope
AUTO Auto Automatic mode
Soud
Soud Sound mode 1
b OF/b ON Sound control
VO 1-VO 9 Microphone sensitivity adjustment
RGB
R Red intensity adjustment
G Green intensity adjustment
B Blue intensity adjustment
W White intensity adjustment
A Amber intensity adjustment
- 5-
EN

EN
- 6-
- To connect several devices controlled via DMX-512, they must be interconnected using X R cables with
the following configuration:
- Connect the device to the mains supply and switch it on.
- It is possible to connect several devices in cascade to be managed collectively or separately. Connect an
X R cable between DMX IN input of the device and the DMX OUT output of the DMX control console if it
is the first element in the chain, or the DMX OUT output of the previous element in the chain of your show
lighting assembly.
- The total interconnection wiring of devices in a line must not exceed 100 meters. To avoid interference in
the line, it is advisable to place a line terminator consisting in a resistance of 120 Ω between the terminals
2 and 3 of the X R DMX OUT connector of the last element. See diagram below:
SAFETY RECOMMENDATIONS
- Do not open the equipment under any circumstances.
- Make sure that the devices are at least 50 cm away from inflammable substances or elements.
- Do not look at the laser beams from a distance of less than 15 cm or for more than 10 seconds of direct
radiation, to avoid serious damage to eyes.
- Switch the equipment off for 15 minutes every 2 hours to avoid overheating.
- Do not continually switch the equipment on and off as this could decrease its useful life.
- Only use this equipment in covered and refrigerated spaces.
- Do not move or manipulate the equipment while it is connected to the mains and operating.
- Do not modify the lighting elements of the equipment without technical supervision or with material that
has not been guaranteed by the supplier.

TECHNICAL SPECIFICATIONS
PAR-60L
CHARACTERISTICS Flat PAR spotlight RGBAUV.
Automatic mode, static mode, sound activation and master/slave mode.
Colour, dimmer, strobe adjustment and speed adjustable via DMX control
console.
Microphone incorporated.
LED 30 x 2 W, 5 in 1
DMX CHANNELS 9
INPUTS DMX IN, 3-pin X R
OUTPUTS DMX OUT, 3-pin X R
POWER OUT, 4.5 A maximum
CONTROLS Configuration screen
POWER SUPPLY 100-240 V AC, 70 W
DIMENSIONS 210 x 200 x 130 mm depth
ACCESSORIES Adjustable fixing mount
- 7-
EN

WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a ey General
para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. It
is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007
16 Noviembre.
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
