FONESTAR SF-2200U User manual

SF-2200U
Hi-Fi TURNTABLE
WITH RECORDING FUNCTION
EN Instruction manual

EN
-2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

EN
-3-
SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2012/19/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.219/2013).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
The symbol RoHS (Restriction of Hazardous Substances) shows that the product has
been designed and manufactured restricting the use of certain dangerous materials
(Directive 2011/65/EU on the restriction of certain dangerous substances in electrical
and electronic appliances).
*It is possible that some of these symbols do not appear on the machine.
E EMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.

EN
-4-
DESCRIPTION
Mod. SF-2200U is a Hi-Fi turntable with direct recording function in USB/SD. It records vinyl records directly
in MP3 format in USB storage devices or SD memory cards. The recording can be divided into consecutive
files. Recording quality of 192 Kbps.
It plays vinyl records with belt drive transmission and manual drive system, DC precision servo mechanism
with quick start/stop. 2 speeds: 33 and 45 RPM. Arm with slow rise and fall. Button for lifting the tone arm.
CONTROLS AND FUNCTIONS
UPPER AND FRONT PANELS
1.- Adapter for 45 r.p.m records.
2.- Plate.
3.- Arm.
4.- Arm control lever.
5.- 33/45 RPM: playback speed selector.
6.- Connection port for USB storage devices with FAT32 file system.
7.- Connection port for SD memory cards.
8.- RECORD: button for starting and stopping recording. For more information, see the Instructions for
Use section.
9.- SPLIT: button for dividing the recording into consecutive files. For more information, see the Instructions
for Use section.
10.- LED turntable recording indicator. For more information, see the Instructions for Use section.
11.- REJECT: button that stops the current record being played. Futhermore, it lifts the arm.

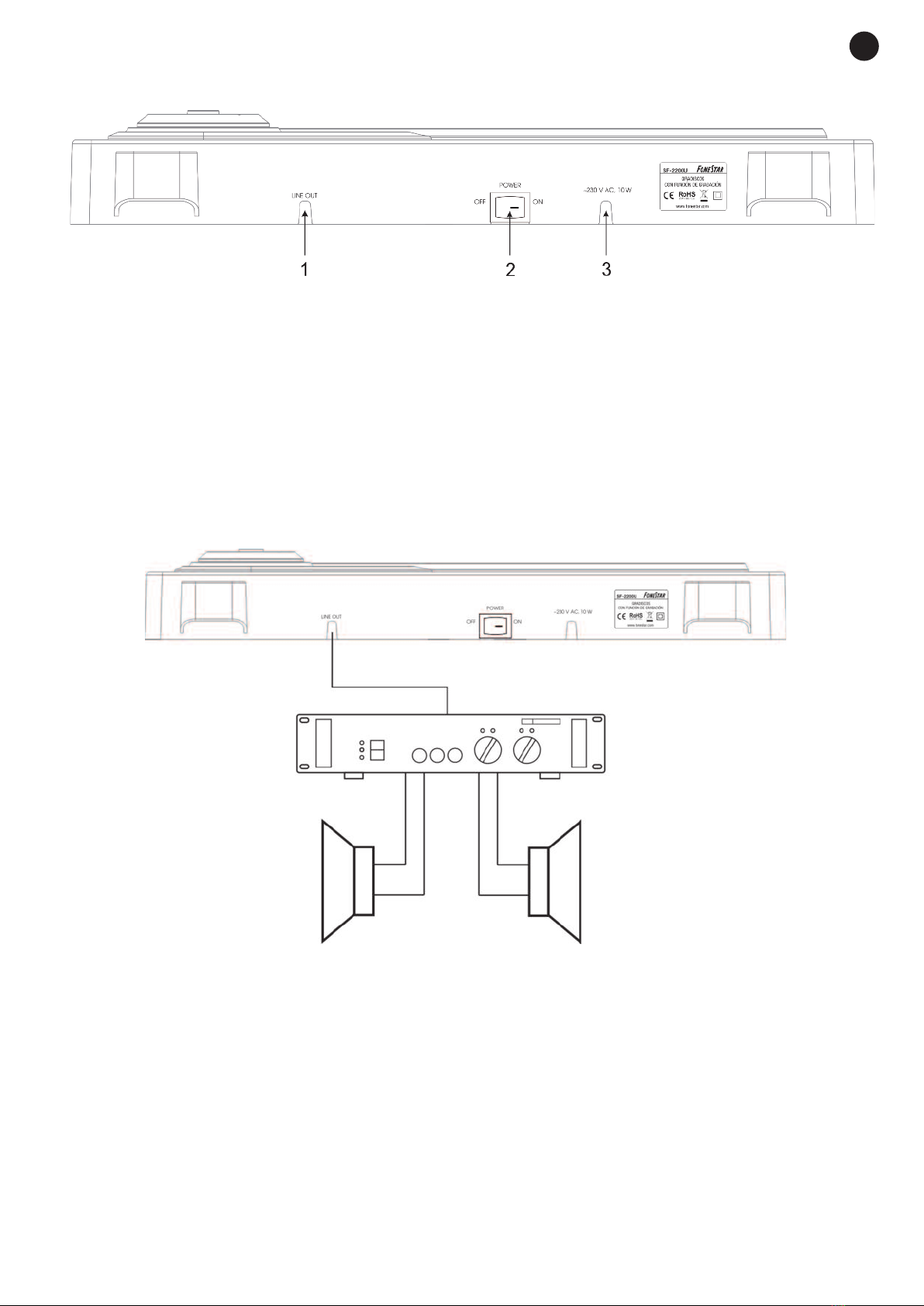

BACK PANEL
1.- LINE OUT: line level output, 2 x RCA connectors.
2.- POWER: turntable on/off switch.
3.- 230 V AC power cable.
CONNECTION
Make the connections with all equipment switched off and unplugged from the mains.
Connect the turntable output to a line input on an amplifier.
Connect the turntable and the rest of the equipment to the 230 V AC mains supply and switch it on.
EN
-5-

EN
-6-
INSTRUCTIONS FOR USE
PLAYBACK
1. Choose the speed according to the record that you are going to play (33 or 45 RPM) using the selector
on the front panel. If the record is a single (45 RPM), use the adapter supplied.
2. Switch the turntable on.
3. Remove the needle protector.
4. Lift the arm lever and place the arm over the record.
5. Place the needle at the beginning of the record and lower the arm lever; the arm will lower gently and
playback will start. If you want to pause playback, lift the arm lever. Lower it again to restart playback.
6. Press the RE ECT button when you want to stop playback. The arm will go back to its original position
automatically.
7. After stopping playback, switch the turntable off using the on/off switch.
RECORDING
To record vinyl records directly in MP3 format in the corresponding port, follow the steps below:
1.- Connect a USB storage device with FAT32 format or an SD memory card. At this moment, the LED
recording indicator will start to flash.
After a few seconds, it will stop flashing and will stay alight. At this moment the turntable is prepared to
start recording.
2.- Start playing the vinyl record.
3.- Press the RECORD button to start recording. The LED indicator will start flashing slowly.
4.- If you want to divide the recording into different files, press the SPLIT button as many times as the amount
of different files you want to record. This function is specially suitable for dividing the whole record into
individual songs.
5.- Press the RECORD button to stop the recording whenever you want. The LED recording indicator will flash
quickly for a few seconds and will then stay alight.
Note: do not remove the USB storage device or the SD memory card until the LED recording indicator stops
flashing as otherwise you could damage the recorded files.
Note: the recordings will be stored in the memory device in a file with the name PROFILE, which is created
if it does not already exist. Others called ALBUM will be created within this folder, which will store the
recordings individually and consecutively. If the recordings are made without using the SPLIT button
(without dividing the recording), there will be just one file with the name REC_001 in the corresponding
folder. On the otherhand, if you have used the SPLIT button to divide the recording in several parts,
these will be stored in the same ALBUM folder with consecutive numbering (REC_001, REC_002,
REC_003, etc.).

EN
-7-
SPECIFICATIONS
SF-2200U
CHARACTERISTICS BELT DRIVE.
Hi-Fi turntable with direct recording function in USB/SD.
USB and SD ports for storing recordings in MP3 format.
Auxiliary level output.
Manual operating system.
DC precision servo motor mechanism with quick start/stop.
Belt-drive transmission.
2 speeds: 33 & 45 r.p.m.
Reject button for lifting the tone arm and speed selector (33/45).
Wow and flutter: 0.25% W RMS.
S/N ratio: 50 dB.
Tone arm with slow rise and fall.
300 mm plate.
With nonslip rubber disc.
Cartridge head shell with magnetic Hi-Fi cartridge.
Recording LED indicator.
Start/stop recording button.
Button for dividing recording.
Accepts drives up to 16 GB.
Recording quality 192 Kbps.
With black base plinth and transparent lid.
POWER SUPPLY 230 V CA, 10 W
DIMENSIONS 418 x 115 x 355 mm depth

EN
-8-
DECLARATION OF CONFORMITY
The Hi-Fi turntable with recording function model SF-2200U complies with the European Community
directives 2004/108/CE on Electromagnetic Compatibility and 2006/95/CE on Low Voltage.
Santander, 22nd April 2013
uan Vallejo
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and
commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than
showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being sold
with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or
crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALA ES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our
products carry the symbol, backed by our membership and subscription to the above mentioned organization
with the recycling and subsequent management of our packaging.
FONESTAR S.A. - NIF A28780443 - Apartado 191 - 39080 - Santander, Cantabria, (Spain)
