FONESTAR VINYL-12U User manual

VINYL-12U
PROFESSIONAL Hi-Fi TURNTABLE
INSTRUCTION MANUAL
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:10 Página 1

-2-
EN
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:10 Página 2

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
-3-
EN
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:10 Página 3

DESCRIPTION
The model VINYL-12U is a professional Hi-Fi turntable that plays vinyl records with belt drive transmission and
manual drive system, DC precision servo mechanism with quick start/stop. It has two rotation speeds: 33 and
45 rpm with LED indicators. It allows fine speed and tone adjustment using a sliding potentiometer ±8%.
It has an S-shaped headshell arm with slow rise and fall. It incorporates a magnetic Hi-Fi capsule. 305 mm
aluminium platter and strobe light on the platter to adjust the speed. Black plinth and transparent cover. USB
port for PC connection.
CONTROLS AND FUNCTIONS

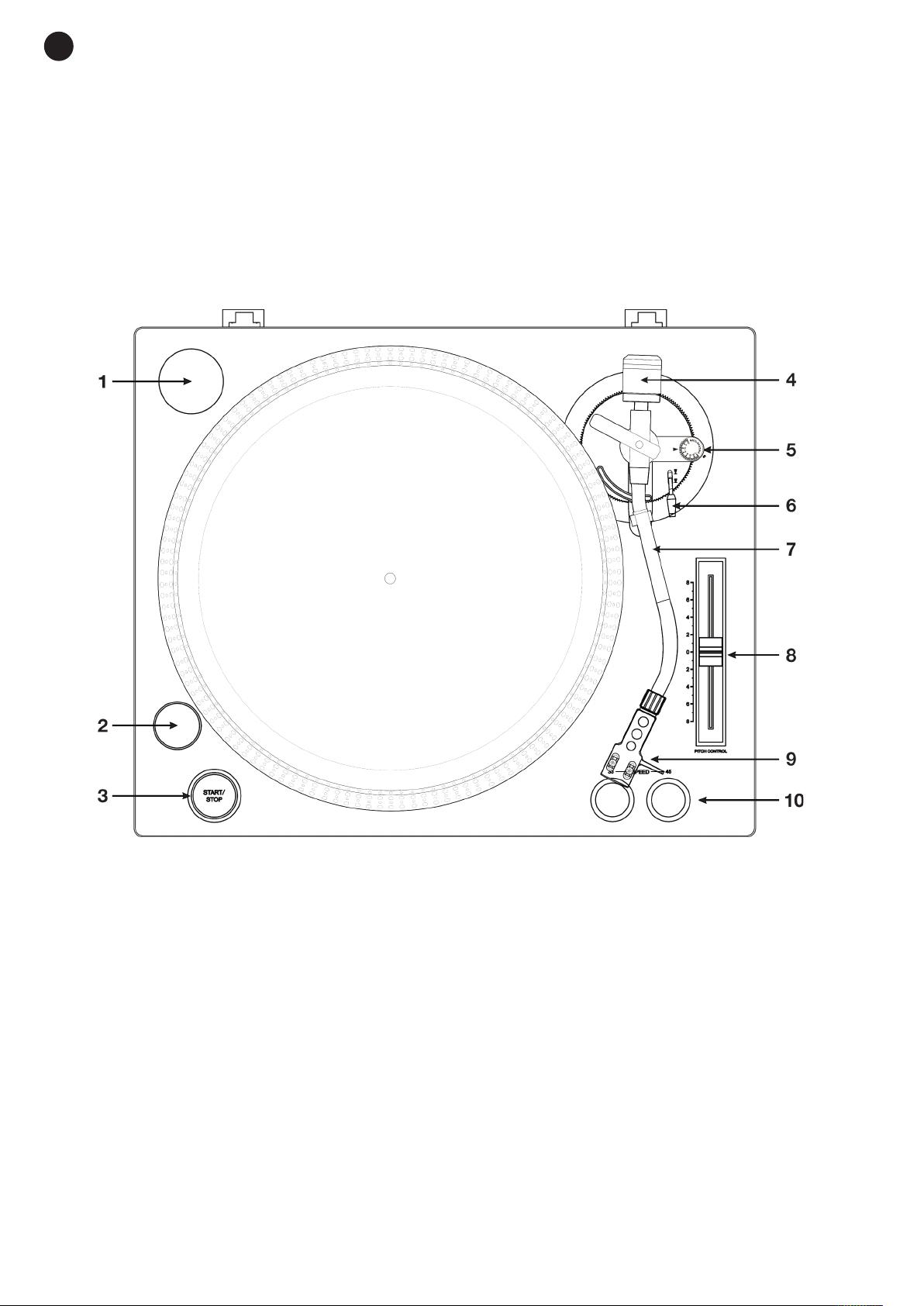

UPPER PANEL
1.- Adapter for 45 rpm records.
2.- Strobe light.
3.- START/STOP: start/stop button.
4.- Counterweight.
5.- Anti-skating control.
6.- Cueing lever.
7.- Tonearm.
8.- Pitch speed control.
9.- Headshell.
10.- SPEED: playback speed selectors.
-4-
EN
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:11 Página 4

REAR PANEL
11.- Grounding screw.
12.- Turntable output, 2 x RCA connectors. The output level can be selected with the PHONO/LINE selector.
13.- PHONO/LINE: turntable output level selector: phono level or line level.
14.- USB: PC connection port, female USB B connector.
15.- Power supply input for mains adapter provided.
16.- Turntable on/off switch.
TONEARM WEIGHT ADJUSTMENT
1.- Remove the needle protector.
2.- Position the ANTI-SKATING control at 0.
3.- Place the cueing lever in the down position /.
4.- Release the tonearm and position it parallel to the platter, in the free space between the platter and the
tonearm rest, being careful not to damage the needle.
5.- Hold the tonearm gently by the headshell and level it by turning the counterweight to the left or to the
right. The adjustment is completed when the tonearm is parallel to the record above the platter and does
not lean towards the counterweight or towards the capsule when it is released.
6.- Place the tonearm on the tonearm rest and fasten it with the clip.
7.- Keep the counterweight in the set position and only turn the scale ring until the 0 mark is in line with
the mark printed on the axis of the tonearm.
8.- Then adjust the weight of the needle above the record: turn the scale ring along with the counterweight
to the grams required in accordance with the characteristics of the cartridge being used. If using the
cartridge provided, the counterweight must be adjusted to 1.5 to 2.5 grams.
-5-
EN
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:11 Página 5

ANTI-SKATING CONTROL ADJUSTMENT
Place the ANTI-SKATING control at the same value selected on the scale ring so that it corresponds to the
weight of the needle on the record. If the weight is 2 grams, the control must be set at value 2.
SPEED PITCH CONTROL ADJUSTMENT
1.- This slider allows the rotation speed to be varied in a range of ±16% for D effects.
2.- In order to check the speeds 33 rpm or 45 rpm, observe the series of dots on the platter lit up by the
strobe light. The dots that appear to be stationary are those that show the correct speed.
3.- If the dots move to the right, this means that the platter is going slower than the selected speed. In this
case, move the potentiometer towards ‘+’ until the dots remain stationary. If the dots are moving to the
left, the speed is faster and should be corrected by moving the potentiometer towards ‘-’ until the dots
remain stationary.
The two settings are located on the lower part of the turntable and are accessed using a screwdriver.
CONNECTION
- Connect the turntable to the power supply.
- Connect the turntable output (2 x RCA connectors) to the input of a device with phono level or line level.
Place the PHONO/LINE switch in the appropriate position depending on the type of input to be connected
to the turntable.
- If you wish, the turntable can be connected to a PC using the USB cable provided.
Note: when the turntable is connected to the PC using the USB cable provided, the PC will recognise the
turntable as a recording device ‘USB Audio CODEC’.
INSTRUCTIONS FOR USE
OPERATING
1.- Depending on the type of record going to be played (33 or 45 rpm), choose the required speed with the
switch on the upper panel. If the record is a single (45 rpm), use the insert provided.
2.- Turn on the turntable with the ON/OFF switch on the rear part of the device.
3.- Remove the needle protector.
4.- Raise the cueing lever and position the tonearm over the record.
5.- Put the needle at the start of the record and lower the cueing lever. The tonearm will gently lower itself.
6.- Press the START/STOP button when you want to start or stop playback.
7.- After finishing playback, switch off the turntable with the ON/OFF switch.
-6-
EN
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:11 Página 6

TECHNICAL SPECIFICATIONS
VINYL-12U
CHARACTERISTICS Professional belt drive turntable.
Precise DC servo motor with rapid start-stop.
USB port for PC connection.
Phono/line switch.
2 speeds: 33 and 45 rpm with strobe.
Pitch Bend + and - speed controls.
Professional s-shaped tonearm with slow rise and fall.
Aluminium platter 305 mm.
Aluminium base and transparent cover.
POWER SUPPLY 15 V DC, 330 mA with adapter included
DIMENSIONS 452 x 119 x 361 mm depth
ACCESSORIES USB cable for PC connection, 1.5 m
2 x RCA connection cables, 1.5 m
-7-
EN
VINYL-12U_MANUAL_(EN)_20171009_Maqu tación 1 10/10/17 8:11 Página 7

WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General
para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. It
is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007
16 Noviembre’.
FONESTAR is a member of ECOEMBALA ES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Poligono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
