UFH-DDAEX
Digital Distribution Amplifier
1st Edition
OPERATION
MANUAL

Precautions
Important Safety Warnings
[Power]
Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord
can cause fire or electrical shock hazards. Regularly check power cord for
excessive wear or damage to avoid possible fire / electrical hazards.
[Circuitry Access]
Do not touch any parts / circuitry with a high heat factor.
Capacitors can retain enough electric charge to cause mild to serious shock, even
after power is disconnected. Capacitors associated with the power supply are
especially hazardous. Avoid contact with any capacitors.
Unit should not be operated or stored with cover, panels, and / or casing removed.
Operating unit with circuitry exposed could result in electric shock / fire hazards or
unit malfunction.
[Potential Hazards]
If abnormal smells or noises are noticed coming from the unit, turn power off
immediately and disconnect power cord to avoid potentially hazardous conditions. If
problems similar to above occur, contact authorized service representative before
attempting to again operate unit.
[Consumables]
The consumables used in unit must be replaced periodically. For further details on
which parts are consumables and when they should be replaced, refer to the
specifications at the end of the Operation Manual. Since the service life of the
consumables varies greatly depending on the environment in which they are used,
they should be replaced at an early date. For details on replacing the consumables,
contact your dealer.
Caution
Stop
Hazard
Stop
Caution

Upon Receipt
Unpacking
UFH-DDAEX modules and their accessories are fully inspected and adjusted prior to shipment.
Operation can be performed immediately upon completing all required connections and
operational settings.
Check your received items against the packing lists below.
ITEM QTY REMARKS
UFH-DDAEX 1
Studs 3 For connecting UFH-70DDA
Screws 6 For connecting UFH-70DDA
Operation Manual 1
Check
Check to ensure no damage has occurred during shipment. If damage has occurred, or items
are missing, inform your supplier immediately.

Table of Contents
1. Prior to Starting...........................................................................................................................1
1-1. Welcome.............................................................................................................................1
1-2. Features..............................................................................................................................1
1-3. About This Manual..............................................................................................................1
2. Panel Descriptions......................................................................................................................2
3. Connection..................................................................................................................................2
4. Operations..................................................................................................................................3
4-1. Power On............................................................................................................................3
4-2. Video Input Setting..............................................................................................................3
5. Specifications and Dimensions ...................................................................................................4
5-1. Unit Specifications...............................................................................................................4
5-2. External Dimensions...........................................................................................................5

1
1. Prior to Starting
1-1. Welcome
Congratulations! By purchasing UFH-DDAEX Digital Distribution Amplifier you have entered the
world of FOR-A and its many innovative products. Thank you for your patronage and we hope
you will turn to FOR-A products again and again to satisfy your video and audio needs.
FOR-A provides a wide range of products, from basic support units to complex system
controllers, which have been increasingly joined by products for computer video based systems.
Whatever your needs, talk to your FOR-A representative. We will do our best to be of continuing
service to you.
1-2. Features
The UFH-DDAEX is an optional video distributor for UFH-70DDA. It can be installed in the
UFH-108A or UFH-112A system frame. By connecting to the UFH-70DDA rear module, it can
distribute two systems of one input into seven outputs.
Supports HD SDI and SD SDI (auto-detection).
Automatic cable compensation function for up to SD SDI 200m (using 5C-2V cable) and HD
SDI 100m (using 5C-FB cable).
Re-clock function.
Input signal auto-recognition and detection of HD SDI and SD SDI.
Supports DVB-ASI by changing the internal setting.
1-3. About This Manual
This manual is intended to help the user easily operate this product and make full use of its
functions during operations. Before connecting or operating your unit, read this operation
manual thoroughly to ensure you understand the product. After reading, it is important to keep
this manual in a safe place and available for reference.

2
2. Panel Descriptions
No. Name Description
(1) VIDEO IN For HD-SDI/SD-SDI video input signal connection.
(2) VIDEO OUT For HD-SDI/SD-SDI video output signal connection.
Distributes one signal input into seven outputs.
3. Connection
The figure below shows how to connect UFH-DDAEX to other devices. Note that before installing
the UFH-DDAEX module into the UFH-108A or UFH-112A system frame, you should thoroughly
read the operation manual for the system frame.
HD/SD
VIDEO IN VIDEO OUT UFH-70DDA
HD/SD 7HD/SD 6HD/SD 5HD/SD 4HD/SD 3HD/SD 2HD/SD 1
(2)(1)
HD SDI signal
or
SD SDI signal HD/SD SDI
IN HD/SD
OUT 1
HD/SD
OUT 2
HD/SD
OUT 3
HD/SD
OUT 4
UFH-DDAEX
UFH-112A
HD/SD
OUT 5
HD/SD
OUT 6
HD/SD
OUT 7
HD SDI signal
or
SD SDI signal

3
4. Operations

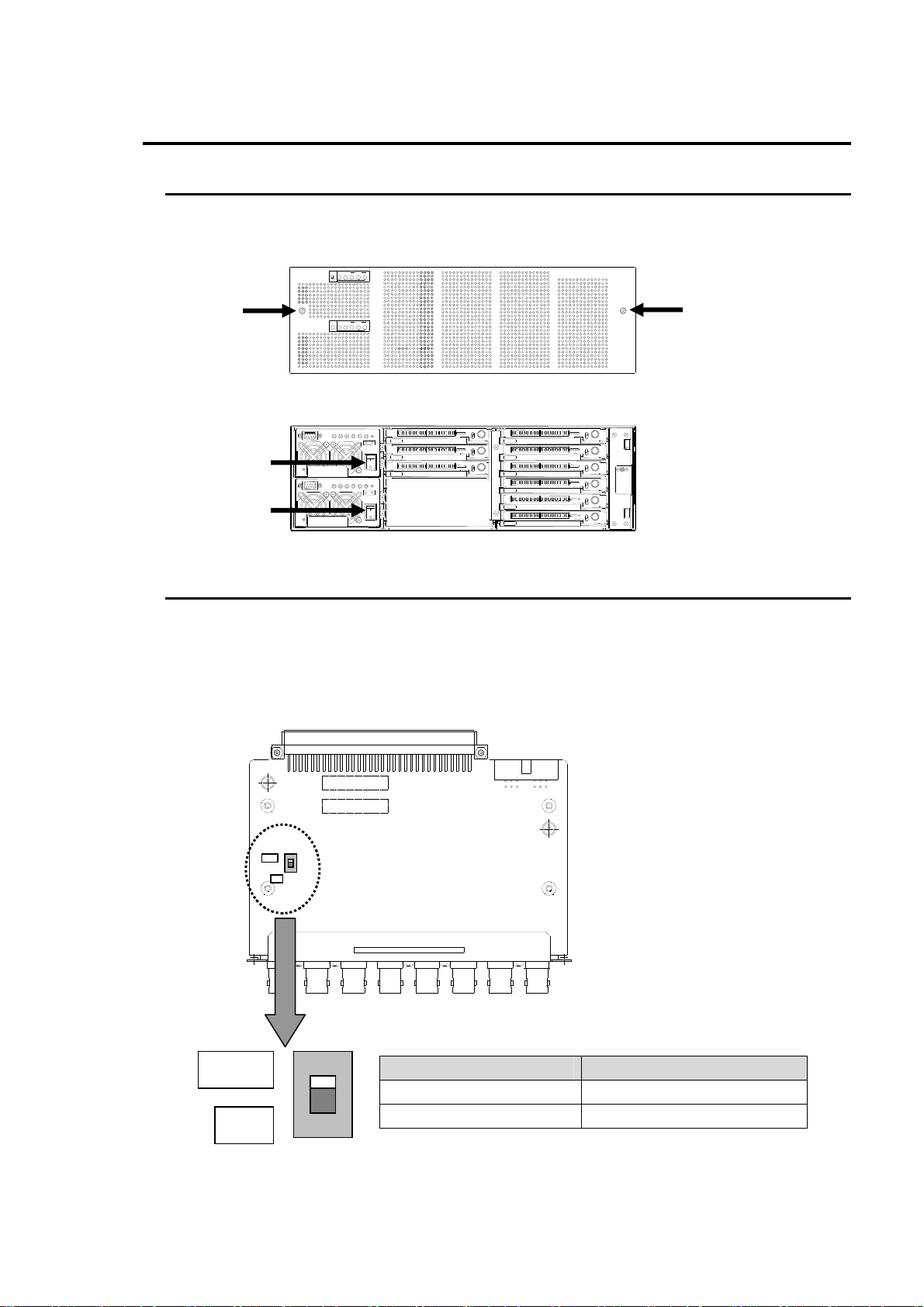

4-1. Power On
1) Loosen the two knob screws on the front panel face of the system frame, and then grasp the
knob screws to pull them out.
2) Turn the power switch(es) ON.
4-2. Video Input Setting
The I/O signal setting can be set to SD-SDI/HD-SDI or DVB-ASI by changing the switch on the
rear module. The switch setting must be made prior to installing UFH-DDAEX to the
UFH-108A/UFH-112A system frame. The factory default setting is VIDEO. To input a DVB-ASI
signal, be sure to change the setting to DVB. Otherwise, the signal is not output properly. If the
setting is changed to DVB, the DVB-ASI indicator on the front panel lights up.
Switch Setting Signal
VIDEO position SD-SDI, HD-SDI
DVB position DVB-ASI
SYSTEM FRAME
GENLOCK
12FAN
ALARM
TEMP DCPOW UFH-112
POWER
1
2
POWER GENLOCK
12FAN
ALARM
TEMP DCPOW
VIDEO
DVB
ＵＦＨ-ＤＤＡEX rear module

4
5. Specifications and Dimensions
5-1. Unit Specifications
Video Input HD-SDI: 1.485/1.001Gbps, SD-SDI: 143Mbps to 270Mbps,
DVB-ASI: 270Mbps, 75Ω, BNC, 1 input
Video Output HD-SDI: 1.485/1.001Gbps, SD-SDI: 143Mbps to 270Mbps,
DVB-ASI: 270Mbps, 75Ω, BNC, 7 outputs
Cable Compensation Automatic cable compensation
HD-SDI: 100m max. (5C-FB)
SD-SDI: 200m max. (5C-2V)
Temperature 10°C – 40°C
Humidity 30% – 90% (no condensation)
Power Supply from UFH Frame, +24VDC
Consumption 3.8VA (3.8W)
Weight 0.3 kg
Dimensions Rear module: 141 (W) x 101 (D) mm
Required Slot 1 slot

5

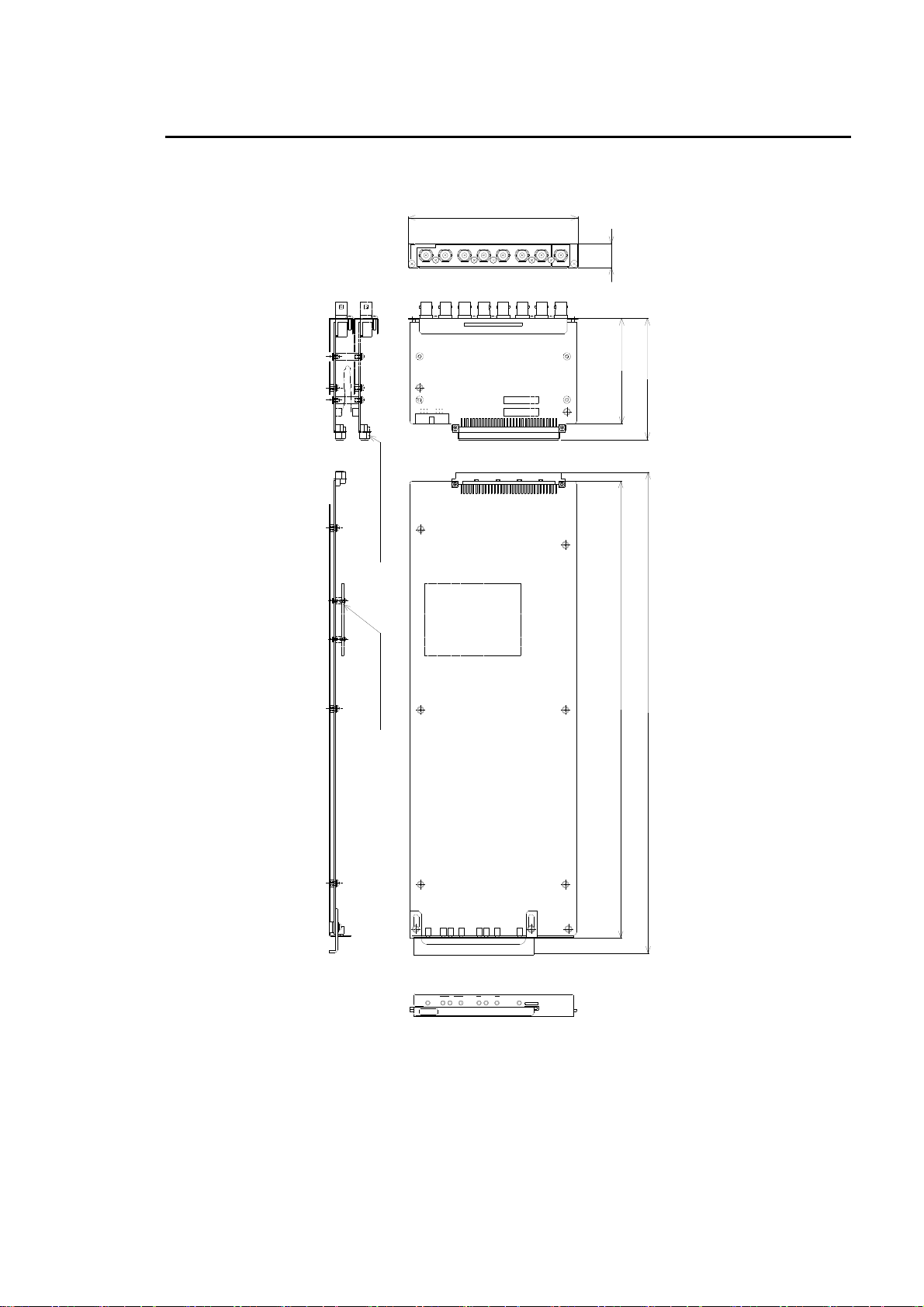

5-2. External Dimensions
(All dimensions in mm.)
－－－－－－－－－－－－－ －－－－－－－－－－－－－－－－－－－－－－－－－－
POWER
87.8 379.5
EXTENTION CARD(Option)
UFH- 70 DDA
INPUT HD DV B-ASI INPUT HD DVB-ASI
A(OPTION) BINTERFACE
(OPTION)
UFH- 70DD A
HD/SD
VIDEO IN VIDEOOUT UFH-70DDA
HD/SD 7HD/SD 6HD/SD 5HD/S D 4HD/SD 3HD/SD2HD /SD 1
141
20
(101) (400)
I/F CARD (Option)
UFH-70DDA
(Reference drawing)

Warning
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own
expense.
