FOR-A UFM-15VDA User manual

UFM-15VDA
Analog Video Distribution Amplifier
UFM-18VDA
Analog Video Distribution Amplifier
1st Edition - Rev.1
OPERATION
MANUAL

Upon Receipt
Unpacking
UFM-15VDA/18VDA and their accessories are fully inspected and adjusted prior to shipment.
Operation can be performed immediately upon completing all required connections and
operational settings.
Check your received items against the packing lists below.
ITEM QTY REMARKS
UFM-15VDA
or
UFM-18VDA
1 One front module
One rear module
Operation Manual 1
Option
ITEM QTY REMARKS
UFHM-IFB 1 An interface Card
Spacers 4 To mount on UFM-15VDA/18VDA
Screws 8 To mount on UFM-15VDA/18VDA
Check
Check to ensure no damage has occurred during shipment. If damage has occurred, or items
are missing, inform your supplier immediately.

Table of Contents
1. Prior to Starting ........................................................................................................................ 1
1-1. Welcome ........................................................................................................................... 1
1-2. About the UFM-15VDA/18VDA ......................................................................................... 1
1-3. About This Manual ............................................................................................................ 1
2. Panel Descriptions ................................................................................................................... 2
2-1. Front Panel........................................................................................................................ 2
2-2. Rear Panel ........................................................................................................................ 3
3. Connection ............................................................................................................................... 4
4. Operation.................................................................................................................................. 5
4-1. Front Panel Switche and Control....................................................................................... 5
4-2. Front Panel Controls ......................................................................................................... 6
4-2-1. GAIN .......................................................................................................................... 6
4-2-2. OPERATE / BY-PASS SELECT................................................................................. 6
5. Internal Settings ....................................................................................................................... 7
5-1. Jumper Locations .............................................................................................................. 7
5-2. Operation Mode................................................................................................................. 8
5-3. Clamp Setting.................................................................................................................... 9
6. Block Diagram ........................................................................................................................ 10
7. About UFHM-IFB (Optional) ................................................................................................... 11
7-1. Installing UFHM-IFB (Optional) ....................................................................................... 11
8. Specifications and Dimensions............................................................................................... 13
8-1. Specifications .................................................................................................................. 13
8-2. Dimensions...................................................................................................................... 14

1
1. Prior to Starting
1-1. Welcome
Congratulations! By purchasing UFM-15VDA/18VDA ANALOG VIDEO DISTRIBUTION
AMPLIFIER you have entered the world of FOR-A and its many innovative products. Thank you
for your patronage and we hope you will turn to FOR-A products again and again to satisfy your
video and audio needs.
FOR-A provides a wide range of products, from basic support units to complex system
controllers, which have been increasingly joined by products for computer video based systems.
Whatever your needs, talk to your FOR-A representative. We will do our best to be of continuing
service to you.
1-2. About the UFM-15VDA/18VDA
The UFM-15VDA/18VDA analog video distribution amplifier, providing 5-way (UFM-15VDA) /
8-way (UFM-18VDA) distribution of analog component signals, is specifically designed for use
with FOR-A’s Universal Frames.
Features
Video gain control available on the front panel
Input signal detection feature
Input signal pass-through / loopthrough selectable for OUT1 by internal settings.
Clamp on/off selectable for the output video signal. AC coupled / DC coupled output also
selectable when set to Clamp off. (Internal setting)
State monitoring via web using UFM-30CTL (for separate purchase) is enabled by installing
an optional UFHM-IFB.
1-3. About This Manual
This manual is intended to help the user easily operate the UFM-15VDA/18VDA and make full
use of its functions during operations. Before connecting or operating your unit, read this
operation manual thoroughly to ensure you understand the product. After reading, it is important
to keep this manual in a safe place and available for reference.

2
2. Panel Descriptions
2-1. Front Panel
(1) Power indicator
The power indicator lights green whenever power is applied to the unit.
(2) INPUT indicator
This indicator lights green whenever the composite video signal is inputted to the INPUT
connector.
Indicator Description
Lit Receiving input video signal and the unit is working properly.
Unlit No input video signals.
Input level too low.
Flashing Input Video signal is considerably unstable.
(3) GAIN
Used to control video gain in the range from -3dB to +3dB.
(4) OPERATE/ BY-PASS indicator
This indicator lights whenever the OPERATE/ BY-PASS toggle switch is set to OPERATE.
(5) OPERATE/ BY-PASS toggle switch
Setting Indicator Description
OPERATE
(Bottom position) Lit Outputs the processed signals.
BY-PASS
(Top position) Unlit Bypasses input video signal to the VIDEO OUT 1 connector.
(6) INTERFACE
This indicator lights up in green whenever an optional UFHM-IFB is installed.
UFM-15VDA
UFM-18VDA （1）
（2）（3）（4） （5）（6）
POWER INPUT
UFM-15VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
POWER INPUT
UFM-18VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE

3
2-2. Rear Panel
(1) VIDEO IN
Used to input a video signal.
(2) VIDEO OUT 1/BY-PASS, THRU
Used to output the analog composite signal, corrected video input from (1) VIDEO IN and
bypass signal from input connector (1) whenever the unit power is off or the OPERATE /
BY-PASS toggle switch is set to BY-PASS.
This connector can be also used as a loopthrough connector (VIDEO IN signal loopthrough)
by internal settings.
(3) VIDEO OUT 2, 3, 4, 5 (*UFM-15VDA)
Used to output video signals.
(4) VIDEO OUT 2, 3, 4, 5, 6, 7, 8 (*UFM-18VDA)
Used to output video signals.
UFM-15VDA
UFM-18VDA
(1) (2) (3)
VIDEO IN
1/BY-PASS
THRU VIDEO OUT UFM-15VDA
2345
(1) (4)(2)
1/BY-PASS
VIDEO IN THRU VIDEO OUT UFM-18VDA
678
2345

4
3. Connection
CAUTION
Turn all the power OFF before making connection.
Refer to figure below for connecting the UFM-15VDA/18VDA to other devices.
Note that before installing the UFM-15VDA/18VDA into the universal frame, you should thoroughly
read the operation manual for the Universal Frame (UF-106A or UF-112) where you will be
installing.
(1) OPERATE / BY-PASS mode
(2) Loopthrough mode
VIDEO IN is high impedance when in loopthrough mode. The last device in the chain should
be terminated with 75Ω.
Composite signal
VIDEO IN OUT 1 / BY-PASS
OUT 2
OUT 3
OUT 4
UFM-15VDA
/ UFM-18VDA
UF-106A or UF-112 universal frame
OUT 5 Composite signal
OUT 6
OUT 7
OUT 8
Composite signal VIDEO IN OUT 2
OUT 3
OUT 4
UFM-15VDA
/ UFM-18VDA
UF-106A or UF-112 universal frame
OUT 5 Composite signal
OUT 6
OUT 7
OUT 8
THRU
THRU OUT
※OUT6～8はUFM-18VDA のみ
※OUT6～8はUFM-18VDA のみ

5
4. Operation
4-1. Front Panel Switche and Control
The UFM-15VDA/18VDA front panel switch and control can be used to select and change
operational settings and levels.
Switch and Control Default Setting Refer to
(1) GAIN －4-2-1
(2) BY-PASS / OPERATE OPERATE
(Bottom position) 4-2-2
*See section 5-2. “Operation Mode” for the loopthrough settings.
*See section 5-3. “Clamp Setting” for the clamp settings.
UFM-15VDA
UFM-18VDA
POWER INPUT
UFM-15VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
(1) (2)
POWER INPUT
UFM-18VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE

6
4-2. Front Panel Controls
4-2-1. GAIN
Control Description
Used to adjust the VIDEO OUT
output level.
Setting range: -3dB to +3dB
4-2-2. OPERATE / BY-PASS SELECT
Control Description
Selects which signal output from
OUT 1, bypassed signal
(BY-PASS) or processed signal
(OPERATE).
Top position: BY-PASS
Bottom position: OPERATE
The OPERATE/ BY-PASS indicator
lights up when set to OPERATE.
IMPORTANT
The OPERATE/ BY-PASS switch is disabled in loopthrough mode regardless of the
indicator status. See section 5-2. “Operation Mode” for the loopthrough settings.
< UFM-15VDA >
< UFM-18VDA >
< UFM-15VDA >
< UFM-18VDA >
POWER INPUT
UFM-15VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
POWER INPUT
UFM-18VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
POWER INPUT
UFM-15VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
POWER INPUT
UFM-18VDA GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE

7
5. Internal Settings
The following settings can be made at the switches and jumpers on the front module and rear
module of the UFM-15VDA/18VDA.
Switch settings must be made prior to installing any module to the UF-106A/UF-112 universal
frame.
5-1. Jumper Locations
Jumper
MAIN CARD
JP1
JP6
SW 1
A
C
DC
SW 2
CLAMP ON
CLAMP OFF
I/O CARD
JP3
JP1
JP2
Jumper
JP5
JP4
JP6

8
5-2. Operation Mode

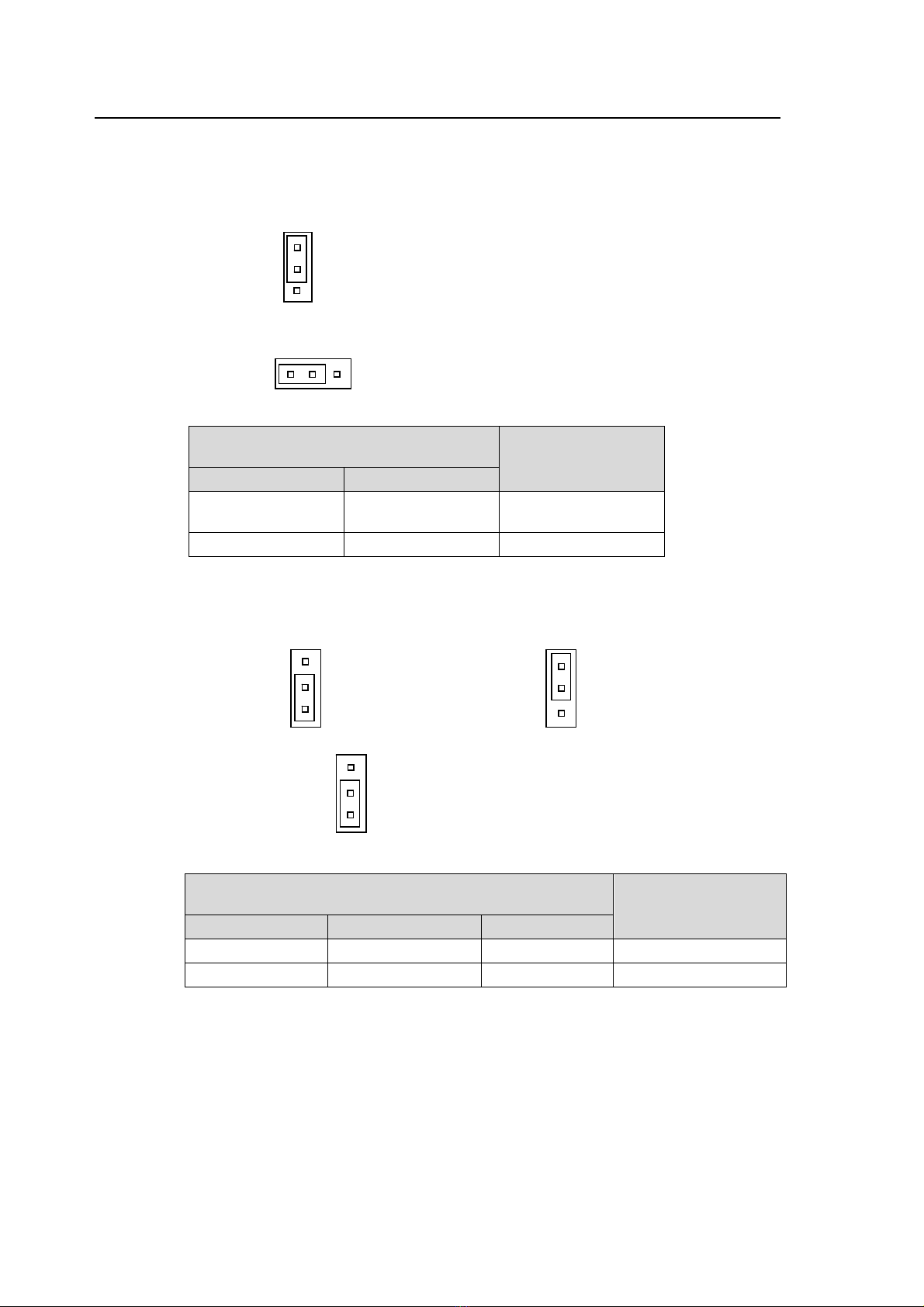

The jumpers in the Main and I/O cards are used to switch OUT1 between bypass and
loopthrough.
(1) MAIN CARD
MAIN CARD
Jumper Settings Operation Mode
JP1 JP6
1-2 short 1-2 short OPERATE
/BY-PASS
2-3 short 2-3 short Loopthrough
*The factory default setting is OPERATE / BY-PASS.
(2) I/O CARD
I/O CARD
Jumper Settings Operation Mode

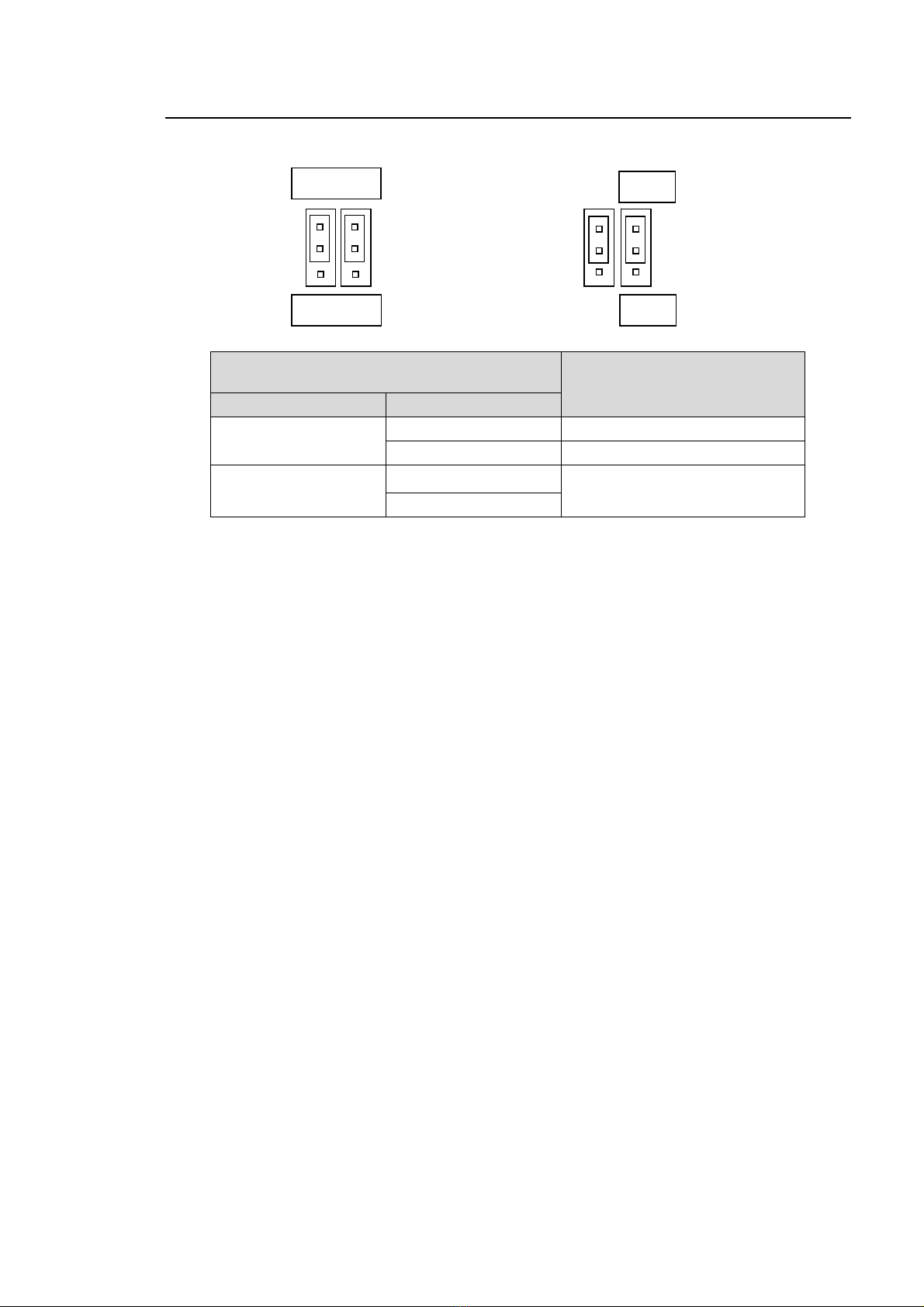

JP1 JP2 JP3
1-2 short 1-2 short 1-2 short OPERATE /BY-PASS
2-3 short 2-3 short 2-3 short Loopthrough
*The factory default setting is OPERATE / BY-PASS.
*Positions 1 and 2 on JP4 to JP6 are shorted (factory default). Do not change the
settings.
The mode setting on Main card and I/O card must be the same. If settings on both cards are
different, the system does not operate properly.
JP1
JP6
1 3
3 1
JP3
JP1
JP2
1
3
1 3
1 3

9
5-3. Clamp Setting
The MAIN CARD SW1 and SW2 are used to set clamp ON/OFF for the output video signal.
MAIN CARD
Switch Setting Coupling / Clamp
SW2 SW1
CLAMP OFF position AC position AC coupled (default)
DC position DC coupled
CLAMP ON position AC position DC clamp
DC position
The factory default settings: AC (SW1), CLAMP OFF (SW2)
* Positions 1 and 2 on JP4 to JP6 are shorted (factory default). Do not change the settings.
SW2
CLAMP ON
CLAMP OFF
SW1
AC
DC

10

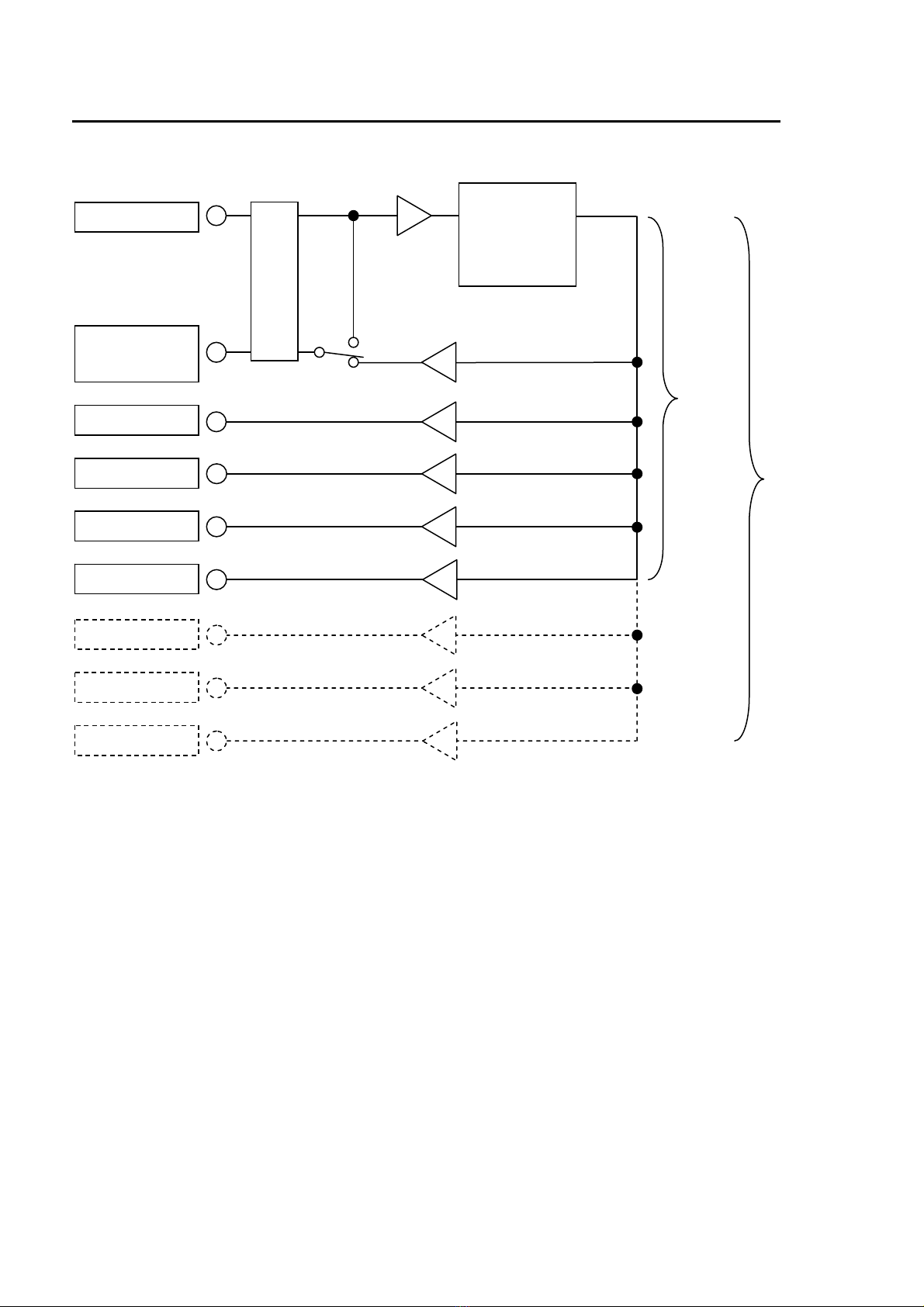

6. Block Diagram
A block diagram of UFM-15VDA/18VDA is shown below:
VIDEO IN
OUT 1 /
BY-PASS
OUT 2
OUT 3
OUT 4
OUT 5
･Gain Adjust
･Input Detection
･Clamp Setting
BY-PASS RELAY
OUT 6
OUT 7
OUT 8
UFM
-15VDA
UFM
-18VDA

11
7. About UFHM-IFB (Optional)
Installing the UFHM-IFB (optional) on the UFM-15/18VDA and using with the UFM-30CTL
(available for separate purchase) enables you to view the status of the UFM-15/18VDA in a web
browser. See UFM-30CTL Operation Manual for details.
IMPORTANT
Before installing the UFHM-IFB on the UFM-15/18VDA, make sure that the dipswitch
settings on the UFHM-IFB are configured. Otherwise, the system may not operate
properly. If your UFHM-IFB is installed at the factory, the dipswitch settings are factory
configured.
UFHM-IFB DIP SW S1 Settings (UFM-15VDA)
UFHM-IFB Switch S1
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
OFF ON OFF OFF OFF OFF OFF OFF
UFHM-IFB DIP SW S1 Settings (UFM-18VDA)
UFHM-IFB Switch S1
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
ON ON OFF OFF OFF OFF OFF OFF
7-1. Installing UFHM-IFB (Optional)
If you purchased the UFHM-IFB separately, first mount the UFHM-IFB on the UFM-15/18VDA
front module as described in the figures in this section and install it to the universal frame.
NOTE
The UFHM-IFB cannot be used with the UF-106A universal frame.
1) Remove the six screws on the UFM-15/18VDA front module (marked with white circles) and
remove the shield board.
(2)
(1)

12
2) Set the supplied four spacers on the UFM-15/18VDA (circled in a white rectangle) and
secure them from the backside of the card, using the supplied screws.
3) Return the removed shield board to the original position and secure it with the six screws
removed in step 1).
4) With careful attention paid to the connector positions, mount the UFHM-IFB on the
UFM-15/18VDA front module.
5) Secure the UFHM-IFB using the supplied four screws (marked with white circles).
*If your UFHM-IFB is already installed at the factory, these steps are not necessary.
(4)

13
8. Specifications and Dimensions
8-1. Specifications
UFM-15VDA UFM-18VDA
Video input Analog composite 1.0V (p-p) 75Ωor high impedance loopthrough
selectable BNC 1 input
Video output Analog composite 1.0V(p-p)
75ΩBNC 5 outputs
(4 outputs when in loopthrough
mode)
Analog composite 1.0V(p-p)
75ΩBNC 8 outputs
(7 outputs when in loopthrough
mode)
Frequency response 100kHz-12MHz within ±0.3dB
DG/DP 0.5% / 0.5° (APL 50%)
Gain range Input signal gain control in the range from -3.0dB to +3.0dB.
Clamp Clamp ON/OFF internally selectable
AC coupled / DC coupled selectable when set to CLAMP OFF.
Temperature 10°C - 40°C
Humidity 30% - 90% (no condensation)
Power +12VDC to + 24VDC (supplied with universal frame)
Power consumption Approx. 242mA at 12VDC, 121mA at 24VDA
Weight Approx. 0.5kg
Dimensions
(front module)
Front module: 106 (W) x 303 (D) mm
Rear module: 108.5 (W) x 66.1 (D) mm
Required slot 1 Slot 2 Slots

14
8-2. Dimensions
(All dimensions in mm.)
UFM-15VDA UFM-18VDA
303 13.566.1 40
106
108.5
UFM-18VDA
VIDEO OUT
THRU
1/BY-PASS
VIDEO IN
S/No.
2345
876
UFM-18VDA
POWER INPUT
GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE
303 13.566.1 20
POWER
106
108.5
UFM-15VDA
VIDEO OUT
THRU
VIDEO IN
1/BY-PASS 2 3 4 5
UFM-15VDA
INPUT
GAIN
BY-PASS
OPERATE (OPTION)
INTERFACE

Warning
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own
expense.

01/14/2011 Printed in Japan
FOR-A COMPANY LIMITED
Head Office : 3-8-1 Ebisu, Shibuya-ku, Tokyo 150-0013, Japan
Overseas Division Phone: [phone], Fax: [phone]
Japan Branch Offices : Osaka/Okinawa/Fukuoka/Hiroshima/Nagoya/Sendai/Sapporo
R&D/Production : Sakura Center/Sapporo Center
FOR-A America Corporate Office
11155 Knott Ave., Suite G&H, Cypress, CA 90630, USA
Phone: [phone] Fax: [phone]
FOR-A America East Coast Office
Two Executive Drive, Suite 670, Fort Lee Executive Park, Fort Lee NJ 07024, USA
Phone: [phone] Fax : [phone]
FOR-A America Distribution & Service Center
2400 N.E. Waldo Road, Gainesville, FL 32609, USA
Phone: [phone] Fax: [phone]
FOR-A Corporation of Canada
346A Queen Street West, Toronto, Ontario M5V 2A2, Canada
Phone: [phone] Fax: [phone]
FOR-A Latin America & the Caribbean
5200 Blue lagoon Drive,
Suite 760, Miami, FL 33126, USA
Phone: [phone] Fax: [phone]
FOR-A UK Limited
UNIT C71, Barwell Business Park, Leatherhead Road, Chessington Surrey, KT9 2NY, UK
Phone: [phone] Fax: [phone]
FOR-A Italia S.r.l.
Via Volturno 37, 20047 Brugherio MB, Italy
Phone: [phone]/881103 Fax: [phone]
FOR-A Corporation of Korea
801 Dangsan Bld., 53-1 Dangsan-Dong, Youngdeungpo-Gu, Seoul 150-800, Korea
Phone: [phone] Fax: [phone]
FOR-A China Limited
708B Huateng Building, No. 302, 3 District, Jinsong, Chaoyang, Beijing 100021, China
Phone: [phone] Fax: [phone]
*The contents of this manual are subject to change without notice.
