FORMTEK Lockformer CHEEK BENDER User manual

711 Ogden Ave. Lisle, IL, 60532, USA
tel# [phone], WWW.LOCKFORMER.COM
Ver. US-03-2005
Page 1

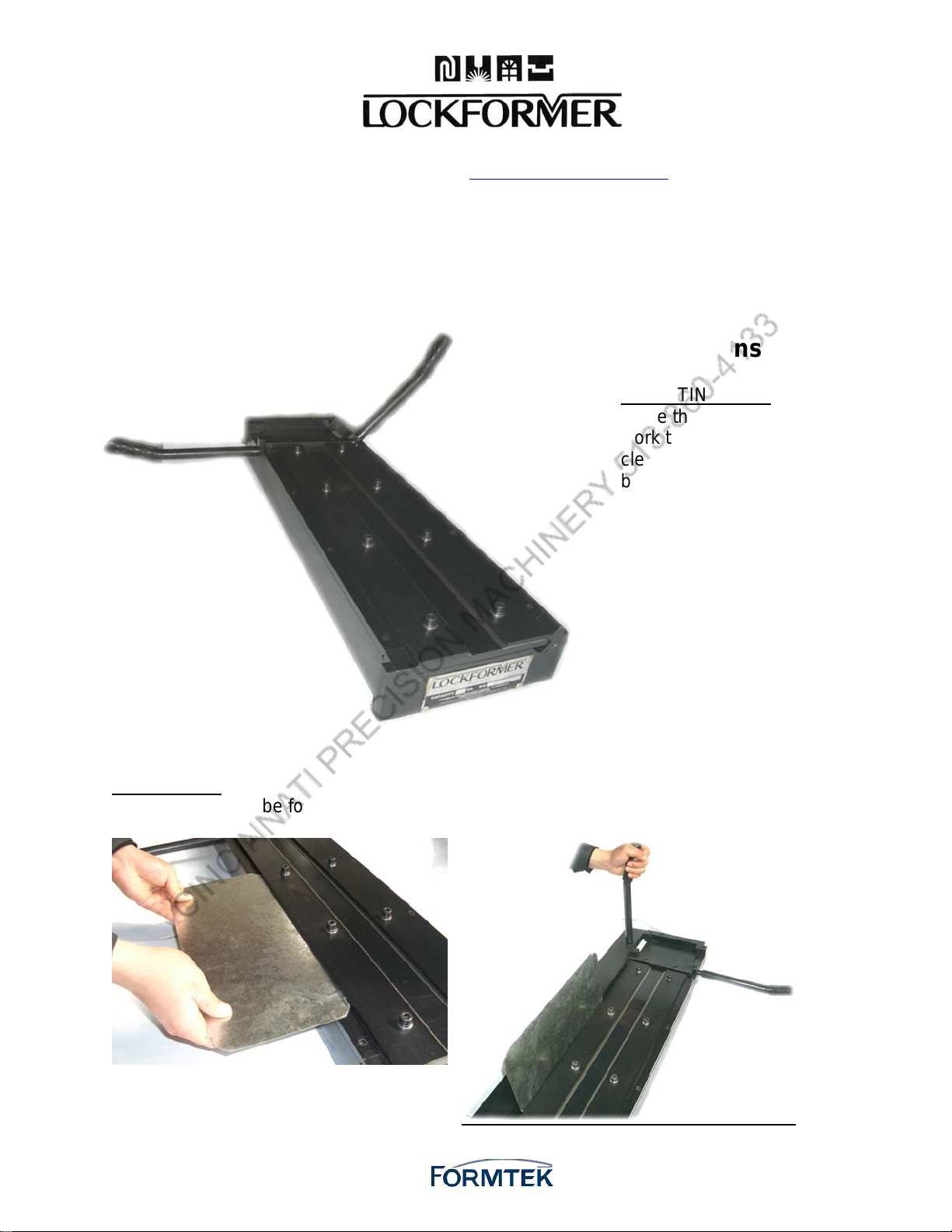

CHEEK BENDER
Double sided 24” Model
Instructions
MOUNTING UNIT
Place the cheek bender on
work table so that sufficient
clearance is available for
bending the maximum size
section. Make sure that the
unit is placed so the open end
over hangs the table. When
the unit is in the most desired
work position, fasten it to a
work table or bench.
Place handles into the pivot
bar holes and lock them into
place with Allen head screws.
OPERATION
Place the edge to be formed into the slot and move the handle to make a bend.

711 Ogden Ave. Lisle, IL, 60532, USA
tel# [phone], WWW.LOCKFORMER.COM
Ver. US-03-2005
Page 2
TO CHANGE FLANGE HEIGHT
The shims are set at the factory to run a flange of ¼” (6mm). This dimension can be
changed in the following manner. Remove the 4 Hex. Hd cap screws on the plate and
change the desired dimension. The adjustable shim will give a range of ¼” (6mm) to 7/8”
(22mm). This procedure can be done on the left and right plates if desired.
PARTS FOR 24” double sided CHEEK BENDER
•Pictures are not to scale!
•
Handle # 4R151 Grip # 5T667
# 2G208 Bottom Plate
Trunion Plate # 3D310
# 25095 Pivot Bar Right
#250965 Pivot Bar Left

711 Ogden Ave. Lisle, IL, 60532, USA
tel# [phone], WWW.LOCKFORMER.COM
Ver. US-03-2005
Page 3
# Shims 17F40
# 6M040 Top Plate ( 2)
# 4Y279 Pivot Bar Leaf
#4Y528 Pivot Hinge
Pivot Bar # 5S347
