Foscam FI8905W User manual

50.03
User
User Manual Manual
Model: FI8905W
Outdoor Wireless IP Camera

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
1
Table of Contents
Security Warning......................................................................................................................................... 3
1 Overviews................................................................................................................................................. 3
1.1 Key Features.......................................................................................................................................................................4
1.2 Read Before Use................................................................................................................................................................ 5
1.3 Packing Contents............................................................................................................................................................... 5
1.4 Physical Description.......................................................................................................................................................... 5
2 Surveillance Software GUI..................................................................................................................... 7
2.1 Login Window..................................................................................................................................................................... 7
2.2 Surveillance Window....................................................................................................................................................... 10
3 Advanced Camera Settings................................................................................................................. 15
3.1
3.1 Device Device Status Status....................................................................................................................................................................16
3.2
3.2 Alias Settings.................................................................................................................................................................... 17
3.3
3.3 Date & Time Settings.......................................................................................................................................................18
3.4 User Settings.................................................................................................................................................................... 19
3.5 Multi-Device Settings.......................................................................................................................................................20
3.6 Basic Network Settings................................................................................................................................................... 27
3.7 Wireless Settings............................................................................................................................................................. 31
3.8 ADSL.................................................................................................................................................................................. 35
3.9
3.9 UPnP Settings.................................................................................................................................................................. 36
3.10 DDNS Service Settings.................................................................................................................................................37
3.11 Mail Service Settings..................................................................................................................................................... 42
3.12 MSN Setting....................................................................................................................................................................44
3.13 FTP Service Settings.....................................................................................................................................................46
3.14 Alarm Service Settings..................................................................................................................................................49
3.15 Upgrade Device Firmware............................................................................................................................................55

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
2
3.16 Backup & Restore Settings.......................................................................................................................................... 57
3.17 Restore Factory Settings.............................................................................................................................................. 57
3.18 Reboot Device................................................................................................................................................................58
3.19 Log................................................................................................................................................................................... 58
3.20 Back................................................................................................................................................................................. 59
4 APPENDIX..............................................................................................................................................59
4.1 Frequently Asked Questions.......................................................................................................................................... 59
4.2 Default Parameters..........................................................................................................................................................64
4.3 Specifications....................................................................................................................................................................65
5 Phone Apps............................................................................................................................................ 66
6 OBTAINING TECHNICAL SUPPORT................................................................................................ 67

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
3
Security Warning
Safeguarding Your Privacy
Foscam cameras require good security practices to safeguard your privacy. You can help protect your camera
by changing the default username and/or password. Input a username and/or password that is at least 8 – 10
characters or longer. Try to use a combination of lower-case and upper-case letters as well as numbers and
special characters. The more complex the username and password, the harder it will be to guess by an
unauthorized user.
You should update your camera regularly at http://www.foscam.us/firmware.html. Make sure your camera has
the latest firmware installed for your specific camera model. The latest firmware for Foscam cameras utilizes
protection against various types of online hacking, cracking, and unauthorized access. Doing so will make your
device more secure, may add features, and will contain bug fixes to make your device work faster.
1 Overviews
FI8905W is an integrated wireless IP Camera with a color CMOS sensor. It combines a high
quality digital video camera, with a powerful web server, to bring clear video to your desktop from
anywhere on your local network or over the Internet.
The IPCAM supports IR-CUT, when light conditions turns poor, the IR cut filter will be
automatically removed to accept IR illumination. Meanwhile, the camera switches itself
automatically from color to black and white, assuring optimal image quality at all times.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device is simplified by
using the network to achieve the remote configuration, start-up and to upgrade the firmware.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
4
This camera is designed for outdoor surveillance applications such as gardens, courtyards or
parks. Controlling the IPCAM and managing images are simplified by using the provided web
interface across the network utilizing wireless connectivity.
FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam viewer ”
and install it through APP Store, then you can view your camera directly as a computer.
1.1 Key Features
● Powerful high-speed video protocol processor
● High Definition Color CMOS Sensor
● 300K Pixels
● IR night vision (Range: 30m)
● Optimized MJPEG video compression for transmission
● Multi-level users’ management and passwords definition
● Embedded Web Server for users to visit by IE
● Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
● Supports IR_CUT and the filter change automatically
● Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
● Embedded FOSCAM DDNS (dynamic domain name service ) Service
● Motion detection activates alarm
● Supports image snapshot
● Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
● Supports WPS(Wi-Fi Protected Set-up)
● Supports WEP/WPA/WPA2 encryption
● Supports Daylight Saving Time
● Supports MSN
● Supports Gmail as sender on mail service settings
● Providing Phone APPs for Android and iPhone users
● Providing Central Management Software to manage or monitor multi-cameras

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
5
1.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents
listed below. Before the Network Camera is installed, please carefully read and follow the
instructions in the Quick Installation Guide to avoid damage due to faulty assembly and
installation. This also ensures the product is used properly as intended.
1.3 Packing Contents
● IPCAM×1
● CD×1
● Wi-Fi Antenna×1
● Quick Installation Guide×1
● DC Power Supply×1
● Mounting bracket×1
● Network Cable×1
● Security Warning Card × 1
1.4 Physical Description
Front Panel

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
6
Figure 1.1
1 WIFI Antenna: Wireless Antenna
2 LENS: CMOS sensor with fixed focus lens
3 Infrared LED: 60 IR LEDs
Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
RJ45 Port
DC 5V Power
Reset
2
1
3

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
7
Power: DC 5V/2A Power supply
RESET BUTTON:
1) Press and hold down the RESET BUTTON for 10 seconds. Release the power button and IP
camera will be reset back to the factory default parameter.
2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on
the router, then you can use the WPS function. (For more details: please read Wireless Settings
in the User Manual)
Bottom View
There are some labels located at the bottom of the camera, this is an important feature of original
Foscam cameras. If your camera does not have labels, it may be a clone. Cloned Foscam
cameras can not use original firmware and are not eligible for warranty or technical services.
2 Surveillance Software GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
2.1 Login Window
Section1 Language
FOSCAM camera supports up to multi-languages, such as English, Spanish, Deutsch and so on.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
8
You can select the language you need via pull down the dropdown toolbar and click on the
language to switch.
Section2 FOSCAM Website Link
There is an access link to Foscam website homepage, if you need tech support you can contact
Foscam directly.
NOTE：
When you log in for the first time, it will request that you modify the default username and/or
password . Input the New username, New password and Confirm the password, click “Confirm”
to complete the modification. You will now use the new username and password to log in to the
camera in the future.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
9

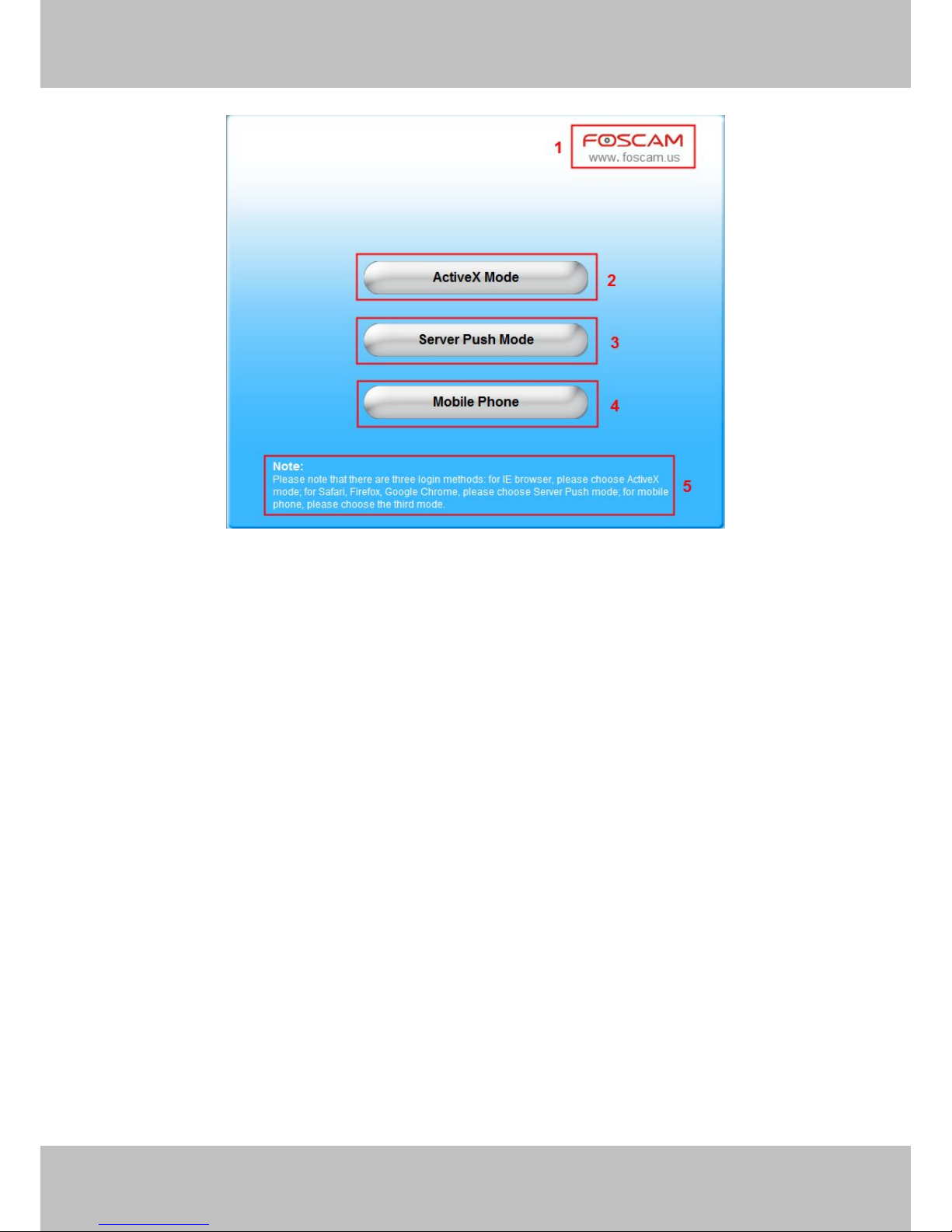

Figure 2.1
Section 1 FOSCAM Website Link
There is an access link to Foscam website homepage, if you need tech support you can contact
Foscam directly.
Section 2 ActiveX Mode
If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are
using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode.
Section 3 Server Push Mode
If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose
Server Push Mode.
Section 4 Mobile Phone
If you are using the Mobile to access the camera, here you need to select Mobile Phone login
mode.
Section 5 Note
Note that when you login the camera, please select the corresponding login mode.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
10

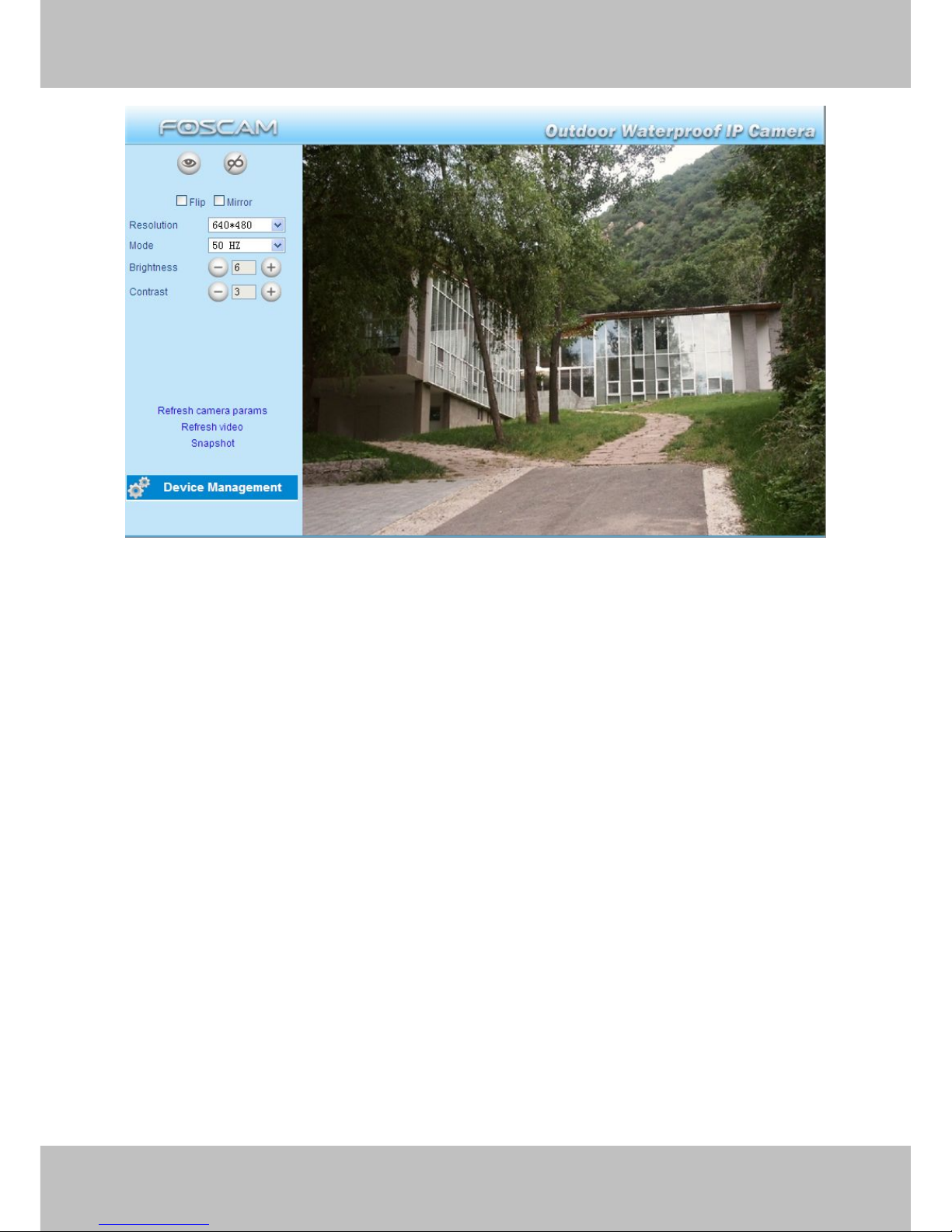

2.2 Surveillance Window
Select the ActiveX mode and you will enter the surveillance window.
Figure 2.2
Section1 Device Name
Default device name is Anonymous. You can define a name for your camera as you like (Please
go to chapter 3.1 and read how to set it)
Section2 Multi-Device Window
1
2
3
6
4
7
5

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
11

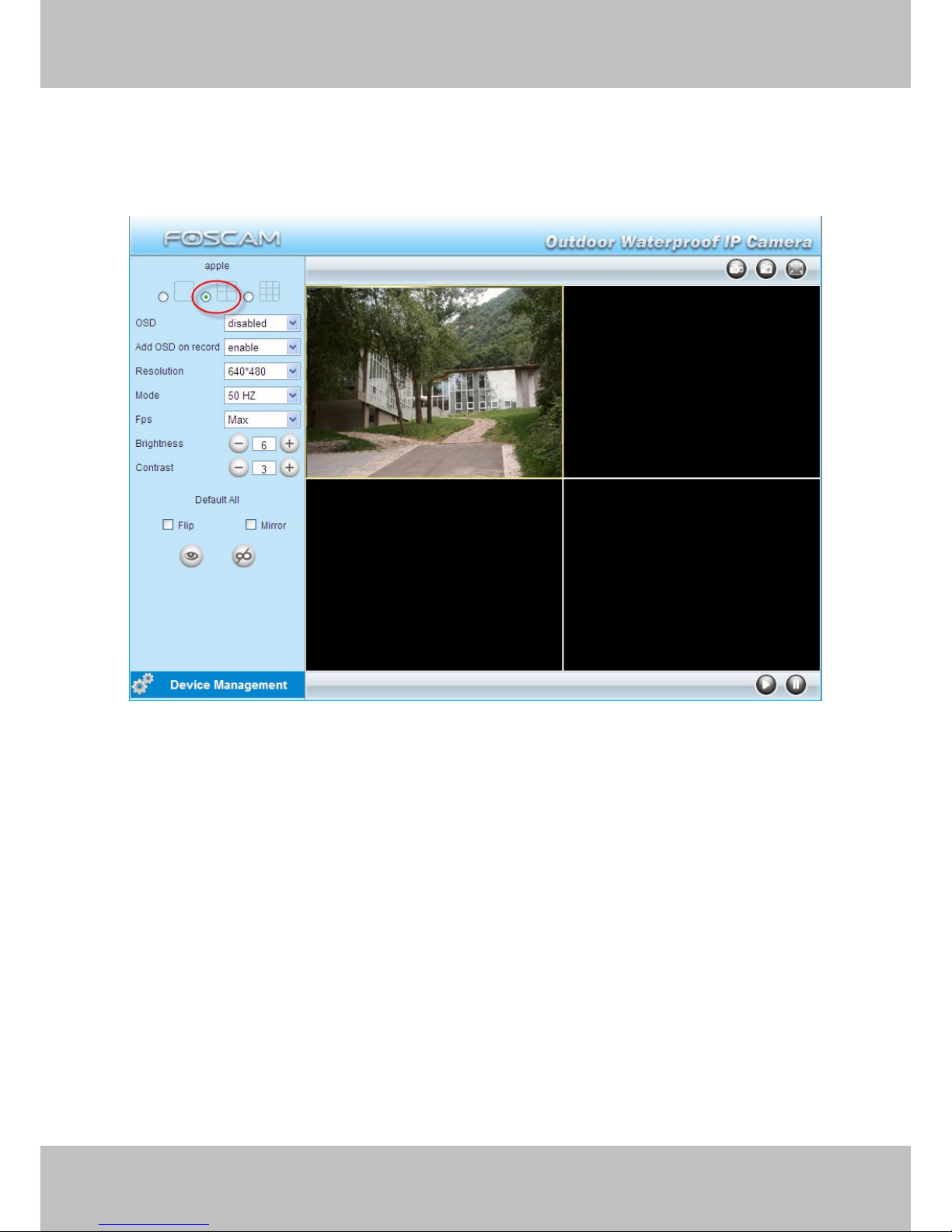

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the
same time. You can add other cameras in multi-device setting (read chapter 3.5).
.Figure 2.3
Section3 Image Parameters Settings

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
12
OSD
OSD is used to add timestamp on the video. There are five text colors to choose from: Black, red,
yellow, white, blue.
Add OSD on record
Select this option if you want to add a timestamp to recordings.
Resolution
1) 320x240-------QVGA
2) 640x480-------VGA
There are two resolutions, the bigger one (VGA) is 640x480 pixels, and the smaller one (QVGA)
is 320x240 pixels. The bigger the resolution, the better of the image quality is, but the lower the
frame rate is. If you are accessing the camera via internet and want to get more fluent video
streaming, please select resolution QVGA 320x240.
Mode
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor-------Outdoor surveillance (Region: All over the world)
There are three options within the menu of Mode: 50HZ, 60HZ and Outdoor. It depends on the
frequency of the electricity and surveillance model (indoors & outdoor). Please choose outdoor

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
13
mode, when the camera was installed outside.
Fps
1) Max---------- Maximum frame rate
2) 20fps, 15fps, 10fps, 5fps,4fps,3fps,2fps,1fps, 5fps, 1fps ,1/2fps,1/3fps,1/4fps,1/5fps-------
customized frame rate
You can choose option within the menu of Fps to adjust the frame rate. It is often used in LAN
network when you want to lower the frame rate, so that you can save more bandwidth.
Brightness
Default parameter is 6, you can adjust the brightness of the image by clicking plus or minus
button.
Contrast
Default parameter is 4, you can adjust the contrast of the image by clicking plus or minus button.
Flip & Mirror
You can flip the image by enabling Flip button, or mirror the image by enabling Mirror button.
Section4 IR Lights Buttons
: Click this icon, all the IR lights will turn on.
: Click this icon to turn off IR lights.
Section5 Device Management
Device Management ------Path to Administrator Control Panel, Click it, and it will lead to
Administrator Control Panel.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
14
Section6 Record & Snapshot & Full Screen Buttons
1------Record Button Click it and it pop-up a path-setting window, you can select the storage
path and the record file name. At the same time the record icon changes to ,, Click it again
and stop recording.
2------Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot,
right click in the window and save the picture to anywhere you want.
3------Full Screen Click it to make full-screen, or you can double click the surveillance screen
to make full-screen.
Section7 Play/Stop Buttons
1------Play Click it to play the video of the camera
2------Stop Click it to stop the video of the camera
Record and multi-device function are controlled by ActiveX controller, therefore Firefox or
Google Chrome, Safari browsers will not allow these functions.
For Firefox, Google Chrome, Safari, you should select the Server Push Mode and you can see
the following screen:
1
2
3
1
2

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
15
Figure 2.4
3 Advanced Camera Settings
Click the bar “Device Management”, goes to Administrator Control Panel to make advanced
camera settings.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
16
3.1
3.1 Device Device Status Status
Figure 3.1
1------Device ID MAC ID of the camera by wired connection
2-----Device Firmware Version System Firmware version of the camera
3-----Device Web UI Version Web UI firmware version of the camera
4-----Alias Name of the camera
5-----Alarm Status The status of Alarm Service Setting
6-----DDNS Status The status of DDNS Setting
7-----UPnP Status The status of UPnP Setting
8-----MSN Status The status of MSN Setting
Another Way:
Double click the the icon “IP Camera.exe” , select the camera IP, right click and select
the Basic Properties, you can also see the Firmware Version and MAC Address, such as the
following screen:

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
17
Figure 3.2
Figure 3.3
3.2
3.2 Alias Settings
Default alias is Anonymous. You can define a name for your camera here such as apple. Click
Submit to save your changes. The alias name supports special characters.

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
18
Figure 3.4
3.3
3.3 Date & Time Settings
Choose the time zone of your country. You can choose Sync with NTP Server or Sync with PC
Time. If your country implements the Daylight Saving Time, that option can also be selected.
Figure 3.5
Click the option here to
modify the device name
Enter the device name as you
like. Use different names to
identify multi-cameras
Go to Data &Time Settings
Select the time zone
belong to your region

W
W
w
www.foscam. ww.foscam.us us
Foscam Digital Technologies LLC
Telephone: [phone]
19
3.4 User Settings
Here you can create users and set permission levels, visitor,operator or administrator.
Click Submit to save these settings. The camera will reboot.
Figure 3.6
Here you can also set one important file locations for the camera, the Alarm Record Path.
Simply click Browse and choose the path to the required folder.
The Alarm Record Path location is used to store automatically recorded files when the camera
is activated by motion. (See set motion alarm. Figure 3.36) The default path for Alarm Record
Path is C:\Documents and Settings\All Users\Documents.
NOTE: In Windows7 or Vista, if you cannot set the paths.:
Windows7 or Vista's security level is higher than Windows XP/2000.For "set record path"
function, user should add the Device IP address to the Internet Explorer's 'Trusted sites' first. The
step is: IE browserToolInternet ProperSecurityTrusted sitesSitesAdd
You can set different
permission levels, but at
least one administrator
