Foscam FI8916W User manual

User Manual
Model: FI8916W
Indoor Pan/Tilt Wireless IP Camera
NIGHT VISION & REMOTE PAN / TILT ROTATE/
TWO WAY AUDIO
Black White

CONTENTS
1 WELCOME..................................................................................................................................................... 1
1.1 Features .................................................................................................................................................. 1
1.2 Packing List ............................................................................................................................................. 2
1.3 Product views .......................................................................................................................................... 3
1.4 Preparations before use .......................................................................................................................... 4
2 SOFTWARE OPERATION ............................................................................................................................. 6
2.1 IP Camera Tool ........................................................................................................................................ 6
2.2 Camera Login ........................................................................................................................................ 10
2.3 Device Status......................................................................................................................................... 14
2.4 For Visitor .............................................................................................................................................. 15
2.5 For Operator .......................................................................................................................................... 16
2.6 For Administrator ................................................................................................................................... 19
3 How to configure settings in For Administrator ............................................................................................. 20
3.1 Alias Settings ......................................................................................................................................... 20
3.2 Date & Time Settings............................................................................................................................. 21
3.3 User Settings ......................................................................................................................................... 21
3.4 Multi-Device Settings ............................................................................................................................. 22
3.5 Basic Network Settings.......................................................................................................................... 26
3.6 Wireless LAN Settings ........................................................................................................................... 28
3.7 ADSL Settings........................................................................................................................................ 28
3.8 UPnP Settings ....................................................................................................................................... 29
3.9 DDNS Service Settings.......................................................................................................................... 29
3.10 Mail Service Settings ........................................................................................................................... 29
3.11 MSN Settings ....................................................................................................................................... 30
3.12 FTP Service Settings ........................................................................................................................... 32
3.13 Alarm Service Settings......................................................................................................................... 34
3.14 PTZ Settings........................................................................................................................................ 39
3.15 Upgrade Device Firmware ................................................................................................................... 39
3.16 Backup & Restore Settings.................................................................................................................. 40
3.17 Restore Factory Settings ..................................................................................................................... 40
3.18 Reboot Device ..................................................................................................................................... 40

WWW.FOSCAM.COM FI8916W User Manual
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]
3.19 Log....................................................................................................................................................... 40
3.20 Back..................................................................................................................................................... 41
4 APPENDIX ................................................................................................................................................... 41
4.1 Frequently Asked Questions.................................................................................................................. 41
4.2 Default Parameters................................................................................................................................ 44
4.3 Specifications......................................................................................................................................... 45
5 OBTAINING TECHNICAL SUPPORT.......................................................................................................... 46
1 WELCOME
FOSCAM FI8916W is an integrated wireless IP Camera with a color CMOS sensor. It combines
a high quality digital video camera, with a powerful web server, to bring clear video to your
desktop from anywhere on your local network or over the Internet.
The basic function of IPCAM is transmitting remote video on the IP network. The high quality
video image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware
compression technology.
With flexible 300-degree pan and 120-degree tilt, FI8916W gives users more comprehensive
control over a monitored site. FI8916W supports IR-CUT, when light conditions turns poor, the IR
cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches
itself automatically from color to black and white, assuring optimal image quality at all times.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device is simplified by
using the network to achieve the remote configuration, start-up and to upgrade the firmware.
Controlling the IPCAM and managing images is simplified by using the provided web interface
across the network utilising either wired or wireless connectivity.
1.1 Features
●Powerful high-speed video protocol processor
●High Definition Color CMOS Sensor
●300K Pixels
●IR night vision (Range: 8m)
●Pan 300 degree, tilt 120 degree

WWW.FOSCAM.COM FI8916W User Manual
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]
●Optimized MJPEG video compression for transmission
●Multi-level users’ management and passwords definition
●Embedded Web Server for users to visit by IE
●Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
●Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
●Motion detection activates alarm
●Supports image snapshot
●Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
●Supports WEP/WPA/WPA2 encryption
●Supports Daylight Saving Time
●Supports MSN
●Supports Gmail as sender on mail service settings
●Supports audio on Firefox，Safari and Google Chrome
1.2 Packing List
Untie the package and verify the items with the following list:
●IPCAM×1
●Wi-Fi Antenna×1 (only available for wireless model)
●DC Power Supply×1
●Quick Installation Guide×1
●CD×1（Includes IPCAM user manual、IP camera tool、FOSCAM Video Installation）
●Network Cable×1
●Mounting bracket×1(option)
●Warranty Card×1
NOTE: Please Contact us immediately in case of any damaged or missing parts.

WWW.FOSCAM.COM FI8916W User Manual
1.3 Product views
1.3.1 Front View
Figure 1.1
1 LENS: CMOS sensor with fixed focus lens. (3.6mm)
2 WIFI Antenna: Wireless Antenna
3 Speaker: Built-in speaker
4 Infrared LED: 9 IR LEDs
5 Microphone: Built-in microphone
1.3.2 Back View
Figure 1.2
1 Power: DC 5V/2A Power supply
2 LAN: RJ-45/10-100 Base T
3 Network Light: The LED will blink when power and network cable are plugged in
4 Power Light: If the power adapter works well, the light will turn on
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
5 Audio Output: This jack is used to plug an external speaker
6 Audio Input: This jack is used to plug an external microphone
1.3.3 Bottom View

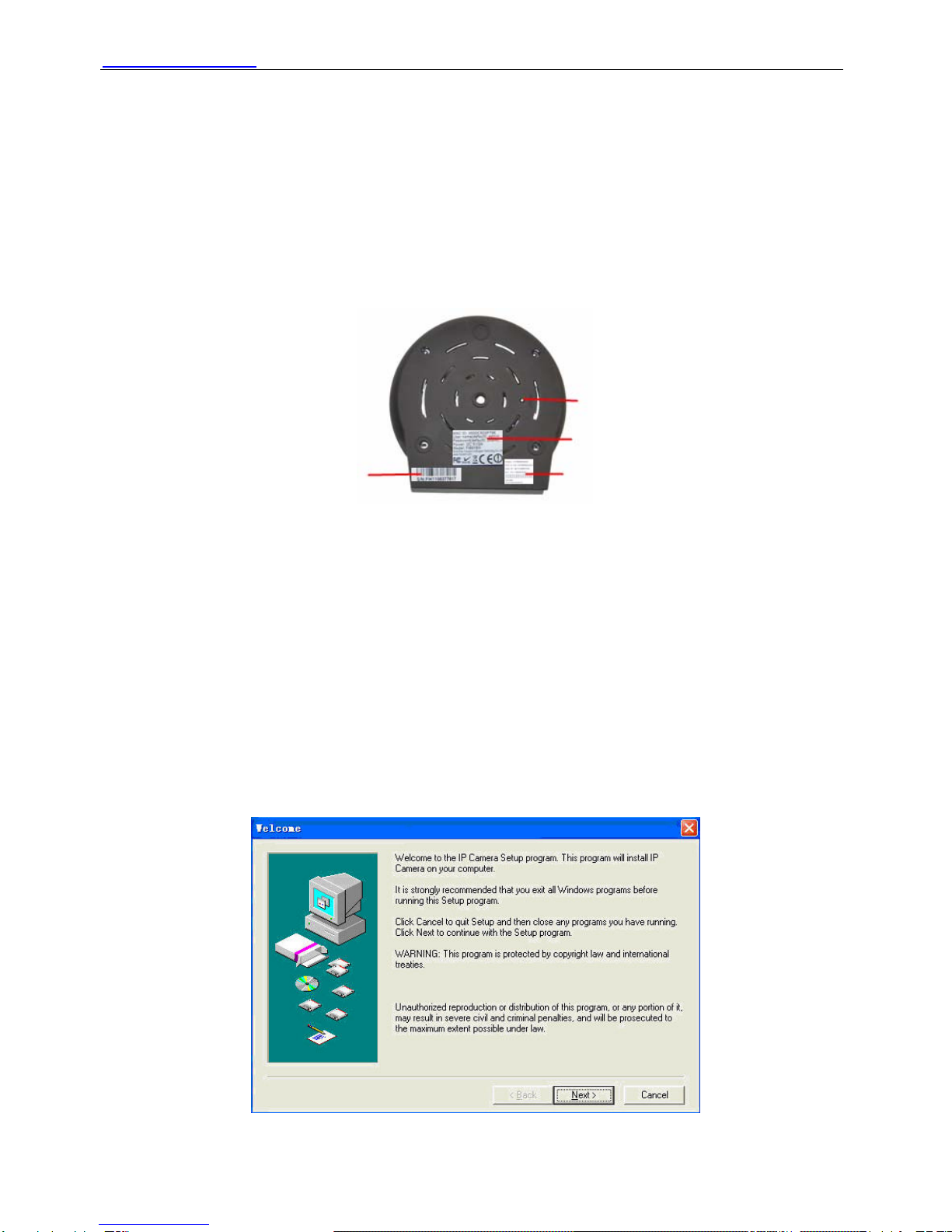

There are up to three labels located on the body of the camera; this is an important feature of
original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be
a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for
warranty or technical services.
Reset button
MAC address of wired connection
S/N of FOSCAM MAC address of wireless connection
Figure 1.3
Reset button: Press and hold down the RESET BUTTON for 15 seconds. when released the IP
camera will be reset back to factory default settings. You must power on the camera before
reset.
1.4 Preparations before use
1.4.1 Software installation
1) Put the CD in the CD drive of your computer. Open the CD; find the software per instructions;
2) Double click IPCamSetup.exe and install the software per instruction.
Figure 1.4
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual

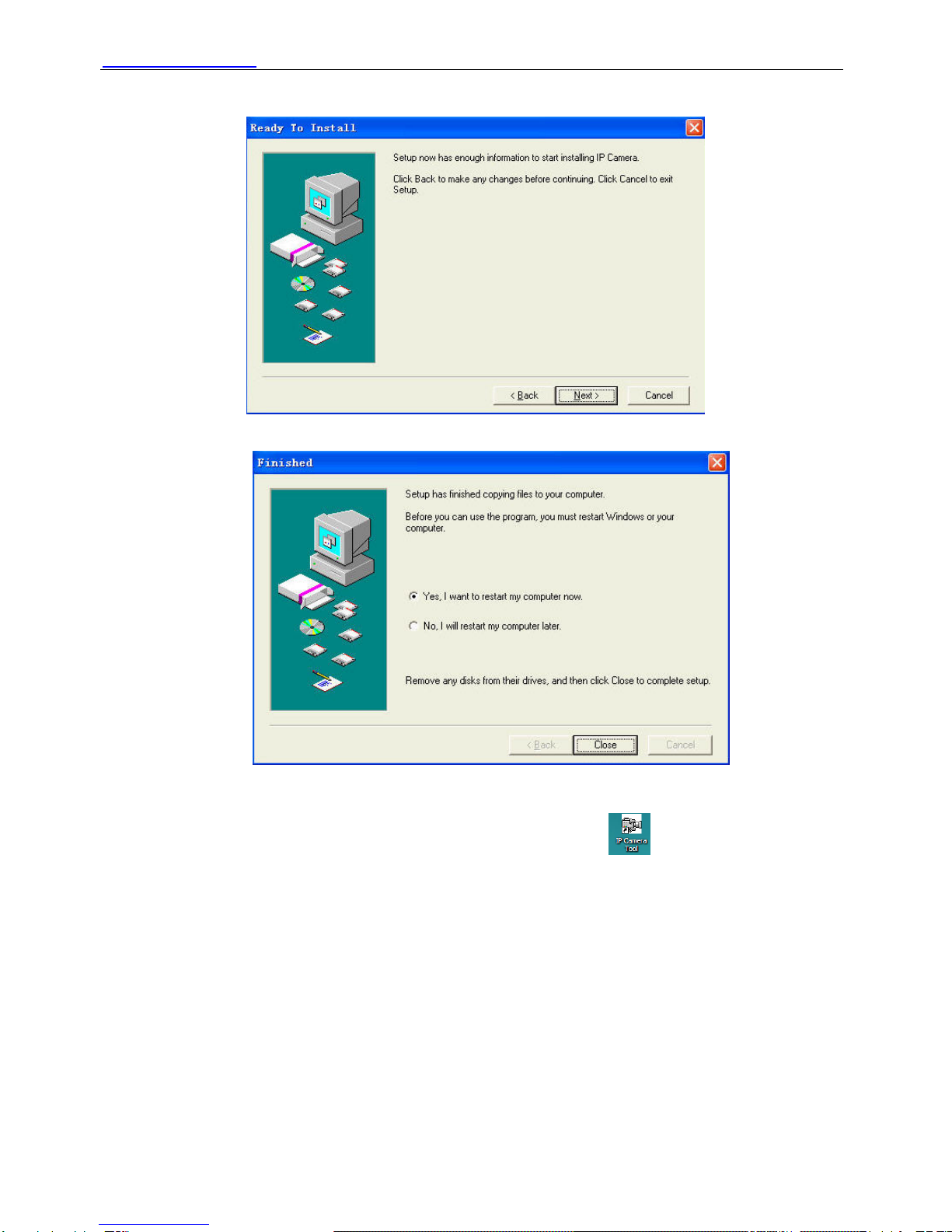

3) Click Next to complete the software installation.
Figure 1.5
Figure 1.6
The computer restarts upon installation completion and an icon appears on the desktop
automatically.
NOTE: If you use Windows7 and could not find the icon on desktop after installing the IP camera
tool, please check if the path of the camera software is correct.
For example, if it was pointing to C:\Windows\System32\IPCamera.exe.
Then fix this by pointing the shortcut to the correct path C:\Windows\SysWOW64\IPCamera.exe.
The shortcut should work without any problems.
CAUTION: Before installing and using the product, please read the following precautions
carefully and make sure they are fully understood.
Use only the power adapter attached with the product. Using unauthorized power adapters may
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
cause damage to your IP Camera. IP Camera terminal shall be installed in an indoor
environment where the rain or snow could not pour it.
1.4.2 Hardware preparation
CAUTION: Before installing and using the camera, please read the following precautions
carefully, making sure that they are fully understood and each step is carefully followed.
1) Adjust the antenna at the back of the camera.
2) Plug the network cable into the camera and then into your Cable/DSL router.
3) Plug the power adapter into the camera and then into the power outlet.
CAUTION: Make sure that only the power adapter supplied with your IPCAM is used. Using
a non-approved power adapter may damage the camera.
4) Turn on the power, the power light on the power adapter will be visible.
5) When the camera is powered up, If the network cable is plugged in correctly, the small green
light on the camera network socket will turn on, and the small yellow light will flash. The
network light will blink, about 1~2 times per second.
6) The camera takes approximately 30 seconds to start up before it displays an IP address on
the IP Camera Tool (details: 2.1).
2 SOFTWARE OPERATION
2.1 IP Camera Tool
When the Device has been mounted properly, you can double click the icon “IP Camera Tool”

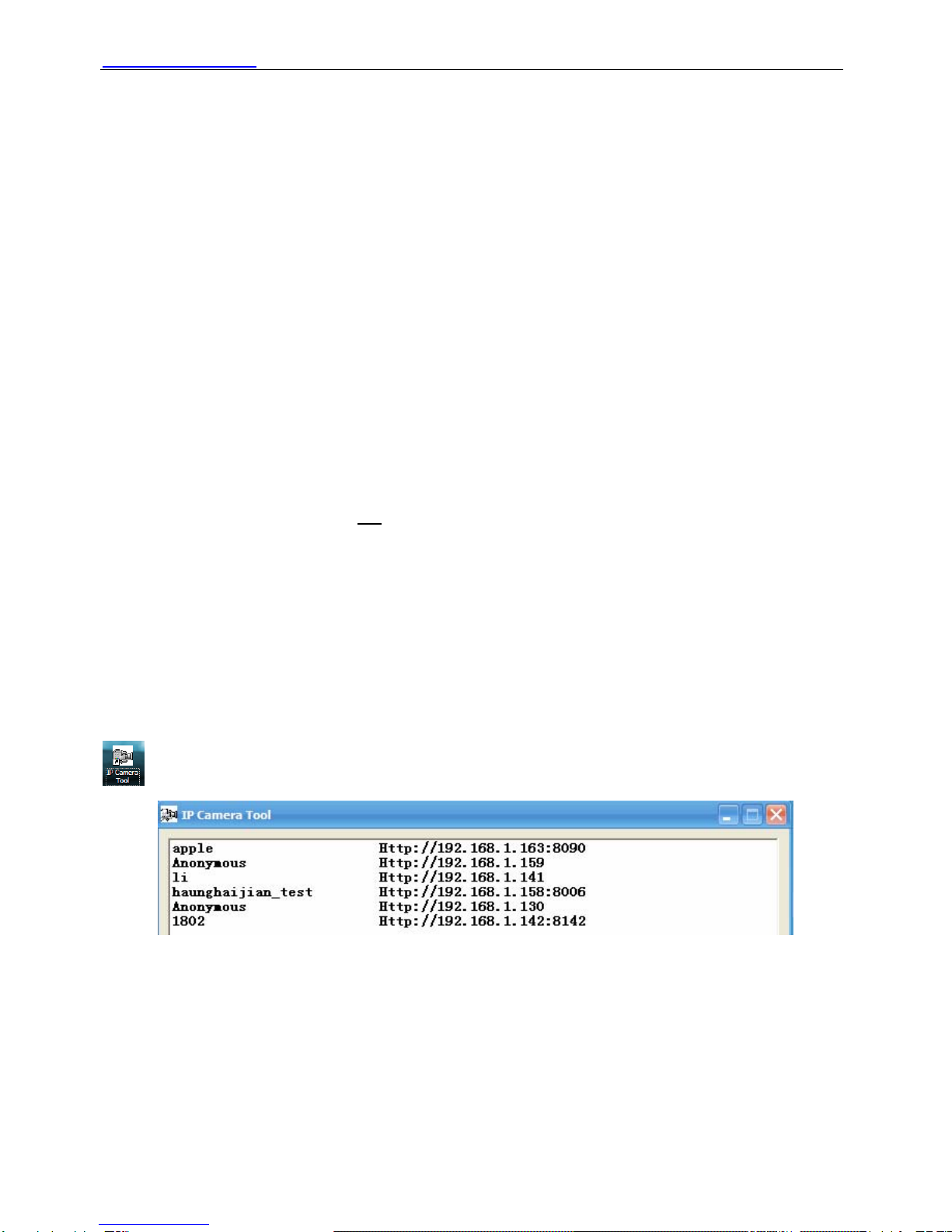

and a dialog box as Figure 2.1 will pop up.
Figure 2.1
The software searches for the IPcam automatically over the LAN.
There are 3 cases:
1) If no Camera found in LAN. After about 1 minute of searching, the Result Field will show “not
found IP Server” and the program shuts off automatically.
2) If IP Cameras have been found within LAN. All the IP Cameras will be listed and the total
number is displayed in the result field as shown in Figure 2.1.
3) The IP Cameras installed within LAN do not share the same subnet with the monitoring PC.
A prompt is displayed with a “Subnet doesn’t match, dbclick to change!” message. Click the
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
left mouse button to choose the prompt and click the right mouse, choose Network
Configuration to set the IP address of the Camera to the same subnet as the LAN. (Figure 2.5)
You can choose obtain IP from DHCP server or set a static IP for the camera. (Figure 2.4)
NOTE: If you could not find the camera’s IP on the IP camera tool.
Please check if DHCP is enabled on your router, or disable MAC address filter.
Make sure that the firewall doesn’t block the camera.
Six Options

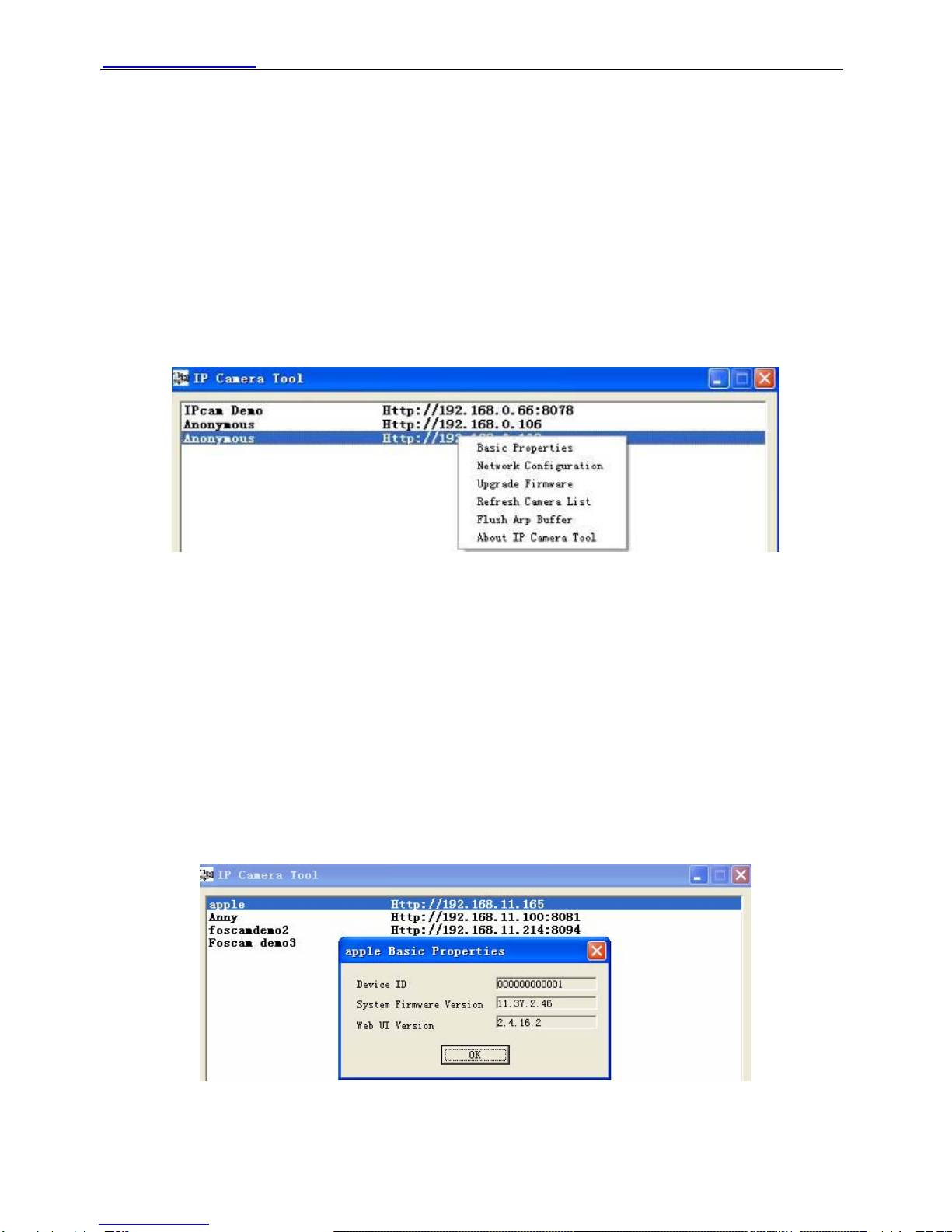

Choose the IP Camera list and right click; there are six options, Basic Properties, Network
Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp Buffer and About IP Camera
Tool as shown Figure 2.2.
Figure 2.2
zBasic Properties
There are some devices information in the Basic Properties, such as Device ID, System
Firmware Version, and Web UI Version. (Figure 2.3)
If there are several cameras on the list, you can choose basic properties to check the device ID
and recognize the IP address belong to which camera you set up, For example Device ID is
00606E8C5058, the same MAC ID sticker is found at the bottom/back of the camera.
Each camera has its own MAC ID. Sometimes, if camera’s IP is not found on the IP Camera Tool.
The firewall may be blocking it, therefore you can add this MAC ID to your router and give it a
fixed IP or add the MAC ID as a trusted site. There are two MAC addresses, one is Wired MAC
and the other is WIFI MAC.
Figure 2.3
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
zNetwork Configuration
This page will allow you to configure the Network parameters.
Figure 2.4
Obtain IP from DHCP server: If checked, the device will obtain IP from DHCP server. In other
words, the camera will have a dynamic IP. (Make sure the Router which the camera connects
has DHCP function and DHCP is enabled).
Figure 2.5
IP Address: Fill in the IP address assigned and make sure it is in the same subnet as your
computer or router. (I.e. the first three sections are the same)
Subnet Mask: The default subnet mask of the equipment in our LAN is: 255.255.255.0.You can
find the subnet mask in the basic information of your router or the locally-attached of your PC.
Gateway: Make sure it is in the same subnet with PC’s IP address. The gateway is your router’s
LAN IP.
DNS Server: IP address of your ISP network provider. You can find the DNS server in your
router or check the locally-attached address of your computer. Your PC contains your PC’s IP
address, gateway and DNS server. Normally, there are two DNS servers. Here you can also set
the DNS server the same with gateway.
Http Port: The default Lan port is 80.You can set another port number, such as port 8005, 85,
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
8100.etc.
User: Default administrator user name is admin
Password: Default password is blank, no password.
NOTE: If the prompt “Subnet doesn’t match, dbclick to change!” appears, please enable DHCP
and choose obtain IP from DHCP server or set camera’s IP address and gateway once again.
zUpgrade Firmware
Enter the correct User and Password to upgrade system Firmware and Web UI. If you upgrade
the camera, you must upgrade system firmware first and then upgrade web UI. Or it may
damage the camera.
Please download the firmware package under the correct type of your camera before upgrade.
Follow the upgrade documentation in the package carefully to upgrade. Read the readme.txt file
first before you upgrade.
CAUTION: Please don’t upgrade the firmware freely. Sometimes, your camera may be damaged
if configured wrong during the upgrade. If your camera works well with the current firmware, we
recommend not upgrading.
NOTE: If you download the firmware. Please check if bytes of the two .bin file are exactly the
same with the size in readme. If it fits, you can upgrade it. If not, please download the firmware
again until the bytes are exactly the same with the official size. Otherwise, your camera will crash
by the firmware which you selected.

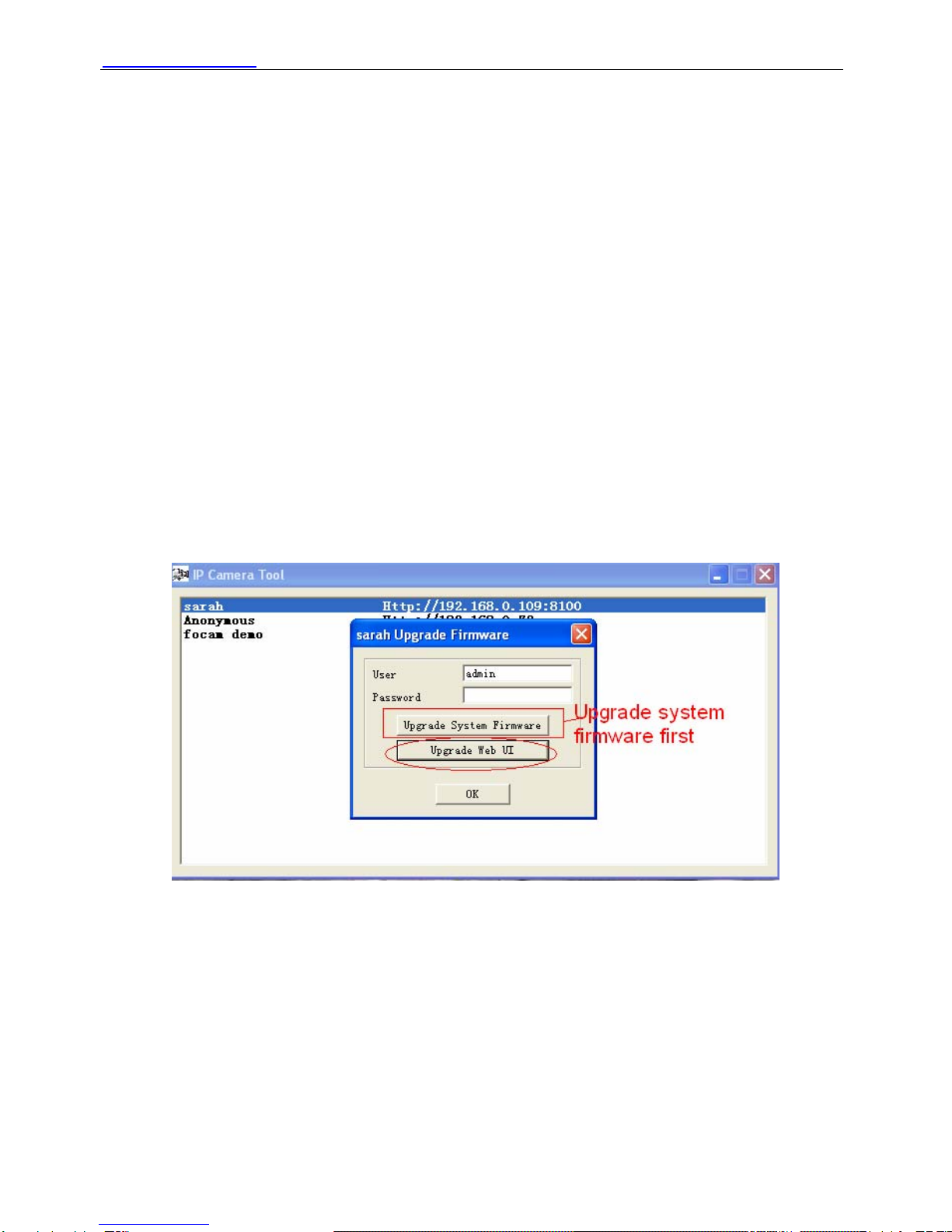

Figure 2.6
zRefresh Camera List
Refresh camera list manually.
zFlush Arp Buffer
When wired and wireless of the camera both are fixed IP address. You may encounter an issue
with not being able to open the camera webpage. You may try to use flush Arp buffer.
zAbout IP Camera Tool
Display the version of the IP Camera Tool.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
2.2 Camera Login
You can access the camera through the IP Camera Tool or IE, Firefox, Google Chrome,
Safari or other stand browser directly.
(1) Double click the IP address of the IP Camera listed (Figure 2.1).The browser you use will be
opened automatically and display the camera login page. (Figure 2.8)
(2) You can also access the camera by IE browser directly by typing in the camera’s IP address.
For example:
Figure 2.7
The interface supports ten languages
Figure 2.8
The default user is admin, no password.
There are two modes to login. If you use IE browser, please choose ActiveX mode to login. If you
use Firefox or Google Chrome, please choose Server Push Mode to login. (Figure 2.9)
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
The default user is admin
No password
If you use IE browser, choose here to
login
If you use Firefox, Google Chrome,
Safari , choose here to login
Figure 2.9
For IE browser
Fill in the user name and choose the first login button.
Figure 2.10

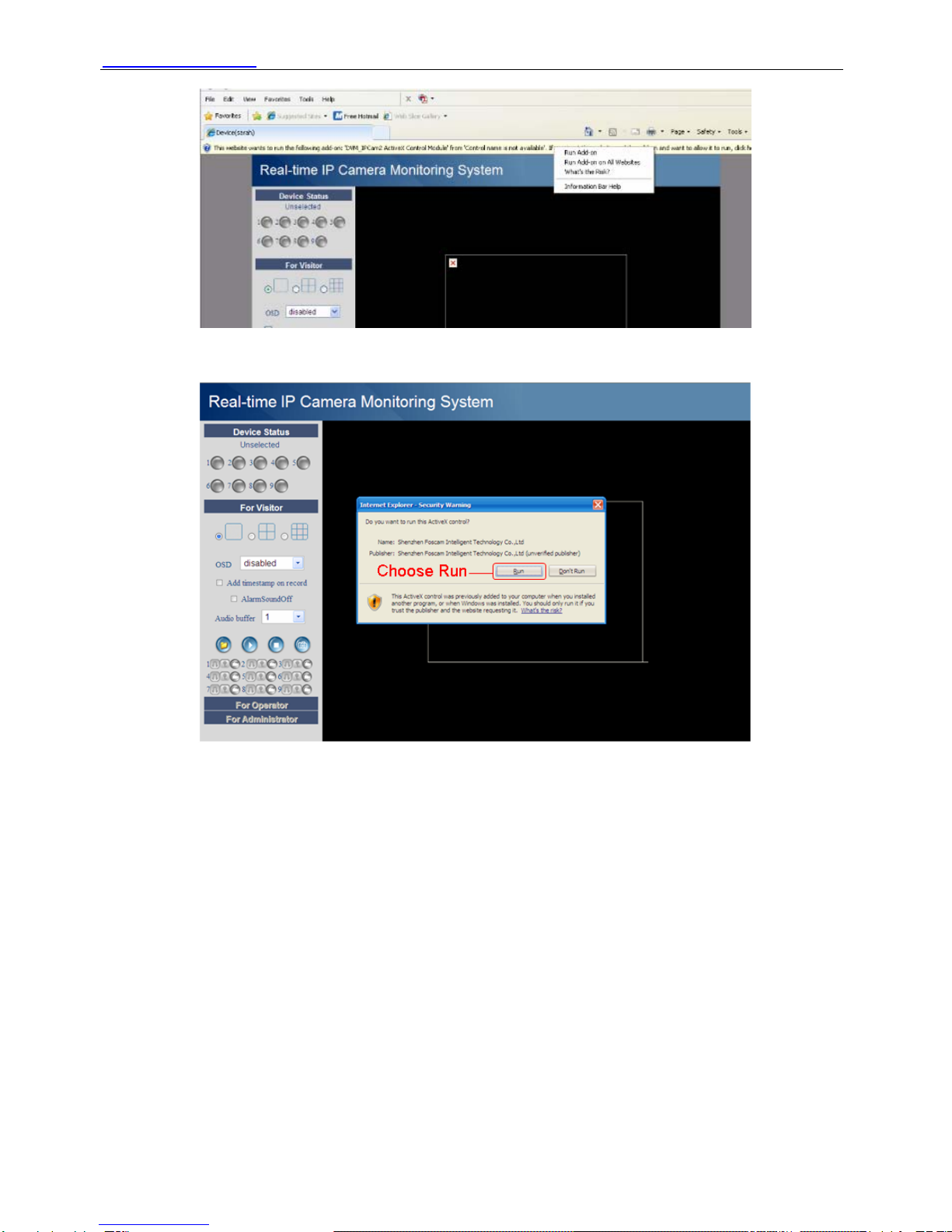

The first time you login the UI. You will receive an ActiveX prompt as in the picture above.
(Figure 2.10) Right click on the active prompt and choose Run Add-on(Figure 2.11).
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
Figure 2.11
Select Run on the next prompt (Figure 2.12) which will return to the login screen.
Figure 2.12
Fill in the user name and select login again. You will see a live video. (Figure 2.13)
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
Figure 2.13
NOTE: If you could not view living video after running the ActiveX. Only a red cross in
the center of the video or just a black screen. Please change another port number to try. Don’t
use port 80.Use port 85, 8005 or 8100 to try.
Make sure all firewall or antivirus software on your computer does not block the active download
and installation. If you are unable to run the ActiveX control, try shutting down the firewall or
antivirus program.
For Firefox, Google Chrome, Safari or other standard browser
Fill in the user name and choose the second login button.
It may ask you for user name and password again before you login the UI.

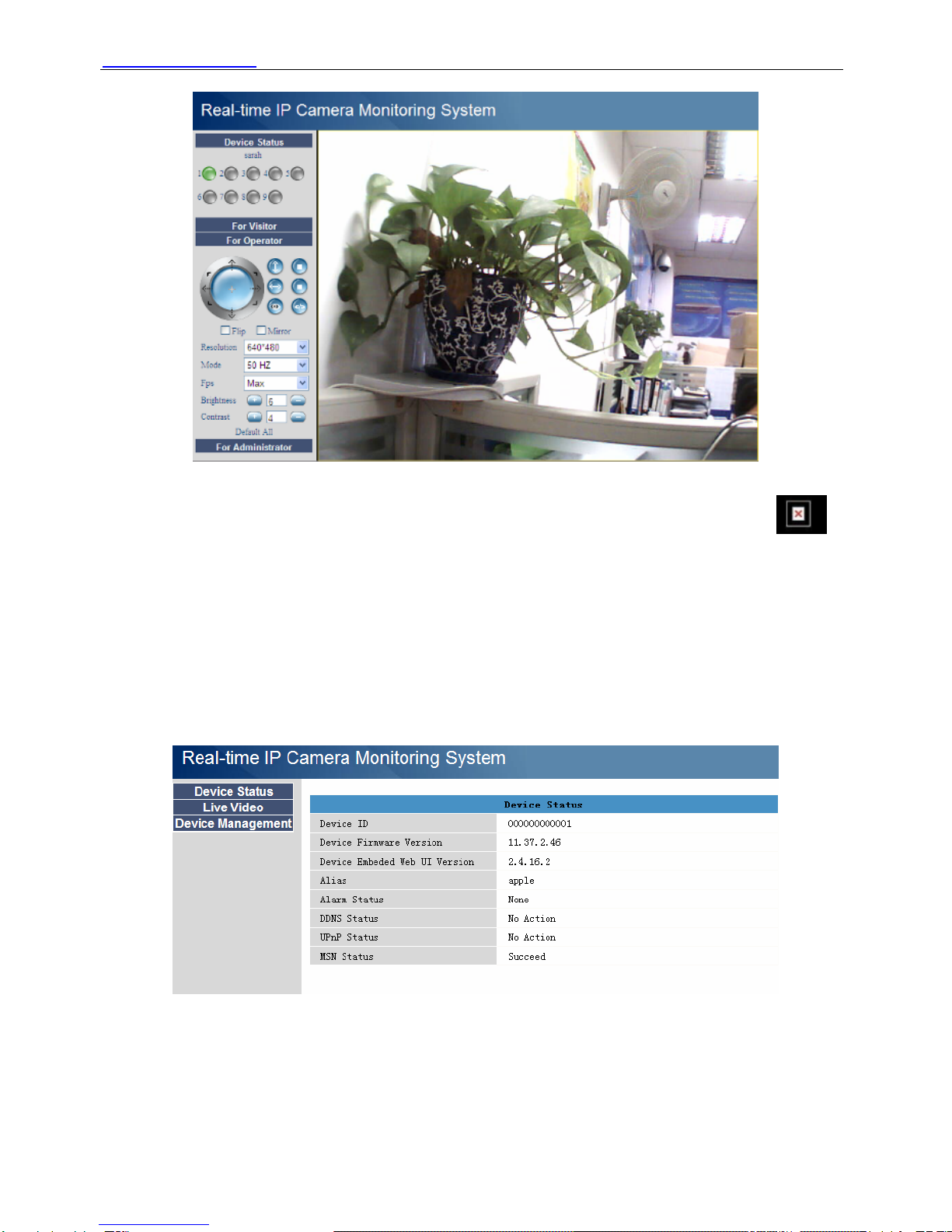

After you enter the user name, you will see Device Status of the camera.
Figure 2.14
Click Live Video, you will see the camera’s live video.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
Figure 2.15
2.3 Device Status
For IE browser
If the camera is connected properly the light of the device status will show green.
If the light show yellow check if the ActiveX is enabled or change another port number and try
again.
Figure 2.16
If you want to view the device information, choose For Administrator and then click Device info
(Figure 2.17)
.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
Figure 2.17
For Firefox, Google Chrome and Safari
When you login the UI, you will see Device Status which is the same as Device Info in IE
browser. (Figure 2.14)
2.4 For Visitor
For IE browser
Figure 2.18

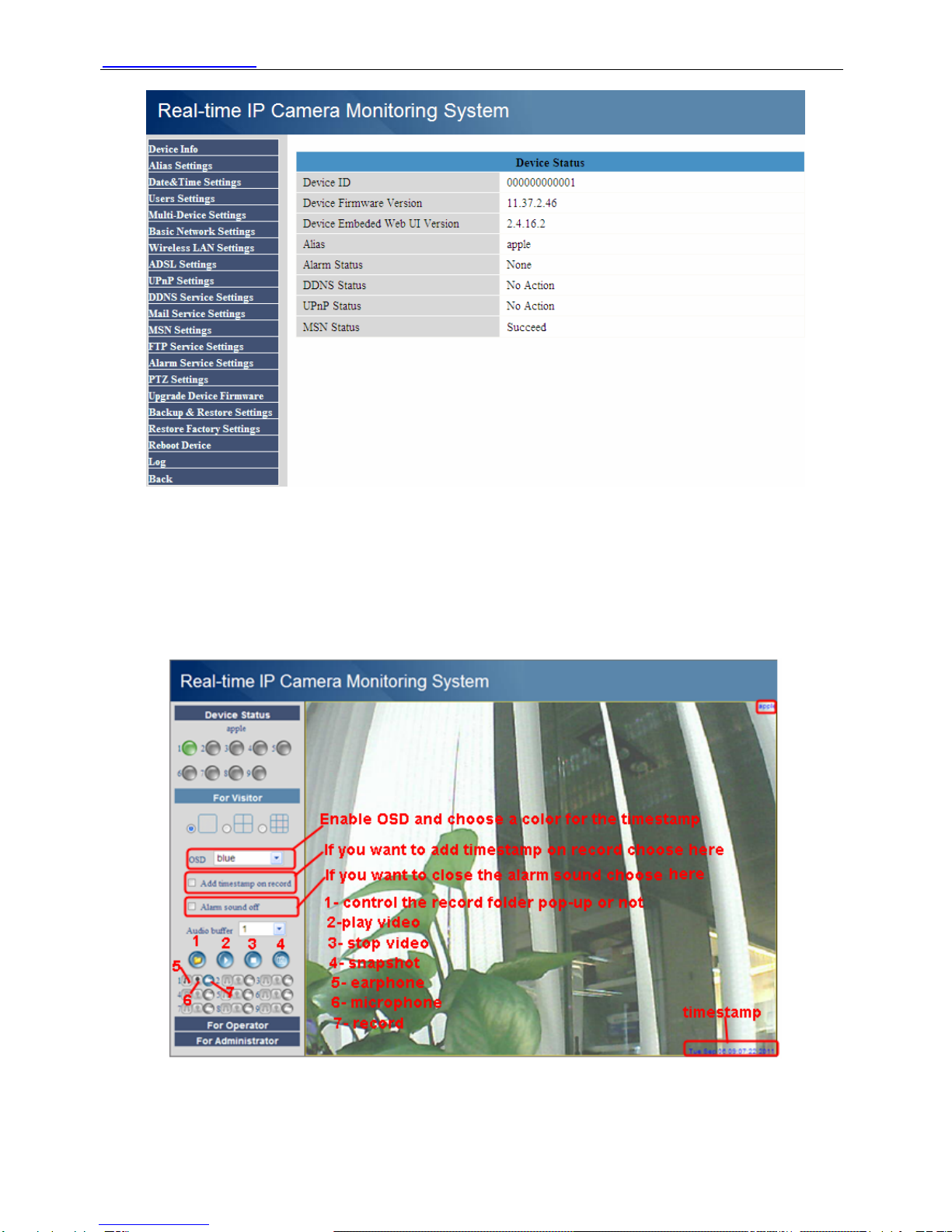

Multi-device window: The firmware inside the camera supports up to maximum of 9 cameras
monitoring at the same time. You can add cameras in multi-device settings.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
OSD: OSD is used to add timestamp on the video. There are five character colors to choose
from.
Add timestamp on record: Select this option if you want to add a timestamp on record
Alarm sound off: Select this option, you cannot hear the beep alarm sound when the motion is
detected.
Audio buffer: Audio buffer with units set as number of seconds
: When you enable motion alarm, the camera will record automatically and store the
recording file to the folder you set. This icon is used to control the folder pop-up automatically or
not.
: Click the headphone icon and you will hear sound captured by the camera’s built-in
microphone. You may need to plug in earphones or enable the computer speakers to hear from
the camera’s microphone.
: Click the speaker icon and then talk through your computer’s microphone which will transmit
through the camera’s speaker.People will hear your talking through the camera’s built-in
speaker.
Record: Click the record icon. The camera will begin recording and store the .avi file to the folder
you set. (Figure 3.3) Click the record icon again to stop the recording.
For Firefox, Google Chrome and Safari
You will see the picture like Figure 2.14 when you login the camera as a visitor.
2.5 For Operator
For IE browser
Click For Operator, the following screen will appear (Figure 2.19)
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual

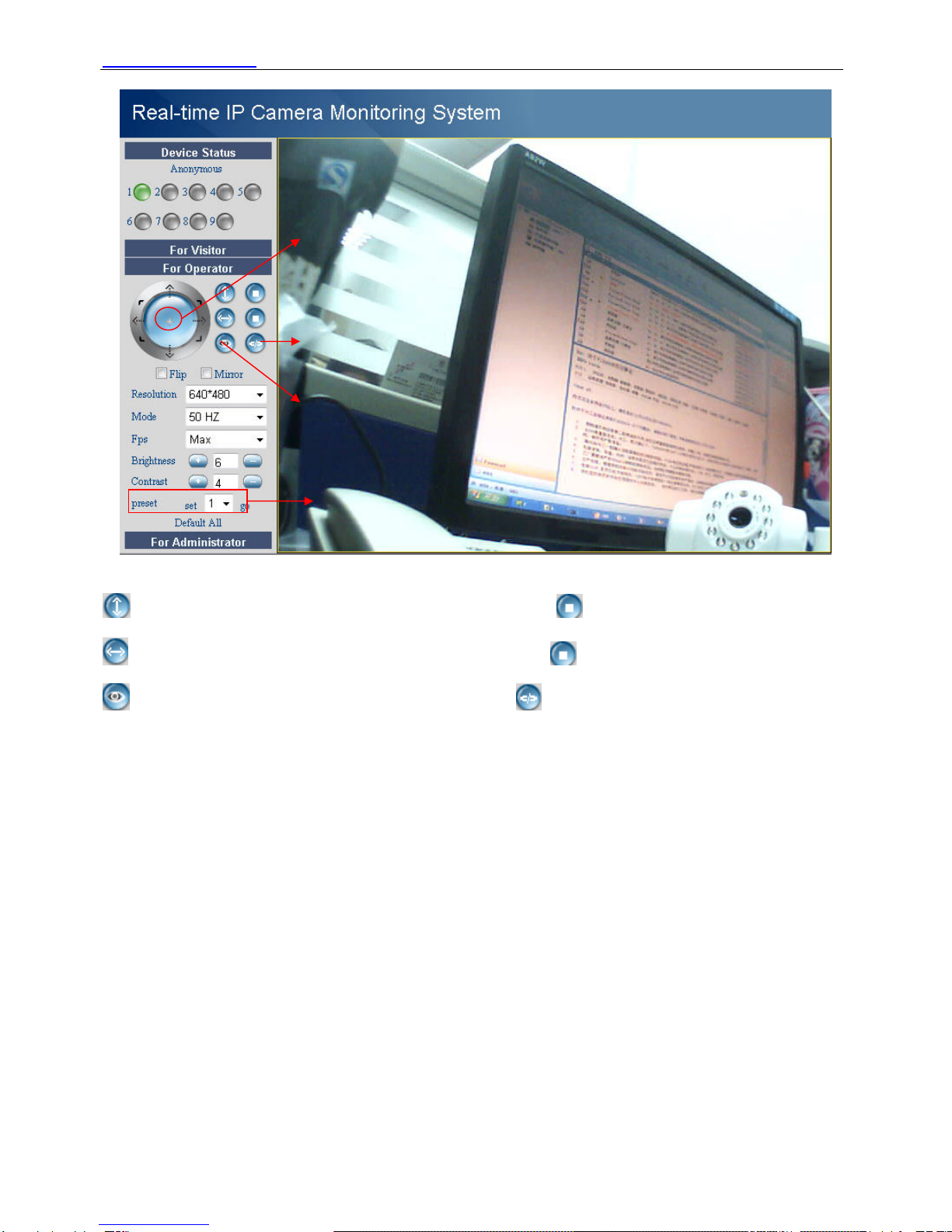

If you click here, the camera will horizontally & vertically rotate
and then sto
p
at the cente
r
Turn off IR light
Turn on IR light
Pre-determined location
Figure 2.19
: Click this icon; camera will rotate up and down. Click to stop.
: Click this icon; camera will rotate left and right. Click to stop.
: Click this icon, all the IR lights will turn on. Click to turn off them.
Flip & Mirror: You can choose flip or mirror if you set up the camera to show a reverse image.
Mode: There are three modes. (50HZ, 60HZ and outdoor)
Brightness and Contrast are also used to adjust the quality of the video.
Preset: You can create preset positions for the camera to go to directly from one position to
another. A total of 8 preset positions can be configured.
Pls follow the steps below to create preset positions:
1 Adjust the shooting area to a desired position.
2 Click set 1 to define your home position.
3 To add additional preset positions, pls repeat step1-2.
When the camera rotates to other position, only choose the preset num you have set and click go,
the camera will go to the desired position.
If you want to delete one position, only reset the position num.
For Firefox, Google Chrome and Safari
Click Live Video. There are several differences between IE and Firefox.
In Firefox, the snapshot button is under For Operator. Other functions under Live Video include:
refresh video, refresh parameters, audio and close audio. (Figure 2.20a)
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]

WWW.FOSCAM.COM FI8916W User Manual
Figure 2.20a
audio: Connect speakers or earphone or other audio output device with PC. Click “audio” and
you will hear sound from the IPCAM built-in microphone.
Closeaudio: Click Close audio to turn off audio.
NOTE: You must have installed VLC before using this function. If you have not,download and
install the plugin from http://www.videolan.org (Figure 2.20b) and install it.
Figure 2.20b
During the installation, you must select Mozilla plugin as in Figure 2.20c.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: [phone] Fax: [phone]
