Foscam FI8910E User manual

U
Us se er r M Ma an nu ua al l
Model: FI8910E
Indoor Pan/Tilt POE Camera
Color: Black Color: White

1
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 1
Table of Contents
1 Overviews.................................................................................................................................2
1.1 Key Features.......................................................................................................................................................3
1.2 POE (Power over Ethernet)................................................................................................................................3
1.3 Read Before Use ................................................................................................................................................4
1.4 Packing Contents................................................................................................................................................4
1.5 Physical Description............................................................................................................................................4
2 Surveillance Software GUI........................................................................................................6
2.1 Login Window .....................................................................................................................................................6
2.2 Surveillance Window...........................................................................................................................................8
3 Advanced Camera Settings ....................................................................................................16

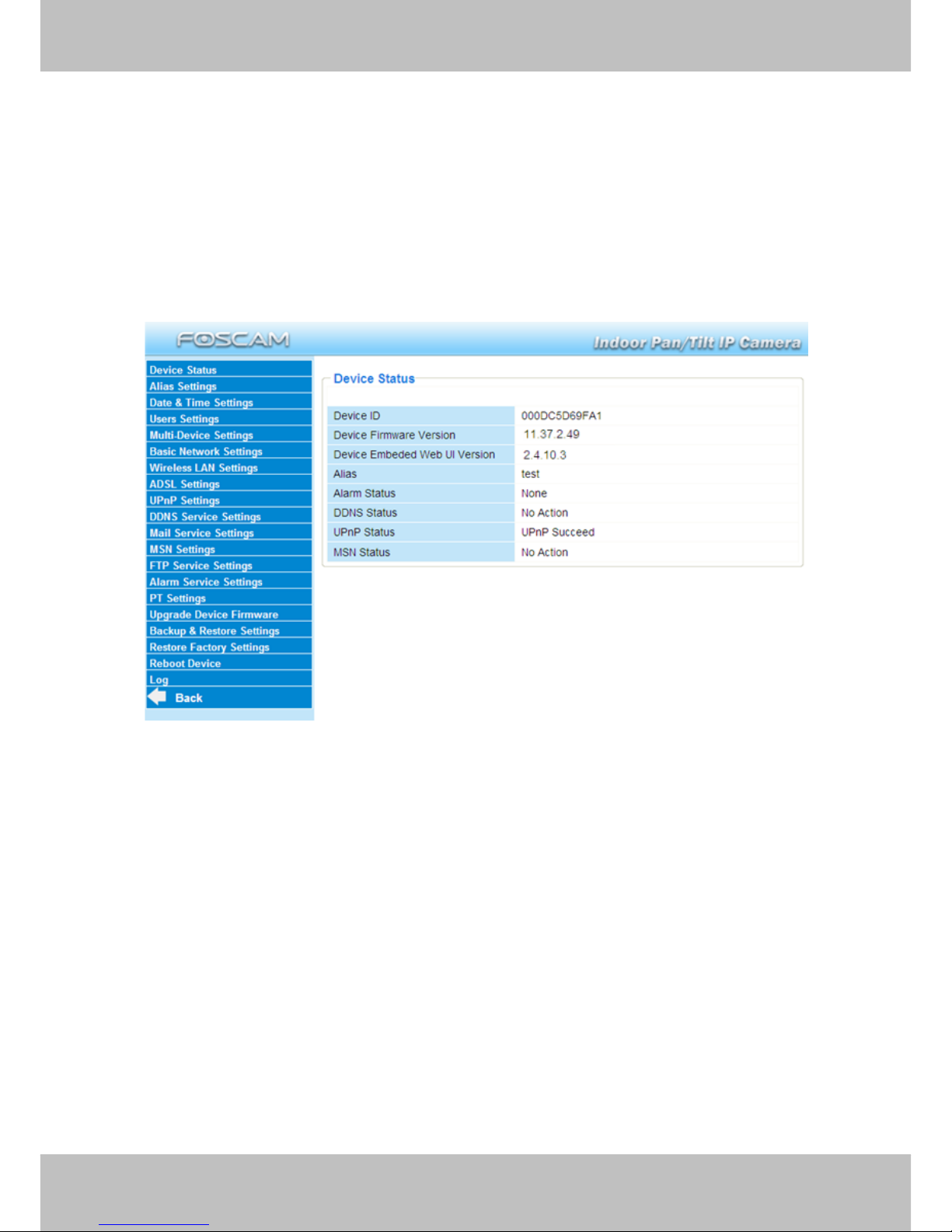

3.1 Device Status....................................................................................................................................................16
3.2 Alias Settings ....................................................................................................................................................18
3.3 Date & Time Settings ........................................................................................................................................18
3.4 User Settings.....................................................................................................................................................19
3.5 Multi-Device Settings ........................................................................................................................................20
3.6 Basic Network Settings.....................................................................................................................................26
3.7 Wireless Settings ..............................................................................................................................................29
3.8 ADSL.................................................................................................................................................................29
3.9 UPnP Settings...................................................................................................................................................30
3.10 DDNS Service Settings...................................................................................................................................31
3.11 Mail Service Settings.......................................................................................................................................36
3.12 MSN Setting....................................................................................................................................................38
3.13 FTP Service Settings ......................................................................................................................................40
3.14 Alarm Service Settings....................................................................................................................................43
3.15 PT Settings......................................................................................................................................................49
3.16 Upgrade Device Firmware..............................................................................................................................50
3.17 Backup & Restore Settings.............................................................................................................................52
3.18 Restore Factory Settings ................................................................................................................................52
3.19 Reboot Device ................................................................................................................................................53
3.20 Log..................................................................................................................................................................53

2
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 2
3.21 Back................................................................................................................................................................53
4Phone APPs............................................................................................................................54
4.1 APP for Android cell phones .............................................................................................................................54
4.2 APP for iPhones................................................................................................................................................62
5 APPENDIX..............................................................................................................................69
5.1 FrequentlyAsked Questions.............................................................................................................................69
5.2 Default Parameters...........................................................................................................................................72
5.3 Specifications....................................................................................................................................................73
6 OBTAINING TECHNICAL SUPPORT.....................................................................................74
1
1 O Ov ve er rv vi ie ew ws s
FOSCAM FI8910E is an integrated IP Camera solution with 802.3af compliant POE based on
the TCP/IP standard. It combines a high quality digital video camera, with a powerful web server,
to bring clear video to your desktop from anywhere on your local network or the Internet.
The basic function of IPCAM is transmitting remote video on the IP network. The high quality
video image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware
compression technology.
With flexible 300-degree pan and 120-degree tilt, FI8910E gives users more comprehensive
control over a monitored site. FI8910E supports IR-CUT, when light conditions turns poor, the IR
cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches
itself automatically from color to black and white, assuring optimal image quality at all times.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device is simplified by
using the network to achieve the remote configuration, start-up and to upgrade the firmware.
Controlling the IPCAM and managing images is simplified by using the provided web interface
across the network utilizing wired connectivity.
FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam
viewer”and install it through APP Store, then you can view your camera directly as a computer.

3
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 3
1
1. .1 1 K Ke ey y F Fe ea at tu ur re es s
●Powerful high-speed video protocol processor
●High Definition Color CMOS Sensor
●300K Pixels
●IR night vision (Range: 8m)
●Pan 300 degree, tilt 120 degree
●Optimized MJPEG video compression for transmission
●Multi-level users’ management and passwords definition
●Embedded Web Server for users to visit by IE
●POE compliant with POE standards IEEE 802.3af
●Supports IR_CUT and the filter change automatically
●Embedded FOSCAM domain name
●Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
●Motion and Sound detection activates alarm
●Supports image snapshot
●Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
● Supports Daylight Saving Time
● Supports MSN
● Supports Gmail as sender on mail service settings

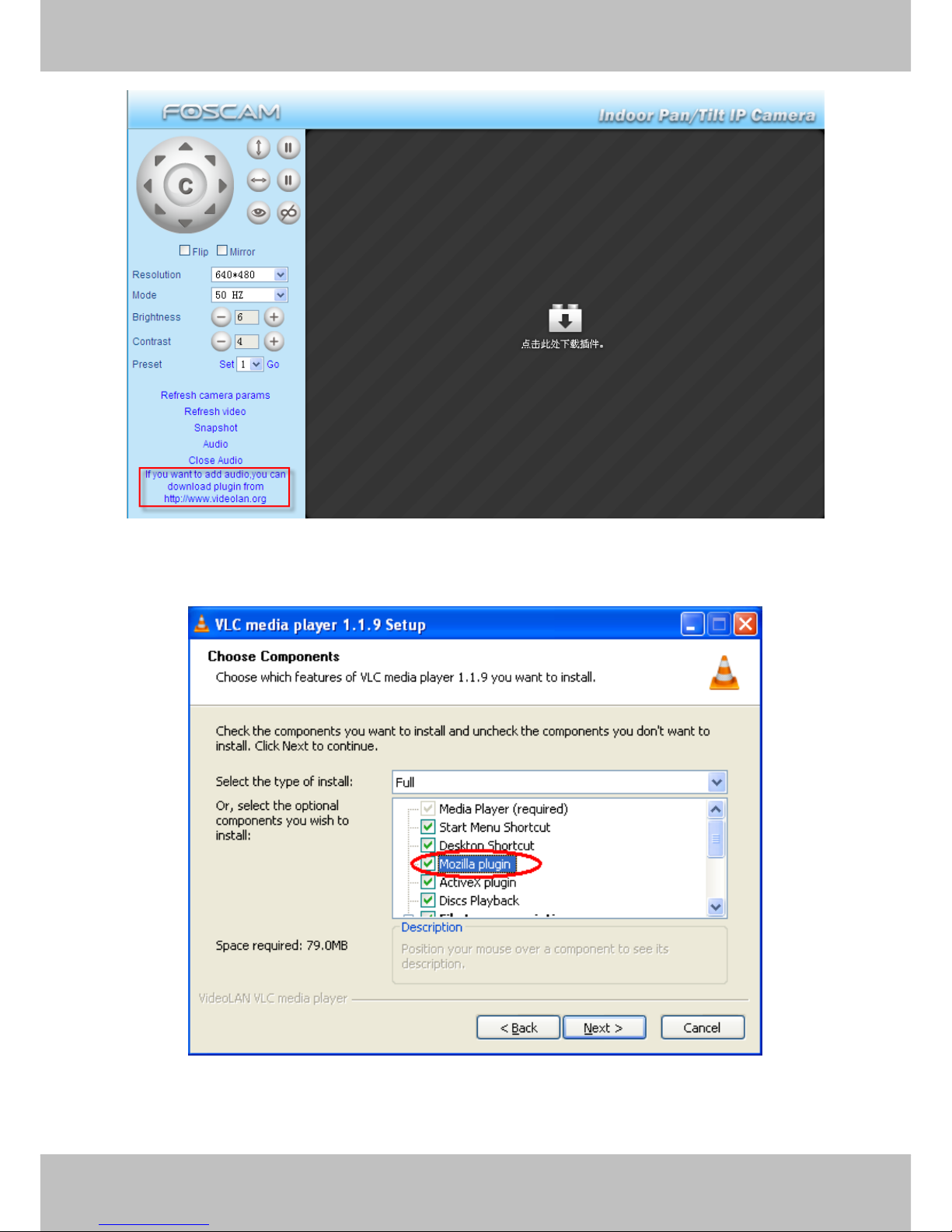

●Supports audio on Firefox, Google Chrome and Safari
●Providing Phone APPs for Android and iPhone users
●Providing Central Management Software to manage or monitor multi-cameras
1
1. .2 2 P PO OE E ( (P Po ow we er r o ov ve er r E Et th he er rn ne et t) )
The Network Camera is POE-compliant, allowing transmission of power and data via a single
Ethernet cable. Such as the following picture: connect the Network Camera to a PoE-enabled
router/ switch via Ethernet cable.

4
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 4
1
1. .3 3 R Re ea ad d B Be ef fo or re e U Us se e
Please first verify that all contents received are complete according to the Package Contents
listed below. Before the Network Camera is installed, please carefully read and follow the
instructions in the Quick Installation Guide to avoid damage due to faulty assembly and
installation. This also ensures the product is used properly as intended.
1
1. .4 4 P Pa ac ck ki in ng g C Co on nt te en nt ts s
● IPCAM×1
● CD×1
●Network Cable×1
● Quick Installation Guide×1
● DC Power Supply×1
●Warranty Card×1
● Mounting bracket×1(option)
1

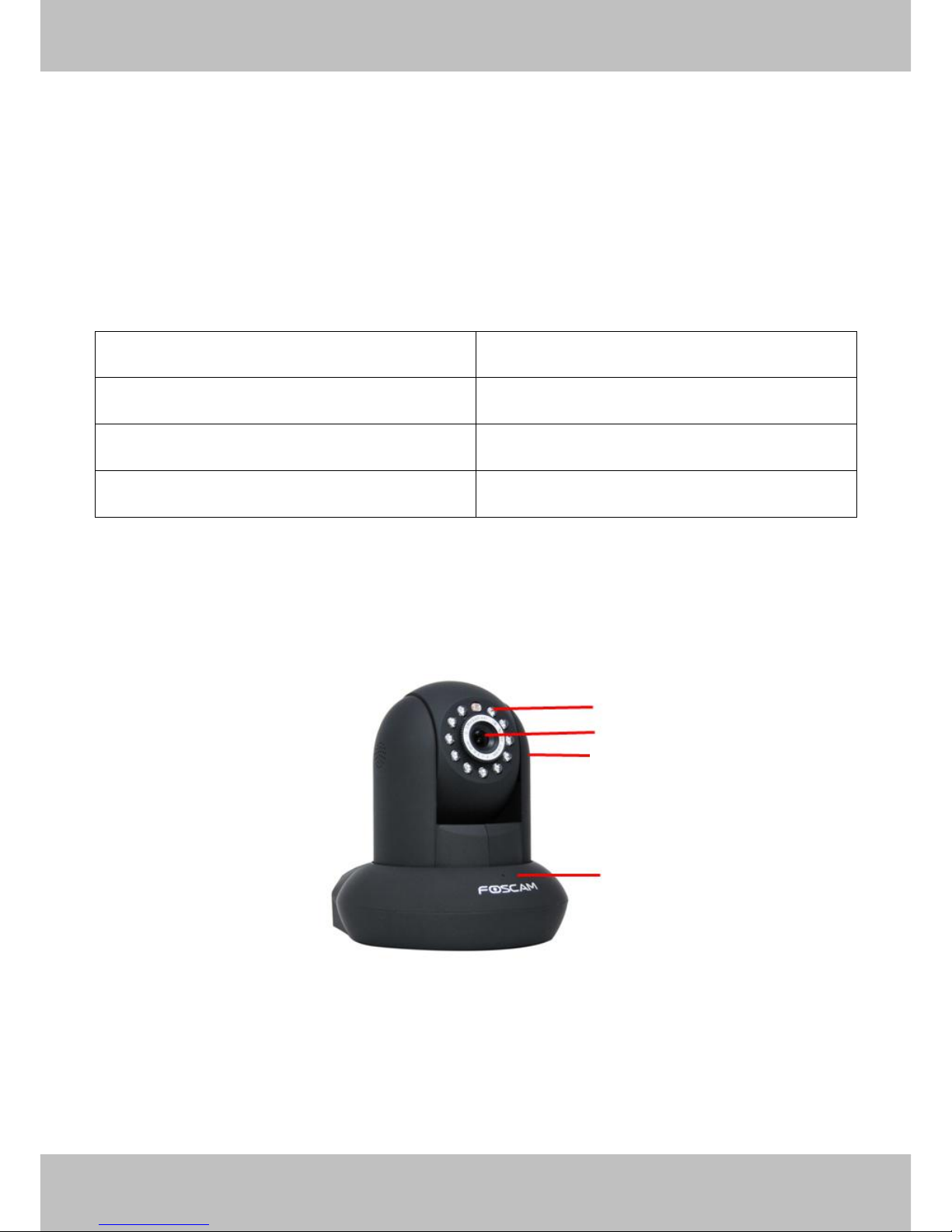

1. .5 5 P Ph hy ys si ic ca al l D De es sc cr ri ip pt ti io on n
Front Panel
Figure 1.1
1 Infrared LED: 11 IR LEDs
2 LENS: CMOS sensor with fixed focus lens
3 Speaker: Built-in speaker
4 Microphone:Built-in microphone
1
3
4
2

5
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 5
Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
Power: DC 5V/2A Power supply
Network Light: The LED will blink when power and network cable are plugged in
Power Light: If the power adapter works well, the light will turn on
Audio Input: This jack is used to plug an external microphone
Audio Output: This jack is used to plug an external speaker
Bottom View
There are up to two labels located on the body of the camera; this is an important feature of
original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be
a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for
warranty or technical services.
Figure 1.3
Reset button: Press and hold down the RESET BUTTON for 10 seconds. when released the IP
camera will be reset back to factory default settings. You must power on the camera before
reset.
FOSCAM domain name

6
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 6
2
2 S Su ur rv ve ei il ll la an nc ce e S So of ft tw wa ar re e G GU UI I
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
2

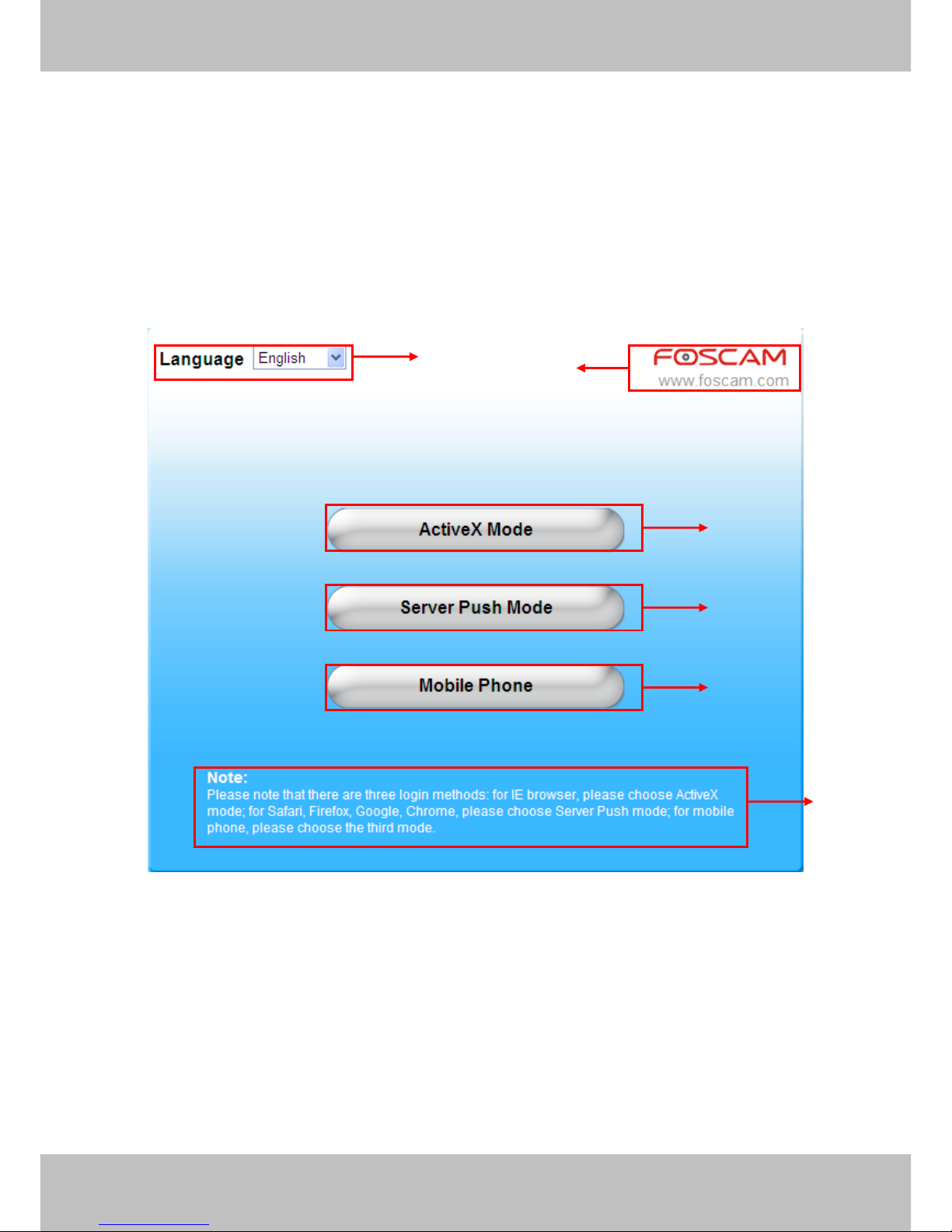

2. .1 1 L Lo og gi in n W Wi in nd do ow w
Figure 2.1
Please check the login window above, it was divided to 6 sections from no. 1 to 6.
Section1 Select Language
FOSCAM camera supports up to multi-languages, such as English, Spanish, Deutsch and so on.
You can select the language you need via pull down the dropdown toolbar and click on the
language to switch.
1
2
3
4
5
6

7
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 7
Section2 FOSCAM Website Link
There is an access link to Foscam website homepage, if you need tech support you can contact
Foscam directly.
Section3 ActiveX Mode
If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are
using IE-based browsers like IE6, IE7, IE8, please choose IEActiveX Mode login mode.
.
Section4 Server Push Mode
If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose
Server Push Mode mode.
Section5 Mobile Phone
If you are using the Mobile to access the camera, here you need to select Mobile Phone login
mode.
Section6 Note
Note that when you login the camera, please select the corresponding login mode.

8
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 8

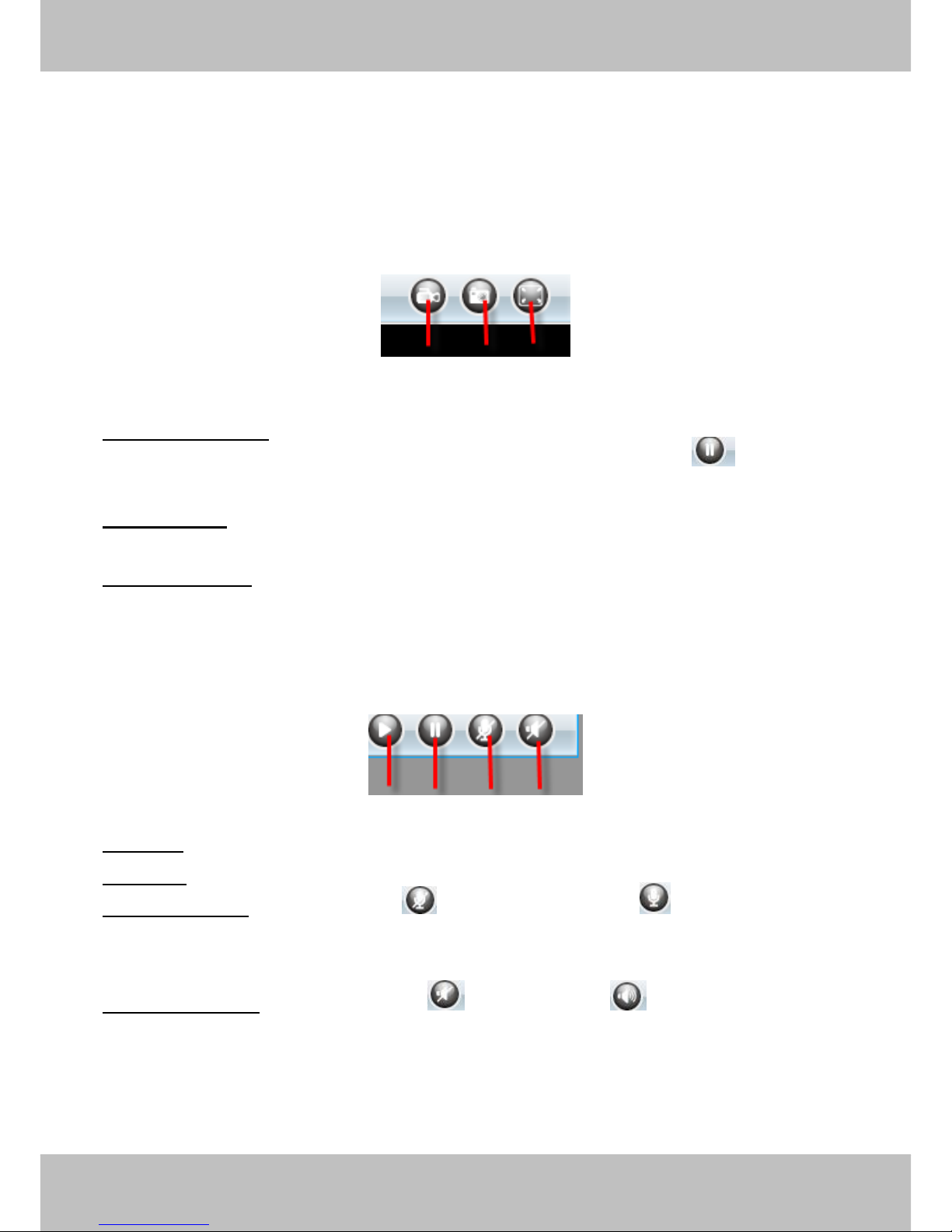

2.2 Surveillance Window
Select the ActiveX mode and you will enter the surveillance window.
Figure 2.2
Section1 Device Name
Default device name is Anonymous. You can define a name for your camera as you like (Please
go to chapter 3.1 and read how to set it)
Section2 Multi-Device Window
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the
same time. You can add other cameras in multi-device setting (read chapter 3.5).
1
2
3
6
4
5
7

9
w
w
w
ww ww w. .f fo os sc ca am m. .c co om m
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 9
.Figure 2.3
Section3 Image Parameters Settings
OSD
OSD is used to add timestamp on the video. There are five text colors to choose from: Black, red,
yellow, white, blue.
Add OSD on record
Select this option if you want to add a timestamp to recordings.
