fox fury Nomad 600-200-800 Use and care manual

Make sure the Nomad®is OFF and UNPLUGGED before starting.
1. Open the Folding Tripo-Scope®Legs so they are locked and deployed. Then,
locate a Battery Cover.
2. Use a Phillips Head (+) Screwdriver to remove the four (4) screws that hold the
Battery Cover. Once the screws are removed, pull the Battery Cover off and set
it aside.
IMPORTANT: There is only one (1) Battery Tube located under each one (1)
of the Battery Covers.
Once the Battery Cover is removed, the Battery Tube is accessible. Start with the
UPPER battery first.
3. At the TOP of the Battery Tube, there will be a red (positive) Battery Tube Cap.
Place an index finger on it, pull tube out by the red Cap (this should then help the
bottom portion (black Cap) of the Battery Tube to easily slide out of the Battery
Compartment). This action is similar to removing a AA battery from any generic
battery holder.
To easily remove the Battery Tube from the Nomad®Body, it is best to pull
straight out from the “crown” of the Red Cap.
NOTE: The wiring for the positive (+) and negative (–) Caps will remain
attached to the Nomad®Body while the Battery Tube is pulled out of the
Battery Compartment.
4. Remove the Battery Tube Caps (red and black) from each end of the Battery
Tube. This can be done by simply popping the Battery Tube Cap off with one
thumb.
DO NOT pull the Battery Tube Caps by the wires.
REPEAT STEPS 2– 4 FOR THE 5 REMAINING BATTERIES.
2
3
4
1
NOMAD®PRIME AND P56 BATTERY REPLACEMENT (P/N 600-200-800)
FOR P/N 200-800, 200-800-TC, 200-811/812/813/814/818/819
REMOVING THE BATTERY TUBES |15 MINS (APPROX)
The Nomad®Prime and P56 uses six (6) Battery Tubes. Repeat the following steps
three (3) times in order to replace all six (6) Battery Tubes.
1
3
BATTERY COVER(S) ON
2
4
BATTERY COVER
REMOVED
BATTERY REMOVED

LIMITED LIFETIME
WARRANTY
FoxFury, LLC (“FoxFury”) warrants
this product to be free from defects
in material for a lifetime of use except
for batteries, LEDs, abuse, and normal
wear. Mechanical components subjected
to constant deformation or action, like
springs and switches, and electronic
components including chargers and
LEDs are warranted for a period of
two years from the time of purchase.
FoxFury will repair or replace a product
should it be determined defective.
Rechargeable batteries are consumable
items, and carry a pro-rated 2 year
warranty. Example: If a problem arises
after one year of use, only 50% of the
replacement cost will be charged, as
long as the batteries are verified to
have been charged, stored, and used in
accordance with required practices.
This limited lifetime warranty is
given only to the original end user of
the accompanying product. If you
purchased a product from someone
other than an authorized FoxFury
reseller/distributor or if the product
was used, (including but not limited
to demo models, show models or
refurbished product by someone other
than FoxFury) prior to your purchase,
you are not the Original Purchaser and
the product that you purchased is not
covered by this warranty. This limited
warranty is VOID if this Product has
been altered or modified in any way
(including but not limited to attempted
warranty repair without authorization
from Foxfury and/or alteration/removal
of the serial number). To expedite
warranty concerns, we encourage
the end user to register their FoxFury
Product at www.foxfury.com/pages/
warranty-registration.
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES ARE EXPRESSLY
DISCLAIMED EXCEPT WHERE SUCH
LIMITATION IS PROHIBITED BY LAW.
You may have other specific legal
rights which vary by jurisdiction. Go to
www.foxfury.com/pages/warranty for a
complete copy of the warranty. Retain
your receipt for proof of purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel : [phone]
Fax: [phone]
Email: [e-mail]
Web: FoxFury.com
All FoxFury products are designed in
Oceanside, CA. All FoxFury products
are manufactured with the highest
quality USA and foreign parts. Products
are assembled in either FoxFury’s
controlled plant in Asia or the USA,
under strict quality control.
CALIFORNIA PROPOSITION
65
This product can expose you to
chemicals including Lead and DEHP,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65Warnings.ca.gov.
INSTALLING THE BATTERY TUBES |15 MINS (APPROX)
Installing the Nomad®Battery Tubes follows the same procedures as removing them
but in reverse order.
1. Start with the bottom of the Battery Tube. Attach the black Cap to the
NEGATIVE end of the Tube. While holding the Cap in place, reinsert it into the
Battery Compartment, at an angle.
2. While still applying downward pressure to the Battery Tube, attach the red Cap to
the opposite POSITIVE end of the Tube. Once secure, slide the Tube into place in
the Battery Compartment.
IMPORTANT: Be sure to place the red and black wires directly behind the
Battery Tube before re-installing the Tube into the Battery Compartment.
This will prevent the wires from being damaged, and it will help the Battery
Tube go back into place easier.
3. Once the Battery Tube is installed, test the Nomad®to make sure it turns ON. If it
does not, check the Battery Tubes for any connection errors with the positive (+)
and negative (–) ends. Then, place the Battery Cover back over the Battery Tube
and tighten the four (4) screws into place.
2
3
1
WARNINGS
Be sure to check polarity [positive (+) and negative (–)] when installing the
Battery Tubes.
!
8/2019

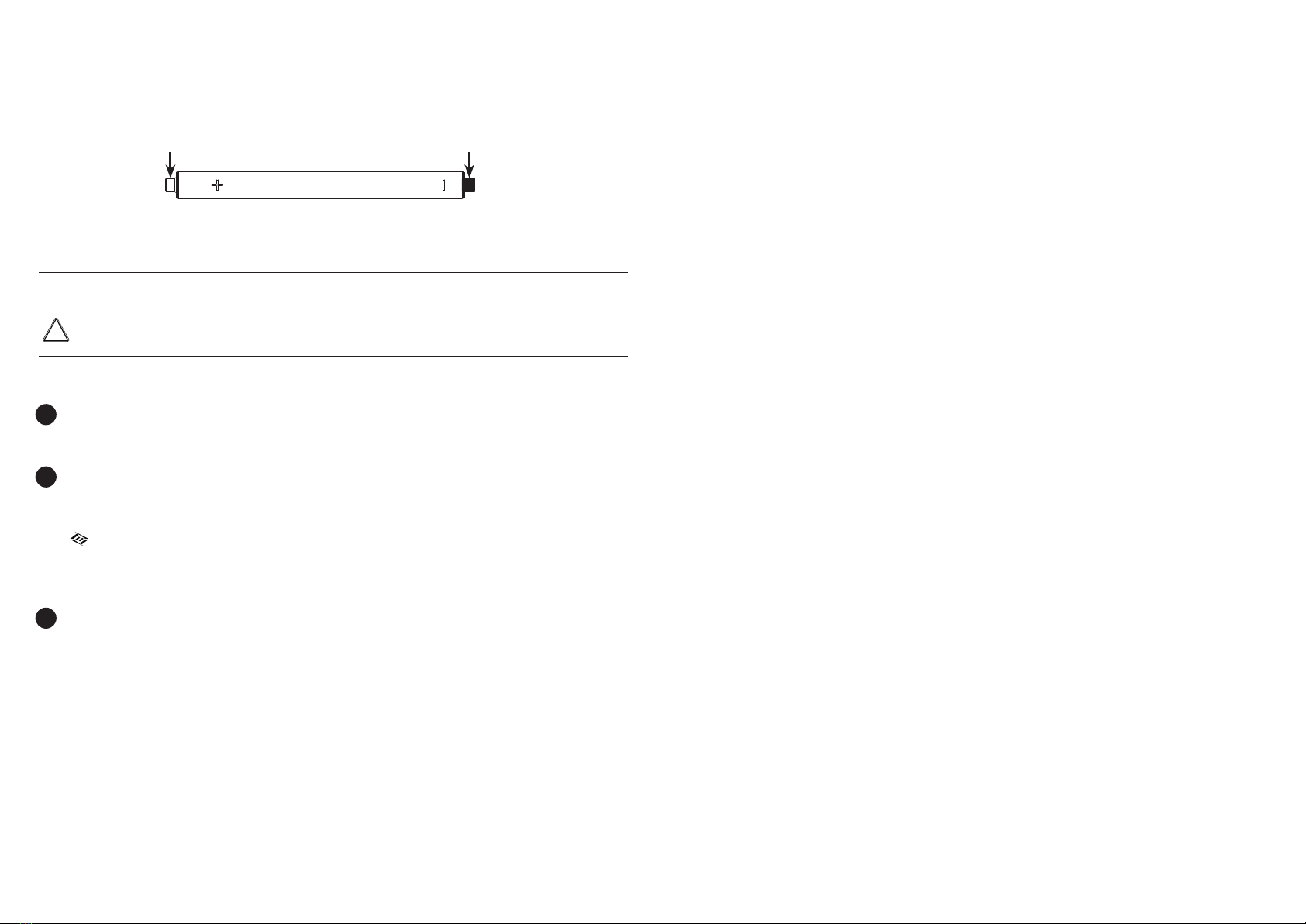

BATTERY TUBE PLACEMENT WHILE INSTALLED
(HORIZONTAL VIEW)
TOP
RED CAP
(POSITIVE +)
BLACK CAP
(NEGATIVE –)
