foxpeed AS8012 User manual
Model: AS8012
MIN
5 6 7 81 2 3 4
9
10
11 12 13
14
15 16
17
18
19 20 21
22
23 24
INCLUDED IN THIS STANDARD PACKAGE
FEATURES
PRECAUTIONS
MAINTENANCE&CARE
ILLUSTRATIONS OF THE DEVICE AND ACCESSORIES
MODES INSTRUCTION
RECOMMEND USE POSITIONS
OPERATING INSTRUCTIONS
TIPS FOR TENS UNIT PAD PLACEMENT
TROUBLESHOOTING
TRANSPORT AND STORAGE SYMBOLS
03
03
04
05
06
07
1 3
1 5
1 9
20
2 2
A/B dual independent channels,opeate their modes and
intensity level separately,enjoy 2 different massage at the same
time.
Multi-functional Tens Massager with 24 Preprogrammed
Massage Modes for Pain and Muscle Relief.
20 level intensity
20 minutes default timer, can adjustable from 10-90 minutes
Rechargeable lithium battery
Battery indicator to know when need to recharge battery
It is suggested that you do not use the massager on any given
areaof skin for a duration greater than 20 min 2 times per day.
Consult with your physician for longer or more frequent uses.
Device
1. When you are finished using the device, turn it off and take off
the pads. Store the unit in a cool, dry place until next use.
2. Please use a lightly moistened cloth to clean the device and
wipe gently.
3. Make sure the device is off when you clean it.
4. Do not let water to get into the device.
Pads
1. Make sure both pads not overlapping and make sure your skin is
free from any dirt, oil or lotion.
2. Applying a few drops of water before and after usage will
increase
the longevity of the pads.
3. Place pads on pad holder or place plastic film on the sticky side
of pad to keep the gel moisture.
4. Please replace the pads after using 15-20 times ( Varies widely
depending on use, body type and care).
NOTE: To purchase official replacement electrode pads, you can
find suitable pads on Amazon by search ASIN " B08G46HM4H " “Foxpeed
tens pads” or
HOW TO ORDER REPLACEMENT ELECTRODE PADS?
1. On/ off switch
2. Charging port
3. Timer
4. Battery indicator
5. LCD screen
6. A channel Intensity adjustment(+)
7. A channel Intensity adjustment(-)
8. B channel Intensity adjustment(+)
9. B channel Intensity adjustment(+)
10. 6 Main Modes adjustment
11. Time adjustment
56781234
9
10
11 12 13
14
15 16
17
18
19 20 21
22
23 24
12. 24 built-in Modes adjustment
13. Suspend & screen lock
14. Pad wires
15. Electrode pads 16. USB cable
14 15
16
MODES INSTRUCTION
TENS:Pain relief
To be used for temporary relief of pain associated with sore and
aching muscles in the shoulder, waist, back, upper extremities
(arm), and lower extremities (leg) due to strain from exercise or
normal household work activities.
EMS(also named PMS): Muscle conditioning
It is intended to be used to stimulate healthy muscles in order
to improve and facilitate muscle performance.
MASS(Massager): Relaxing body
It is intended to be used to relaxing body when you are tired.
TENS
①Angle scraping massage (45 degree angle scraping)
②Strong scraping massage (90 degree angle scraping)
③Acupuncture(gentle)
④Knock + Scrape
⑤ Lightly hammer
⑥
Stimulates circulation to end stasis, warms the channels to
relieve pain and eliminate toxins from the body. According to
traditional Chinese medical theory, scraping the skin can
stimulate one's immune system and then help to remove the
disorder.
Releases unhealthy elements from injured areas and
stimulates blood flow and healing.
This mode is used for the points on the Chinese meridian
pressure point chart to assist headaches, a variety of
ailments as well as muscle and joint pain. Particularly good
for fast relief of acute pain.
Provides the user with a beating and scraping sensation.
The appliance puts out quick and strong pulses in a regular
rhythm; good for all major muscle groups.
Stretching massage
For relieving back and neck pain, stiff muscles, anxiety,
fatigue, migraines, rheumatism, and even cellulite etc.
EMS
⑦
⑧
⑨
⑩
12
11
Kneading massage
For muscle strains, herniated discs, stenosis, spondylosis,
spondylolisthesis, and general arthritis pain.
Lifting massage
Relief of pain & muscle tension. Relieves the tension, brings
blood flow back to the joint and improves your mobility.
Tuina massage
Relief of pain & muscle tension. Relieves the tension, brings
blood flow back to the joint and improves your mobility.
Moxibustion (quick)
Knead gently (knead gently and slowly)
It helps chronic diseases such as insomnia, constipation,
headaches, and the tension associated with stress.
Provides the user with scratching and kneading sensation.
Releases unhealthy elements from injured areas and
stimulates blood flow and healing.
Slapping massage (quick slapping)
Helps to reduce muscle spasms, increase the range of
motion, injury recovery and the after surgery recovery.
13
14
15
16
Slow shot /Slow shot
The appliance puts out hard thumping sensation that
massage your muscles, which can give you an invigorated
and revitalized feeling.
Side palm kneading
It is a type of alternative medicine consisting of finger and
palm pressure, stretches, and other massages techniques.
Flat palm rub (slowly)
Enhance function, aid in the healing process, inhibit
motor-neuron excitability, decrease muscle reflex activity,
promote relaxation, recreational and well-being.
Flat palm kneading/gentle
Kneading massage (Kneading)
This mode is effective for joint pain, sciatica, muscle spasms,
and pain in the back, neck, and shoulders.
Cupping
17
18
19
20
It's a form of therapy in traditional Chinese medicine. Cups are
placed on the particular section of the body to create suction
often using heat. The method draws out toxins, mobilizes
blood flow, alleviates muscle pain and even improves the
quality of sleep.
Palm massage
This mode is used for the points on the Chinese meridian
pressure point chart to assist headaches, a variety of ailments
as well as muscle and joint pain. Particularly good for fast relief
of acute pain.
Patting and kneading massage (Hammer + kneading gentlely )
Provides the user with a kneading and beating sensation.
Releases unhealthy elements from injured areas and stimulates
blood flow and healing.
Squeeze massage (lift + tap )
Helps to reduce muscle spasms, increase the range of motion,
injury recovery and the after surgery recovery.
MASS
21
22
23
24
Shiatsu massage (scraping + tap)
It is the manipulation of superficial and deeper layers of muscle
and connective tissue using various hands-on techniques, to
enhance physical function, aid in the healing process, release
tension, and promote well-being.
Mixed massage (acupuncture + tuina + kneading)
This form of therapy involves hands-on techniques to increase
circulation, relieve tension, reduce stress, relieve anxiety,
improve the quality of sleep, and promote relaxation
throughout the entire body, as well as many other benefits.
Light hammer massage (continuous kneading)
It has a soothing and relaxing effect, improves blood and
lymphatic flow, and corrects minor misalignments of muscles,
tendons and ligaments.
Light pinch massage (continuous pinch)
Enhancing body fluid circulation, relieving muscle tension and
pain, promoting metabolism in the body and cleansing the
body.
Stiff Shoulder
Erector Spinalis
Calf Muscle
Hip Neuralgia
Sciatica
Slipped Disk
RECOMMENDUSE POSITIONS
Low Back Muscle
Calf Muscle
General System Nerves,
Muscle, Tiredness &x
Bad Blood Circulation
14
Shoulder Pain Chronic Hip Pain Knee Pain
Lower Leg Pain Foot Pain
Carpal Tunnel Syndrome
Step 1: Prepare pads.
Connect 2 pads to the cord by snapping them on. Using the 1/4
wire, make sure that you use 1pc positive + 1pc negative wire
(different colors indicate is it the positive one or the negative one).
Remove the protective film.
(TENS pads)
(Pads attached to the forearm)
Step 2: Placing pads.
Place pads where the massager impact is desired, over or near
the injured area of the body. Make sure your skin is free from
any dirt, oil or lotion.
15
(Wiring diagram)
(The appliance equipped with the "T" button to adjust the time)
Step 4: Set up a time.
Turn ON the device by pressing the ON/OFF button. Press "T"
button to adjust the time. Set up a time from 10 to 90 minutes.
Step 3: Connect wires.
Connect 2 or 4 pads to both wires (A/B channel), place all
connected pads on your skin at the same time for additional
relief.
MIN
MIN
16
(The appliance equipped with the "M" button
to choose main modes)
Step 5: Choose a mode.
There are 6 icons (6 main modes) on the screen, each icon has
4 built-in modes. Press the “M” button to switch
between 6 main modes.
This Tens Unit has mode memory function.
MIN
(The appliance equipped with the round center button for
suspend and screen locking)
Step 6: 24 Built-in modes adjustment
After step 5 select a main mode,
just press the button“←” or button ”→” to adjust built-in modes
17
adjust the intensity)

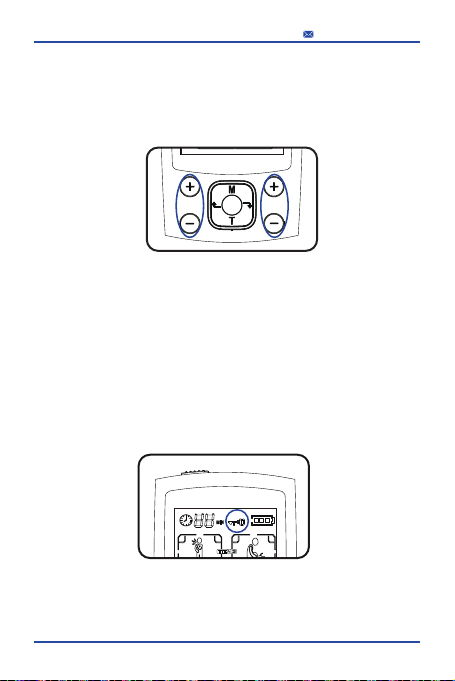

(The appliance equipped with the "+/-" button to gradually
Step 7: Adjust the intensity.
Once you select a mode, press the “+/–“ button to gradually
increase or decrease the intensity. The default strength is the
lowest strength set by each selected mode to avoid misoperation.
ends.
Step 9: Shut OFF the appliance
The TENS unit will shut OFF automatically after the countdown
Step 8: Lock the screen.
After you set both A and B channel well, long-press the round
centre button for 3 seconds. The screen will show a lock symbol,
all buttons are blocked now, TENS unit starts massaging. This
function is designed to avoid mistouch.
MIN
18
