foxunhd FX-EX37 User manual

Operating Instructions
www.foxunhd.com
FX-EX37
4K HDMI+USB KVM Extender over IP / Fiber
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
ABLE OF CONTENTS
Feature
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Product Service
Warranty

Operating Instructions
www.foxunhd.com
Feature
4k UHD HDMI over IP extension
USB 2.0 over IP extension
RS232 bi-directional extension and RS232 control
4 bits Switch for 16 stream channel selection
Support Dolby True HD, DTS-HD Master Audio
Support two way wide Band IR extension(38khz-56khz)
Transmit over single Cat5e/6 cable up to 120m
Transmitter over Fiber Optical cable up to 60km(Single Mode)
Networking environment under Giga Enthernet switch and Cat5e cable
Point to Point extension,Unicast, Multicast and Video wall system(max 8x16)
Output video rotation
Output video video partial enlargement
HDCP1.4 compliant
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
SPECIFICATIONS
Performance
Protocol
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
Support Video format
4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i
Support Audio format
Stereo 192Kbps
HDCP
Compliant
IR Frequency
38 -56 KHZ
RS232 Baud rate
Default 115200bps, total 8 kinds optional
IP setting &Group ID setting
Default IP
Automatic allocation
Group ID
Group 00 ~ group 16
Request for Switch/Router
Support IGMP, support DHCP
Connectors on Transmitter
Input
1xHDMI Female port, 1xUSB B type
Output
1x RJ45 output, 1x Fiber output
RS232
Phoenix RS232 port
IR
1x IR TX port; 1x IR RX port
Support 38K-56KHz
Connectors on Receiver
Input
1xRJ45 input, 1x Fiber input
Output
1x HDMI Female port, 2x USB A type

Operating Instructions
www.foxunhd.com
RS232
Phoenix RS232 port
IR
1x IR TX port; 1x IR RX port
Support 38K-56KHz
Environmental & Power Requirements
Operating temperature
-5 to +65℃(+23 to +149℉)
Operating Humidity Range
5 to 90%RH (No Condensation)
Power supply
DC 5V
Power consumption
Max 3 watt
Physical
Dimension
TX: 160x103.2x30mm ; RX: 160x103.2x30mm
Net Weight
TX: 472.8G ; RX:472.3G
Note1: Specifications are subject to change without notice. Mass and
dimensions are approximate.
Note2: when transmit over Fiber. 4kx2k require 3.125g module.
PACKING CONTENTS
1) Main Unit. HDMI Extender(transmitter & receiver)
2) Power adapter DC5V 2A x2PCS
3) 2xIR TX cable, 2xIR RX cable
4) 2xPhoenix plugs for RS232 cable termination
5) 4xscrews
6) Rear bracket x2
7) Operating Instruction
Notes: Please confirm if the product and the accessories and all in duded, if not please contact with
the dealers.
PANEL DESCRIPTION

Operating Instructions
www.foxunhd.com
EX37-TX
1) IR-RX port 2) IR-TX port
3) RS232 port 4) Normal: For serial over IP;
Program: For serial control or getting the debug information
5) 4 bit Dip switch 6) Group Switch③
7) Button 1&2 ④8) Indicator of status ②
9)Fiber out 10)Ethernet port
11)HDMI input 12)USB
13)Power input indicator①14)Power input port
A. Green LED: Link LED, when the connection has established over Cat5e/6 cable or Fiber
cable, the Green LED will illuminate.
B. Yellow LED: When the yellow LED is blinking, it indicates the connection has been established over Cat5e/6 cab
le.
When the green LED illuminates, it indicates the connection has been established between
transmitter and receiver over fiber cable.
After select the DIP switch, press “Group Switch” button for 1 second.
Please refer to 5.3.
4 bits DIP Switch:
Use 4bits DIP switch to select 16 groups ID (such as 0001, 0010, 0101 etc,)

Operating Instructions
www.foxunhd.com
EX37-RX
1) IR-RX port 2) IR-TX port
3) RS232 port 4) Normal: For serial over IP;
Program: For serial control or getting the debug information
5) 4 bit Dip switch 6) Group Switch③
7) Button 1&2 ④8) Indicator of status ②
9)Fiber in 10)Ethernet port
11)HDMI output 12)USB
13)Power input indicator①14)Power input port
A. Green LED: Link LED, when the connection has established over Cat5e/6 cable or Fiber
cable, the Green LED will illuminate.
B. Yellow LED: When the yellow LED is blinking, it indicates the connection has been established over Cat5e/6 cab
le.
When the green LED illuminates, it indicates the connection has been established between
transmitter and receiver over fiber cable.
After select the DIP switch, press “Group Switch” button for 1 second.
Please refer to 5.3.
4 bits DIP Switch:
Use 4bits DIP switch to select 16 group ID (such as 0001, 0010, 0101 etc,)
5.3 Descriptions Buttons

Operating Instructions
www.foxunhd.com
(Host:Transmitter;client: Receiver)
Button state for Unicast Mode:HDMI Extender:
Default Mode will be highlighted in Green
CONNECT AND OPERATE
1. Check the power supply is unplugged.
2. Set up the group of the transmitter with the correspondent receiver for signal extension and display .
3. Connect the Transmitter to video source with HDMI cable,and connect Receiver to a monitor or display with HDMI cable.
4. Connect the USB cables from transmitter to PC,and connect the USB additional devices such as USB mouse,USB
keyboard and USB pen drive to Receiver.
5. Connect Transmitter and Receiver to the Ethernet switch with network cable.
6. Power on the Transmitter,Receiver and all the connected devices.
7. Power on and activate all the connected devices.
8. Connect the IR extension cable with transmitter and the IR receiver cable with Receiver for remote control.

Operating Instructions
www.foxunhd.com
6.2 IP Configuration
The 4k HDMI &USB over IP Extender can configure via LAN in the same subnet.
1. Assign a LAN IP address to the computer in the same subnet. The IP address default of the Transmitter
and receiver is B class Networking:
169.254.xxx.xxx.

Operating Instructions
www.foxunhd.com

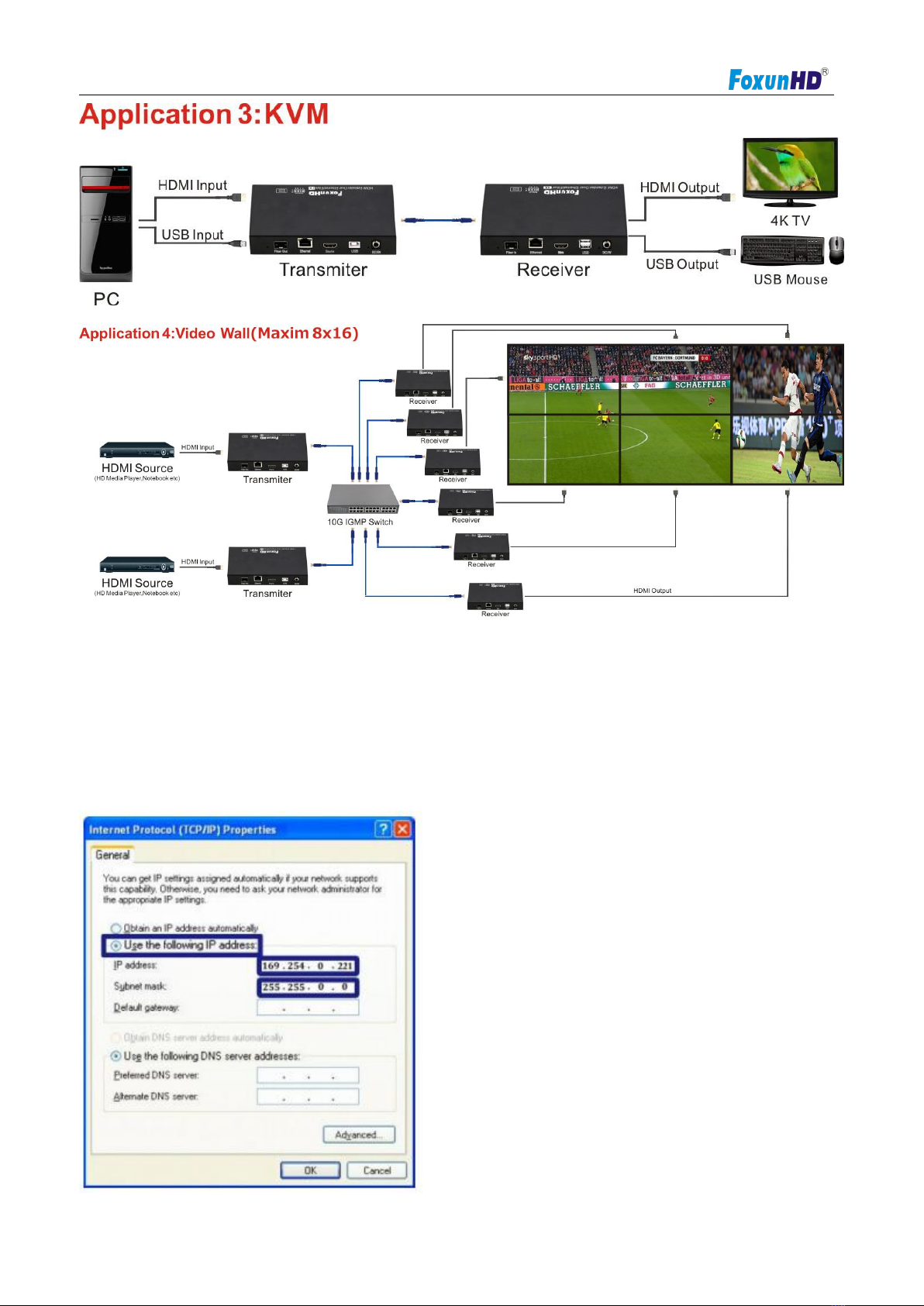

Figure 1.Internet Protocol(TCP/IP)Properties
2. Connect the TX and RX with the Ethernet switch,Then connect the PC with the Ethernet switch.
Because this unit support DHCP,Different unit with different IP address of the factory reset,so the forst thing
we need know the IP address of each unit.
There is two way to get the IP address

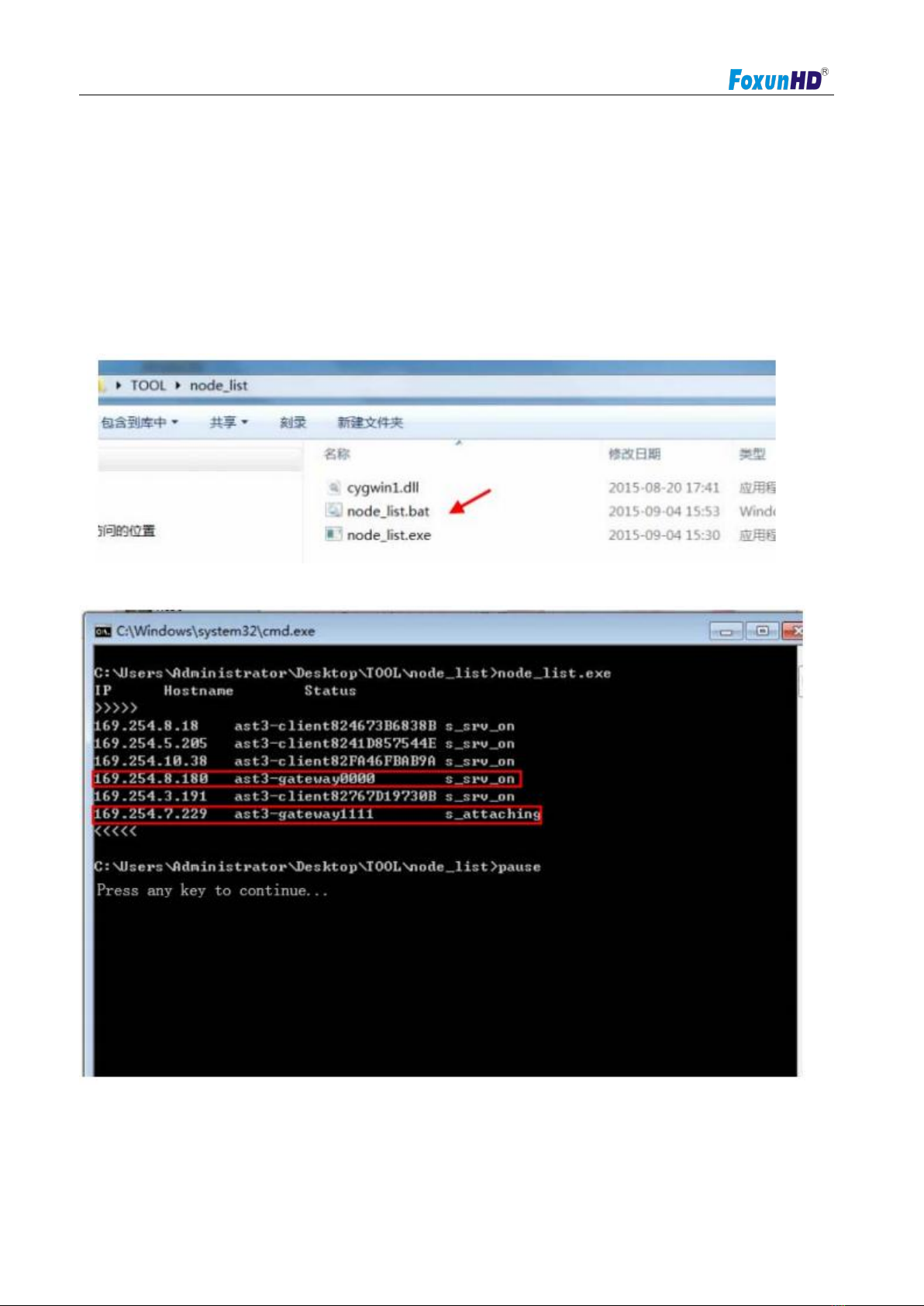

1) Via “Node List”
Open the “Node List”in the “Tool”file,press twice the “Node_list.bat” to enter the dialog box
Then we can see all the IP address of both the TX and RX show as bellow black dialog box.
Remark:If the IP address with “client”,it”s the IP address of the RX
If the IP address with”Gateway”,It’s the IP address the TX
2) The second way.

Operating Instructions
www.foxunhd.com
Connect all devices with proper cables except video source,please refer to

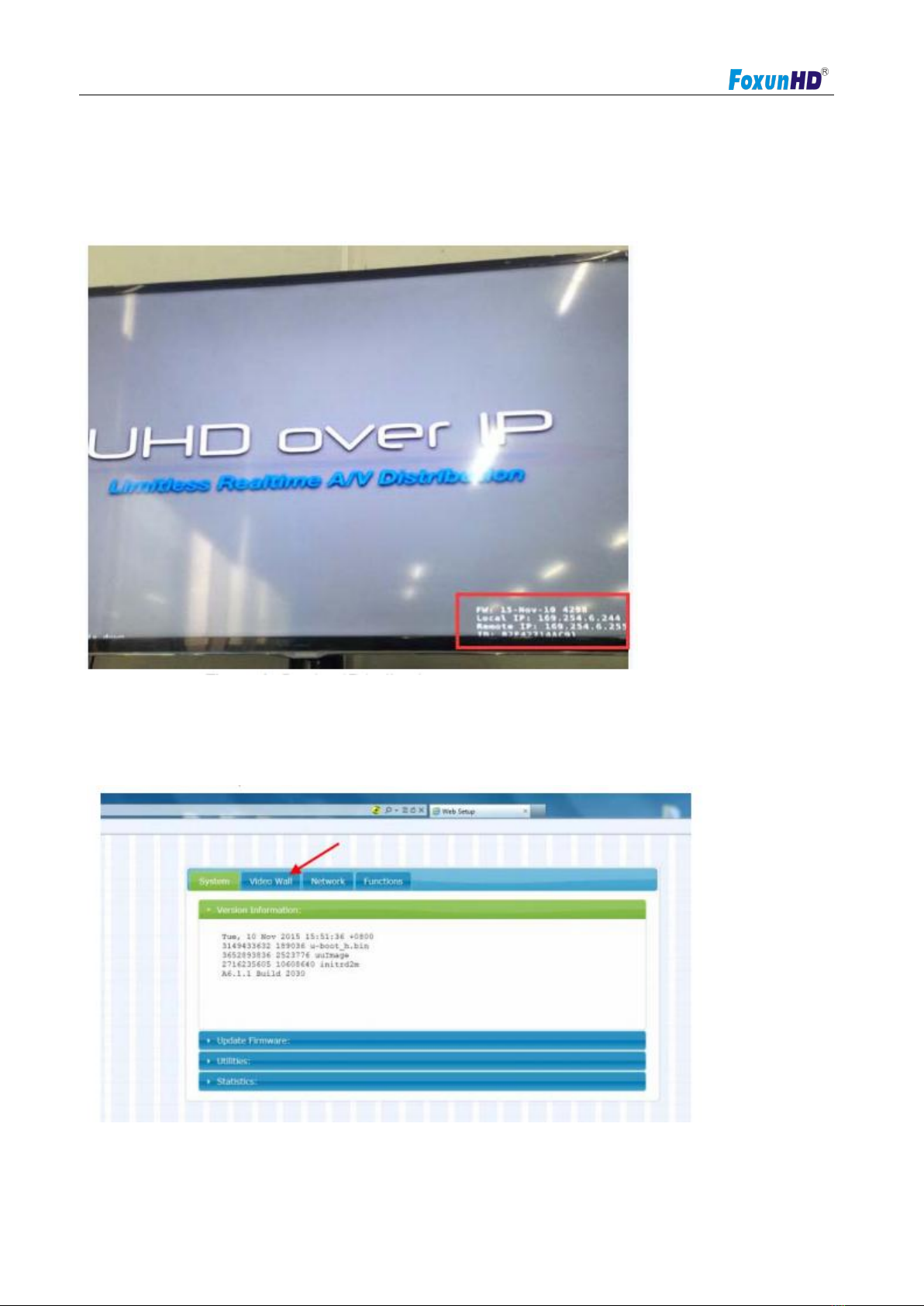

3) After activation,the device information including the transmitter and receiver IP address will be show in
the lower right corner.Remember the transmitter and receiver IP address on monitor screen and then plug
HDMI video source cable into transmitter.
3.The administrator can input transmitter or receiver IP address into address bar of web browser(recommend the
Google Chrome) to the Extender Web UI
If link success,administrator will see the Web UI as shown in Figure 4.
7. WEB user interface configuration
7.1 System

Operating Instructions
www.foxunhd.com
The relevant information of the connected extender and setting
7.1.1[Version Information]
Indicating the firmware version and relevant information of the devices

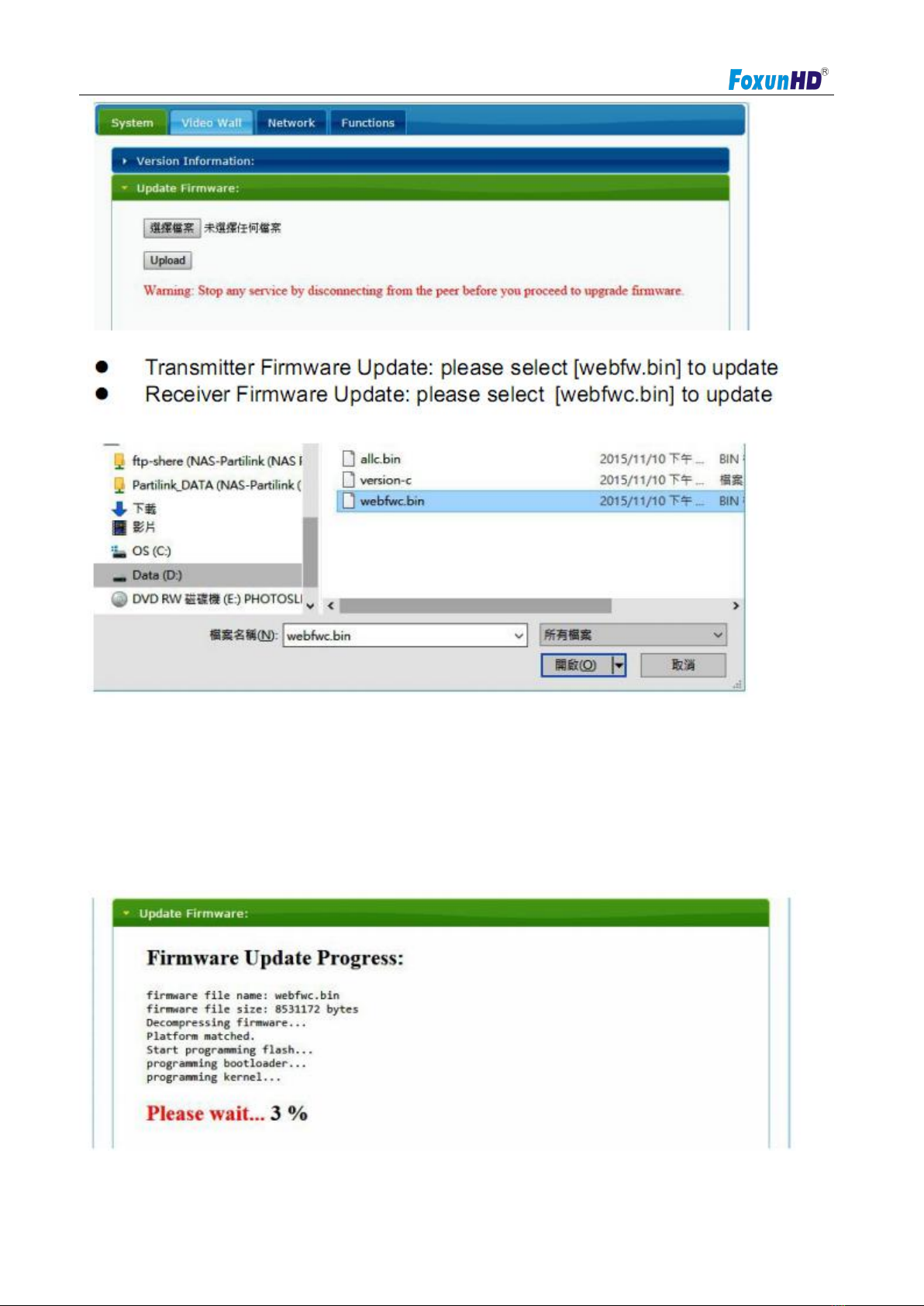

7.1.2 [Update Firmware]
To update the firmware of the connected extender,please click on the [select file] to select the firmware and click
on[Upload] to upload the firmware and update accordingly.

Operating Instructions
www.foxunhd.com

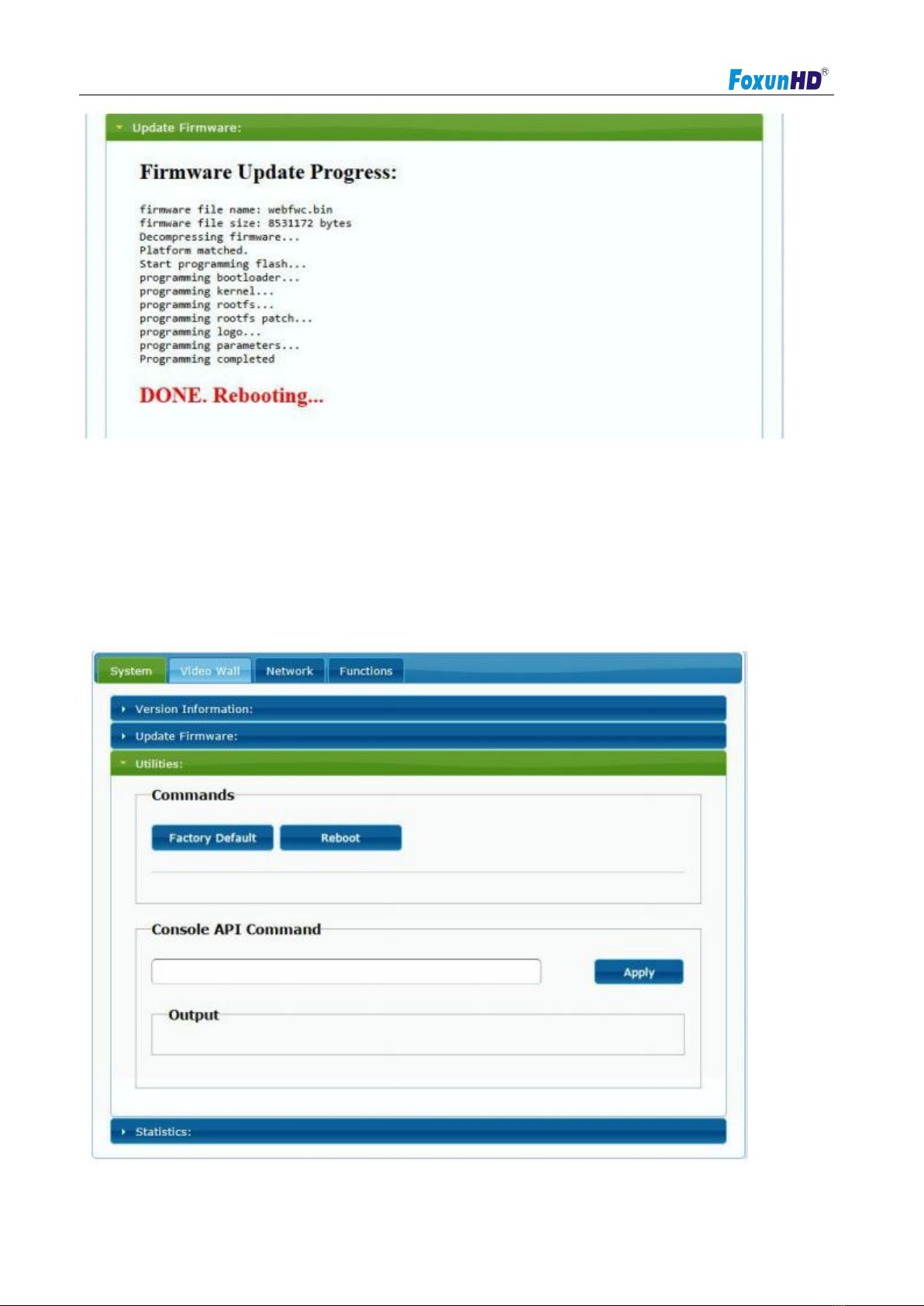

It takes time to update the firmware.during the process of update, the web user interface sows the status as
below diagram.the extender system will reboot automatically after updating firmware.if it doesn’t reboot
automatically,please reboot to apply the new firmware manually.

Operating Instructions
www.foxunhd.com
7.1.3[Utilities]
There are some functions
Factory Default:Click on to return to the factory default when necessary
Reboot:click on to reboot the extender systerm
Console API Command:Input Linux command for advanced setting

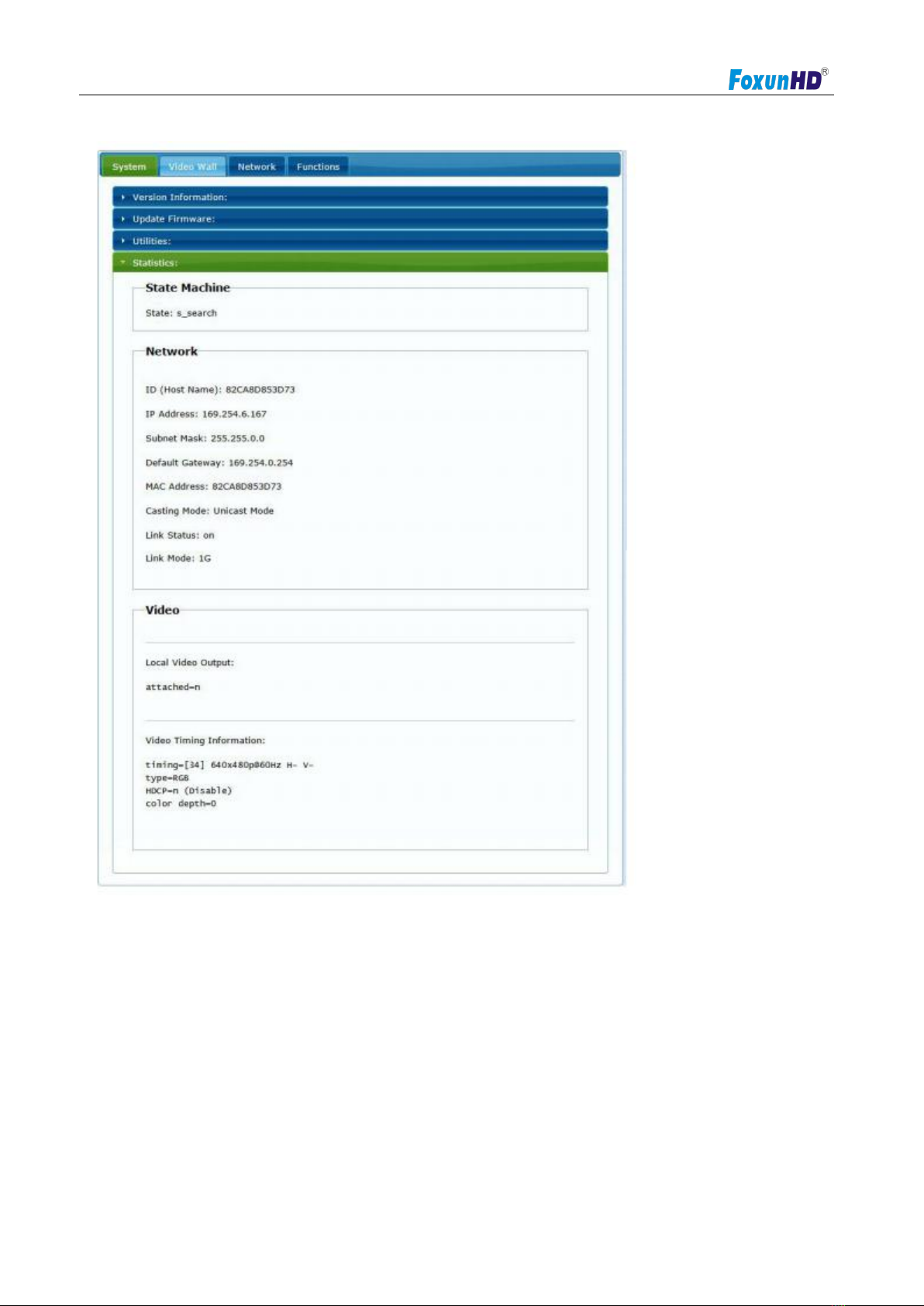

7.1.4 [Statistics]

Operating Instructions
www.foxunhd.com
Indicating the extender linking and working status
7.2 Video wall
To set up the video wall application
7.2.1[Basic setup]

Operating Instructions
www.foxunhd.com
Bezel and gap Compensation:
Dimension of the screen(inside and outside width and height)
OW:outside width OH:outside height
VW:viewable width VH:viewable height
Please NOTE:
1) The viewable width must be less than the outside width,and the viewable height must be less than the outside
height.
2) If administrator doesn’t need this,just set all values to 0.
3) The unit is 0.1mm and the value MUST be integer.

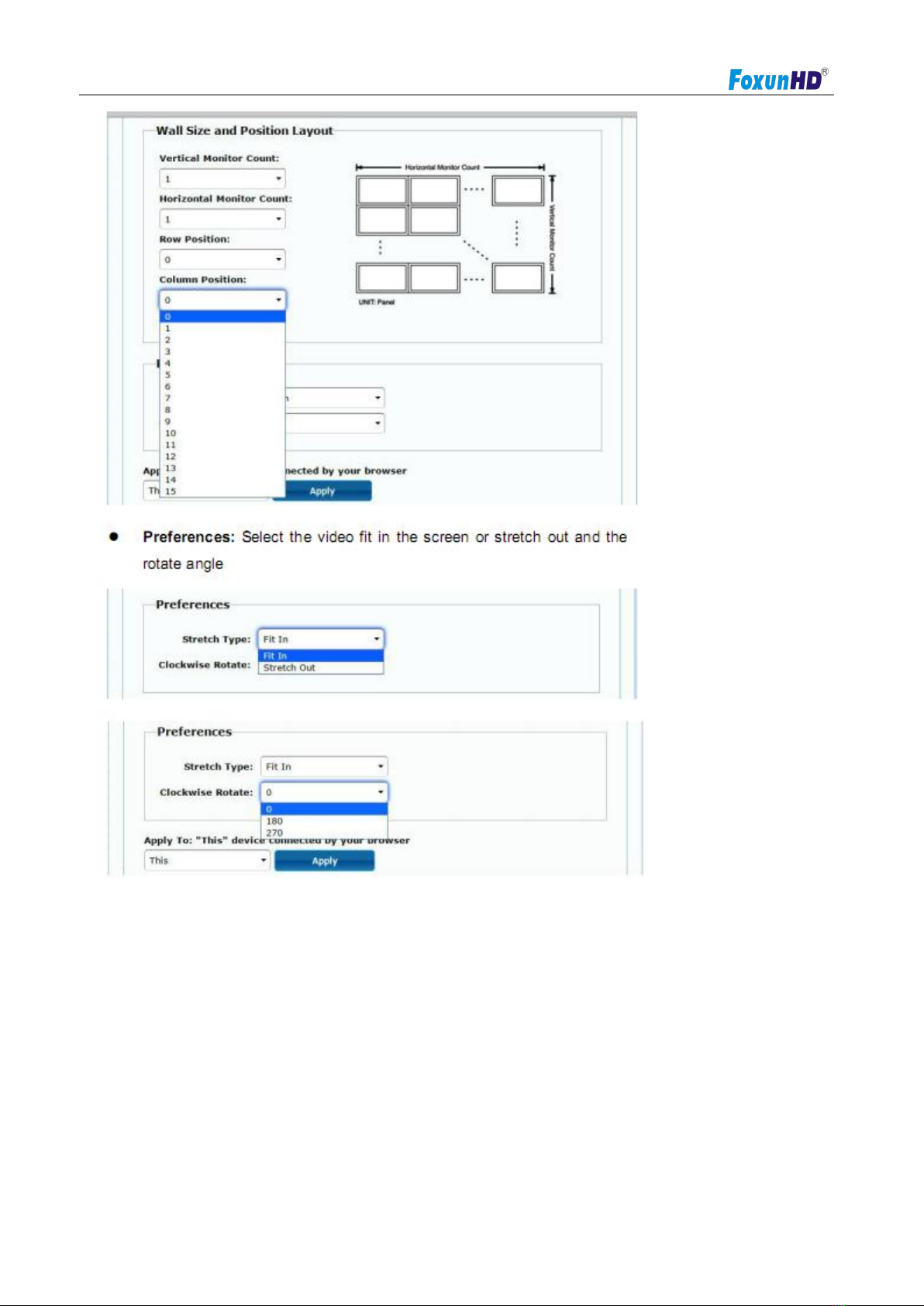

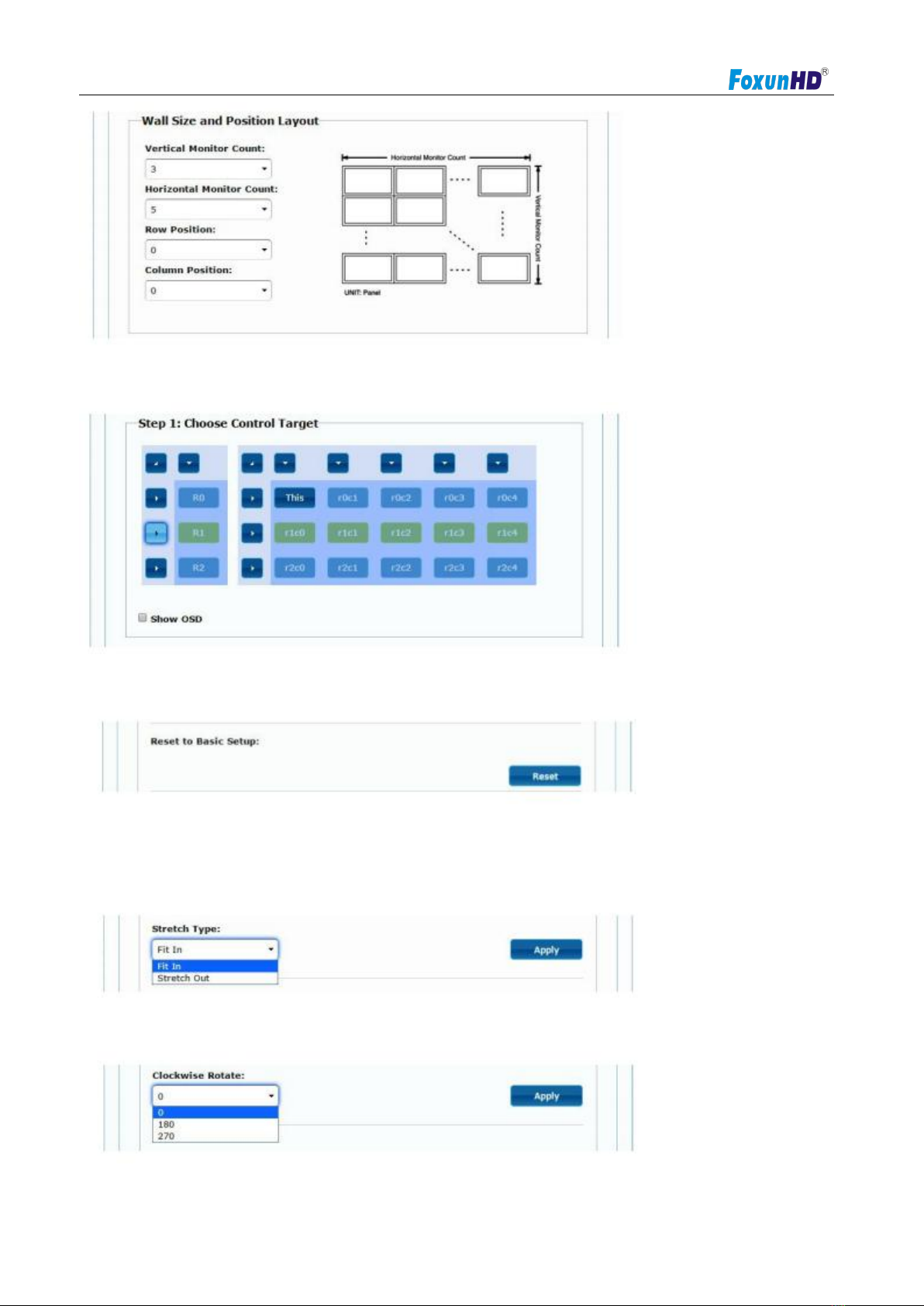

Wall Size and and Position Layout:
Select number of Vertical and/or horizontal monitors,row position and column position.Vertical monitor

Operating Instructions
www.foxunhd.com
1-8,horizontal monitor number 1~16

Operating Instructions
www.foxunhd.com

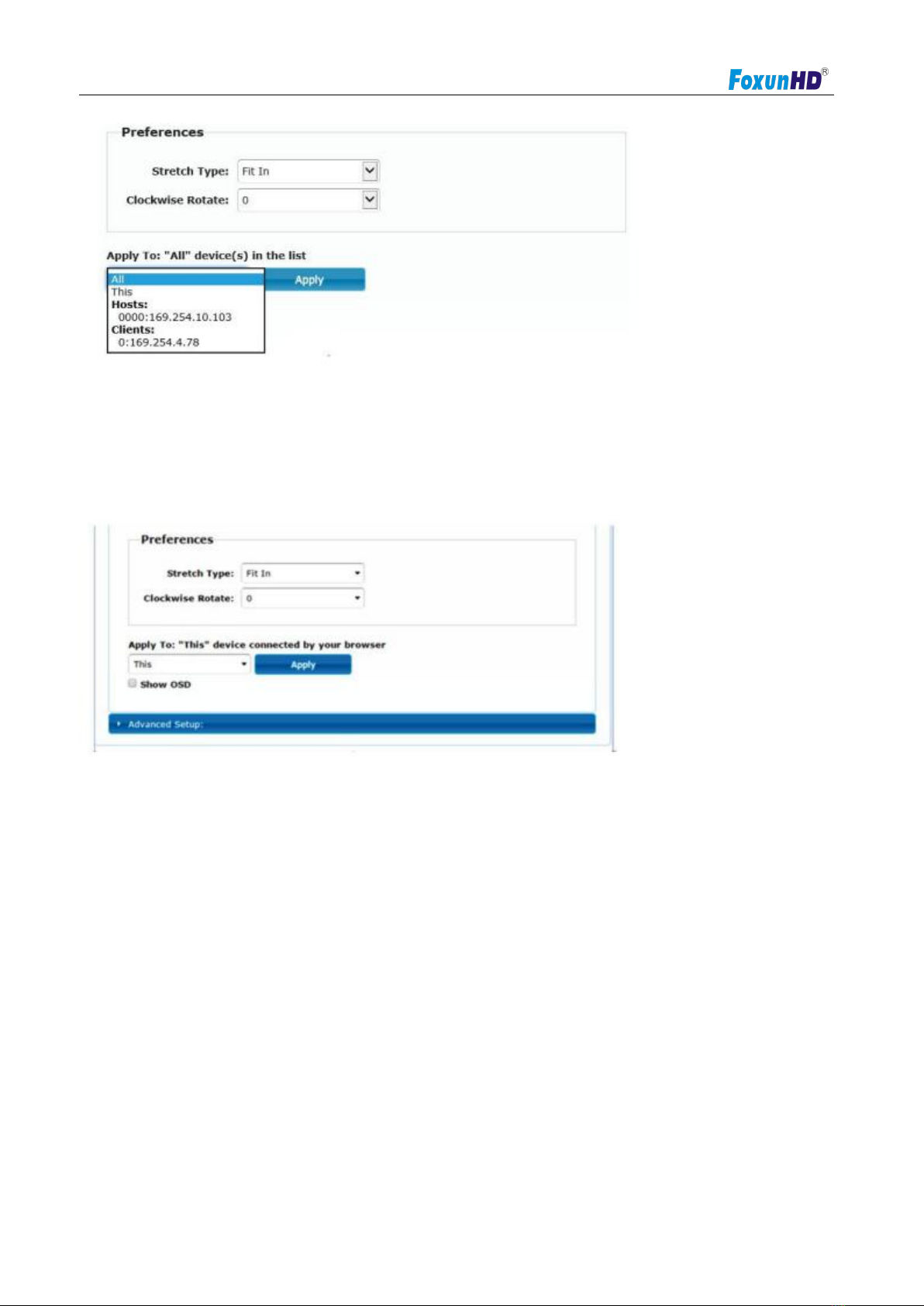

Apply to:
1) All :Configure all transmitter and receiver in the same group IP.
2) This(Local):the IP you input into address bar of web browser.
3) Hosts or Clients:select which transmitter or receiver you want to configure

Operating Instructions
www.foxunhd.com
Show OSD
Check this box to output each receiver’s specific number to the connected monitor
7.2.2[Advance setup]

Operating Instructions
www.foxunhd.com
Before enter “advanced setup”,Please complete the “Basic Setup”as follows:
Step1:In “Basic Setup”,select Vertical and Horizontal Monitor Count.For example example Vertical monitor
Count=3,Horizontal Monitor Count=5

Operating Instructions
www.foxunhd.com

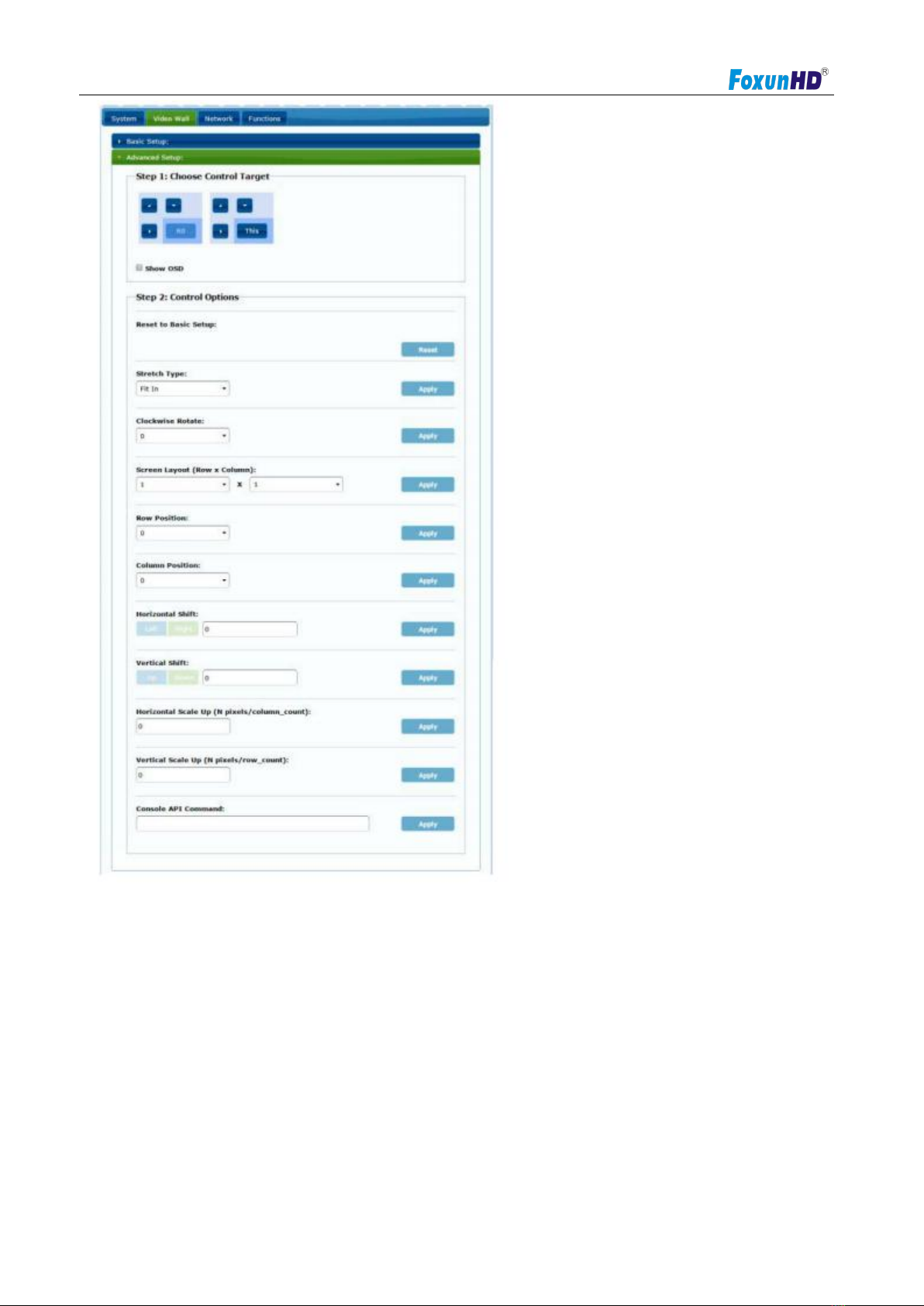

Sept2:In”Advanced Setup”,choose the target of the video wall to control
If user make incorrect operations,press “Reset”in reset to basic setup function
Setup the video output to “Fit in ”or “Stretch out”mode the screen
Setup the rotation angle of the video output

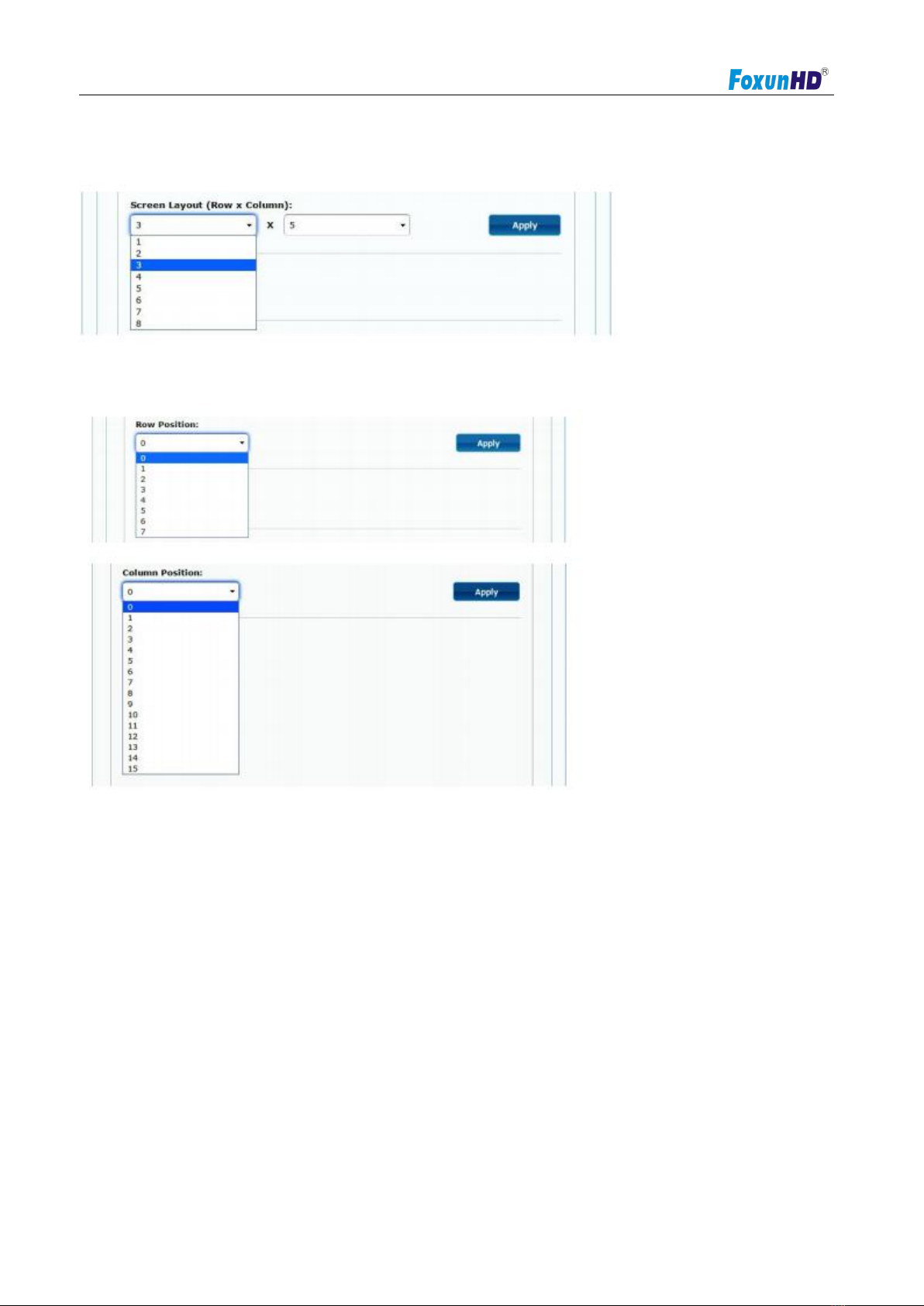

Setup the number of vertical and horizontal monitor based on the video wall layout.Vertical number 1-8 and

Operating Instructions
www.foxunhd.com
horizontal number 1-16.
Setup the row position of monitor,number from the total number of vertical monitor.
Setup the column position of monitor,number from 0 to total number of vertical monitor.
Setup the video position shift and video enlarge.
Horzontal shift:Setup the video horizontal shift,left or right
Vertical Shift:setup the video vertical shift,up or Down
Horzontal Scale Up:setup the video horizontal scale up
Vertical Shift Scale Up:Setup the video vertical shift scale up.
