foxunhd FX-EX53 User manual

Operating Instructions
www.foxunhd.com
FX-EX53
HDBaseT Ultra Slim Extender Kit HDR,4K@60Hz 4:4:4,up to 40m
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
ABLE OF CONTENTS
Feature
Specifications
Package Contents
Panel Descriptions
System requirements
Connecting and Operating
Typical Application
Product Service
Warranty

Operating Instructions
www.foxunhd.com
SAFETY PRECAUTIONS
Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near
water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any openings or empty slots in the unit,
as you may damage parts inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any
person walk on it.
To protect the unit from overheating, do not block any vents or openings in the unit housing that
provide ventilation and allow for sufficient space for air to circulate around the unit.

Operating Instructions
www.foxunhd.com
Feature
Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4
Transmit up to 70m under 1080p, 40m under 4k
Support HDR10, 3D
With 1x looping HDMI out at Transmitter and 2 x HDMI out at Receiver
Bi-directional wide band IR and RS232 Pass through
Dual POC (Receiver powered by transmitter or transmitter powered by Receiver)
HDCP2.2/ HDCP1.4 Compliant
DC 24V/1A Power Supply.
Power Consumption：12watts
Dimension (L×W×H):139.4x66.8x20mm
Net Weight:540g
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
SPECIFICATIONS
Operating Temperature Range
-10 to +55°C (14 to +131 °F)
Operating Humidity Range
5 to 90%RH (No Condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Input DDC Signal
5 volts p-p(TTL)
Support Video Format
DTV/HDTV;
4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i
Output Video
HDMI 2.0+HDCP1.4/2.2
Output Audio
Support DTS-HD, Dolby-HD
Support Audio Format
DTS-HD Master Audio/Dolby true-HD etc
Maximum Transmission Distance
70 meters for 1080P, 40 meters for 4K

Operating Instructions
www.foxunhd.com
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
PACKING CONTENTS
1) Main Unit. Transmitter & Receiver
2) Power adapter DC24V/1A
3) 1xIR TX unit
4) 1xIR RX unit
5) 2 phoenix plugs for RS232 cable termination
6) Operating Instructions
Notes: Please confirm if the product and the accessories and all in duded, if not please contact with
the dealers.
PANEL DESCRIPTION

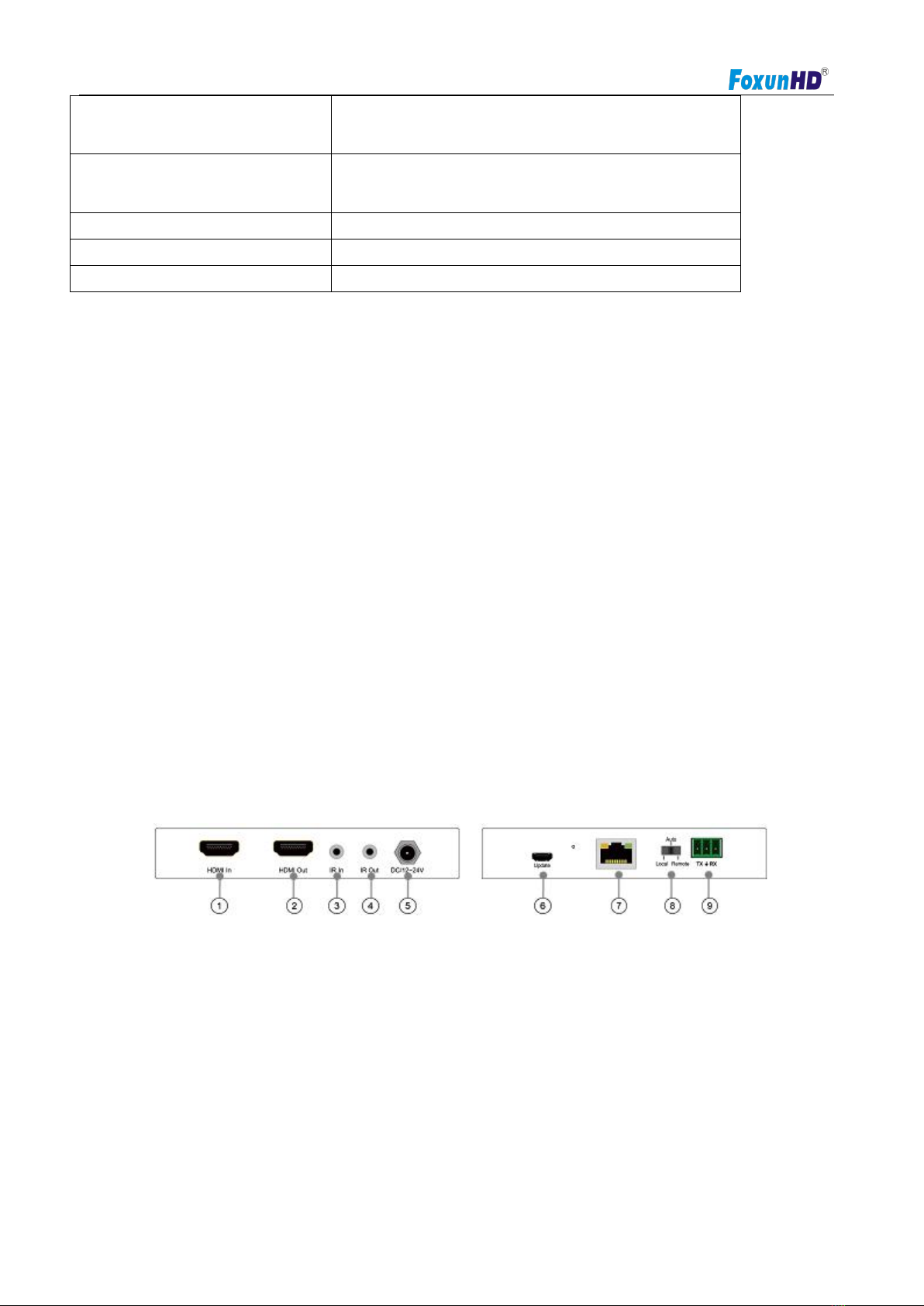

Transmitter Panel
①HDMI In: Connect to HDMI source equipment such as DVD or Blu-ray player
②HDMI Out: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal
③IR In: Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in direct
line-of-sight of the equipment to be controlled.
④IR Out: Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in
direct line of sight of the equipment to be controlled
⑤DC/12-24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet
Power Supply
24V/1A
Poc
Power from TX to RX over Cat5/6 cable
Power consumption
12watts(Max)
Dimension (L×W×H)
139.4x66.8x20mm
Net Weight
540g(Pairs)

Operating Instructions
www.foxunhd.com
⑥Update: USB port to update the firmware
⑦CAT5e/6 Out: Connect to the receiver unit with a single CAT5e/6 cable for transmission of all data
signals
⑧EDID: Auto: default 4K@60Hz
Local: copy EDID from display of transmitter
Remote: copy EDID from display of receiver
⑨RS232 in: Connect to a PC or laptop with phoenix terminal for the transmission of RS232 commands

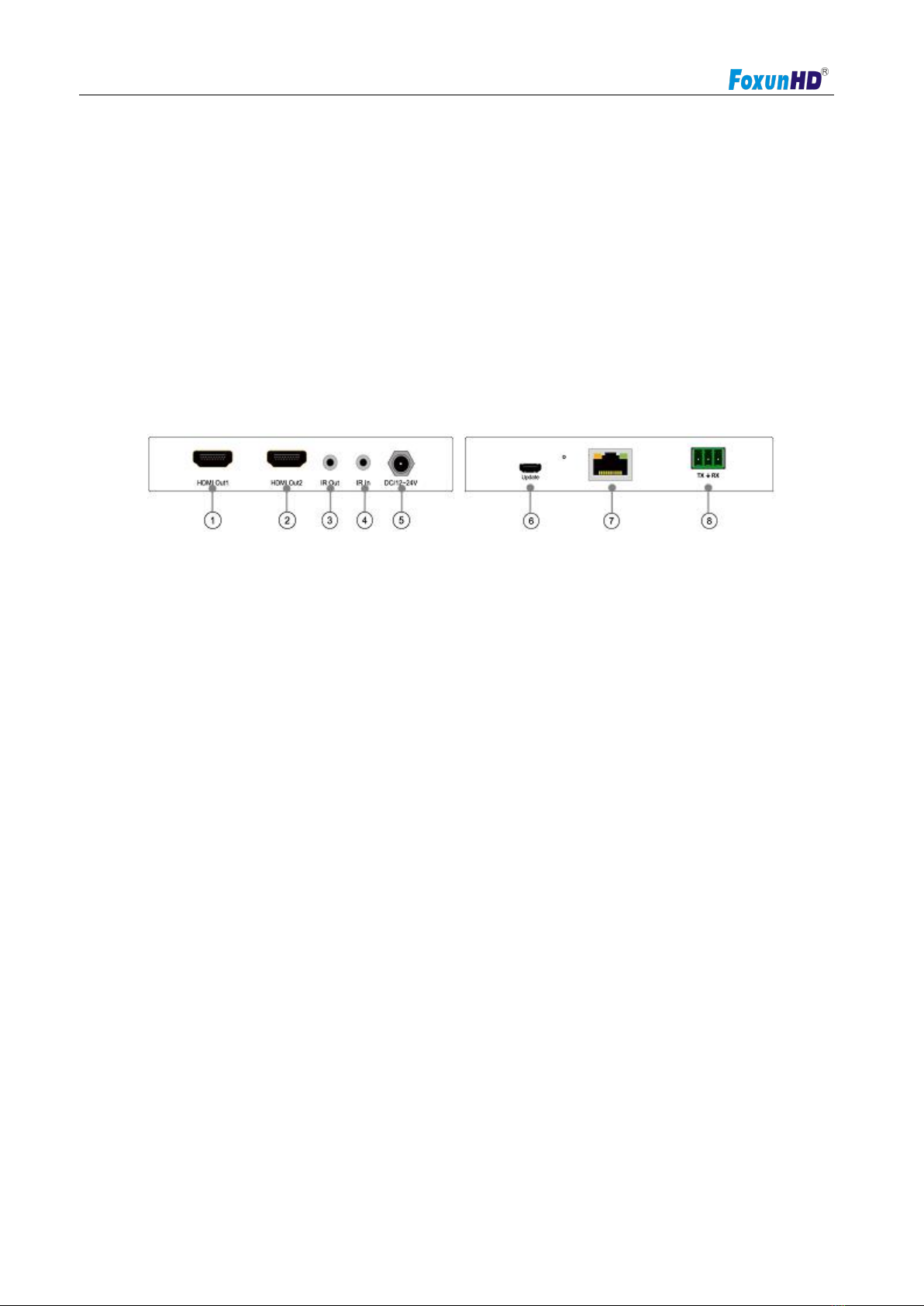

RX
①HDMI Out1: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal
②HDMI out2: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal
③IR Out: Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in
direct line of sight of the equipment to be controlled
④IR In: Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in direct
line-of-sight of the equipment to be controlled.
⑤DC/12-24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet
⑥Update: USB port to update the firmware
⑦CAT5e/6 In : Connect to the transmitter unit with a single CAT5e/6 cable for transmission of all data
signals
⑧RS232 Out: Connect to the device that is to be controlled via phoenix terminal by RS-232 commands
SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and HDMI equipped output display (TV or
monitor)

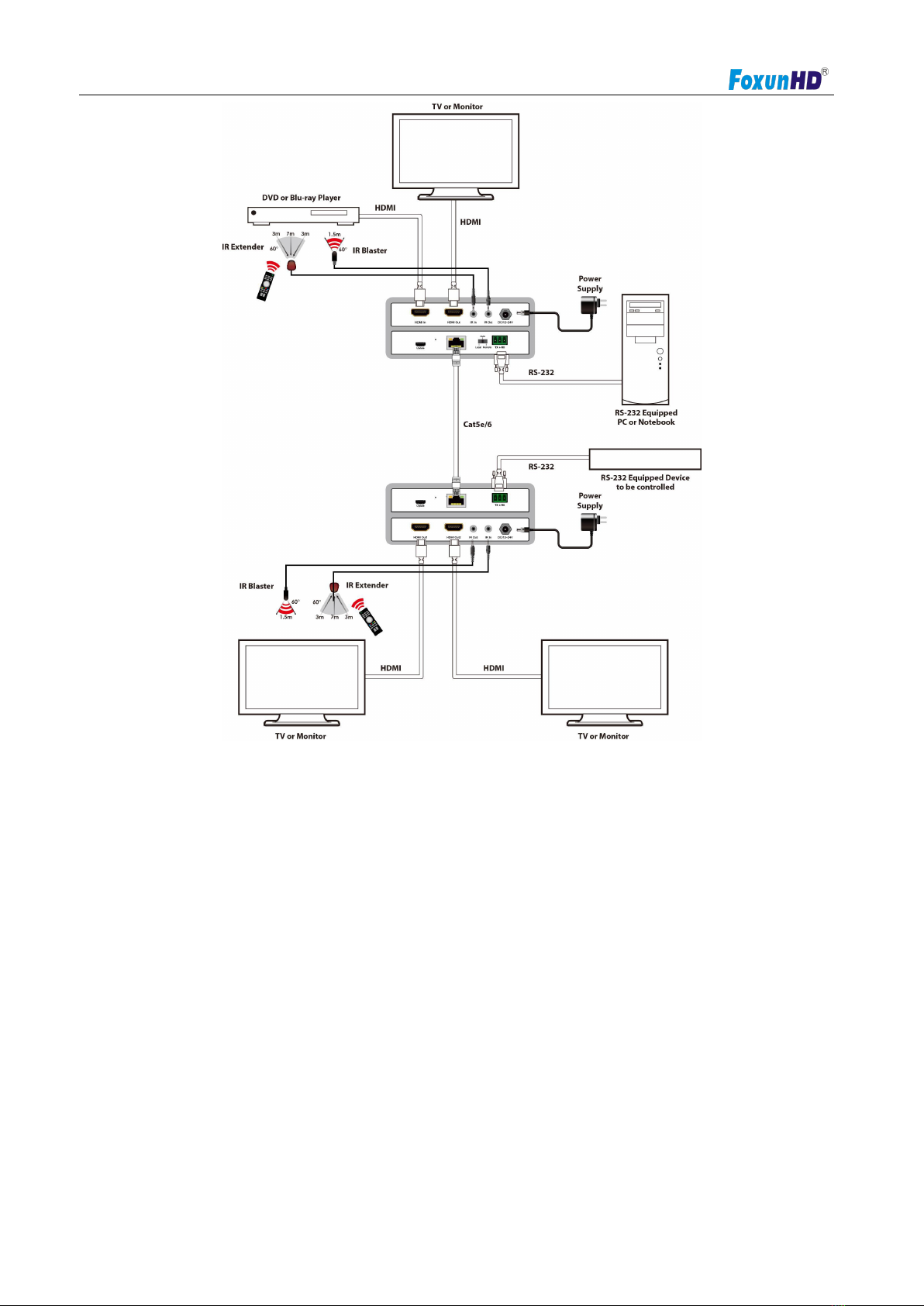

CONNECT AND OPERATE
1) Connect the HDMI signal sources (Such as DVD,Blu-ray Player etc) to HDMI Transmitter.
2) Connect 2 CAT5e or cat6 cables to both the output of the transmitter inputs of the receiver. And note

Operating Instructions
www.foxunhd.com
that the right connection of the two cables
3) Connect the HDMI display 2(Such as TV or Monitor ) into the Receiver.
4) Connect IR-TX cable into IR-RX port on the transmitter,connect RS-232 cable into RS232 port on the
transmitter,connect HDMI cable between transmitter HDMI port with TV or Monitor ;connect IR-TX cable
into IR-RX port on the receiver.
5) Power the supply of transmitter and receiver.
Typical Application
1) Household entertainment sharing and control
2) Lecture room display and control
3) Showroom display and control
4) Meeting room presentation and control
5) Classroom display and control

Operating Instructions
www.foxunhd.com
Attention: 1) Insert/Extract cable gently.
2) Please don’t insert into or pull out HDMI Cable when power on. please connect Cable
only when power is off.
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzene to clean this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;

Operating Instructions
www.foxunhd.com
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating
instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit
is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company
(referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"),
at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a
refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during
the warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by
warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory
Service center or other Authorized Servicer, or damage that is attributable to acts of God.

Operating Instructions
www.foxunhd.com
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images,
data or other recorded content. The items listed are not exclusive, but are for illustration only.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
