Francis Searchlights A7179-L300RC User manual

User Instruction & Installation Manual
LED300 Remote Control
Product Reference Number:
A7179 - L300RC 234w LED Explorer 110/240v
A7194 - L300RC 234w LED Explorer 24v
Manufacturer’s details: Distributor details:
Manual Part Number: C27927
Issue: 3 15.8.19 EC1778
Francis Searchlights Ltd
Union Road, Bolton
Lancashire, BL2 2HJ, UK
Tel: [phone]
Fax: [phone]
http://www.francis.co.uk
E-mail: [e-mail]

CONTENTS
1 - Introduction
2 - Safety Precautions
3 - Technical Information
4 - Unpacking and Installation Instructions
5 - Electrical Installation
6 - Operating Instructions
7 - Fault Finding
8 - Maintenance and Servicing
9 - Wiring Diagram & General Assembly
10 - Spare Parts List

1 - Introduction
It is imperative that this manual is read carefully and understood before
installing your equipment. For your future reference please keep this
manual in a safe place.
Thank you for specifying a product from the Francis Searchlights range. All Francis products
are designed to give complete customer satisfaction and are manufactured to the highest
engineering standards in order to ensure optimum performance and service life.
The Francis LED range combines features proven over many years service in the most
hazardous conditions in both marine and land installations.
In order to prolong the life and performance of your product, we recommend that you only
specify Francis Searchlights spare parts. This will also ensure that any warranties on your
equipment will not be invalidated. Information on spares ordering and parts is provided in this
manual.
Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please
quote the Product Serial Number at all times.
Back To Top

2 - Safety Precautions
The following instructions must be adhered to, in order to ensure a safe working environment
and the safety of the user.
Note: When unpacking or manoeuvring the searchlight into its fixing position, suitable
lifting points must be used in order to prevent damage to the equipment or personal
injury.
◼The high luminance of the LED can cause severe damage to the eye if viewed directly.
ALWAYS wear suitable protective goggles when viewing the LED;
◼Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for
cooling down after turning the searchlight off;
◼Never place anything on or cover the searchlight when in use;
◼Ensure the LED has cooled sufficiently before removal;
◼Due to the vast range of LED modules available it may appear possible that more powerful
LED’s can be used in the equipment than for which it was designed. Even when the unit
will physically accept a higher wattage LED, this substitution is not recommended and is
dangerous. This action will also void any warranties on the equipment.

3 - Technical Information
This product has been designed to operate in accordance with the product specification. The
LED300RC searchlight has the following features:
◼All marine grade materials and fixings;
◼Powder coated & stove enamel paint finish;
◼365° horizontal rotation;
◼Vertical movement +35˚ to -40˚;
◼Variable speed 1-19/sec (Pan), 1-6/sec (Tilt);

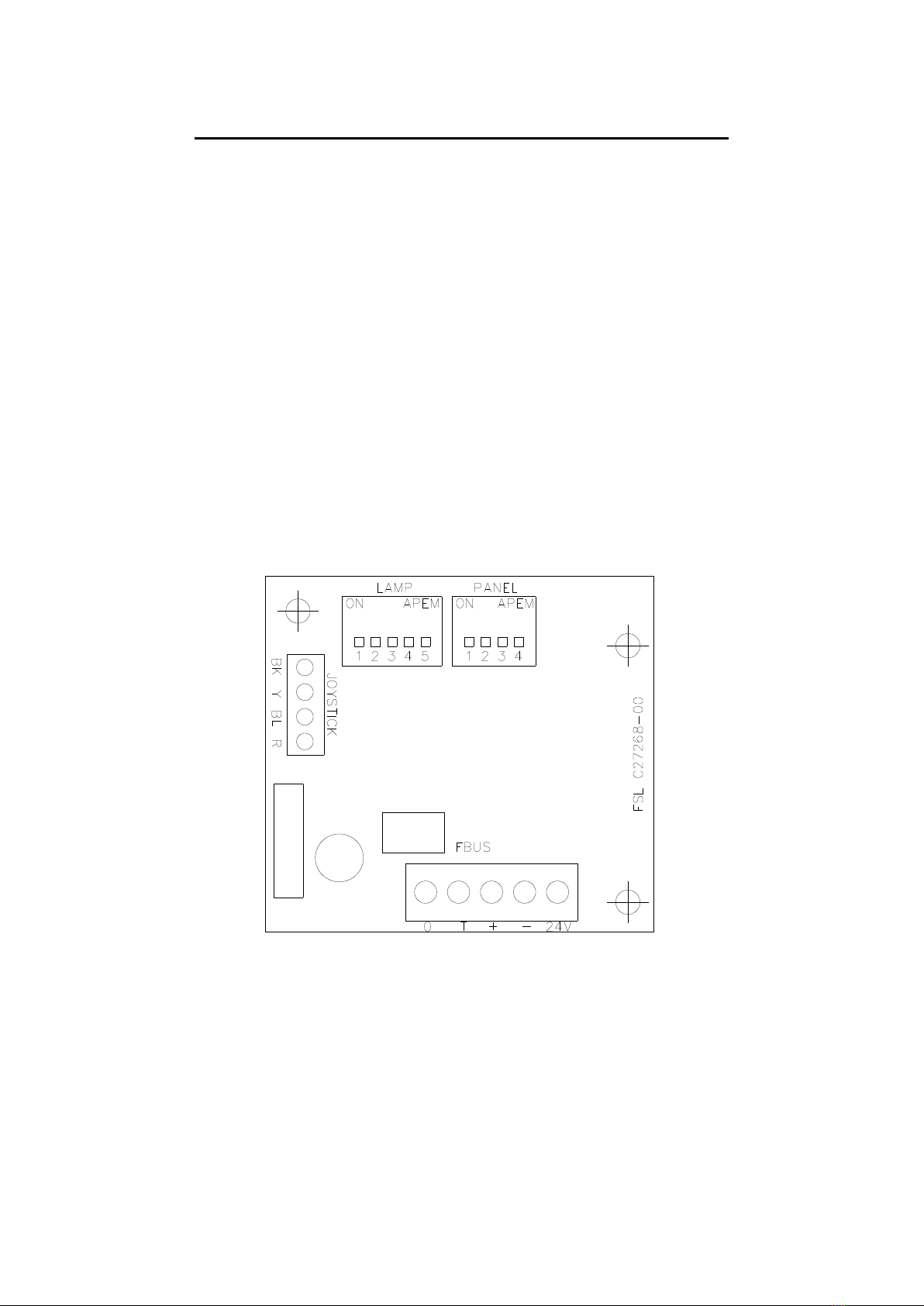

◼RS485 connectivity & auto home positioning;
◼Remote focus facility;
◼Precision made glass lenses;
◼Dimmable LED joystick control panel;
◼Internal heaters.
◼Toughened super clear Optiwhite front glass;
◼Searchlight Weight 37Kg
◼Driver Box Weight 4Kg
◼Sealing IP66 Gearbox, IP56 Searchlight & IP66 Driver box;
The searchlight also performs to the following optical data:
◼Supply voltage 24v or 110/240v
◼Luminous flux 22,800
◼Colour temperature 6000K
◼Range 1876 metres
◼Divergence Spot 4° to Flood 10°
◼Economical 20,000 hour LED life
◼Operational temperature with heater -50°C
In order that the searchlight operates correctly it is imperative that competent personnel are
responsible for the installation, operation and servicing of this equipment. Failure to adhere to
this advice may cause premature failure or incorrect operation of the searchlight, which may
damage the equipment or cause personal injury.
