Francis Searchlights A7150 User manual
User Instruction & Installation Manual
LX480 Remote Control
1 Kilowatt Xenon Searchlight
Product Reference Number:
A7150 –Variable Speed Motor Unit 240v
A7151 –Variable Speed Motor Unit 115v
Manufacturer’s details: Distributor details:
Manual Part Number: C27941
28.9.18 Issue: 1
Francis Searchlights Ltd
Union Road, Bolton
Lancashire, BL2 2HJ, UK
Tel: +44 (0) 1204 558960
Fax: +44 (0) 1204 558979
http://www.francis.co.uk
E-mail: sales@francis.co.uk
1 –Introduction
It is imperative that this manual is read carefully and understood before
installing your equipment. For your future reference please keep this
manual in a safe place.
Thank you for specifying a product from the Francis Searchlights range. All Francis products
are designed to give complete customer satisfaction and are manufactured to the highest
engineering standards in order to ensure optimum performance and service life.
The Francis Xenon range combines features proven over many years service in the most
hazardous conditions in both marine and land installations.
In order to prolong the life and performance of your product, we recommend that you only
specify Francis Searchlights spare parts. This will also ensure that any warranties on your
equipment will not be invalidated. Information on spares ordering and parts is provided in this
manual.
Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please
quote the Product Serial Number at all times.
Back To Top
2 - Safety Precautions
The following instructions must be adhered to, in order to ensure a safe working environment
and the safety of the user.
Note: When unpacking or manoeuvring the searchlight into its fixing position, suitable
lifting points must be used in order to prevent damage to the equipment or personal
injury.
◼Because of the high internal pressure within the lamp, there is a risk of explosion in either a
hot or cold state;
◼During operation this lamp emits intense UV radiation which is harmful to the eyes and
skin. Suitable protection should be worn;
◼The high luminance of the arc can cause severe damage to the eye if viewed directly.
ALWAYS wear suitable protective goggles when viewing the lamp;
◼Always use protective jackets supplied with the lamp;
◼Should it be necessary to examine the lamp with the front bezel removed, always use a
protective shield and wear goggles to ensure a safe working environment;
◼Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for
cooling down after turning the searchlight off;
◼Never place anything on or cover the searchlight when in use;
◼Ensure the lamp has cooled sufficiently before removal;
◼If undue force appears necessary to remove the lamp, the equipment should be inspected
by a competent person or contact the manufacturer;
◼When disposing of lamps there are several options available:
◼Return the lamp, via the supplier, to the lamp manufacturer in its complete
packaging
◼Because of the cold internal pressure of the lamp is approximately 8 bar,
the lamp must first be depressurised before disposal. Place the lamp, in its
protective jacket, in a plastic bag and drop from a height of 1 to 2 metres
onto a hard surface;
◼XBO lamps do not contain materials which are harmful to the environment and thus are not
subject to special waste disposal regulations;
◼Due to the vast range of lamps available it may appear possible that more powerful lamps
can be used in the equipment than for which it was designed. Even when the unit will
physically accept a higher wattage lamp, this substitution is not recommended and is
dangerous. This action will also void any warranties on the equipment.
◼Always refer to the lamp manufacturer’s technical data when dealing with lamps.
Back To Top
3 - Technical Information
This product has been designed to operate in accordance with the product specification. The
LX480RC 1000 watt searchlight has the following features:
◼All marine grade materials and fixings;
◼Electronic power supply unit;
◼Parabolic glass reflector;
◼Instant lamp re-strike. No cooling down time required;
◼Economical 2000 hour lamp life;
◼Powder coated & Stove enamel painted;
◼385° horizontal rotation;
◼Vertical movement + 30˚ to -35˚;
◼Variable speed 1-23˚/sec (Pan), 1-8˚/sec (Tilt);
◼RS485 connectivity & auto home positioning;
◼Remote focus facility;
◼Internal self-regulating heater.
◼Toughened front glass;
◼Sealing to IP56;
The searchlight also performs to the following optical data:
◼Xenon light source;
◼Lamp Wattage - 1000 Watts;
◼Supply voltage –220v-240v or 110v-115v;
◼Peak Beam Candlepower –67,779,546 lux;
◼Range –8,233 metres;
◼Divergence - 1.5° spot to 10˚ flood;
◼Temperature range: -50°C;
In order that the searchlight operates correctly it is imperative that competent personnel are
responsible for the installation, operation and servicing of this equipment. Failure to adhere to
this advice may cause premature failure or incorrect operation of the searchlight, which may
damage the equipment or cause personal injury.

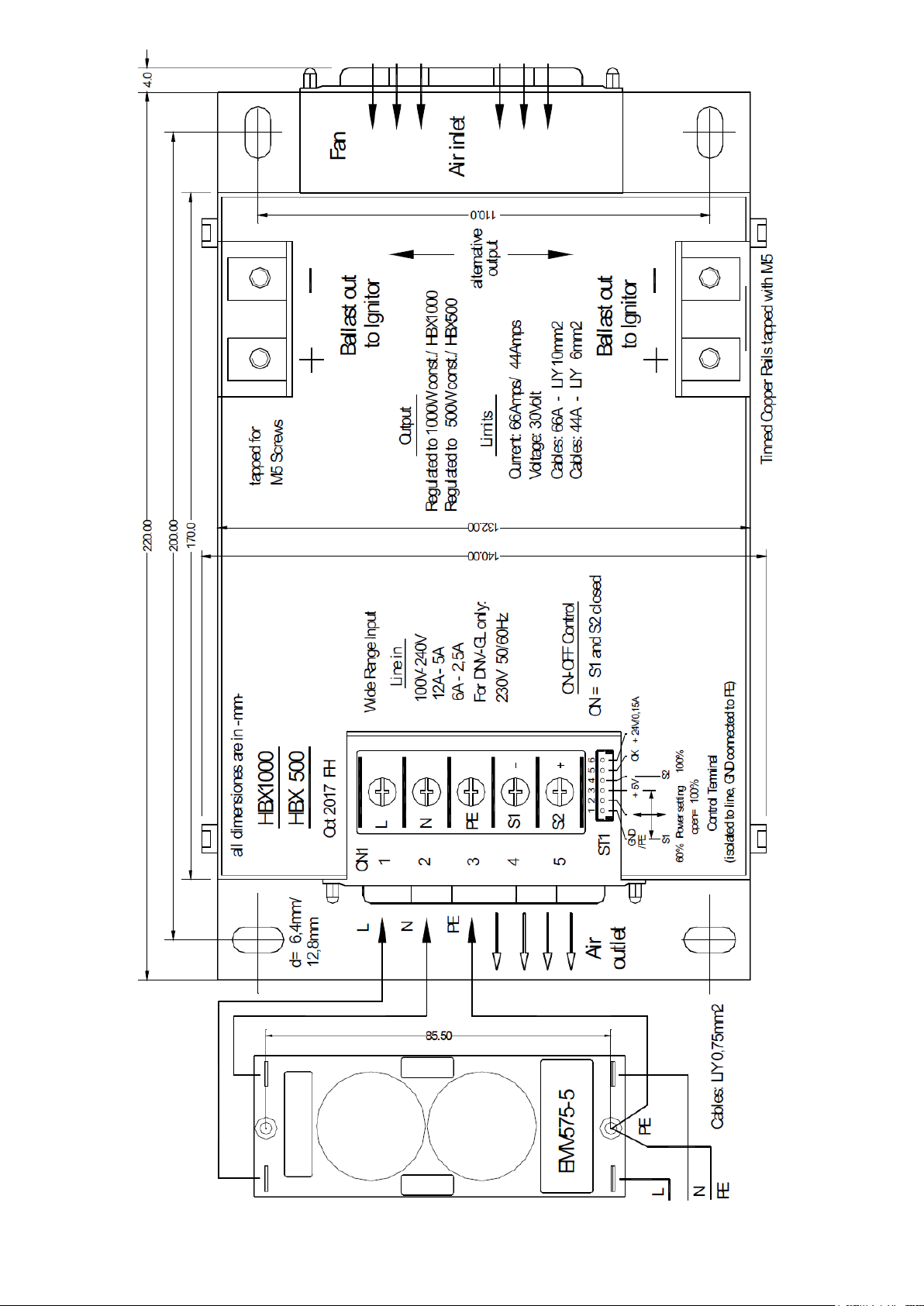

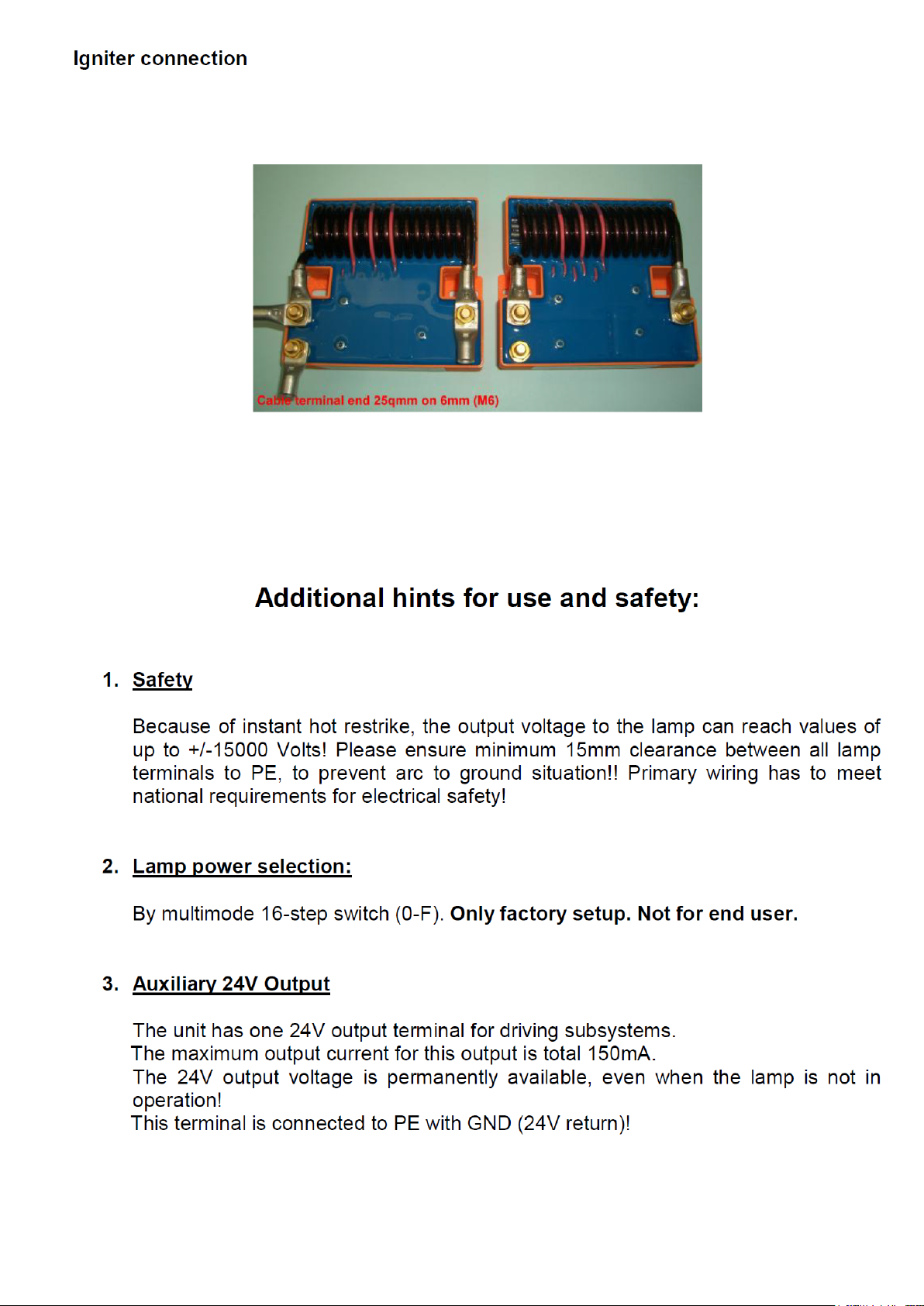

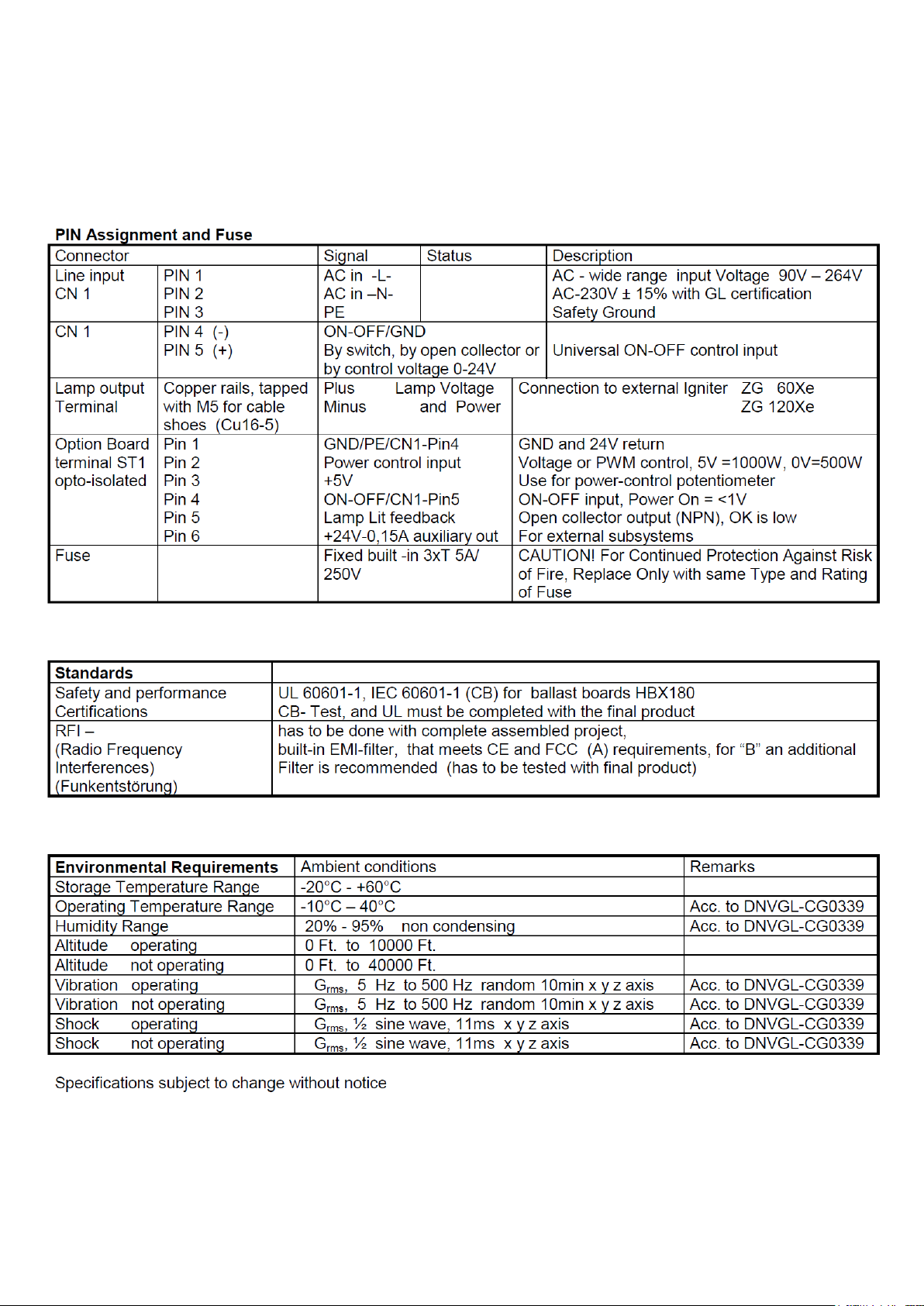

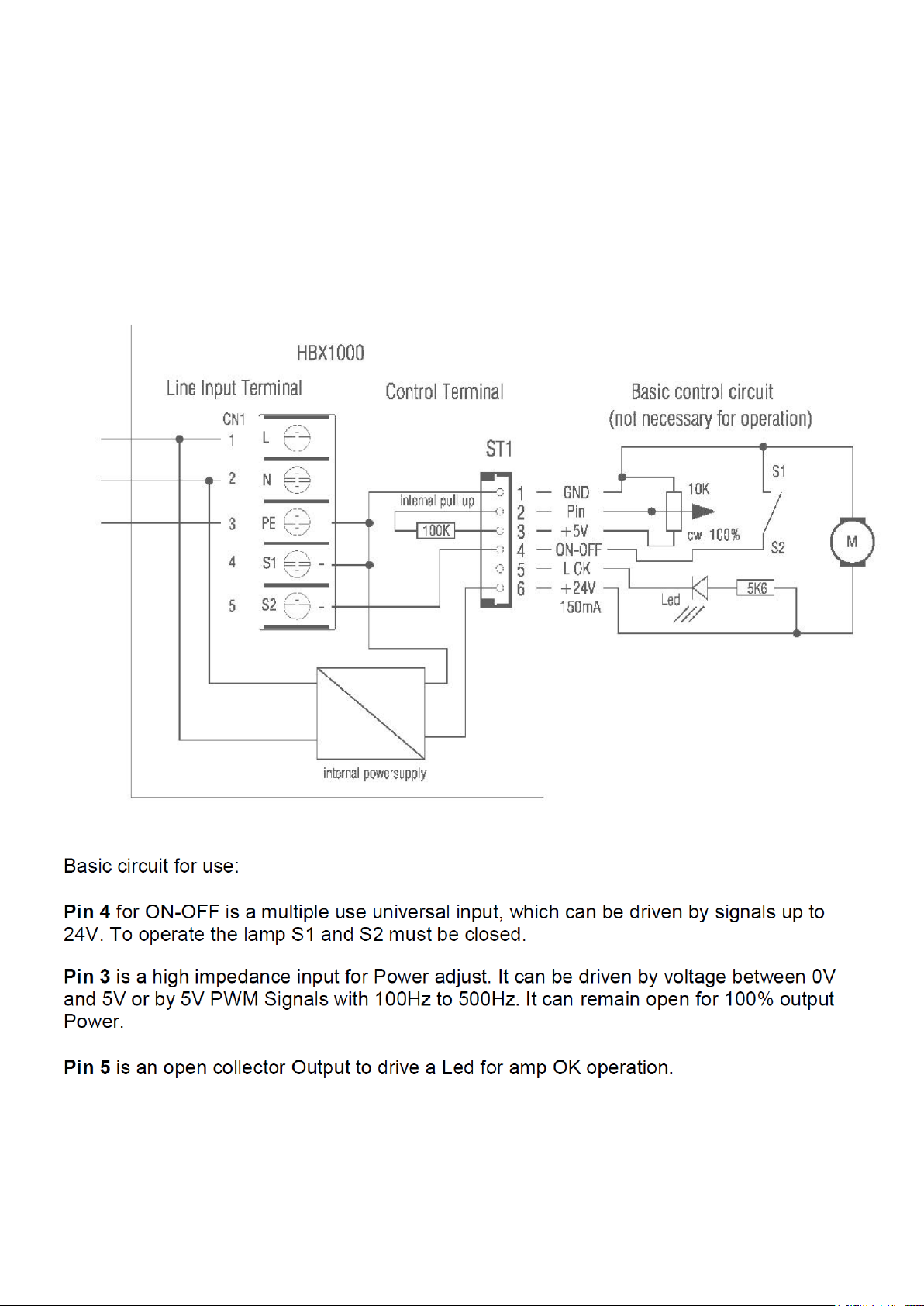

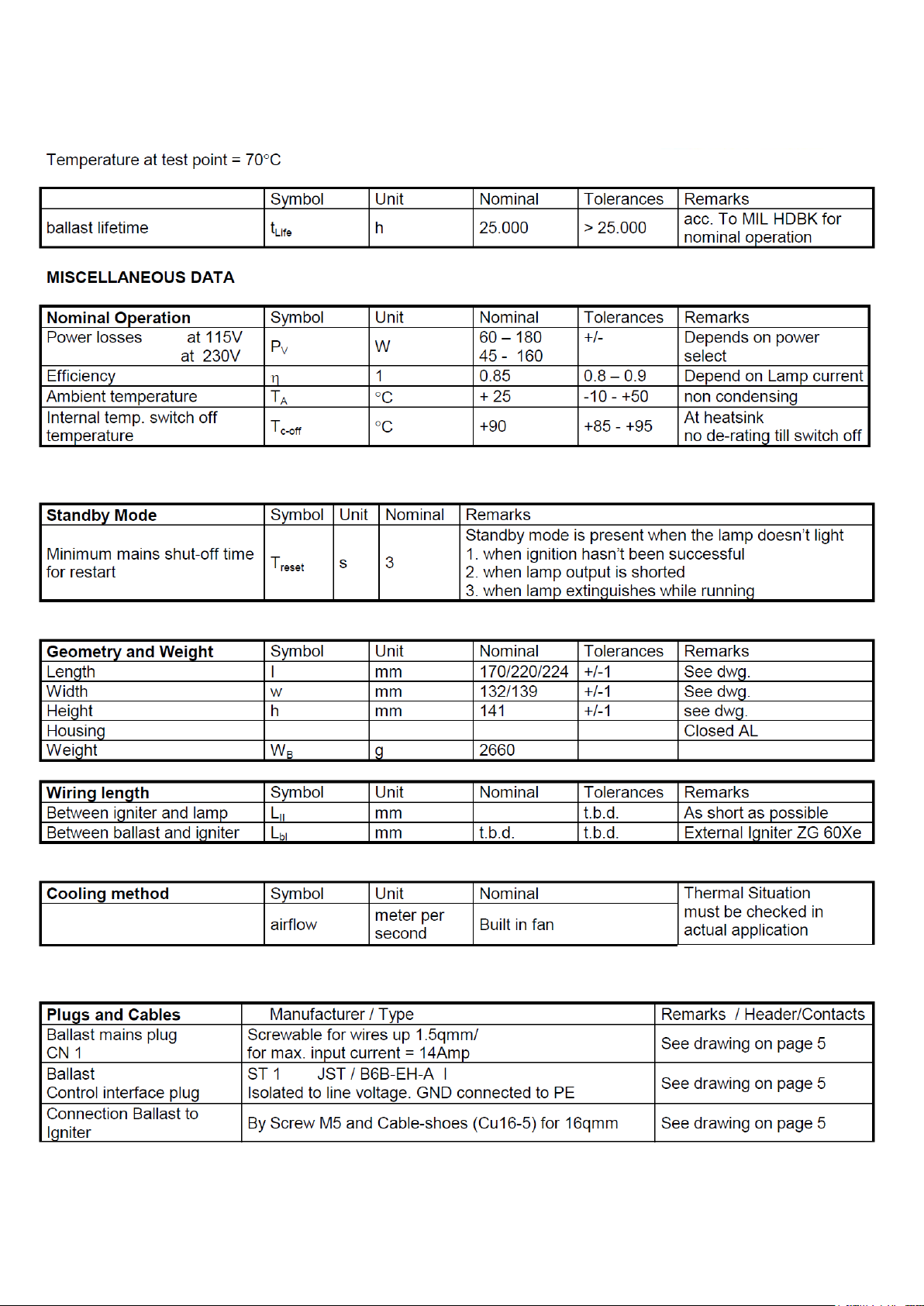

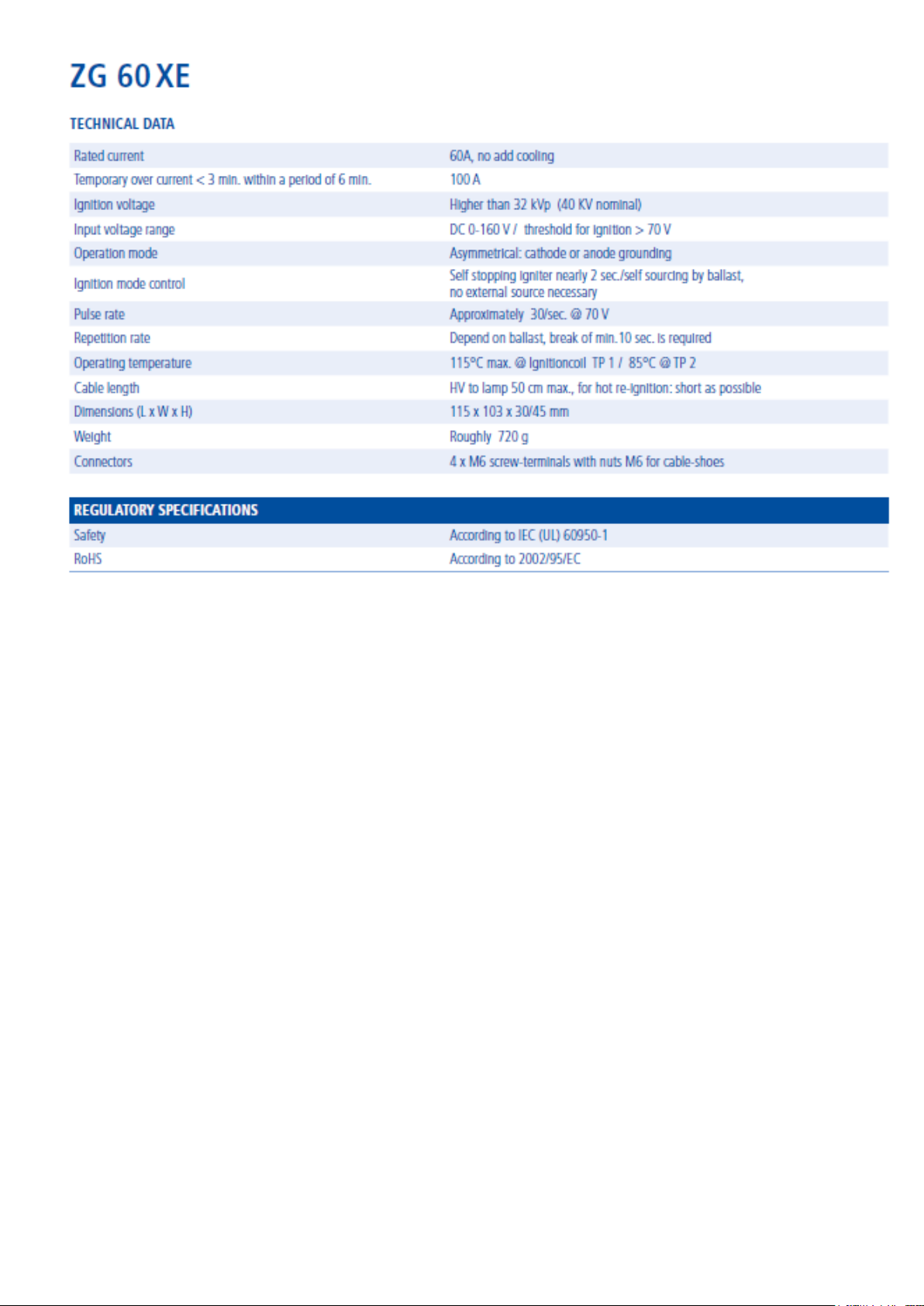

Technical information on the Power Supply Unit and Ignitor are included overleaf. For more
detailed information please contact the manufacturer.
PSU ref.: ECG 1000 XE
Ignitor ref. ZG 100 XE
4 - Unpacking and Installation Instructions
The following instructions should be read and fully understood prior to installing the equipment
to ensure that the correct procedures are followed, and all safety precautions are observed.
Note: If the equipment has been in storage for a considerable amount of time, it is
advisable to conduct a routine maintenance check on all parts before installation.
Safety Precautions
This equipment should not be connected to an electrical supply before being installed.
Installation procedures should be adhered to in order to ensure a safe working environment
and reduce the risk of damage or personal injury.
Preparing the Mounting Position
Mark out and drill the fixing holes through the deck (refer to drawing C21501). If anti-vibration
mounts are to be fitted, the fixing holes for the mounts should also be marked out and drilled.
Prior to manoeuvring the searchlight into its’ fixing position, the AV mounts should be fitted to
the base. When in the desired position, bolt the searchlight firmly down. On an uneven surface
it may be necessary to use a suitable sealant such as silicone, in order to ensure a
weatherproofed joint.
Back To Top
5 - Electrical Installation
Note: ~
When the main power is first applied to the searchlight, the searchlight will carry out a
self-test, it will Pan to the left limit and Tilt down to the limit, once this is complete, the
searchlight will then move to the centre and horizontal, during this please do not try and
operate the searchlight while this test is being carried out. Once the searchlight is back
at centre the searchlight can then be operated normally, by pressing the Panel button on
the control panel.
For safety purposes, only competent personnel should perform the electrical installation. All
equipment should be installed to current Electrical Regulations and Standards.
In order to obtain the maximum light output from the searchlight, it is essential that the full
operating voltage of the lamp fitted be applied to the lampholder contacts.
Method of Electrical Connection
1) Disconnect the supply before working on the electrical system;
2) The searchlight must be connected to a fused electrical supply, using suitably sized cable;
3) If the searchlight is located a considerable distance from the mains supply, provision must
be made in the cable size in order to overcome the voltage drop.
The PSU should NOT be positioned no more then 5 meters away from the searchlight.
The following table below indicates the maximum length of cable to be used for the AC
supply cable:
Searchlight
115v 1Kw
240v 1Kw
Cable Size (mm²)
Distance Max
Distance Max
1.5
17 MTRS
75 MTRS
2.5
28 MTRS
123 MTRS
4
44 MTRS
195 MTRS
6
68 MTRS
304 MTRS
10
115 MTRS
509 MTRS
4) Whenever possible cable terminations should be made below deck and with approved
terminal devices;
5) If a spare auxiliary fuse or circuit breaker is not available, one of the correct type and rating
should be fitted and connected to a positive supply. It is advisable to locate a bus bar or
main connection and avoid any direct connection to the supply:
6) For 110/220v AC products, the following colour coding system should be used for the
customer supply cable:
Brown - Live
Blue - Negative
Green/Yellow - Earth
Note: This equipment must be earthed.
