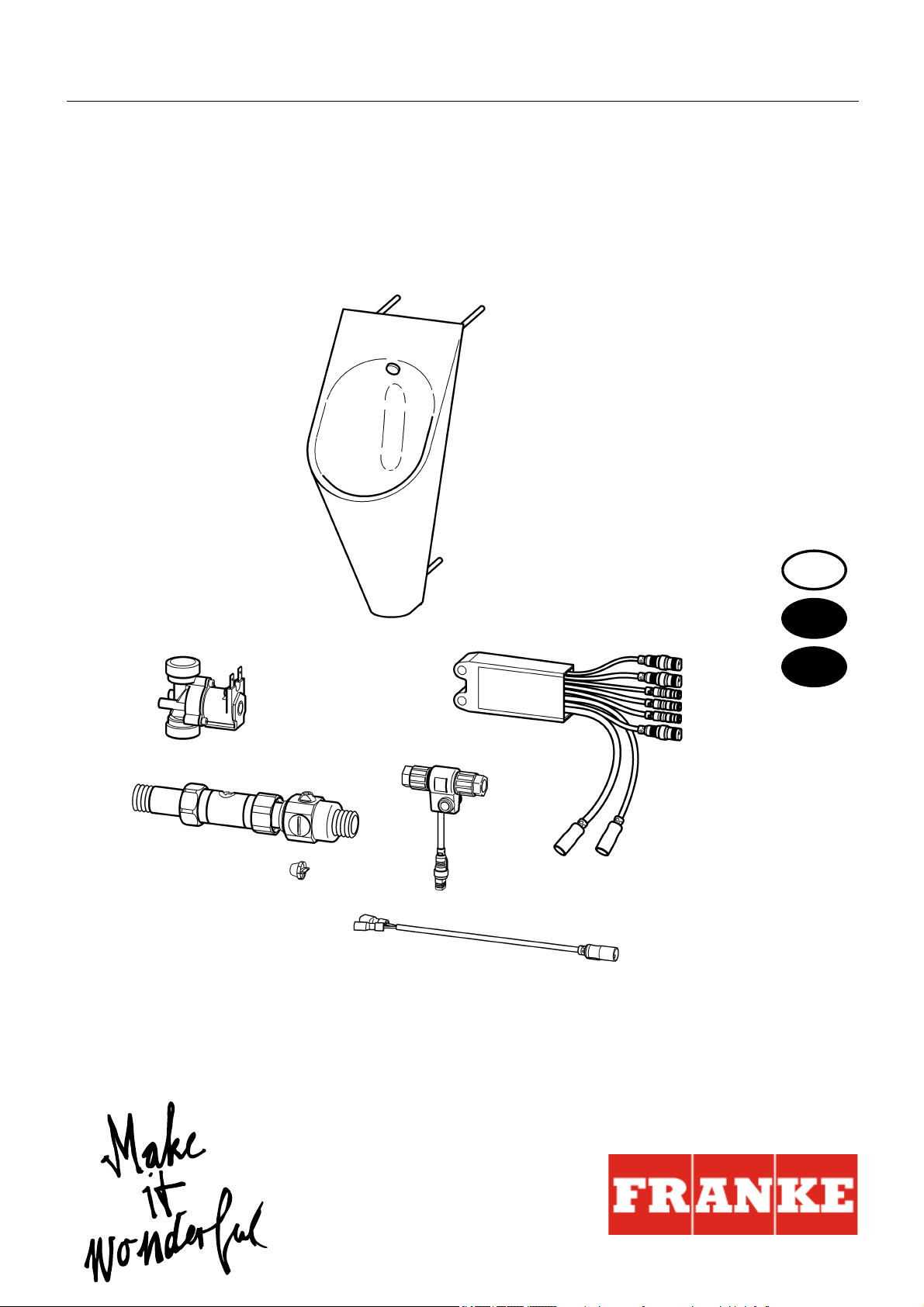

- 3 -
ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
0English
Urinal for wall mounting in car park WC with utility room A3000 open urinal
flush fitting 24 V DC.
Please refer to the graphics in the German Installation and Operating Instructions.
0Table of Contents
1. Abbreviations and units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Important notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of product
5. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
7. ID settings (11200) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
8. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
9. Installation example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly, function and commissioning
10. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
11. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance
12. Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
13. Replacing the filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
14. Replacing the ring sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
15. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
16. Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EN

ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
- 4 -
1. Abbreviations and units
2. Key
Warning!
Failure to observe can result in bodily injury or even death.
Caution!
Failure to observe can result in material damage.
☞Important!
Failure to observe can cause the product to malfunction.
☞Useful information for optimum handling of the product.
3. Warranty
Liability is accepted in accordance with the General Terms and Conditions of
Business and Supply.
Use only original spare parts!
4. Important notes
• Installation, commissioning and maintenance must be performed only by a
qualified expert in accordance with the instructions provided, legal requirements
and recognised engineering standards.
• All technical connection regulations specified by the local water and electricity
supply companies must be observed.
DN Nominal diameter in mm
RCD Residual current protective device,
Earth leakage circuit breaker
SELV Safety extra low voltage
WS Wrench size
EA-Nr. European article number
FAR-Best.-Nr. Franke Aquarotter order number
Conversion 1 mm = 0.03937 inches
1 inch = 25.4 mm
All length specifications in the graphics are in mm.

- 5 -
ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
• The power supply should be switched off before any work is carried out.
• We reserve the right to make changes.
5. Application
A3000 open, non-contact, electronically controlled urinal flush valve, with concealed
triggering via heat ring sensor, in combination design for rear wall installation,
with possibility of external control, such as tap settings and communication via ECC
function controller. The flow time can be set in one-second steps.
6. Technical specifications
7. ID settings (11200)
Urinal / ring sensor / RPE-MV
FUNCTION:
Flush approx. 25 s after start of use. Post flushing 1 sec. after approx. 36 s (to fill the
siphon).
SENSORS:
S2: Channel 1 / ring sensor
ACTUATORS:
A1: Channel 1 / solenoid valve / RPE
Minimum flow pressure: 1.0 bar
Recommended flow pressure: 1-5 bar
Maximum operating pressure: 10 bar
Calculated flow rate: 0.3 l/s
Flushing flow: 0.3-0.7 l/s
Flush water volumes 2–4 l adjustable
Operating voltage: 24 VDC
Power consumption: 7 W
Protection class: Electronics IP 68, solenoid valve IP 40

ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
- 6 -
SETTINGS:
8. Dimensions
9. Installation example
A: Front view
B: Front view wall recess
C: Side view
D: View of utility room
10. Assembly
Warning!
• Operate the product only with safety extra low voltage (SELV). The components
must not be earthed.
• Place the power supply (not part of the delivery scope, see accessories,
Chapter 14) outside the wet area in a separate room.
• Protect the electrical connection with a residual current circuit breaker (RCD).
Failure to observe this instruction can result in death or material damage due to
electric shock or fire, for example.
Range - / - / -
TempSensor 1 action -
TempSensor 2 action -
AquaPay -
Flow Time 8 sec. / - / -
Overrun time - / - / -
Safety shutdown after -
Reflection alarm after -
Concurrence suppression -
Flow time reduction -
Cleaning deactivation 1 min.
Hygiene flush (dynamic) Interval: 24 h/flow time: 10 sec.
Hygiene flush (fixed) Interval: 0 h/flow time: 10 sec.
Power-on flush Delay: 0 sec / flow time: 5 sec.
TD Application Time -
TD water saving function -
TD cooling -

- 7 -
ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
☞Lay the system line (not included in delivery, see Chapter 16.) in the empty pipe
(to be provided by the customer) from the power supply to the fittings and loop
through.
☞Important!
Prior to the assembly process, flush the pipework in accordance with DIN 1988.
Warning!
Only operate taps with the designated filter.
Failure to observe this instruction can result in damage to the tap.
☞To protect the tiles, use masking tape when marking and drilling. Drill at low speed.
☞Depending on the composition of the wall, special wall plugs may have to be used
(to be provided by the customer).
a: Sensor
Installing the electrical T-distributor
☞Important!
The components of the electrical T-distributor may only be installed after the power
has been switched off.
☞For system cable recommendations, see Chapter 12., Accessories.
When using cables other than the system cable, pay attention to the different colour
code. The outer diameter must not exceed 7.5 mm.
10.1 Remove the sheathing (a) of the system cable (approx. 40 mm).
10.2 Push the cap nut (c) onto the system cable (b) up to the limit stop.
☞The various wire guides are marked with numbers 1 to 4.
A: Union nut
B: FAR-Best.-Nr. 2000104272
FAR-Best.-Nr. 2000104274
FAR-Best.-Nr. 2000100801
FAR-Best.-Nr. 2000100852
10.3 Engage the wires (d) on the wire guides (e) according to their colours.
10.4 Cut off the projecting wire ends flush, i.e. without protrusions.
10.5 Push the union nut (c) onto the electrical T-distributor (f) and tighten it to the required
torque (1.2 Nm).
AB
1 brown red
2white white
3 blue blue
4 black black

ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
- 8 -
Caution!
Note the polarity.
The same wire colour must be in the same wire guide for both union nuts.
☞When tightening the union nut, the electrical contact and tension relief are created
automatically.
Special seals act as protection from dust and water.
10.6 Connect the cables between the electronics module, solenoid valve cartridge,
and sensor.
A: Solenoid valve cartridge
B: Actuator 2 (optional)
C:0-10 V analogue output
D:Cold water temperature sensor (optional)
E: Hot-water temperature sensor (optional)
F: Sensor connection 2/3(optional)
G: Sensor
H:Electrical T-distributor system cable (power)
K: Electronic module
10.7 Use a hexagonal wrench to close the water volume regulator.
h: closed
i: open
10.8 Unscrew the locking screw (k) on the water volume regulator.
10.9 Insert the filter (l).
☞Important!
Note the installation position of the filter.
10.10 Open the water quantity regulator.
11. Function
☞The temperature of the liquid placed in the urinal must be higher than the ambient
temperature.
11.1 Use the urinal.
• After approx. 25 seconds, the urinal is flushed for 8 seconds.
• After another second, the urinal is flushed again for 0.5 seconds. This ensures
that the odour seal is filled.
☞An automatic flushing function after 24 hours of non-use has been factory-set.
11.2 You can set the flow time and automatic flush using the system software.

- 9 -
ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
12. Maintenance and care
The tap must be checked and maintained at regular intervals in accordance with the
water quality and the local conditions and rules and regulations applicable at the site
(DIN EN 806-5).
Maintain the following components:
• Filter (see Chapter 16.)
Use suitable cleaning agents which do not attack the tap in a proper manner and
rinse with water after use. High-pressure cleaners must not be used for cleaning.
13. Replacing the filter
Water volume regulator filter
13.1 Unscrew the locking screws (a) on the water volume regulators.
13.2 Replace the filters (b).
☞Important!
Note the installation position of the filters.
13.3 Reassemble in reverse order.
14. Replacing the ring sensor
14.1 Use a hexagonal wrench to close the water volume regulator.
14.2 Disconnect the electronics module from the system cable.
14.3 Disassemble the drain pipe (a).
14.4 Disassemble the drain valve (b) and the ring sensor (c).
☞Before reassembly, apply thermal paste (to be provided by customer) to the ring
sensor evenly. Avoid air transitions around the entire perimeter.
14.5 Reassemble in reverse order.

ZMI_001_2000103385-HDTX538RS_#SEN_#AQU_#V3.fm
- 10 -
15. Troubleshooting
If you cannot rectify a fault or if it is not in the list, please contact our customer
service department!
16. Spare parts
Fault Cause Remedy
Water does not flow – Water volume regulator closed ➯Open it
– Power supply interrupted ➯Restore it
– Water supply interrupted ➯Restore it
– Electronics module faulty ➯Replace it
– Solenoid valve faulty ➯Replace it
Water flows
continuously
– Dirty solenoid valve ➯Clean it
– Solenoid valve faulty ➯Replace it
Water volume too low – Supply pressure too low ➯Check it
– Dirty filter ➯Clean it
– Water volume regulator not fully
open
➯Open it
Accessories Order No.
ECC2 function controller (60 W)
with Ethernet connection . . . . . . . 2000108123
Power pack (12 W) . . . . . . . . . . . . . . 2000100375
Power pack (60 W) . . . . . . . . . . . . . . 2030027537
System cable for continuous
use in water,
Halogen-free 100 m . . . . . . . . . . . 2000104272
Halogen-free 25 m . . . . . . . . . . . . 2000104274
System cable,
Not halogen-free 100 m . . . . . . . . 2000100801
Not halogen-free 25 m . . . . . . . . . 2000100852
Description Order No.
1 Electronics module M1. . . . . . . . . . . . 2030051833
2 24 V DC solenoid valve . . . . . . . . . . . 2000104454
3 Filter (packaging unit 10x) . . . . . . . . . 2000104749
4 Ring sensor . . . . . . . . . . . . . . . . . . . . 2000109506
Mounting kit consisting of:
Filter
O-ring
Seals. . . . . . . . . . . . . . . . . . . . . . . 2000104872
