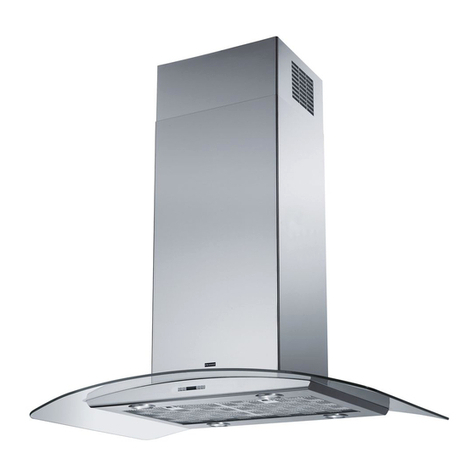

Franke FGC 906 I XS ECS Operation manual

Instructions for use and installation
Cooker Hood
Vejledning for installation brug og vedligeholdelse
Emhætte
Handbok för installation användning och underhăll
Köksfläkt
Håndbok for installasjon bruk og vedlikehold
Kjøkkenvifte
Asennu
s
-
, k
äyttö
-
ja hoito
-
opas
Liesituuletin
FGC 906 I XS ECS
GB
DK
SE
NO
FI

EN
2
2
Instructions Manual
INDEX
RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................7
CHARACTERISTICS..............................................................................................................................................................8
INSTALLATION....................................................................................................................................................................10
USE.......................................................................................................................................................................................14
MAINTENANCE....................................................................................................................................................................15
EASYCLEANINGTM............................................................................................................................................................16

DK
3
3
Brugsvejledning
INDHOLD
RÅD OG ANVISNINGER......................................................................................................................................................19
APPARATBESKRIVELSE....................................................................................................................................................20
INSTALLATION....................................................................................................................................................................22
BRUG....................................................................................................................................................................................26
VEDLIGEHOLDELSE...........................................................................................................................................................27
EASYCLEANINGTM............................................................................................................................................................28

SE
4
4
Bruksanvisning
INNEHÅLL
REKOMMENDATIONER OCH TIPS....................................................................................................................................31
EGENSKAPER.....................................................................................................................................................................32
INSTALLATION....................................................................................................................................................................34
ANVÄNDING.........................................................................................................................................................................38
UNDERHÅLL........................................................................................................................................................................39
EASYCLEANINGTM............................................................................................................................................................40

NO
5
5
Bruksanvisning
INNHOLD
ANBEFALINGER OG FORSLAG.........................................................................................................................................43
EGENSKAPER.....................................................................................................................................................................44
INSTALLASJON...................................................................................................................................................................46
BRUK....................................................................................................................................................................................50
VEDLIKEHOLD.....................................................................................................................................................................51
EASYCLEANINGTM............................................................................................................................................................52

FI
6
6
Käyttöopas
SISÄLTÖ
SUOSITUKSET JA EHDOTUKSET .....................................................................................................................................55
MITAT JA OSAT...................................................................................................................................................................56
ASENNUS.............................................................................................................................................................................58
KÄYTTÖ................................................................................................................................................................................62
HUOLTO...............................................................................................................................................................................63
EASYCLEANINGTM............................................................................................................................................................64

EN
7
7
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extrac-
tor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guaran-
tees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combus-
tion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust
gas. The kitchen must have an opening communicating directly with
the open air in order to guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben de-
signed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,
making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: over-
heated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• The hood should not be used by children or persons not instructed in
its correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carry-
ing out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
650 mm min.

EN
8
8
CHARACTERISTICS
Dimensions

EN
9
9
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
9 1 Reducer Flange ø150-120 mm
10 1 Flange ø 150
10a 1 Dumper ø 150mm
15 1 Air Outlet Connection
24 1 Junctionbox
25 2 Pipe clamps
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 6 Screws 2,9 x 6,5
12e 2 Screws 2,9 x 9,5
12f 4 ScrewsM6 x 10
12g 4 Screws M6 x80
12h 4 Screws 5,2 x 70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual
12c
7.1a
7.1
22
23
12h
7.1b
2
2.1
2.2
12c
11
21
12g
1
12f
24
12e
15
12c
25
10
9
1
10a

EN
1
0
10
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN
1
1
11
FIXING THE frame
• Loosen the two screws fastening the lower chimney and re-
move this from the lower frame.
• Loosen the two screws fastening the upper chimney and re-
move this from the upper frame.
If you wish to adjust the height of the frame, proceed as follows:
• Unfasten the eight metric screws joining the two columns, lo-
cated at the sides of the frame.
• Adjust the frame to the height required, then replace all the
screws removed as above.
• Insert the upper chimney stack from above, and leave it run-
ning free on the frame.
• Lift up the frame, fit the frame slots onto the screws up to the
slot end positions.
• Tighten the two screws and fasten the other two screws pro-
vided with the hood.
Before tightening the screws completely it is possible to adjust
the frame by turning it. Make sure that the screws do not come
out of their seats in the slotted holes.
• The frame mountings must be secure to withstand the weight
of the hood and any stresses caused by the occasional side
thrust applied to the device.
On completion, check that the base is stable, even if the frame
is subjected to bending.
• In all cases where the ceiling is not strong enough at the sus-
pension point, the installer must provide strengthening using
suitable plates and backing pieces anchored to the structurally
sound parts.
22
11

EN
1
2
12
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe the choice of which
is left to the installer.
To install a ø 150
• To install the dumper 10a ø 150.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
To install a ø 120
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the dumper 10a.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove any activated charcoal filters.
ø 120
25
9
10a
10a
ø 150
25
Recirculation version air outlet
• Fix the connection 15 to the frame using the 4 screws pro-
vided.
• Fix the flange 10 to the lower opening of the connection 15.
• Connect the hood air outlet to the flange in the lower part of
the junction using a rigid or flexible ø 150 tube (by installer’s
choice).
15
10

EN
1
3
13
Flue assembly - Mounting the hood body
• Position the upper chimney section and fix the upper part to the
frame using the 2 screws 12c (2,9 x 6,5) provided.
• Similarly, position the lower chimney section and fix the
lower part to the frame using the 2 screws 12c (2,9 x 6,5) pro-
vided.
Before fixing the hood body to the frame:
• Remove the grease filters from the hood body.
• Remove any activated charcoal filters.
• From below, use the 4 screws 12f (M6 x 10)provided to fix the
hood body to the frame.
12f
12c
12c
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
• Connect the control connector Cmd.
• Connect the lights connector Lux.
• Place the connectors in the junction box 24 and close it using
the 2 screws 12e (2,9 x 9,5) provided.
• Fix the junction box to the hood body using the 2 screws 12c
(2,9 x 6,5) provided.
• For the recirculation version, fit the activated carbon odour fil-
ter.
• Replace the grease filters.
24
12e
Cmd
12c
Lux

EN
1
4
14
USE
T 1 T 2T3 T 4 T 5 L
Control panel
TOUCH CONTROL FUNCTION
T1 ON/OFF Motor Switches the hood motor on and off. The latest selected
speed appears on the display.
T2 Speed - Decreases the suction speed: V3 →V2 →V1
T3 Speed + Increases the suction speed: V1 →V2 →V3
T4 Intensive speed Activates the intensive speed from any previously selected
speed. The intensive speed can be activated even when the
motor is OFF. By pressing the same touch control once again
or by switching off the motor this function can be deacti-
vated. Intensive speed cannot be activated when the delay
function is on. Intensive speed has been timed at 10 minutes:
Happears on the display and a spot down on the right side
flashes once a second. After 10 minutes the system activates
automatically the latest selected speed.
T5 Delay Activates and deactivates the delayed shutdown of the hood
(motor + lighting) at 30 minutes: the selected speed of the
hood appears on the display and a spot down on the right
side flashes once a second. By pressing the same touch con-
trol once again or by switching off the motor delay function
can be deactivated.
L Lighting Turns light on and off.

EN
1
5
15
MAINTENANCE
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
• The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
• Remove the filters one at a time holding them up with one
hand and pulling the handle downwards with the other hand at
the same time.
• Wash the filters, taking care not to bend them. Allow them to
dry before refitting.
• When refitting the filters, make sure that the handle is visible
on the outside.
Activated charcoal filter (Recirculation version)
REPLACING THE ACTIVATED CHARCOAL FILTER
• The filter is not washable and cannot be regenerated, and
must be replaced approximately every 4 months of opera-
tion, or more frequently for particularly heavy usage.
• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the
fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the metal grease filters.
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the snap-on lamp cover by levering it from under the
metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling
gently.
• Replace the lamp with a new one of the same type, making
sure that you insert the two pins properly into the housings on
the lamp holder.
• Replace the snap-on lamp cover.

EN
1
6
16
EASY CLEANING TM
Removing the Grease Filters
Before carrying out Maintenance on the E-
ASY CLEANING Suction Unit:
• Disconnect the hood by switching off the
twopole switch on the mains power supply
line, or by switching off the main power
switch.
• Remove the grease filters from the hood.
• If the hood is of the recirculation type, re-
move the odour filters:
• For hoods with a flat cartridge (A): turn the
fastening elements provided;
• For hoods with a bayonet cartridge (B):
turn as indicated and extract.
Disconnecting the EASY CLEANING Suction Unit
• Disconnect the power connector Ca and the
control and lighting connector Cmd on the
sides of the unit.
• For wall-mounted hoods and free-standing
hoods with square chimney, turn the levers
Lb locking the suction unit, so that they di-
sconnect from the pins.
• For free-standing hoods with round chim-
ney, unscrew the plugs Vb locking the suc-
tion unit.
• Pull the suction unit forwards so that it un-
hooks from the support pins, and remove it
downwards through the air outlet.
CmdCa
Lb
Vb
A
B

EN
1
7
17
Dismantling Washable Parts
• To remove the side grilles protecting the
fans, lift up the stop tooth using a knife or
screwdriver and turn the grilles in the direc-
tion indicated by the arrow.
• Grasp the fans in the holes provided and
pull to extract.
CLEANING
• Wash the fans and the protection grilles,
using normal washing-up liquid. These e-
lements can also be washed in the dish-
washer.
• Using a damp cloth and a suitable deter-
gent, clean the body of the suction device,
taking great care not to allow any water to
leak into the inside of the unit or into the
connector housings.
• Leave until completely dry bifore reassem-
bling.
• Using a brush, clean the air outlet pipe as
far as you can reach.
FREE
LOCK
O
P
E
N

EN
1
8
18
REASSEMBLY
N.B. To avoid reassembling the wrong way
round, the two fans have different couplings.
• Reassemble the fans on the corresponding
pins, pressing them until they snap into
place.
• Fit the protection grilles so that the teeth
coincide in the “FREE” position and when
turned to “LOCK”.
• Replace the EASY CLEANING suction
unit on the hood, inserting it in position and
connecting it to the support pins.
• Turn the lock levers, or screw in the lock
plugs.
• Connect the power connector and the
command connector to the sockets on the
sides of the suction device.
• Replace any activated charcoal odour fil-
ters.
• Replace the grease filters.
• Connect the hood to the power supply sys-
tem, by turning the two-pole switch on the
mains power line to on, or by turning the
main switch on.
• Check that the hood is working properly,
by turning the motor and lighting on.
LOCK
O
P
E
N
FREE

DK
1
9
19
RÅD OG ANVISNINGER
INSTALLATION
• Producenten kan ikke holdes ansvarlig for eventuelle skader, der
skyldes ukorrekt ellerforkert installation.
• Den mindst tilladelige sikkerhedsafstand mellem komfurets top og
emhættens underside er 650 mm.
• Kontrollér, at lysnetspændingen er den samme som den spænding,
der er angivet mærkepladen, der sidder på inde i emhætten.
• For Klasse I apparater skal det også kontrolleres, at elforsyningen er
forsynet med jord.
• Emhætten kobles til aftrækskanalen ved hjælp af et rør med en min.-
diameter på 120 mm. Afstanden fra emhætten til kanalen skal være
så kort som mulig.
• Emhætten må ikke tilsluttes en kanal, der fører forbrændingsgasser
ud i det fri (oliefyr, brændeovne etc.).
• Hvis emhætten skal anvendes i forbindelse med ikke-elektriske appa-
rater (f.eks. gaskomfur, gaskogeblus), skal det sikres, at lufttilgangen
til rummet er tilstrækkelig, så aftræksgasserne ikke slår tilbage. Køk-
kenet skal have en åbning, der har direkte forbindelse til det fri, så der
er sikret en tilstrækkelig mængde ren luft.
ANVENDELSE
• Emhætten er udelukkende beregnet til at fjerne em og lugte i køkke-
ner i private husholdninger.
• Emhætten må kun anvendes til det formål, hvortil den er konstrueret.
• Der må ikke forekomme høj åben ild under emhætten, mens den an-
vendes.
• Justér brænderen, så flammerne er rettet direkte mod bunden af pan-
den/gryden – de må ikke nå ud over kanten af bunden.
• Frituregryder skal under brug holdes under konstant opsyn: kogende
varm olie kan sprøjte ind i flammerne.
• Emhætten må ikke anvendes af børn og personer, som ikke ved,
hvordan den betjenes.
• Apparatet er ikke beregnet til at skulle anvendes af mindre børn eller
svækkede personer uden opsyn.
• Undlad at flambere retter under emhætten; der opstår ellers brandfa-
re.
• Mindre børn skal holdes under opsyn for at sikre, at de ikke leger med
apparatet.
VEDLIGEHOLDELSE
• Inden apparatet skal vedligeholdes eller rengøres, skal der slukkes for
det eller stikket skal tages ud af stikkontakten.
• Rengør og/eller udskift filtrene iht. det angivne tidinterval.
• Rengør emhætten ved hjælp af en fugtig klud og et neutralt flydende
rengøringsmiddel.
650 mm min.

DK
2
0
20
APPARATBESKRIVELSE
Dimensioner
