Freespirit C 249 29279 0 User manual

C 249 29279 0
OWNER’S MANUAL
ASSEMBLY‧OPERATION‧MAINTENANCE
WARRANTY‧PART ORDERING
CAUTION:Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied as they
relate to the equipment.
IMPORTANT:Read all instructions carefully before using this product. Retain this owner’s
manual for future reference.
SEARS CANADA INC.
‧ TORONTO , ONTARIO M5B 2B8

1 ©2011
TABLE OF CONTENTS
Warranty………………………………. 2
Safety Precautions………………… 3
Hardware Bag Check List………… 4
Assembly Instruction……………… 5
Treadmill & Monitor Operation…… 6-11
Folding Instruction…………………… 12
Parts list………………………………. 13-16
Overview Drawing………………….. 17-18
Trouble Shooting……………………. 19
Maintenance ………………………… 20-23
Training guidelines………………….. 24-27
Stretching……..………………………. 28-29
Ordering Replacement parts ………. 30
Service and Parts ……………………. 31

2 ©2011
IMPORTANT SAFETY INFORMATION
THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL
CAUTION: Before starting any exercise program, it is recommended that you consult your physician.
WARNING: Connect this unit to a properly grounded outlet only.
DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet
immediately after using and before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Use 120 volt a.c. household current on a dedicated circuit.

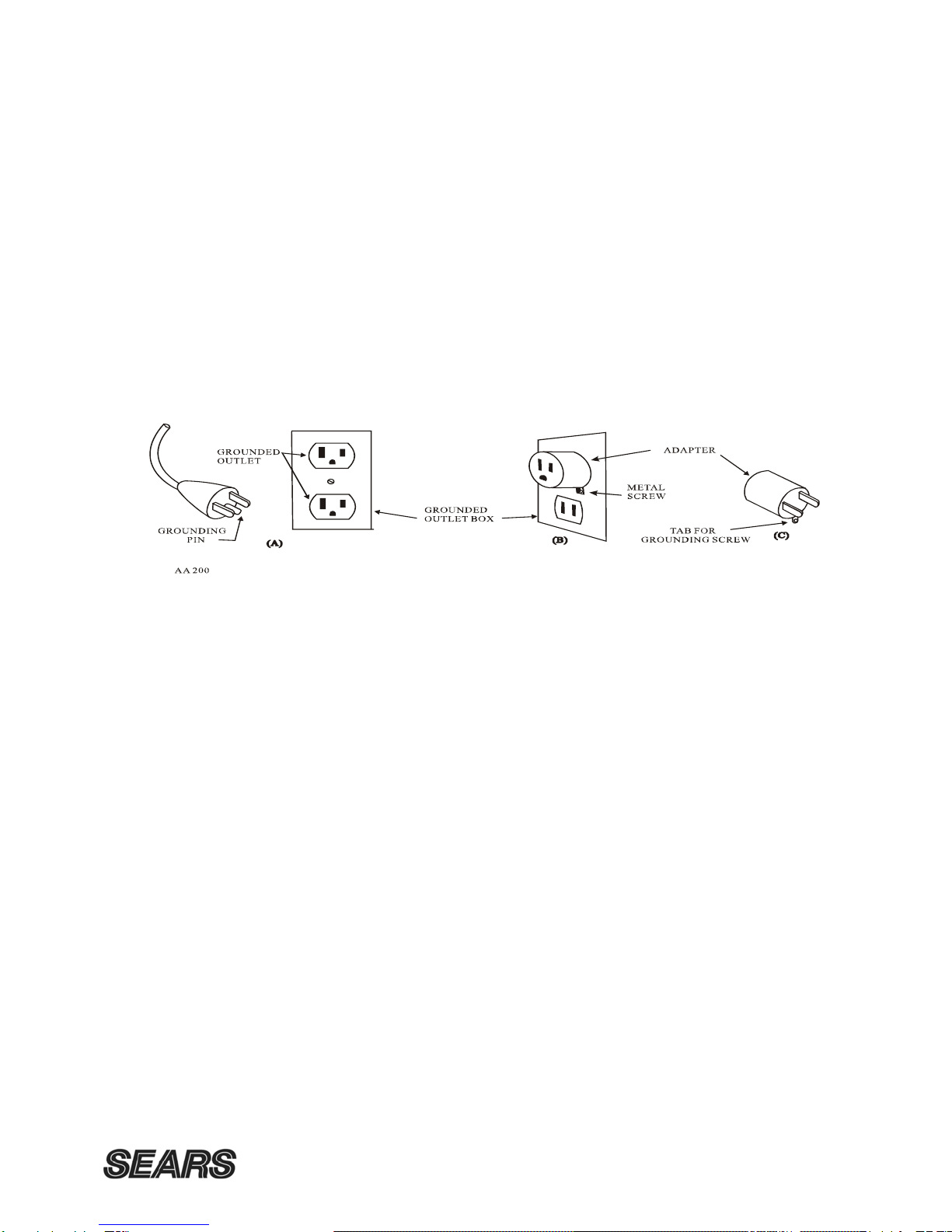

Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
See diagram below for grounding methods.
2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and
precautions.
3. The use of an extension cord with this product is not recommended. If an extension cord is needed, use a short (less than
10 feet) heavy gauge (14 gauge or better) extension cord with a three prong (grounded) plug and receptacle.
4. Never leave the treadmill unattended when plugged in. Remove the safety key and unplug the unit from the outlet when not
in use and before removing or replacing parts.
5. Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged,
or exposed to water. Never move the treadmill belt while the power is turned off.
6. Do not pull the treadmill by the power supply cord or use cord as a handle. Keep cord away from heated surfaces and open
flames.
7. Fitness equipment must always be installed and used on a flat surface. Do not use outdoors or near water. Do not place
the unit on a loose rug or uneven surface. It is recommended to use an equipment mat to prevent the unit from moving
while it is being used, which could possibly scratch or damage the surface of your floor. It is recommended to have a
minimum of 3 metres safe clearance on all sides of the treadmill while in use.
8. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage, covered patio or near
water.
9. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
10. Read, understand and test the emergency stop procedure before using the treadmill (see operation and adjustment on page
11)
11. Do not insert any objects into any openings.
12. Inspect and properly tighten all parts of the treadmill regularly.
13. Keep children and pets away from this equipment at all times while exercising.
14.Handicapped individuals should have medical approval and close supervision when using this treadmill.
15. Do not place hands or feet under the treadmill. Always keep hands and legs off of the treadmill when others are using it.
16. Never turn on treadmill while standing on treadbelt. Always hold the handrails while using the treadmill. Always return
the treadmill to the slowest speed to provide for safe dismount and low speed restart.
17. To disconnect, turn all controls to the off position, then remove plug from outlet.
18.Do not attempt to raise, lower or move the treadmill until it is properly assembled. See assembly on page 5 and to fold and
move the treadmill on page 16. Care must be taken when lifting or moving the equipment, so as not to injure your back.
Always use proper lifting techniques. You must use any attachments that are not recommended by the manufacturer.

3 ©2011
19. Use the treadmill only for its intended use as described in this manual. Do not use any attachments that are not
recommended by the manufacturer.
20. User weight should not exceed 285 lbs (130 kg).
21. Never allow more than one person on the treadmill at once.
22. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward. This allows your heart rate to
gradually increase and decrease and will help prevent straining muscles.
23. Never hold your breath while exercising. Breathing should remain at a normal rate in conjunction with the level of
exercise being performed.
24. Start your program slowly and very gradually increase your speed and distance.
25. Always wear suitable clothing and footwear while exercising. Do not wear loose fitting clothing that could become
entangled with the moving parts of your treadmill. Do not walk or jog barefoot, in stocking feet or loose fitting shoes or
slippers.
26. This treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental or institutional setting.
▲WARNING: Before beginning any exercise program consult your physician. This is especially important for individuals
over the age of 35 or persons with pre-existing health problems. Read all instructions before using any fitness equipment. We
assume no responsibility from personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

4 ©2011
Before you begin.
Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product we
produce, occasional errors and /or omissions do occur. In any event should you find this product to have either a
defective or a missing part please contact us for a replacement.
This product has been designed for home use only. Product liability and guarantee conditions will not be applicable
to products being subjected to professional use or products being used in a gym center.
This exercise equipment was designed and built for optimum safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before assembly and operation of
this machine.

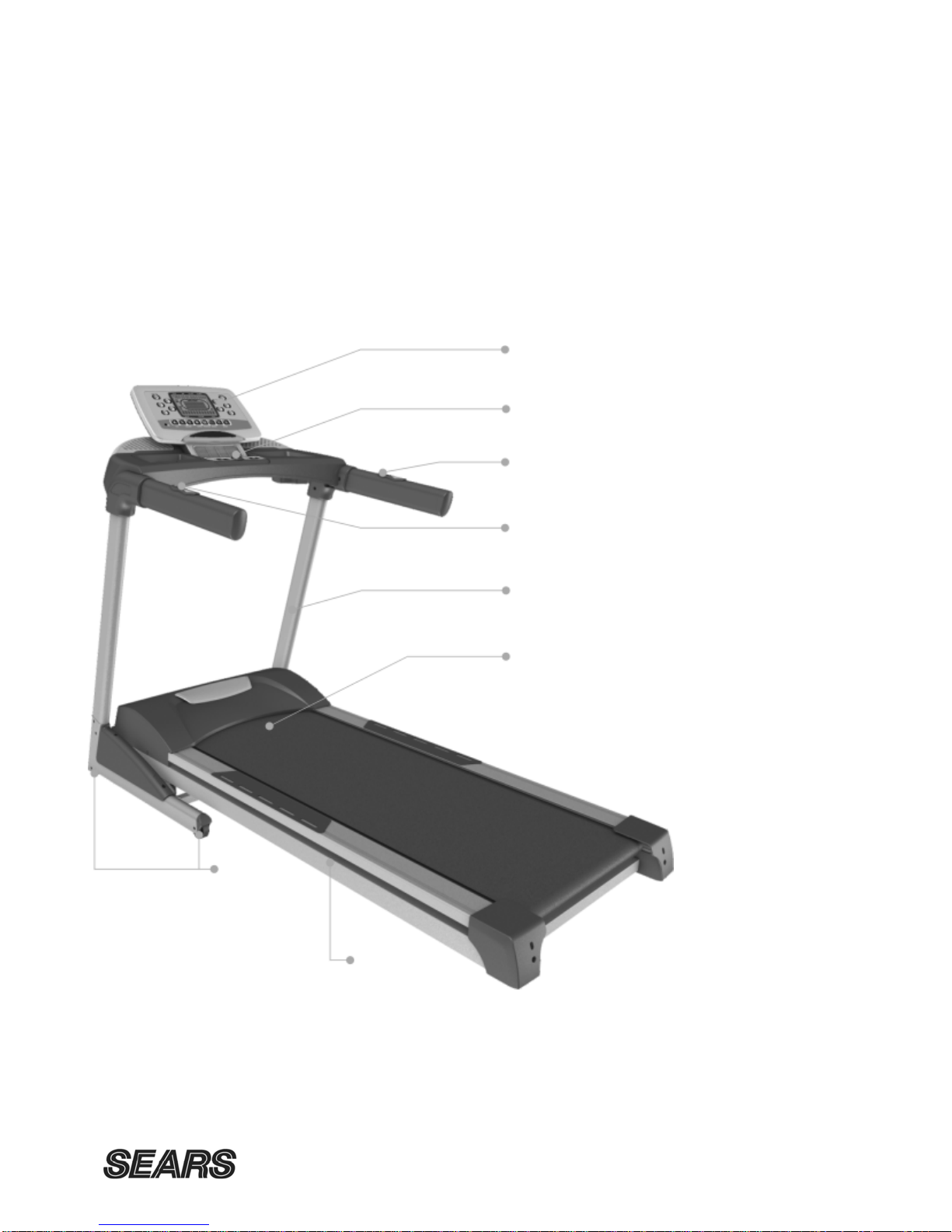

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below
Maximum User weight 285 LBS (130 KG)
Console assembly
Safety Key
Locking Knob
Upright
Walking belt
Adjustment bolts
Wheels
Main frame
Incline Adjustment Switch
Speed Adjustment Switch

5 ©2011
Assembly
It will take two people to assemble your unit.
Set the treadmill in a cleared area and remove all packing material. Do not dispose of the material until
your assembly is completed. Note: The underside of your treadmill’s walking belt is coated with a
lubricant. During shipping, a small amount of lubricant may be transferred to the top of the waling belt or
the shipping carton. This does not affect the treadmill’s performance. If you notice any lubricant on the
top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non abrasive cleaner.
For the sake of familiarizing yourself with the parts identified in the instructions, first study the overview
drawing.
Assembly only requires the included wrenches.
HARDWARE PACK
# 104. Lubriant
#126. M5 × 35m/m
Phillips Head Screw (2pcs)
#44. Safety Key (1pc)
#103. M6 (66 × 88)
Allen Wrench (1pc)
#125. M5 × 25m/m
Phillips Head Screw (2pcs)
#101. 5/16" × 23 × 1.5T
Curved Washer (8pcs)
#100. 5/16" × 18 × 1.5T
Flat Washer (6pcs)
#74. 3.5 × 12 m/m
Sheet Metal Screw (4pcs) #99. 5/16" × 1/2"
Button Head Socket Bolt (14pcs)
#102. Combination M5 Allen Wrench
& Phillips Head Screw Driver (1pc)

6 ©2011
ASSEMBLY INSTRUCTIONS

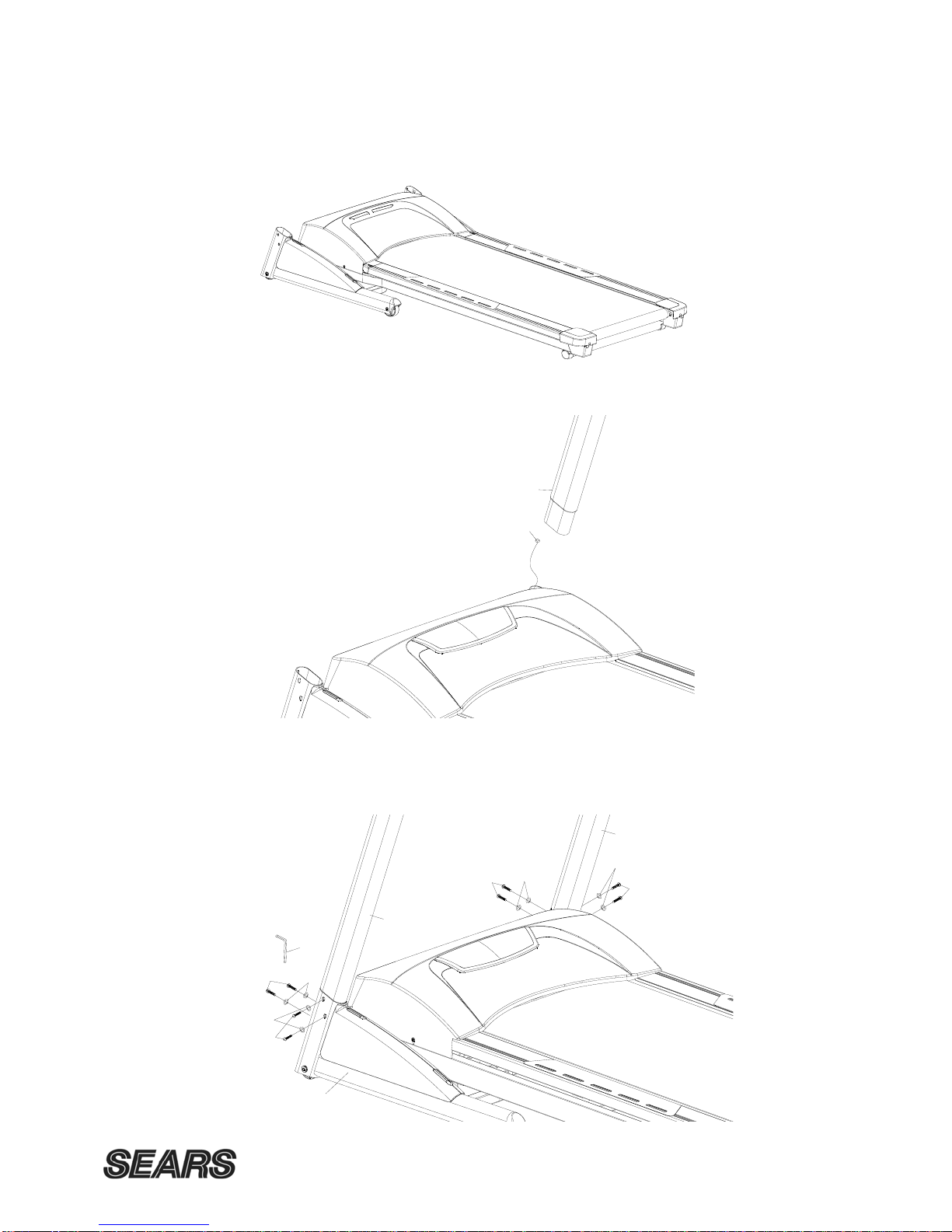

Step1
It will take two people to assemble your unit. Remove all the components from the carton.
Step 2
Slide the lower computer wire (53) into the right upright (4).
53
4
Step 3
Insert the Uprights (L, R)(5,4) into the Frame Base (2) with the 8pcs of 5/16" ×1/2" Button Head Socket Bolts (99),
4pcs of 5/16" x 18 x 1.5T Flat Washers (100) and 4pcs of 5/16" × 23 × 1.5T Curved Washers (101) by using the
Combination M5 Allen Wrench & Phillips Head Screw Driver (102).
99
100
101
99
2
102
100
99
101
99
4
5

7 ©2011

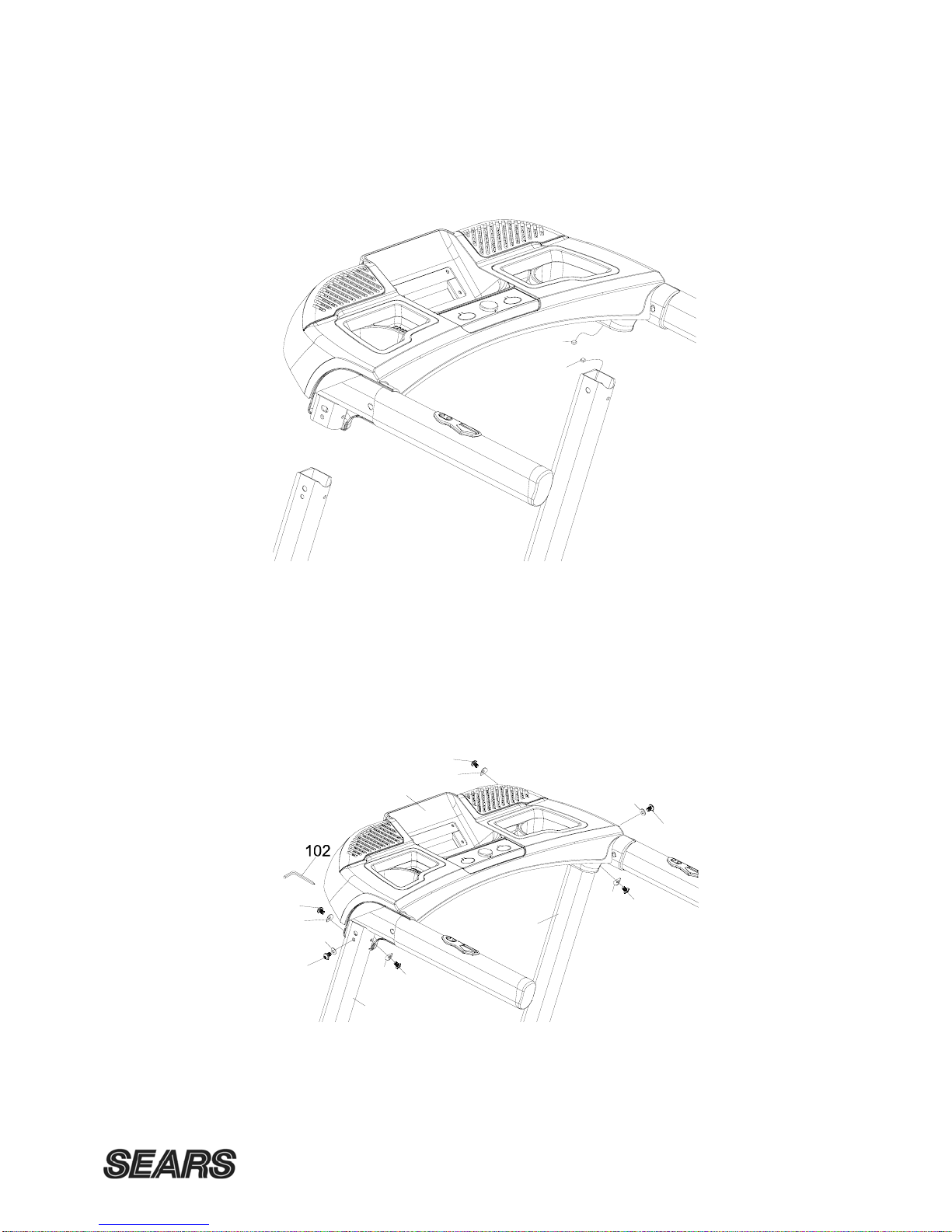

Step 4
Connect the lower computer cable (53) to the upper computer wire (55).
55
53
Step 5
Install the Console Support (6) into the Uprights (L,R) (5,4) with the 6pcs of 5/16" ×1/2" Button Head Socket Bolts
(99) , 2pcs of 5/16" x 18 x 1.5T Flat Washers (100) and 4pcs of 5/16" × 23 × 1.5T Curved Washers (101) by using
the Combination M5 Allen Wrench & Phillips Head Screw Driver (102).
99
100
99
99
101
99
101
100 99
101
99
101
6
4
5

8 ©2011
Step 6
Install the Outer Handlebar Covers (L & R) (129 & 130) on the Console Support (6) with the 4pcs of 3.5 × 12 m/m
Sheet Metal Screws (74) by using the Combination M5 Allen Wrench & Phillips Head Screw Driver (102) and
tighten them.
130
129
6
74
74
74

9 ©2011
Step 7
Connect the upper computer wire (55) to the computer cable (21-10) of the monitor (21).
Connect the computer wire (90-7) to the computer cable (21-9) of the monitor(21).
Connect the speaker computer wire (90-8) to the computer cable (21-11) of the monitor (21).
55
21-10
90-7
21-9
21-11
90-8
Step 8
1. Insert the Console Assembly (21) into the Console Support (6).
2. Install the Console Assembly (21) and the Console Support (6) with the 2pcs of M5×25mm Phillips Head
Screws (125) and 2pcs of M5×35mm Phillips Head Screws (126) by using the Combination M5 Allen Wrench
& Phillips Head Screw Driver (102) and tighten them.
6
21
126
126
125
NOTE: ENSURE THAT ALL NUTS AND BOLTS ARE FIRMLY TIGHTEN.

10 ©2011
TREADMILL OPERATION
Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray or other
substances to the walking belt or walking board. Such substances will deteriorate the walking belt and cause
excessive wear.
How to plug in the power cord.
GROUNDING INSTRUCTIONS.
This product must be grounded. No plug adapter should be used with this product.
WARNING: Improper connection of the equipment grounding
conductor can result in a risk of an electric shock. Check with a
qualified electrician if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the
product, if it will not fit the outlet; have a proper outlet installed by a
qualified electrician. The use of an extension cord with this product
is not recommended. If an extension cord is needed, use a short (less
than 10 feet) heavy gauge (14 gauge or better) extension cord with a
three prong (grounded) plug and receptacle. IMPORTANT: If the
power cord is damaged, it must be replaced with a manufacturer
recommended power cord.

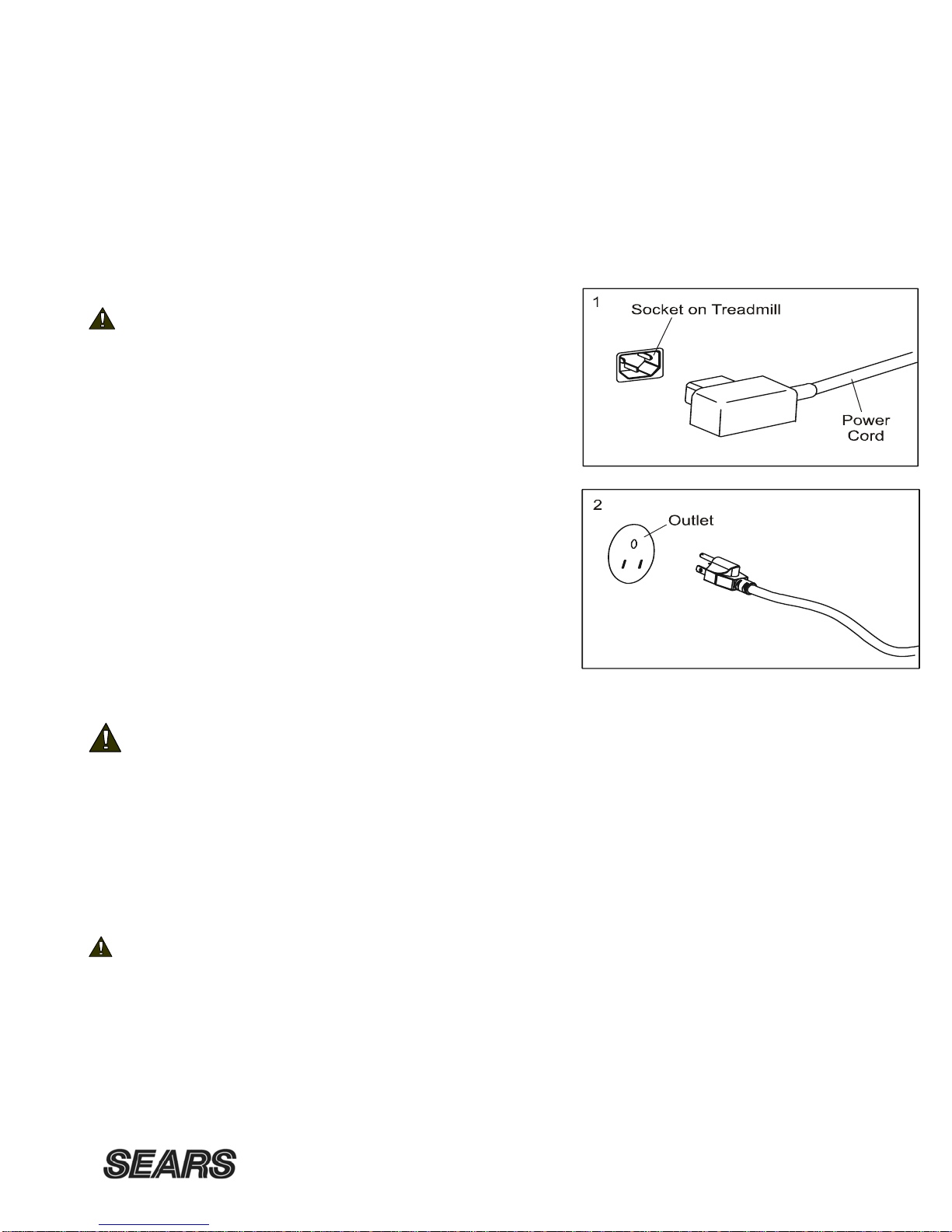

1. Plug the indicated end of the power cord into the socket
of the treadmill. See drawing below
2. Plug the power cord into an appropriate outlet that is
properly installed and grounded. See drawing below.
Important: The treadmill is not compatible with GFCI-
equipped outlets.
Note: Your power cord and outlet may appear different
CAUTION: Before operating the console, read the following precautions:
•Do not stand on the walking belt when turning on the treadmill
•Always wear the safety key
•Adjust the speed in small increments to avoid sudden jumps in speed
•To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the
console and place only sealed water bottles in the water bottle holders.
TO OPERATE TREADMILL
CAUTION: To avoid injury, hold onto the handrails while mounting and dismounting the treadmill.
Hold onto the handrails and place feet on siderails before starting. Step onto the walking belt only a
slowest speed.
Note: Before operating your treadmill, become familiar with all operating parts and controls - their
location and function see figure on page 4. Also before operating the console make sure that the power
cord is properly plugged in and the on / off button is on.

11 ©2011

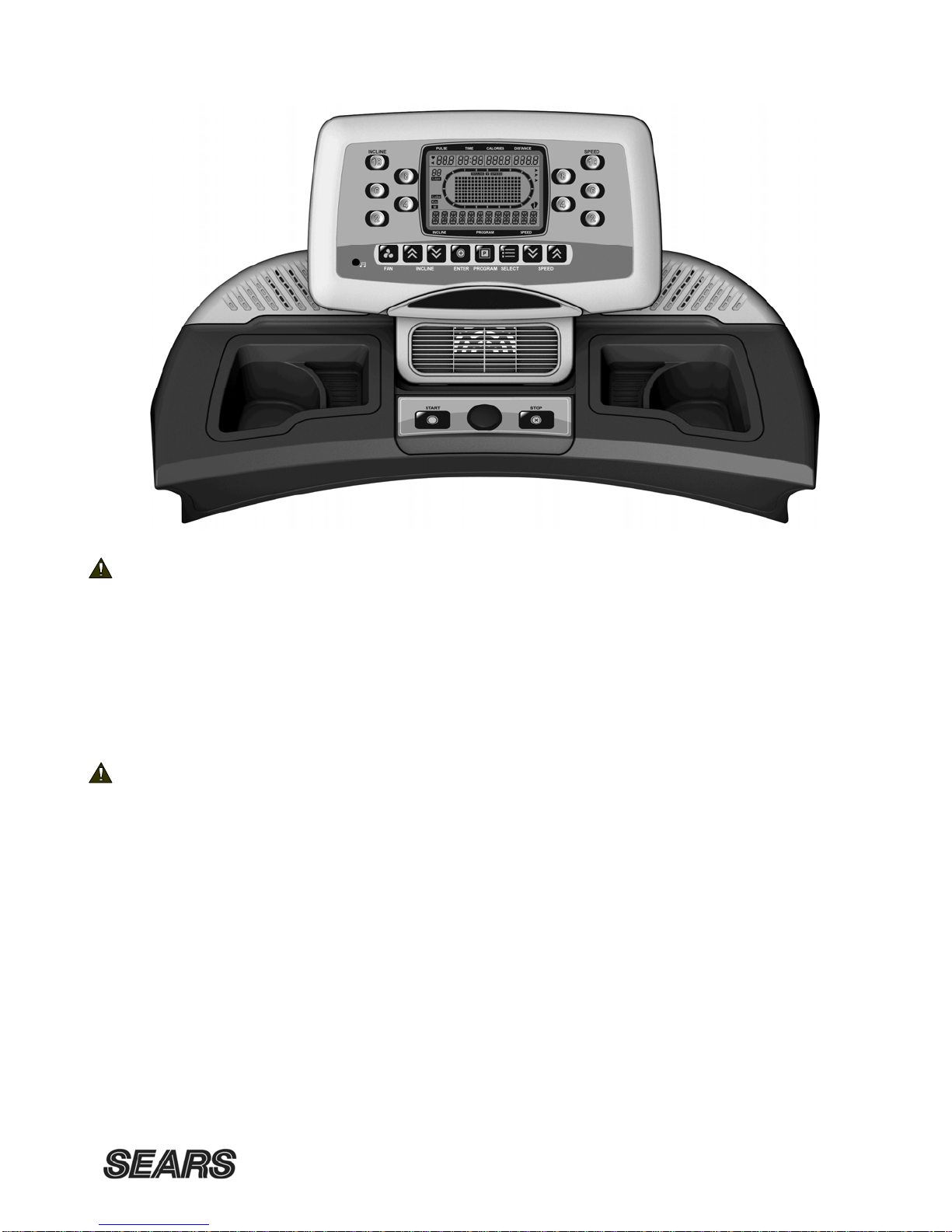

COMPUTER OPERATION INSTRUCTIONS
CAUTION: Before operating the console, read the following precautions:
•Do not stand on the walking belt when turning on the treadmill
•Always wear the safety key
•Adjust the speed in small increments to avoid sudden jumps in speed
•To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the
console and place only sealed water bottles in the water bottle holders.
TO OPERATE TREADMILL
CAUTION: To avoid injury, hold onto the handrails while mounting and dismounting the treadmill.
Hold onto the handrails and place feet on siderails before starting. Step onto the walking belt only a
slowest speed.
Before operating the console make sure that the power cord (48) is properly plugged in and the on / off
button (31) is on. Attach the magnet end of the safety key (44) onto the monitor and attach the clip end of
the safety key (44) to your clothing (ie: waistband). If you should slip or fall while exercising the safety
key will pull out of the console, shutting off the treadmill.
Getting started:
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch
located at the front of the treadmill below the motor hood.
When the power is turned on, all the lights on the display will light for a short time. A message will
scroll across screen showing the current software version. The treadmill will then enter idle mode,
which is the starting point for operation.

12 ©2011
Function Buttons on monitor:
5 preset incline: 2%, 4%, 6%, 8%, 10%
Press your desired incline position and the treadmill will automatically adjust to your
preset incline.
5 preset speed: 2 mph, 4 mph, 6mph, 8mph, 10mph
Press your desired speed and the treadmill will automatically adjust to your preset
speed.
Incline▲▼ : Press the ▲button to raise the incline position. The maximum incline position is 12.
Press the ▼button to lower the incline position. The minimum incline position is 0.
Enter: Press the “enter” button to accept the function value.
Press the “enter” button to select the function to be displayed zero
Press the “enter: button during a program to display between the speed or incline
profiles.
Program: Press to select your desired program; manual, random program, 5 users and 2 Heart
rate control.
Select: Press to generate new programs.
Speed▲▼:Press the ▲button to increase the speed of the treadmill. The maximum speed is 10
mph.
Press the ▼button to decrease the speed of the treadmill. The minimum speed is .5
mph
Start: Press the “start” button to start your treadmill.
Stop: Press the “stop” button to stop your treadmill
Speakers: The console has a built-in Speakers. You may Plug an Audio Source (CD player,
MP3, Computer ,etc.) into the Jack on the Left side of console. There is no volume
control on console, volume must be controlled by Audio Source.
Monitor display
Pulse: Displays the user’s current heart rate in beats per minutes during the workout.
To display your heart rate, you must hold both handrails.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Time: Displays your elapsed workout time in minutes up to 99:59
Counts down from your preset target time to 00:00 during your workout
Calories: Displays the cumulative calories burned at any given time during your workout.
Counts down from your preset target calories to 0 during your workout.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Distance: Displays the distance traveled in miles per hour
Counts down from your preset target distance to 0
Incline: Displays the incline position from 0 to 12
Program: Displays the program you selected.
Speed: Display the current speed in miles per hour from 0.06 to 10 mph
¼ mile track: Displays total lap quantity. One lap equals ¼ mile.

13 ©2011
Function Buttons on handrail tubes:
Fast: Press the “fast” button to increase your speed from 1 to 10mph (16kmph).
Slow: Press the “slow” button to decrease your speed from 10mph (16kmph) to 1.
Up: Press the “up” button to raise the incline position. The maximum incline position is 10.
Down: Press the “down” button to lower the incline position. The minimum incline position is 0.
Quick-Start Operation:
STEP 1: Install safety key on the monitor.
STEP 2: Press Start key to start belt movement, at .6 mph (1.0kmph), then
adjust to the desired speed using the speed button (console or hand rail). You may also use the
rapid speed keys 2 through 10 to adjust the speed.
STEP 3: To slow tread-belt press the speed down key (console or hand rail) to decrease to your
desired speed. You may also press the rapid speed adjust keys, 2 through 10.
STEP 4: To stop the tread-belt press and release the Stop key.
Programmable Features
The monitor offers one manual program, random, 5 user defined programs and 2 H.R.C. programs. The
included user programs (User 1 to User 5) are for custom workouts.
To Select a Program:
STEP 1: Press the desired PROGRAM key. Press enter to select the manual program. The display will
prompt you through the programming or you can just press Start to begin the program with
default values.
Note: At any time during these steps press stop to return to the previous step.
STEP 2: The window will now be blinking a value, which is your Body Weight. Entering the correct
body weight will affect the calorie count. Use the Up/Down keys to adjust, then press enter.
A note about the Calorie display: No exercise machine can give you an exact calorie count
because there are too many factors which determine exact calorie burn for a particular person.
Even if someone is the exact same body weight, age and height, their calorie burn may be very
different than yours. The Calorie display is to be used as a reference only to monitor
improvement from workout to workout.
STEP 3: The window will now be blinking a value, which is your Age. Entering your correct age affects
the heart rate control programs. Use the Up/Down keys to adjust, then press enter.
Your age determines the maximum heart rate you may achieve. Since the Heart Rate control
features are based on a percentage of your maximum heart rate, it is important to enter the
correct age for these features to work properly.
STEP 4: The window will blink and you need to choose one of the select factors; time, distance or
calories, in which to count down from. Press the select button to confirm time, distance or
calories as your factor. Use up/down keys to adjust the selected factor of; time, distance or
calorie then press enter.
STEP 5: Press start to begin.

14 ©2011
RANDOM PROGRAM
This mode which is a profile includes speed and incline automatically generated by the program. The
user can continually choose the profiles until the one which is satisfied. It can also save the USER
mode and make adjustments until a most suitable profile is reached. The operation is as follows:
A. Use PPROGRAM button to select RANDOM PROGRAM mode and press ENTER to profile
selection.
B. Now the dot matrix will display speed profile for 5 seconds then switch to incline profile for another 5
seconds and recycle. Press ENTER to select the profile and forward to enter next parameter. Press
SELECT button to generate new profile. This step can be continued until ENTER is pressed.
C. Now the value of the weight is displayed. Use FAST/SLOW buttons to adjust the weight and press
ENTER for next setting.
D. Now the value of the age will be displayed. Use FAST/SLOW buttons to adjust the age and press
ENTER for next setting.
E. Now the preset time 20:00 will be displayed. Use FAST/SLOW buttons to adjust for proper time
duration and press START to start the treadmill.
F. The profile can be saved as an USER profile when the workout is finished. The USER can be adjusted
whenever is necessary.
Heart Rate Control Operation
CAUTION! You must receive a strong / steady value in heart rate window.
STEP 1: Press HR1 or HR2 button.
HRC1 adjust the speed to keep the heart rate at the target value
HRC2 adjust the incline to keep the heart rate at the target value
STEP 2: The Pulse window will be blinking, showing the default HR for this program. You may adjust
it and press enter if you want or just press enter to accept the default value.
STEP 3: The Calorie will now be blinking showing bodyweight. Adjust and press enter or press enter to
accept default.
STEP 4: The Pulse window will now be blinking showing age. Adjust and press enter or press enter to
accept default.
STEP 5: The Time window will now be blinking. Adjust the time and press enter.
STEP 6: Press Start to begin program.
Note: You may change the target heart rate value. The target heart rate value will be in the range of
55%~85% value calculated by the program according to the age you have entered. You can
increase or decrease the target value as what fits you. Consulting your physician to determine
the proper value before setting is recommended. Press START to begin your workout

15 ©2011
User Programs:
STEP 1: Select the user you desire. User 1 through User 5 via the PROGRAM key then press Enter.
Note that the dot matrix display portion will have a single row of dots at the bottom (Unless there
is a previously stored program. If you have it saved, the monitor will ask you to override the
save user file.
STEP2: Use UP/DOWM buttons to switch the user names. Use NAME to enter the user name with
FAST/SLOW buttons to enter characters A~Z. There are no more than 7 characters to enter.
Press STOP after entering the last character and exit.
STEP 3: The window will now be blinking a bodyweight value. Enter your bodyweight using the
fast/slow keys and press Enter.
STEP 4: The window will now be blinking an Age value. Adjust the age using the fast/slow keys and
press enter.
STEP 5: The window will now be blinking 30:00 as the preset time. Use the fast/slow keys to adjust the
time. Press ENTER key.
STEP 6: The first column (segment) will now be blinking. Using the Fast / Slow keys, adjust the speed
level to your desired effort for the first segment then press enter. The second column will now
be blinking. Repeat the above process until all segments have been programmed. The first
column will be blinking again. This is for the incline programming. Repeat the above process to
program all segments for incline.
STEP 7: Press the Start button to begin the workout and also save the program to memory.

16 ©2011
FOLDING AND MOVING YOUR TREADMILL
Before folding the treadmill, ensure that the treadmill is at it’s lowest incline position. Turn the power
switch off, located on the front of the motor cover and unplug the power cord.
CAUTION: You must be able to safely lift 20 kg (45lbs) in order to raise and lower the treadmill.
To decrease the possibility of injury, bend your legs and keep your back straight while you
are raising or lowering your treadmill.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85 degrees
Fahrenheit.
Unfolding
Hold the treadmill running deck with left hand. Pull the locking knob with your right hand and slowly
lower the treadmill running deck. The deck will lower unassisted when it reaches about waist high.
Folding
Lift the treadmill running deck with your left hand. Pull the locking knob with your right hand and
slowly raise the treadmill running deck until the treadmill is locked by the locking knob.
Moving
Before moving the treadmill, fold the treadmill to the stored position as described above. Hold the upper
ends of the handrails and slowly move the treadmill to your desired location.
To reduce the risk of injury, use extreme caution while moving the treadmill, do not attempt to move the
treadmill over an uneven surface.

17 ©2011
PARTS LIST
Key No Part No Description Q'ty
1 284001 Main Frame 1
2 284002 Frame Base 1
3 284003 Incline Bracket 1
4 284004 Right Upright 1
5 284005 Left Upright 1
6 284006 Console Support 1
7 284007 Outer Slide 1
8 284008 Inner Slide 1
9 284009 Locking Knob 1
10 284010 Incline Motor 1
11 284011 Drive Belt 1
12 284012 Motor Bracket 1
13 284013 Motor 1
14 284014 Running Belt 1
15 284015 Running Deck 1
16 284016 Front Roller W/Pulley 1
17 284017 Rear Roller 1
18 284018 Deck Cross Brace 1
19 284019 Wheel Sleeve 2
20 284020 Rear Wheel Sleeve 2
21~1 284021-1 Console Top Cover 1
21~2 284021-2 Console Bottom Cover 1
21~3 284021-3 Book Rack 1
22 284022 Console Locking Tube 2
23 284023 Frame Base Cover (L) 1
24 284024 Frame Base Cover (R) 1
25 284025 Motor Top Cover 1
26 284026 Rear Adjustment Base (L ) 1
27 284027 Rear Adjustment Base (R ) 1
28 284028 Speed/Hand Pulse Complex 1
29 284029 Incline/Hand Pulse Complex 1
30 284030 Breaker 1
31 284031 On/Off Switch 1
32 284032 Frame Base End Cap 2
33 284033 Frame Base Front Wheel 2

18 ©2011
Key No Part No Description Q'ty
34 284034 Frame Base Rear Wheel 2
35 284035 Cushion 6
36 284036 Handgrip Foam 2
37 284037 Foot Rail 2
38 284038 Non-Slip Rubber 2
40 284040 Motor Cover Anchor 5
41 284041 □21.4 × 21.4m/m_Square End Cap 1
42 284042 □25.4 × 25.4m/m_Square End Cap 1
43 284043 □30 × 60m/m_Square End Cap 2
44 284044 800m/m_Safety Key 1
45 284045 Power Socket 1
46 284046 3/8" × 7T_Nut 3
47 284047 Sensor Rack 1
48 284048 Power Cord 1
49 284049 20cm × 764 × 764_Connecting Wire (White) 1
50 284050 20cm × 764 × 764_Connecting Wire (Black) 1
51 284051 10cm × 764 × 764_Connecting Wire (Black) 1
52 284052 Controller 1
53 284053 1900m/m_Computer Cable (Lower) 1
55 284055 700m/m_Computer Cable (Middle) 1
56 284056 1000m/m_Sensor W/Cable 1
58 284058 1/2" × 1"_Hex Head Bolt 2
59 284059 3/8" × 3-3/4"_Button Head Socket Bolt 1
60 284060 3/8" × 1-3/4"_Hex Head Bolt 1
61 284061 3/8" × 1-1/2"_Hex Head Bolt 2
62 284062 3/8" × 3/4"_Hex Head Bolt 4
63 284063 M8 × 60m/m_Hex Head Bolt 1
64 284064 M8 × 12 m/m_Hex Head Bolt 2
65 284065 5/16" × 1"_Button Head Socket Bolt 2
66 284066 3/8" × 4-1/2"_Socket Head Cap Bolt 1
67 284067 3/8" × 2"_Flat Head Socket Bolt 4
68 284068 1/2" × 1-1/4"_Carriage Bolt 2
69 284069 M8 × 80m/m_Socket Head Cap Bolt 2
70 284070 M8 × 25m/m_Flat Head Countersink Bolt 6
71 284071 Motor Bottom Cover 1
73 284073 5 × 16m/m_Tapping Screw 13

19 ©2011
Key No Part No Description Q'ty
74 284074 3.5 × 12 m/m_Sheet Metal Screw 28
75 284075 1/2" × 8T_Nyloc Nut 4
76 284076 3/8" × 7T_Nyloc Nut 6
77 284077 5/16" × 7T_Nyloc Nut 2
78 284078 M8 × 8T_Nyloc Nut 1
79 284079 3/8" × 2T_Split Washer 6
80 284080 M8 × 1.5T_Split Washer 2
81 284081 M5_Split Washer 3
82 284082 3/8" × 19 × 1.5T_Flat Washer 6
83 284083 3/8" × 25 × 2T_Flat Washer 4
84 284084 5 × 13 × 1.0T_Flat Washer 10
85 284085 Ø50 × Ø13 × 3T_Nylon Washer 4
86 284086 Ø10 × Ø25 × 3T_Nylon Washer 3
87 284087 Ø6.5 × Ø25 × 1.5T_Concave Washer 8
88 284088 M5_Star Washer 3
89 284089 5 × 2T_Speed Nut Clip 2
90 284090 Beverage Holder Assembly 1
90~1 284090-1 Beverage Holder 1
90~3 284090-3 300m/m_Safety Switch Module W/Cable 1
90~5 284090-5 3 × 10m/m_Sheet Metal Screw 2
90~7 284090-7 100m/m_Connecting Cable 1
90~8 284090-8 100m/m_Computer Cable 1
91 284091 4 × 12m/m_Sheet Metal Screw 12
92 284092 Belt Guide 2
93 284093 5 × 16m/m_Tapping Screw 23
94 284094 5 × 19m/m_Tapping Screw 1
95 284095 Cylinder 1
96 284096 M8 × 50m/m_Flat Head Countersink Bolt 2
99 284099 5/16" × 1/2"_Button Head Socket Bolt 14
100 2840100 5/16" × 18 × 1.5T_Flat Washer 6
101 2840101 5/16" × 23 × 1.5T_Curved Washer 8
102 2840102 Combination M5 Allen Wrench & Phillips Head Screw
Driver 1
103 2840103 M6 (66 × 88)_Allen Wrench 1
104 2840114 Lubricant 1
105 2840105 Adjustable Foot Pad 2
