OWNER’S MANUAL
ASSEMBLY‧OPERATION‧MAINTENANCE
WARRANTY‧PART ORDERING
CAUTION:Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied as they
relate to the equipment.
IMPORTANT:Read all instructions carefully before using this product. Retain this owner’s
manual for future reference.
SEARS CANADA INC.
‧ TORONTO , ONTARIO M5B 2B8
C 249 30197 1

1 ©2009
TABLE OF CONTENTS
Warranty……………………………… 2
Safety Precautions……………………. 3-4
Before you begin ..……………………. 5
Assembly Check List…………………. 6
Assembly……………………………… 7-10
Treadmill & Monitor Operation…….. 11-16
Folding………………………………… 17
Parts list……………………………….. 18-20
Overview Drawing……………………. 21-22
Trouble Shooting……………………… 23
Maintenance…………………………... 24-27
Training guidelines…………………… 28-30
Stretching……..………………………. 31-32
Ordering Replacement parts ……….. 33
Service and Parts ……………………. 34

2 ©2009
WHAT DOES THIS WARRANTY COVER? This warranty covers your Free Spirit Treadmill
against defects in material and workmanship when used for the purpose intended, under normal
conditions and provided it receives proper care.
HOW LONG DOES THE COVERAGE LAST? This warranty lasts for one year on all parts and
labor, 3 years on motor only and 10 years on the frame from date of purchase. This warranty is not
transferable and is extended only to the original owner.
WHAT WILL SEARS DO? Sears will provide a replacement part at no charge for any part found
defective in workmanship or materials during the warranty period.
WHAT DOES THIS WARRANTY NOT COVER? This warranty does not cover fitness products
which are (1) used for commercial or other income producing purposes, or (2) subject to misuse,
neglect, accident or unauthorized repairs and alterations. Some provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
HOW DO YOU GET SERVICE? In order to obtain service as provided by this warranty, contact
your nearest Sears Canada Inc. service center.
WHAT DOES THIS WARRANTY COVER? This warranty covers your treadmill motor against
defects in material and workmanship when used for the purpose intended, under normal conditions
and provided it receives proper care.
HOW LONG DOES THE COVERAGE LAST? This warranty lasts for three years from date of
purchase. This warranty is not transferable and is extended only to the original owner.
WHAT YOU NEED TO DO? You need to record the date of purchase in the area provided below.
You must keep your receipt which shows the date of purchase of your treadmill. We suggest you
staple it to this page.
WHAT WILL SEARS DO? Sears provide a replacement part at no charge for any part found
defective in workmanship or materials during the warranty period.
WHAT DOES THIS WARRANTY NOT COVER? This warranty does not cover fitness products
which are (1) used for commercial or other income producing purposes, or (2) subject to misuse,
neglect, accident or unauthorized repairs and alterations. Some provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
HOW DO YOU GET SERVICE? In order to obtain replacement parts as provided by this
warranty, contact your nearest Sears Canada Inc. store, service center or the manufacturer at 1-888-
707-1880.
WARRANTY
MANUFACTURER LIMITED WARRANTY, REPAIR AND SERVICE
SEARS THREE-YEAR MOTOR WARRANTY

3 ©2009
IMPORTANT SAFETY INFORMATION
THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL
CAUTION: Before starting any exercise program, it is recommended that you consult your physician.
WARNING: Connect this unit to a properly grounded outlet only.
DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet
immediately after using and before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Use 120 volt a.c. household current on a dedicated circuit.

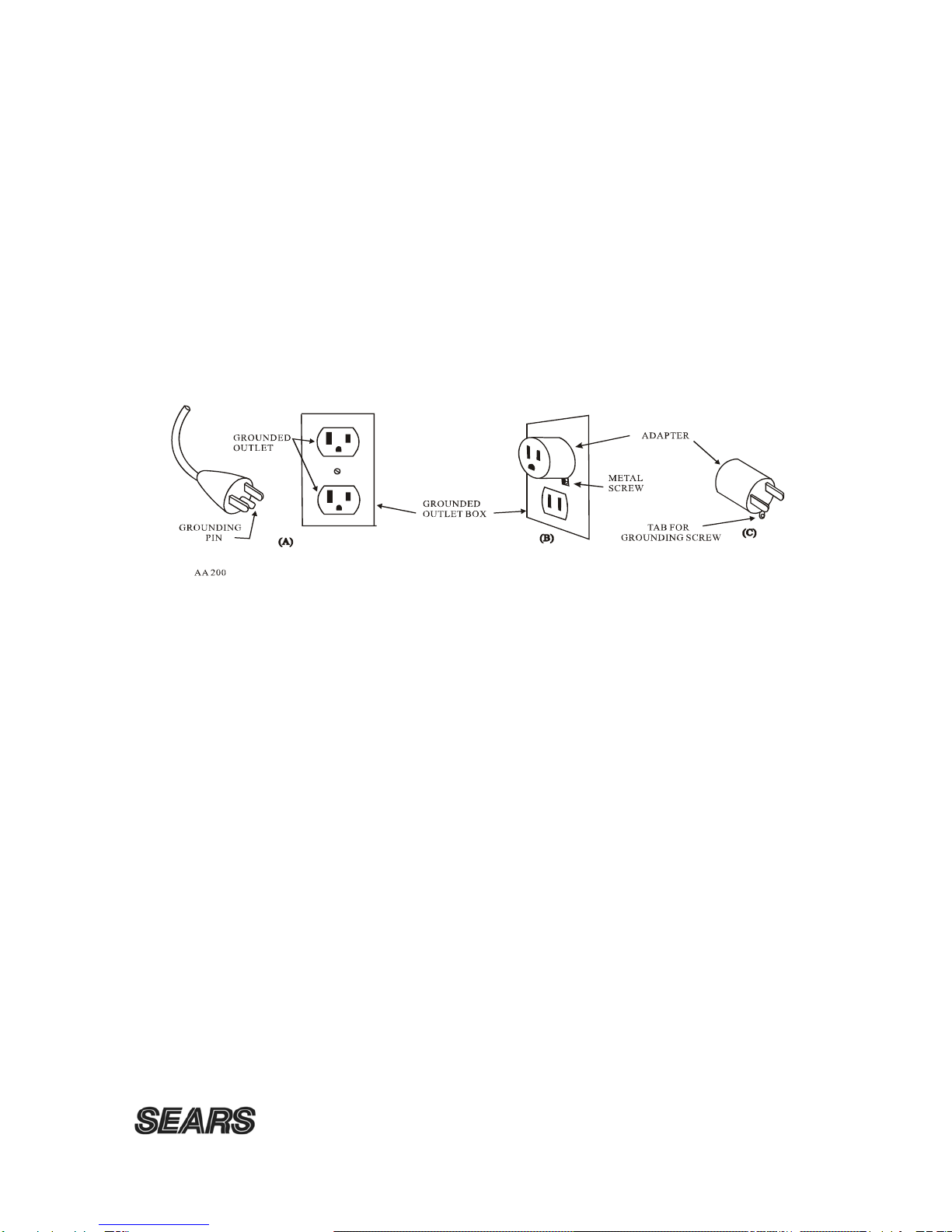

Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. See
diagram below for grounding methods.
2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and
precautions.
3. The use of an extension cord with this product is not recommended. If an extension cord is needed, use a short (less than 10
feet) heavy gauge (14 gauge or better) extension cord with a three prong (grounded) plug and receptacle.
4. Never leave the treadmill unattended when plugged in. Remove the safety key and unplug the unit from the outlet when not
in use and before removing or replacing parts.
5. Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged, or
exposed to water. Never move the treadmill belt while the power is turned off.
6. Do not pull the treadmill by the power supply cord or use cord as a handle. Keep cord away from heated surfaces and open
flames.
7. Fitness equipment must always be installed and used on a flat surface. Do not use outdoors or near water. Do not place the
unit on a loose rug or uneven surface. It is recommended to use an equipment mat to prevent the unit from moving while it is
being used, which could possibly scratch or damage the surface of your floor. It is recommended to have a minimum of 3
metres safe clearance on all sides of the treadmill while in use.
8. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage, covered patio or near water.
9. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
10. Read, understand and test the emergency stop procedure before using the treadmill (see operation and adjustment on page 8)
11. Do not insert any objects into any openings.
12. Inspect and properly tighten all parts of the treadmill regularly.
13. Keep children and pets away from this equipment at all times while exercising.
14.Handicapped individuals should have medical approval and close supervision when using this treadmill.
15. Do not place hands or feet under the treadmill. Always keep hands and legs off of the treadmill when others are using it.
16. Never turn on treadmill while standing on treadbelt. Always hold the handrails while using the treadmill. Always return the
treadmill to the slowest speed to provide for safe dismount and low speed restart.
17. To disconnect, turn all controls to the off position, then remove plug from outlet.

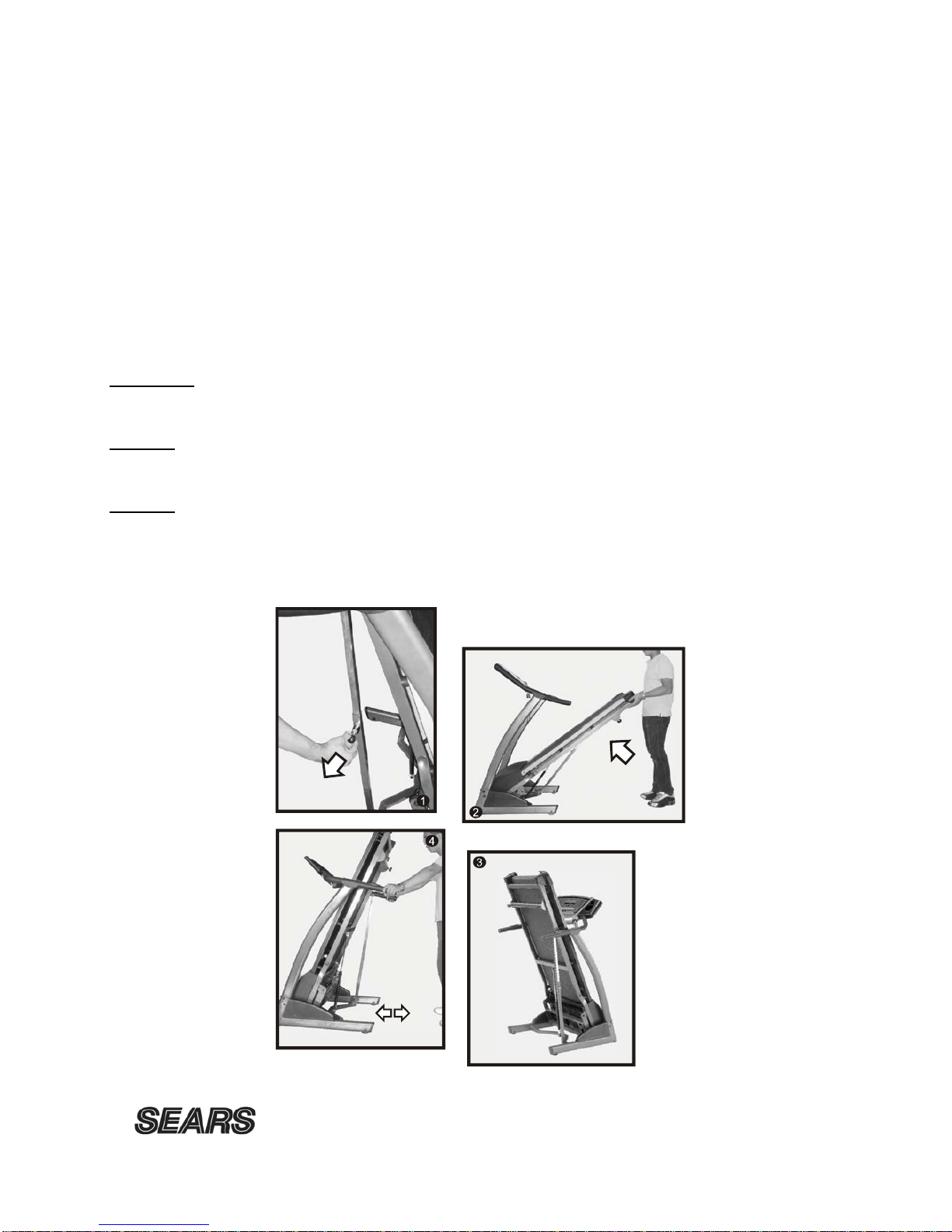

18.Do not attempt to raise, lower or move the treadmill until it is properly assembled. See assembly on page 7 and to fold and
move the treadmill on page 12. Care must be taken when lifting or moving the equipment, so as not to injure your back.
Always use proper lifting techniques. You must use any attachments that are not recommended by the manufacturer.
19. Use the treadmill only for its intended use as described in this manual. Do not use any attachments that are not
recommended by the manufacturer.

4 ©2009
20. User weight should not exceed 285lbs (130 kg).
21. Never allow more than one person on the treadmill at once.
22. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward. This allows your heart rate to
gradually increase and decrease and will help prevent straining muscles.
23. Never hold your breath while exercising. Breathing should remain at a normal rate in conjunction with the level of exercise
being performed.
24. Start your program slowly and very gradually increase your speed and distance.
25. Always wear suitable clothing and footwear while exercising. Do not wear loose fitting clothing that could become
entangled with the moving parts of your treadmill. Do not walk or jog barefoot, in stocking feet or loose fitting shoes or
slippers.
26. This treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental or institutional setting.
▲WARNING: Before beginning any exercise program consult your physician. This is especially important for individuals
over the age of 35 or persons with pre-existing health problems. Read all instructions before using any fitness equipment. We
assume no responsibility from personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

5 ©2009
Before you begin.
Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product we
produce, occasional errors and /or omissions do occur. In any event should you find this product to have either a
defective or a missing part please contact us for a replacement.
This product has been designed for home use only. Product liability and guarantee conditions will not be applicable
to products being subjected to professional use or products being used in a gym center.
This exercise equipment was designed and built for optimum safety. However, certain precautions apply whenever you operate a
piece of exercise equipment. Be sure to read the entire manual before assembly and operation of this machine. Before
reading further, please familiarize yourself with the parts that are labeled in the drawing below
MAX. USER WEIGHT 130 KGS
Safety Key
Handpulse
Handrail
Console assembl
y
Handgrip Tube
Walking belt
Wheel
Speed adjustment switch
Main Frame
Incline adjustment switch
Power Cord
Circuit Breaker
On / off switch

6 ©2009

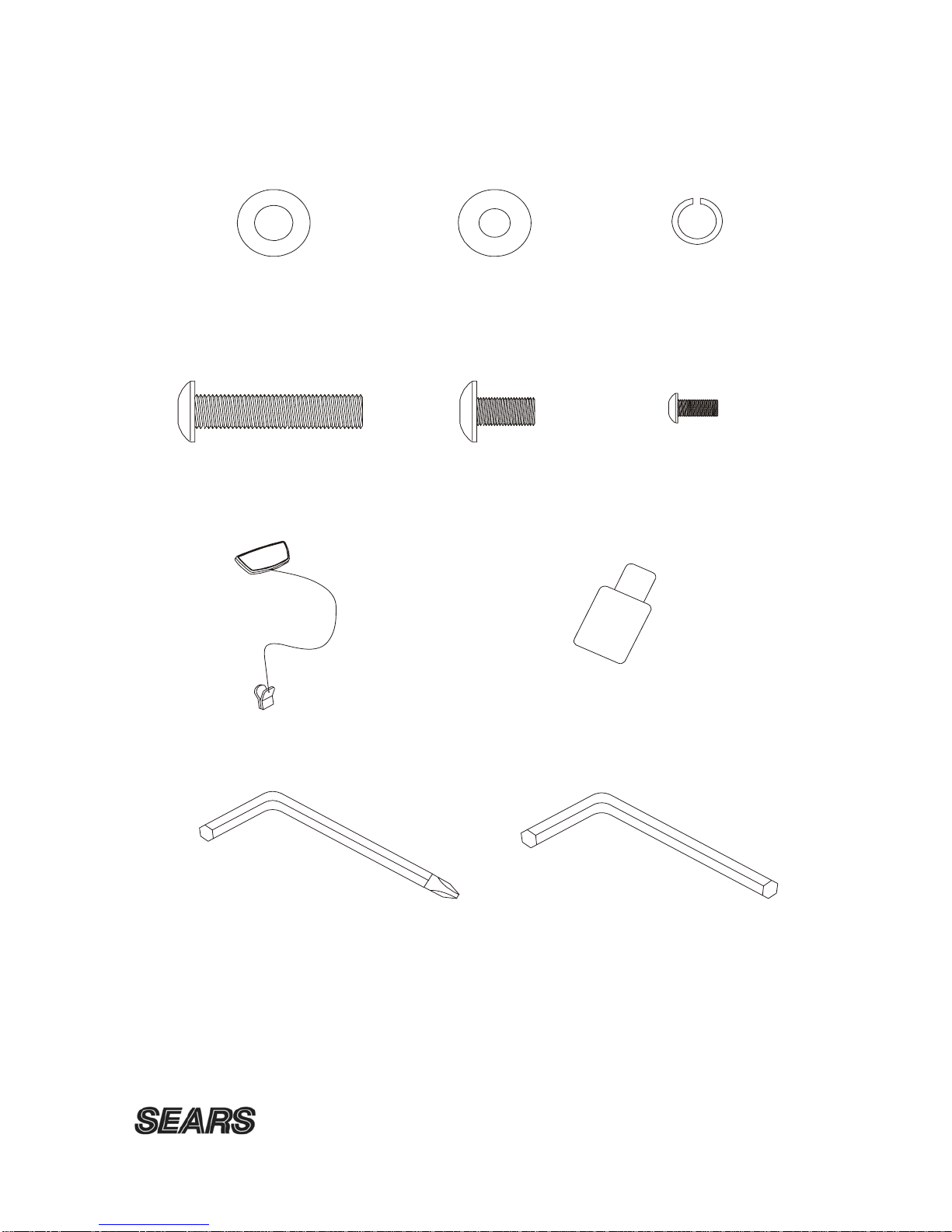

HARDWARE CHECK LIST
# 110. 5/16" x 19 x 1.5T
Curve Washer (x2)
# 30. Safety Key (x1)
# 111. Lubricant (x1)
# 113. M6 Allen Wrench (x1)
# 107. 3/8" x 1-3/4"
Button Head Bolt (x4)
# 108. M5 x 10m/m
Phillip Head Screw (x4)
# 109. 5/16" x 15m/m
Button Head Bolt (x8)
#94. 3/8"x2T
Split Washer (x4)
# 112. Combination M5 Allen Wrench &
Phillips Head Screw Driver (x1)
# 93. 3/8" x 19 x 1.5T
Flat Washer (x4)

7 ©2009
ASSEMBLY INSTRUCTIONS
It will take two people to assemble your unit.
Set the treadmill in a cleared area and remove all packing material. Do not dispose of the material until
your assembly is completed. Note: The underside of your treadmill’s walking belt is coated with a
lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or
the shipping carton. This does not affect the treadmill’s performance. If you notice any lubricant on the
top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non abrasive cleaner.
For the sake of familiarizing yourself with the parts identified in the instructions, first study the overview
drawing.
Assembly only requires the included wrenches
STEP 1
It will take two people to assemble your unit. Remove all the components from the carton.
STEP 2
Connect the computer extension cable (37) to the lower computer cable (38).
NOTE: Ensure that the wire is safely inserted in the upright to avoid pinching the computer wire.
37
38

8 ©2009
STEP 3
Fasten the right upright (5) into the frame base (2) securing with four button head bolts 5/16” x 15m/m
(109) and two curved washers (110) using the combination wrench / screwdriver (112).
Repeat for left upright (4).
54
109 110
109
109 110
109
STEP 4
Install the right frame base cap (43 / 44) onto the right upright (5). Secure the frame base cap using two
M5x10m/m phillips head screws (108) using the combination wrench / screwdriver (112).
Install the left frame base cap (45 / 46) onto the left upright (4). Secure the frame base cap using two
M5x10m/m phillips head screws (108) using the combination wrench / screwdriver (112).
54
44 46
45
45
108
108

9 ©2009
STEP 5
Connect the computer extension cable (37) to the upper computer cable (36) from the console assembly
(39).
STEP 6
Install the console support assembly (6) into the right and left uprights (4,5) securing with four 3/8” x 1-
3/4” button head bolts (107), four split washers (94) and four flat washers (93) using the combination
wrench / screwdriver (112).
NOTE: Carefully insert the cables inside the console assembly, so that you do not pinch and cut the cables
when fastening the console assembly.
93
94
107
37
36

10 ©2009
STEP 7
Install the right handgrip side cap (71) on to the right side of the console support assembly (6).
Install the left handgrip side cap (70) on to the left side of the console support assembly (6).
71
70
ENSURE THAT ALL NUTS AND BOLTS ARE NOW FIRMLY TIGHTENED AFTER EACH
STEP.

11 ©2009
TREADMILL OPERATION
Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray
or other substances to the walking belt or walking board. Such substances will deteriorate the walking belt
and cause excessive wear.
How to plug in the power cord.
GROUNDING INSTRUCTIONS.
This product must be grounded. No plug adapter
should be used with this product.
▲WARNING: Improper connection of the
equipment grounding conductor can result in a risk
of an electric shock. Check with a qualified
electrician if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided with the product, if it will not fit the
outlet; have a proper outlet installed by a qualified
electrician. The use of an extension cord with this
product is not recommended. If an extension cord
is needed, use a short (less than 10 feet) heavy
gauge (14 gauge or better) extension cord with a
three prong (grounded) plug and receptacle.
IMPORTANT: If the power cord is damaged, it
must be replaced with a manufacturer
recommended power cord.

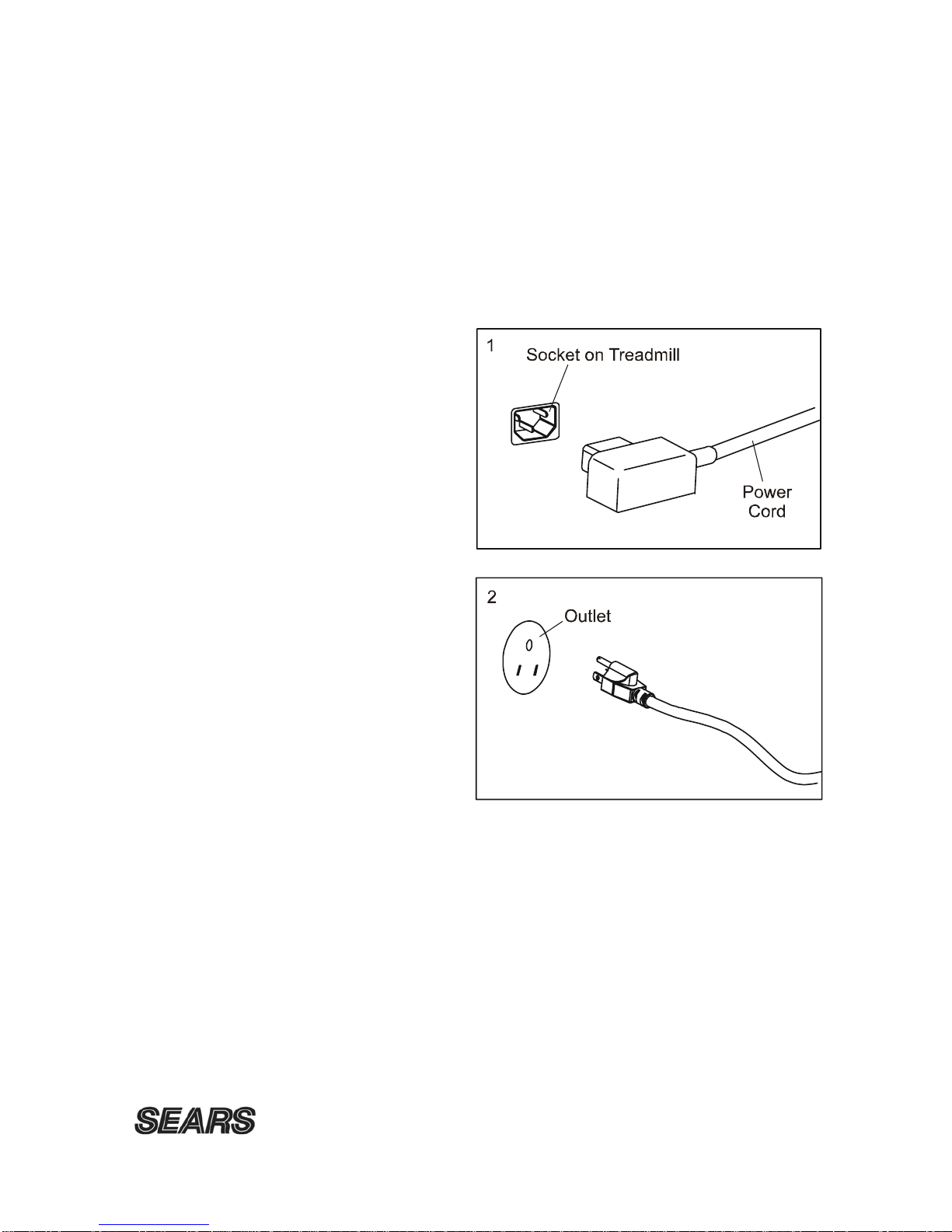

1. Plug the indicated end of the power
cord into the socket of the treadmill.
See drawing below
2. Plug the power cord into an appropriate
outlet that is properly installed and
grounded. See drawing below.
Important: The treadmill is not
compatible with GFCI-equipped outlets.
Note: Your power cord and outlet may appear different

12 ©2009
TREADMILL OPERATION
INITIAL DISPLAY
VER: Displays the current software version in the SPEED window.
ODO: Displays the total distance accumulated in the DISTANCE window up to 999 miles
HRS: Displays the total working time accumulated in the TIME window from 0 to 99:99.
If time exceeds 99:99 minutes the time accumulated will be displayed in hours up to 9999 in
the TIME window.
Functions

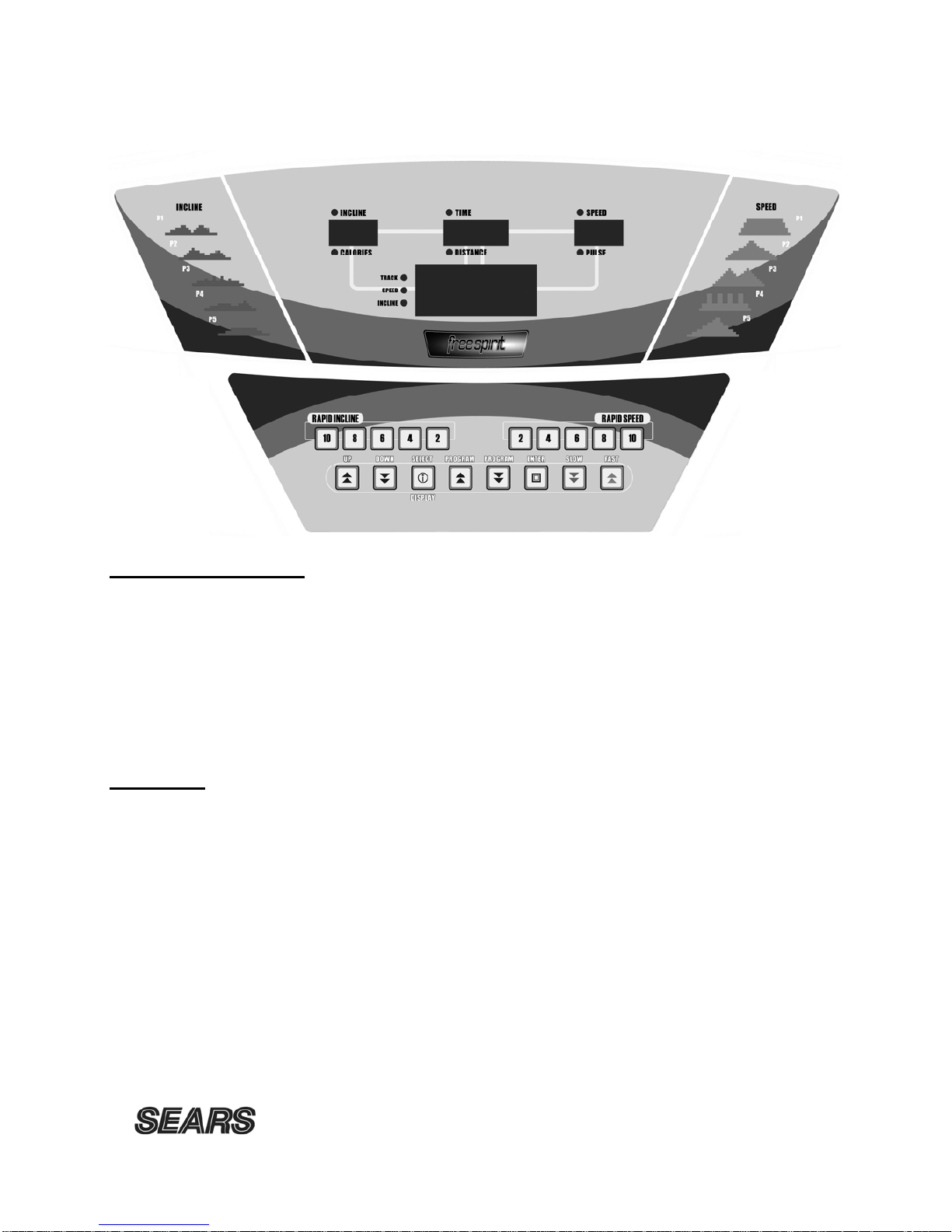

Dot Matrix Center Display (Manual Operation):
Twenty rows of Red “dots”(8 high) indicate each segment of a workout. The dots are only to show an
approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an
approximate percent to compare levels of intensity. In Manual Operation the Speed / Incline dot matrix
window will build a profile “picture” as values are changed during a workout. Next to the Dot Matrix
window are three LEDs labeled: Track, Speed and Incline, along with a Display button. When the Track
LED is lit the Dot matrix displays the Track profile, when the Speed LED is lit the Dot matrix displays
the Speed profile and when the Incline LED is lit the Dot Matrix displays the Incline profile. You may
change the Dot Matrix profile view by pressing the Select button. After scrolling through the three
profiles, by pressing the Select button, the Dot matrix will automatically scroll through the three displays
showing each one for four seconds. The LED associated with each profile will blink while that view is
displayed. One more press of the Display button will return you to the Track profile.

13 ©2009
Incline: Displays the incline position from 0 to 10
Calories: Displays the cumulative calories burned at any given time during your workout.
Counts down from your preset target calories to 0 during your workout.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Time: Displays your elapsed workout time in minutes up to 99:59
Counts down from your preset target time to 00:00 during your workout
Distance: Displays the distance traveled in miles
Counts down from your preset target distance to 0
Speed: Display the current speed in miles per hour
Pulse: Displays the user’s current heart rate in beats per minutes during the workout.
To display your heart rate, you must hold both handrails.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
¼ Track: The ¼ mile track will be displayed around the dot matrix window. The flashing dot
indicates your progress. Once the ¼ mile is complete this feature will begin again.
Function Buttons on monitor:
Up: Press the “up” button to raise the incline position. The maximum incline position is 15.
Down: Press the “down” button to lower the incline position. The minimum incline position is 0.
Select /: Press the “select” button to select the profile to display. You can display either
Display speed or incline or ¼ mile track in the program mode.
Program▲▼: There are a total of 8 programs select from. Manual (P0), P1 to P5 are speed and incline
program, 2 user.
Fast: Press the “fast” button to increase your speed from .6 to 10mph.
Slow: Press the “slow” button to decrease your speed from 10mph to 0.6.
5 preset speed: 2mph 4mph 6mph 8mph 10mph
Press your desired speed and the treadmill will automatically adjust to your preset
speed.
5 preset incline: 2%, 4%, 6%, 8%, 10% incline.
Press your desired incline position and the treadmill will automatically adjust to your
preset incline.

14 ©2009
Start: Press the “start” button to start your treadmill.
Stop: Press the “stop” button to stop your treadmill
Press and hold for 3 seconds to reset value to zero.
To Operate treadmill
Note: Before operating your treadmill, become familiar with all operating parts and controls - their
location and function see figure 4 on page 13.
CAUTION: To avoid injury, hold onto Handrail while mounting and dismounting treadmill. Hold onto
handrail and place feet on side rails before starting. Step onto treadbelt only at slowest speed.
Monitor Operation
STEP BY STEP CONSOLE OPERATION
Before operating the console make sure that the power cord (32) is properly plugged in and the on / off
button (73) is on.
Place the safety key (30) on the console. The console display will automatically turn on.
1. Hold onto handrail and place feet on siderails before starting treadmill.
2. Attach the safety key (30) to your clothing (ie: waistband), after you have placed the safety on the
console. If you should slip or fall while exercising the safety key will pull out of the console, shutting
off the treadmill.
Programmable Features
The treadmill has preset programs and 2 user programs. Each preset program has a maximum speed
level that is displayed when a desired workout is chosen. The maximum speed that the particular
program will achieve will be displayed in the Speed window. Also included are two user programs (User
1 and User 2) for custom workouts.
PRESET PROGRAM (P0)
STEP 1: Press the desired Program Up / Down key. Press enter to set the program. The display will
prompt you through the programming or you can just press Start to begin the program with default values.
STEP 2: If Enter was pressed, the Time window will blink with the default value of 0 minutes. You may
use any of the up/down keys to adjust the time. Range is from 0:00 to 99:00. After adjusting, or to accept
the default, press enter.
STEP 3: The Time window will now be blinking a value, which is your Bodyweight. Entering the correct
bodyweight will affect the calorie count. Use the Up/Down keys to adjust, then press enter. Range is from
0:00 to 99:00. A note about the Calorie display: No exercise machine can give you an exact calorie count
because there are too many factors which determine exact calorie burn for a particular person. Even if
someone is the exact same bodyweight, age and height, their calorie burn may be very different than
yours. The Calorie display is to be used as a reference only to monitor improvement from workout to
workout.
STEP 4: The Time window will now be blinking an Age value. Adjust the age and press enter.
Press the START or ENTER key to Reset.

15 ©2009
PRESET PROGRAM (P-1 ~ P-5)
Step 1. Press the desired Program Up / Down key. Press enter to set the program. The display will
prompt you through the programming or you can just press Start to begin the program with default values.
STEP 2: If Enter was pressed, the Time window will blink with the default value of 20 minutes. You may
use any of the up/down keys to adjust the time. Range is from 0:00 to 99:00. After adjusting, or to accept
the default, press enter. (Note: You may press start at any time during the programming to start the
program.)
STEP 3. The Weight window will now be blinking a bodyweight value. Enter your bodyweight and press
Enter.
STEP 4. The Age window will now be blinking an Age value. Adjust the age and press enter.
Step 5. Press “SELECT” to choose Speed and Incline profile or Speed profile or Incline profile then press
ENTER. (In this condition is Speed and Incline profile, press ENTER to the next segment or press
SELECT to choose Speed profile or Incline profile.)
Step 6. Press “ENTER” key to set the Max Speed.
Press the START or ENTER key to Reset.
User Programs:
STEP 1: Select User 1 or User 2 via the Program UP/Down key then press Enter key to set.
STEP 2: Note the clock (Time) window is flashing. Use the Up / Down keys to adjust up from 10 minutes
(if desired). Press Enter key. This is a must to continue even if time is not adjusted.
STEP 3: The Time window will now be blinking a bodyweight value. Press Program Up/Down Key to
enter your bodyweight and press Enter.
STEP 4: The Time window will now be blinking an Age value. Adjust the age and press enter.
STEP 5: Press the “enter” button to set your speed and incline value for each of the 20 segments. Each
segment includes a speed and incline value, use the “fast” and “slow” button to set the speed and the “up”
and “down” button to set the incline. You will need to press the “enter” button after each value is set.
STEP 6: After setting, press “START” button to start training. Press Fast / Slow button to adjust speed or
press up / down button to adjust incline. You can press “STOP” button to stop training during operation.
Press the START or ENTER key to Reset.

16 ©2009
＊SPEED PROFILE
P1 SPEED PROFILE
P2 SPEED PROFILE
P3 SPEED PROFILE
P4 SPEED PROFILE
P5 SPEED PROFILE
P1 INCLINE PROFILE
P2 INCLINE PROFILE
P3 INCLINE PROFILE
P4 INCLINE PROFILE
P5 INCLINE PROFILE
＊INCLINE PROFILE

17 ©2009
FOLDING AND MOVING YOUR TREADMILL
Before folding the treadmill, ensure that the treadmill is at it’s lowest incline position. Turn the power
switch off, located on the front of the motor cover and unplug the power cord.
CAUTION: You must be able to safely lift 20 kg (45lbs) in order to raise and lower the treadmill.
To decrease the possibility of injury, bend your legs and keep your back straight while you
are raising or lowering your treadmill.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85 degrees
Fahrenheit.
Unfolding
Hold the treadmill running deck with left hand. Pull the locking knob with your right hand and slowly
lower the treadmill running deck. The deck will lower unassisted when it reaches about waist high.
Folding
Lift the treadmill running deck with your left hand. Pull the locking knob with your right hand and slowly
raise the treadmill running deck until the treadmill is locked by the locking knob.
Moving
Before moving the treadmill, fold the treadmill to the stored position as described above. Hold the upper
ends of the handrails and slowly move the treadmill to your desired location.
To reduce the risk of injury, use extreme caution while moving the treadmill, do not attempt to move the
treadmill over an uneven surface.

18 ©2009
PARTS LIST
KEY NO. PART NO. DESCRIPTION O'TY
1 293001 Main Frame 1
2 293002 Frame Base 1
3 293003 Incline Bracket 1
4 293004 Left Upright 1
5 293005 Right Upright 1
6-1 293006-1 Console Support 1
7 293007 Outer Slide 1
8 293008 Inner Slide 1
9 293009 Locking Knob Axle 1
10 293010 Bottom Motor Cover 1
11 293011 Belt Guide 2
12 293012 Running Board 1
13 293013 Running Belt 1
14 293014 Drive Belt 1
15 293015 Front Roller W/Pulley 1
16 293016 Rear Roller 1
17 293017 Ø10 x Ø14 x 35.5L_Sleeve 2
18 293018 Magnet 2
19 293019 Cylinder 1
20 293020 Handgrip Foam 2
21 293021 Wire Tie Mount 6
22 293022 Motor 1
23 293023 Incline Motor 1
24 293024 Controller 1
25 293025 800mm Adjustment Switch W/Cable 2
25~1 293025-1 Handpulse Power Input Cover 2
25~2 293025-2 Handpulse Adjustment Thin Film Label 2
25~3 293025-3 Speed Adjustment Thin Film Label 1
25~4 293025-4 Incline Adjustment Thin Film Label 1
27~1 293027-1 Handpulse Assembly Top 2
27~2 293027-2 Handpulse Assembly Bottom 2
27~3 293027-3 Handpulse Plate 4
27~4 293027-4 1500mm_Handpulse Wire 1
28 293028 1000m/m Sensor W/Cable 1
29 293029 Power Socket 1
30 293030 Trapezoidal Safety Key 1
31 293031 1000m/m Safety Switch Upper Cable 1
32 293032 Power Cord 1
33 293033 200m/m×764×764 _Connecting Wire (Black) 1
34 293034 100m/m×764×764 _Connecting Wire (Black) 1
35 293035 200m/m×764×764 _Connecting Wire (White) 1
36 293036 800m/m Upper Computer Cable 1
37 293037 1200m/m Computer Extension Cable 1
38 293038 1000m/m Lower Computer Cable 1

19 ©2009
KEY NO. PART NO. DESCRIPTION O'TY
39~1 293039-1 Top Console w/Cover 1
39~2 293039-2 Bottom Console Cover 1
40 293040 Top Switch Cover 1
40~1 293040-1 Start Key (L) 1
40~2 293040-2 Stop Key (R) 1
40~3 293040-3 100m/m Safety Switch W/ Module 1
40~4 293040-4 Safety Switch Key 2
40~5 293040-5 Single Key Board 2
40~6 293040-6 1100m/m_Single Key Board Connecting Wire 1
40~7 293040-7 1400m/m_Single Key Board Connecting Wire 1
41 293041 Bottom Switch Cover 1
42 293042 Oval Button Head End Cap 2
43 293043 Right Frame Base Cap 1
44 293044 Right Frame Base Cap 1
45 293045 Left Frame Base Cap 1
46 293046 Left Frame Base Cap 1
47 293047 Front Transportation Wheel 2
48 293048 Rear Transportation Wheel 2
49 293049 □30x60 _Square End Cap 2
50 293050 Motor Cover Anchor 4
51 293051 Top Motor Cover 1
52 293052 470m/m_Foot Rail 2
54 293054 Cushion 6
55 293055 Rear Left Adjustment Base 1
56 293056 Rear Right Adjustment Base 1
57 293057 Foot Pad Cover 2
58 293058 □25.4x25.4_Square End Cap 1
59 293059 □21.4x21.4_Square End Cap 1
60 293060 Foot Pad 2
61 293051 Sensor Bracket 1
62 293062 Ø10 x 24 x 3T _Nylon Washer (A) 3
63 293063 Ø50 x 13 x 3T _Nylon Washer (B) 4
64 293064 Frame Base End Cap Right 1
65 293065 Frame Base End Cap Left 1
66 293066 Right Step Pad 1
67 293067 Non-Slip Rubber（R）1
68 293068 Non-Slip Rubber（L）1
70 293070 Handgrip Side Cap Left 1
71 293071 Handgrip Side Cap Right 1
72 293072 Breaker 1
73 293073 On / Off Switch 1
74 293074 1/2" x 1-1/4"_Carriage Bolt 2
75 293075 1/2" x 1"_Hex Head Bolt 2
76 293076 3/8" x 4"_Hex Head Bolt 1
77 293077 3/8" x 92m/m_Hex Head Bolt 1
78 293078 3/8" x 1" _Hex Head Bolt 4
79 293079 3/8" x 1-1/2" _Hex Head Bolt 1
