Freespirit Free Spirit C 249 30860 0 User manual

CAUTION:Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied as they
relate to the equipment.
IMPORTANT:Read all instructions carefully before using this product. Retain this owner’s
manual for future reference.
SEARS CANADA INC.
‧ TORONTO , ONTARIO M5B 2B8
C 249 30860 0
OWNER’S MANUAL
ASSEMBLY‧OPERATION‧MAINTENANCE
WARRANTY‧PART ORDERING

©2009
1
TABLE OF CONTENTS
Warranty……………………………… 2
Safety Precautions……………………. 3-4
Before you begin ..……………………. 5
Assembly Check List…………………. 6
Assembly……………………………… 7-8
Treadmill & Monitor Operation…….. 9-12
How To Adjust Incline………………… 13

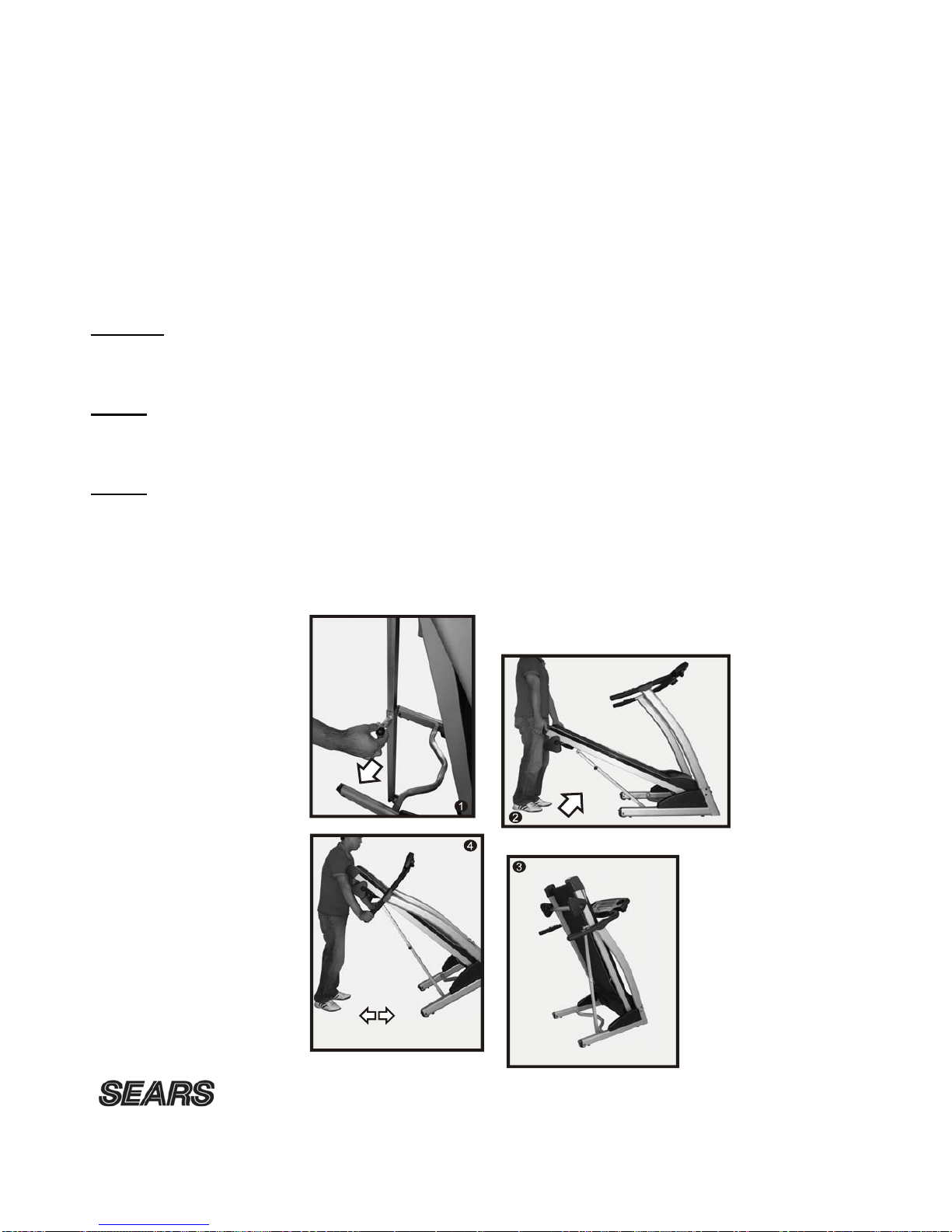

Folding………………………………… 14
Parts list……………………………….. 15-16

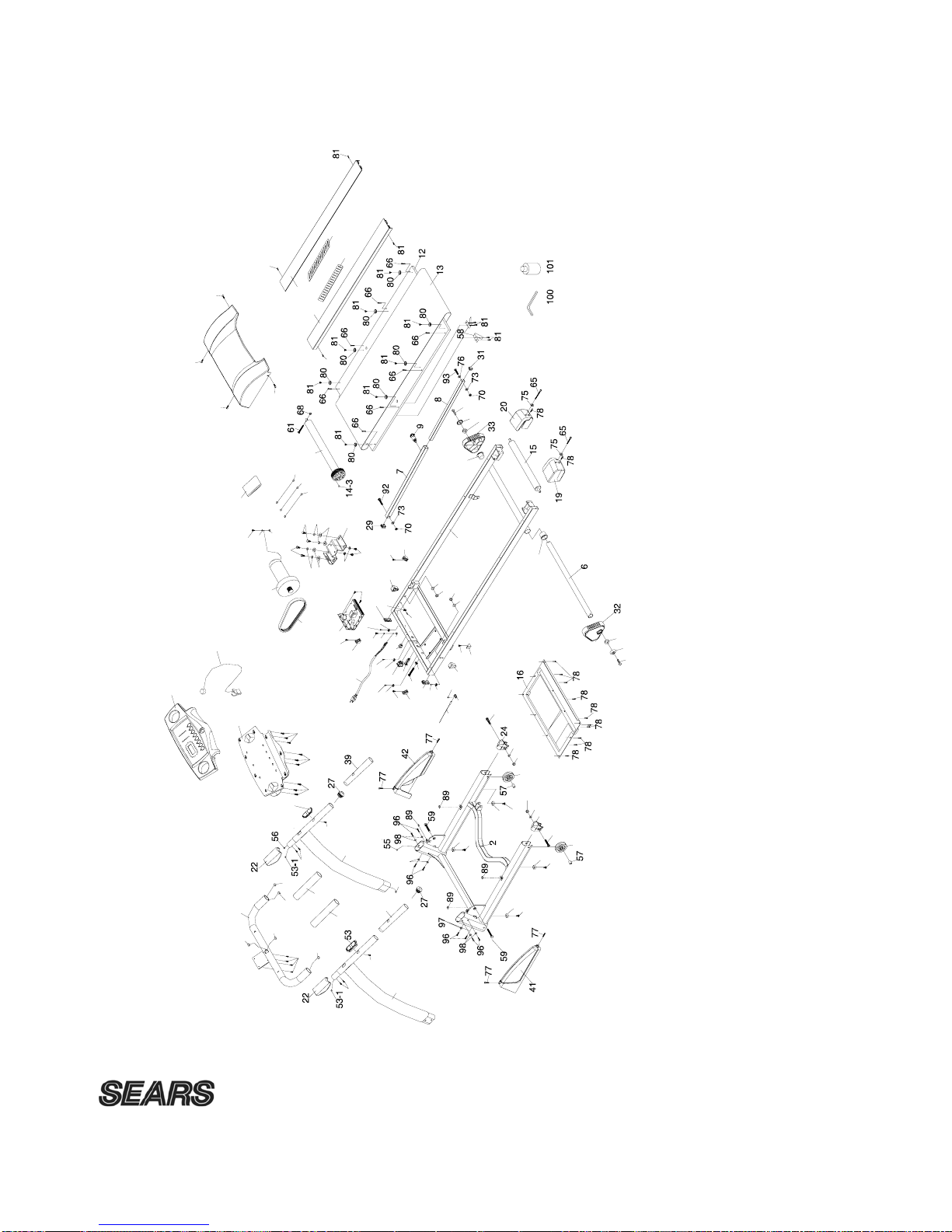

Overview Drawing……………………. 17-18
Trouble Shooting……………………… 19
Maintenance…………………………... 20-23
Training guidelines…………………… 24-26
Stretching……..………………………. 27-28
Ordering Replacement parts ……….. 29
Service and Parts ……………………. 30

©2009
2
WHAT DOES THIS WARRANTY COVER? This warranty covers your Free Spirit Treadmill against
defects in material and workmanship when used for the purpose intended, under normal conditions and
provided it receives proper care.
HOW LONG DOES THE COVERAGE LAST? This warranty lasts for one year on all parts and labour,
3 years on motor only and 10 years on the frame from date of purchase. This warranty is not transferable
and is extended only to the original owner.
WHAT WILL SEARS DO? Sears will provide a replacement part at no charge for any part found
defective in workmanship or materials during the warranty period.
WHAT DOES THIS WARRANTY NOT COVER? This warranty does not cover fitness products
which are (1) used for commercial or other income producing purposes, or (2) subject to misuse, neglect,
accident or unauthorized repairs and alterations. Some provinces do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
HOW DO YOU GET SERVICE? In order to obtain service as provided by this warranty, contact your
nearest Sears Canada Inc. service center.
WHAT DOES THIS WARRANTY COVER? This warranty covers your treadmill motor against defects
in material and workmanship when used for the purpose intended, under normal conditions and provided it
receives proper care.
HOW LONG DOES THE COVERAGE LAST? This warranty lasts for three years from date of
purchase. This warranty is not transferable and is extended only to the original owner.
WHAT YOU NEED TO DO? You need to record the date of purchase in the area provided below. You
must keep your receipt which shows the date of purchase of your treadmill. We suggest you staple it to
this page.
WHAT WILL SEARS DO? Sears provide a replacement part at no charge for any part found defective in
workmanship or materials during the warranty period.
WHAT DOES THIS WARRANTY NOT COVER? This warranty does not cover fitness products which are
(1) used for commercial or other income producing purposes, or (2) subject to misuse, neglect, accident or
unauthorized repairs and alterations. Some provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
HOW DO YOU GET SERVICE? In order to obtain replacement parts as provided by this warranty,
contact your nearest Sears Canada Inc. store, service center or the manufacturer at 1-888-707-1880.
IMPORTANT SAFETY INFORMATION
THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
WARRANTY
MANUFACTURER LIMITED WARRANTY, REPAIR AND SERVICE
SEARS THREE-YEAR MOTOR WARRANTY

©2009
3
READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL
CAUTION: Before starting any exercise program, it is recommended that you consult your physician.
WARNING: Connect this unit to a properly grounded outlet only.
DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet
immediately after using and before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Use 120 volt a.c. household current on a dedicated circuit.

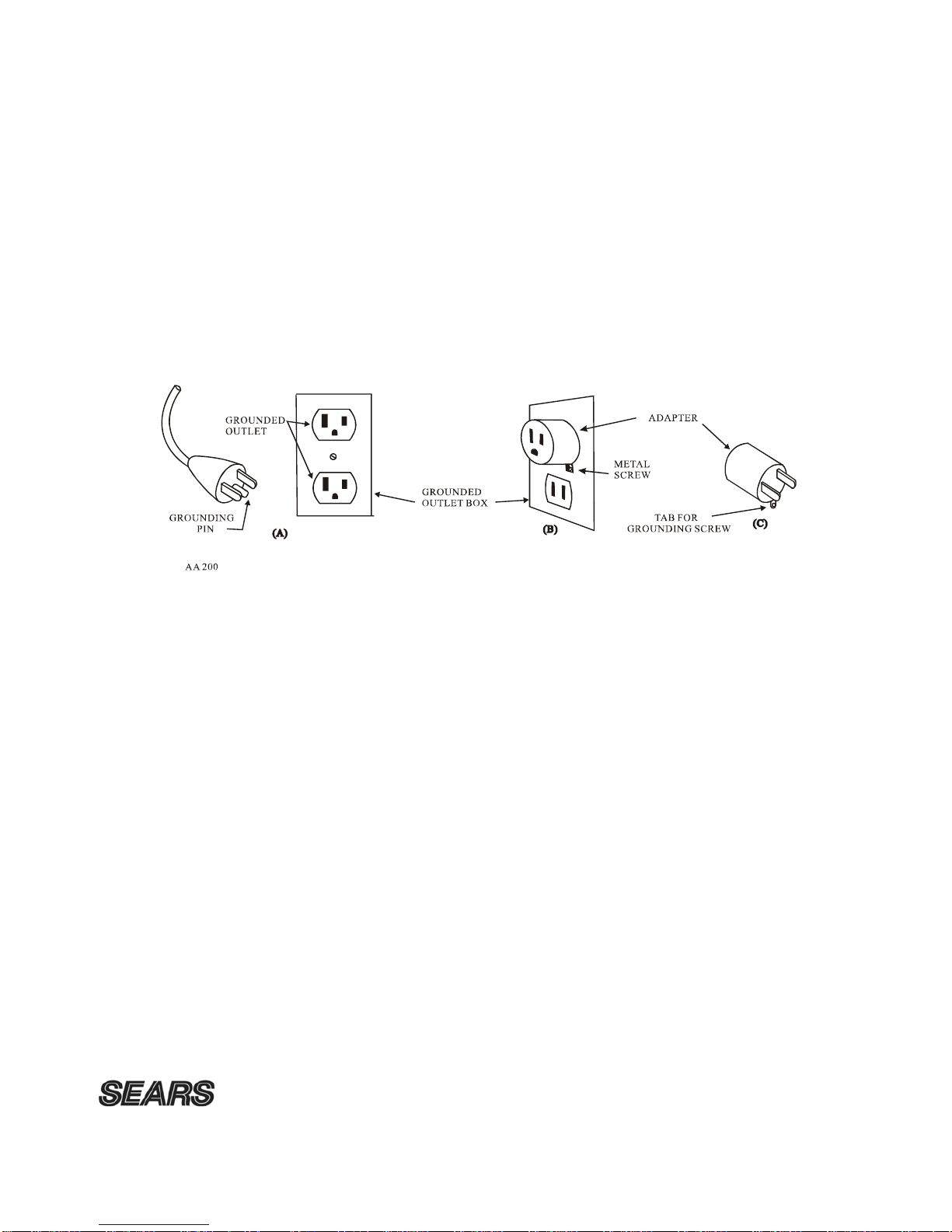

Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current
to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. See diagram below for grounding methods.
2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
3. The use of an extension cord with this product is not recommended. If an extension cord is needed, use a short (less than 10 feet)
heavy gauge (14 gauge or better) extension cord with a three prong (grounded) plug and receptacle.
4. Never leave the treadmill unattended when plugged in. Remove the safety key and unplug the unit from the outlet when not in use
and before removing or replacing parts.
5. Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged, or
exposed to water. Never move the treadmill belt while the power is turned off.
6. Do not pull the treadmill by the power supply cord or use cord as a handle. Keep cord away from heated surfaces and open flames.
7. Fitness equipment must always be installed and used on a flat surface. Do not use outdoors or near water. Do not place the unit on
a loose rug or uneven surface. It is recommended to use an equipment mat to prevent the unit from moving while it is being used,
which could possibly scratch or damage the surface of your floor. It is recommended to have a minimum of 3 metres safe clearance
on all sides of the treadmill while in use.
8. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage, covered patio or near water.
9. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
10. Read, understand and test the emergency stop procedure before using the treadmill (see operation and adjustment on page 10)
11. Do not insert any objects into any openings.
12. Inspect and properly tighten all parts of the treadmill regularly.
13. Keep children and pets away from this equipment at all times while exercising.
14.Handicapped individuals should have medical approval and close supervision when using this treadmill.
15. Do not place hands or feet under the treadmill. Always keep hands and legs off of the treadmill when others are using it.
16. Never turn on treadmill while standing on treadbelt. Always hold the handrails while using the treadmill. Always return the
treadmill to the slowest speed to provide for safe dismount and low speed restart.
17.To disconnect, turn all controls to the off position, then remove plug from outlet.
18.Do not attempt to raise, lower or move the treadmill until it is properly assembled. See assembly on page 6. Care must be taken
when lifting or moving the equipment, so as not to injure your back. Always use proper lifting techniques. You must use any
attachments that are not recommended by the manufacturer.
19. Use the treadmill only for its intended use as described in this manual. Do not use any attachments that are not recommended by
the manufacturer.
20. User weight should not exceed 265lbs (120 kg).
21. Never allow more than one person on the treadmill at once.

©2009
4
22. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward. This allows your heart rate to gradually
increase and decrease and will help prevent straining muscles.
23. Never hold your breath while exercising. Breathing should remain at a normal rate in conjunction with the level of exercise being
performed.
24. Start your program slowly and very gradually increase your speed and distance.
25. Always wear suitable clothing and footwear while exercising. Do not wear loose fitting clothing that could become entangled with
the moving parts of your treadmill. Do not walk or jog barefoot, in stocking feet or loose fitting shoes or slippers.
26. This treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental or institutional setting.
▲WARNING: Before beginning any exercise program consult your physician. This is especially important for individuals over the
age of 35 or persons with pre-existing health problems. Read all instructions before using any fitness equipment. We assume no
responsibility from personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

©2009
5
Before you begin.
Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product we
produce, occasional errors and /or omissions do occur. In any event should you find this product to have either a defective
or a missing part please contact us for a replacement.
This product has been designed for home use only. Product liability and guarantee conditions will not be applicable to
products being subjected to professional use or products being used in a gym center.
This exercise equipment was designed and built for optimum safety. However, certain precautions apply whenever you
operate a piece of exercise equipment. Be sure to read the entire manual before assembly and operation of this
machine.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
MAX. USER WEIGHT LIMIT 120 KGS
Safety Key
Handgrip tube
Handpulse
Locking Knob
Console
Incline adjustor
Upright
Main frame
Walking belt
Wheel
Circuit breake
r
On / off switch
Adjustment bolts
Motor cover
Foot
r
ail

©2009
6
Assembly
It will take two people to assemble your unit.
Set the treadmill in a cleared area and remove all packing material. Do not dispose of the material until your
assembly is completed. Note: The underside of your treadmill’s walking belt is coated with a lubricant. During
shipping, a small amount of lubricant may be transferred to the top of the waling belt or the shipping carton.
This does not affect the treadmill’s performance. If you notice any lubricant on the top of the walking belt,
simply wipe off the lubricant with a soft cloth and a mild, non abrasive cleaner.
For the sake of familiarizing yourself with the parts identified in the instructions, first study the overview
drawing.
Assembly only requires the included wrenches.
DO NOT ATTEMPT TO RAISE
#96. 5/16" ×15m/m
Button Head Socket Bolt (12pcs)
#40. Safety Key (1pc)
#98. 5/16" ×18 ×1.5T
Flat Washer (4pcs)
#97. 5/16" ×23 ×1.5T
Curved Washer (4pcs)
#100. Combination M5 Allen Wrench
& Phillips Head Screw Driver (1 pc) #101. Lubricant (1pc)

©2009
7

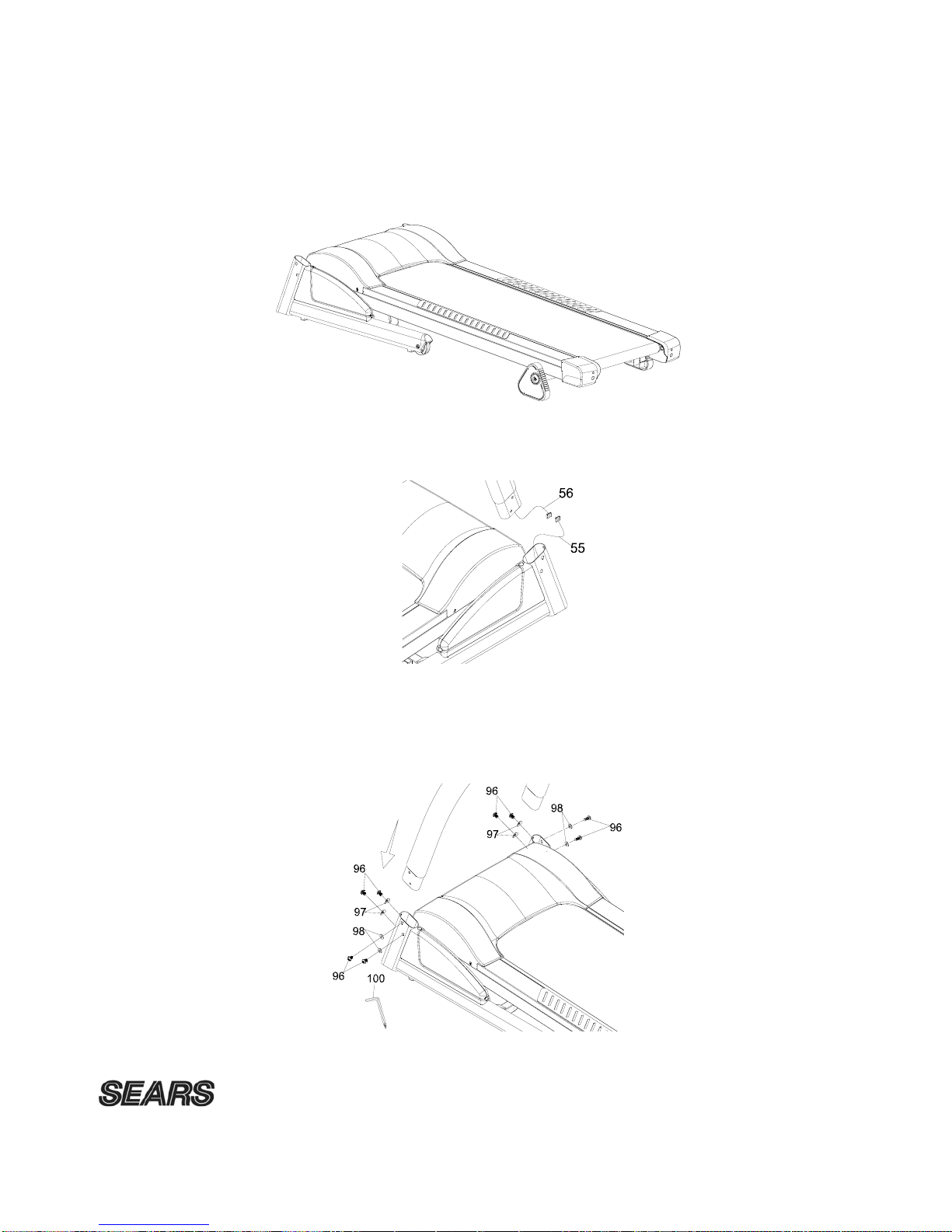

ASEMBLY INSTRUCTION
STEP 1
Remove the treadmill from the carton.
STEP 2
Connect the lower computer wire (55) to the extension computer wire(56).
STEP 3
Insert the right upright (3) into the main frame (2). Secure using four 5/16"×15m/m button head socket bolts (96), four 5/16" x 18 ×
1.5T Flat Washers (98) and four 5/16" ×23 ×1.5T Curved Washers (97) the Combination M5 Allen Wrench & Phillips Head Screw
Driver (100). Hand tighten only using the combination M5 Allen Wrench & Phillips Head Screw Driver (100)
Repeat for the left upright (3).

©2009
8

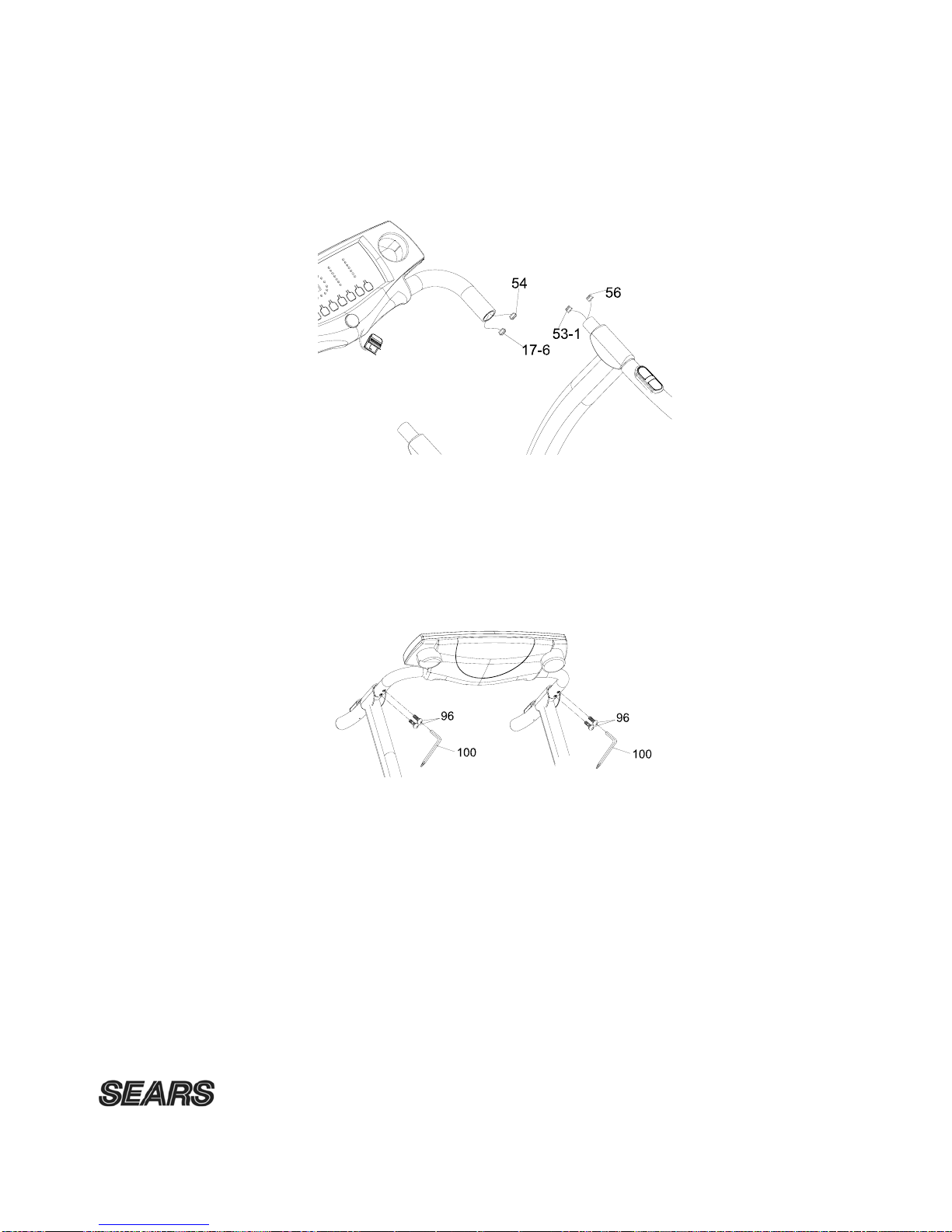

STEP 4
Connect the extension computer wire (56) to the upper computer wire (54). Connect the upper handpulse wire (17~6) to the handpulse
Wire (53~1)
STEP 5
Attach the console support (5) to the left and right uprights (4,3).
Secure using four 5/16"×15m/m button head socket bolts (96). Hand tighten only using the combination M5 Allen Wrench & Phillips
Head Screw Driver (100).
NOTE: ENSURE THAT ALL NUTS AND BOLTS ARE FIRMLY TIGHTENED AFTER
YOU HAVE COMPLETED THE ASSEMBLY.

©2009
9
TREADMILL OPERATION
Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray or
other substances to the walking belt or walking board. Such substances will deteriorate the walking belt and
cause excessive wear.
How to plug in the power cord.
GROUNDING INSTRUCTIONS.
This product must be grounded. No plug adapter should be
used with this product.
▲WARNING: Improper connection of the equipment
grounding conductor can result in a risk of an electric
shock. Check with a qualified electrician if you are in doubt
as to whether the product is properly grounded. Do not
modify the plug provided with the product, if it will not fit
the outlet; have a proper outlet installed by a qualified
electrician. The use of an extension cord with this product
is not recommended. If an extension cord is needed, use a
short (less than 10 feet) heavy gauge (14 gauge or better)
extension cord with a three prong (grounded) plug and
receptacle. IMPORTANT: If the power cord is damaged,
it must be replaced with a manufacturer recommended
power cord.

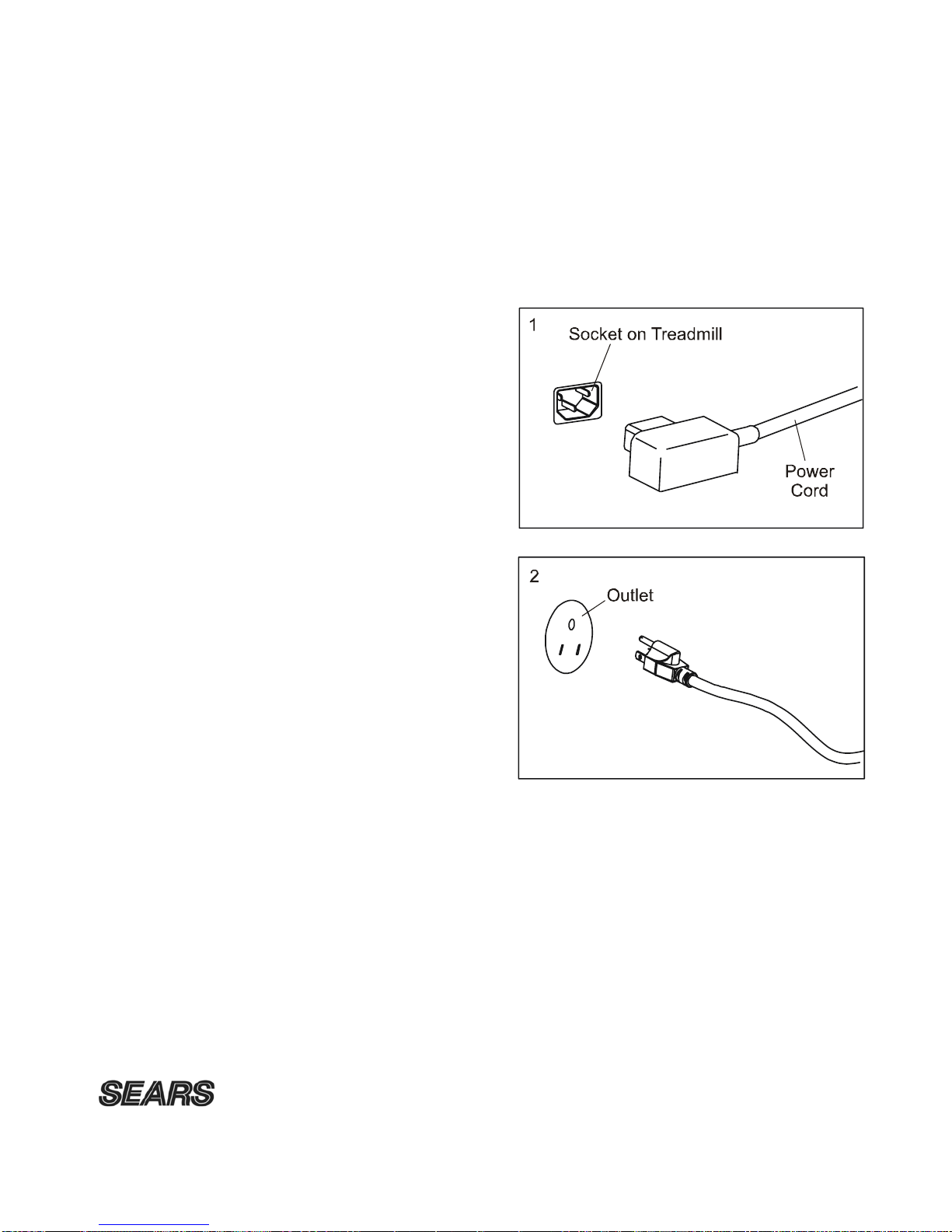

1. Plug the indicated end of the power cord into the
socket of the treadmill. See drawing below
2. Plug the power cord into an appropriate outlet
that is properly installed and grounded. See
drawing below. Important: The treadmill is not
compatible with GFCI-equipped outlets.
Note: Your power cord and outlet may appear different

©2009
10

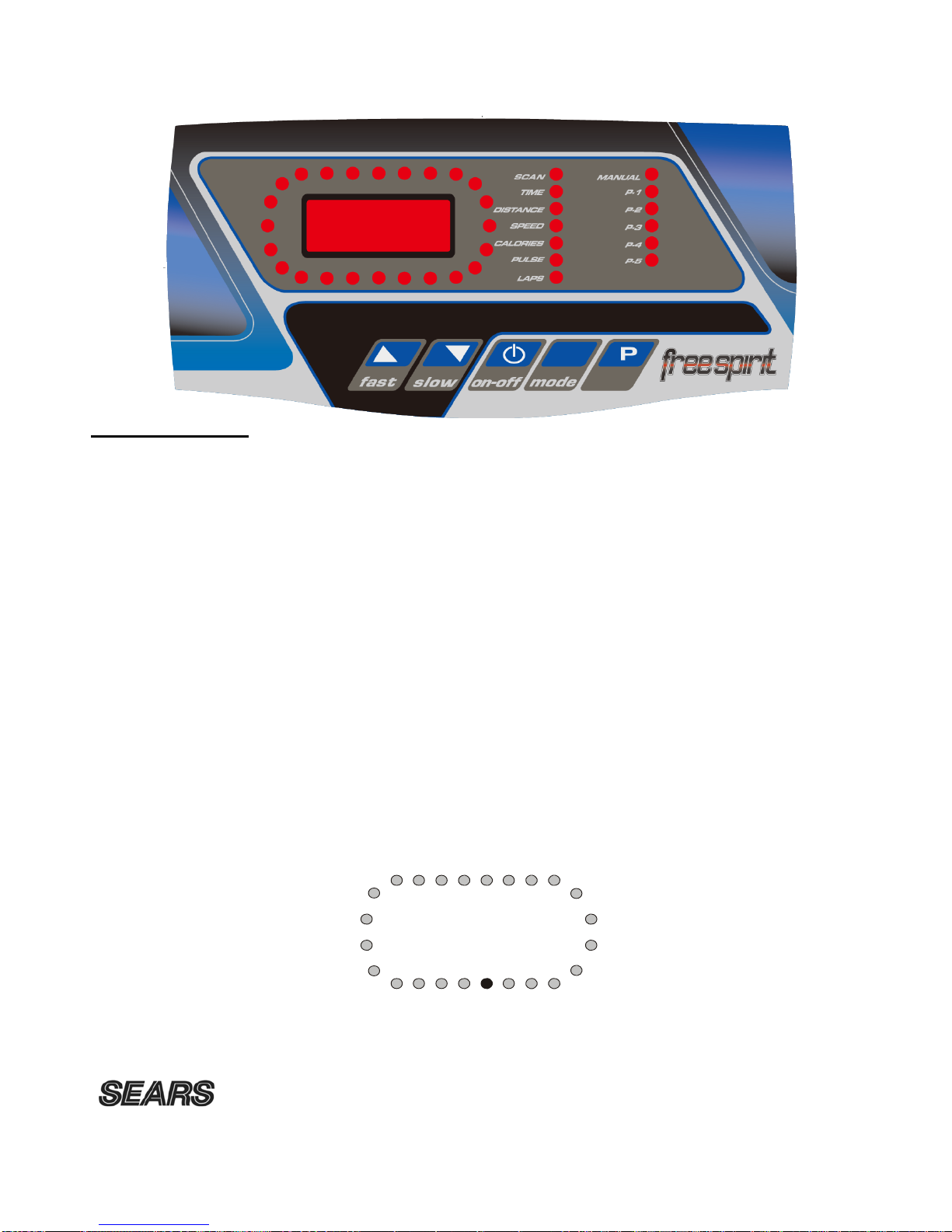

MONITOR INSTRUCTIONS
▲CAUTION: Before operating the console, read the following precautions:
•Do not stand on the walking belt when turning on the treadmill
•Always wear the safety key
•Adjust the speed in small increments to avoid sudden jumps in speed
•To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console
and place only sealed water bottles in the water bottle holders.
TO OPERATE TREADMILL
▲CAUTION: To avoid injury, hold onto the handrails while mounting and dismounting the treadmill. Hold
onto the handrails and place feet on siderails before starting. Step onto the walking belt only a slowest speed.
Before operating the console make sure that the power cord (52) is properly plugged in and the on / off button
(51) is on.
1. Hold onto handrail and place feet on siderails before starting treadmill. (Do not stand on treadbelt).
2. Attach the magnet end of the safety key (40) onto the monitor and attach the clip end of the safety key (40)
to your clothing (ie: waistband). If you should slip or fall while exercising the safety key will pull out of
the console, shutting off the treadmill.
3. Choose which program you want to select, manual (P0) or pre-set (p1-p5). Press the “fast / slow” button
until the desired program is displayed.
A- Manual mode P0: Press the “P” button to choose the manual program. Before beginning your
exercise program, you can set the time. Press the “MODE” button until time, distance or calorie is
displayed. Press the “FAST” or “SLOW” button to set the desired value then press “MODE” to
accept the value.
B- Program mode P1-P5: Press the “P” button to choose your desired preset program P1-P5. Your
monitor’s preset count down time is 20 minutes. You can set the time to count down from 99
minutes to 10 minutes. Press the “MODE” button to display time, press the “FAST” or “SLOW”
button to set the desired time. Now press the “MODE” button to accept the time value. Press
“ON/OFF” button to resume and time will count up. The treadmill will stop once the time goes to
zero. You can may change the speed while you are exercising (same as the manual program) but
the next segment of the program will resume to its original position.
4. Press the “ON/OFF” button to start the treadbelt, the monitor will beep three times. The belt will begin to
move, carefully step onto the treadbelt. To change the walking belt speed, press the “FAST” or “SLOW”
buttons.
5. To stop your exercise program in the manual mode, press the “ON/OFF” button to stop the walking belt.
A series of beeps will indicate the end of the programs
Note: Before operating your treadmill, become familiar with all operating parts and controls - their location and
function on page 5.

©2009
11
WINDOW DISPLAY
Scan: Displays each function in sequence every 5 seconds. The display loop is speed, time, distance,
calories and pulse.
Time: Displays your elapsed workout time in minutes up to 99:59.
Counts down from your preset target time to 00:00 during your workout.
Distance: Displays the distance traveled in miles up to 99.99 miles.
Counts down from your preset target distance to 0 during your workout
Speed: Displays the current speed in miles per hour.
Calories: Displays the cumulative calories burned at any given time during your workout.
Counts down from your preset calorie target to 0 during your workout.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Pulse: Displays the user’s current heart rate in beats per minutes during the workout.
To display your heart rate, you must hold both handpulse sensors.
Note: This is a rough guide used for comparison of different exercise sessions, which cannot be
used for medical purposes.
LAPS: Displays total lap quantity. One lap equals 0.4mile.
PROGRAMS: Displays the users program. There are a total of 6 programs to choose from. Manual and 5 pre-
set speed programs.

©2009
12
FUNCTION BUTTONS:
ON/OFF: Press “ON” button and there will be 3 warning beep sound and then machine is started.
Press “OFF” button to enter into pause mode.
FAST: Press “FAST” button to increase your speed. The maximum speed is 7 M/H
SLOW: Press “SLOW” button to decrease your speed. The minimum speed is 0.6 M/H
MODE:
Press the “mode” button to select function.
Program (P): There are a total of 6 programs to choose from: manual program, 5 pre-set speed programs. Press
the “PROGRAM” button to select the desired program. Each program is divided into 20 segments
with time alternative of 0 to 99 minutes (increments of 1 minute). Ie: 20 minute program will
have 20 segments of 1.0 minutes.
The speed of the preset profile in each program
PRESET PROGRAM AT 100% OF SPEED
100% SEG 1 SEG 2 SEG 3 SEG 4 SEG 5 SEG 6 SEG 7 SEG 8 SEG 9 SEG 10
P_1 1.8M 1.8M 4.3M 1.8M 4.3M 1.8M 4.3M 1.8M 1.8M 1.8M
P_2 1.8M 1.8M 3.1M 1.8M 3.7M 3.7M 1.8M 3.7M 1.8M 1.8M
P_3 2.5M 2.5M 3.1M 2.5M 3.7M 4.3M 2.5M 5.0M 2.5M 2.5M
P_4 1.8M 1.8M 3.1M 3.7M 4.3M 3.7M 4.3M 5.0M 3.1M 1.8M
P_5 1.8M 4.3M 1.8M 5.0M 1.8M 5.0M 1.8M 4.3M 3.1M 1.8M
RESET PROGRAM AT 80% OF SPEED
80% SEG 1 SEG 2 SEG 3 SEG 4 SEG 5 SEG 6 SEG 7 SEG 8 SEG 9 SEG 10
P_1 1.5M 1.5M 3.5M 1.5M 3.5M 1.5M 3.5M 1.5M 1.5M 1.5M
P_2 1.5M 1.5M 2.5M
1.5M 3.0M 3.0M 1.5M 3.0M 1.5M 1.5M
P_3 2.0M 2.0M 2.5M 2.0M 3.0M 3.5M 2.0M 4.0M 2.0M 2.0M
P_4 1.5M 1.5M 2.5M 3.0M 3.5M 3.0M 3.5M 4.0M 2.5M 1.5M
P_5 1.5M 3.5M 1.5M 4.0M 1.5M 4.0M 1.5M 3.5M 2.5M 1.5M
PRESET PROGRAM AT 60% OF SPEED
60% SEG 1 SEG 2 SEG 3 SEG 4 SEG 5 SEG 6 SEG 7 SEG 8 SEG 9 SEG 10
P_1 1.1M 1.1M 2.6M 1.1M 2.6M 1.1M 2.6M 1.1M 1.1M 1.1M
P_2 1.1M 1.1M 1.8M
1.1M 2.2M 2.2M 1.1M 2.2M 1.1M 1.1M
P_3 1.5M 1.5M 1.8M 1.5M 2.2M 2.6M 1.5M 3.0M 1.5M 1.5M
P_4 1.1M 1.1M 1.8M 2.2M 2.6M 2.2M 2.6M 3.0M 1.8M 1.1M
P_5 1.1M 2.6M 1.1M 3.0M 1.1M 3.0M 1.8M 2.6M 1.8M 1.1M
Remarks
1. Scan will flash every function for 5 seconds or press mode key to scan to your desired function.
2. It is not recommended to preset more than one value. If more than one value is preset the values will
all reset to zero once one of the preset value reaches it’s set value.
3. Press the Program key for 4 seconds to reset “all” values to zero.
4. When both the TIME and LAPS are set the machine will stop when any one of them reaches zero and the
settings will display the final accumulated value. If you don’t reset the accumulated value, after re-starting
machine, the value will resume counting.

©2009
13
HOW TO ADJUST THE INCLINE LEVEL
(1) Turn the Inclination Adjustor to adjust the position of incline.
(2) Inclination Adjustor have three levels, Level 1 being the highest incline and level 3 being the lowest incline from the
floor.

©2009
14
FOLDING AND MOVING YOUR TREADMILL
Before folding the treadmill, ensure that the treadmill is at its lowest incline position. Turn the power switch off, located on the
front of the motor cover and unplug the power cord.
CAUTION: You must be able to safely lift 20 kg (45lbs) in order to raise and lower the treadmill.
To decrease the possibility of injury, bend your legs and keep your back straight while you are
raising or lowering your treadmill.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct
sunlight. Do not leave the treadmill in the storage position in temperatures above 85 degrees Fahrenheit.
Unfolding
Hold the treadmill running deck with right hand. Pull the locking knob with your right hand and slowly lower
the treadmill running deck.
Folding
Lift the treadmill running deck with your right hand. Pull the locking knob with your right hand and slower raise
the treadmill running deck until the treadmill is locked by the locking knob.
Moving
Before moving the treadmill, fold the treadmill to the stored position as described above. Holding the upper
ends of the handgrips, carefully tilt the treadmill towards you and slowly move the treadmill to your desired
location.
To reduce the risk of injury, use extreme caution while moving the treadmill, do not attempt to move the
treadmill over an uneven surface.

©2009
15
Parts List
KEY NO. PART NO. DESCRIPTION O'TY
1 063701 Main Frame 1
2 063702 Frame Base 1
3 063703 Right Handrail 1
4 063704 Left Handrail 1
5 063705 Console Support 1
6 063706 Inclination Adjustor Bar 1
7 063707 Outer Slide 1
8 063708 Inner Slide 1
9 063709 Folding Release Pin Assembly 1
10 063710 Motor 1
11 063711 Drive Belt 1
12 063712 Running Deck 1
13 063713 Running Belt 1
14 063714 Front Roller W/Pulley 1
14~3 063714-3 Ø10_Magnet 2
15 063715 Rear Roller 1
16 063716 Frame Cover 1
17~1 063717-1 Top Console Cover w/computer 1
17~2 063717-2 Inner Console Cover 1
17~6 063717-6 750m/m_Handpulse Wires (Upper) 1
18 063718 Top Motor Cover 1
19 063719 Rear Adjustment Base (L) 1
20 063720 Rear Adjustment Base (R) 1
21 063721 Motor Cover Anchor 4
22 063722 Handgrip Cap 2
23 063723 Wheel Sleeve 2
24 063724 Wheel Cover 2
25 063725 □20 × 20 × 12T_Foot Pad 4
26 063726 Foot Rail 2
27 063727 Ø38_Button Head End Cap 2
28 063728 □25 × 50m/m _Square End Cap 2
29 063729 □25.4 × 25.4m/m _Square End Cap 1
30 063730 Isolator（A）2
31 063731 □21.4 × 21.4m/m_Square End Cap 1
32 063732 Inclineation Adjustor (L) 1
33 063733 Inclineation Adjustor (R) 1
34 063734 Console Support Foam 2

©2009
16
35 063735 Non-Slip Rubber（L）1
36 063736 Non-Slip Rubber（R）1
37 063737 Grommet 1
39 063739 Ø38 × 3T ×225L_Handgrip Foam 2
40 063740 800m/m_Safety Key 1
41 063741 Frame Base Cap (L) 1
42 063742 Frame Base Cap (R) 1
44 063744 10cm × 764 × 764_ Connecting Wires (Black) 1
45 063745 15cm × 764 × 764_ Connecting Wires (White) 1
46 063746 15cm × 764 × 764_ Connecting Wires (Black) 1
47 063747 1000 m/m_ Sensor W/Cable 1
48 063748 Sensor Rack 1
49 063749 Controller 1
50 063750 Breaker 1
51 063751 On/Off Switch 1
52 063752 Power Cord 1
53 063753 Handpulse Assembly 2
53~1 063753-1 320m/m_Handpulse Wire 2
54 063754 Upper Computer Wire 700m/m 1
55 063755 Lower Computer Wire 700m/m 1
56 063756 Extension Computer Wire 1200m/m 1
57 063757 Wheel Sleeve 2
58 063758 Belt Guide 2
59 063759 1/2" × 2-3/4"_Hex Head Bolt 2
60 063760 3/8" × 3/4"_Hex Head Bolt 4
61 063761 M8 × 60m/m_Hex Head Bolt 1
62 063762 3/8" × 2-1/2"_Hex Head Bolt 1
63 063763 5/16" × 1-1/4"_Button Head Socket Bolt 2
64 063764 3/8" × 2"_Flat Head Socket Bolt 2
65 063765 1/4" × 75m/m_Socket Head Cap Bolt 2
66 063766 10#(5) × 1-1/4"_Tapping Screw 8
67 063767 3/8" × 2T_Split Washer 4
68 063768 M8 × 8T_Nyloc Nut 1
69 063769 1/2" × 8T_Nyloc Nut 2
70 063770 3/8" × 7T_Nyloc Nut 4
71 063771 3/8" × 25 × 2T_Flat Washer 5
72 063772 1/2" × 26 × 2T_Flat Washer 2
73 063773 3/8" × 19 × 1.5T_Flat Washer 4
74 063774 5/16" × 35 × 1.5T_Flat Washer 2

©2009
17
75 063775 1/4" × 13 × 1.0T_Flat Washer 2
76 063776 Ø10 × Ø25 × 3T_Nylon Washer 1
77 063777 5 × 16m/m_Tapping Screw 8
78 063778 5 × 16m/m_Tapping Screw 19
79 063779 5×16m/m_Tapping Screw 4
80 063780 Ø6.7 × 25 × 1.0T_Concave Washer 8
81 063781 4 × 12m/m_Sheet Metal Screw 16
82 063782 5 m/m_ Star Washer 2
83 063783 Inclination Adjustor 2
84 063784 4 × 38m/m_Sheet Metal Screw 2
85 063785 M8 × 12m/m_Hex Head Bolt 2
86 063786 M8 × 1.5T_Split Washer 2
87 063787 3 × 12m/m_Sheet Metal Screw 9
89 063789 5 × 2T_Speed Nut Clip 4
90 063790 M5 × 1.5T_Split Washer 2
91 063791 M5 × 10m/m_Phillips Head Screw 6
92 063792 3/8" × 1-3/4"_Hex Head Bolt 1
93 063793 3/8" × 1-1/2"_Hex Head Bolt 1
94 063794 Motor Bracket 1
95 063795 Ø8.5 × Ø36_Nylon Cap 2
96 063796 5/16" × 15m/m_Button Head Socket Bolt 12
97 063797 5/16" × 23 × 1.5T_Curved Washer 4
98 063798 5/16" × 18 × 1.5T_Flat Washer 4
100 0637100 Combination M5 Allen Wrench & Phillips Head Screw Driver 1
101 0637101 Lubricant 1
102 0637102 3.5 × 16m/m_Tapping Screw 5
104 0637104 Towel 1

©2009
18
Overview Drawing
25 24
73
64
23
79
25
79
79
70
25
79
25
54
4
96
56
84
39
97
54
34
17-6
34
91
17-6
87
84
3
96
53
17-6 5
47 78
95
63
74
30
64
70
73
23
48
21
78 72
69
83
183
95
74
63
980409PM1605
77
82
10
72
102 78
103
51
102
103
21 62
28
103
78
102
50
102
71
69
90
37 82
102 91
103
28
103
52
87
87
49
78
21
11
85
21
30 78
45
44
67
71
86 94
71
67
60
60 14
46
17-2
40
17-1
91
90
104
77
26
26
81 36
35
18
77
77
81

©2009
19
TROUBLE SHOOTING
Problem Cause Correction
Treadmill will not start Treadmill not plugged in Plug into three prong (grounded) outlet
On / off switch not on Push the on/off button to on
House circuit breaker tripped Reset or replace
Treadmill reset switch tripped Reset treadmill reset switch see reset
switch resetting
Treadmill motor controller fuse
blown
Replace controller
Unit plugged into insufficient
extension cord
Plug directly into wall outlet
Treadmill stop or shuts
off by itself
House circuit breaker tripped Reset or replace
Treadmill reset switch tripped Reset treadmill reset switch
Treadmill motor controller fuse
blown
Replace controller
Treadbelt does not run
in center
Treadbelt tension not even
across treadbelt
See treadbelt adjustment
Treadbelt slips Treadbelt tension too loose See treadbelt adjustment
Treadbelt hesitates
while being stepped on
Insufficient lubricant on
treadbelt
See treadbelt lubrication
Black particles
collecting under
treadmill
Drive belt is breaking in Vacuum under treadmill periodically
No display on monitor On / off switch not on Push on / off button to on
Monitor does not
display speed or
distance
Reed switch not aligned
properly
see reed switch adjustment
Magnet damaged or missing
from front roller pulley
Replace magnet
Monitor not working properly Replace monitor
No pulse displayed on
monitor
Hands not on hand pulse Place two hands on hand pulse
Hands on hand pulse Replace hand pulse
NOTE: It is not necessary to return treadmill for a monitor repair. The monitor or console is removable from
the treadmill for repair or replacement - see parts section
