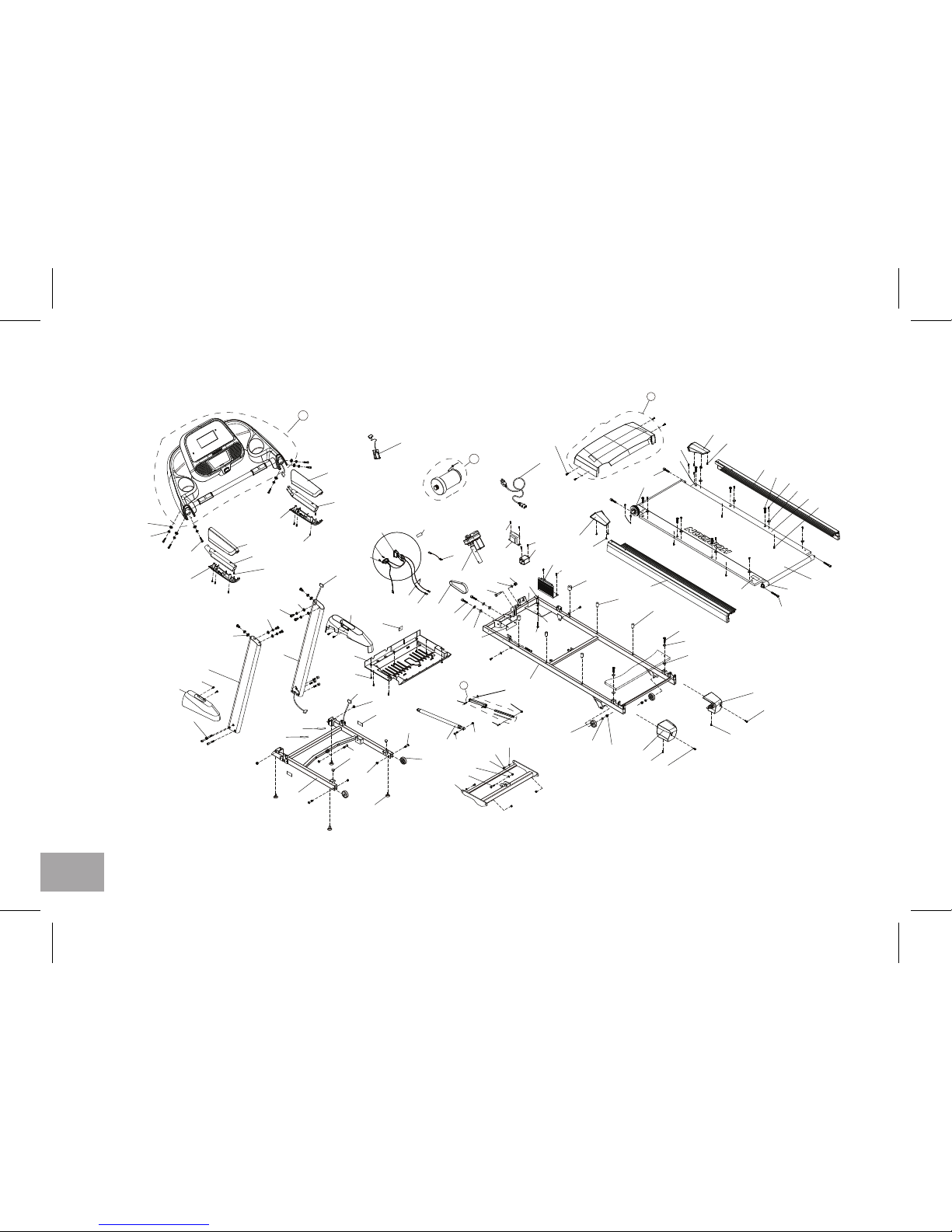

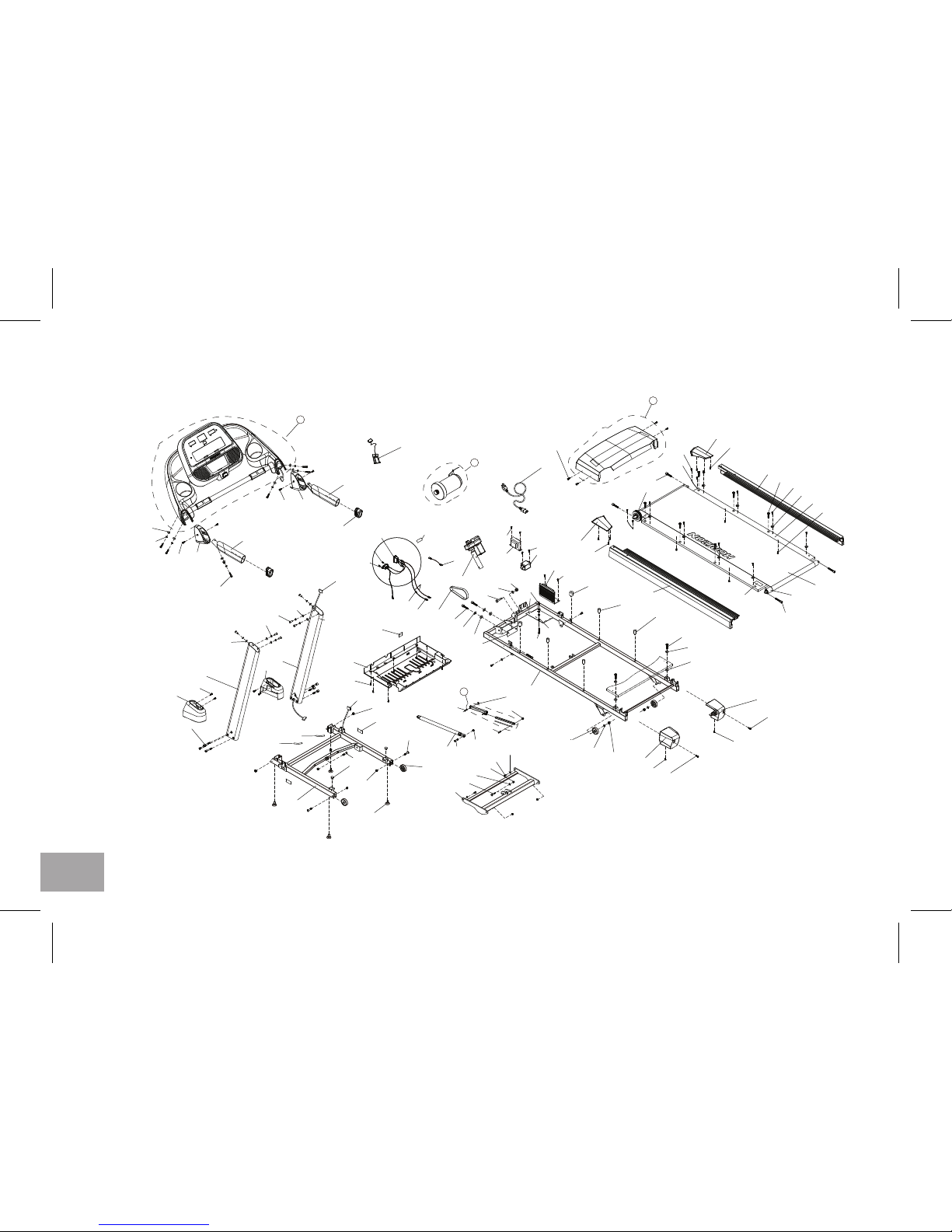

Horizon Fitness Adventure 1 Plus User manual

ASSEMBLY GUIDE
Adventure 1
Adventure 3
Adventure 5
Adventure 7

2

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises.
To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER:
MODEL NAME: HoRIzoN TREADMILL

4
SPEAKERS
READING RACK
HANDLEBARS
SAFETY KEY PLACEMENT
ACCESSoRY TR AY
CoNSoLE MAST
CoNSoLE MAST CoVER
MoToR CoVER
SIDE RAIL
RUNNING BELT/DECK
CoNSoLE DISPLAY
AND CoNTRoLS
REAR RoLLER
TENSIoN/ADJUSTMENT BoLTS
oN/oFF SWITCH
PoWER CoRD
FooT LoCK LATCH (UNDERNEATH DECK)
CoNSoLE
WATER BoTTLE HoLDER
HEART RATE GRIP BARS
TRANSPoRT WHEEL
CAUTION WARNUNG
KEEP HANDS AND FEET AWAY
FROM THE MOVING PARTS.
HALTEN SIE HÄNDE UND FÜSSE
VON BEWEGLICHEN TEILEN FERN.
1
2
Adventure 7
shown

5
TooLS INCLUDED:
T-Wrench (included)
L-Wrench (included)
PARTS INCLUDED:
2 Console Masts
1 Console Assembly
2 Console Mast Covers
2 Handlebars
1 Hardware Kit
1 Safety Key
1 Power Cord
1 Audio Adapter Cable
1 Bottle of Silicone Lubricant
(for 2 applications)
• DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
• FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is on its side. Once the banding straps have been
removed, do not lift or transport this unit unless it is fully assembled and in the upright
folded position, with the lock latch secure. Unpack and assemble the unit where it
will be used. The enclosed treadmill is equipped with high-pressure shocks and may
spring open if mishandled. Never grab hold of any portion of the incline frame and
attempt to lift or move the treadmill.
• During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of your
unit before completely tightening any ONE bolt.
• Several parts have been pre-lubricated to aid in assembly and usage. Please
do not wipe this off. If you have difficulty, a light application of lithium bike
grease is recommended.
IMPoRTANT NoTES
PRE ASSEMBLY
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the
back cover of this manual.
NEED HELP?
ALL
MODELS

6
ASSEMBLY STEP 1 (Adventure 7)
HARDWARE FoR STEP 1
PART TYPE DESCRIPTIoN QTY
ABO LT M8X1.25PX60L-30L 3
1
A
2
3
NOTE: Do not assemble CONSOLE MAST
COVER BOLTS (I) at this step.
A Cut the yellow banding straps and lift the
running deck upward to remove all contents
from underneath the running deck.
B Open HARDWARE FoR STEP 1.
C Attach LEFT CoNSoLE MAST (1) to MAIN
FRAME (2) using 3 BoLTS (A)，and do not
tight these 3 BoLTS (A).
D Carefully slid down the LEFT CoNSoLE MAST
CoVER (3) to LEFT CoNSoLE MAST (1).
Adventure 7
shown

7
ASSEMBLY STEP 2 (Adventure 7)
HARDWARE FoR STEP 2
PART TYPE DESCRIPTIoN QTY
ABO LT M8X1.25PX60L-30L 3
5
A
4
6
10
7
NOTE: Do not assemble CONSOLE MAST
COVER BOLTS (I) at this step.
A Pull the BASE CABLE (5) away from the
treadmill base frame. Connect the CoNSoLE
CABLE (5) from the MAIN FRAME (4) to the
CoNSoLE CABLE (5) in the bottom of the
RIGHT CoNSoLE MAST (6). The other end of
the CoNSoLE CABLE (10) should be located
at the top of the mast.
B Open HARDWARE FoR STEP 2.
C Attach RIGHT CoNSoLE MAST (6) to MAIN
FRAME (4) using 3 BoLTS (A), and do not
tight these 3 BoLTS (A).
D Carefully slid down the RIGHT CoNSoLE MAST
CoVER (7) to RIGHT CoNSoLE MAST (6).
Adventure 7
shown

8
ASSEMBLY STEP 3 (Adventure 7)
B
C
D
9
8
HARDWARE FoR STEP 3
PART TYPE DESCRIPTIoN QTY
BBO LT M6X1.0PX15L 6
CARC WASHER Φ6.2xΦ18.0x1.5T 6
DSPRING WASHER Φ6.1xΦ12.2x1.5T 6

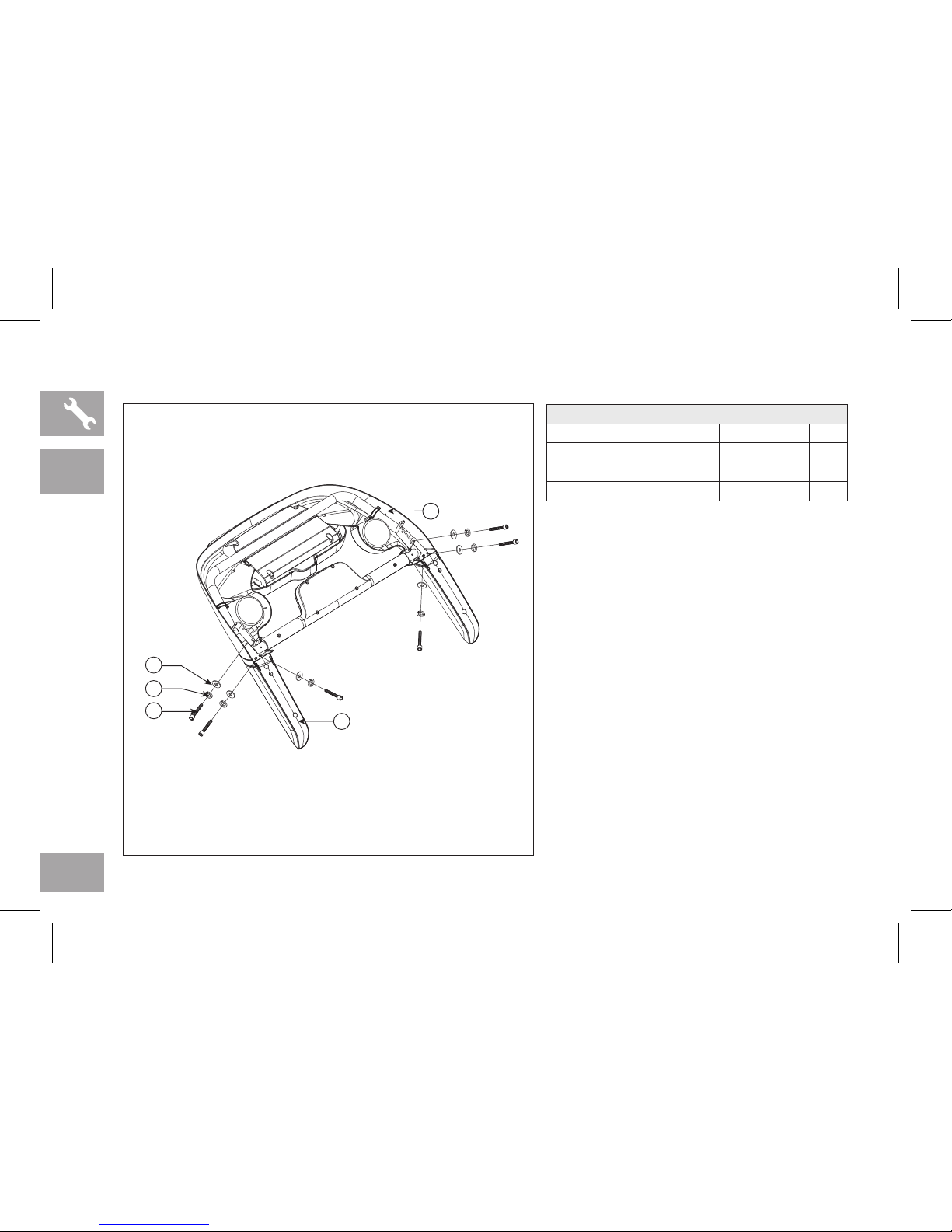

A Open HARDWARE FoR STEP 3.
B Slide HANDLEBARS (8) onto CoNSoLE (9).
C Attach HANDLEBARS (8) to CoNSoLE (9)
using 3 BoLTS (B), 3 ARC WASHERS (C)
and 3 SPRING WASHERS (D) from each
side.
Adventure 7
shown

9
ASSEMBLY STEP 4 (Adventure 7)
6
10
1
9
G
H
F
E
HARDWARE FoR STEP 4
PART TYPE DESCRIPTIoN QTY
EBO LT M8X1.25PX 20L 6
FSPRING WASHER Φ8.2xΦ13.5x2.0T 6
GFLAT WASHER Φ8.2xΦ15x1.2T 4
HARC WASHER Φ8.2xΦ18.0x1.5T 2
A Open HARDWARE FoR STEP 4.
B Gently place CoNSoLE (9) on top of
CoNSoLE MASTS (1&6).
C Connect the CoNSoLE CABLES (10) and
ensure they are tucked inside the CoNSoLE (9).
D Connect the CoNSoLE (9) to the right
CoNSoLE MAST (6) using 2 BoLTS (E),
2 SPRING WASHERS (F) and 2 FLAT
WASHERS (G) from the inside of the mast
and 1 BoLT (E), 1 SPRING WASHER (F)
and 1 ARC WASHER (H) from the front of
the mast.
E Repeat STEP D on left side.
F Tighten all CoNSoLE MAST BoLTS (A) in step
1&2 completely.
Adventure 7
shown

10
ASSEMBLY STEP 5 (Adventure 7)
I
2
12
4
1
11
A Lift the RUNNING DECK (11) upward until the
FooT LATCH (12) locks. Remove all
contents
underneath the MAIN FRAME (2&4).
B While the RUNNING DECK (11) in the raised
position, attached the LEFT CoNSoLE MAST
CoVER(3) and RIGHT CoNSoLE MAST
CoVER(7) to the MAIN FRAME (2&4) using
2 PRE-INSTALLED CoNSoLE MAST CoVER
BoLTS(I) on each side.
Adventure 7
shown
