Freewing MIG-21 FISHBED User manual

www.sz-freewing.com
0-14
MADE IN CHINA
M I
I
G - 2 1
1/9 SCALE 80MM EDF JET
FISHBED
USER MANUAL
LENGTH:1730mm
WINGSPAN:800mm

1MIG-21MF FISHBED
Item No.:FJ210
Catalog
Introduction
Product Basic Information
Packing list
PNP Install instruction
Servos install intruction
Landing Gear install intruction
Control board use introduction
3-Axis Gyro use introduction
Install on battery
Servos type introduction
Center of Gravity
Power system introduction
Parameter of Motor
Control direction test
Dual Rates
1
2
2
3
6
7
8
9
9
10
10
11
11
12
13
Brief History
First designed in 1953, the MiG-21 is widely renowned as a classic Cold War era brute and holds the distinction
of being the most produced supersonic jet fighter in the world. More than 11,000 MiG-21s of different variations
have flown for over 60 countries over a period of more than 60 years. In fact, the unmistakable outline of the MiG-
21 can still be seen today in the skies of over 15 countries that still operate this historic warplane. The MiG-21 has
earned its place in aviation history as a versatile workhorse and venerable foe.
Overview
Dominate the skies with Freewing’s 1/9 scale MiG-21! Its impressive 1730mm length makes this MiG-21 one of
Freewing’s longest model aircraft. Its removable wings, horizontal stabilizer, and vertical stabilizer make transport
very easy. Even the nose cone and pitot tube are removable! Freewing has recreated many scale details of the
MiG-21 “MF” variant, and the aircraft is powered by an 80mm 12-blade EDF and an all-new 3530-1800KV out-
runner motor and 100A ESC. Newly designed metal gear digital servos control the ailerons, flaps, elevators, and
rudder, and an integrated circuit board simplifies wiring in the large battery bay. Magnetic fuel tanks and the iconic
“blisters” throughout the fuselage help complete the look and feel of the menacing MiG-21. Although an 80mm
class aircraft, the Freewing MiG-21 features the retractable landing gear of a 90mm class aircraft. Durable
aluminum trailing link struts and tall wheels allow operation on short grass fields.
Flight Features
The Freewing MiG-21 is suitable for intermediate and advanced pilots with EDF flying experience. The model’s
strong thrust and flaps shortens the takeoff distance to 30 meters. Optimized design allows the Freewing MiG-21
to fly stably at both fast and slow speeds. In fact, the aircraft can maintain a slow “high alpha” attitude of up to 40
degrees without stalling. The delta wing and swept tail give the aircraft crisp responsiveness but gentle handling.
Also, the battery bay was designed to accommodate an optional Freewing Gyro E51, sold separately, to further
supplement the stable flying characteristics of the Freewing MiG-21. Experience the thrill of a 40 degree pass with
ease!
Color Scheme Introduction
Freewing presents its MiG-21 in two color schemes. The classic “Soviet Silver” scheme includes decals from
four countries inside the box to allow pilots to customize their model aircraft. A “High Vis” scheme is also available
that features the blue/white/grey color scheme of the MiG-21-93 variant for increased visibility in the sky.

2
PNP ARF Plus ARF
1605mm(63.2in.)
755mm(29.73 in.)
比例 1.000
1730mm
(68.1")
800mm(31.5")
2
Wingloading：123g/dm
Motor：3530-1800KV outrunner motor
Fan：80mm 12-Blade fans
ESC：100A UBEC 5A
Servos：9g Digital MG
Weight：2180g
Thrust：3000g
(8pcs)
(W/O battery)
MIG-21MF FISHBED
Item No.:FJ210
1
2
3
4
5
6
7
8
9
10
Standard Version
2
Wingloading：125g/dm
Motor：3658-1820KV inrunner motor
Fan：80mm 12-Blade fans
ESC：100A UBEC 5A
Servos：9g Digital MG
Weight：2215g
Thrust：3200g
（8pcs）
(W/O battery)
Upgrade Version
Package list
No.Spareparts name PNP ARF Plus ARF No.Spareparts name
Nose\Rear fuselage
Mainwing
Horizontal tail
Vertical tail
Oil-tank&pylons
Carbon fiber
Pilot tube/Antenna
Ventral Fins
Pushrod/Screws
Manual/Decals
No electronic
equipment
Pre-installed all
electronic parts Pre-installed
servo
No electronic
equipment
Pre-installed all
electronic parts Pre-installed
servo
No electronic
equipment
Pre-installed all
electronic parts Pre-installed
servo

3
(Ø8x400mm)
main wing trough port
Intake
Elevator Servos wire
2.Use traction steel wire to pull the elevator servo cable to battery compartment.
MIG-21MF FISHBED
Item No.:FJ210
Carbon tube A
(Ø6x345mm)
Carbon tube B
Battery tray
1.Use glue to attach front\rear fuselage.
Screw (KA3x10mm 4pcs)
PNP Install instruction
Traction steel wire use instruction
Through investigation, excessive servo extension line will increase the risk of poor contact joints, and lead to the
servo outages caused flight accidents. Because of MIG-21 large and flat trough interior space, we don't use the
servo extension wire in this jet. As the below photo shown, package includes a traction steel wire, we can use it to
pull the main wing/elevator/rudder servo cables to the battery compartment.
Prepare work before install
1.Open the cockpit, loosen the screws which fixed on the battery
tray, and remove the battery tray. 2.Remove the intake plate.
Install fuselage
Install main wing
Back of fuselage
Traction steel wire
1.Insert the carbon tube A and B into fuselage. 2.Along the fuselage wire trough port, insert the main wing servo
cable to the fuselage.
Battery compartment

4
Main wing servos wire
Landing gear wire
Screw (PM3x6 4pcs)
ESC
A-Tail fuselage
B-Screw (KA2.6x8 4pcs)
A
B
MIG-21MF FISHBED
Item No.:FJ210
Screw (FA3x8mm)
PNP Install instruction
6.Use glue and screw to fix the intake plate.
3.Use 4pcs screws to fix the main wing.
4.Use traction steel wire to pull the left wing connection wire to the battery compartment.
Use traction steel wire to pull the right wing connection wire to the battery compartment.
5.Use plastic cover to close the main wing connection cable
trough on the inner wall.
Battery compartment
1. Insert the elevator to the tail fuselage
2.Use 2pcs screws to fix the elevator
3.Repeat the above steps to install another
elevator.
Elevator, rudder
Install elevator

I
5
D
C
A-
B-
C-
D-
Vertical tail
Tail fuselage
Servo wire
Screw (FA3x8 4pcs)
A
B
H
F
A -
B -
C-
D-
E -
F -
G-
H-
I -
J -
K -
J
K
D
BC
A
G
E
MIG-21MF FISHBED
Item No.:FJ210
(Ø5x180mm)
Carbon tube
PNP Install instruction
1.Use traction steel wire to pull the rudder servo cable to the
battery compartment.
2.Use 4pcs screws to fix the rudder.
Install rudder
Install nose cone, pitot tube, wing fence and drop tank pylons
Nose cone
Antenna
Pitot tube part 1
Carbon tube
Pitot tube part 2
Plastic part 1
Plastic part 2
Wing fence
Fin
Pylon
Drop tank
(left/right)
Note:
1. After finish the above steps, depending on the mark of control board, insert all servo cable to the control board.
2. At last, use 4pcs screws to fix the battery tray . (all servo cables is under the battery tray)

6
A
B
C
B
C
A
B
A
C
Servos wire
D
Pushrod diameter Ø1.5mm
90mm
(3-1/2")
Pushrod diameter Ø1.5mm
80mm
(3-1/8")
1
2
3
2
3
1
1
2
3
2
3
1
1
2
3
2
3
1
1
2
3
2
3
1
Pushrod diameter Ø1.5mm
158mm
(6-1/4")
Pushrod diameter Ø1.5mm
58mm
(2-5/16")
MIG-21MF FISHBED
Item No.:FJ210
Servo installation instructions
1.Use servo tester or radio to center the
servo.
2.Use glue to install the servo and aileron
horn on the main wing.
3.Buckle the servo cable to the through,
after installed all the servos, stick on
the decal.
4.One side pushrod insert to the servo
arm, adjust its length. And insert the
clevis to the aileron horn.
5.Repeat the above four steps, install the
other side main wing servo and flap servo.
Install main wing servos A - 9g servo
B - Main wing pushrod
C - Aileron horn
D - Main wing servo trough
Install elevator servos
1.Use servo tester or radio to center the
servo arm.
2.Use glue to fix servo on the elevator
servo mount .
3.One side pushrod insert to the servo
arm, adjust its length. And insert the
clevis to the aileron horn.
4.Repeat the above steps to install on
the other side servo.
A - 9g servo
B - Elevator horn
C - Elevator pushrod
1.Use servo tester or radio to center the servo
arm.
2.Use glue to fix the servo and servo arm on
the rudder.(Refer to the right photo)
3.Press the servo cable on the servo cable
trough.
4.After glue solidify, connect the pushrod to
servo and servo arm.
A - 9g servo
B - Rudder horn
C - Rudder pushrod
Install rudder servos
Aileron pushrod size
Flap pushrod size
Aileron pushrod mounting hole
Flap pushrod mounting hole
Rudder pushrod size Rudder pushrod mounting hole
Elevator pushrod size Elevator pushrod mounting hole

A -
B -
C-
D-
E -
F -
G-
H-
I -
J -
Nose wheel
Nose gear axle
U-shape slant supporting rod
E-buckle
Pin
E-buckle
Nose gear shock absorber active rod
Spring
8-shape connecting arm
Screw
(Ø2.0pcs)
(Ø3.5X9.2mm 2pcs)
(Ø1.5mm 2pcs)
(PM2x3 1pcs)
Screw
Nose gear main supporting rod
E-buckle
Pin
Nose gear steering arm
Screw
Nose gear main rod
Nose gear steering control ring
Nose gear steering rod
E-buckle
(PM2x4 1pcs)
(Ø1.5mm)
(Ø3.5x9.2mm)
(M3x3mm)
(Ø2mm)
K -
L -
M-
N -
O-
P -
Q-
R -
S -
T -
Nose landing gear set
Screw
Nose landing gear mount
Nose steering pushrod
9g servo
Screw
Nose landing gear cover
Retract controller
(FA3x8 4pcs)
(PWA2x8mm 2pcs)
U-
V-
W-
X-
AB-
AC-
AD-
AE-
( 2-9/16")
65mm
AE
A
B
C
D
E
F
G
E1
F1
H
I
J
K
L
M
N
P
O
QR
S
T
U
Step 1 2 3 4
W
X
VAB
AC
AD
56
7
7MIG-21MF FISHBED
Item No.:FJ210
Install landing gear
Nose Landing Gear Assemble
Please assemble、 disassemble the nose landing gear according to the following photo.
Step Step Step
Step Step
Step

A -
B -
C -
D -
E -
F -
G-
H -
I -
J -
K -
L -
M-
N -
O-
R -
Main gear axle
Screw
Rear gear slant supporting rod
Pin
E Buckle
Main gear main supporting rod A
Screw
Spring
Screw
Main gear main supporting rod
Main gear main rod
Screw
Retract controller
Nose gear cabin door
Screw
Main wheel
(M3x3mm)
(Ø3.5X9.2mm 1pcs)
(Ø1.5mm 1pcs)
(M4x3mm)
(PM3x4 1pcs)
B
(M4x4mm)
(PM2x5 2pcs)
A
B
C
D
E
F
G
S-
T -
U-
Main landing gear set
Screw
Main landing gear mount
(FA3x8 4pcs)
S
T
U
1
H
I
JK
2
M
L
N
3
O
R
4
5
8
MIG-21MF FISHBED
Item No.:FJ210
Install landing gear
Rear Landing Gear Assemble
Please assemble、 disassemble the rear landing gear according to the following photo.
Step Step Step
Step
Step

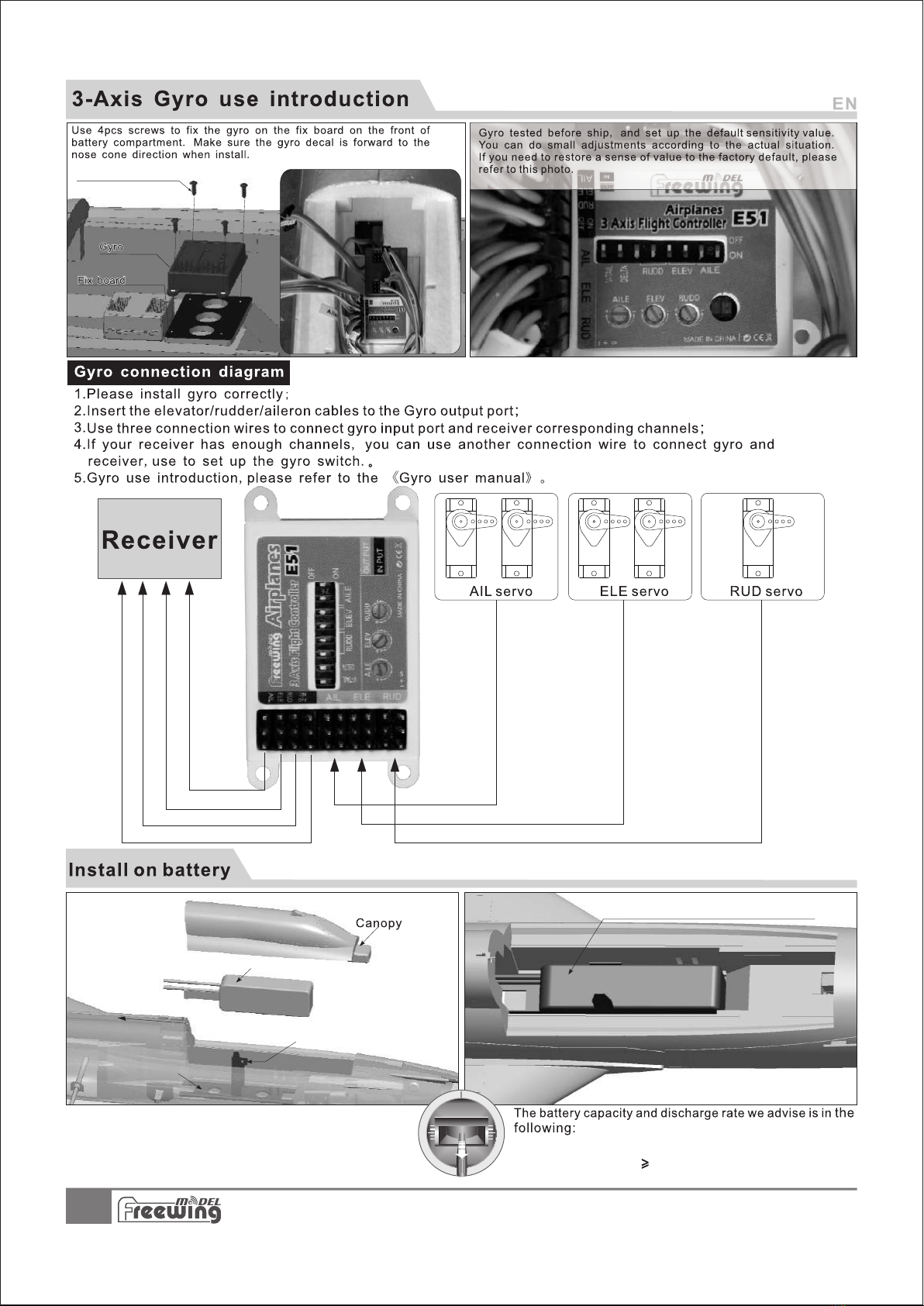

When you use gyro,
Elevator \ Aileron \ Rudder the three
channels need to connect gyro, then
connect to the receiver. So, in here we
need to cancel the three channels to
connect to receiver, the other channel
keep the same.
Refer to the mark of control board, insert all the
connection cables on the control board.
( don't include throttle, the throttle channel insert to the
gyro directly.)
Control board
Landing Gear
Flap
Landing gear
Rudder
Elevator
Aileron
(power to the receiver)
Landing Gear
Rudder/Nose steering
Elevator
Aileron
Flap
Rudder/Nose steering
Elevator
Aileron
Flap

9
6S 22.2V 4000mAh~6S 22.2 5500mAh
Discharge rate of C 35C>
MIG-21MF FISHBED
Item No.:FJ210
Before connect the battery and receiver, please
switch on the transmitter power and make sure the
throttle stick is in the lowest position.
Battery tray
Battery install on the front of
fuselage, and use magic tape to fix.
Velcro
Battery
Push back the lever
to open the cockpit
Battery cabin space size : L=280 , W=66 , H=70 (mm)
Screw (PA2.3x8mm)

10
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
100mm
950mm
950mm
800mm
800mm
1050mm
1050mm
1050mm
比例 1.000
265mm
(10-1/2")
MIG-21MF FISHBED
Item No.:FJ210
Servo Introduction
Center of Gravity
Correct center of gravity is directly related to the success of the flight, please refer to the following CG diagram to
adjust your plane's center of gravity.
- You can move the battery forward or backward
to adjust the center of gravity.
- If you can not adjust the CG through move the
battery, you can also use some other suitable
material weight to counterweight, to make sure
that CG is in the correct position.
If you need to purchase other brand servo, please
refer to the following list to choose correct size
servo.
Installing position
No.
Pos./Rev.
Servo Cable Length
Positive
Positive
Positive
Positive
Reverse
Positive
Reverse
Positive
Nose gear steering
Aileron(L)
Aileron(R)
Flap(L)
Flap(R)
Elevator(L)
Elevator(R)
Rudder

11
A-
B-
C-
D-
E-
F -
Screw
ESC fixed wood piece1
ESC
ESC fixed wood piece2
Screw (
80mm EDF power system
(
PWA3x8mm 4pcs)
PM3x25mm 2pcs)G-
H-
I -
J -
K -
Screw
Ventral Fins
Ventral Fins mount
Screw
Ducted fan cover
(FA3x8mm 2pcs)
(KA2.6x8mm 1pcs)
GHI
J
K
2
E
F
Step 1
MO035302
MO035302
100A
86 3000
1800RPM/V
MIG-21MF FISHBED
Item No.:FJ210
Motor parameters
Unit: mm
Step
3
Step 4 Step
H
A
B
C
D
E
F
G
A
B
C
D
E
F
G
H
-
-
-
-
-
-
-
-
(PM3×10mm 1pcs)
( 3×3mm 2pcs)M
Install power system
Motor spinner
Screw
80mm ducted fan metal
frame for outrunner motor
3553-1800KV motor
90mm 12-blade ducted fan
Spinner
Screw
Screw
Note: When ESC and battery connected,
testing.
prohibit to touch them by hand to avoid accidental
injury. When test EDF, please use safety test
stand for testing, prohibit to touch by hand for
Refer to the following photo, install power system and ESC.
A
B
C
D

12
MIG-21MF FISHBED
Item No.:FJ210
Control direction test
After installed the plane, before flying, we need a fully charged battery and connect to the ESC, then use radio to test
and check that every control surface work properly.
Aileron
Stick Right
Stick Left
Elevator
Up Elevator Down Elevator
Rudder
Stick Left Stick Right
Optional Flaps
Flaps down

H1
H2 H1
H1
H2
H1
H2
13 MIG-21MF FISHBED
Item No.:FJ210
H1/H2 16mm/16mm
H1/H2 30mm/30mm
H1/H2 30mm/30mm
H1/H2 24mm/24mm
H1/H2 20mm/20mm
H1 45mm
H1 30mm
H1/H2 20mm/20mm
Aileron Elevator Rudder Flaps
Low Rate
High Rate D/R Rate：100%D/R Rate：100%D/R Rate：100%
D/R Rate：80%D/R Rate：100%D/R Rate：85%
Aileron
Elevator Rudder
Flaps
Dual Rates

14
MIG-21MF FISHBED
Item No.:FJ210
注意：模型产品是具一定危险性的产品，请禁止14岁以下的儿童玩耍，14 岁以上的儿童，请在有飞行经验的成人指导下使用，无飞行经验的购买者，应当在具有
一定电动涵道飞机飞行经验的成人指导下使用！ 组装模型前，请仔细阅读说明书，按照说明书的要求进行安装. 进行调试和飞行时，请根据说明书指示的参数进行调整。
前 言
重 要 提 示
1.模型飞机不是玩具,操作者需要具备一定的经验;没有经验的初学者,必须在有丰富经验的专业人士指引下,逐步学习!
2.在组装之前,必须认真阅读产品说明书,严格按照说明书指示操作。
3.飞翼模型及其销售商，对于违反说明书的要求操作而造成的损失、将不负任何法律责任！
4.模型飞机的使用年龄必须是14岁以上的儿童或者成人。
5.此模型产品使用EPO材料制成，表面喷涂油漆，不可随意使用化学制剂擦拭，否则会损坏模型产品。
6.不可以在公共场合、高压线密集区、高速公路附近、机场附近或者其它法律法规明确禁止飞行的场合飞行。
7.不可以在雷雨、大风、大雪或者其它恶劣气象环境下飞行。
8.模型飞机的电池产品，不可以随意乱扔，乱放。存放时,必须保证周边2M范围内,无易燃、易爆物体。
9.损坏或者报废处理的模型飞机电池，应妥善回收处理，不准随意抛弃，避免自燃而引发火灾。
10.在飞场飞行时，应做到妥善处理飞行后所产生的垃圾，不可随意抛弃、焚毁模型及其配件。
11.在任何情况下,都必须保证油门杆处于起始位、发射机处于打开状态时，才能连接模型飞机内部的动力电池.
12.无论是模型飞机是在正常飞行过程中,或者是在缓慢降落过程中,都不要尝试用手去回收模型。必须等模型降落停
稳以后 ，再进行回收！
目 录
前言
产品基本参数
包装清单
PNP组装
舵机组装介绍
起落架组装介绍
集线盒使用说明
陀螺仪使用说明
14
15
15
16
19
20
21
22
电池安装说明
舵机使用介绍
重心示意图
动力系统的安装
电机参数
舵面测试
大、小舵参数
22
23
23
24
24
25
26
中文版
历史简介
1953年开始设计的MIG-21，是60年代前苏联空军主力制空战斗机。此机是第二次世界大战后，生产数量最多的超音
速喷气式战斗机，总产量超过6000架（不包括中国引进改型的歼7系列战斗机），在全世界，约50个国家和地区使用过该
款战斗机。
模型概述
飞翼1/9比例MIG-21MF，机长1730mm，翼展800mm，这款模型的外形线条及轮廓，完全依据真实飞机按比例缩
小制作，细节的处理，使外形更加逼真。大量使用塑料零件，使我们可以快速、便捷安装主翼、平尾及垂尾。较长的空速
管和机鼻，可重复拆解，防止运输过程造成损坏。MIG-21MF模型，采用12叶80mm金属外框涵道风扇，3553-1720外
转无刷马达，100A ESC。全机采用了8个9g金属数字分别控制垂尾、方向舵、升降舵、副翼和襟翼，新型集线盒的使用，
不仅使设备舱更加整洁，而且能够有效减少内置连接线，降低飞行时接触不良导致事故的风险。更大型号的涡杆控制器和
全金属避震起落架，更加牢固、可靠。
新 的 80mm外转动力系统，在高性价比的基础上，给MIG-21MF模型带来强悍的动力，最高时速达到
160kph/100mph。 虽然MIG-21的机体内
部空间非常难以设计，但是经过优化的电池舱空间，在保证重心的前提下，可以使用6S 4000mAh ~ 6S 5200mAh电池，
达到5分钟的最高飞行时长。
飞行特性
飞翼Mig-21MF电动涵道模型，非常适合中、高级涵道玩家，是一款非常富有操作乐趣的产品。强劲的动力，使得模
型最少起飞距离缩短到30M。经过气动优化设计的MIG-21MF模型，在高速和低速二种飞行状态下，均能保持非常稳定的
飞行，动作指令响应迅速，易于控制和保持。三角翼主翼及后掠水平尾翼设计，使得它具有非常优秀的爬升速度。低速大
仰角动作易于实现、不易失速。降落时，开启襟翼后，减速明显，姿态不会出现过大的变化，机体呈18~45度仰角，配合
油门，慢速、轻柔降落。
涂装介绍
我们为这款产品准备了二个涂装：蓝白灰色和银色。其中，银色涂装的包装盒内，分别包含了四个国家的战斗涂装贴
纸，可供选择。
（注：搭配飞翼模型80mm内转动力组最高时速达到180kph/113mph，此动力组，可联系经销商选购！）
同样地，飞翼模型的E51三轴增稳陀螺仪，可以完美的使用于MIG-21MF，我们为这个电子配件预留了安装位置，您可以参考说明书，自行安装！MIG-21MF模型，
在陀螺仪的帮助下，飞行将变得更加容易控制，可以更轻松的实现相关飞行动作！

15 MIG-21MF FISHBED
Item No.:FJ210
打开产品包装，核对包装清单。（不同配置的版本，包含内容不同）
产 品 包 装 清 单
序号 配件名称 PNP KIT Plus Airframe 序号 配件名称 PNP KIT Plus Airframe
中文版
产 品 基 本 参 数
注意: 此处各项参数，均使用本公司配件测试得出，如果使用副厂配件，会有所差异。
使用副厂配件时所产生的问题，我们将无法给予技术支持！
1605mm(63.2in.)
755mm(29.73 in.)
比例 1.000
1730mm
(68.1")
800mm(31.5")
-涡杆电动收放起落架
-新型铝合金减震起落架
-仿真座舱、飞行员
-磁吸附副油箱及挂架
其 它 特 性
2
翼载荷：123g/dm
电机：3530-1800KV外转无刷电机
涵道风扇：80mm 12叶涵道
电调：100A无刷电调 UBEC 5A
舵机：9g数字金属舵机
重量：2180g
推力：3000g
（8pcs）
(不含电池)
标准版
升级版
2
翼载荷：125g/dm
电机：3658-1820KV内转无刷电机
涵道风扇：80mm 12叶涵道
电调：100A无刷电调 UBEC 5A
舵机：9g数字金属舵机
重量：2215g
推力：3200g
（8pcs）
(不含电池)
前\后机身
主翼
平尾
垂尾
副油箱\挂架
1
2
3
4
5
预装所有电子设备 预装舵机 6
7
8
9
10
预装所有电子设备
预装所有电子设备
预装舵机
预装舵机
无电子设备
无电子设备
碳纤管
空速管及天线配件
吸塑片及腹鳍
钢丝及螺丝包
贴纸\说明书
无电子设备

16
MIG-21MF FISHBED
Item No.:FJ210
1.分别将碳纤管A、B穿入机身。
碳纤管A
(Ø8x400mm)
碳纤管B
(Ø6x345mm)
2.将主翼舵机线沿机身线槽端口穿入机体内部。
主翼线槽端口
主 翼 组 装
中文版
PNP 组装说明
牵 引 钢 丝 使 用 说 明
注:包装盒内有赠送的EPO胶水，请使
用这支赠送的胶水进行粘合作业。涂
摸胶水应该均匀。胶水均匀涂摸完毕，
不要立即粘合，请等待90秒时间，再
进行粘合，效果最佳！
机 身 组 装
1.使用胶水粘合前、后段机体
通过调查，过多的舵机延长线会加大连接处接触不良的风险，严重时，导致飞行过程，舵机断电而造成飞行事故。由于MIG-21内部线
槽空间大且平直，故此模型的机体内，未使用舵机延长线。如下图所示，包装盒内包含一根牵引钢丝，PNP配置下，我们可以利用这根
牵引钢丝，顺利的将主翼、平尾、垂尾舵机线布置到电池舱内。
进气栅
电池托盘
组 装 前 准 备
1.打开座舱，松开固定电池托盘的二颗螺丝，取出电池托盘。 2.取下机腹进气栅。
电池舱
牵引钢丝
平尾舵机线
2.使用牵引钢丝，将平尾舵机线拉入电池舱内。
背脊背脊
(KA3x10mm 4pcs)
螺丝

17 MIG-21MF FISHBED
Item No.:FJ210
中文版
主翼舵机、起落架连接线
螺丝 (PM3x6 4pcs)
3.用4颗螺丝固定主翼。
ESC
电池舱
4.使用牵引钢丝，分二次将左、右二侧主翼连接线拉入电池舱内。
5.使用线槽塑料盖封闭进气道内壁上的主翼连接线线槽。 6.使用胶水和螺丝固定进气栅。
平尾组装
平尾、垂尾
1.将平尾插入到机身尾部。
2.用2颗螺丝拧紧固定平尾。
3.重复以上步骤安装另一侧平尾。
A-
B-
尾部
螺丝
机身
(KA2.6x8 4pcs) A
B
PNP 组装说明
(FA3x8mm)
螺丝

D
C
A
B
18
MIG-21MF FISHBED
Item No.:FJ210
H
F
配件名称及规格参数
A -
B -
C-
D-
E -
F -
G-
H-
I -
J -
K -
机
天线
空速管零件1
碳纤管
空速管零件2
塑料件1（左、右)
塑料件2
翼刀
腹鳍
挂架
副油箱
鼻
J
K
机鼻、空速管、 及 挂架组装翼刀 副油箱
D
BC
A
G
E
注意：1.完成以上步骤后，根据集线盒上的内容通道标识，将所有舵机插入到集线盒内。
2. 最后用4颗螺丝固定电池托盘（所有舵机线处于电池托盘下方）。
(Ø5x180mm)
碳纤管(Ø5x180mm)
PNP 组装说明 中文版
垂 尾 组 装
A-
B-
C-
D-
垂尾
尾部机身
舵机线
螺丝 (FA3x8 4pcs)
1.
2.用4颗螺丝固定垂尾。
使用牵引钢丝，将方向舵机线拉入电池舱内。
I

19
中文版
平尾舵机安装
1.通过舵机测试仪或者遥控器,把舵
机摇臂校正到居中位置；
2.如右图所示,使用胶水把舵机和舵
面摇臂粘到平尾;
3.钢丝一端穿入到舵机摇臂后，调
节钢丝长度，在保持舵面居中的
情况下，将夹头扣入舵面摇臂内；
4.重复以上3个步骤，安装另外一侧
平尾舵机。
A
B
C
A-
B-
C-
舵机
舵面摇臂
舵机控制钢丝
垂尾舵机安装
1.通过舵机测仪或者遥控器，把舵
机摇臂校正到居中位置；
2.用胶水分别把舵机和舵面摇臂粘
到垂尾上;
3.钢丝一端穿入到舵机摇臂后，调
节钢丝长度，在保持舵面居中的
情况下，将夹头扣入舵面摇臂内。
B
C
A
A-
B-
C-
舵面摇臂
垂尾舵机控制钢丝
舵机
舵机安装说明
主翼舵机安装
1.通过舵机测试仪或者遥控器，把
舵机摇臂校正到居中位置；
2.用胶水分别把舵机和舵面摇臂粘
到主翼;
3.将舵机线卡到舵机线槽内，待所
有主翼舵机安装完成，贴上贴纸;
4.钢丝一端穿入到舵机摇臂后，调
节钢丝长度，在保持舵面居中的
情况下，将夹头扣入舵面摇臂内;
5.重复以上4个步骤，安装另外一侧
主翼舵机。
B
A
C
舵机线
D
A-
B-
C-
D-
舵机
主翼舵机控制钢丝
舵面摇臂
舵机线槽
副翼舵机钢丝安装孔位副翼控制钢丝尺寸
钢丝直径 1.5mmØ
90mm
(3-1/2")
襟翼舵机钢丝安装孔位襟翼控制钢丝尺寸
钢丝直径 1.5mmØ
80mm
(3-1/8")
1
2
3
2
3
1
1
2
3
2
3
1
1
2
3
2
3
1
1
2
3
2
3
1
平尾舵机钢丝安装孔位平尾控制钢丝尺寸
钢丝直径 1.5mmØ
158mm
(6-1/4")
垂尾舵机钢丝安装孔位垂尾控制钢丝尺寸
钢丝直径 1.5mmØ
58mm
(2-5/16")
MIG-21MF FISHBED
Item No.:FJ210
