Freizeitausrustung Koralewski VANDBAR Operating manual

VANDBAR
User-and
Installation Manual
EN Revision: R0.0

Manufacturer and Service
Freizeitausrüstung Koralewski
Stefan Koralewski
Thälmannstrasse 14
16348 Wandlitz
Germany
Contact
Fon: 0049 33397 682918
Web: vandbar.com
Email: [e-mail]
Service
For any inquiries, please submit the serial number (see left bar hold)
Manufacturer's data
2
VANDBAR -User-and Installation Manual
VANDBAR

Index Page
1 Purpose of use 4
2 Productdetails 5 – 6
3 Product overview 7
4 Parts list 8 –10
5 Safety information 11 –16
6 Installation manual 17 – 39
7 User manual 40
8 Sport exercises 41 –44
9 Maintenance 45 –47
10 Disposal 48
Index
3
VANDBAR -User-and Installation Manual
VANDBAR

Purpose of use
VANDBR is an adjustable training-rack for sport exercises with one’s own body weight.
VANDBAR shall only be used for it’s purpose of use. VANDBAR is not a cable pull station and for
indoor use only.
Use classes S, H and I acc. to EN ISO 20957-1:2014-05.
VANDBAR shall not be used in hospitals and rehabilitation facilities.
Disclaimer of liability
VANDBAR is a trademark of Freizeitausrüstung Koralewski. All right reserved. Any use of the
trademark without explicit approval of Freizeitausrüstung Koralewski is prohibited.
Purpose of use
4
VANDBAR -User-and Installation Manual
VANDBAR

Product details
Model:
VANDBAR
Dimensions:
Height 2.325 mm, Width 1.020 mm, Depth 992 mm (wall clearance)
Weight:
approx. 70 kg
Materials:
-Steel parts: Stainless steel (1.4301)
-Plastic parts: PA 12
-Backpanel: Acryl high-glossy on MDF-board (Option)
-Smartphone-/ Tablet-stand: Stainless steel (1.4301) and nappa synthetic leather (Option)
Max. load:
120 kg
Tested acc.:
EN ISO 20957-1:2014-05 by TUEV SUED
Purpose:
Adjustable training-rack for sport exercises with one’s own body weight
5
VANDBAR -User-and Installation Manual
VANDBAR

Product details
6
VANDBAR -User-and Installation Manual
VANDBAR
*Illustration shows additional options backpanel with
smartphone-/ tablet-stand

Product overview
7
VANDBAR -User-and Installation Manual
VANDBAR
1
2
3
4
5
6
7
8
9
10
Head plate
Steel wire
Steel wire holder
Bottom plate
Sliding tube
Bar hold
Lock hole
Lock target
Lock stud
Handle screw
1
2
6
4
5
9
8
7
3
10

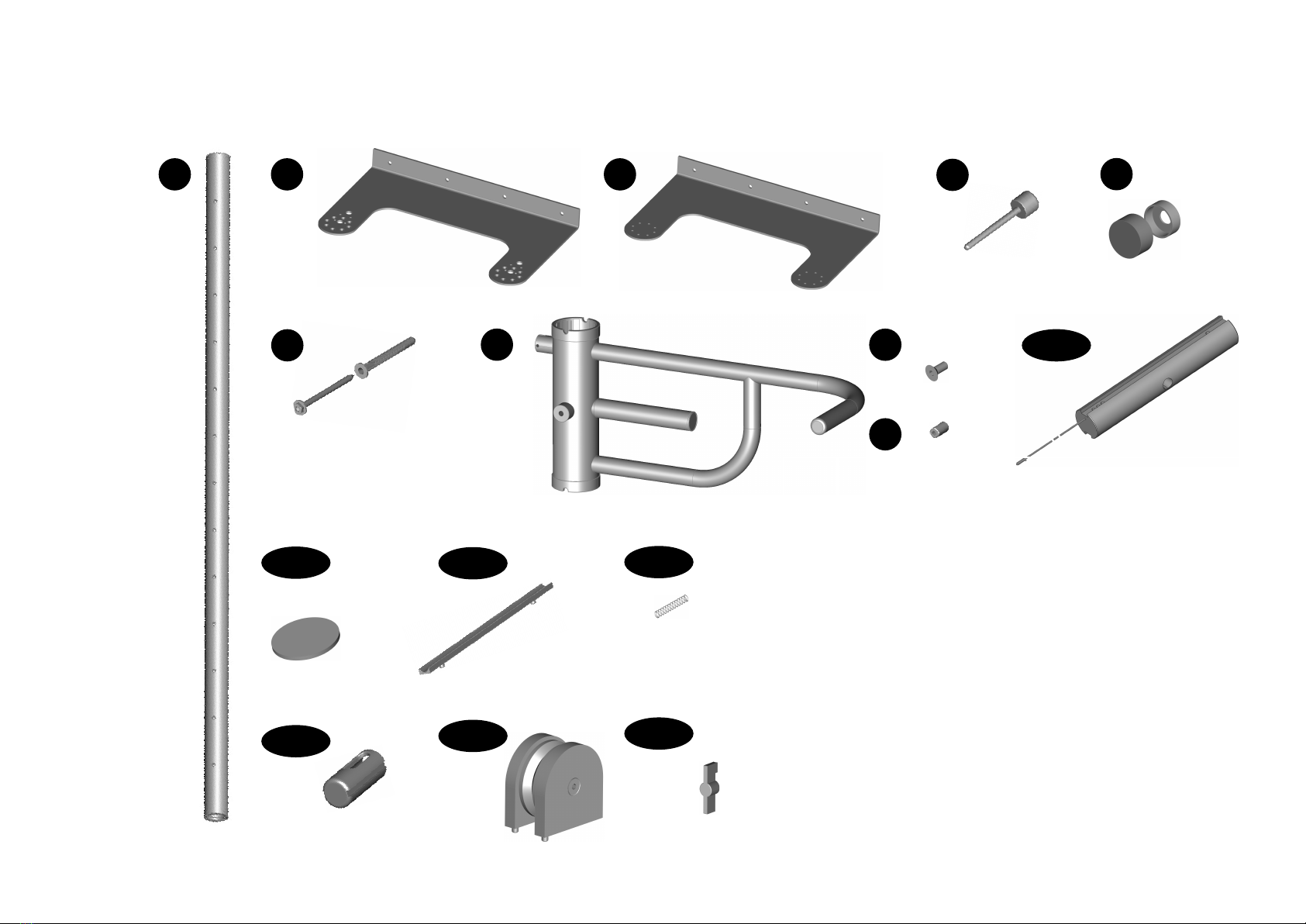

Parts list (Components)
8
VANDBAR -User-and Installation Manual
VANDBAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Sliding tube (2x)
Head plate (1x)
Bottom plate (1x)
Lock stud (2x)
Cover cap (8x)
Concrete screw incl. peg and washer (8x)
Bar hold (2x)
M5x12 Countersunk screw (42x)
M6x12 Setscrew (2x)
Counterweight with steelwire (2x)
Felt pad (4x)
Slide bearing (4x)
Coil spring (4x)
Press block (2x)
Pulley (2x)
Wire holder inlets (2x)
1
67 8
32 4
11
9
12 13
14 15 16
5
10

1
Parts list (Options)
9
VANDBAR -User-and Installation Manual
21
2
Smartphone-/ Tablet-stand
Backpanel
VANDBAR

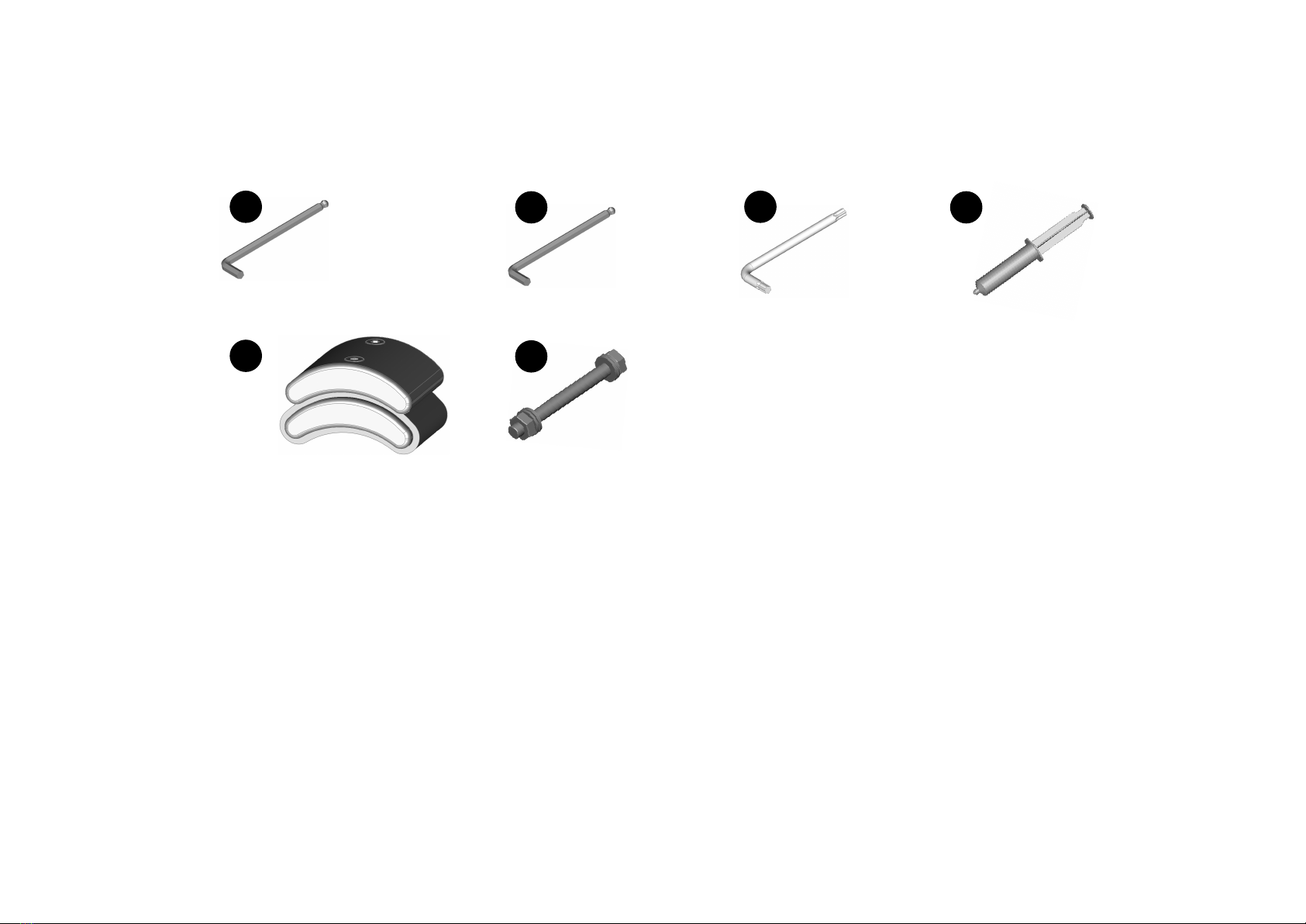

Parts list (Tool’s)
10
VANDBAR -User-and Installation Manual
1
1
2
3
4
5
6
Allen wrench 3 mm (1x)
Allen wrench 4 mm (1x)
Allen wrench Torx TX25 (1x)
Weicon Anti-Seize-Paste (1x)
Abrasive fabric block (1x)
M10-100 Lock screw incl. nut and plastic washer (2x)
....this User-and Installation Manual
42
6
3
VANDBAR
5

Safety information
Important information in general
-Read this manual carefully before installation.
-Store this manual close at hand.
-The use of VANDBAR by children, must be observed by adults.
-Packaging materials must be disposed properly.
11
VANDBAR -User-and Installation Manual
VANDBAR

Safety information
Important information in general
Be aware, that there are neodym magnets installed inside the lock stud and lock traget.
-Lock stud: 4x neodym magnets Ø6x12
-Lock target: 2x neodym magnets Ø6x12
In case you have a pacemaker, please seek medical advice bevor use.
12
VANDBAR -User-and Installation Manual
VANDBAR

Safety information
Important information regarding installation

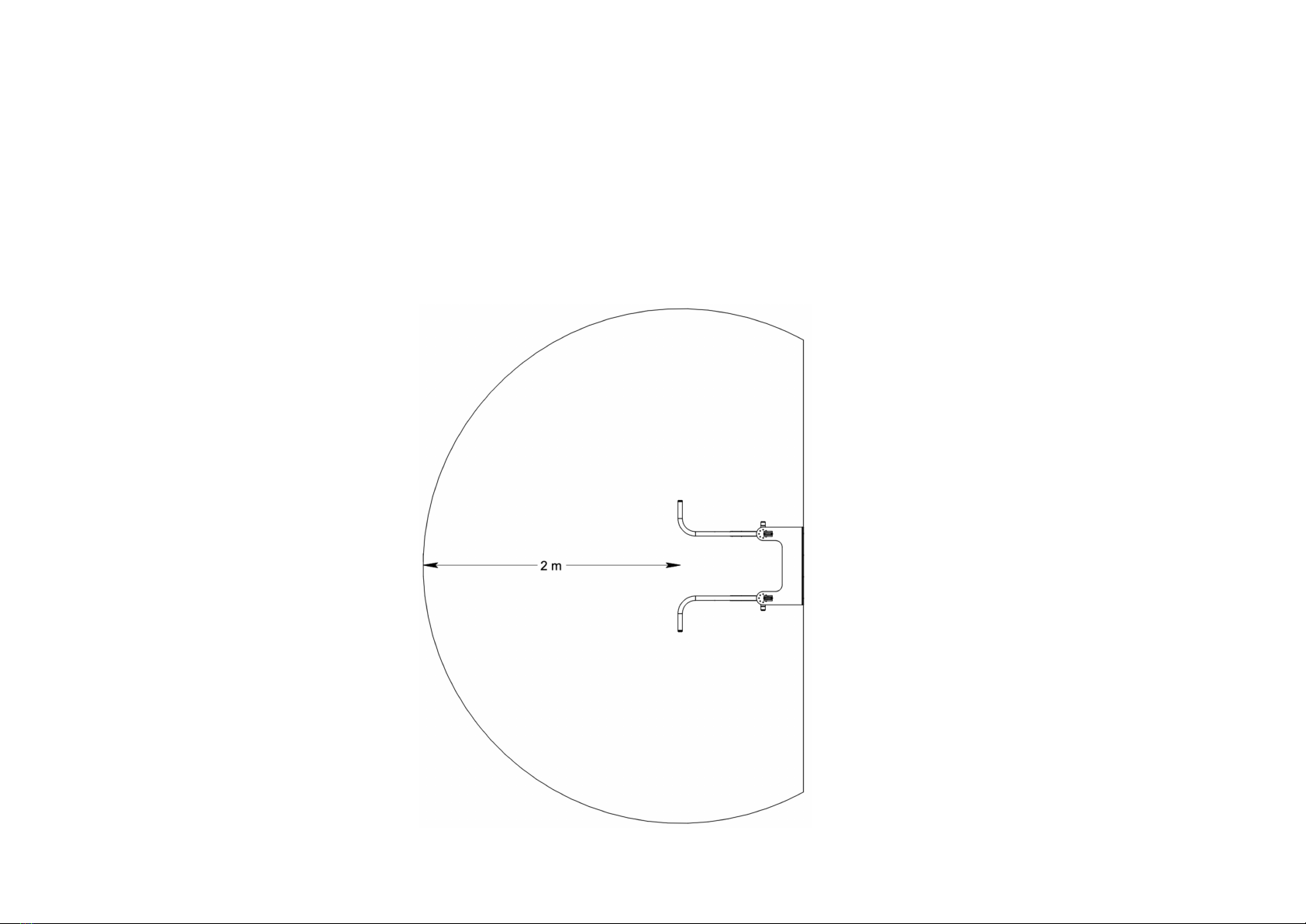

For installation, assure a minimum clearance of 2 m radius from the midpoint of the bar holds.
13
VANDBAR -User-and Installation Manual
VANDBAR

Safety information
Important information regarding installation
-Install VANDBAR with at least two persons.
-Do not block any escape and emergency routes during installation.
-Keep any children or pets save away from the installation area.
-Any existing skirting boards on the wall need to be removed before installation in the area of
installation.
-Check for any power lines or water pipes in the drilling area for bottom and head plate, in case
of uncertainty, seek professional advice from an electrician and / or plumber.
-VANDBAR must be installed inside, if installed outside, any warranty claims expire.
-An installation must be on a brick, concrete or solid wooden wall. A minimum load of 0,21 kN per
peg and screw is needed (0,21 kN is equivalent of one Fischer concrete screw SXRL 10 x 100
FUS A4 in autoclaved cellular concrete at 70 mm minimum depth). 8x SXRL 10 x 100 FUS A4
need to be installed. In case of an installation on wooden walls, the min. wall thickness must be
15 cm (wood screw‘s min. 8 x Ø8mm and length 120 mm -not within the scope of supply).
-A corresponding load table can be found at www.fischer.de for concrete materials.
-An installation on any other wall material must be evaluated by an architect, civil engineer or
structural engineer.
-Follow each installation step carefully .
14
VANDBAR -User-and Installation Manual
VANDBAR

Safety information
Important information regarding usage
-Check the proper installation before use.
-VANDBAR shall only be used by one person at the time.
-If VANDBAR is not in use, both bar holds should be placed at the most upper position incl. inserted lock
stud. Do not tighten handle screw when not in use.
-Keep VANDBAR dry and clean at all times.
-In case of any damage, unusual high wearout or malfunctioning, VANDBAR shall not be used. Please get
in contact with the VANDBAR service to evaluted the status.
-Wrong repairs, changes or manipulations can lead to damages and / or possible injuries.
-It is recommended, not to wear any jewellery or rings during usage of VANDBAR.
-Keep away any body parts, hair and clothing from moving parts.
-Best wear sportswear and gym shoes.
-Do not wear any oversized clothing and / or high-heeled shoes.
15
VANDBAR -User-and Installation Manual
VANDBAR

Safety information
Important information regarding usage
-Check VANDBAR each time before use visually.
-In case of injuries, underlying (medical) conditions or use of medication, please seek medical advice
before use..
-Have your health condition checked before use.
-It is recommend to perform warm-up exercises and avoid overtraining.
-Do not put any other items into lock holes in the sliding tubes, except the lock stud into the lock traget.
-Inside the sliding tubes, there are counterweights. A free sliding of the counterweights inside the sliding
tubes must be enabled at all times.
-VANDBAR is not a cable pull station. The counterweights inside the sliding tubes only function as
counterbalance to keep the bar holds in position to find a locking position.
-The steel wire always need to have a slight tension of the counterweights.
16
VANDBAR -User-and Installation Manual
VANDBAR

Installation manual
Installation tools
*
-Pencil
-Water level
-Concrete drill 6 mm to pre-drill
-Concrete drill 10 mm for pegs
-Percussion drill for drilling in concrete and brick
-Hammer
-Ratchet wrench incl. socket 13 mm
-Step-ladder (min. 5 –6 rungs)
-Floor cover for example a blanket
-Vacuum cleaner
If there are skirting boards on the wall, they must be removed in the installation area before
installation.
In case of an installation on wooden walls, the min. wall thickness must be 15 cm (wood screw‘s min.
8 x Ø8mm and length 120 mm*)
*not within the scope of supply
17
VANDBAR -User-and Installation Manual
VANDBAR

Installation manual
18
VANDBAR -User-and Installation Manual
VANDBAR
Installation step 1 –Skirting board removal
ØAny existing skirting boards on the wall need to be
removed before installation in the area of installation.
ØLater, skirting boards can be fitted left and right of the
bottom plate again.
Installation step 2 –Mark drilling holes at bottom plate
ØPlace bottom plate and mark drilling holes with a pencil.
ØCheck if the fixed felt pads (4x) on bottom plate are still
in place.
Attention: Did you check for any power lines or water
pipes in the drilling area for bottom and head plate (see
also page 26)?

Installation manual
19
VANDBAR -User-and Installation Manual
Installation step 3 –Place floor cover
ØPlace floor cover to protect components and floor (for
example a blanket).
VANDBAR
Installation step 4 –Drilling bottom plate holes
ØPre-drill with percussion drill for drilling in concrete and
concrete drill 6 mm and re-drill with concrete drill 10 mm
for pegs (minimum drilling depth 110 mm)
ØPlace peg into drilling holes and fully hammer in pegs
ØClean area from any drilling dust by vacuum cleaner

Installation manual
20
VANDBAR -User-and Installation Manual
VANDBAR
Installation step 5 –Position sliding tube 1
ØPosition sliding tube 1 on floor cover
ØAlign sliding tube 1 in a way, that the smaller inside tubes
face 6 and 12 o‘clock as well as the lock holes 3 and 9
o‘clock
