Freud FT1700VCE 2 1/4 HP User manual

OPERATING INSTRUCTIONS
WARNING: To reduce the risk of injury, the user must read and understand the
operating instructions before using this product.
FT1700VCE 21/4HP Router
FT1700VCE-v4 3/26/07 10:28 AM Page 1

1
TABLE OF CONTENTS
Page
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
General Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Additional Safety Rules for Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Functional Description and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .7
Parts and Feature Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Assembly and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Prior to Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

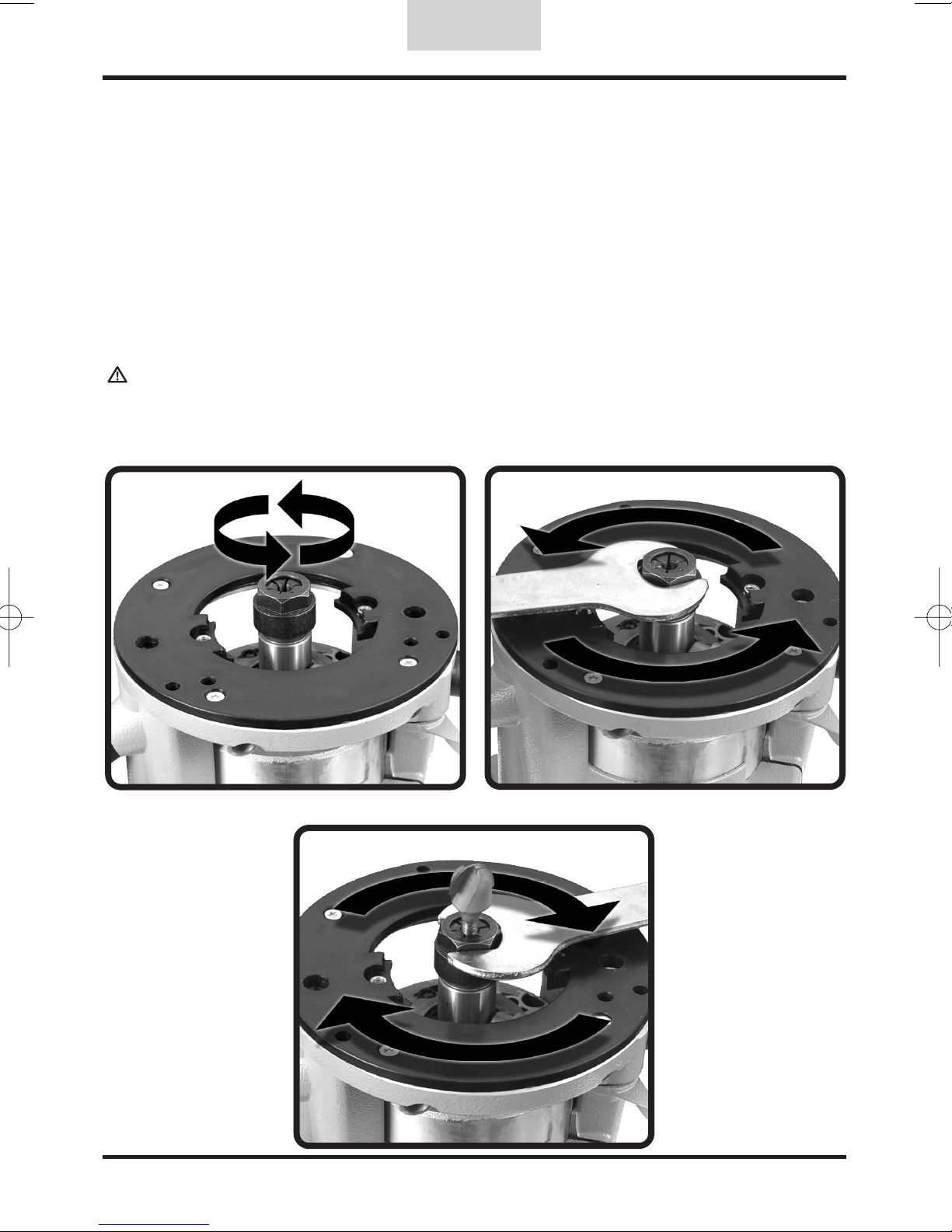

Installing and Removing Router Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Adjusting Depth of Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Mounting Template Guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Starting the Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Variable Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cutting Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Table Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance & Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Tool Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Ventilation Openings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Inspect Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Inspect Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Power Tool Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
English
FT1700VCE-v4 3/26/07 10:28 AM Page 1

2
TABLE DES MATIÈRES
Sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Règles générales de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Règles additionnelles de sécurité pour toupie . . . . . . . . . . . . . . . . . . . . . .22
Description fonctionnelle et spécifications . . . . . . . . . . . . . . . . . . . . . . . .24
Diagramme des pièces et caractéristiques . . . . . . . . . . . . . . . . . . . . . . . .24
Symboles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Assemblage et utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Avant l’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installation et retrait du couteau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Ajuster la profondeur de coupe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Montage des guides pour gabarit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Instructions d’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Mise en marche de l’outil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Réglage de la vitesse de rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Applications de coupe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Montage sur table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Maintenance et inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Cordon d’alimentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Lubrification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Ouvertures d’aération . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Roulements à bille . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Inspection des accessoires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Inspection des vis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Accessoires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Accessoires standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Points de service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Français
FT1700VCE-v4 3/26/07 10:28 AM Page 2

3
TABLA DE CONTENIDOS
Seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Reglas de seguridad en general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Reglas adiciónales de seguridad para las Fresadoras . . . . . . . . . . . . . . . .38
Descripcion funcional y especificáciones . . . . . . . . . . . . . . . . . . . . . . . . .40
Diagrama de partes y caracteristicas . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Símbolos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Especificáciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Ensamblaje y Operación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Antes de la Operación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Instalar y quitar broca fresadora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Reglaje de la Profundidad de Corte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Montar las plantillas de guiar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Instrucciónes de Operación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Empezar la Herramienta . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Control de Velocidad Variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Applicaciónes de Corte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Montajé de Mesa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Mantenimiento e Inspección . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Servício . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Cable Eléctrico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Lubricación de la herramienta . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Aberturas de Ventílación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Rodamientos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Inspección de los Accesorios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Inspección de los tornillos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Accesorios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Estandar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Localizacion de Servício . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Garantia de Herramienta Eléctrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Español
FT1700VCE-v4 3/26/07 10:28 AM Page 3

4
SAFETY
SAVE THESE INSTRUCTIONS
GENERAL SAFETY RULES
1. Work Area
a) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents
which could result in personal injury.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust of fumes.
c) Keep bystanders, children, and visitors away while operating a power tool. Distractions can
cause you to lose control.
2. Electrical Safety
a) Double Insulated tools are equipped with a polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a
polarized outlet. Do not change the plug in any way. Double Insulation eliminates the need
for the three wire grounded power cord and grounded power supply system.
b) Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is grounded.
c) Do not expose power tools to rain. Do not use power tools in damp or wet locations. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never carry the tool by the cord or yank the cord to pull the plug
from a receptacle. Keep cord away from heat, oil, sharp edges, or moving parts. Replace
damaged cords immediately. Damaged cords increase the risk of electric shock.
e) When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W".
These cords are rated for outdoor use and reduce the risk of electric shock.
3. Personal Safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not operate a tool while you are tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
b) Dress properly. Do not wear loose clothing or jewelry. Wear protective hair covering to
contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts. Rubber gloves and non-skid
footwear are recommended when working outdoors.
c) Avoid unintentional starting. Be sure switch is off before plugging in. Do not carry tools with
your finger on the switch or plug in tools that have the switch turned on.
d) Form the habit of checking to see that keys and adjusting wrenches are removed from the
tool before turning it on. A wrench or a key that is left attached to a rotating part of the tool
may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in any situation.
f) Use safety equipment. Always wear protective glasses. Also use a face or dust mask if
cutting operation is dusty.
English
WARNING: Read and understand all instructions. Failure to follow all instructions listed below
may result in electric shock,fire, and/or serious personal injury.
FT1700VCE-v4 3/26/07 10:28 AM Page 4

5
4. Tool Use and Care
a) Secure your work. Use clamps or a vise to secure and support the work piece to a stable
platform. Securing the work with a clamp or vise will free both hands to operate the tool.
Holding the work by hand or against your body is unstable and may lead to loss of control.
b) Do not force tool. The power tool will do the job better and safer at the rate for which it was
intended.
c) Use the correct tool for your application. Do not use tools for purposes for which they were
not intended.
d) Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with
the switch is dangerous and must be repaired. Have defective switches replaced by an
authorized Freud service center.
e) Disconnect the plug from the power source when not in use, before servicing, and when
changing accessories such as blades, bits, and cutters. Such preventive safety measures
reduce the risk of starting the tool accidentally and causing personal injury.
f) Store idle tools when not in use. Tools should be stored in a dry, high, or locked-up place
and out of the reach of children.
g) Maintain tools with care. Keep cutting tools sharp and clean for better and safer
performance. Follow instructions for lubricating and changing accessories. Inspect tool
cords periodically and, if damaged, have repaired by and authorized Freud service center.
Inspect extension cords regularly and replace if damaged. Keep handles dry, clean, and free
from oil or grease. Properly maintained tools, with sharp cutting edges are less likely to bind
and are easier to control.
h) Check for damaged parts. Before further use of the tool, a guard or other part that is
damaged should be carefully inspected to determine that it will operate properly and
perform its intended function. Check for alignment of moving parts, binding of moving
parts, mounting, and other conditions that may affect the operation of the tool. A guard or
other part that is damaged should be properly repaired or replaced by an authorized Freud
service center unless otherwise indicated elsewhere in this instruction manual.
i) Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used with
another tool.
5. Service
a) Tool service must be performed only by a Freud authorized service center. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
b) When servicing a tool, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of electric shock or injury. Certain cleaning
agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.
ADDITIONAL SAFETY RULES FOR ROUTERS
•WARNING! Do not rout material containing amianthus. Working with materials containing
amianthus/asbestos and/or silica stones produces a dust which is harmful to health. Protect
yourself from inhaling this dust, in compliance with regulations on accident prevention.
• Tighten collet nut securely to prevent bit from slipping.
• Provide clearance under work piece for router bit when through-cutting.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or key left
attached to a rotating part of the power tool may result in personal injury.
• Never tighten collet nut without a bit installed.
• Avoid "Climb-Cutting" (moving the router with the rotation of the bit) this will increase the
chance for loss of control resulting in possible personal injury.
English
FT1700VCE-v4 3/26/07 10:28 AM Page 5

6
• Do not overreach. Keep footing and balance at all times. This enables better control of the
power tool in unexpected situations.
• Do not pierce the motor housing as this could damage the double insulation (use adhesive
labels).
• Always unplug the tool before working on it.
• Always stop the tool by using the on/off switch, not by unplugging it.
•WARNING! Before each use, inspect the plug and cord. Should they need replacing, have
this done by an authorized Freud service technician.
• Always keep the tool cord and extension cord clear of the working range of the tool.
• Only plug in the tool with the switch in the OFF position.
• Hold the tool firmly in both hands and in a stable position or mounted to a router table.
• Adjust the speed for different diameter bits. The larger the bit the slower the speed.
• Router bits should be handled and kept with the utmost care, in accordance with the
manufacturer's instructions.
• Check the bit carefully before use to make sure it is not damaged or cracked. Replace
cracked or damaged bits immediately.
• Make sure the bits are chucked in the collet in accordance with the manufacturer's
instructions.
• Check that the bit has been properly fitted and secured before using the tool. Start the tool
with no load and run for a few seconds in a safe position. If you notice serious vibration or
any other defect, turn off the tool immediately.
• Use only Freud approved collets and collet nuts to chuck bits.
• Ensure that the material to be worked on is firmly secured before beginning any routing.
• Beware of shavings that fly off during operation. Hold the tool so that chips fly away from
you.
• When working on woods that irritate skin, eyes or respiration, use dust extraction equipment
and wear a mask.
• When working with the tool, always wear safety glasses and hearing protection. Other
personal protection equipment such as dust masks, apron, and non-slip footwear should
also be worn.
• Make sure the tool's air vents are clear of dust and debris. If they require cleaning, first
unplug the tool and vacuum. Do not use metal objects to clean the air vents or you may
damage the tool's internal parts.
• Do not touch the bits when rotating.
•WARNING! The bit keeps moving for a long time after the switch is turned off. Be sure the
bit has stopped rotating before putting the tool down or changing accessories.
DOUBLE INSULATION
To ensure safer operation of this tool, Freud has adopted a double insulation design. "Double
Insulation" means that two physically separated insulation systems have been used to insulate the
electrically conductive materials connected to the power supply from the outer frame handled by
the operator.
To keep the double insulation system effective, follow these precautions:
• Be careful not to pierce the motor housing as this could damage the efficiency of the double
insulation system.
• Only Freud Authorized Service Centers should disassemble or assemble this power tool, and
only genuine Freud replacement parts should be installed.
English
FT1700VCE-v4 3/26/07 10:28 AM Page 6

7
DESCRIPTIONS & SPECIFICATIONS
FUNCTIONAL DESCRIPTION
English
A - Micro Adjust Dial
B - Micro Adjusting Knob
C - Variable Speed Control
D - On/Off Switch
E - Side Handles
F - Spindle
G - Collet
H - Fixed Base
I - 22mm Wrench
JLQ
M
R
N
O
P
J - Above Table Height
Adjustment Access
K - Depth Adjustment Wrench
L - Above Table Base Clamp Access
M - Base Plate
N - Spindle Lock (Shaft Lock)
O - Base Clamp
P - Base Release Button
Q - Spindle Lock Access
R - Locking Lever
K
B
A
G
C
F
D
H
E
I
FT1700VCE-v4 3/26/07 10:28 AM Page 7

8
SYMBOLS
Some of the following symbols may be used on your tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
English
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
no No load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits, etc. per minute
Class II construction Designates double insulated construction
tools
Alternating current Type or a characteristic of current
Safety Alert Precautions that involve your safety
Power Source Single-Phase, 120V, AC 60Hz
Amps 13
Watts 1500
No-Load Speed 10,000-23,000 RPM
Collet 1/4 inch & 1/2 inch
Max Bit Diameter* 3-1/2 inch (89 mm)
Weight 5.4 lbs
SPECIFICATIONS
* Router bits over 11/2” diameter should be used only with the router mounted in a router table. The router base
plate must be removed to to accept bits larger 21/2” diameter. Consult the router table’s user manual for
maximum bit diameter that can be used in the router table.
FT1700VCE-v4 3/26/07 10:28 AM Page 8

9
ASSEMBLY & OPERATION
PRIOR TO OPERATION
1. Check Power Supply
Ensure that the power source to be utilized conforms to the power source requirements
specified on the tool nameplate. Ensure the receptacle being used accepts the plug tightly. If
a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.
2. Check Work Area
Confirm that the work site is placed under appropriate conditions conforming to precautions
prescribed in the safety section of this manual.
3. Before Plugging in the Tool
Ensure that the power tool switch (D) is in the OFF position to prevent the tool from accidental
start up which could cause serious injury.
INSTALLING AND REMOVING THE BIT (2 OPTIONS)
WARNING: Disconnect tool from power source. Make sure the correct collet is selected to
match the bit shank diameter before proceeding.
Option 1 – Hand Held Use
a) Open base clamp (O) on the router base (H). - Fig 1a
b) While pressing the router base release button (M), push down the router handles until the
entire collet extends past the base. Rotate Locking Lever (R) until it engages the Spindle
Lock (N) - Fig 1b
English
Fig. 1a Fig. 1b
1
3
2
FT1700VCE-v4 3/26/07 10:28 AM Page 9

10
c) Rotate collet until the spindle lock pin engages with the spindle (F). When the locking pin
engages, you will not be able to rotate the spindle. - Fig 1c
d) Using the included 22mm wrench (I), turn the collet nut (G) counterclockwise to loosen the
collet. - Fig 1d
e) Insert the router bit and rotate the collet nut with the 22mm wrench clockwise to
tighten the collet. Always be sure that 80% of the router bit shank is inserted in the collet
- Fig 1e
f) Rotate Locking Lever (R) until it disengages the Spindle Lock (N). Press the router base
release button and slide the router motor out of the base until the router bit is back below
the surface of the router base and close base clamp.
g) Before operating the router, follow directions in the section in this manual titled "Adjusting
Depth of Cut" to properly set your depth of cut.
h) To remove a router bit from the collet, follow steps b,c, and d and then remove the router bit.
WARNING: Failure to disengage the spindle lock or remove the wrench before operating this
power tool could result in injury or damage to the tool.
English
Fig. 1e
Fig. 1c Fig. 1d
FT1700VCE-v4 3/26/07 10:28 AM Page 10

11
Option 2 – Through The Base Bit Changes
The Freud FT1700 can also be mounted to a router
table.To mount the router, please follow the
instructions included with the router table.
a) Unlock the base by inserting the height
adjustment wrench (K) into the above table base
clamp access hole (L) and turn counter clockwise
until the wrench stops turning. - Fig. 2a
b) Insert the depth adjustment wrench into the
above table height adjustment access hole (J)
and rotate counter clockwise until the collet (G)
extends fully through the base. - Fig. 2b
c) Insert the depth adjustment wrench into the
spindle lock access hole (Q) and rotate clockwise
until it stops. Rotate spindle (F) until spindle lock
pin (N) engages. When the spindle lock pin is
correctly engaged, you will not be able to rotate
the spindle. - Fig. 2c
d) Using the 22mm collet nut wrench (I), turn the
collet nut counter clockwise to loosen the collet.
If a bit is already in the collet, the collet nut will
loosen for approximately 1 turn and then become
tight again. Continue turning the nut counter
clockwise with the wrench until the nut is loose
again. At the point the bit should be released and
easy to remove from the collet. - Fig. 2d
e) To install a router bit, insert the bit into the collet
and with the 22mm wrench rotate the collet nut
clockwise to tighten the collet. Always be sure
that at least 80% of the router bit shank is
inserted in the collet but never allow the bit
shank to “bottom out” in the collet. - Fig. 2e
f) Insert the depth adjustment wrench into the
spindle lock access hole (Q) and rotate counter
clockwise until it stops turning.- Fig. 2f
g) 1. Insert depth adjustment wrench into the
above table height adjustment access hole (J)
and turn clockwise to lower the router bit.
2. Lock the base by inserting the height
adjustment wrench into the above table base
clamp access hole (L) and turn the wrench
clockwise until the wrench stops turning.
- Fig. 2g
h) Before operating the router, follow directions in
the section in this manual titled “Adjusting Depth
of Cut” to properly set your depth of cut.
English
Fig. 2a
Fig. 2b
Fig. 2c
Fig. 2d
FT1700VCE-v4 3/26/07 10:28 AM Page 11

12
WARNING: Failure to disengage the spindle lock or remove the wrench before operating this
power tool could result in injury or damage to the tool.
ADJUSTING DEPTH OF CUT (2 OPTIONS)
WARNING! Disconnect tool from power source.
Option 1 – Hand Held Use
a. Open the base clamp (O). - Fig. 3a
b. Turn the Micro Adjusting Knob until the bit
contacts the work surface making sure that
the router is level and flat. - Fig. 3b
c. Turn the Micro Adjustment Knob (B) clockwise to
the desired depth. (one complete rotation
varies the bit depth by 1/8").
d. Lock the base clamp (O) prior to operation.
English
Fig. 3a
Fig. 3b
Fig. 2e Fig. 2f Fig. 2g
FT1700VCE-v4 3/26/07 10:28 AM Page 12

13
Option 2– Through The Base Bit Changes
The Freud FT1700 can also be mounted to a
router table. To mount the router, please follow the
instructions included with the router table.
a) Unlock the base by inserting the height
adjustment wrench (K) into the above table base
clamp access hole (L) and rotate counter
clockwise until the wrench stops turning.
- Fig. 4a
b) Insert the depth adjustment wrench into the
above table height adjustment access hole (J).
Turn the wrench counter clockwise to raise the
bit and clockwise to lower the bit. - Fig. 4b
c) Once the bit is set at the desired depth of cut,
lock the base by inserting the height adjustment
wrench into the above table base clamp access
hole (L) and turn the wrench clockwise until the
wrench stops turning. - Fig. 4c
MOUNTING TEMPLATE GUIDES
WARNING! Disconnect tool from power source.
For template routing, the Freud FT1700 accepts
standard template guides which are available
separately. To use template guides an optional adapter
ring (Freud FT1100) must be attached to the base
plate using the two slotted screws provided. Remove
the slotted screws from the base plate, insert the
adapter ring with the flat side toward the router body.
Install and tighten the screws to secure the adapter
ring. - Fig. 5
The base plate (L) has been centered at the factory,
however, if the base plate has been removed and
remounted some adjustment may be necessary to
center the template guides to the router bit. To adjust,
loosen the four base plate screws that secure the base
plate to the router, reposition the base plate and
tighten the screws.
English
Base Plate
Screw
Adaptor Ring
Screws
Base
Plate Screw
Base Plate
Screw
Base
Plate Screw
Fig. 4a
Fig. 4b
Fig. 4c
Fig. 5
FT1700VCE-v4 3/26/07 10:28 AM Page 13

14
WARNING: Make sure that the voltage
from the power supply matches the voltage
specified on the tool. Before plugging in the
tool ensure that the bit is properly inserted
and tightened and that it spins freely.
1. Starting the Tool
a) Plug in the tool with the switch in the
OFF position.
b) Hold the router firmly with both
handles with the bit away from you
and positioned so that the bit is not in
contact with the wood or any part of
your body or clothing.
c) Start the tool by sliding the switch in
the direction specified on the tool.
- Fig. 6
d) Turn off the tool by sliding the switch
in the opposite direction.
2. Variable Speed Control
WARNING: Always unplug the router
before making any speed adjustment.
The Freud FT1700 is equipped with an
electronic variable speed control feature.-
Fig. 7
This speed control has an infinite number of
speeds from 10,000 to 23,000 RPM. The
speed is adjusted by turning the speed
control knob (C). Consult the router bit
manufacturer for recommended bit speed.
The electronic speed control keeps constant
speed at all levels. If the motor speed
decreases in use you may be exceeding the
load capacity of the tool. This could cause
damage to the motor by overheating.
Reducing the depth of cut so that more
passes are required and/or slowing the rate
of feed will reduce the power requirements on
the router.
English
Fig. 7
Fig. 6
ON
OFF
OPERATING INSTRUCTIONS
FT1700VCE-v4 3/26/07 10:28 AM Page 14

15
CUTTING APPLICATIONS
Consider the material that you are cutting and
the amount of material that will be removed
before using the tool. Make sample cuts on
scrap wood before cutting the actual work piece.
WARNING! Always clamp your work piece
securely before making any cuts.
The router bit rotates in a clockwise direction
when viewed from the top of the router. On
external edge treatments move the router
counter clockwise from left to right. - Fig. 8a
WARNING! Avoid climb cutting (moving the
router clockwise with the rotation of the bit.
- Fig. 8b. Climb cutting increases the potential of
loosing control of the router and possible injury.
TABLE MOUNTING
The Freud FT1700 can also be mounted to a router table. To mount the router, please follow the
instructions included with the router table.
English
Fig. 8b
INCORRECT
Fig. 8a
CORRECT
Tip: When creating an edge treatment on all
four edges, begin with the end grain of the
board first. If tear out occurs at the end of
this cut it will be removed when the cut is
made along the edge or with the grain.
FT1700VCE-v4 3/26/07 10:28 AM Page 15

16
MAINTENANCE & INSPECTION
Service
It is recommended that all service on your Freud tool be performed by an
Freud Authorized service center. Service by unauthorized service personnel
may result in misplaced internal components resulting in risk of tool
malfunction and personal injury to the tool user.
Power Cord
Check that the power cord is in good condition. If it is not, have it replaced
immediately at a Freud Authorized service center.
Tool Lubrication
All power tools require care and attention. Every couple of years, or when
needed, it is recommended you take the tool to an Freud Authorized service
center for a general cleaning and lubrication.
Ventilation Openings
Make sure the air vents are always kept clean and free of obstacles. If
clogged, vacuum out obstruction. It is recommended that you blow off the
entire tool with compressed air after each use.
Bearings
Every two years, or when needed, the bearings should be inspected by a
Freud Authorized service technician. Bearings that become very noisy should
be replaced at once to avoid overheating or motor failure.
Inspect Accessories
Regularly inspect your router bits. Using worn accessories will diminish the
efficiency of the work and could damage the tool's motor.
Inspect Screws
Regularly inspect all screws in your power tool and make sure they are
properly tightened. Loose screws should be retightened immediately.
English
FT1700VCE-v4 3/26/07 10:28 AM Page 16

17
To locate a Freud Authorized Service Center near you, call: 1-800-334-4107
Or visit our web site at: www.freudtools.com
In Canada call: 1-800-263-7016
Or visit the Canadian site for a full list of service centers at: www.freud.ca
Standard Accessories
• Collet Nut Wrench
• Depth Adjustment Wrench
• 1/4" and 1/2" Collets
• Vacuum Adaptor
• Carrying Case
English
ACCESSORIES
Service Locations
FT1700VCE-v4 3/26/07 10:28 AM Page 17

18
NORTH AMERICAN POWER TOOL WARRANTY
FREUD LIMITED POWER TOOL WARRANTY
90 DAY MONEY BACK GUARANTEE
If within the first 90 days from the date of original purchase you are not completely satisfied with your Freud
power tool for any reason you may return the tool (in its original packaging and complete with all accessories) to
the place of purchase with proof of purchase (e.g. dated sales receipt) for a full refund.
FREUD LIMITED FIVE YEAR POWER TOOL WARRANTY
Freud warrants to the original consumer purchaser that each new Freud power tool shall be free from defects in
material and workmanship for a period of five (5) years from the purchase date. When warranty service is
requested, proof of purchase (e.g. dated sales receipt) is required. Should the power tool fail within ninety (90)
days from the date of purchase, it will be repaired or replaced AT THE CUSTOMER'S OPTION subject to the
guidelines below. Thereafter, upon verification of failure or malfunction, at Freud's option, Freud will repair or
replace the power tool, subject to the guidelines below. This warranty does not cover damage incurred from
repair or attempted repair by anyone other than Freud's authorized personnel, normal wear and tear, abuse, lack
of maintenance, or accidents.
FREUD WARRANTY GUIDELINES
1. In the event of failure or malfunction, return the product, properly packaged and postage prepaid, to Freud at
the address listed below or to an authorized Freud service station. For technical advice, instructions on returns,
or a list of authorized repair stations, please contact us at (U.S.) 1-800-334-4107 (Canada) 1-800-263-7016.
2. All implied warranties for Freud power tools (INCLUDING MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE) are limited to the period of three years from the purchase date by the original
consumer purchaser. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
3. A warranty claim shall be limited to repair or replacement as stated in Freud's Limited Power Tool Warranty,
and in no event shall Freud be liable for any other direct, indirect, incidental or consequential damages, costs or
expenses. INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE EXCLUDED UNDER ALL WARRANTIES. Some
States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
4. Freud's warranties give you specific legal rights, and you may also have other rights which vary from State to
State.
5. Freud's warranties shall not be deemed to have failed their essential purpose while Freud is willing to repair or
replace defective products.
6. Freud assumes no liability for defects or damage caused by abuse or misuse of any product or unauthorized
service of any product. The product must have been used for its recommended purpose and not modified or
changed. Normal wear and tear is not covered under Freud's warranties.
7. Any legal action for breach of warranty must be commenced within one year after the claim has arisen.
8. All warranties are expressly limited to the original consumer purchaser. All warranties and other rights of the
purchaser shall be governed under the laws of the State of North Carolina without regard to conflict of law
principles.
To obtain service under Freud Limited Power Tool Warranty, contact an authorized repair station or:
Freud America, Inc.
(Attn: Technical Service)
218 Feld Avenue
High Point, North Carolina 27263
1-800-334-4107
Freud Canada
(Attn: Technical Service)
7450 Pacific Circle
Mississauga, Ontario L5T 2A3
Canada
1-800-263-7016
(c) Copyright 2007, Freud America, Inc. All rights reserved.
