ROUTER BITS & SETS Joinery Bits
Dovetail Bits
• Compatible with popular dovetail jigs, these bits produce smooth, intricate
dovetail joints.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers as well as hand-held and table-mounted
portable routers.
Application: Strong, attractive joints for drawers and boxes
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Carbide Angle Shank Overall
Number Dia.(D) Height(h) (d) Dia.(A) Length(H)
22-100 1/4" 5/16" 7-1/2° 1/4" 2"
22-101 5/16" 3/8" 9° 1/4" 1-7/8"
22-102 3/8" 3/8" 9° 1/4" 1-7/8"
22-103 3/8" 3/8" 14° 1/4" 2-1/2"
22-104 1/2" 1/2" 14° 1/4" 1-7/8"
22-105 5/8" 7/8" 7° 1/4" 2-1/8"
22-106 3/4" 7/8" 7° 1/4" 2-1/8"
22-119 1/4" 1/4" 8° 1/4" 2"
22-120 3/8" 1/2" 8° 1/4" 2-1/2"
22-121 7/16" 5/8" 8° 1/4" 2-3/8"
22-122 1/2" 13/16" 8° 1/4" 2-3/4"
22-123 5/16" 3/8" 8° 1/4" 1-7/8"
22-124 1/2" 1/2" 14° 1/4" 2-5/8"
22-125 1/2" 5/8" 10° 1/4" 2-3/8"
22-126 9/16" 3/8" 14° 1/4" 2"
22-128 3/4" 7/8" 14° 1/4" 2-3/8"
22-129 1/2" 13/32" 8° 1/4" 2-5/32"
22-107 1/4" 5/16" 7-1/2° 1/2" 2-5/8"
22-108 5/16" 3/8" 9° 1/2" 2-1/8"
22-110 3/8" 3/8" 9° 1/2" 2-1/4"
22-112 1/2" 1/2" 14° 1/2" 2-1/4"
22-113 5/8" 7/8" 7° 1/2" 2-5/8"
22-114 3/4" 7/8" 7° 1/2" 2-5/8"
22-115* 17/32" 25/32" 7° 1/2" 2-3/8"
22-130 11/16" 1" 8° 1/2" 3-1/8"
22-132 13/16" 1-1/4" 8° 1/2" 3-3/8"
22-134 3/4" 3/4" 14° 1/2" 3-1/8"
Top Bearing Dovetail
22-505 5/8" 7/8" 7° 1/4" 2-5/8"
22-506 3/4" 7/8" 7° 1/4" 2-5/8"
22-507 3/4" 7/8" 14° 1/4" 2-5/8"
22-508 9/16" 3/8" 14° 1/4" 2-3/16"
D
d
A
h
H
®
A
D
h
H
®
d
8°
# 22-119
1/4"
1/4"
7.5°
# 22-100
# 22-107
5/16"
8°
# 22-123
Example of Dovetail
on drawer sides
9°
# 22-101
# 22-108
5/16"
NEW
* For use with Porter-Cable®Dovetail Jig #4212.
156-173 Pages 5-24-06 8/30/06 4:17 PM Page 156

3/8"
8°
# 22-120
Dovetail Bits
157
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
(Continued)
3/8"
14°
# 22-103
3/8"
9°
# 22-102
# 22-110
8°
# 22-121
7/16"
8°
# 22-129
1/2"1/2"
14°
# 22-104
# 22-124
# 22-112
10°
# 22-125
1/2"
1/2"
8°
# 22-122
17/32"
7°
# 22-115
14°
# 22-126
9/16"
14°
# 22-508 Top Bearing
9/16"
5/8"
7°
# 22-105
# 22-113
5/8"
7°
# 22-505 Top Bearing
11/16"
8°
# 22-130
3/4"
14°
# 22-134
14°
# 22-126
9/16"
14°
# 22-507 Top Bearing
3/4"
3/4"
7°
# 22-106
# 22-114
3/4"
7°
# 22-506 Top Bearing
13/16"
8°
# 22-132
156-173 Pages 5-24-06 8/30/06 4:17 PM Page 157

158
ROUTER BITS & SETS Joinery Bits

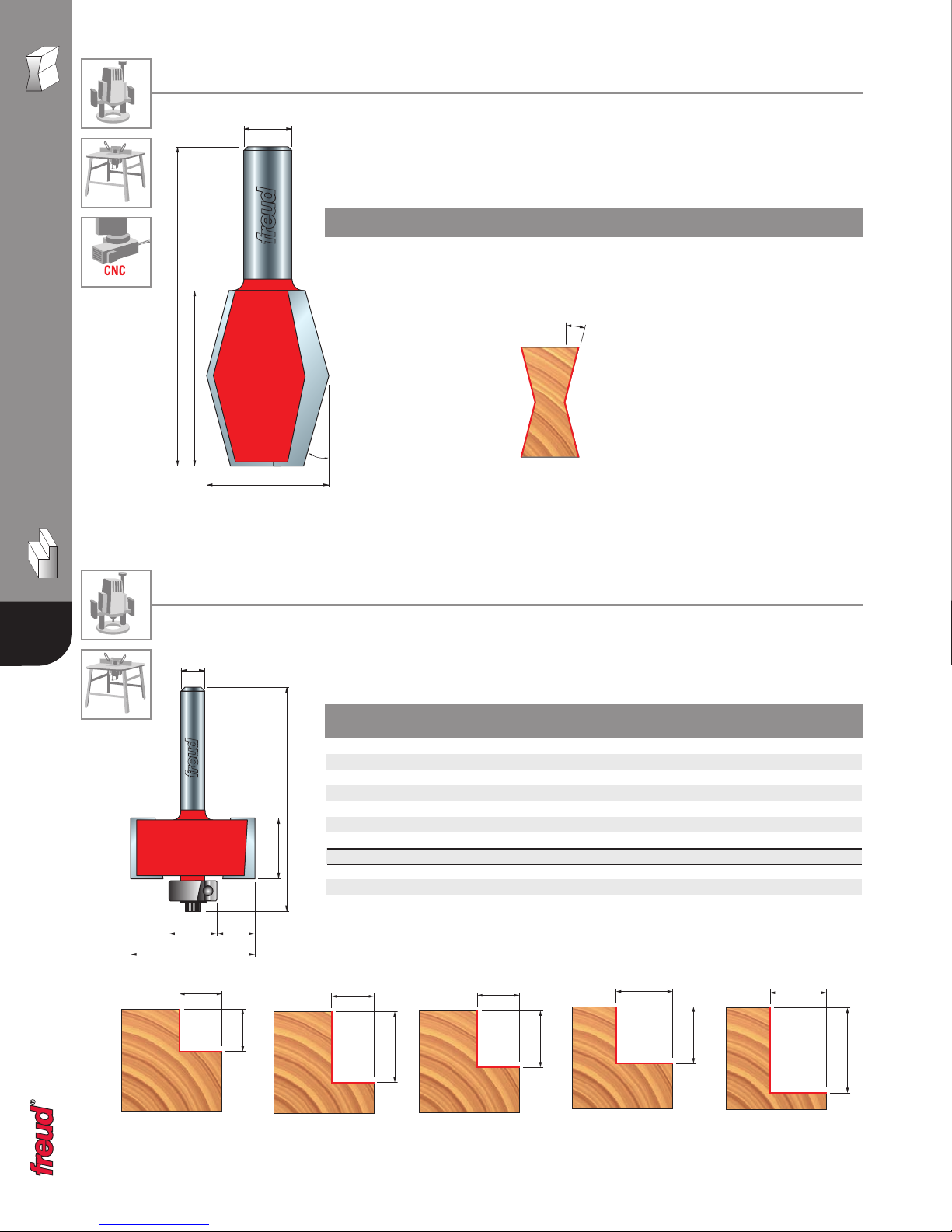

Butterfly Spline Bit
• This bit produces a strong, attractive method of joining wood. Use a 14-degree
dovetail bit to produce the mating grooves.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers as well as hand-held and table-mounted
portable routers.
Application: Sturdy, decorative design for exposed joints
Rabbeting Bits
• Produces super smooth cuts on both surfaces of the rabbet.
• Steel pilots can be removed from bits and used with edge guides for wider rabbets.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Joining boards and letting in back panels
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
D
h
H
A
d
14°
# 24-106
Item Overall Bearing Cut Carbide Shank Overall
Number Dia.(D) Dia.(B) Depth(C) Height(h) Dia.(A) Length(H)
32-096 1-1/4" 1/2" 3/8" 3/8" 1/4" 2"
32-098 1-1/4" 1/2" 3/8" 5/8" 1/4" 2-1/4"
32-100 1-1/4" 1/2" 3/8" 1/2" 1/4" 2"
32-101 1-3/8" 3/8" 1/2" 1/2" 1/4" 2-1/4"
32-102 1-1/4" 1/2" 3/8" 1/2" 1/2" 2-1/4"
32-106 1-3/8" 3/8" 1/2" 1/2" 1/2" 2-1/4"
32-110 1-3/8" 3/8" 1/2" 3/4" 1/2" 2"
Steel Pilots
32-302 1-1/4" 1/2" 3/8" 3/8" 1/4" 1-7/8"
32-306 1-1/4" 1/2" 3/8" 5/8" 1/4" 2"
BC
D
A
h
H
3/8"
3/8"
Max.
# 32-096
# 32-302
3/8"
5/8"Max.
# 32-098
# 32-306
3/8"
1/2"Max.
# 32-100
# 32-102
1/2"
3/4"Max.
# 32-110
1/2"
1/2"Max.
# 32-101
# 32-106
Item Overall Small Carbide Angle Shank Overall
Number Dia.(D) Dia.(n) Height(h) (d) Dia.(A) Length(H)
24-106 1-1/8" 11/16" 1-3/4" 14° 1/2" 3-1/4"
156-173 Pages 5-24-06 8/30/06 4:17 PM Page 158

Rabbeting Bits with Bearing Set
• With interchangeable bearings to cut rabbets of different depths, these sets produce
super smooth cuts on both surfaces of the rabbet.
• 32-504, 32-524, and 32-526 can also be used as flush cutting trim bits.
• Wrench included.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Joining boards and letting in back panels with
different depths of cut
159
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Overall Rabbeting Carbide Shank Overall
Number Dia.(D) Depths Height(h) Dia.(A) Lenght(H)
32-502 1-3/8" 5/16",3/8",7/16",1/2" 1/2" 1/4" 2-1/4"
32-504 1-3/8" flush, 1/8",1/4",5/16",3/8",7/16",1/2" 1/2" 1/4" 2-1/4"
32-522 1-3/8" 5/16", 3/8", 7/16", 1/2" 1/2" 1/2" 2-1/4"
32-524 1-3/8" flush, 1/8",1/4",5/16",3/8",7/16",1/2" 1/2" 1/2" 2-1/4"
32-526 1-3/8" flush, 1/8",1/4",5/16",3/8",7/16",1/2" 3/4" 1/2" 2-1/2"
D
A
h
H
1/8"
1/2"Max.
# 32-504
# 32-524
1/8"
3/4"Max.
# 32-526
1/4"
1/2"Max.
# 32-504
# 32-524
1/4"
3/4"Max.
# 32-526
5/16"
1/2"Max.
# 32-502
# 32-504
# 32-522
# 32-524
5/16"
3/4"Max.
# 32-526
3/8"
1/2"Max.
# 32-502
# 32-504
# 32-522
# 32-524
3/8"
3/4"Max.
# 32-526
7/16"
3/4"Max.
# 32-526
1/2"
3/4"Max.
# 32-526
7/16"
1/2"Max.
# 32-502
# 32-504
# 32-522
# 32-524
1/2"
1/2"Max.
# 32-502
# 32-504
# 32-522
# 32-524
Supplied 3/8"STEP
WASHER to use when
mounting 3/8"ball
bearing only.
•Wrench
#62-402
•3/8"STEP WASHER
#62-311
•1/2"STEP WASHER
#62-313
Both SetsInclude the Wrench and Step Washers
Set of
4
Set of
7
or
3/8"
1-1/8"Bearing #62-148
7/8"Bearing #62-146
3/4"Bearing #62-144
5/8"Bearing #62-113
1/2"Bearing #62-104
3/8"Bearing #62-102
1-3/8"Bearing #62-150
156-173 Pages 5-24-06 8/30/06 4:17 PM Page 159

160
ROUTER BITS & SETS Joinery Bits

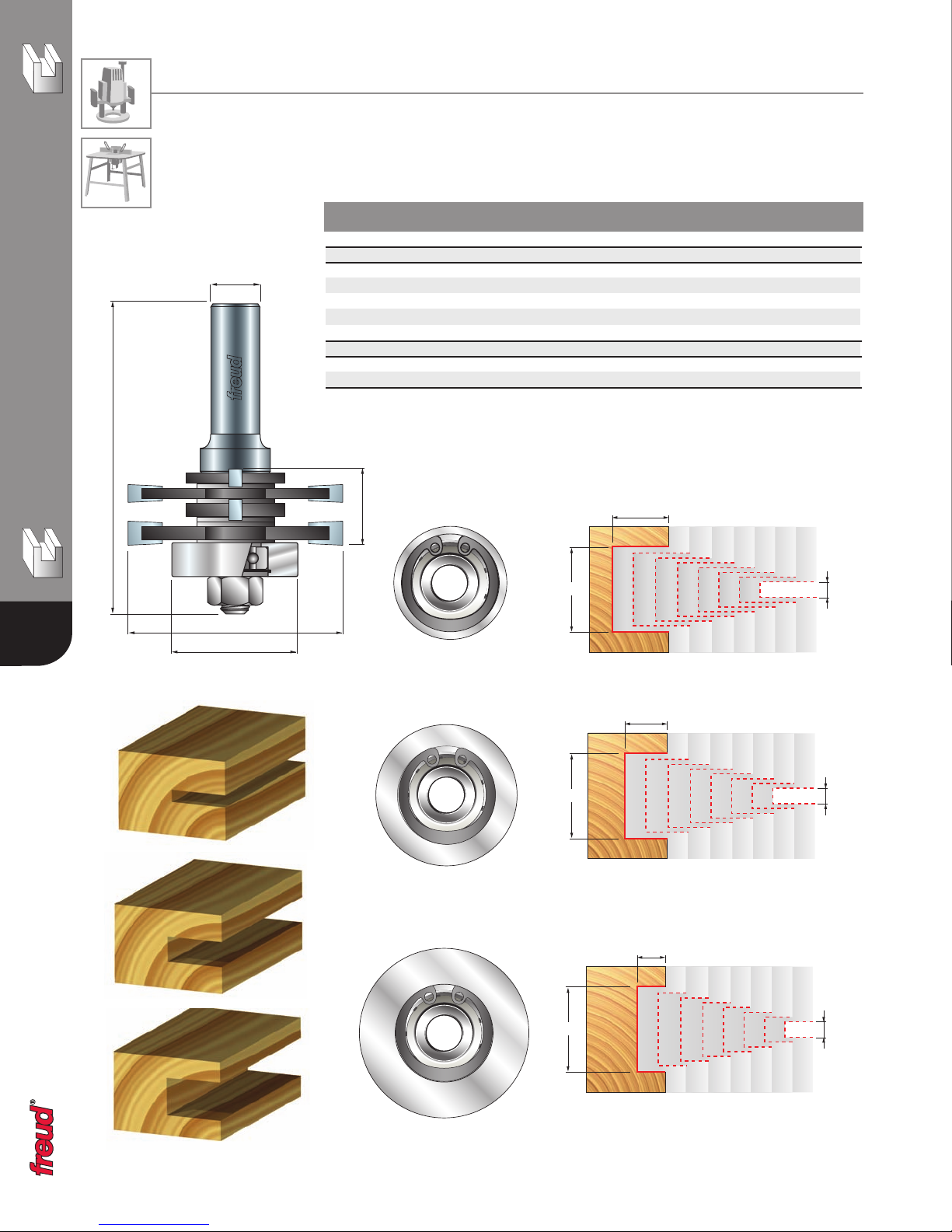

Stacked Slotting Set
• By changing the bearings this set will cut three different depths (1/4", 3/8", 1/2").
• Set includes Freud's slotting cutter arbor 60-202, 3 bearings and 4 specially
designed slotting cutters.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Producing grooves 1/8" to 23/32" wide
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Carbide Shank Overall
Number Dia.(D) Height(h) Dia.(A) Length(H)
61-102 2" 1/8"-23/32" 1/2" 3-1/4"
Replacement Bearings
Item Bearing Cut
Number Dia.(B) Depth
62-120 1" 1/2"
62-121 1-1/4" 3/8"
62-122 1-1/2" 1/4"
Replacement Cutters
Item Overall Carbide
Number Dia. Height
54-108 2" 1/8"
1/8"
# 62-120
1/2"
23/32"
1/8"
# 62-122
1/4"
23/32"
1/8"
# 62-121
3/8"
23/32"
# 62-120
( 1"Bearing)
# 62-121
( 1-1/4"Bearing)
# 62-122
( 1-1/2"Bearing)
H
A
D
h
B
156-173 Pages 5-24-06 8/30/06 4:17 PM Page 160

Biscuit Joining Set
• Easy and economical way to join wood.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Creating perfect slots for biscuit joining
161
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Overall Carbide Shank Overall
Number Dia.(D) Height(h) Dia.(A) Length(H)
99-041 1-27/32" 5/32" 1/2" 3-1/4"
Replacement Cutter
52-154 1-27/32" 5/32" 5/16" –
Bearings
Bearing No. Size Bearing Dia. Cut Depth
62-128 00 30mm 8.5mm
62-124 10 26mm 10.5mm
62-108 20 22mm 12.5mm
H
A
®
D
h
# 62-108
(22mm Bearing)
With Bearing
# 62-128
5/32"
8.5mm
# 62-124
(26mm Bearing)
With Bearing
# 62-124
5/32"
10.5mm
# 62-128
(30mm Bearing)
With Bearing
# 62-108
5/32"
12.5mm
Examples of various joint configurations
Biscuit Size–00
47mm x 15mm
1-7/8" x 5/8"
Biscuit Size–10
54mm x 19mm
2-1/8" x 3/4"
Biscuit Size–20
59mm x 22mm
2-3/8" x 7/8"
Biscuit
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 161

162
ROUTER BITS & SETS Joinery Bits
Three Wing Slotting Cutters
• Should be used with Freud's slotting cutter arbors 60-100 for 1/4" shanks and
60-102 for 1/2" shanks.
• Compatible with 62-108 bearing.
• Cutter 56-109 can be used for biscuit joining.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Producing slots and grooves for T-moldings, spline
joints, tongue & groove joints and many other applications
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Number Bore Carbide
Number Dia.(D) of Cutters Dia.(n) Height(h)
56-100 2" 3 5/16" 1/16"
56-106 2" 3 5/16" 3/32"
56-108 2" 3 5/16" 1/8"
56-109 2" 3 5/16" 5/32"
56-110 2" 3 5/16" 3/16"
56-112 2" 3 5/16" 1/4"
®
D
h
n
1/16"
9/16"Max.
# 56-100
3/32"
9/16"Max.
# 56-106
1/8"
9/16"Max.
# 56-108
5/32"
9/16"Max.
# 56-109
3/16"
9/16"Max.
# 56-110
1/4"
9/16"Max.
# 56-112
Four Wing Slotting Cutters
• Should be used with Freud's slotting cutter arbors 60-100 for 1/4" shanks and
60-102 for 1/2" shanks.
• Compatible with 62-108 bearing.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Producing slots and grooves for T-moldings, spline
joints, tongue & groove joints and many other applications
Item Overall Number Bore Carbide
Number Dia.(D) of Cutters Dia.(n) Height(h)
58-100 2" 4 5/16" 1/16"
58-106 2" 4 5/16" 3/32"
58-108 2" 4 5/16" 1/8"
58-110 2" 4 5/16" 3/16"
58-112 2" 4 5/16" 1/4"
®
D
h
n
1/16"
9/16"Max.
# 58-100
3/32"
9/16"Max.
# 58-106
3/16"
9/16"Max.
# 58-110
1/4"
9/16"Max.
# 58-112
1/8"
9/16"Max.
# 58-108
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 162

Slotting Cutter Arbors
• For premium performance use with Freud slotting cutters, although compatible with
any slotting cutter with a 5/16" bore.
• Use on hand-held and table-mounted portable routers.
Application: Producing smooth, precise, accurate slots
163
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Arbor Stud Arbor Shank Overall
Number Dia.(D) Height(h1) Height(h2) Dia.(A) Length(H)
60-100 5/16" 1" 25/64" 1/4" 2-3/8"
60-102 5/16" 1" 25/64" 1/2" 2-3/8"
60-120* 5/16" 1" 25/64" 1/4" 2-3/8"
60-122* 5/16" 1" 25/64" 1/2" 2-3/8"
60-152 5/16" 2-1/4" 5/8" 1/2" 4-1/4"
* Includes bearing # 62-108
H
A
22mm
®
H
h(2)
h(1)
A
D
®
® ®
Arbor:
#60-120 and #60-122
include bearing #62-108
Any 56 SeriesThree
Wing Slotting Cutter
or
Any 58 SeriesFour Wing
Slotting Cutter
(X2) Cutters
Shims
Shims
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 163

164
ROUTER BITS & SETS Joinery Bits
Slotting Cutter Sets
• Includes three wing slotting cutter, arbor and ball bearing.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Producing slots and grooves 9/16" deep for T-moldings,
Spline Joints, Tongue & Groove Joints, and other applications
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Carbide Cut Shank Overall
Number Dia.(D) Height(h) Depth Dia.(A) Length(H)
63-100 2" 1/16" 9/16" 1/4" 2-3/8"
63-104 2" 5/64" 9/16" 1/4" 2-3/8"
63-106 2" 3/32" 9/16" 1/4" 2-3/8"
63-108 2" 1/8" 9/16" 1/4" 2-3/8"
63-109 2" 5/32" 9/16" 1/4" 2-3/8"
63-110 2" 3/16" 9/16" 1/4" 2-3/8"
63-111 2" 15/64" 9/16" 1/4" 2-3/8"
63-112 2" 1/4" 9/16" 1/4" 2-3/8"
63-150 2" 1/16" 9/16" 1/2" 2-3/8"
63-154 2" 5/64" 9/16" 1/2" 2-3/8"
63-156 2" 3/32" 9/16" 1/2" 2-3/8"
63-158 2" 1/8" 9/16" 1/2" 2-3/8"
63-159 2" 5/32" 9/16" 1/2" 2-3/8"
63-160 2" 3/16" 9/16" 1/2" 2-3/8"
63-161 2" 15/64" 9/16" 1/2" 2-3/8"
63-162 2" 1/4" 9/16" 1/2" 2-3/8"
®
22mm
D
h
H
A
# 63-100
# 63-150
9/16"
1/16"
# 63-104
# 63-154
9/16"
5/64"
# 63-106
# 63-156
9/16"
3/32"
# 63-108
# 63-158
9/16"
1/8"
# 63-109
# 63-159
9/16"
5/32"
# 63-110
# 63-160
9/16"
3/16"
# 63-111
# 63-161
9/16"
15/64"
# 63-112
# 63-162
9/16"
1/4"
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 164

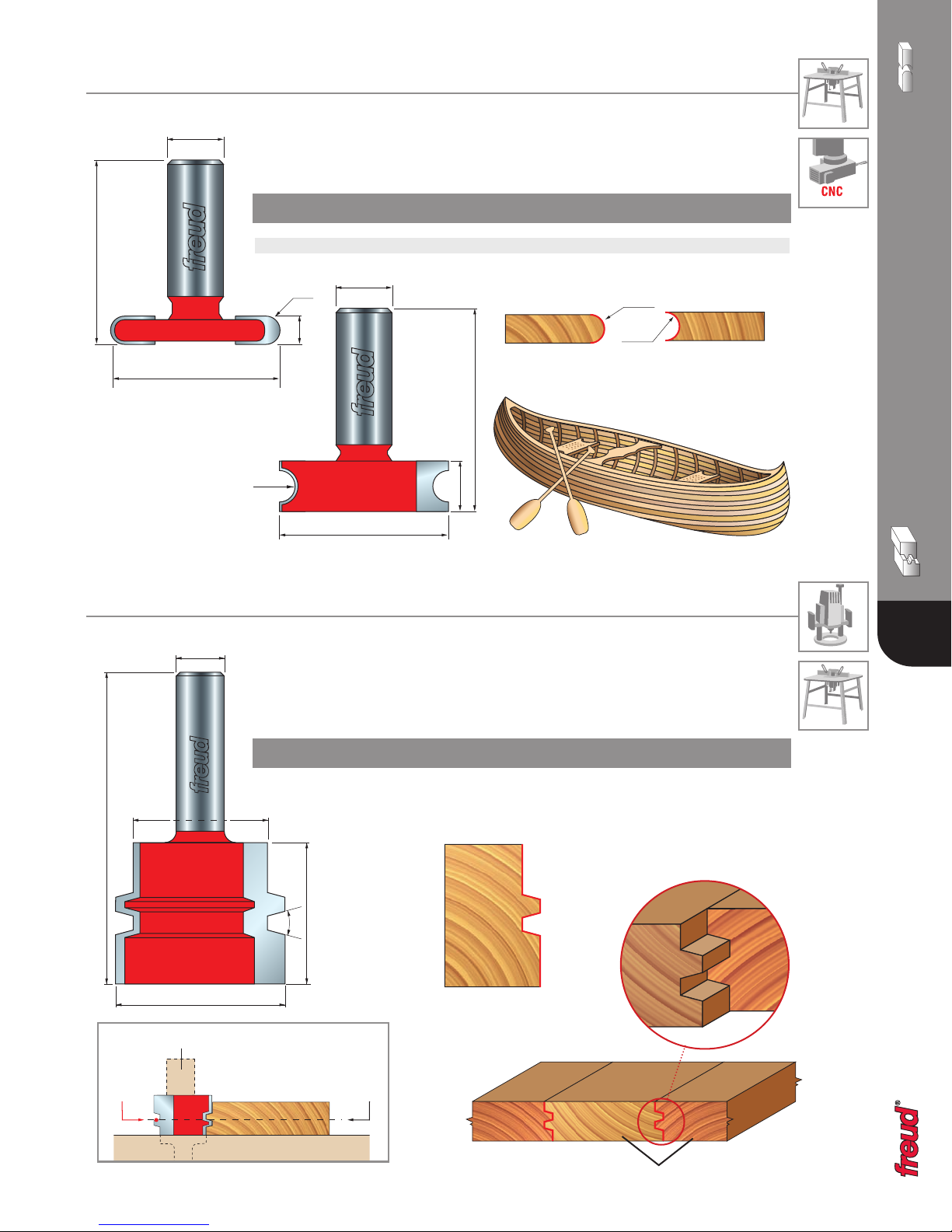

Canoe Joint Bits
• Bit 99-017 cuts the flute and 99-018 cuts the mating bead.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers as well as table-mounted portable routers.
Application: Producing joints for projects such as circular planters
and canoes
Reversible Glue Joint Bit
• Plane boards to a uniform thickness; align bit to the center of the board, then
reverse each board for a perfect glue joint.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers, as well as table-mounted
portable routers.
Application: Providing a stronger joint by increasing the surface
area for glue 165
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Overall Carbide Large Shank Overall
Number Dia.(D) Height(h) Radius(R) Dia.(A) Length(H)
99-017 1-1/2" 1/4" 1/8" 1/2" 1-11/16"
99-018 1-1/2" 3/8" 1/8" 1/2" 1-7/8"
®
D
A
h
H
R
®
D
A
h
H
R
# 99-018
# 99-017
# 99-017
R 1/8"
# 99-018
R 1/8"
®
D
n
h
H
A
d
# 99-031
Opposing Grain Direction
Fence
Table
Center of Material
Thickness
Centerline
of Bit
Item Overall Small Carbide Angle Shank Overall
Number Dia.(D) Dia.(n) Height(h) (d) Dia.(A) Length(H)
99-031 1-1/2" 1-3/16" 1-1/4" 30° 1/2" 2-3/4"
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 165

166
ROUTER BITS & SETS Joinery Bits

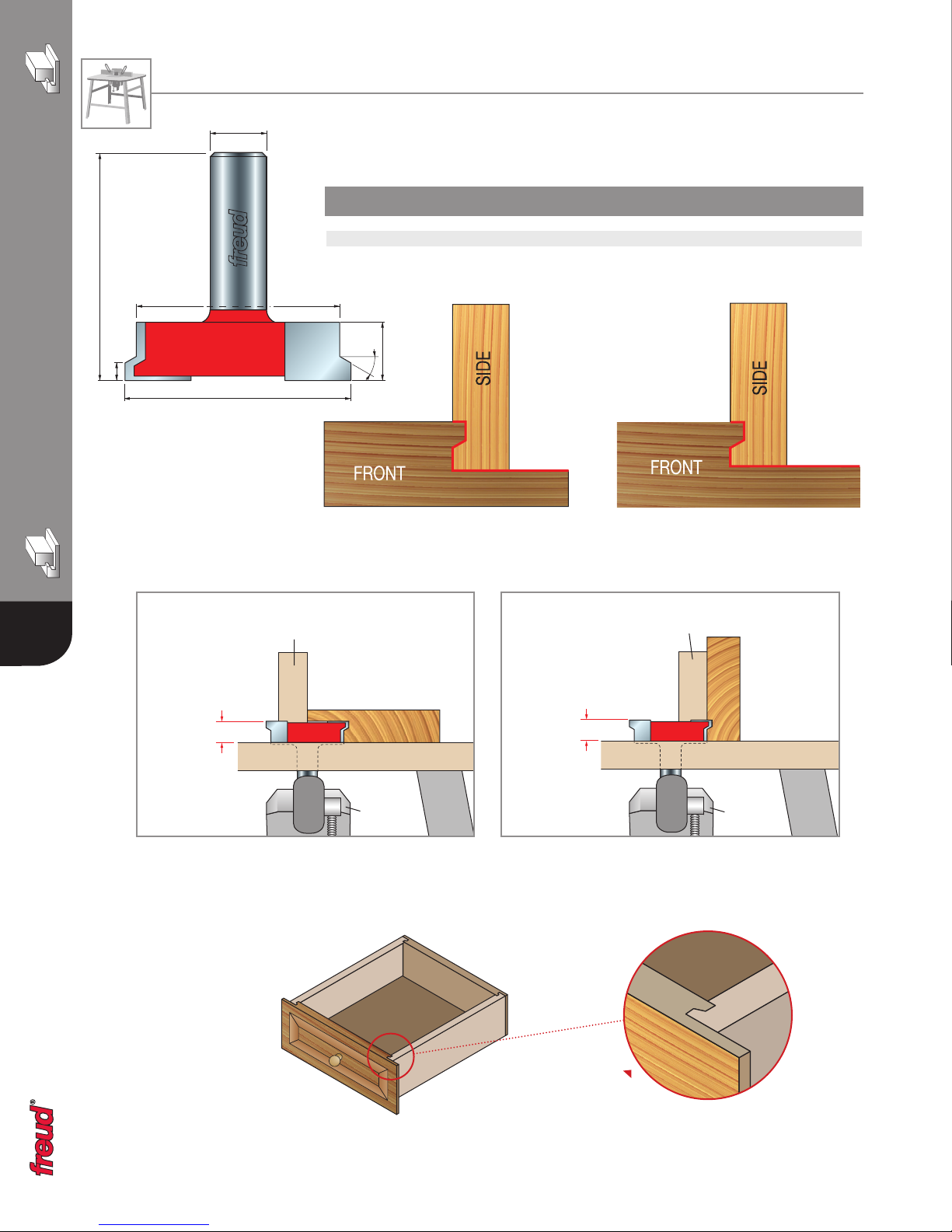

Drawer Lock Bits
• Drawer fronts are formed horizontally, flat on the table surface.
• Drawer sides are formed vertically against the fence of the table.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on table-mounted portable routers.
Application: Forming a strong joint between the sides and front of a drawer
Item Overall Small Carbide Minor Angle Shank Overall
Number Dia.(D) Dia.(n) Height(h) Height(m) (d) Dia.(A) Length(H)
99-239 1-1/4" 1-1/64" 1/2" 13/64" 30° 1/4 1-3/4"
99-240 2" 1-3/4" 33/64" 5/32" 30° 1/2" 2"
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
h
m
d
H
A
D
n
®
# 99-239
# 99-240
Fence
Table
Router
Bit Position
Above Router
Table Should Be:
3/8"for #99-240
15/32"for #99-239
Fence
Table
Router
Bit Position
Above Router
Table Should Be:
3/8"for #99-240
15/32"for #99-239
12
Example of Drawer Lock
Drawer lock bits should be positioned above the router table as shown above for optimal performance.
Drawing not to scale Drawing not to scale
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 166

167
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale

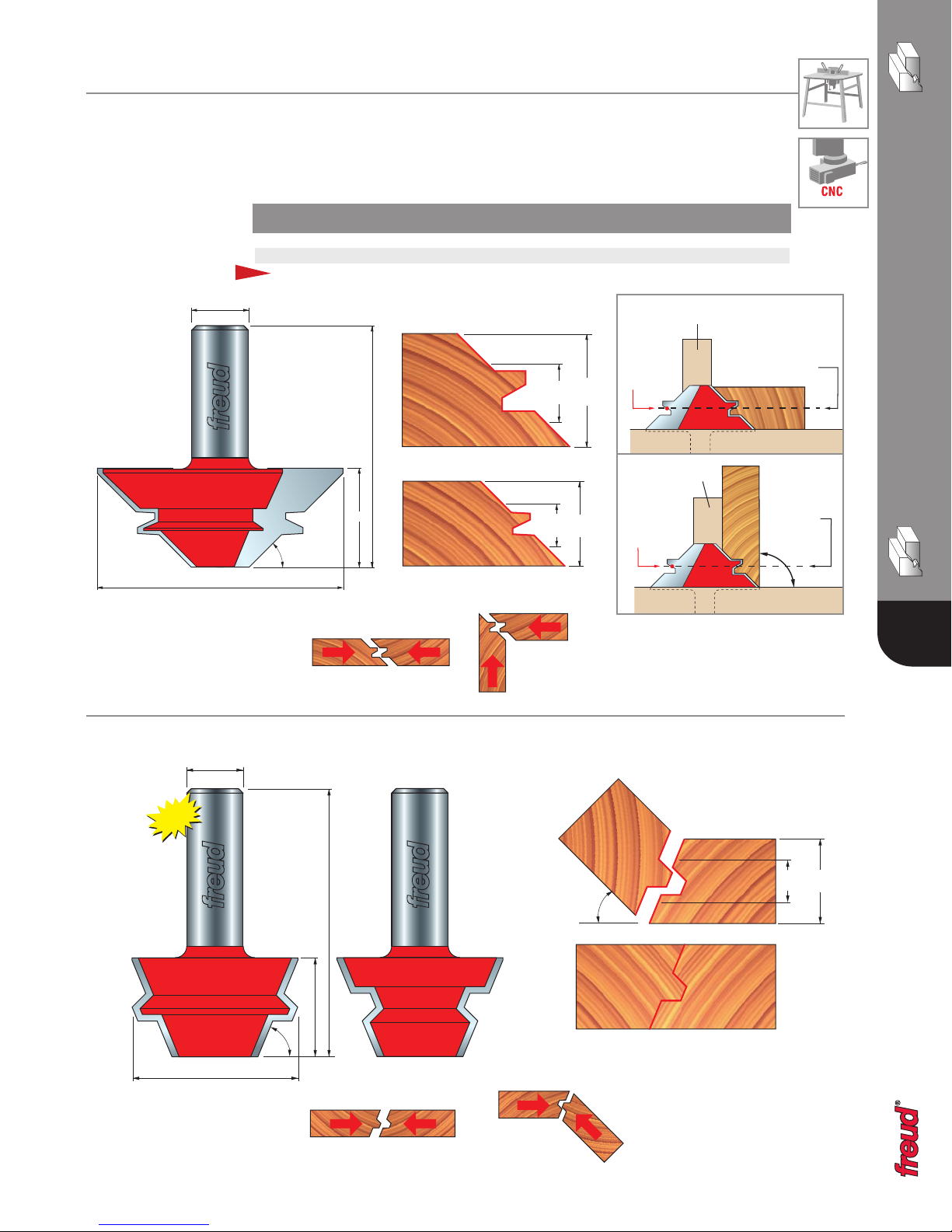

Lock Miter Bits
• Run one board vertically and the piece to be joined horizontally.
• 99-035 cuts thinner panels for projects such as humidors and jewelry boxes.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers, as well as table-mounted portable
routers.
Application: Creating interlocking corner joints
®
h
H
A
D
45°
Simple Joint
90° Miter Joint
Simple Joint
45° Miter Joint
®
D
A
h
H
22.3°
®
# 99-034
1"
Max.
1/2"
Min.
3/4"
Max.
3/8"
Min.
# 99-035
Fence
Table
Center of Material
Thickness
Centerline
of Bit
90°
Fence
Table
Center of
Material
Thickness
Centerline
of Bit
# 99-043 3/4"
Max.
3/8"
Min.
45°
NEW
NEW
# 99-043
Item Overall Carbide Angle Shank Overall
Number Dia.(D) Height(h) Dia.(A) Length(H)
99-034 2-3/4" 1-5/32" 45° 1/2" 2-5/8"
99-035 2-11/64" 7/8" 45° 1/2" 2-3/8"
99-043 1-15/32" 7/8” 22-1/2° 1/2” 2-3/8"
22-1/2 Degree Set
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 167

170
ROUTER BITS & SETS Joinery Bits

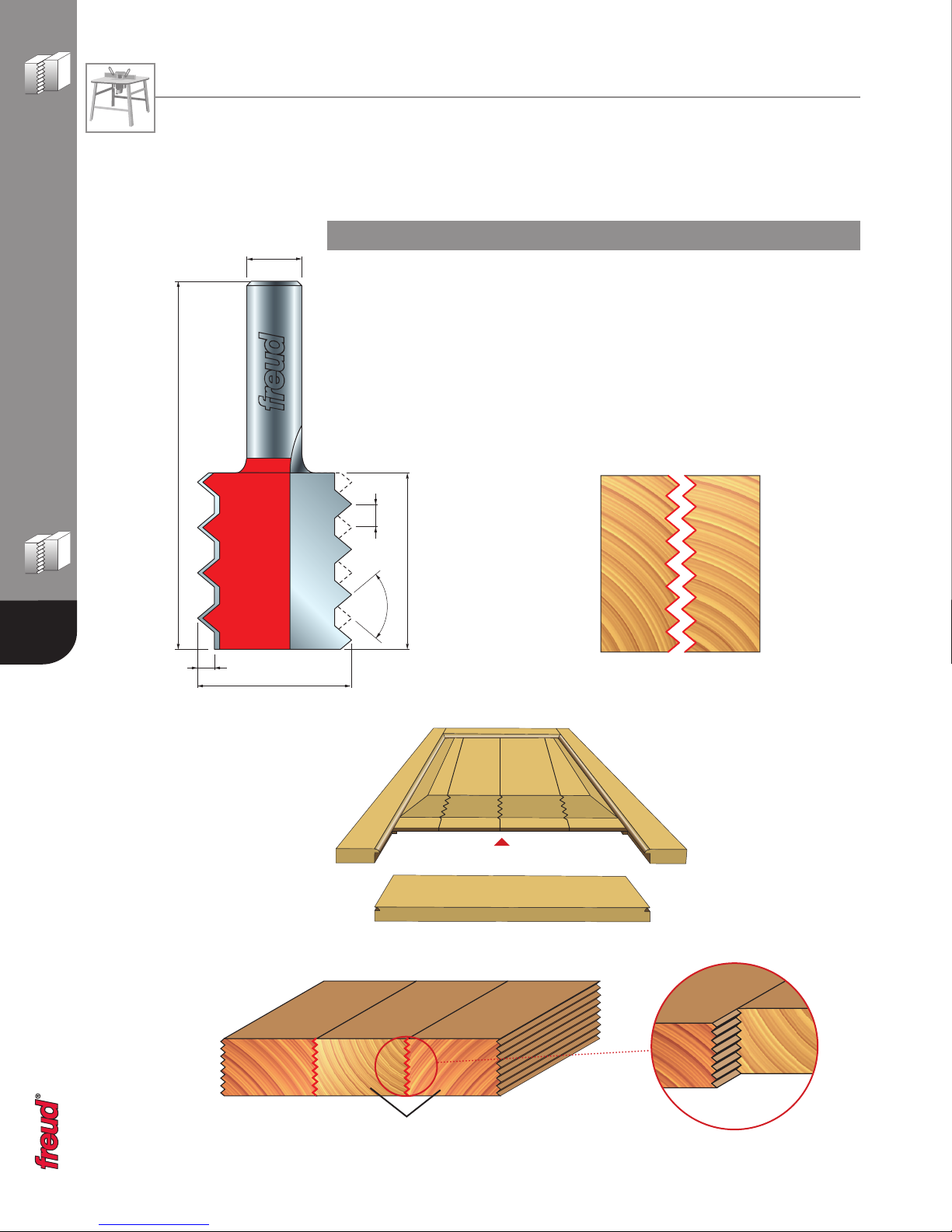

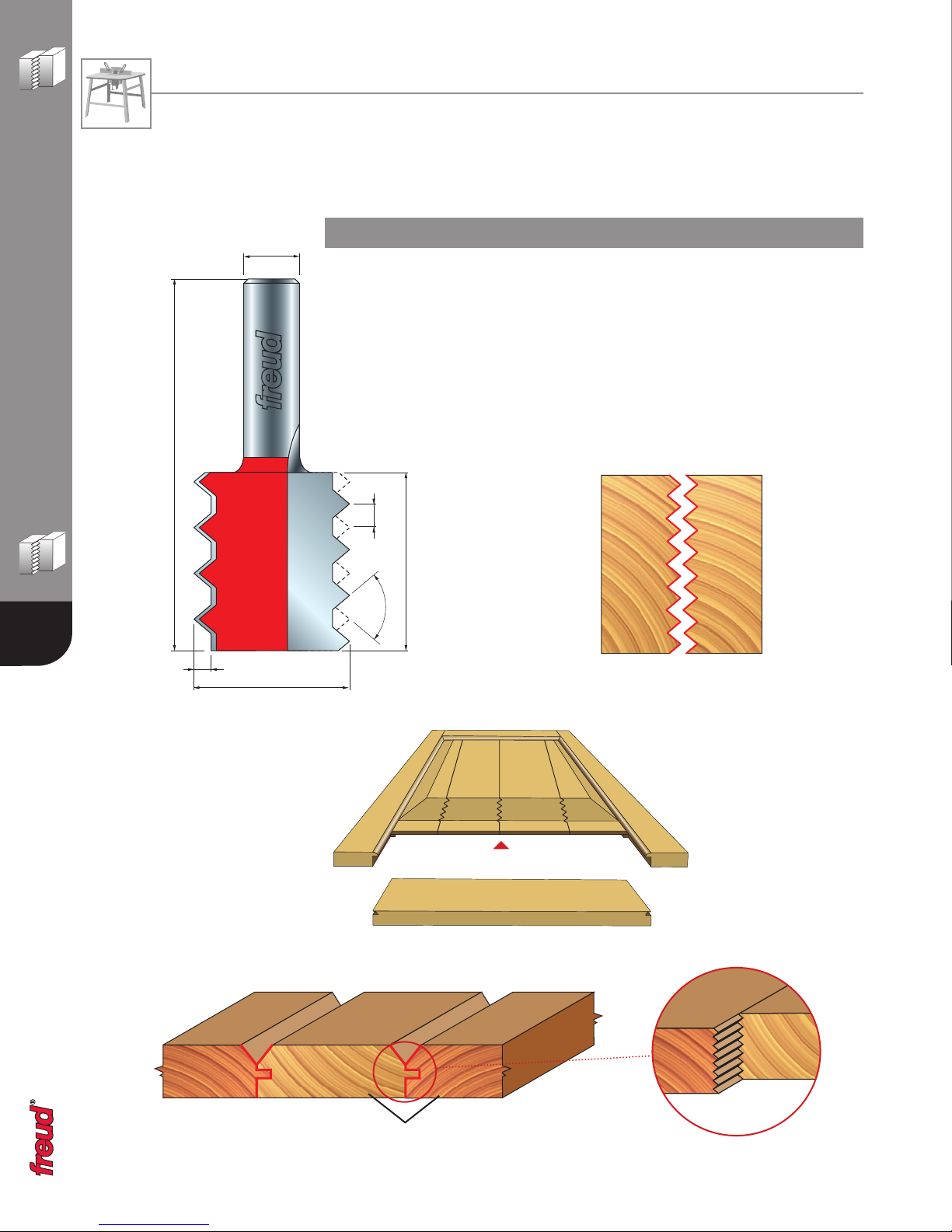

Raised Panel “V” Joint Bit
• Mating surfaces are at an angle, not vertical, so the dark lines like those created by
standard finger joint bits arenot visible.
• Bit does not have to be centered in the wood.
• Simply raise or lower the bit 3/32" to route the mating edge.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on table-mounted portable routers.
Application: Producing strong, attractive glue joint raised panels
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Carbide Minor Angle Shank Overall
Number Dia.(D) Height(h) Height (d) Dia.(A) Length(H)
99-038 1-3/8" 1-37/64" 3/16" 80° 1/2" 3-1/16"
D
5/32"
3/16"
d
h
H
A
®
# 99-038
Opposing Grain Direction
Example of “V” Jointed Panel

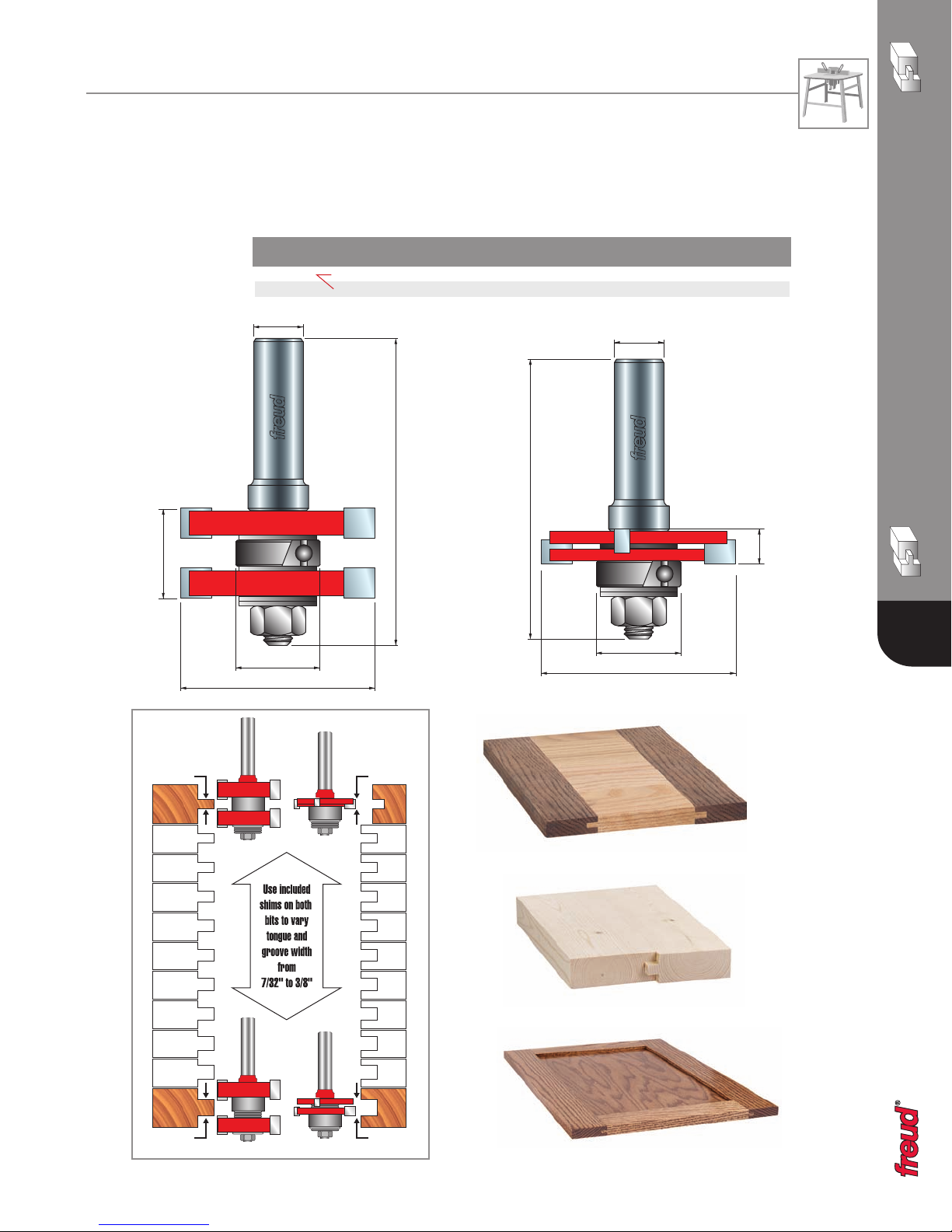

Adjustable Tongue & Groove Bit Set
• Exclusive Freud design features a tongue cutter with opposing shear angles
to ensure a flawless finish.
• Adjustable at .002 inch increments for stock thickness of 1/2" to 1-1/4" and groove
widths of 7/32" to 3/8".
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on table-mounted portable routers.
Application: Producing perfectly fitted tongue and groove joints for
projects such as Shaker style cabinet doors
169
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Bit Overall Bearing Carbide Shank Overall
Number Type Dia.(D) Dia.(B) Height(h) Dia.(A) Length(H)
99-036 Tongue Bit 1-3/4" 7/8" 7/32" ~ 3/8" 1/2" 3-1/4"
Groove Bit 1-3/4" 7/8" 13/16" ~ 1-11/32" 1/2" 2-11/16"
U.S. Pat. No. 6,367,524
®
B
D
h
H
A
®
D
h
H
A
B
Breadboard Ends
Tongue & Groove Joints
Shaker Style Doors
7/32"
3/8"
7/32"
3/8"
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 169

170
ROUTER BITS & SETS Joinery Bits
Raised Panel “V” Joint Bit
• Mating surfaces are at an angle, not vertical, so the dark lines like those created by
standard finger joint bits arenot visible.
• Bit does not have to be centered in the wood.
• Simply raise or lower the bit 3/32" to route the mating edge.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on table-mounted portable routers.
Application: Producing strong, attractive glue joint raised panels
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Carbide Minor Angle Shank Overall
Number Dia.(D) Height(h) Height (d) Dia.(A) Length(H)
99-038 1-3/8" 1-37/64" 3/16" 80° 1/2" 3-1/16"
D
5/32"
3/16"
d
h
H
A
®
# 99-038
Opposing Grain Direction
Example of “V” Jointed Panel
156-173 Pages 5-24-06 8/30/06 4:18 PM Page 170

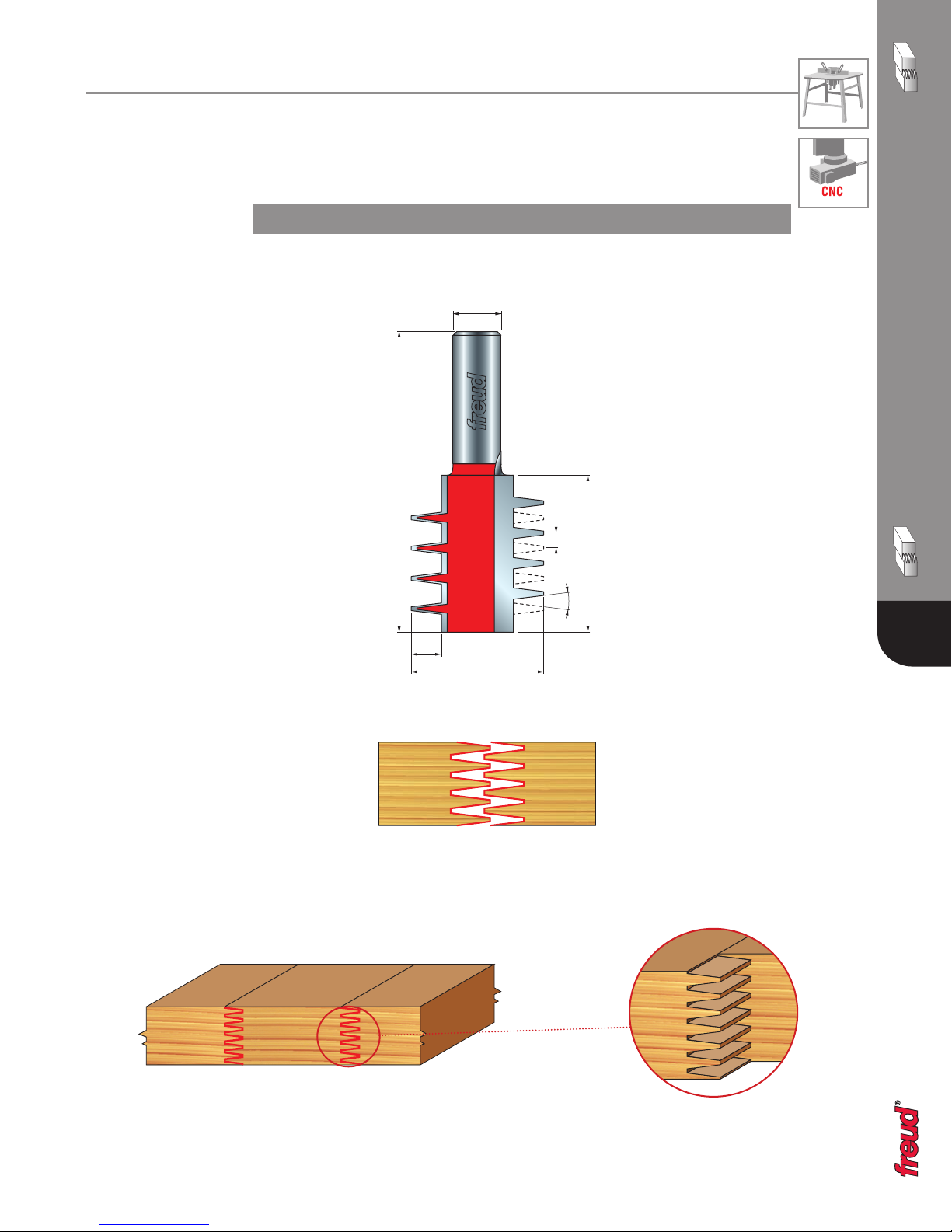

Finger Joint Bit
• Produces a joint that is stronger than the wood itself.
• Tips on each side of the bit are offset, cutting twice as many fingers as you see
tips on each side of the bit.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on CNC and other automatic routers as well as table-mounted portable router.
Application: Joining wood edge-to-edge or end-to-end
171
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
Item Overall Cut Carbide Minor Shank Overall
Number Dia.(D) Depth Height(h) Height(m) Dia.(A) Length(H)
99-037 1-3/8" 5/16" 1-9/16" 21/64" 1/2" 3"
D
5/16"
m
14°h
H
A
®
# 99-037
156-173 Pages 5-24-06 8/30/06 4:19 PM Page 171

172
ROUTER BITS & SETS Joinery Bits

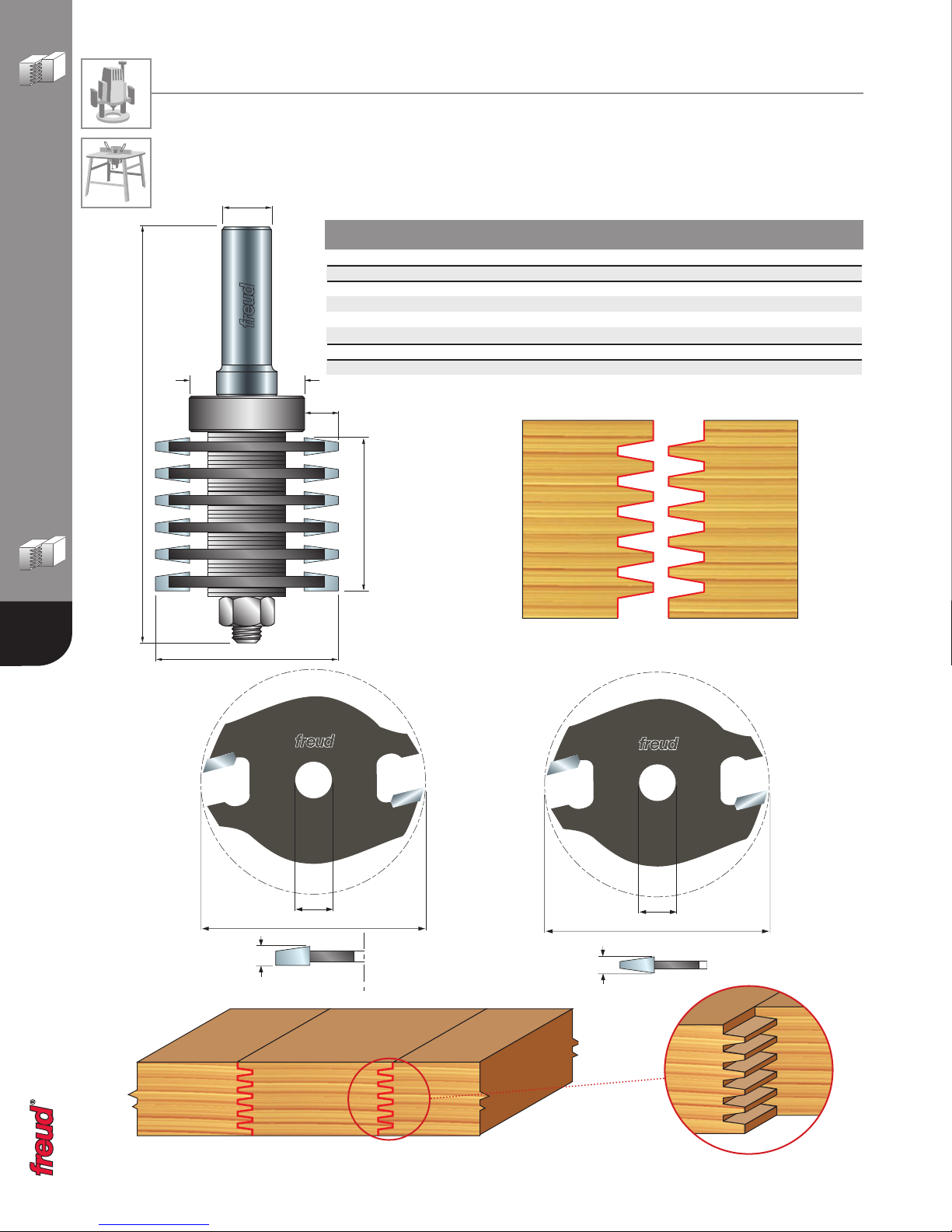

Variable Height Finger Joint Bit
• Ideal for joining wood edge-to-edge or end-to-end, because the joint produced is
stronger than the wood itself.
• Replacement cutters available and uses arbor #60-152.
• Allows you complete freedom when producing finger joints.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.
Application: Adjustable to produce finger joints up to 1-25/32" thick
Red Item Numbers Indicate 1/2" ShankAll Profile Drawings 1:1 Scale
Item Overall Cut Bearing Carbide Shank Overall
Number Dia.(D) Dia.(C) Dia.(B) Height(h) Dia.(A) Length(H)
99-039 2" 5/16" 1-3/8"(35mm) 1-9/16" 1/2" 4-1/4"
Replacement Cutters
Item Overall Bore Carbide
Number Dia. Dia. Height
52-104 2" 5/16" 7/32"
52-108 2" 5/16" 21/64"
Replacement Bearing
Item# Outside Dia. Inside Dia. Height
62-109 35mm 15mm 11mm
H
h
A
D
®
B
C
# 52-104
h
# 52-108
h
D
d
®
D
d
®
# 99-039
156-173 Pages 5-24-06 8/30/06 4:19 PM Page 172

“V” Panel Bit Set
• Set includes spacers that allow you to produce “V” paneling from 1/2", 3/4", or
1" thick stock.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on table-mounted portable routers.
Application: Creating attractive “V” Groove paneling
173
ROUTER BITS & SETS Joinery Bits
Red Item Numbers Indicate 1/2" Shank All Profile Drawings 1:1 Scale
99-191 1-11/64" 1-37/64" 1-1/8" 5/32"~5/16" 25/64" 45° 1/2" 3-3/8"
Item Overall Small Carbide Minor Minor Angle Shank Overall
Number Dia.(D) Dia.(n) Height(h) Height(m1) Height(m2) Dia.(A) Length(H)
® ®
AA
hH
d
D D
m 1
m 2
nn
# 99-191
1/2"
3/4"
1"
156-173 Pages 5-24-06 8/30/06 4:19 PM Page 173
