Friday DUO Smart Lock User manual

Installation Manual · DUO Smart Lock
European Backplate Lock
fridayhome.net @fridayhomeocial @fridayhome_net

Page 2 of 20
EURO Locks
The DUO Smart Lock ts EURO locks.

Page 3 of 20
Explanation of Technical Terms
EURO Mortise Lock
Cylinder Bolt
Backplate
Door Lever

Page 4 of 20
Components – Inside the box
DUO Base Unit Base Rose
+ Adapter
Release Tool Quick GuideUSB Charging
Cable
PZ Cylinder Keys Bolts

Page 5 of 20
Relevant Tools – Not included
Relevant tools to be used in the installation of your new DUO Smart Lock.
Pen ScrewdriverHeavy Duty
Diagonal
Cutter
TapePaper Clip
(or similar)
Metal Saw

Page 6 of 20

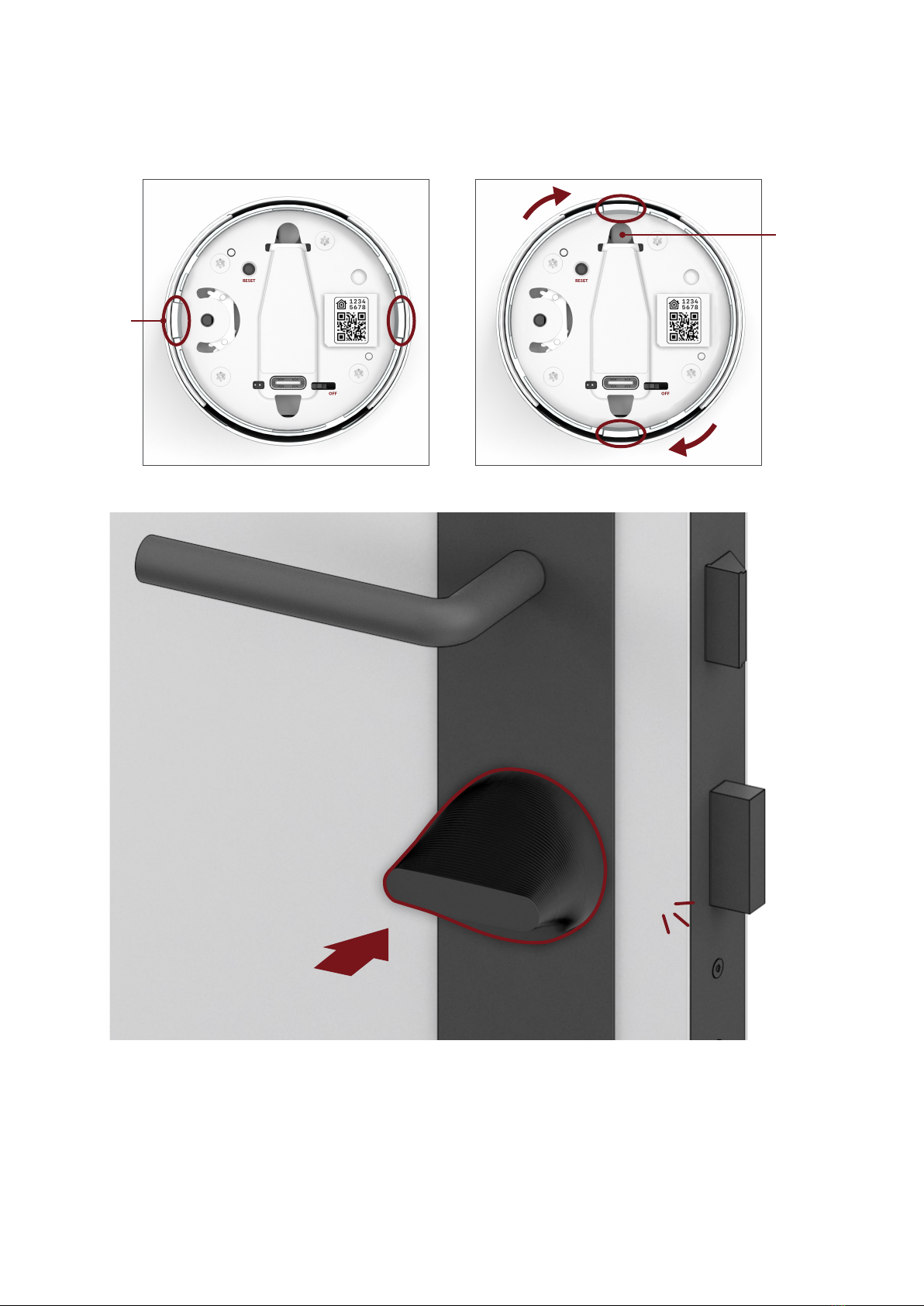

Step 1 - Turn on the DUO base unit
Move the switch to ON (to the left) using the tip of a pen or an unfolded
paper clip. The switch is located on the backside of the DUO base unit.
Reset Button
Charging slot
USB C
ON/OFF Switch
ON
LED
Indicator
QR Code
QR Code
Release Tool
Unfolded Paper Clip
NOTE: You will need
the QR code later to
verify and install the
DUO Smart Lock.
The QR codes on
the DUO unit and
the release tool are
identical.

Page 7 of 20
Step 2 - Charge the DUO base unit
Recommended charging time is 3 hours.
Charger Input: 100-240v 50-50Hz o,15A
Charger Output: 5.0v – 1,0A
LED
Indicator
When charging and the LED is not lit,
then the unit is fully charged.
When charging, the unit must be switched
to ON and the LED must be green.
When attempting to charge and the LED
ashes then the unit is set to OFF.

Page 8 of 20

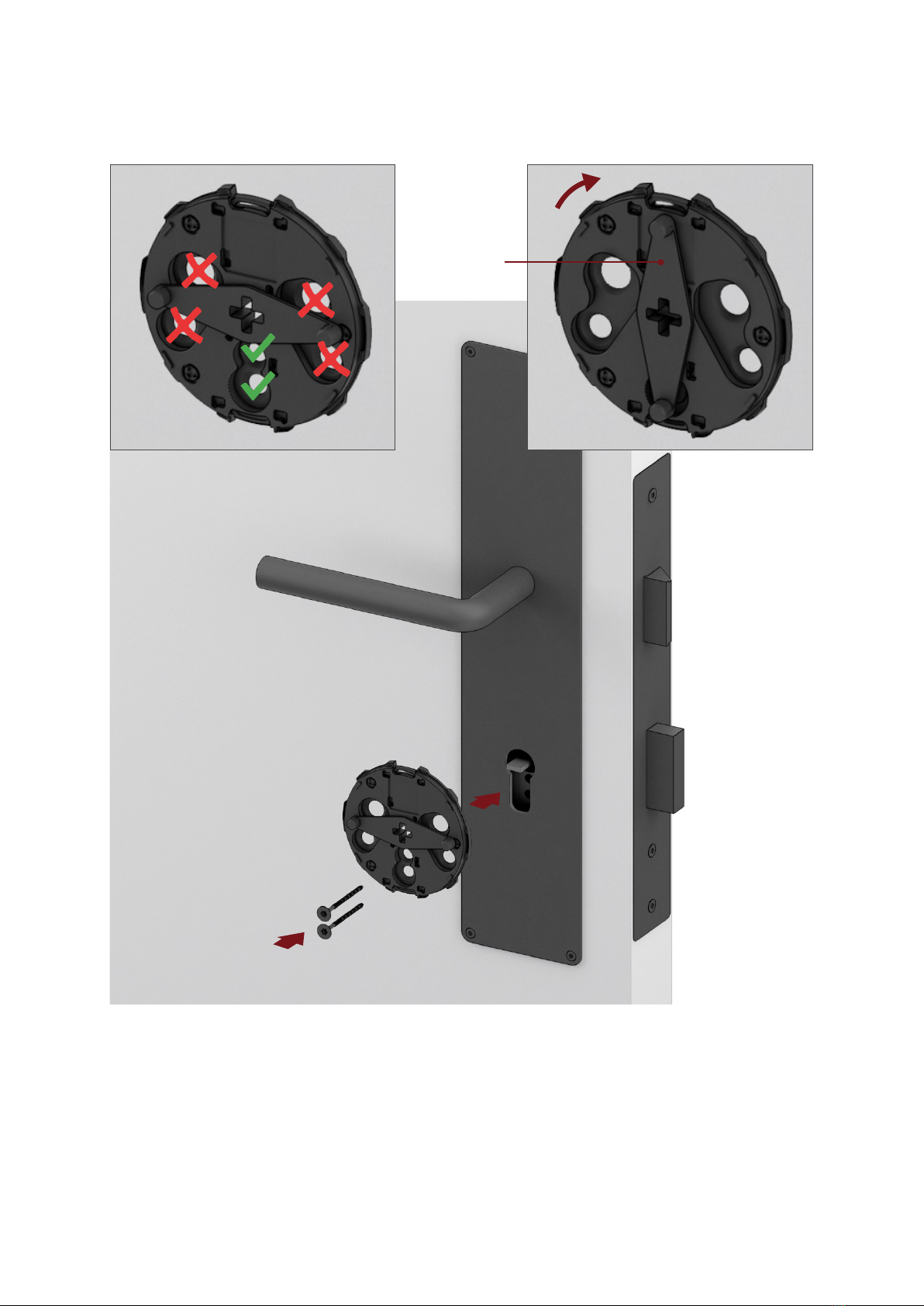

Step 3 - Backplate
Mount FRIDAY’s baseplate directly to the PZ cylinder with
the included 4mm bolts.

Page 9 of 20

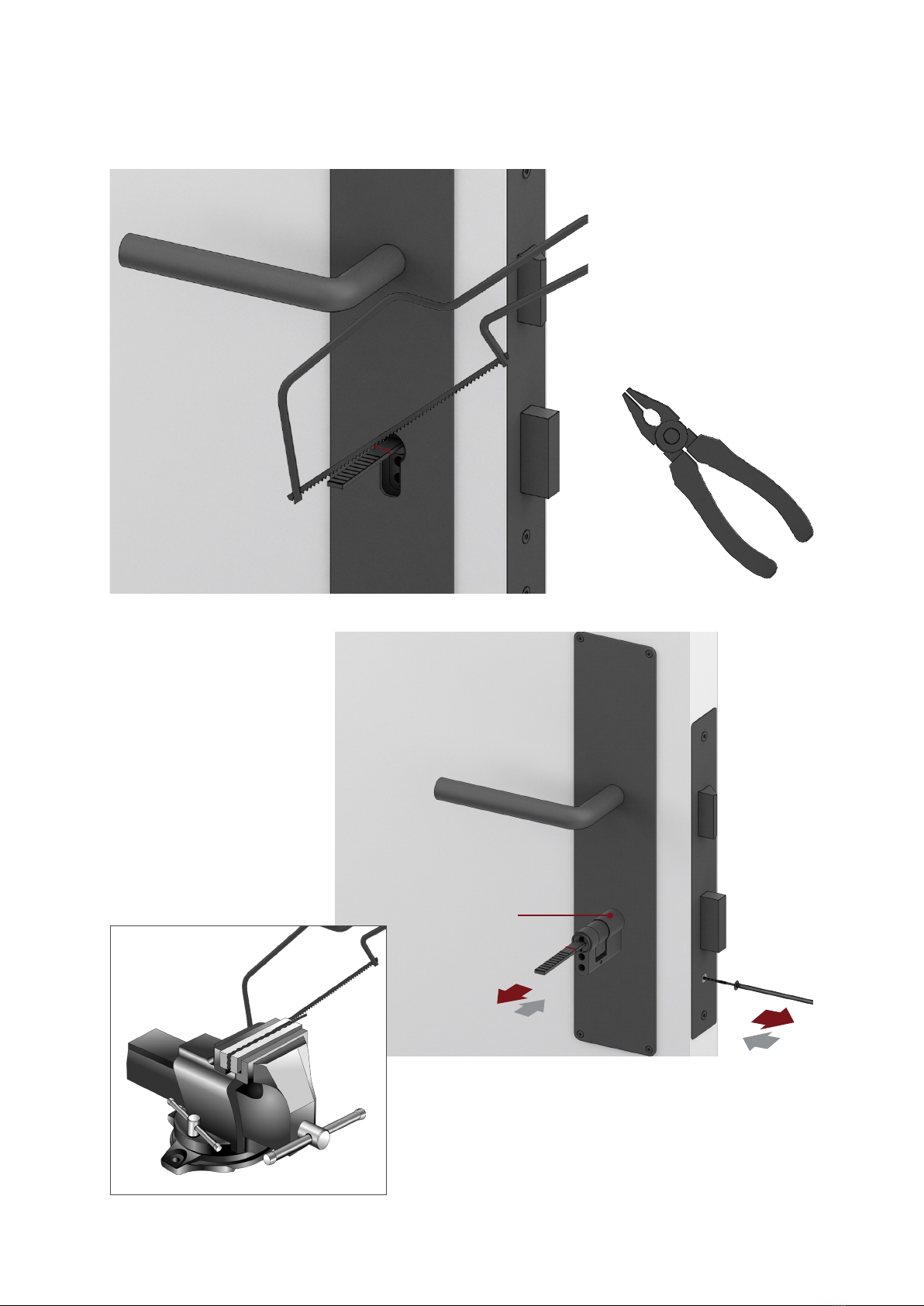

Step 4 - Cut the bolts
Cut the 4mm bolts to the right length to secure the base rose onto
the PZ cylinder.

Page 10 of 20

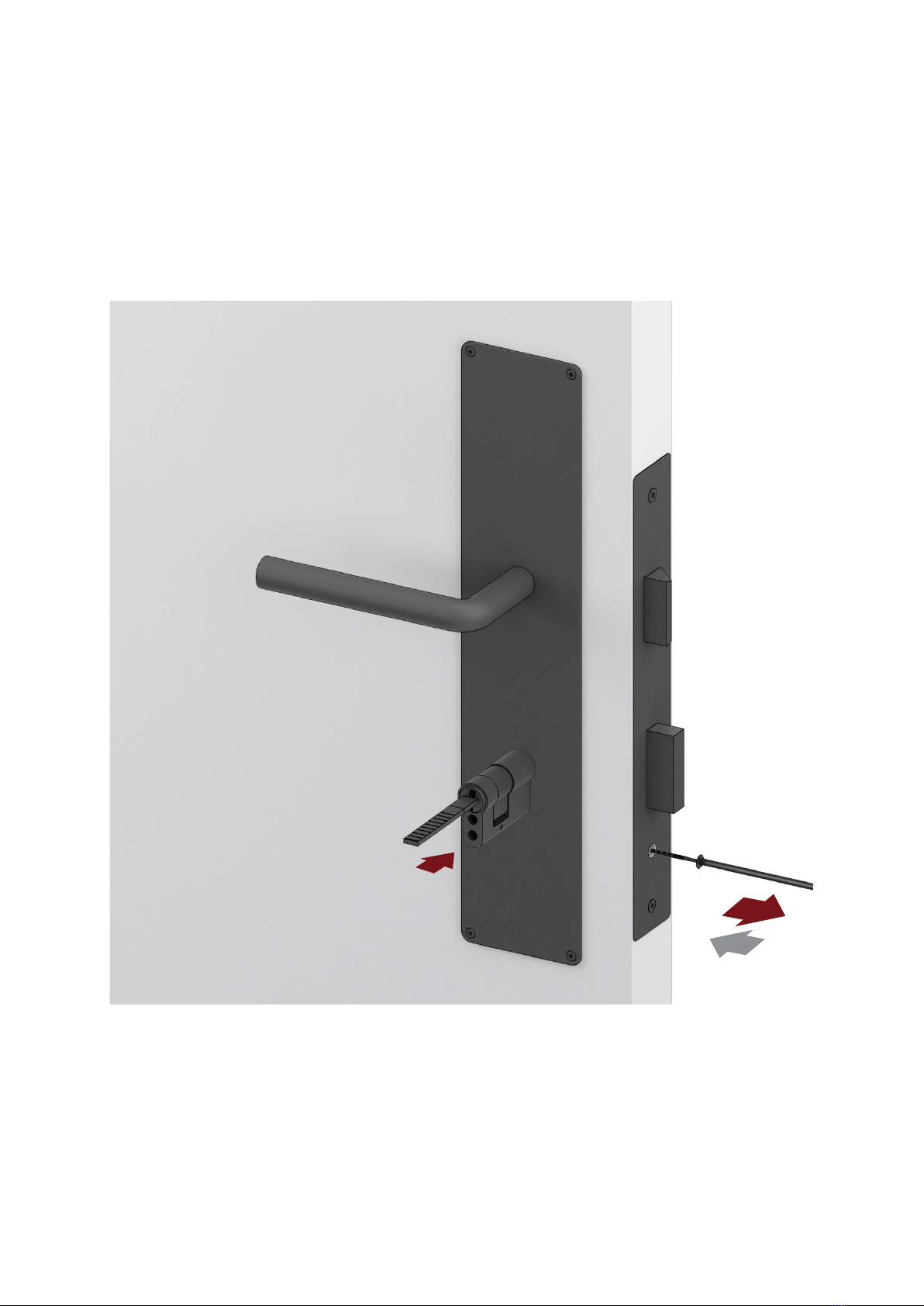

Step 5 - Install cylinder
Install the PZ cylinder by removing the cylinder bolt.
When the PZ cylinder is in place, attach the cylinder bolt.
