Friedrich Floating Air Pro-Premiere FPHW091 Guide

1 PB
Service/ Parts Manual
Floating Air Pro-Premiere
Single Zone
96261401_00
Model Indoor Unit Outdoor Unit Voltage BTU
FPHW091 FPHSW09A1A FPHSR09A1A 115 9k
FPHW093 FPHFW09A3A FPHSR09A3A 208/230 9k
FRHW093 FRHSW09A3A FRHSR09A3A 208/230 9k
FPHW121 FPHSW12A1A FPHSR12A1A 115 12k
FPHW123 FPHFW12A3A FPHSR12A3A 208/230 12k
FRHW123 FRHSW12A3A FRHSR12A3A 208/230 12k
FPHW183 FPHFW18A3A FPHSR18A3A 208/230 18k
FPHW243 FPHFW24A3A FPHSR24A3A 208/230 24k
FPHW363 FPHSW36A3A FPHSR36A3A 208/230 36k

2 PB
TABLE OF CONTENTS
INTRODUCTION‑ 4
Important Safety Information‑ 4
Personal Injury Or Death Hazards‑ 6
MODEL IDENTIFICATION GUIDE‑ 7
SPECIFICATIONS‑ 8
Product Specifications 9k and 12k‑ 8
Product Specifications 18k, 24k and 36k‑ 9
Product Dimensions: Indoor Units‑ 10
Capacities and Selection Data‑ 11
Capacities and Selection Data‑ 12

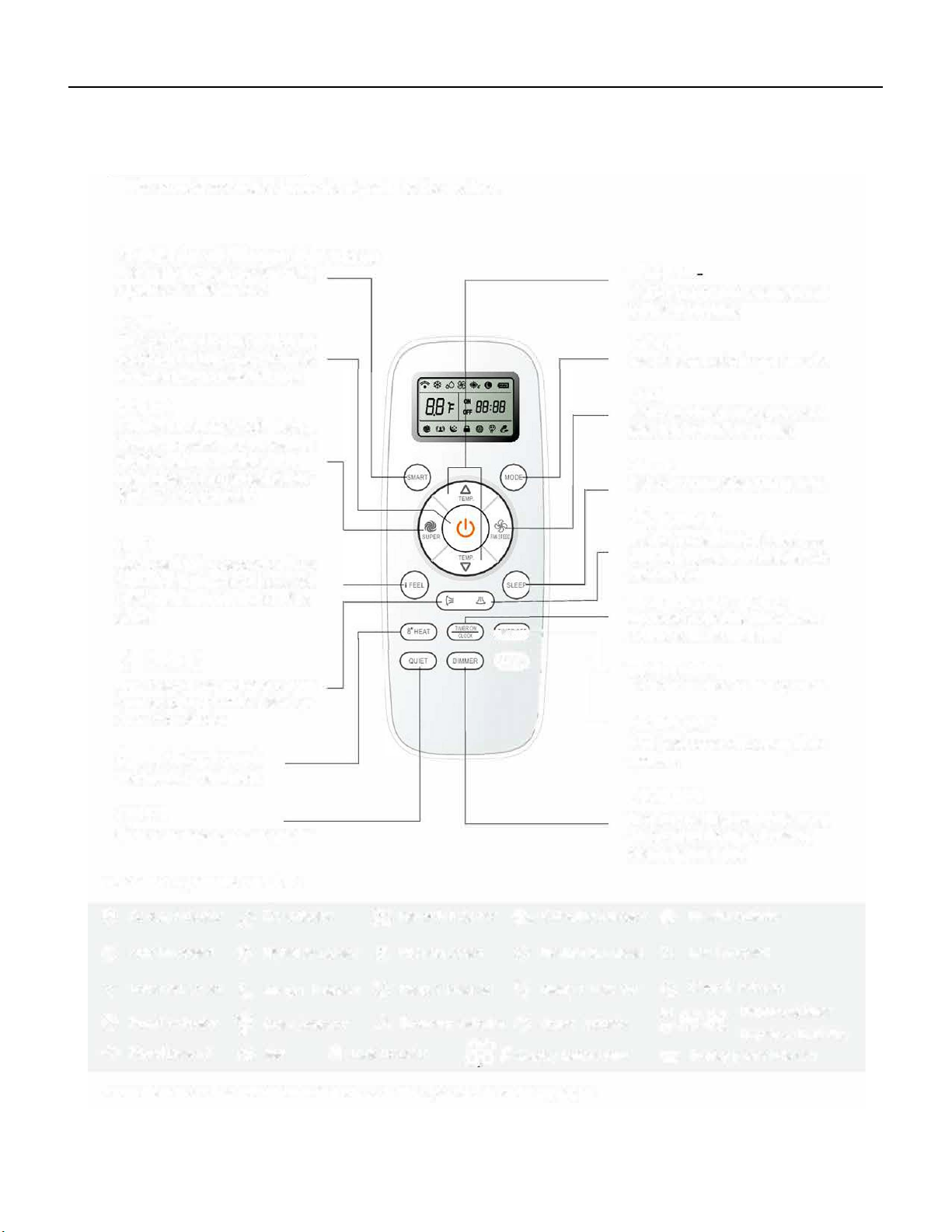

Remote Control‑ 18
Using Sleep during Off‑Timer Function‑ 20
INSTALLATION‑ 24
Installation Dimension Diagram‑ 24
Main Tools For Installation and Maintenance‑ 25
Install Indoor Unit‑ 27
Power and Wiring‑ 35
Leak Check, Evacuation, and Charging (Triple Evacuation)‑ 36
Checklist and Operation Test‑ 38
MAINTENANCE‑ 39
R‑410A SEALED SYSTEM REPAIR‑ 42
Service Valves Appearance‑ 42
Pumping Down‑ 43
Gas Charging (After Repair)‑ 44
COMPONENTS TESTING ‑ 45
Resistance Table Of Indoor Coil And Indoor Room Sensor‑ 45
Resistance Table Of Outdoor Compressor Temperature Sensor‑ 46
Compressor‑ 47
Electric Reactor‑ 47
Fan Motor‑ 48
Printed Circuit Board Diagram Lookup Chart‑ 50
Printed Circuit Board (Indoor)‑ 51
Printed Circuit Board (Outdoor)‑ 53
TROUBLESHOOTING‑ 56
Diagnostic Codes‑ 56
Outdoor Unit‑ 56
Outdoor Unit When The Compresor Is In Operation‑ 58
Indoor Unit‑ 59
Led Display‑ 62
Test the jumper terminals‑ 65
Protection Circuit Fault Isolation‑ 66
Compressor Fault Isolation‑ 67
Electric FIlter Board Fault Isolation‑ 67
Electrical Communication Fault ISOLATION‑ 67
Unit does not run‑ 68
Error Code 39‑DC FAN‑ 69
Error Code 39‑PG Fan‑ 70
Error Code 9‑ 71
Error Code 13‑ 72
Error Code 8‑ 72
Error Code 15‑ 73
Error Code 16 Cooling Mode‑ 74
Error Code 16 Heating Mode‑ 74
Error Code 21 Cooling Mode‑ 74
Error Code 11 EEPROM Fault‑ 74
Error Code 20‑ 75
Error Code 33‑ 76
Error Code 19‑ 77
Error Code 36 ‑ 80
WIRING DIAGRAMS‑ 81
Wiring Diagram Lookup Table‑ 81
Indoor Units‑ 82
Outdoor Units‑ 84
PARTS CATALOG‑ 85
115V Indoor Unit 9‑12K‑ 85
230V Indoor Unit 9‑12K‑ 87
230V Indoor Unit High Seer 9K‑ 89
230V Indoor Unit High Seer12K‑ 91
230V Indoor Unit 18K‑ 93
230V Indoor Unit 24K‑ 95
230V Indoor Unit 36k‑ 97

3 PB
TABLE OF CONTENTS
230V Outdoor Unit 9k‑ 99
230V Outdoor Unit 12k‑ 101
230V Outdoor Unit 18k‑ 103
230V Outdoor Unit 18k‑ 104
230V Outdoor Unit 24k‑ 105
Outdoor Unit 36k‑ 107
115V Outdoor Unit 9K‑ 109
115V Outdoor Unit 12K‑ 111
230v Outdoor Unit 9K HIGH SEER‑ 113
230V Outdoor Unit 12K HIGH SEER‑ 115
APPENDIX‑ 117
Appendix 1: Reference Sheet of Celsius and Farenheit‑ 117
Appendix 2: Pipe Expanding Method‑ 118
LIMITED WARRANTY‑ 119
CUSTOMER SATISFACTION and QUALITY ASSURANCE‑ 120
FRIEDRICH AUTHORIZED PARTS DEPOTS‑ 120

4 PB
INTRODUCTION
The information in this manual is intended for use by a qualified technician who is familiar with the safety procedures
required for installation and repair, and who is equipped with the proper tools and test instruments required to service
this product.
Installation or repairs made by unqualified persons can result in subjecting the unqualified person making such repairs
as well as the persons being served by the equipment to hazards resulting in injury or electrical shock which can be
serious or even fatal.
Safety warnings have been placed throughout this manual to alert you to potential hazards that may be encountered. If
you install or perform service on equipment, it is your responsibility to read and obey these warnings to guard against
any bodily injury or property damage which may result to you or others.
Important Safety Information
Your safety and the safety of others is very
important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
Indicates a hazard which, if not avoided, can result in severe personal
injury or death and damage to product or other property.
Indicates a hazard which, if not avoided, can result in personal injury and
damage to product or other property.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what will happen if the instructions are not followed.
Indicates property damage can occur if instructions are not followed.
WARNING
NOTICE
CAUTION
WARNING
Refrigeration system
under high pressure
Do not puncture, heat, expose to flame or
incinerate.
Only certified refrigeration technicians should
service this equipment.
R410A systems operate at higher pressures
than R22 equipment. Appropriate safe service
and handling practices must be used.
Only use gauge sets designed for use with
R410A.
Do not use standard R22 gauge sets.

5 PB
Important Safety Information INTRODUCTION
WARNING
Please read this manual thoroughly prior to equipment
installation or operation. It is the installer’s responsibility
to properly apply and install the equipment. Installation
must be in conformance with the NFPA 70‑2008 National
Electric Code or current edition, International Mechanic
code 2009 or current edition and any other applicable local
or national codes.
WARNING
Refrigeration system under high pressure. Do not
puncture, heat, expose to flame or incinerate. Only certified
refrigeration technicians should service this equipment.
R410A systems operate at higher pressures than R22
equipment. Appropriate safe service and handling practices
must be used. Only use gauge sets designed for use with
R410A. Do not use R22 gauge sets. Failure to do so can
result in property damage, personal injury, or death.
WARNING
Electrical shock hazard.
Turn OFF electric power before service or installation.
Unit must be properly grounded.
Unit must have correct fuse or circuit breaker
protection. Unit’s supply circuit must have the correct
wire conductor size. All electrical connections and
wiring must be installed by a qualified electrician and
conform to the National Electrical Code and all local
codes which have jurisdiction. Failure to do so can
result in property
damage, personal injury and/or death.
Your safety and the safety of others are very
important.
We have provided many important safety messages in
this manual and on your appliance. Always read and
obey all safety messages.
This is the safety Alert symbol.
This symbol alerts you to potential
hazards that can kill or hurt you
and others.
All safety messages will follow the
safety alert symbol with the word
“WARNING” or “CAUTION”.
These words mean:
Indicates a hazard which, if not avoided, can result in
severe personal injury or death and damage to product or other
property.
Indicates a hazard which, if not avoided, can result in
personal injury and damage to product or other property. All
safety messages will tell you how to reduce the chance of injury,
and tell you what will happen if the instructions are not followed.
Indicates property damage can occur if instructions
are not followed.
Indicates property damage can occur if instructions
are not followed.
WARNING
CAUTION
NOTICE
DO NOT OPERATE EQUIPMENT DURING ACTIVE STAGES OF CONSTRUCTION
To ensure proper operation, Friedrich requires that all equipment is not operated during active construction phases. This includes active stages of
completing framing, drywalling, spackling, sanding, painting, flooring, and moulding in the equipment’s designated conditioning space. The use of
this equipment during construction could result in premature failure of the components and/or system and is in violation of our standard warranty
guidelines. The operation of newly installed equipment during construction will accelerate the commencement and/or termination of the warranty
period.
CAUTION

6 PB
INTRODUCTION
Personal Injury Or Death Hazards
SAFETY
FIRST
WARNING AVERTISSEMENT ADVERTENCIA
Do not remove, disable or
bypass this unit’s safety
devices. Doing so may cause
injuries, ordeath.
Ne pas supprime, désactiverou
contournercette l´unité des
dispositifs de sécurité, faire vous
risqueriez de provoquerle feu, les
blessures ou la mort. o muerte.
No eliminar, desactivaro pasar
poralto los dispositivos de
seguridad de la unidad. Si lo hace
podría producirse fuego, lesiones
ELECTRICAL HAZARDS:
• Shutdown and/or disconnect all electrical power to the unit before performing inspections, maintenance, or
service.
• Make sure to follow proper lockout/tag out procedures.
• Always work in the company of a qualied assistant if possible.
• Capacitors, even when disconnected from the electrical power source, retain an electrical charge potential
capable of causing electric shock or electrocution. Wait a few minutes after shutdown to allow the capacitors to
discharge the stored energy.
• Handle, discharge, and test capacitors according to safe, established, standards, and approved procedures.
• Extreme care, proper judgment, and safety procedures must be exercised if it becomes necessary to test or
troubleshoot equipment with the power turned on to the unit.
• Do not spray water on the air conditioning unit while the power is on.
• Electrical component malfunction caused by water could result in electric shock or other electrically unsafe
conditions when the power is restored and the unit is turned on, even after the exterior is dry.
• Use air conditioner on a single dedicated circuit within the specied amperage rating.
• Ensure the unit that the unit is properly grounded.
• Do not cut or modify the power supply cord or remove the ground prong of the plug.
• Never operate the unit on an extension cord.
• Follow all safety precautions and use approved protective safety equipment such as: gloves, goggles, and
clothing. Ensure that properly insulated tools, and testing equipment are are used as well to protect against
equipment damage and reduce the risk of injury.
• Failure to follow proper safety procedures and these warnings can result in serious injury or possibly death.

7 PB
INTRODUCTION
MODEL IDENTIFICATION GUIDE
Figure 101
FP HS W 09
A1A- A
Model Type:
FR- Floating Air Premier
FP - Floating Air Pro
FS- F loating Air Sele ct
Application :
W- Wa llmounted
D- Ducted (Insider)
C- Cassette
R- Remo te Condense r
Function :
HS – H ea t Pump Single
HM – Heat Pump Multi
HF – H eat Pump Flex Single and
Multizon e
Coolin g
BTU/HR
Model
Approximate
Introductory
Chara cter:
Voltag e
A- 201 9
B- 202 0
C- 202 1
D- 202 2
1- 115 Volts
3- 230 Volts
MODEL IDENTIFICATION GUIDE
Marketing Suffix :
Letter indicates modification to existing mode l

8 PB
SPECIFICATIONS
Product Specifications 9k and 12k
Model No. Units FPHW091 FPHW121 FPHW093 FRHW093 FPHW123 FRHW123
INDOOR MODEL FPHSW09A1A FPHSW12A1A FPHFW09A3A FRHSW09A3A FPHFW12A3A FRHSW12A3A
OUTDOOR MODEL FPHSR09A1A FPHSR12A1A FPHSR09A3A FRHSR09A3A FPHSR12A3A FRHSR12A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 9000 12000 9000 9000 12000 12000
CAPACITY COOLING MIN ‑ MAX Btu 3600‑10000 4000‑13500 3600‑10000 3600‑10000 4000‑13500 4000‑13500
COOLING AMPS 6.3 8.3 2.9 10500 4.3 13000
HEATING AMPS 7.0 9.7 3.1 6500 5.0 8000
SENSIBLE HEAT RATIO 76% 77% 76% 3600‑10500 77% 4000‑14000
CAPACITY HEATING (RATED) @ 47°F Btu 9500 13000 9500 2.3 13000 4.6
CAPACITY HEATING MIN ‑ MAX Btu 3600‑10500 4000‑14000 3600‑10500 3.4 4000‑14000 4.8
CAPACITY HEATING (RATED) @ 17°F Btu 5000 7500 5000 76% 7500 77%
COP 3.56 3.46 3.88 28 3.42 25
HSPF 10.00 10.50 10.70 16.1 10.50 15.4
SEER 19.5 22.0 22.5 12.5 22.0 12
EER 12.8 13.0 13.7 Yes 13.0 Yes
MOISTURE REMOVAL Pts/h 1.9 2.5 1.9 1.9 2.5 2.5
AIRFLOW (HIGH/MED/LOW/QUIET) CFM 424/382/323/247 424/382/323/247 424/382/323/247 416/384/355/279 424/382/323/247 598/536/446/345
SOUND RATING ‑ INDOOR (HIGH/
MED/LOW/QUIET)
dB‑A 39/32/29/26 39/32/29/26 39/32/29/26 39/34/31 39/32/29/26 45/41/39
SOUND RATING ‑ OUTDOOR dB‑A 53 53 53 55 53 55
OPERATING RANGE (HEATING) °F (‑4° – 75°) (‑4° – 75°) (‑4° – 75°) 0˚‑115˚ (‑4° – 75°) 0˚‑115˚
OPERATING RANGE (COOLING) °F (5° – 115°) (5° – 115°) (5° – 115°) ‑13˚‑75˚ (5° – 115°) ‑13˚‑75˚
ELECTRICAL DATA
POWER SOURCE V/Hz/
Phase
115V~,60Hz,1P 115V~,60Hz,1P 230V~,208V~,
60Hz,1P
230V~,208V~,
60Hz,1P
230V~,208V~,
60Hz,1P
230V~,208V~,
60Hz,1P
MIN. AMPACITY A 13.5 16.5 10 10A 10 12A
COOLING WATTS W 700 950 655 559 960 779
HEATING WATTS W 780 1100 720 905 1110 856
MAX. TD FUSE/ BREAKER A 20 25 15 15A 15 15A
POWER AND COMMUNICATION CABLE Type 4 x 14AWG
600V THHN 4 x 14AWG 600V THHN 4 x 14AWG 600V THHN 4 x 14AWG 600V THHN 4 x 14AWG 600V THHN 4 x 14AWG 600V THHN
REFRIGERATION SYSTEM
REFRIGERANT R410a R410a R410a R410a R410a R410a
COMPRESSOR TYPE Rotary Rotary Rotary Rotary Rotary Rotary
CONNECTIONS Flare Flare Flare Flare Flare Flare
LIQUID LINE O.D. in 1/4 1/4 1/4 1/4 1/4 1/4
SUCTION LINE O.D. in 3/8 3/8 3/8 3/8 3/8 3/8
REFRIGERANT CHARGE oz 33.5 40.9 33.5 25 40.9 25
FACTORY PRECHARGE ft. 25 25 25 38.8 25 45.9
MIN. / MAX. LINE LENGTH ft 9.8‑50 9.8‑50 9.8‑50 10‑66 9.8‑50 10‑66
MAX. HEIGHT DIFFERENCE ft 33 33 33 33 33 33
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in 33 7/8 x 11 3/16
x 8 1/2
33 7/8 x 11 3/16
x 8 1/2
33 7/8 x 11 3/16
x 8 1/2
33 7/8 x 11 3/16
x 8 1/2
33 7/8 x 11 3/16 x
8 1/2
38 1/8 X 13 1/8 X
9 15/16
NET WEIGHT lbs 20 20 20 22 20 28.5
OUTDOOR UNIT
W x H x D in 28 1/8 x 19 x 9 7/16 31 7/8 x 23 x 11 28 1/8 x19 x 9 7/16 31 7/8 x 23 x 11 31 7/8 x 23 x 11 31 7/8 x 23 x 11
NET WEIGHT lbs 65 78 59.5 75 72.5 84
Figure 201

9 PB
SPECIFICATIONS
Product Specifications 18k, 24k and 36k
Model No. Unit FPHW091 FPHW121 FPHW093
INDOOR MODEL FPHFW18A3A FPHFW24A3A FPHSW36A3A
OUTDOOR MODEL FPHSR18A3A FPHSR24A3A FPHSR36A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 18000 23500 36000
CAPACITY COOLING MIN ‑ MAX Btu 6500‑19500 8000‑26500 12000‑‑38000
COOLING AMPS 6.3 8.3 18.5
HEATING AMPS 7.2 11.1 16
SENSIBLE HEAT RATIO 80% 76% 79%
CAPACITY HEATING (RATED) @ 47°F Btu 19000 26000 36000
CAPACITY HEATING MIN ‑ MAX Btu 6500‑20000 8000‑26500 12000‑‑38000
CAPACITY HEATING (RATED) @ 17°F Btu 11600 14500 18700
COP 3.40 3.05 3.05
HSPF 11.6 10.5 8.8
SEER 23.3 21 16.4
EER 13 12.5 8.6
MOISTURE REMOVAL Pts/h 3.2 5.1 6.8
AIRFLOW (HIGH/MED/LOW/QUIET) CFM 618/565/482/382 735/665/559/441 1030/824/706/588
SOUND RATING ‑ INDOOR (HIGH/MED/LOW/QUIET) dB‑A 45/41/37/34 47/42/36/33 50/45/40/38
SOUND RATING ‑ OUTDOOR dB‑A 55 58 60
OPERATING RANGE (HEATING) °F ‑4° – 75° ‑4° – 75° ‑4° – 75°
OPERATING RANGE (COOLING) °F 5° – 115° 5° – 115° 5° – 115°
ELECTRICAL DATA
POWER SOURCE V/Hz/Phase 230V~,208V~,60Hz,1P 230V~,208V~,60Hz,1P 230V~,208V~,60Hz,1P
MIN. AMPACITY A 15 20 30
COOLING WATTS W 1385 1880 4186
HEATING WATTS W 1638 2500 3459
MAX. TD FUSE/ BREAKER A 20 30 35
POWER AND COMMUNICATION CABLE Type 4 x 14AWG, 600V THHN 4 x 14AWG, 600V THHN 4 x 14AWG, 600V THHN
REFRIGERATION SYSTEM
REFRIGERANT R410a R410a R410a
COMPRESSOR TYPE Rotary Rotary Rotary
CONNECTIONS Flare Flare Flare
LIQUID LINE O.D. in 1/4 3/8 3/8
SUCTION LINE O.D. in 1/2 5/8 3/4
REFRIGERANT CHARGE . oz 54.7 66.3 81.2
FACTORY PRECHARGE ft. 25 25 25
MIN. / MAX. LINE LENGTH ft 9.8‑10 9.8‑10 9.8‑10
MAX. HEIGHT DIFFERENCE ft 33 33 33
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in 45 3/16 x 13 1/8 x 9 15/16 50 5/8 X 13 5/8 X
10 5/16
NET WEIGHT lbs 33 33 40
SHIPPING WEIGHT lbs 38.5 38.5 48
OUTDOOR UNIT
W x H x D in 33 7/8 x 25 9/16 x
12 3/16
34 7/8 x 31 5/16 x
14 3/8
34 7/8 x 31 5/16 x
14 3/8
NET WEIGHT lbs 99 123.5 141
Figure 202

10 PB
SPECIFICATIONS
Product Dimensions: Indoor Units
Model Width Height Depth
FPHSW09A1A 33 7/8 “(Inches) 11 3/16 “(Inches) 8 1/2 “(Inches)
FPHFW09A3A 33 7/8 “(Inches) 11 3/16 “(Inches) 8 1/2 “(Inches)
FPHSW12A1A 33 7/8 “(Inches) 11 3/16 “(Inches) 8 1/2 “(Inches)
FPHFW12A3A 33 7/8 “(Inches) 11 3/16 “(Inches) 8 1/2 “(Inches)
FPHFW18A3A 45 3/16 “(Inches) 13 1/8 “(Inches) 9 15/16 “(Inches)
FPHFW24A3A 45 3/16 “(Inches) 13 1/8 “(Inches) 9 15/16 “(Inches)
FPHSW36A3A 50 5/8 “(Inches) 13 5/8 “(Inches) 10 5/16 “(Inches)
Figure 203

11 PB
SPECIFICATIONS
Capacities and Selection Data
Capacity characteristic charts
The following charts show the characteristics of outdoor unit capacity, which corresponds with the operating
ambient temperature of outdoor unit. This data is obtained with Free‑Spin of the Condenser and not in a testing mode
Conditions:
1‑ Pipe length / height difference : 25 ft. (7.6m) / 0 ft. (0m)
2‑ Compressor at rated inverter frequenc y
3‑ Indoor fan speed at high fan speed
4‑ Capacity loss due to frost accumulation and defrost operation is not included.

12 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FPHW091A
32 9.56 6.69 0.26
41 10.09 7.06 0.36
50 10.35 7.24 0.47
59 10.96 7.67 0.50
67 11.18 7.83 0.59
77 11.57 8.10 0.70
82 11.90 8.33 0.81
87 11.78 8.25 1.00
95 11.63 8.14 1.02
104 11.08 7.76 1.02
115 9.94 6.96 1.00
FPHW121A
32 10.76 7.53 0.27
41 11. 29 7.90 0.36
50 11.93 8.35 0.42
59 12.17 8.52 0.59
67 12.44 8.71 0.78
77 12.68 8.88 1.01
82 13.25 9.28 1.07
87 12.98 9.08 1.16
95 12.55 8.79 1.25
104 11.90 8.33 1.24
115 10.53 7.37 1.18
FPHW093A
32 8.54 5.97 0.26
41 8.72 6.10 0.36
50 9.15 6.41 0.47
59 9.53 6.67 0.60
67 9.89 6.92 0.69
77 10.21 7.14 0.80
82 10.37 7.25 0.90
87 10.28 7.19 0.91
95 10.11 7.08 0.92
104 9.85 6.89 0.89
115 9.26 6.48 0.88

13 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FPHW123A
32 10.66 7.46 0.35
41 11.39 7.97 0.54
50 12.09 8.46 0.65
59 12.73 8.91 0.76
67 13.13 9.19 0.86
77 13.62 9.54 0.95
82 14.07 9.85 1.09
87 13.85 9.69 1.15
95 13.25 9.27 1.22
104 12.15 8.50 1.19
115 9.81 6.87 1.10
FPHW183A
32 16.78 11.75 0.97
41 17.75 12.43 1.09
50 18.40 12.88 1.22
59 18.62 13.03 1.30
67 19.03 13.32 1.35
77 19.31 13.52 1.41
82 19.55 13.69 1.60
87 19.26 13.48 1.91
95 18.57 13.00 1.91
104 17.27 12.09 2.11
115 15.80 11.06 2.11
FPHW243A
32 22.14 15.50 1.09
41 25.05 17.54 1.47
50 26.49 18.55 1.72
59 27.28 19.10 1.93
67 27.51 19.26 2.13
77 27.72 19.40 2.35
82 28.08 19.66 2.52
87 27.35 19.15 2.72
95 26.47 18.53 3.02
104 22.76 15.93 2.89
115 18.34 12.84 2.60

14 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FPHW363A
32 29.25 20.48 1.09
41 32.72 22.90 1.45
50 33.50 23.45 2.20
59 33.88 23.72 2.46
67 35.27 24.69 2.63
77 36.36 25.45 3.52
82 37.89 26.52 3.59
87 37.20 26.04 3.69
95 32.91 23.04 3.90
104 29.64 20.75 3.65
115 23.63 16.54 3.13
FRHW093A
32 7.60 5.32 0.21
41 8.41 5.89 0.28
50 9.73 6.81 0.40
59 11. 23 7.86 0.50
67 12.94 9.06 0.69
77 14.12 9.89 0.89
82 14.48 10.13 1.04
87 14.27 9.99 1.07
95 13.56 9.49 1.16
104 12.67 8.87 1.25
115 11.62 8.13 1.40
FPHW123A
32 13.76 9.63 0.33
41 14.12 9.88 0.47
50 14.60 10.22 0.50
59 14.92 10.44 0.70
67 15.38 10.77 0.84
77 15.50 10.85 1.09
82 15.89 11.12 1.15
87 15.73 11.01 1.17
95 15.19 10.64 1.27
104 14.44 10.11 1.38
115 13.31 9.32 1.32

15 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FPHW091A
‑5 ‑7 4.95 1.14
5 3 5.45 1.07
14 12 7.08 1.17
17 15 8.93 1.30
23 19 9.67 1.30
32 28 9.65 1.19
35 33 9.89 1.03
47 43 10.54 0.94
59 50 9.86 0.82
FPHW121A
‑5 ‑7 6.40 1.22
5 3 8.12 1.30
14 12 9.76 1.49
17 15 12.13 1.63
23 19 12.95 1.68
32 28 13.07 1.48
35 33 14.00 1.43
47 43 15.50 1.45
59 50 12.73 0.91
FPHW093A
‑5 ‑7 4.95 1.14
5 3 6.20 1.20
14 12 7.29 1.27
17 15 8.59 1.34
23 19 9.33 1.38
32 28 9.85 1.34
35 33 10.23 1.19
47 43 11.65 1.11
59 50 10.78 0.80
FPHW123A
‑5 ‑7 8.67 1.29
5 3 10.18 1.34
14 12 11. 4 0 1.44
17 15 12.10 1.48
23 19 12.72 1.54
32 28 13.46 1.56
35 33 13.94 1.51
47 43 14.19 1.31
59 50 14.01 1.10

16 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FPHW183A
‑5 ‑7 8.57 1.17
5 3 10.90 1.27
14 12 13.90 1.28
17 15 15.43 1.49
23 19 16.74 1.60
32 28 18.24 1.65
35 33 20.92 1.80
47 43 21.27 1.81
59 50 20.73 1.77
FPHW243A
‑5 ‑7 11.57 2.35
5 3 15.61 2.62
14 12 17.08 2.61
17 15 19.55 2.79
23 19 19.31 2.76
32 28 20.88 2.57
35 33 21.64 2.54
47 43 26.78 2.52
59 50 26.68 2.50
FPHW363A
‑5 ‑7 15.93 3.02
5 3 19.21 3.12
14 12 21.01 3.07
17 15 21.32 3.15
23 19 25.92 3.45
32 28 27.41 3.61
35 33 33.11 3.80
47 43 38.07 3.90
59 50 34.61 2.74
FRHW093A
‑5 ‑7 5.25 1.08
5 3 7.76 1.22
14 12 9.82 1.41
17 15 11.08 1.45
23 19 11.77 1.45
32 28 11.87 1.21
35 33 11.92 1.12
47 43 12.05 1.06
59 50 11.81 0.86

17 PB
SPECIFICATIONS
Capacities and Selection Data
Floating Air Pro / Premier Cooling Extended Capacity (By System Model)
System Model Outdoor Air
Temp. (°F DB)
Indoor Air Temp. °F DB / °F WB
80 /67
TC SHC PI
kBtu/h kW
FRHW123A
‑5 ‑7 8.56 1.46
5 3 10.78 1.60
14 12 11.96 1.80
17 15 11.90 1.56
23 19 13.03 1.48
32 28 15.07 1.61
35 33 15.22 1.66
47 43 17.21 1.51
59 50 16.45 1.17

18 PB
OPERATION
Remote Control
Figure 301
Remote Control Operation and Function
Remote conller 1

  



POWER








 















 







 





 
 


 
$   
  
.� 
y    
•  ,
 






   a·   
  *   
        
    
  

•    a  
   
 
-1-

19 PB
OPERATION
Remote Technical Parameters
Remote receiver distance (front of the air conditioner): 26ft.
Remote receiver angle: Less than 60 degrees.
Temperature control accuracy: ±2.4°F.
Time Response: Less than 1 second.
Display Functions
Remote
Current control functions on the remote controller (See unit’s “Installation and Operating Manual”)
Display of the indoor unit displays set temperature or indoor temperature.
Indoor unit
Running LED lit during operation, flashing when in defrost.
Timer LED lit when the timer mode is active.
Sleep LED lit when the sleep mode is activated and turns off after 10 seconds.
Compressor LED lit when compressor is running.
Remote control receiver receives signals from the remote control.
Displays error codes if present. An error code is displayed according to the signal from the indoor CPU. The error code will flash for
5 seconds while displayed.
Indoor Unit Operation
Manual Operation “ON/OFF” Button:
When pressing the manual operation “ON/OFF” button after system is idle or in stand‑by mode, the previous settings will be
restored from last operation: Mode, Temperature, and Fan Speed. The air flow directional setting does not restore. When first
powered, pressing the manual operation “ON/OFF” button will force the system would operate in “auto” mode and will enter stand‑
by mode by pressing the button again. Pressing and holding the manual operation “ON/OFF” button for 5 seconds will engage
Test Mode and will beep 1 time. It will operate in cooling mode with the indoor fan speed set to high‑speed and will ignore indoor
temperature for 5 minutes. If the manual operation “ON/OFF” button is pressed again or a signal is received from the remote
control, test mode will exit. If exited from the remote control the system will operate with the corresponding mode selected on the
remote control.
I-Feel Function
The I‑Feel function is set by the remote control. The room temperature value interpreted by the system will use the temperature
on the remote control instead of the temperature reported by the ambient air sensor in the indoor unit. The remote control will
automatically transmits a temperature signal every 10 minutes. The remote control will transmits a signal every 2 minutes if the
temperature setpoint selected exceeds 2°F. If the indoor unit does not received a signal from the remote in 30 minutes, the selected
temperature setpoint will depend on the ambient air sensor of the indoor unit.
Timer Function
Max Timer range is 24 hours.
Timer ON/OFF can be cycled anytime.
Timer accuracy is ±1 minute.
The Timer can be adjusted by 1 min increments.
Timer On‑OFF operational times can overlap.
Sleep Function
Sleep mode can only be used in Cooling, Heating and Dry mode.
If Sleep mode is selected in Cooling mode, the room temperature setting will increase 2.5°F every hour for 8 hours. Room
temperature will not rise more than 2.5°F per hour. Temperature rise will cease at 79°F. Room temperature will not rise above 79°F.
If Sleep mode is selected in Heating mode, room temperature will be decreased by 2.5°F per hour for 3 hours but will not decrease
more than 2.5°F per hour or 8°F for the duration of the mode.
In either mode, the indoor fan run in the LOW speed. Last user settings (air direction and temperature) can be used, or adjusted by
user. The Running indicator will flash, then the unit will turn off all the light indicators except the Sleep. After 5 minutes, the Sleep
indicator will turn off. All indicators will be standby unless the temperature or Time setting is adjusted. After setting these, the
indicators will turn off after 10 seconds.
Sleep mode will cease after 8 hours of operation.

20 PB
OPERATION
Using Sleep during Off-Timer Function
When using Sleep mode, if the next OFF‑Timer setting less than 8 hours, Sleep mode will remain active until the OFF‑Timer setting.
If the next OFF‑Timer setting more than 8 hours, it will override the OFF‑Timer setting and will turn the system off 8 hours after
engaging Sleep mode.
Auto Mode (SMART)
In Auto Mode (SMART) the system will automatically switch to Cooling, Heating, Dry or Fan Only modes based on the current room
temperature. Air flow direction can be adjusted in any mode.
The auto set point is determined by the user.
When the room temperature is 79°F or above, Cooling mode will activate.
When the room temperature is between 73°F and 79°F, Dry mode will activate. Fan Speed will drop to LOW after 3 minutes.
When the room temperature is between 70°F and 73°F, Fan only mode will activate. Fan Speed is automatically set to LOW, but can
be adjusted when between these room temperatures.
When the room temperature is below 70°F, Heating mode will activate. The room temperature is set to 72°F.
Auto Mode ceases when another specific operation mode is selected. If changing between Cooling and Heating modes, the
compressor ceased for operation for 5 minutes.
Cooling only appliance
a. When the room temperature exceeds 79°F, it will be ran in Cool mode, and the temperature is set to 79°F.
b. When the room temperature exceeds 73°F, but not more than 79°F, it will be operated in the Dry mode.
c. When the room temperature is not more than 73°F, it will be operated in the Fan only, the air volume is set to LOW and the fan
speed can be adjusted
Cooling Mode
Outdoor Fan
The outdoor fan’s speeds (except in single speed‑selection motors) is changed automatically according to outdoor ambient
temperatures demands. When operating at a fixed frequency, the outdoor fan is forced to operate at the highest speed.
Indoor Fan
While in Cooling or Heating modes, the indoor fan speed is controlled by the remote control: High, Medium, Low and Automatic
setting. When in Automatic speed in the Cool mode for the first time, the fan speed will run at Low setting. After that, temperature

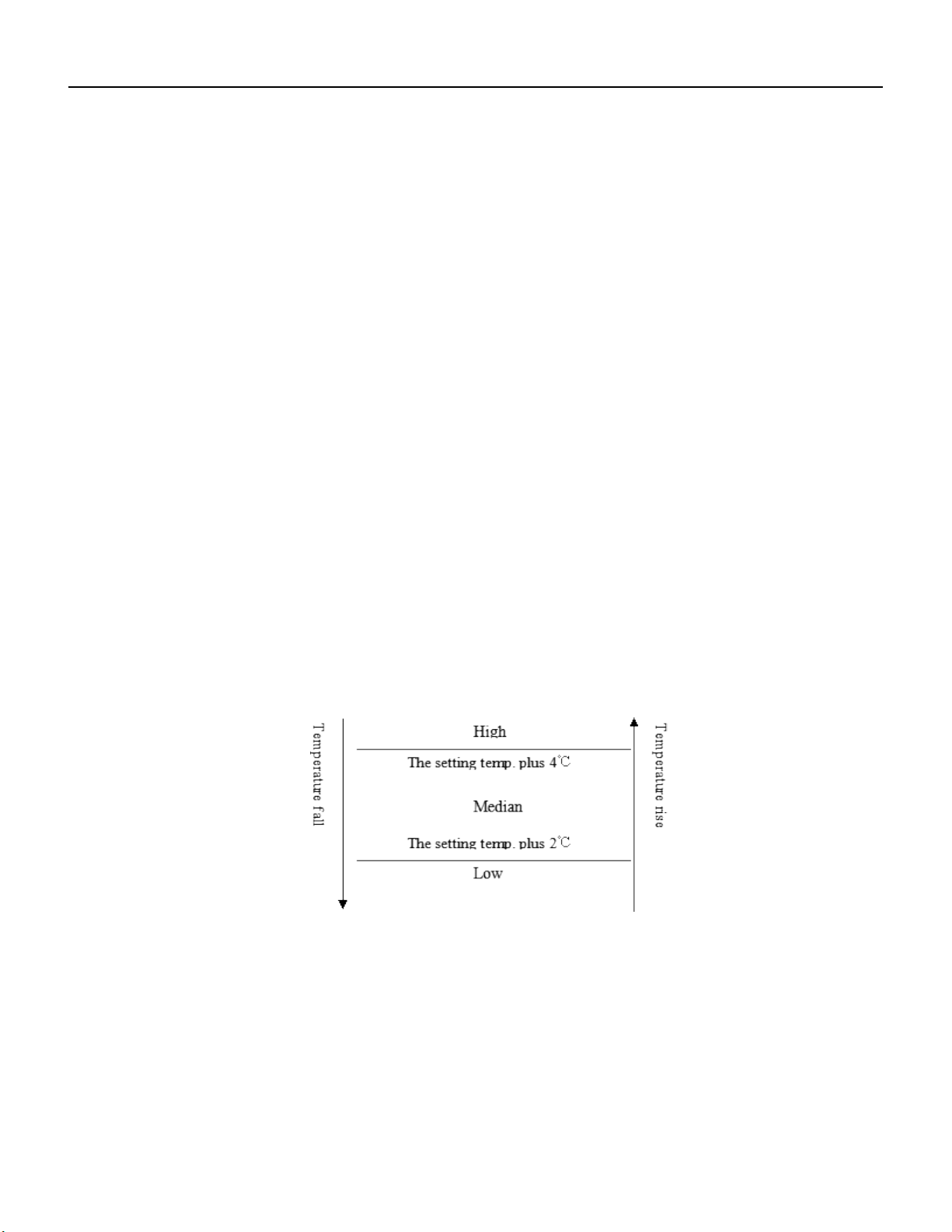

and fan speed selection are in Automatic is shown in Fig.302
When the temperature difference is lower than 5F, Low fan speed will engage. When the difference between the setpoint
temperature and the room temperature is between 5F to 10F, the indoor fan speed will keep in Medium Speed. When the
temperature difference is above 10F, High fan speed will engage.
Figure 302
