Friedrich Hazardgard SH14 Installation guide

Models
SH14
SH20
USE, CARE, AND
INSTALLATION
MANUAL
ROOM AIR
CONDITIONERS
920-024-04 (10/01)

Page 2
TABLE OF CONTENTS
PART 2 Filter Information .................................................................. Page 4
PART 3 Maintenance Checklist ......................................................... Page 4
PART 4 Special Features ................................................................... Page 5
PART 5 Control Panel ........................................................................ Page 6
PART 6 Underwriters Laboratories................................................... Page 6
INSTALLATION INSTRUCTIONS
SECTION I Electrical Requirements....................................................... Page 7
SECTION II Unpacking the Unit ............................................................... Page 9
SECTION III Chassis Wiring and Preparation ......................................... Page 9
SECTION IV Shell Preparation .................................................................. Page 10
SECTION V Shell Installation ................................................................... Page 11
A. Sash Window................................................................... Page 11
B. Through the Wall ............................................................. Page 14
SECTION VI Chassis Installation .............................................................. Page 17
WARRANTY ......................................................................................................... Page 19
Spanish Translation............................................................................................ Page 21
French Translation.............................................................................................. Page 41
PART 1 General Instructions............................................................. Page 3
OPERATION AND CARE INSTRUCTIONS

Page 3
WELCOME TO YEARS OF ECONOMICAL COMFORT
WITH YOUR NEW FRIEDRICH HAZARDGARD
ROOM AIR CONDITIONER
Your new Friedrich has been carefully engineered and manufactured to give you many years of dependable,
efficient operation, maintaining a comfortable temperature and humidity level. Many extra features have been
built into your unit to assure quiet operation, the greatest circulation of cool, dry air, and the most economic
operation.
Here are some suggestions to help you use your new Friedrich most efficiently:
1. Carefully read and follow the installation instructions.
2. Your Friedrich HazardGard room air conditioner is electrically grounded for your safety. The power supply
must also be grounded and must be installed in accordance with NEC Article 501. The branch circuit rating is shown
on the nameplate for each model.
3. Make sure the unit is the right capacity for the area to be cooled. Too little capacity makes the unit work too hard,
using more electricity than needed and increasing wear. Too much capacity is also hard on the unit as it will cycle on
and off too rapidly, and cannot control humidity as well.
4. When you first turn on your Friedrich, set the thermostat to its coldest position to cool the room. When the
desired temperature is reached, turn the thermostat control toward the "warmer" position until you hear a click and the
compressor goes off. The thermostat will then cycle the compressor to maintain the selected temperature.
5. Clean the filter frequently(See General Maintenance).
6. Do not block the air flow to and from the unit. Make sure the louvers are directed to give even distribution of air
throughout the room. Caution: If air is directed into a restricted area such as behind a bed or into a corner, this may
cause the unit to cycle on and off rapidly, which could damage your unit.
7. A dirty filter or improperly set controls can affect the cooling ability of the unit.
8. If cooling is weakand you have verified that the filter is clean and the controls are properly set, the unit may be low
on refrigerant, and you should call your Friedrich service provider to check the unit.
9. Keep blinds, shades and drapes closed on the sunny side of the room being cooled.
10. Proper insulation helps your unit maintain the desired inside temperature.
11. Whenever possible, shade west-facing windows with awnings.
12. Keep window coverings away from the unit to provide free air flow.
PART 1 — GENERAL INSTRUCTIONS

Page 4
PART 2 — FILTER INFORMATION
The filter in your Friedrich removes dust, pollen and other impurities from the air as they are drawn through the unit. The
filter is permanent and reusable, and has a germicidal treatment which is not affected by washing.
A clogged, dirty filter reduces the air flow through the unit and reduces its efficiency. You should check the filter every
seven to ten days, depending on the amount your unit is used. Clean the filter regularly.
WON’TCOOL
If the unit operates, but doesn’t cool, check to see that the controls are properly set. Inspect the filter and
clean it thoroughly, if needed.
WON’TRUN
If the unit does not operate at all, check that the power supply connections are tight. Check for blown fuses or
tripped circuit breakers. Replace blown fuses with the proper sizetime-delay fuse. The nameplate on the unit
shows the proper fuse size. After restoring power, wait three minutes before restarting the unit.
INSIDE COIL FREEZES UP
Your Friedrich HazardGard is designed not to freeze with outdoor temperatures as low as 45°F (7°C). Freezing
should only occur when the outside air is damp and below 45°F (7°C). If the indoor coil should ice over while
cooling, set the thermostat to the warmest position until the ice on the coil is gone. Setting the thermostat to a
slightly warmer position will probably keep ice from forming on the coil. A dirty filter will contribute to icing.
CLEANING
The front grille of your Friedrich, as well as the complete cabinet may be cleaned with warm water and a mild
detergent. The coils and base pan should be cleaned periodically for the most efficient operation. We suggest you
call your Friedrich dealer for this service.
LUBRICATION
Fan motors are factory lubricated and sealed. No lubrication is required.
PART 3 — MAINTENANCE CHECKLIST
The filter can be removed for cleaning by opening the
front of the unit and releasing the filter from its retaining
clips.
Filter Retainer Clips

Page 5
HAZARDGARD UNIT
SPECIAL FEATURES
!Permanent Split-Capacitor, totally
enclosed fan motor to assure efficient
operationeven underadverseelectrical
conditions. Motor has a special
stainless steel shaft to resist corrosion
and a hermetically sealed overload for
arc-free operation.
!High capacity compressor with internal
hermetically sealed overload.
!Solid-state printed circuit board
insulated against corrosion on
conductor paths. Contains transient
voltage suppressor to protect controls
against transient voltage spikes.
Provides solid state switches for arc-
free operation.
!Hot gas bypass low ambient control to
permit operation without freezing at
outdoor ambient temperatures as low
as 45°F (7°C).
!Environmentally sealed on-off switch
and gold plated contacts in thermostat
for corrosion resistance.
!Electrodeposited epoxy primer and
alkyd enamel, both oven-baked for an
attractive, long-lasting finish.
Friedrich Air Conditioning quality has been proven by more than twenty-five years of
successful experience from the Gulf of Mexico to the searing sands of the Arabian desert.
PART 4 — HAZARDGARD SPECIAL FEATURES
!Copper tubing/aluminum fin coils.
!Galvanizedsteelcabinet and basepan,
all bonderized.
!Slide-outchassisfor easy installation in
window or through–the–wall.
!Extra insulation inside, including
completely insulated plenum chamber
for quieter, more efficient cooling.
!Entire unit test run in environmental
chamber before crating.
!Eight–way air flow control for uniform
air circulation.
!Patented electronic control circuit.
!Condensate drain with exclusive
mosquito trap.
!15 amp circuit with time-delay fuse
required. Accommodates direct wiring.
!Longlasting3/8" (10 mm) thickairfilter,
germicidallytreated,easily removed for
cleaning.

Page 6

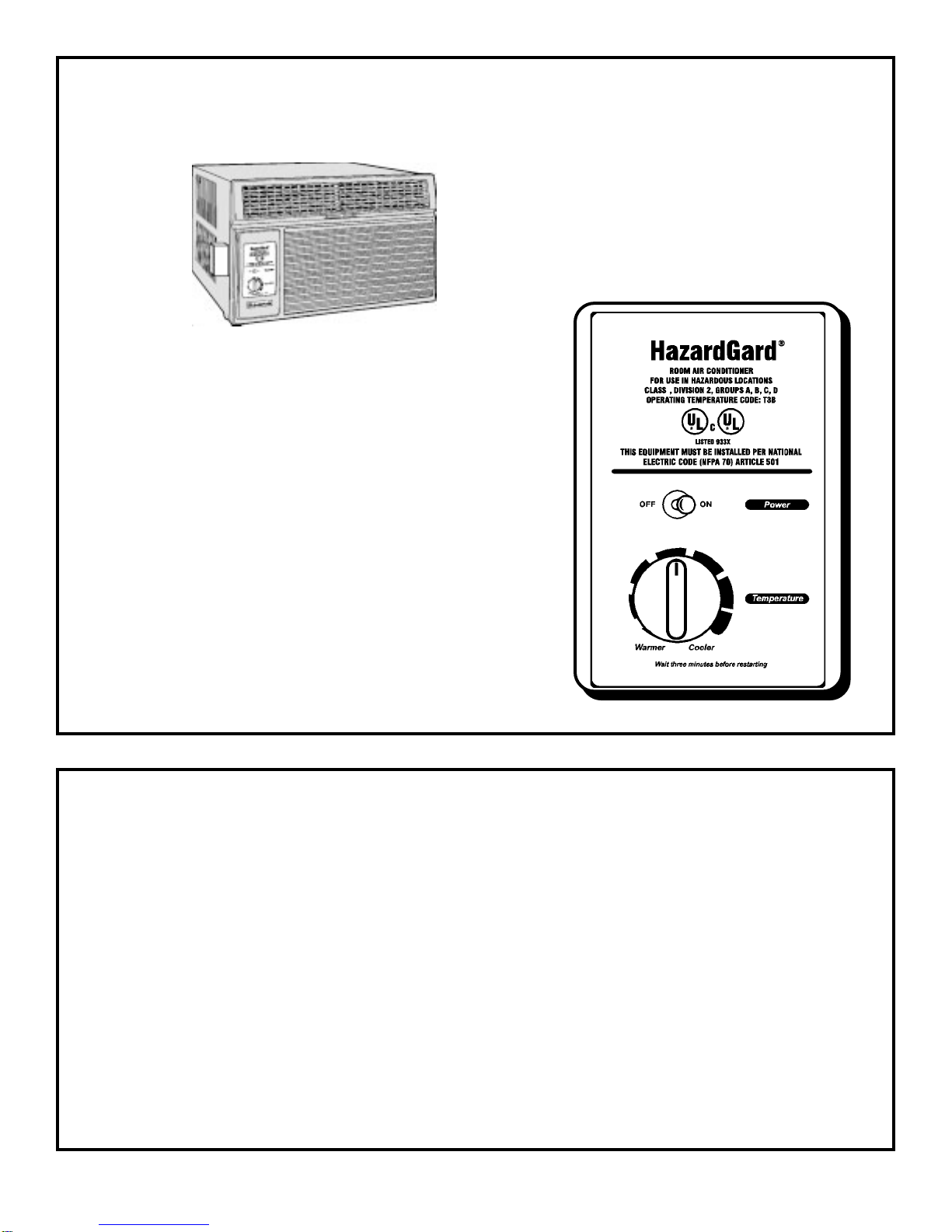

PART 5 — CONTROL PANEL
PART 6 — EXCLUSIVE !
FUNCTION CONTROL (POWER)
This switch is a double pole, single throw toggle
switch.
ON - Turns everything on.
OFF - Turns everything off.
TEMPERATURE CONTROL
The knob at the bottom is the thermostat which is a
cross ambient type used to maintain the desired
comfort level. The thermostat reacts only to a change
in temperature at the bulb location - turn the knob
clockwise to set cooler, counterclockwise for warmer.
Friedrich leads again with the first UL Listed Room Air Conditioners designed to cool living
quarters and other enclosures situated in hazardous locations where specific volatile
flammable liquids or gases are handled or used with enclosed containers or systems.
Friedrich HazardGard®room air conditioners are designed to meet the National Electrical
Code, Article 500 requirements for Class I, Division 2, Groups A, B, C, D Hazardous locations
and are the only air conditioners UL Listed for this application.
THIS UNIT IS LISTED BY UNDERWRITERS LABORATORIES FOR USE IN
CLASS I, DIVISION 2, GROUPS A, B, C, D HAZARDOUS LOCATIONS.
Operating Temperature Code: T3B.

Page 7
INSTALLATION INSTRUCTIONS
Models SH14 and SH20
NOTE: THIS MANUAL INCLUDES INSTALLATION INSTRUCTIONS FOR BOTH WINDOW MOUNT AND THROUGH-
THE-WALL INSTALLATIONS
Model Number Plug Type Circuit Rating
Time Delay Fuse
SH14 Junction Box 250V-15 Amp
SH20 Junction Box 250V-15 Amp
SECTION I: ELECTRICAL REQUIREMENTS
ALL FIELD WIRING MUST MEET THE REQUIREMENTS OF THE NATIONAL ELECTRICAL CODE (ANSI/NFPA 70)
ARTICLE 501.
THE FIELD-PROVIDED CIRCUIT PROTECTION DEVICE (HACR CIRCUIT BREAKER OR TIME DELAY FUSE) MUST
NOT EXCEED THE AMPACITY INDICATED ON THE PRODUCT NAMEPLATE.
IMPORTANT: Before you begin the actual installation of your air conditioner, check local electrical codes and the
informationbelow.
Your air conditioner must be connected to a power supply with the same A.C. voltage and frequency (hertz) as marked on
the data plate located on the chassis. Only alternating current (A.C.), no direct current (D.C.), can be used.
An overloaded circuit will invariably cause malfunction or failure of the air conditioner; therefore, it is extremely important
that the electrical power is adequate. Consult your dealer or power company if in doubt.
The following instructions are for HAZARDGARD models and cabinet sizes listed below.
GROUPS CABINET SIZE (H x W x D)
SMALL CHASSIS SH14 15–15/16" x 25–15/16" x 27–3/8"
(405 mm x 660 mm x 695 mm)
MEDIUM CHASSIS SH20 17–15/16" x 25–15/16" x 27–3/8"
(455 mm x 660 mm x 695 mm)

Page 8

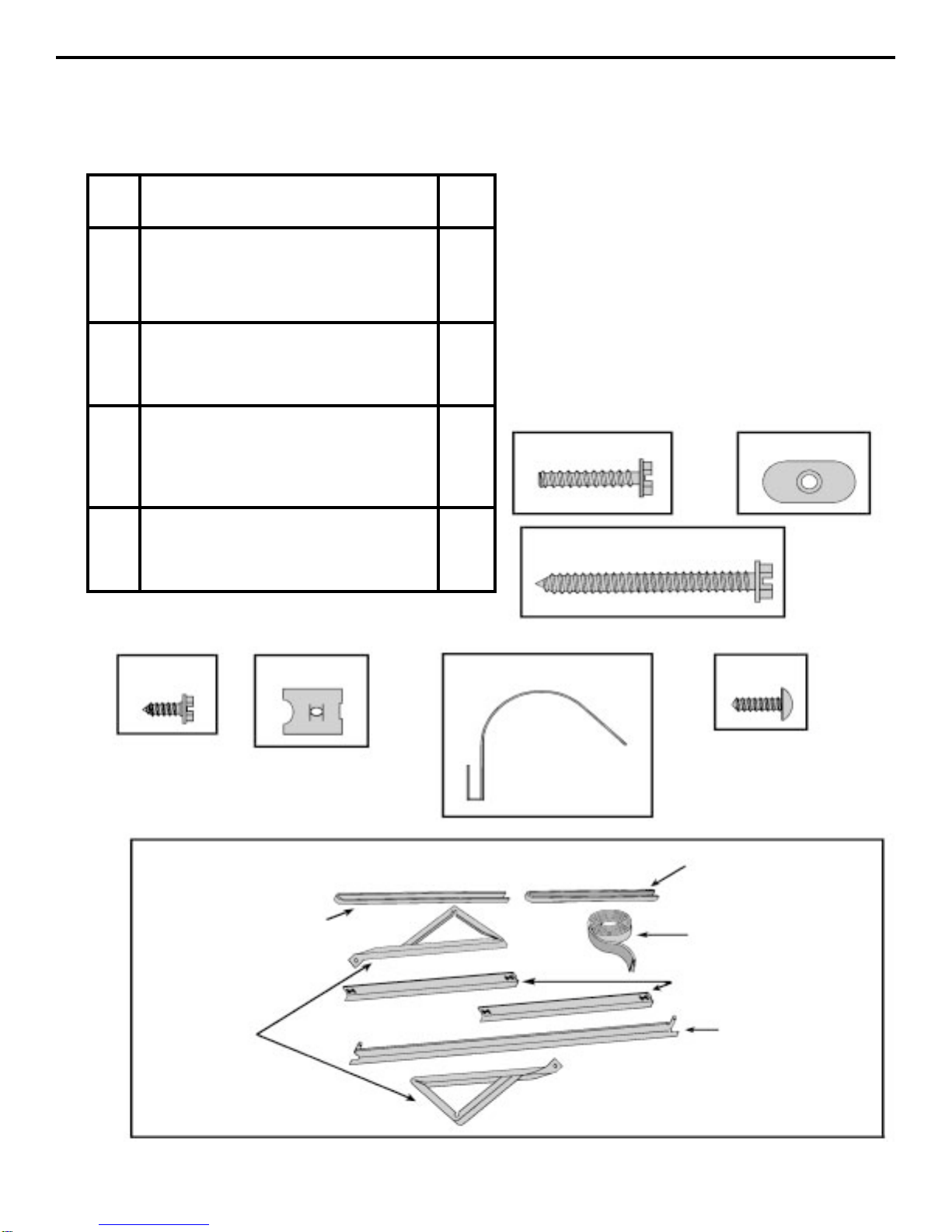

HAZARDGARD WINDOW MOUNT
INSTALLATION HARDWARE
ITEM # 4
ITEM #10
ITEM # 7
ITEM # 13
ITEM # 12
ITEM # 6
ITEM # 5
ITEM # 1
ITEM # 14
NOT TO SCALE
ITEM # 2 ITEM # 3
ITEM # 11
ACCESSORY DETAIL
ITEM DESCRIPTION QTY.
No.
SHELL MOUNTING PARTS
1 SUPPORT BRACKET 2
2 SCREW, 10 - 24 x 1" HEX HEAD 4
3 10 - 24 FLAT WELDNUT 4
4 SCREW, SHEET METAL #12A x 2" 7
WINGBOARD ANGLE MOUNTING
5 WINGBOARD ANGLE, TOP 1
6 WINGBOARD ANGLE, SIDE 2
7 SCREW, SHEET METAL #8A x 3/8" 2
WINGBOARD MOUNTING PARTS
8 WINGBOARD (MASONITE) - (NOT SHOWN) 1
9 "J" TYPE SPEED NUT 4
10 WINGBOARD CLIP (SPRING STEEL) 4
11 SCREW. #8A x 1/2" PHILLIPS TRUSS HD. 4
WINDOW SEALING
12 SEALING GASKET (VINYL) 1
13 WINDOW SEAL GASKET (DARK FOAM) 1
14 CHASSIS SEAL GASKET (LIGHT FOAM) 1
ITEM # 9

Page 9
STEP 1. Remove the junction box, cover and screw (above items) from the shipping position underneath the fan motor.
Install one junction box mounting leg in the upper left position facing the rear of the junction box.
STEP 2. Remove anddiscard theplastic bushing from the conduitconnector onthe sidepanel ofthe controlcompartment.
Strip the black wires only, approximately 1/2 inch (13 mm).
STEP 3. Insert all wires (2 black, 1 green) into the box and thread the box onto the conduit connector until tight. Back off
counter clockwise until the junction box is vertical with the mounting leg at the upper–right position facing the box
opening. Be sure that the shell can fit between this box and the chassis.
SECTION II
UNPACKING THE UNIT
STEP 1. Remove decorative plastic return air grille to a safe area away from the unit.
STEP 2. Remove the installation hardware, wingboard and two (one light colored and one dark colored) gaskets from
beneath the unit, and place them in a safe area away from the unit.
STEP 3. Removethechassisretainerbyremovingthefarrightscrewinthebasepan(seeFigureA);savethisscrewto
reattach the chassis retainer after installation (Step 15). Also, remove and discard the two retainer
screws and plastic bushings located at the rear of the unit.

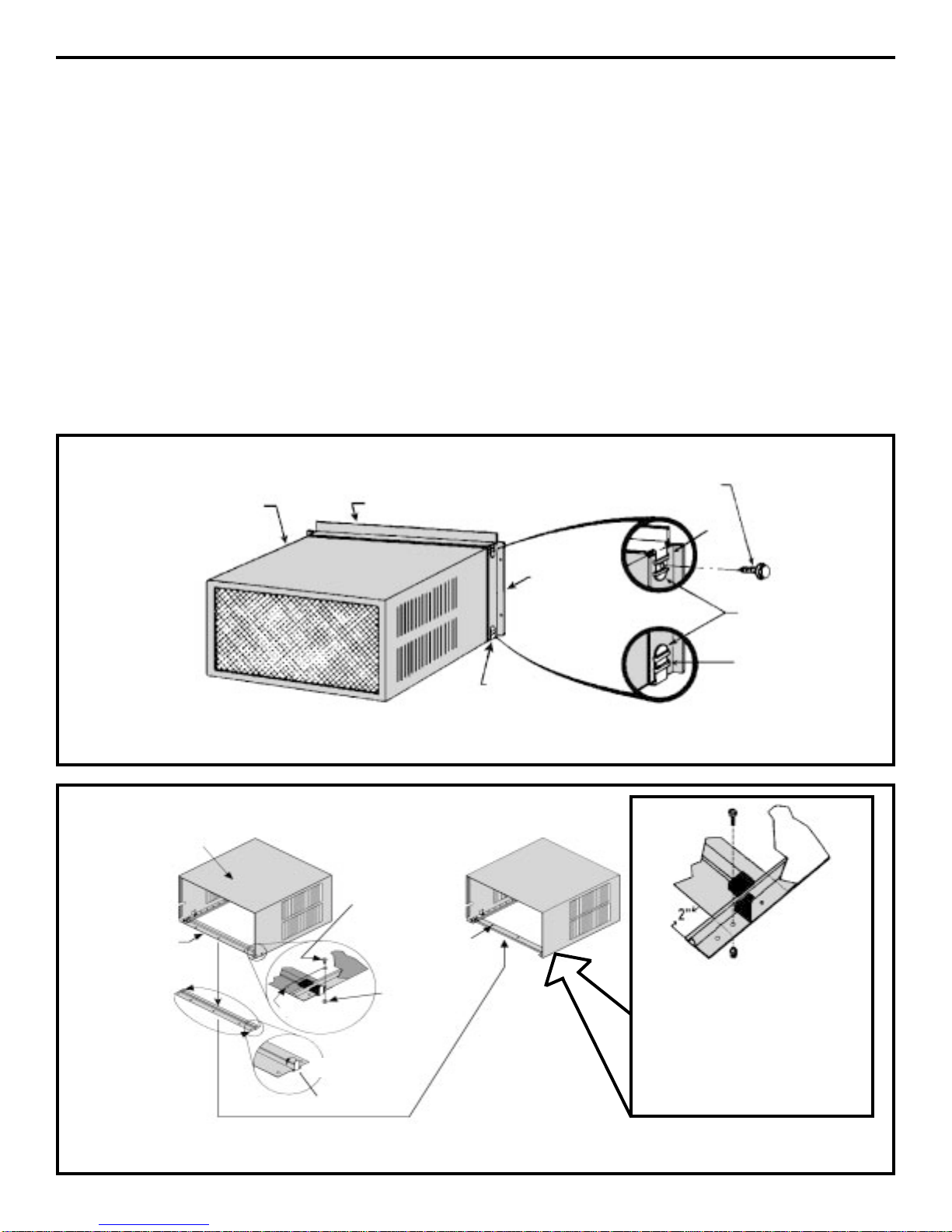

STEP 4. Whileanassistantholdsthecabinetstationary,usethehandpullatthefrontofthebasepan(seeFigureA)topull
thechassisoutofthecabinet. Removewhitefoamblocksusedtorestrainthecompressorduringshipment.
Inspectbasepanfordislodgedwhiteblocks,andremove. Donotremoveanyotherfoam.
CABINET
HAND PULL
CHASSIS
RETAINER
FAR RIGHT
SCREW
HAND PULL

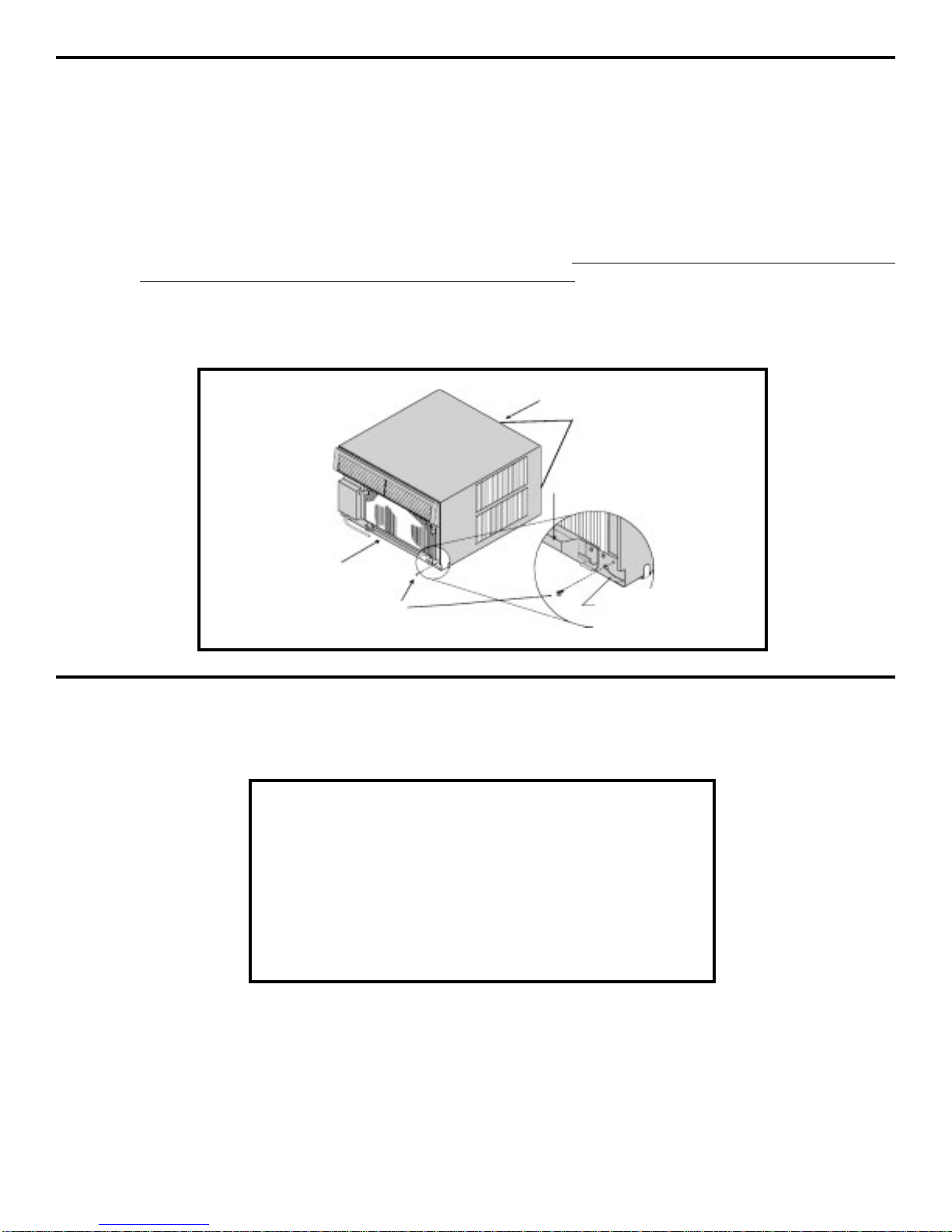

FIGURE A
SECTION III
CHASSIS WIRING AND PREPARATION
PROVIDED HARDWARE
1 JUNCTION BOX FRIEDRICH PN: 613-893-00
2 MOUNTING LEGS RACO INC. PN: 5324-0
2 LEG SCREWS
2 HOLE COVERS
1 GROUND SCREW
BOX COVER FRIEDRICH PN: 613-892-00
GASKET RACO INC. PN: 5173-0
2 SCREWS
1 SHEET METAL SCREW
CABINET
STEP 3

Page 10
FIGURE B
SECTION IV
SHELL (CABINET) PREPARATION:
Itwill benecessary to relocate the sillplate of the cabinet 2"back fromits shipping position, and theshell guides 4" forward, to
the forward-most hole in the shell rail. Discard the chassis retainer wire disconnected in Section II, Step 3. The junction box
mounting leg from Section VI, Step 1, and the field-installed conduit will retain the chassis in the shell.
IFTHIS INSTALLATION IS FOR A SASH WINDOW – With the wide flange and pilot holes of the sill plate forward, put the
screws/nuts in the rear holes of the sill plate and third shell hole from the front (the center of three square holes). Anchor the
side angles (Item #6) by engaging the tabs at each end of the sill plate with the bottom loops of the side angle. Engage the
tabs at each end of the top angle (Item #5) with the top loops of the side angle. Install two (2) screws (Item #7) to secure the
top angle tabs and the side angle to the rear-most holes in the side of the cabinet (See Figure B, below).
IF THIS INSTALLATION IS THROUGH A WALL – Turn the sill plate end to end so that the wide flange with pilot holes will
be over the wall header (towards the rear) and two inches from the front of the cabinet. Bend the tabs into the channel of the
sill plate, put the screws/nuts in the front holes of the sill plate and into the second shell hole from the front. Use one bolt on
each side to secure the sill plate to the cabinet. (See Figure C, below.)
Cabinet Top Angle (Item #5)
8A x 3/8" long screw (Item #7) 2
required
Loop
Side Angle
(Item #6) 2
required
Sill Plate Tab
Tab
Detail B-1
Detail B-2
Loop
Position the sill plate into the
cabinet with the sill plate holes
to the back. Align the plate 2
inches from the front of the
cabinet and secure it with a nut
and bolt in each end.
FIGURE C
DETAIL 2
DETAIL 1
BEFORE AFTER
Sill Plate
Turn sill plate
end to end
Bend tabs down
Screw
(2 required)
NOTE: HOLES
MOVED TO BACK SIDE
Nut (2
required)
Retainer, Chassis
(This side only)
Cabinet

Page 11
A 1" x 4" or 2" x 4" SPACER SHOULD BE USED BETWEENTHE WALL ANDTHE SUPPORT BRACKETS WHEN
INSTALLED ON ALUMINUM OR VINYL SIDING). Drill 5/32" (4 mm) dia.pilot holes, and secure the brackets to the wall
with two (2) #12A x 2" long screws (Item #4). Adjust the support brackets to provide an approximate 3/8" (10 mm) down
slope towards the outside for drainage. Tighten all screws. (See Figure E).
FIGURE D
FIGURE E
STEP 3. OUTSIDE SUPPORT MOUNTING: Assemble the support brackets (Item #1) to the bottom rails of the cabinet
with four (4) 10-24 1" long screws (Item #2) and four (4) 10–24 flat nuts (Item #3). Adjust the support brackets to
bring the bottom pads in contact with the wall surface. (See Figure E.)
SECTION V — SHELL INSTALLATION
(A) SASH WINDOW INSTALLATIONS
SHELL(CABINET) INSTALLATION–STANDARD SASH WINDOWS
STEP 1. Check the window sill and frame to be sure they are in good condition and firmly anchored to the wall. Repair if
necessary.
STEP 2. CABINET MOUNTING: Raise the lower window sash 1/4" more than the height of the cabinet. Carefully slide
the cabinet through the open window until the sill plate channel rests behind the window sill and the top support
angle rests against the window (See Figure D). Center the cabinet side to side and drill three (3) 5/32" dia.pilot
holesinto thewindowsill usingthe holesin the cabinet sill plate as a guide. Install three (3) #12Ax 2"long screws
(Item #4) (See Figure D).
Center cabinet side to
side in window
Drill 3 5/32" pilot holes and install 3
#12A x 2" long screws (Item #4)
Window sill
Locate the sill plate guide channel
just back of the window sill.
Top Support Angle
Pull window sash down behind
the top support angle
Side Support Angle
A 1" x 4" or 2" x 4" spacer should be used between the
wall and bracket when installed on aluminum, asbestos
or vinyl siding.
3/8" (10 mm)
Down slope
Support
Bracket
(Item #1)
#12A x 2" Screw (Item #4)
Support
Bracket
10 - 24 Flat Weldnut (Item #3)
10 - 24 x 1" Hex Head Screw (Item #2)

Page 12

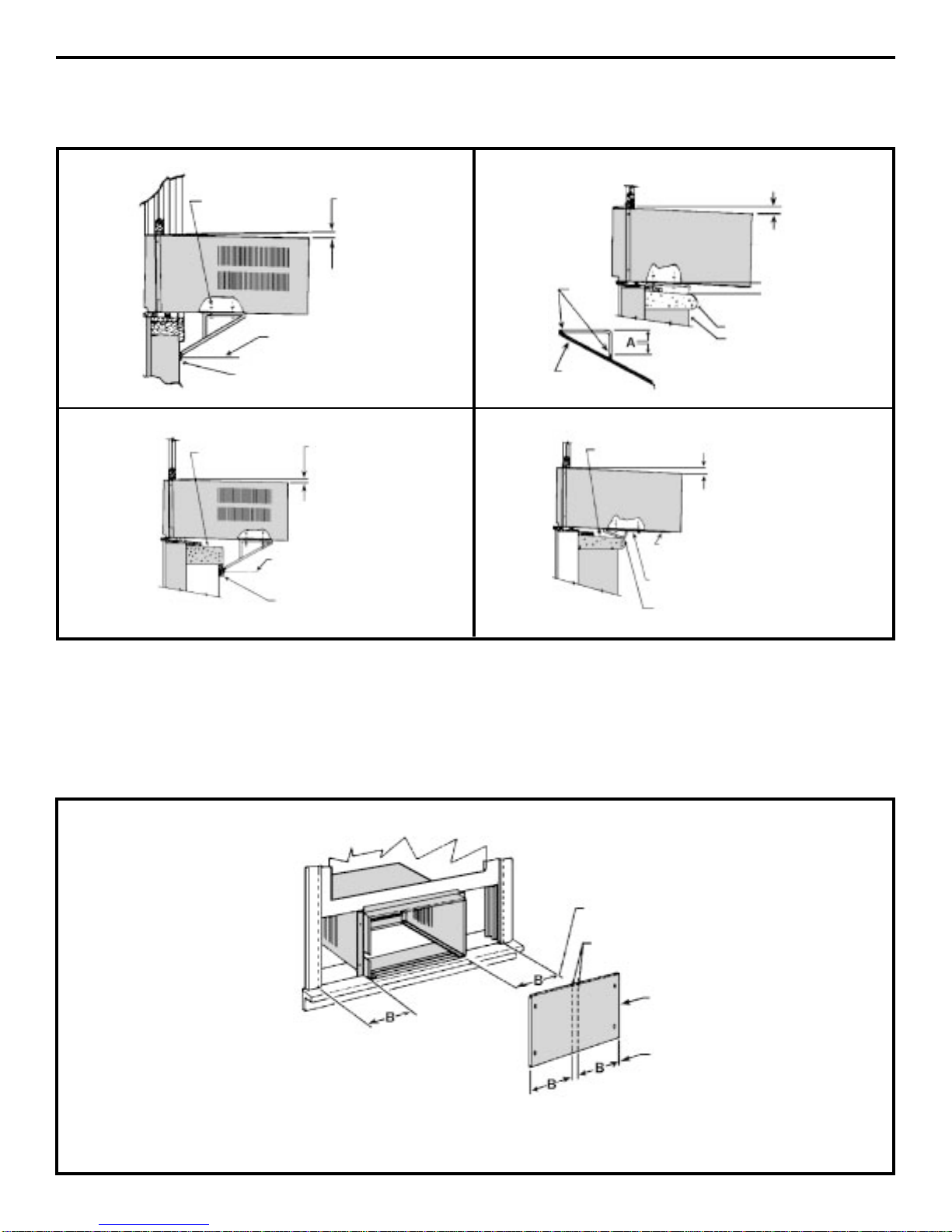

FIGURE F
The illustrations below show a standard frame construction installation as well as some suggested ways of
adapting the support bracket to thick walls and large stone ledges.
Figure 2
Figure 3
Subtract 1/8" (3 mm) from
dimension "B" and measure
from the edge of the
wingboard (Item # 8), mark
and cut with a saw.
STEP 4. CUTWINGBOARD PANELS: Measure and cut the wingboard panels from the supplied masonite (Item #8) tofit
the spaces between the side window channels and the sides of the cabinet (See Figure F).
NOTE: AFTER CUTTING PANELS, MAKE A TRIAL TEST TO SEE IF THEY FIT THE SPACE WITH ABOUT
1/8" CLEARANCE BEFORE GOINGTO STEP 5.
TYPICAL INSTALLATION SILL PLATE
10 - 24 Screw
10 - 24 Flat Nut 3/8" (10 mm)
Slope down
#12A x 2" Sheet metal screw
1" x 2" or 2" x 4" spacer between wall
and bracket should be used on
aluminum, asbestos or vinyl siding
Figure 1
Stone ledge
Outside wall
Cut to fit Dimension "A" and
bend down to for a vertical leg
Discard shaded area
Stone ledge
3/8" (10 mm)
Slope down
3/8" (10 mm)
Slope down
#12A x 2" Sheet metal
screw
2" x 4" Spacer
Measure distance "B" to the inside of
the channel on each side
Cut here and discard the center
waste material
Wingboard
Cut
Here
Figure 4
Stone ledge 3/8" (10 mm) Slope down
Straighten tab to lay flat along
the bottom rail of the shell.
Secure the longest side of the
bracket to the shell.
Adjust in or out to rest on the ledge

Page 13

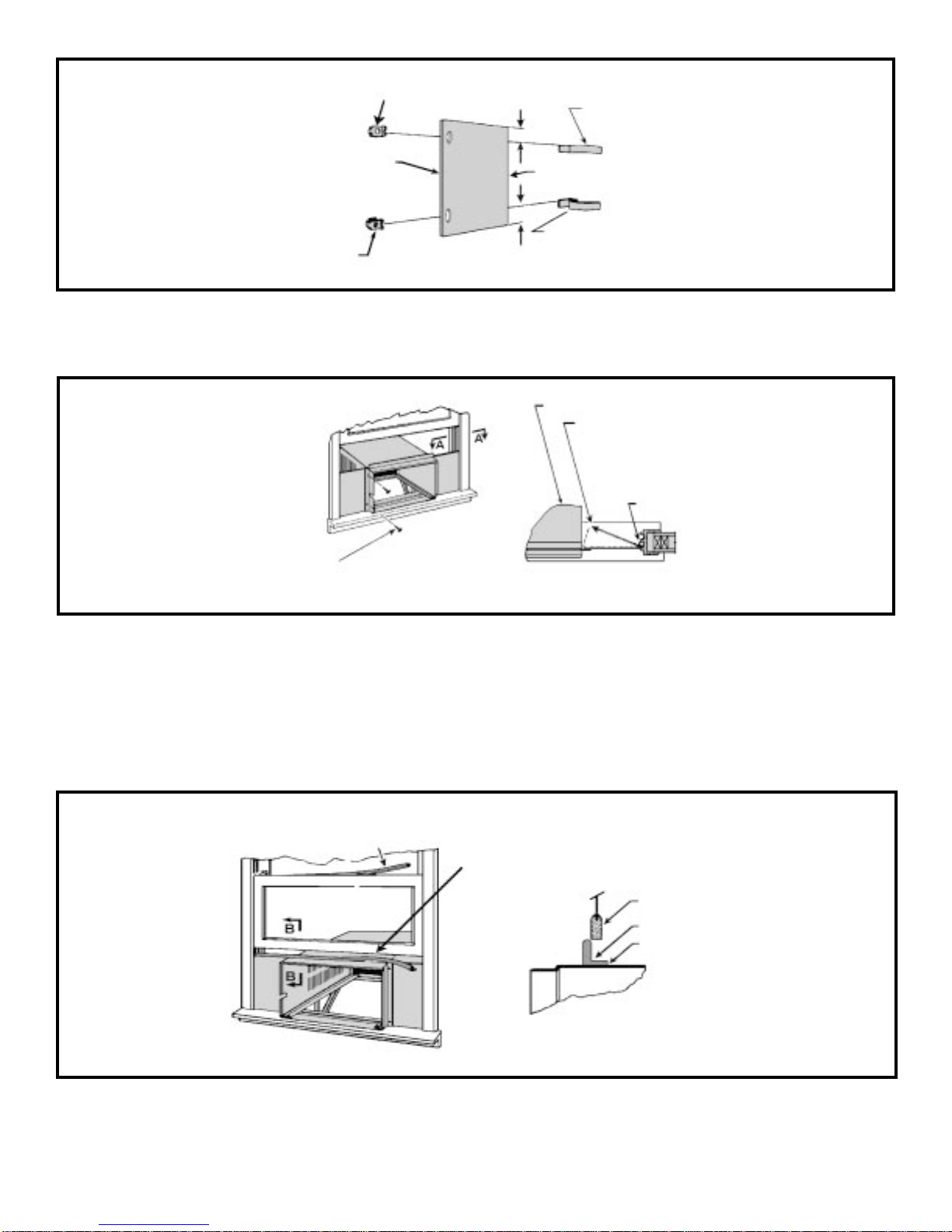

FIGURE G
FIGURE H
FIGURE I
STEP 6. INSTALL SIDEWINGBOARD PANELS: Be sure that the cabinet has been secured to the window sill and the
outside support brackets have been installed as shown in Figures D and E on Page 11. Raise the window sash
and install the right and left side wingboard panels (See Figure H).
STEP 7. INSTALLWINDOW SEALING GASKETS: Measure and cut the vinyl window seal gasket (grey color, Item #12)
to fit the width of the window and install as shown in Figure I. Pull the window sash down behind the gasket.
Measure and cut the dark foam window seal gasket (Item #13) and install it between the upper glass panel and
the top part of the lower sash (See Figure I).
STEP 5. ASSEMBLE CLIPSTOWINGBOARD PANELS: Assemble "J" type speed nuts (Item #9) and spring steel clips
(Item #10) to the edges of the cut wingboard panels (See Figure G).
NOTE: FOR REASONS OF SECURITY AND SAFETY,THE CUSTOMER MUST PROVIDE A MEANS OF PREVENTING
THEWINDOW FROM OPENING.
STEP 8. When possible, caulk the outside of the installation with industrial type caulking to prevent air and water leaks.
"J" type speed nut (item #9)
2 required Spring steel clip (item #10)
2 required
Cut edge
Slide clip over cut edge of wingboard panel.
Center the hole in the speed
nut over the slot in the
wingboard panel
Cut wingboard panel
Top of cabinet
Place wingboard panel in window jam to
compress the springs inside the runners, and
swing the panel into place indicated by the dotted
line.
Window jam
Secure the side wingboard panels to the
side angles with four (4) #8 x 1/2" long
screws (Item #11), two on each side. SECTION A - A
SECTION B - B
Lower window sash
Vinyl window seal gasket
Top wingboard angle
Vinyl window seal gasket Item #12)
Foam window seal gasket (Item # 13)

Page 14
NOTE: THESE DIMENSIONS ARE FOR FINISHED HOLE SIZE
HOLE SIZE REQUIREMENTS
SECTION V — SHELL INSTALLATION
(B) THROUGH–THE–WALL INSTALLATIONS
Condenser air
Intake louvers
2" (51 mm) minimum
Both sides
Top view showing beveled sides for
air intake. Wall below unit must
also be beveled to assure proper tilt
angle.
Condenser
Air intake
Louvers
15 1/8 " (384 mm)
Maximum wall thickness
FIGURE J EXTRATHICK WALL CONSTRUCTION
FIGURE K
STEP 1. CHECKING WIRING AND PLUMBING: Check all wiring and plumbing inside and outside the wall to be sure
none will be broken where the hole is to be cut.
STEP 2. HOLE CONSTRUCTION: Depending on the size of the unit to be installed, layout the hole dimensions in
accordance with the chart below (See Figure K). Cut and frame in the hole to the finished dimensions. Use
2" x 4" material for framing and follow the suggested typical installations in Figure L, M or N on Page 15.
NOTE: IFTHEWALL CONSTRUCTION ISTYPICAL FRAME OR 2 X 4 STUDDINGWITH BRICK OR STONE
VENEERS, LOCATETHE HOLE NEXTTO ONE OFTHE STUDS. FOR MASONRY, CONCRETE OR CINDER BLOCK
WALLS, LOCATETHE HOLE FOR CONVENIENCE.
FINISHED SMALL MEDIUM
DIMENSION CHASSIS CHASSIS
A16-3/16" 18-3/16"
B26-3/16" 26-3/16"
WALL PREPARATION:
The maximum wall thickness permissible without special construction is determined by the model size to be installed. THE
OUTSIDE CABINET CONDENSER AIR INTAKE LOUVERS MUST NOT BE BLOCKED BY EXTENDING INSIDETHE
WALL AREA. Observe the maximum wall thickness shown as dimension "A" in Figure J.
SPECIAL INSTRUCTIONS FOR EXTRATHICKWALLS: For installation in walls exceeding the maximum thickness
shown as dimension A, the following suggested construction may apply. (See Figure J).

Page 15
FIGURE L FRAME WALL CONSTRUCTION
FIGURE M BRICKVENEER CONSTRUCTION
FIGURE N SOLID MASONRY CONSTRUCTION
Mortar
Caulk all sides
Cabinet
Weather cabinet
Caulk all sides
Shim the void space at the top and
sides with wood as required
Caulk all sides
Weather cabinet
Shim void spaces at top and sides
with wood as required

Page 16
Caulk all sides air tight
Trim moulding
3/8" (10 mm) slope down
Note: Support brackets may be omitted from
through-the-wall installations if the cabinet is
secured as follows. Drill 2 holes in each side
and install 4 fasteners (2 each side).
Use #12A x 2" (51 mm) screws, toggle bolts or
expansion anchor bolts as shown in Step 5.
Support brackets (Item 1) (See note above)
Screw #12 x 2" long, use one in each bracket.
Drill 5/23 (4 mm) dia. pilot holes.
Sill plate
Guide channel
Inside wall
Surface
Screw #12A x 2" long
Use 3.

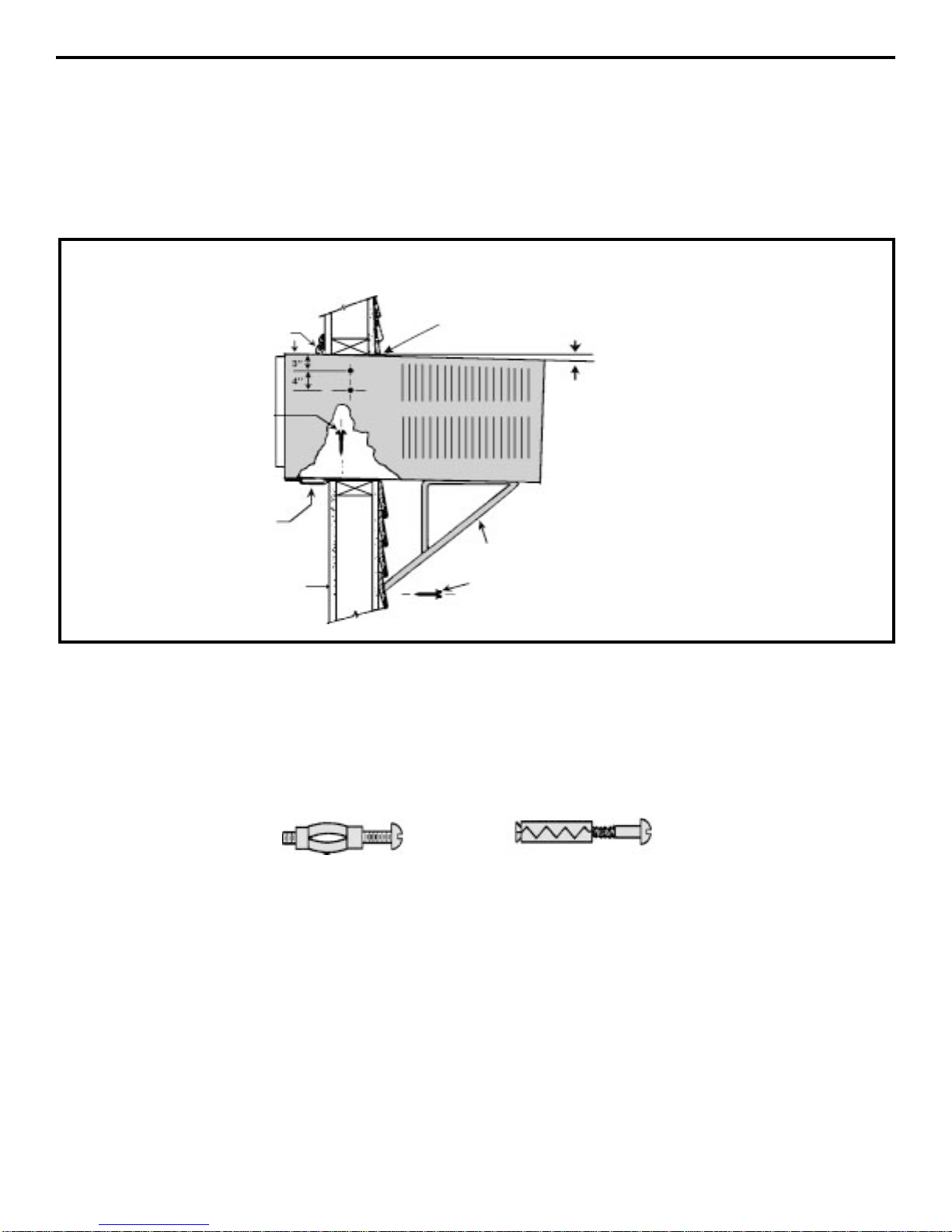

FIGURE O TYPICAL INSTALLATION
MOLLY ORTOGGLE BOLT EXPANSION ANCHOR BOLT
NOTE: ALTERNATE FASTENERS WHICH MAY BE USED FOR SECURINGTHE SILL PLATE INTHEWALL, ANDTHE
SUPPORT BRACKETSTOTHE OUTSIDEWALL ARE NOT FURNISHED, BUT ARE AVAILABLE AT A LOCAL
HARDWARE STORE.
STEP 5. Drill two (2) 5/32" (4 mm) dia.pilot holes in each side at the locations shown (Figure O) and install four (4) #12 x
2"screws(Item #4). Ifthe holeconstruction inStep 2provides asturdy mountwith solid vertical studs, no support
brackets arerequired. The installationmust supportthe weightof theunit plusan additionalweight of400 pounds
(185kg) onthe rearof the cabinet. The support brackets may beused forthrough-the-wall installations asshown
in Figure O, for additional support.
STEP 6. If desired, trim around the cabinet on the room side with a suitable frame molding furnished by the installer (See
Figure O).
STEP 3. Slide the cabinet into the hole far enough to allow the guide-channel of the sill plate to contact the inside wall
surface (See Figure O).
STEP 4. Drill three (3) 5/32" dia. pilot holes through holes in sill-plate into the framing and install three (3) #12 x 2" long
screws (Item #4) (See Figure O).

Page 17
FIGURE P
SECTION VI
CHASSIS INSTALLATION
STEP 1. Slidethe chassisinto thecabinet stopping approximately 3" from full insertion. Stuff the chassis seal gasket (Item
#14) one inch deep between the chassis and the cabinet (See Figure P). Make sure that the gasket is behind
the conduit connector (furthest from you). Push the chassis into the shell the remaining distance so that the
plastic front shrouds the front edge of the shell. Fasten the junction box mounting foot to the shell with the sheet
metal screw.
NOTE: Field wiring must be provided to this junction box in accordance with NATIONAL ELECTRIC CODE
ARTICLE 501. Field and equipment grounds are to be terminated at the post in the junction box with
the green screw provided. Equipment power leads are to be connected with the field supply by means
of wire nuts (not provided). Install the gasket and cover plate onto the junction box.
CHASSIS SEAL
GASKET

Page 18

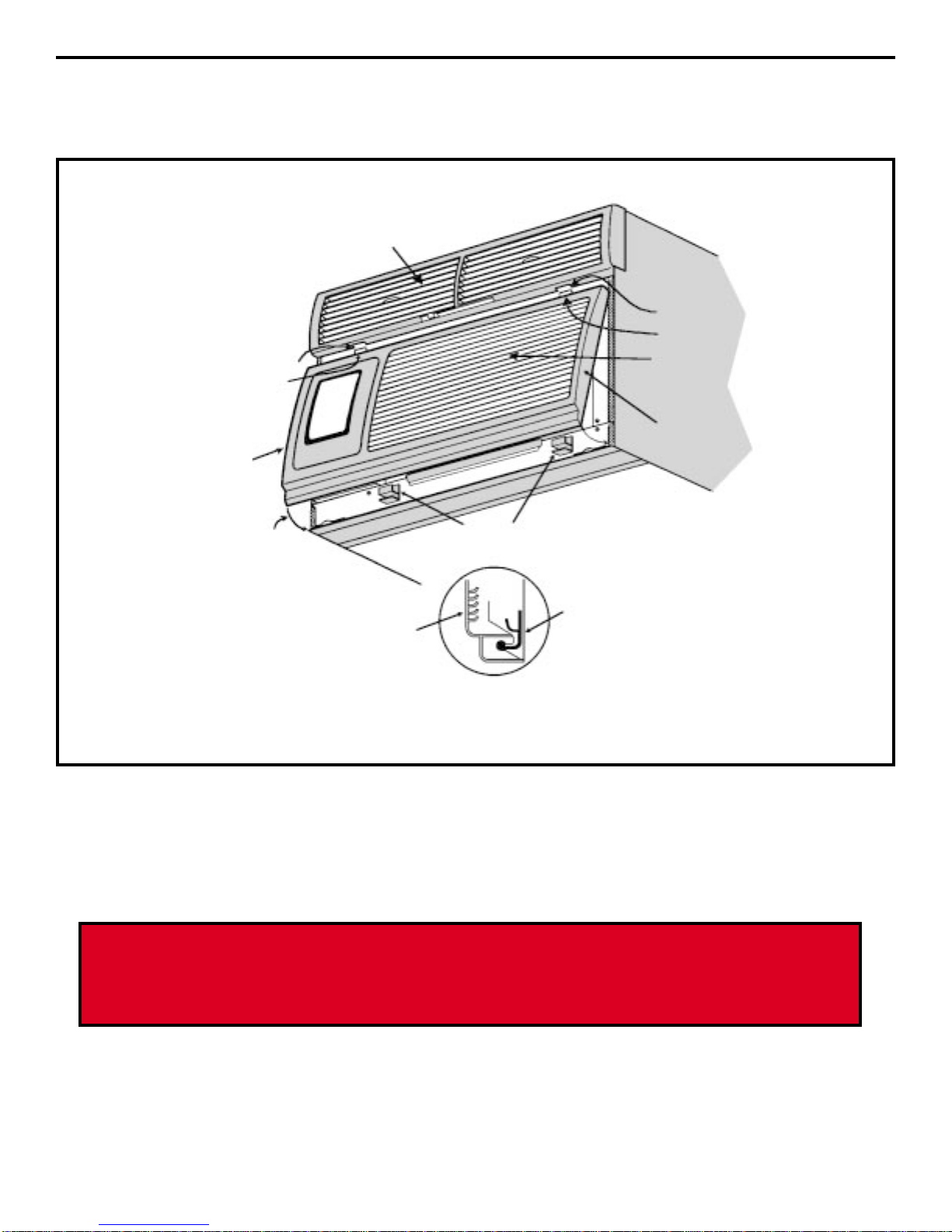

FIGURE Q
STEP 2. Be sure that the filter is in place then install the return air grille (See Figure Q). The top of the return air grille can
be butted against the bottom of the discharge plenum and then snapped at the bottom cupport clips, or the
bottom of the grille can be snapped into the grille clips and then engaged below the discharge plenum.
STEP 3. You have completed your installation. Conduct a review of your installation to insure that the unit is safely and
securely installed. Refer to the "OPERATING GUIDE" section of this manual to test the operation of your unit.
Discharge Air Plenum
Slot
Tab
DETAIL 1
Latches
Return air grille
DETAIL 4
Side view
(Cutaway)
DETAIL 2
DETAIL 3
DETAIL 1
Latch
Slot
Tab
Return Air Grille
WARNING: – EXPLOSION HAZARD –
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2.

Page 19
FRIEDRICHHAZARDGARD
ROOMAIRCONDITIONERS
LIMITEDWARRANTY
LIMITEDONEYEARPARTSWARRANTY
1. Limited warranty - One year. Friedrich warrantsthat itwill providea replacementfor anypart ofthis
HazardGardRoomAirConditioner found defectiveinmaterial or workmanshipforaperiod of one(1)year
fromthe date of original purchase.
2. Limited warranty - One year. The Friedrich warranty also covers the cost of labor for repairing any
compressor, condenser,evaporatororinter-connecting tubing founddefectivewithin the warrantyperiod,
providing the unit is returned to an authorized Friedrich Repair Station located within the Continental
United States.
The Friedrich warranty does not cover:
(1) any charges for removal, transportation or reinstallation of the unit; (2) the cost of labor to
replace parts other than those described above; and (3) does not apply to any HazardGard
Room Air Conditioner that has been subject to (a) accident, misuse, flood, fire, or neglect; (b)
repairs or alterations outside of the Friedrich Authorized Dealer or Service Center so as to affect
adversely its performance and reliability; or (c) any repairs or servicing as a result of using parts
not sold or approved by Friedrich.
LIMITATIONS: This warranty is a LIMITED warranty. Anything in the warranty notwithstanding,
IMPLIEDWARRANTIESFORPARTICULARPURPOSEANDMERCHANTABILITYSHALLBELIMITED
TO THE DURATION OF THE EXPRESS WARRANTY. MANUFACTURER EXPRESSLY DISCLAIMS
ANDEXCLUDESANYLIABILITY FORCONSEQUENTIALORINCIDENTALDAMAGESFORBREACH
OF ANY EXPRESS OR IMPLIED WARRANTY.
Tobeassuredof registered warrantyprotectioninthe event thatfieldservice contact and/orproductrecall
should ever become necessary, please complete your warranty registration card immediately, and mail
to: FRIEDRICH, CUSTOMER SERVICEDEPT., P.O. Box 1540,San Antonio,TX78295.
Incase ofquestions regarding the provisions of this warranty, the English version will govern.
WARNING: – EXPLOSION HAZARD –
SUBSTITUTIONOF COMPONENTSMAYIMPAIRSUITABILITYFOR CLASSI,DIVISION2.
FRIEDRICH AIR CONDITIONING CO. INC.
Post Office Box 1540 · San Antonio, Texas 78295-1540
[phone] · FAX [phone]
Revised 8/01

Page 20
FRIEDRICHHAZARDGARDROOMAIRCONDITIONERS
FRIEDRICHAIRCONDITIONINGCO.INC.
• Post Office Box 1540 •San Antonio, Texas 78295-1540
•4200 N. Pan Am Expressway •San Antonio, Texas 78218-5212
• [phone] •FAX [phone]
VisitusontheInternetatwww.friedrich.com
Printed in the U.S.A.
