Friedrich Room Air Conditioners User manual

920-132-04 (3-09)
Money
Fan
Timer Op eration
Set Hr.
Stop
Start
Temperatu re
Fan
Cool
On/Off
Power
Cooler
Only Speed Saver®
Wa rmer
2009 Parts Manual
Room Air Conditioners

inside cover

3
TABLE OF CONTENTS
PORTABLE "Q" SERIES UNITS .............................................................................................................................4-7
SMALL CHASSIS "S" SERIES UNITS (115 & 230 VOLT) ....................................................................................8-15
MEDIUM CHASSIS "M" SERIES UNITS (115 & 230 VOLT) ...............................................................................16-19
LARGE CHASSIS "L" SERIES UNITS ................................................................................................................20-23

4

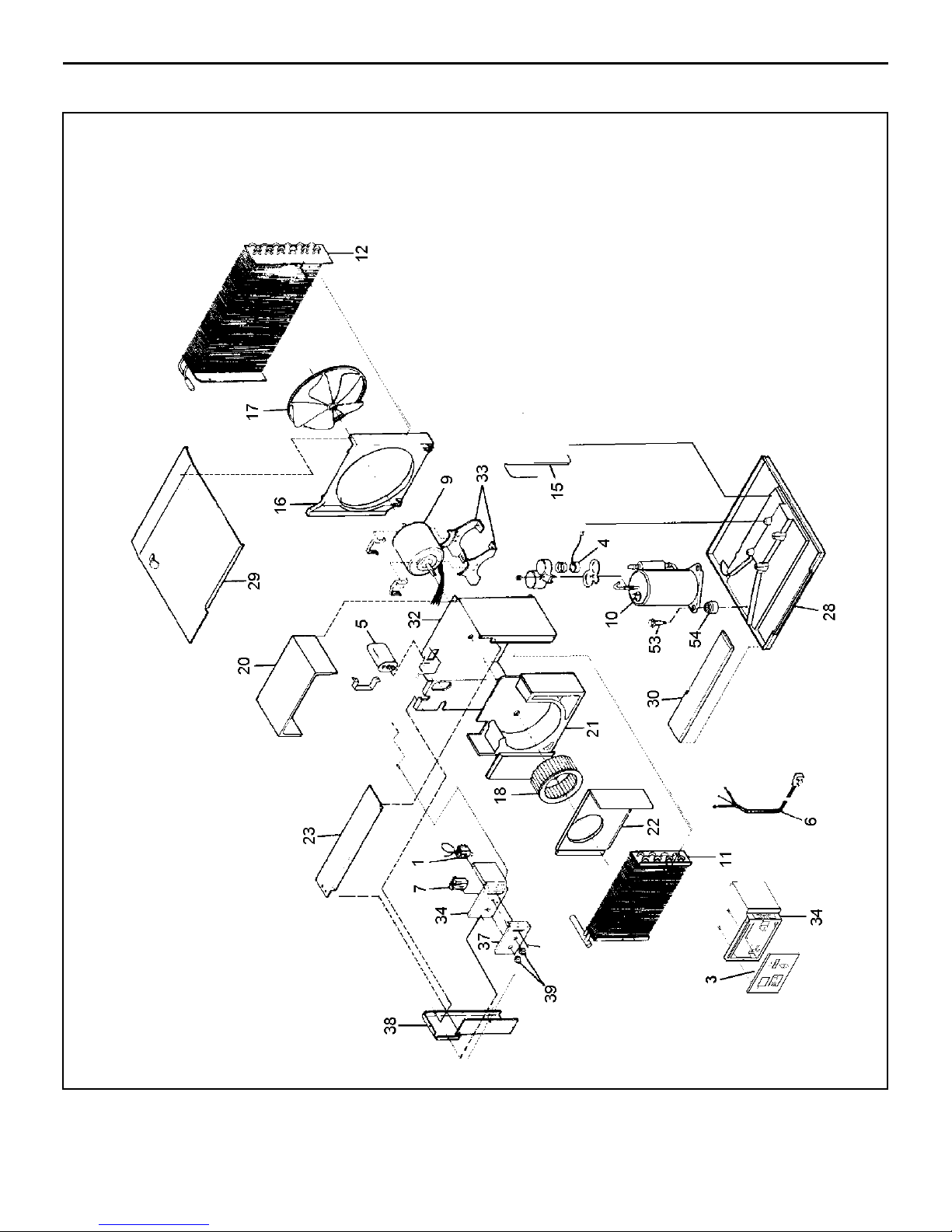

CABINET PARTS
PORTABLE "Q" SERIES
NOTE: Item #2 is used on "EQ" model only.
Item #3 is used on "XQ" model only

5

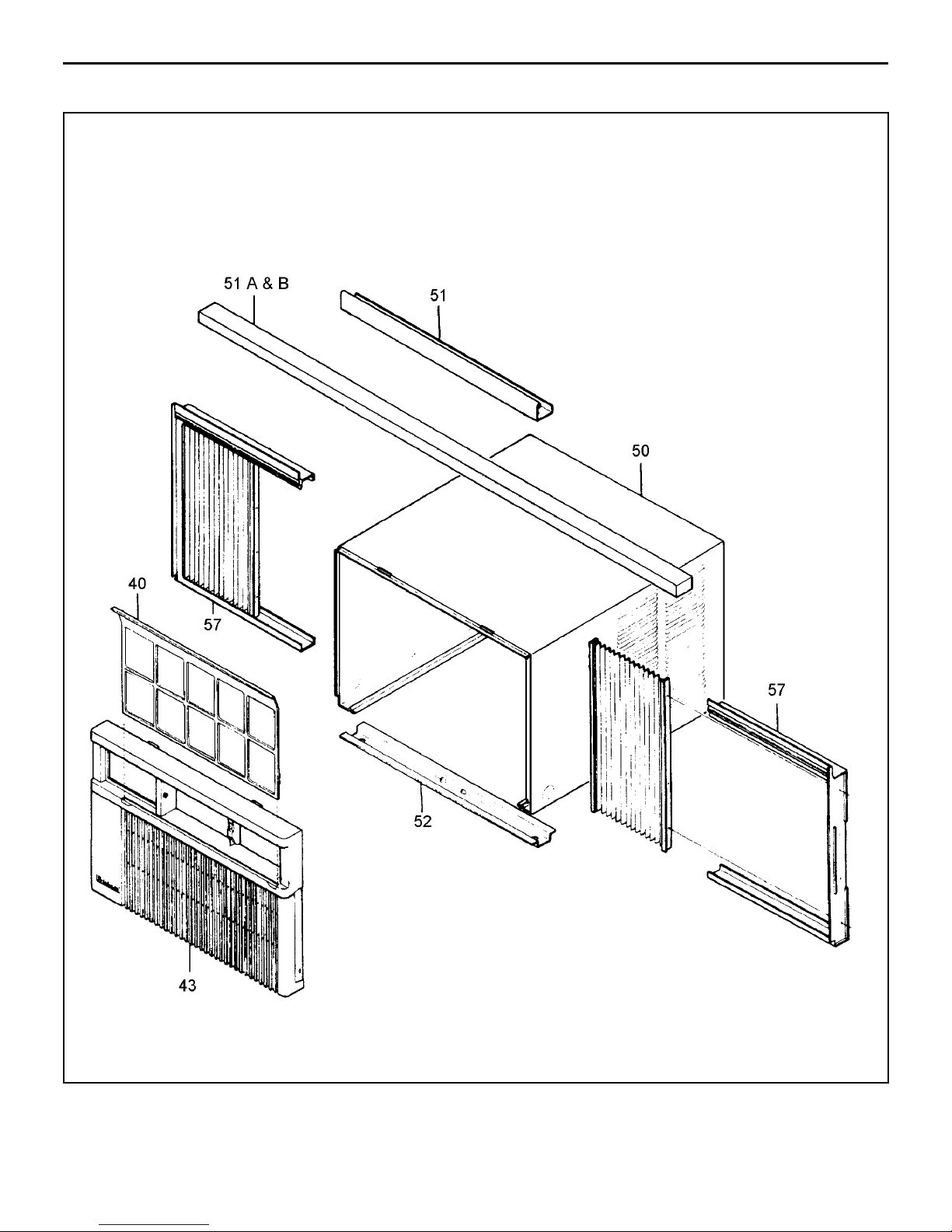

CABINET PARTS
PORTABLE "Q" SERIES
NOTE: Items 51 and 57 are not included
with the "EQ" unit.

6
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. XQ EQ CODE
ELECTRICAL PARTS
XQ05L10A-C XQ06L10A-C XQ08L10A-B
XQ08L10A-E
XQ10L10A-C XQ12L10A-B XQ12L10A-C
EQ08L11A-B
EQ08L11A-E
1THERMOSTAT 61822401 1 1 120
3ELECTRONIC BOARD 61921192 1 1 1 1 1 1 1 340
*REMOTE CONTROL 61826606 1 1 1 1 1 1 1 350
*RESISTOR 61900500 1 1 200
4OVERLOAD 61764528 1 1 190
4OVERLOAD 61764539 1 1 190
4OVERLOAD 61764519 1 190
4OVERLOAD 61764507 1 1 190
4OVERLOAD 61764509 1 1 190
5CAPACITOR 61080530 1 1 150
5CAPACITOR 61080559 1 1 150
5CAPACITOR 61080550 1 1 1 1 150
5CAPACITOR 61080528 1 150
6SUPPLY CORD 60500330 1 1 1 1 1 1 1 1 1 220
7SWITCH ROTARY 6 POS 60441610 1 1 130
*HEATER 61929611 1 1 193
9FAN MOTOR 61871493 1 1 110
9FAN MOTOR 61871451 1 1 1 1 1 1 1 110
REF DESCRIPTION PART NO. XQ EQ CODE
REFRIGERATION PARTS
XQ05L10A-C XQ06L10A-C XQ08L10A-B
XQ08L10A-E
XQ10L10A-C XQ12L10A-B XQ12L10A-C
EQ08L11A-B
EQ08L11A-E
10 COMPRESSOR 61562832 1 1 600
10 COMPRESSOR 61716646 1 1 600
10 COMPRESSOR 61716671 1 600
10 COMPRESSOR 61985100 1 600
10 COMPRESSOR 61985101 1 600
10 COMPRESSOR 61716670 1 1 600
11 EVAPORATOR COIL 61600257 1 400
11 EVAPORATOR COIL 61600258 1 1 1 400
11 EVAPORATOR COIL 61600272 1 1 400
11 EVAPORATOR COIL 62050018 1 400
11 EVAPORATOR COIL 62050020 1 400
11 EVAPORATOR COIL 62050024 1 400
12 CONDENSER COIL 61600519 1 1 1 1 410
12 CONDENSER COIL 61600521 1 1 410
12 CONDENSER COIL 62050319 1 410
12 CONDENSER COIL 62103404 1 410
12 CONDENSER COIL 62103407 1 410
*DRIER, LIQUID 61481300 1 1 1 1 1 1 1 480
15 CAPILLARY TUBE 03760482 1 1 471
15 CAPILLARY TUBE 03760545 1 1 471
15 CAPILLARY TUBE 03760513 1 1 471
15 CAPILLARY TUBE 61992900 1 471
15 CAPILLARY TUBE 61992901 1 1 471

7
REF DESCRIPTION PART NO. XQ EQ CODE
CHASSIS PARTS
XQ05L10A-C XQ06L10A-C XQ08L10A-B
XQ08L10A-E
XQ10L10A-C XQ12L10A-B XQ12L10A-C
EQ08L11A-B
EQ08L11A-E
16 SHROUD, CONDENSER 61627601 1 1 1 1 1 1 1 1 1 720
17 FAN BLADE 61634000 1 1 710
17 FAN BLADE 61634001 1 1 1 1 1 1 1 710
18 BLOWER WHEEL 60610604 1 1 700
18 BLOWER WHEEL 60610606 1 1 700
18 BLOWER WHEEL 60610612 1 1 1 1 1 700
20 COVER BLOWER 61619513 1 1 1 1 1 745
20 COVER BLOWER 61619517 1 1 1 1 745
21 WRAPPER, SCROLL, 61990606 1 1 1 1 1 1 1 1 1 741
22 FRONT, BLOWER 61928801 1 1 742
22 FRONT, BLOWER 61990700 1 1 1 1 1 1 1 742
23 DECK, BLOWER 61619405 1 1 745
23 DECK, BLOWER 61990500 1 1 1 1 1 1 1 745
28 BASE PAN 61626312 1 1 1 1 730
28 BASE PAN 61626313 1 1 1 730
28 BASE PAN 61626314 1 1 730
29 COVER, UNIT TOP 61619513 1 1 1 1 1 1 746
29 COVER, UNIT TOP 61619517 1 746
30 DRAIN PAN, EVAP. 61638400 1 1 1 1 1 1 1 1 1 840
32 INNER WALL 61597317 1 1 1 1 1 1 1 777
32 INNER WALL 61597318 1 1 777
33 FAN MOTOR MOUNT 61776900 1 1 900
33 FAN MOTOR MOUNT 61776903 1 1 1 1 1 1 1 900
*SCREW, FAN MTR. MT. 21004672 4 4 4 4 4 4 4 4 4 999
34 CONTROL MT. BRACKET 61619612 1 1 763
34 CONTROL MT. BRACKET 61923901 1 1 1 1 1 1 1 763
37 CONTROL DEC. PANEL 61715921 1 1 760
38 PANEL ASSLY, L\S 61924300 1 1 1 1 1 1 1 1 1 765
39 CONTROL KNOBS 61911605 2 2 761
*HOLDER, TSTAT BULB 61900500 1 1 764
*HOLDER, THERMISTER 61925001 1 1 1 1 1 1 1 764
40 FILTER, AIR 61632315 1 1 1 1 1 1 1 1 1 754
43 FRONT, DECORATIVE 61637716 1 1 1 1 1 1 1 1 1 750
50 SHELL, OUTER ASSY 61902100 1 1 1 1 1 1 1 1 1 720
51 ANGLE, TOP SUPPORT 61627313 1 1 1 1 1 1 1 999
52 CHANNEL, SILL 61627211 1 1 1 1 1 1 1 1 1 999
*SCRIPT, FRIEDRICH 60169110 1 1 1 1 1 1 1 1 1 999
51A GASKET, CHASSIS SEAL 61717300 1 1 1 1 1 1 1 1 1 780
51B GASKET, WINDOW SEAL 60073300 1 1 1 1 1 1 1 780
*BAG ASSLY (SCREWS) 61778700 1 1 1 1 1 1 1 999
*BAG ASSLY (SCREWS) 61778701 1 1 999
*COUNTER WEIGHT 61715800 3 3 3 3 2 2 2 3 3 999
*SEAL, FAN MOTOR 60217902 1 1 1 1 1 1 1 1 1 780
54 GROMMET, COMP. MT. 61028900 3 3 3 3 3 3 3 3 3 790
53 SCREW, COMP. MT. 91400400 3 3 3 3 3 3 3 3 3 999
57 CURTAIN ASSLY. 61680205 1 1 1 1 1 1 1 999
*CARTON, SHIPPING 61841925 1 1 1 1 1 1 1 1 1 999
*PAD SHIPPING TOP 61769700 1 1 1 1 1 1 1 1 1 999
*PAD SHIPPING BOTTOM 61716401 1 1 1 1 1 1 1 1 1 999
OPTIONAL ACCESSORIES
* WINDOW KIT WIKQ 1 1
*ANTI-ICE KIT 61680600 1 1
*START ASSIST (PTCR) 61008903 1 1 1 1 1 1 1 1 1
*DRAIN KIT, DC-2 01900235 1 1 1 1 1 1 1 1 1
PORTABLE "Q" SERIES
* PARTS NOT SHOWN

8

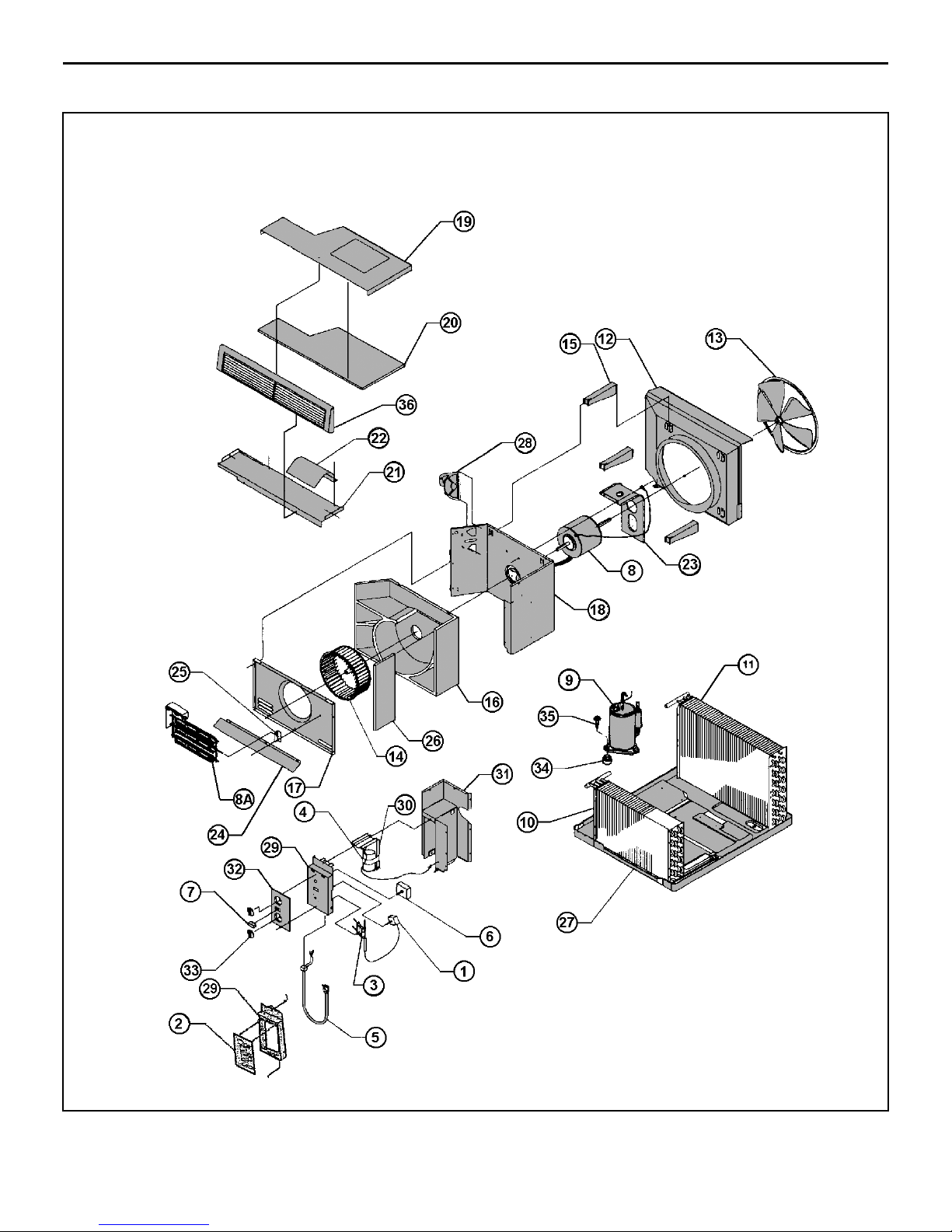

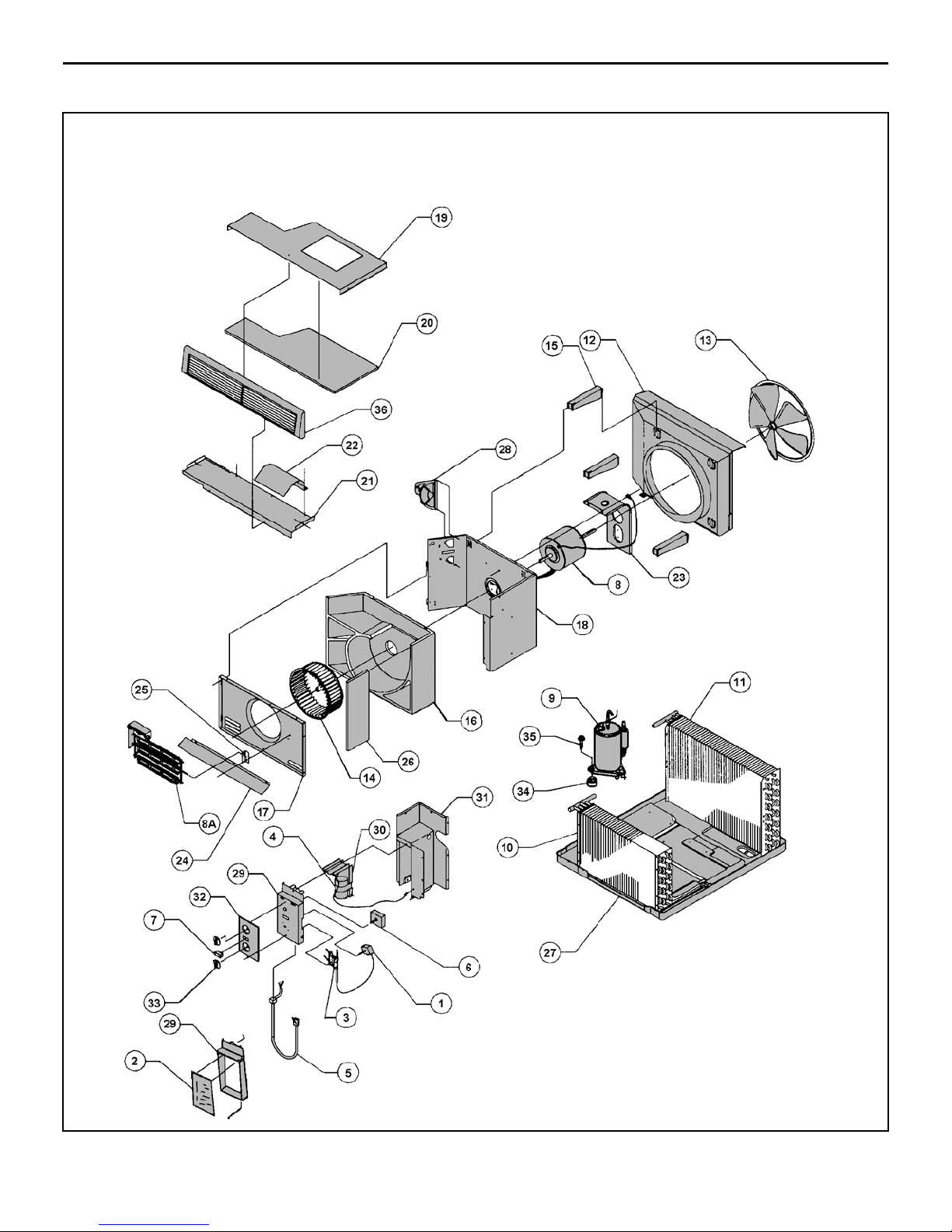

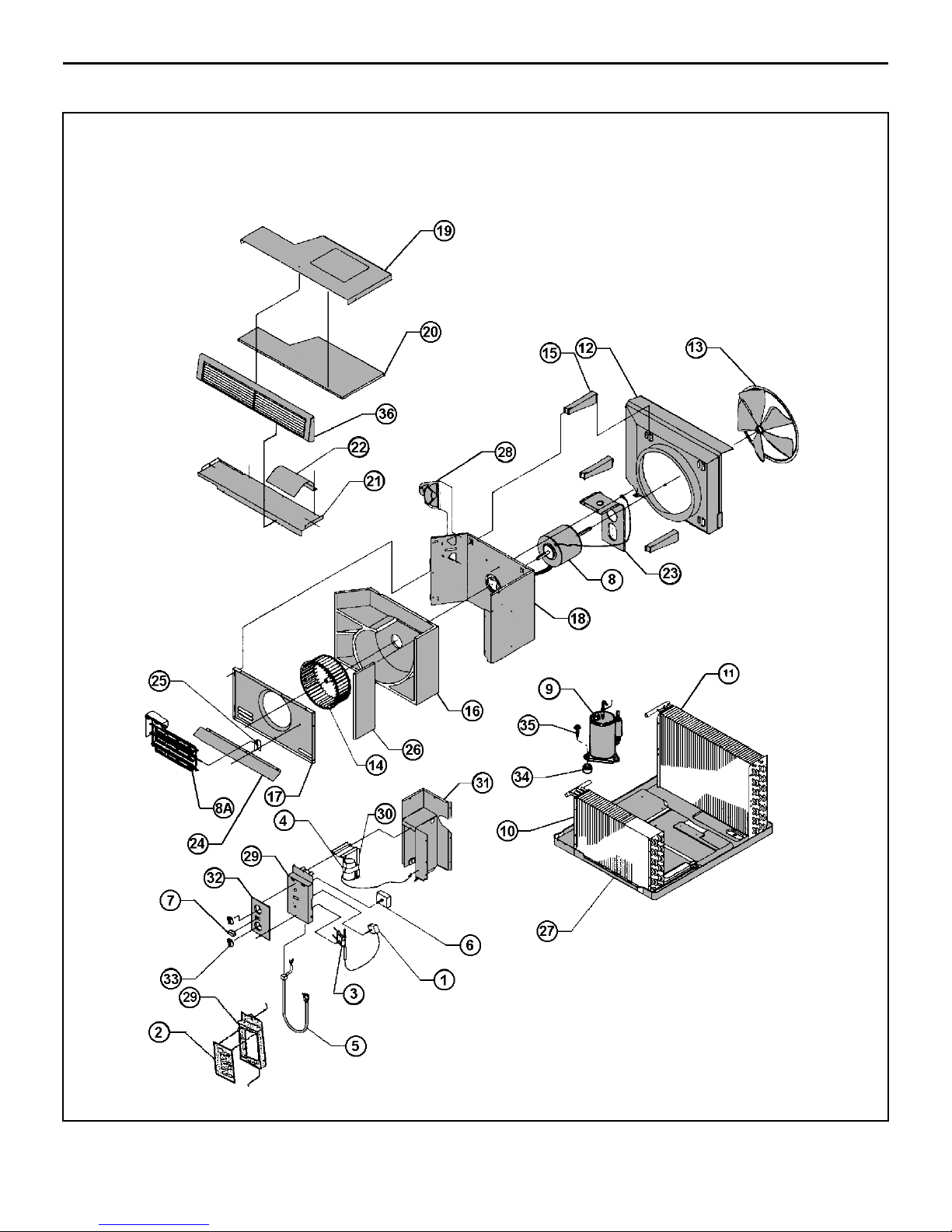

SMALL CHASSIS "S" SERIES
CHASSIS PARTS (ES, SS & YS)

9
CHASSIS PARTS (ES, SS & YS)
SMALL CHASSIS "S" SERIES

10
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. KS SS YS CODE
ELECTRICAL PARTS
KS12L10-E
KS12L10-F
KS15L10-C KS15L10-D
SS08L10-E
SS08L10-F
SS08L10-H
SS10L10-D
SS10L10-E SS12L10-E
SS12L10-F
SS14L10-D
SS14L10-E
YS09L10-F
YS09L10-G
1 THERMOSTAT 61828500 1 1 1 1 120
1 THERMOSTAT 61828400 1 1 120
* THERMOSTAT, DEFROST 61350314 1 1 122
2 ELECTRONIC CTRL. 61921193 111111111 331
* REMOTE CONTROL 61826606 111111111 350
3 RESISTOR 61808000 1 1 1 1 1 1 200
* OVERLOAD 61764519 1 1 1 1 1 1 1 1 190
* OVERLOAD 61764544 1 1 1 1 190
* OVERLOAD 61764507 1 1 190
OVERLOAD 61764509 1 190
4 CAPACITOR 61080535 1 1 1 1 1 150
4 CAPACITOR 61080554 1 1 150
4 CAPACITOR 61080569 1111 1111 150
5 SUPPLY CORD 60500321 111111111111111 220
6 SWITCH SYS. 6 POS. 60607205 1 1 1 1 130
6 SWITCH SYS. 8 POS. 60607204 1 1 130
7 SWITCH (YES - NO) 61806105 1 1 1 1 1 1 132
8 FAN MOTOR 61871444 111111111111111 110
* SOLENOID COIL 25063505 1 1 240
REF DESCRIPTION PART NO. KS SS YS CODE
REFRIGERATION PARTS
KS12L10-E
KS12L10-F
KS15L10-C KS15L10-D
SS08L10-E
SS08L10-F
SS08L10-H
SS10L10-D
SS10L10-E SS12L10-E
SS12L10-F
SS14L10-D
SS14L10-E
YS09L10-F
YS09L10-G
9 COMPRESSOR 61716641 1 1 600
COMPRESSOR 61716646 1 600
9 COMPRESSOR 61716671 1 1 1 1 600
9 COMPRESSOR 61716653 1 1 1 1 600
9 COMPRESSOR 61562832 1 1 600
9 COMPRESSOR 61716665 1 1 600
10 EVAPORATOR COIL 61850100 1 1 1 400
10 EVAPORATOR COIL 61850114 1 400
10 EVAPORATOR COIL 61850117 1 1 1 400
10 EVAPORATOR COIL 61850118 1 1 400
10 EVAPORATOR COIL 62050006 1 1 1 400
10 EVAPORATOR COIL 62050022 1 1 1 400
11 CONDENSER COIL 61850303 1 410
11 CONDENSER COIL 62050317 1 1 1 410
11 CONDENSER COIL 62050318 1 1 1 1 410
11 CONDENSER COIL 62050303 1 1 1 410
11 CONDENSER COIL 62050304 1 1 1 1 410
* DRIER, LIQUID 60308101 1111111111111 480
* DRIER, SUCTION 61828200 1 1 480
* CHECK VALVE 61824404 1 1 510
* REVERSING VALVE 25018305 1 1 500
* CAPILLARY TUBE 03760518 1 1 1 471
* CAPILLARY TUBE 03760520 1 1 471
* CAPILLARY TUBE 03760473 1 1 1 1 471
* CAPILLARY TUBE (HEAT) 03760479 1 1 471
* CAPILLARY TUBE 03760501 1 1 1 1 471
* CAPILLARY TUBE (COOL) 03760555 1 1 471
SMALL CHASSIS "S" SERIES - 115V

11
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. KS SS YS CODE
CHASSIS PARTS
KS12L10-E
KS12L10-F
KS15L10-C KS15L10-D
SS08L10-E
SS08L10-F
SS08L10-H
SS10L10-D
SS10L10-E SS12L10-E
SS12L10-F
SS14L10-D
SS14L10-E
YS09L10-F
YS09L10-G
12 SHROUD, SML W/SUMP LOOP 61803601 111111111111111 720
13 FAN BLADE, CONDENSER 60542003 111111111111111 710
14 BLOWER WHEEL, EVAPORATOR 60610603 1 1 1 1 1 1 1 1 700
14 BLOWER WHEEL, EVAPORATOR 60610604 1 1 1 1 1 1 1 700
15 BRACE, COND. SHROUD 61802600 333333333333333 722
16 SCROLL 61814905 111111111111111 743
17 BLOWER FRONT 61817300 111111111111111 742
* INSULATION, INNER WALL 61816900 111111111111111 781
18 INNER WALL 61907300 111111111111111 777
19 COVER, TOP 61906700 111111111111111 746
20 INSULATION, TOP COVER 61816701 111111111111111 781
21 DECK 61817100 111111111111111 745
22 AIR FOIL 61820200 111111111111111 744
23 MOUNT, FAN MOTOR 61802500 111111111111111 900
27 BASE PAN 61803439 1 1 1 730
27 BASE PAN 61803441 1111 111111 730
27 BASE PAN 61809013 1 1 730
* DRAIN PAN 61803800 111111111111111 840
* BELLOWS, DRAIN VALVE 60179903 1 1 801
* GRILLE, REAR 61818500 111111111111111 771
28 DOOR, SLIDE ASSLY. 61821500 111111111111111 810
* CONNECTOR, SLIDE DOOR 61814800 111111111111111 811
29 PANEL, CTRL. MT. 61807250 1 1 1 1 1 1 999
29 PANEL, CTRL. MT. 61807251 11111 1 1 1 1 999
30 BRACKET, CAP. MT 61820400 111111111111111 999
* PANEL, L/S 61937200 111111111111111 999
31 PARTITION, CTRL. BOX 61802800 111111111111111 999
32 DECORATIVE PANEL 61822658 1 1 1 1 999
32 DECORATIVE PANEL 61823360 1 1 999
33 KNOBS, CTRL. 61493915 2 2 2 2 2 2 761
* HOLDER, THERMISTER 61925001 111111111 764
* HOLDER, AIR FILTER 60865900 222222222222222 756
* FILTER, AIR 60865808 111111111111111 754
* CLAMP, SUPPLY CORD 91500306 222222222222222 999
* BRACKET, RESISTO BLOCK 61820600 1 1 1 1 1 1 999
34 GROMMET, COMPRESSOR 61028900 333333333333333 790
35 SCREW, COMPRESSOR MT. 91400400 333333333333333 999
* COUNTER WEIGHT 61715800 333333333333333 999
36 PLENUM ASSLY. 61810206 111111111111111 753
SMALL CHASSIS "S" SERIES - 115V

12
REF DESCRIPTION PART NO. KS SS YS CODE
CHASSIS PARTS
KS12L10-E
KS12L10-F
KS15L10-C KS15L10-D
SS08L10-E
SS08L10-F
SS08L10-H
SS10L10-D
SS10L10-E SS12L10-E
SS12L10-F
SS14L10-D
SS14L10-E
YS09L10-F
YS09L10-G
37 INTAKE GRILLE 61808906 111111111111111 772
* LATCH, INTAKE GRILLE 61989000 222222222222222 752
38 OUTER SHELL ASSLY 61910100 111111111111111 770
39 SILL PLATE 61808413 111111111111111 999
* CHASSIS GUIDE, SHELL 61819601 222222222222222 999
* FRIEDRICH SCRIPT 60169110 111111111111111 999
* PUSHNUTS, SCRIPT 91002900 222222222222222 999
40 WINGBOARD 60294415 1111111111111 999
41 BRACKET, SUPPORT 61109513 2222222222222 999
42 ANGLE, WINGBOARD 61819811 2222222222222 999
43 ANGLE, TOP 61819711 1111111111111 999
* HARDWARE BAG(SCREWS) 60846016 1111111111111 999
44 GASKET, VINYL 60610304 1 1 1 1 1 1 1 1 1 1 1 1 1 999
45 GASKET, CHASSIS. 61717301 111111111111111 780
45 GASKET, WINDOW. 60610304 1111111111111 780
* CARTON, SHIPPING 61841922 111111111111111 999
OPTIONAL ACCESSORIES ITEMS
* WINDOW KIT WIKS 1 1
* DRAIN KIT, DC-2 01900235 111111111111111 999
* START KIT 61008903 111111111111111 160
* ANTI-ICE KIT 61680600 111111111111111 250
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES - 115V

13
REF DESCRIPTION PART NO. ES SS YS CODE
ELECTRICAL PARTS
ES12L33-D
ES12L33-E
ES16L33-C ES16L33-D
SS12L30-E
SS12L30-F
SS16L30-D
SS16L30-E
YS13L33-D
YS13L33-E
1 THERMOSTAT 61828400 1 1 1 1 1 1 120
* THERMOSTAT, DEFROST 61350314 1 1 122
* REMOTE CONTROL 61826606 1 1 1 1 399
2 ELECTRONIC CTR. 61921194 1 1 1 1 331
* OVERLOAD 61764521 1 1 190
* OVERLOAD 61764556 1 1 1 1 190
* OVERLOAD 61764540 1 1 1 1 190
3 RESISTOR 61808001 1 1 1 1 1 1 200
4 CAPACITOR 61080534 1 1 1 1 150
4 CAPACITOR 61080536 1 1 1 1 1 1 150
5 SUPPLY CORD 60500323 1 1 1 1 1 1 220
5 SUPPLY CORD 60500322 1 1 1 1 220
6 SWITCH, SYS. 8 POS. 60607204 1 1 1 1 1 1 130
7 SWITCH (YES - NO) 61806105 1 1 1 1 1 1 132
8 FAN MOTOR 61871441 1111111111110
* SOLENOID 25063605 1 1 240
8A HEATER 61878610 1 1 1 1 1 1 210
REF DESCRIPTION PART NO. ES SS YS CODE
REFRIGERATION PARTS
ES12L33-D
ES12L33-E
ES16L33-C ES16L33-D
SS12L30-E
SS12L30-F
SS16L30-D
SS16L30-E
YS13L33-D
YS13L33-E
9 COMPRESSOR 61716628 1 1 600
9 COMPRESSOR 61716645 1 1 1 1 600
9 COMPRESSOR 62199704 1 1 1 1 600
10 EVAPORATOR COIL 61850100 1 1 1 400
10 EVAPORATOR COIL 61850117 1 1 1 400
10 EVAPORATOR COIL 62050006 1 1 400
10 EVAPORATOR COIL 62050022 1 1 400
11 CONDENSER COIL 61850306 410
11 CONDENSER COIL 62050303 1 1 1 1 410
11 CONDENSER COIL 62050304 1 1 1 1 410
11 CONDENSER COIL 62050312 1 410
11 CONDENSER COIL 62050321 1 410
* DRIER, LIQUID 60308101 11111111 480
* DRIER, SUCTION 61828200 1 1 480
* CHECK VALVE 61824404 1 1 510
* REVERSING VALVE 25018305 1 1 500
* CAPILLARY TUBE 03760543 1 1 471
* CAPILLARY TUBE 03760545 1 1 471
* CAPILLARY TUBE 03760473 1 1 1 1 471
* CAPILLARY TUBE 01390005 1 1 1 1 471
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES - 230V

14
REF DESCRIPTION PART NO. ES SS YS CODE
CHASSIS PARTS
ES12L33-D
ES12L33-E
ES16L33-C ES16L33-D
SS12L30-E
SS12L30-F
SS16L30-D
SS16L30-E
YS13L33-D
YS13L33-E
12 SHROUD, CONDENSER 61803601 1111111111720
13 FAN BLADE 60542003 1111111111710
14 BLOWER WHEEL 60610603 1 1 700
14 BLOWER WHEEL 60610616 11111111 700
15 BRACE, COND. SHROUD 61802600 3333333333722
16 SCROLL 61814905 1111111111743
17 BLOWER FRONT 61817300 1111111111742
18 INNER WALL 61907300 1111111111777
19 COVER, TOP 61906700 1111111111746
20 INSULATION, TOP COVER 61816701 1111111111781
21 DECK 61817100 1111111111745
22 AIR FOIL 61820200 1111111111744
23 MOUNT, FAN MOTOR 61802500 1111111111900
25 BRACKET, HEATER MT. 61818900 1 1 1 1 1 1 999
27 BASE PAN 61809015 1 1 1 1 730
27 BASE PAN 61803441 1 1 1 1 730
27 BASE PAN 61809013 1 1 730
* DRAIN PAN 61803800 1111111111840
* BELLOWS, DRAIN VALVE 60179903 1 1 1 1 1 1 801
* GRILLE, REAR 61818500 1111111111771
28 DOOR, SLIDE ASSLY. 61821500 1111111111810
* CONNECTOR, SLIDE DOOR 61814800 1111111111811
29 PANEL, CTRL. MT. 61807251 1 1 1 1 999
29 PANEL, CTRL. MT. 61807250 1 1 1 1 1 1 999
30 BRACKET, CAP. MT 61820400 1111111111999
* PANEL, L\S 61937200 1111111111999
31 PARTITION, CTRL. BOX 61802800 1 1 1 1 999
31 PARTITION, CTRL. BOX 61802801 1 1 1 1 1 1 999
32 DECORATIVE PANEL 61823360 1 1 1 1 1 1 999
33 KNOBS, CTRL. 61493915 2 2 2 2 2 2 761
* HOLDER, THERMISTER 61925001 1 1 1 1 764
* HOLDER, AIR FILTER 60865900 2222222222756
* FILTER, AIR 60865808 1111111111754
* CLAMP, SUPPLY CORD 91500306 2222222222999
* BRACKET, RESISTO BLOCK 61820600 1 1 1 1 1 1 999
34 GROMMET, COMPRESSOR 61028900 3333333333790
35 SCREW, COMPRESSOR MT. 91400400 3333333333999
36 PLENUM ASSLY. 61810206 1111111111753
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES - 230V

15
REF DESCRIPTION PART NO. ES SS YS CODE
CHASSIS PARTS
ES12L33-D
ES12L33-E
ES16L33-C ES16L33-D
SS12L30-E
SS12L30-F
SS16L30-D
SS16L30-E
YS13L33-D
YS13L33-E
37 INTAKE GRILLE 61808906 1111111111772
* LATCH, INTAKE GRILLE 61989000 2222222222752
38 OUTER SHELL ASSLY 61910100 1111111111770
39 SILL PLATE 61808413 1111111111999
* CHASSIS GUIDE, SHELL 61819601 2222222222999
* FRIEDRICH SCRIPT 60169110 1111111111999
* PUSHNUTS, SCRIPT 91002900 2222222222999
40 WINGBOARD 60294415 1 1 1 1 999
41 BRACKET, SUPPORT 61109513 2 2 2 2 999
42 ANGLE, WINGBOARD 61819811 2 2 2 2 999
43 ANGLE, TOP 61819711 1 1 1 1 999
44 GASKET, VINYL 60610304 1 1 1 1 780
* HARDWARE BAG(SCREWS) 60846017 1 1 1 1 1 1 999
* HARDWARE BAG(SCREWS) 60846016 1 1 1 1 999
45 GASKET, CHASSIS 61717301 1111111111780
45 GASKET, WINDOW 60610304 1 1 1 1 780
* CARTON, SHIPPING 61841922 1111111111999
OPTIONAL ACCESSORY ITEMS
* WINDOW KIT WIKS 1111 11
* DRAIN KIT, DC-2 01900235 1111111111999
* START KIT 61008903 1111111111160
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES - 230V

16
CHASSIS PARTS (EM, KM, SM, & YM)
MEDIUM CHASSIS "M" SERIES

17

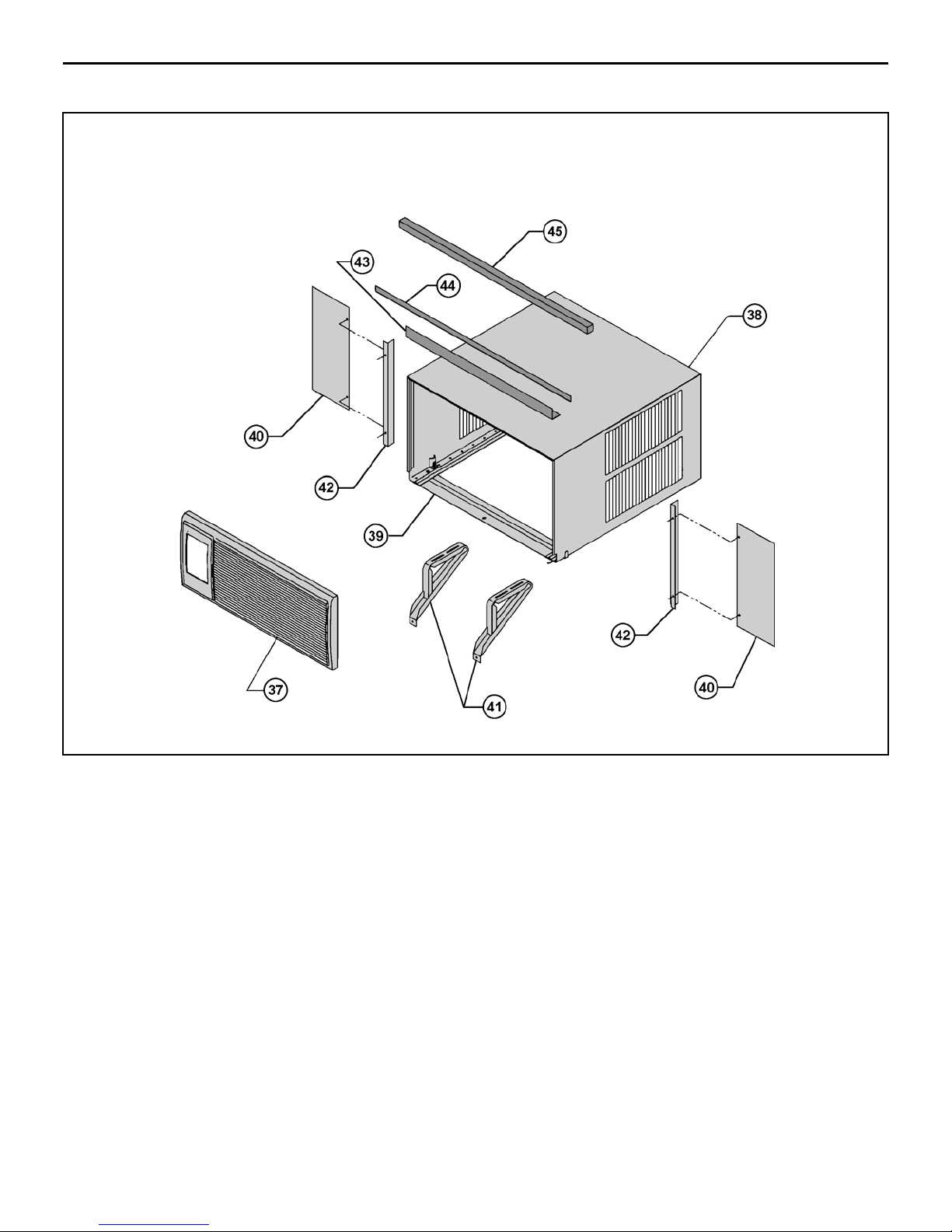

CABINET & MOUNTING PARTS (EM, KM, SM, YM)
MEDIUM CHASSIS "M" SERIES

18
REF DESCRIPTION PART NO. EM KM SM YM CODE
ELECTRICAL PARTS
EM18L34-C EM24L34-B
KM18L30-C KM18L30-D KM24L30-C KM24L30-D
SM18L30A-D
SM18L30A-E
SM21L30-E
SM21L30-F
SM24L30-C SM24L30-D YM18L34-D
YM18L34-E
1 THERMOSTAT 61828500 1 1 1 1 120
1 THERMOSTAT 61828400 1 1 1 1 120
* THERMOSTAT, DEF. 61350314 1 1 122
2 ELECTRONIC BOARD 61921194 111111 331
* REMOTE CONTROL 61826606 111111 350
* OVERLOAD 61764522 1 1 190
* OVERLOAD 61764556 1 1 190
* OVERLOAD 61764557 1 1 1 190
3 RESISTOR 61808001 111111 11 200
4 CAPACITOR 61080557 1 1 150
4 CAPACITOR 61080529 1 1 1 1 1 1 1 150
4 CAPACITOR 61080534 1 1 1 1 1 150
5 SUPPLY CORD 60500371 1 1 1 1 220
5 SUPPLY CORD 60500322 1 1 1 1 1 1 220
5 SUPPLY CORD 60500323 1 1 1 1 220
6 SWITCH SYS. 8 POS. 60607204 1 1 1 1 130
6 SWITCH SYS. 6 POS. 60607205 1 1 1 1 130
7 SWITCH (YES - NO) 61806105 111111 11 132
8 FAN MOTOR 61871432 11111111111111 110
* SOLENOID COIL 25063605 1 1 240
8A HEATER 61878611 1 1 1 1 210
REFRIGERATION PARTS
EM18L34-C EM24L34-B
KM18L30-C KM18L30-D KM24L30-C KM24L30-D
SM18L30A-D
SM18L30A-E
SM21L30-E
SM21L30-F
SM24L30-C SM24L30-D YM18L34-D
YM18L34-E
9 COMPRESSOR 61716652 1 1 1 1 1 600
9 COMPRESSOR 61716651 1 1 600
9 COMPRESSOR 61716663 1 1 1 600
9 COMPRESSOR 62199704 1 1 600
9 COMPRESSOR 61716660 1 1 600
10 EVAPORATOR COIL 61850014 1 1 400
10 EVAPORATOR COIL 61850025 1 400
10 EVAPORATOR COIL 62050019 1 1 1 1 1 400
10 EVAPORATOR COIL 62050025 1 1 1 1 1 1 400
11 CONDENSER COIL 62050215 1 1 1 410
11 CONDENSER COIL 61850200 1 1 1 1 410
11 CONDENSER COIL 61850205 1 1 410
11 CONDENSER COIL 61850232 1 410
11 CONDENSER COIL 62050216 1 1 1 1 410
* DRIER, LIQUID 60308101 111111111111 480
* DRIER, SUCTION 61828200 1 1 480
* CHECK VALVE 61824404 1 1 471
* REVERSING VALVE 25018705 1 1 500
* CAPILLARY TUBE 03760479 471
* CAPILLARY TUBE 01389975 1 1 1 471
* CAPILLARY TUBE 03760545 3 3 1 1 471
* CAPILLARY TUBE 03760511 1 1 471
* CAPILLARY TUBE 03760452 3 3 3 3 3 3 3 471
MEDIUM CHASSIS "M" SERIES
* PARTS NOT SHOWN

19
REF DESCRIPTION PART NO. EM KM SM YM CODE
CHASSIS PARTS
EM18L34-C EM24L34-B
KM18L30-C KM18L30-D KM24L30-C KM24L30-D
SM18L30A-D
SM18L30A-E
SM21L30-E
SM21L30-F
SM24L30-C SM24L30-D YM18L34-D
YM18L34-E
12 SHROUD, CONDENSER 61804901 11111111111111 720
13 FAN BLADE, COND. 60542004 11111111111111 710
14 BLOWER WHEEL, EVAP. 60610617 1 1 1 1 1 1 1 700
14 BLOWER WHEEL, EVAP. 60610618 1 1 1 1 1 1 1 700
15 BRACE, COND.SHROUD 61802600 33333333333333 722
16 SCROLL 61817505 11111111111111 743
17 BLOWER FRONT 61817400 11111111111111 742
18 INNER WALL 61907200 11111111111111 777
19 COVER, TOP 61906700 11111111111111 746
20 INSULATION, TOP COVER 61816701 11111111111111 781
21 DECK 61817100 11111111111111 745
22 AIR FOIL 61820200 11111111111111 744
23 MOUNT, FAN MOTOR 61804100 11111111111111 900
25 BRACKET, HTR 61818900 1 1 1 1 730
27 BASE PAN 61809015 1 1 1 1 730
27 BASE PAN 61803441 1111111111 730
* BELLOWS, DRAIN VALVE 60179903 1 1 1 1 801
* DRAIN PAN, EVAP. 61803800 11111111111111 840
* GRILLE, REAR 61818501 11111111111111 771
28 DOOR, SLIDE ASY 61821500 11111111111111 810
* CONNECTOR SLIDE ASY 61814800 11111111111111 811
* WIRE CLIP, SLIDE ASSY 60301800 22222222222222 999
29 PANEL, CTRL. MOUNT 61811050 111111 11 999
29 PANEL, CTRL. MOUNT 61811051 111111 999
30 BRACKET, CAP. MOUNT 61820400 11111111111111 999
31 PARTITION, CTRL. BOX 61804301 1 1 1 1 999
31 PARTITION, CTRL. BOX 61804300 1111111111 999
32 DECORATIVE PANEL 61823360 1 1 1 1 999
32 DECORATIVE PANEL 61822658 1 1 1 1 999
33 KNOBS, CRTL. 61493915 222222 22 761
* BRACKET,RESISTOR BLK 61820600 111111 11 999
* HOLDER, THERMISTOR 61925001 111111 764
* HOLDER, AIR FILTER 60865900 22222222222222 756
* FILTER, AIR 60865809 11111111111111 754
* CLAMP, SUPPLY CORD 91500308 2 2 2 2 999
* CLAMP, SUPPLY CORD 91500306 2222222222 999
34 GROMMET, COMP. 61028900 3 3 3 3 3 3 3 3 3 790
34 GROMMET, COMP. 01150934 3 3 3 3 3 790
35 SCREW, COMP. 91400400 33333333333333 999
36 PLENIUM ASLY. 61810206 11111111111111 753
37 GRILLE, INTAKE 61811111 11111111111111 772
* LATCH, GRILLE INTAKE 61989000 22222222222222 999
38 OUTER SHELL 61910100 11111111111111 770
39 SILL PLATE 61808413 11111111111111 999
* CHASSIS GUIDE, SHELL 61819601 22222222222222 999
* CHASSIS RETAINER 61826400 11111111111111 999
* FRIEDRICH SCRIPT 60169110 11111111111111 999
* PUSHNUTS, SCRIPT 91002900 22222222222222 999
40 WINGBOARD 60294420 1111111111 999
41 BRACKET, SUPPORT 61109513 2222222222 999
42 ANGLE, WINGBOARDS 61819813 2222222222 999
43 ANGLE, TOP SUPPORT 61819711 1111111111 999
44 GAASKET, VINYL 60610304 1111111111 780
* HARDWARE (SCREWS) 60846017 1 1 1 1 999
* HARDWARE (SCREWS) 60846016 1111111111 999
45 GASKET, CHASSIS 61717301 11111111111111 780
45 GASKET, WINDOW 60073300 1111111111 780
* CARTON, SHIPPING 61841923 11111111111111 999
OPTIONAL ACCESSORY ITEMS
* WINDOW INSTALLATION KIT WIKM 1 1 1 1
* DRAIN KIT, DC-2 01900235 11111111111111
* START KIT 61008903 11111111111111
MEDIUM CHASSIS "M" SERIES PARTS LIST
* PARTS NOT SHOWN

20
CHASSIS PARTS (SL, EL, & YL)
LARGE CHASSIS "L" SERIES
