Frigidaire FAH105P1T User manual

M40L0007.eps M40C0013.eps M40M0014.eps 81902357.eps
Product No. FAH105P1T1
Series TTW/Builder
Volts 115
BTU-Cooling 10000 BTU
Wiring Diagram 81902357
Owner's Guide 819042072en
Installation Instructions 819042236en
Market North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995438776
05/06/07
(EN/SERVICE/KC)
099
ROOM AIR
CONDITIONER
Model No.
FAH105P1T
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995438776 FAH105P1T1
06/05 2
CABINET, FRONT, CONTROLS

FAH105P1T1 Publication No: 5995438776
# Functional Parts 3 06/05
* Non-Illustrated Parts
CABINET, FRONT, CONTROLS
POS. NO PART NO. DESCRIPTION
3 5304447987 Grille, air intake, side
4 5304447988 Block, spacer support, (2)
5 5304447989 Screen, grille, plastic mesh, rear
6 5304447990 Spacer, sleeve baffle, tapered
7 5304447991 Panel, rear grille, plastic
8 5304447992 Grille, steel, rear
9 # 5304447993 Remote Control, transmitter
10A 5304448486 Front Assembly, complete panel, includes 10, 11, 12, 13, 14, 15
10 5304447994 •Louver, horizontal
11 5304447995 •Panel, grille, front
12 5304447996 •Louver, vertical
13 5304447997 •Bracket, air filter mt.
14 5304447998 •Dial, adjuster wheel, louver
15 5304447999 •Filter, air, plastic frame
22 5304448006 Console, control cover
23 # 5304448007 PC Board, display/input
24 5304448008 Cover, control box, front plate
25 # 5304447810 Transformer
26 # 5304448009 Capacitor, fan motor
27 5304448010 Control Box
28 5304447808 Strap, capacitor mtg.
29 # 5304448011 Capacitor, run
30 # 5304448012 Power Cord, LCDI, with test/reset
31 # 5304448013 PC Board, control/power
32 5304447802 Clip, cable clamp
45 5304448048 Trim, window frame, vertical
46 5304448049 Trim, window frame, horizontal
47 5304448050 Cabinet, wrapper/sleeve
50 # 5304448125 Thermistor, temp sensor, indoor

Publication No: 5995438776 FAH105P1T1
06/05 4
COOLING & AIR FLOW SYSTEMS

FAH105P1T1 Publication No: 5995438776
# Functional Parts 5 06/05
* Non-Illustrated Parts
COOLING & AIR FLOW SYSTEMS
POS. NO PART NO. DESCRIPTION
1 5304448054 Base, unit chassis
16 # 5304448061 Evaporator
17 # 5304448062 Suction Tube
18 # 5304448064 Discharge Tube
19 # 5304448003 Condenser
20 # 5304448066 Capillary Tube
21 # 5304448068 Compressor Assembly, w/electricals, drier, grommets
33 5304448015 Scroll, blower housing, top
34 5304448016 Bulkhead, panel, left side
35 5304448018 Cover, blower scroll, top plate
36 5304448040 Bar, linkage
37 # 5304448041 Fan Blade, axial flow
38 # 5304448042 Shroud, fan housing
39 5304448043 Bracket, fan motor mount
40 # 5304448044 Motor, fan
41 5304448017 Bulkhead, panel, right side
42 5304448045 Plate, linkage
43 5304448046 Scroll, blower housing, bottom
44 # 5304448047 Blower Wheel, centrifugal fan

Publication No: 5995438776 FAH105P1T1
06/05 6

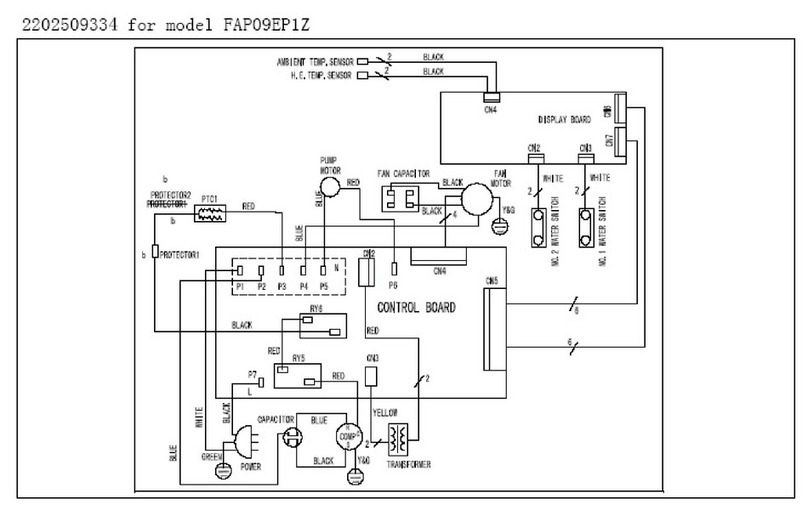

WIRING DIAGRAM
81902357
