Safety precautions
DANGER! Avoid Serious Injury
or Death
1. Do not attempt to install the split air
conditioner by yourself.
2. This air conditioner contains no
user-serviceable parts. Always call
an authorized Electrolux servicer for
repairs.
3. When moving the air conditioner,
always call an authorized Electrolux
servicer for disconnection and
re-installation.
4. Do not insert or place fingers or
objects into the air discharge area in
the front of the indoor unit.
5. Do not insert or place fingers or
objects into the air discharge area
in the outdoor unit.
6. Do not start or stop the air conditioner
by unplugging the power cord or
turning off the power at the electrical
box.
7. Do not cut or damage the power cord.
8. If the power cord is damaged it should
only be replaced by an authorized
Electrolux servicer.
9. In the event of a malfunction (sparks,
burning smell, etc.) immediately stop
the operation, disconnect the power
cord, and call an authorized Electrolux
servicer.
10.Do not operate the air conditioners
with wet hands
11.Do not pull on the power cord.
12.Do not drink any water that is drained
from the air conditioners.
1. Provide occasional ventilation
during use. Do not direct airflow at
fireplaces or other heat related
sources as this could cause flare ups
or make units run excessively.

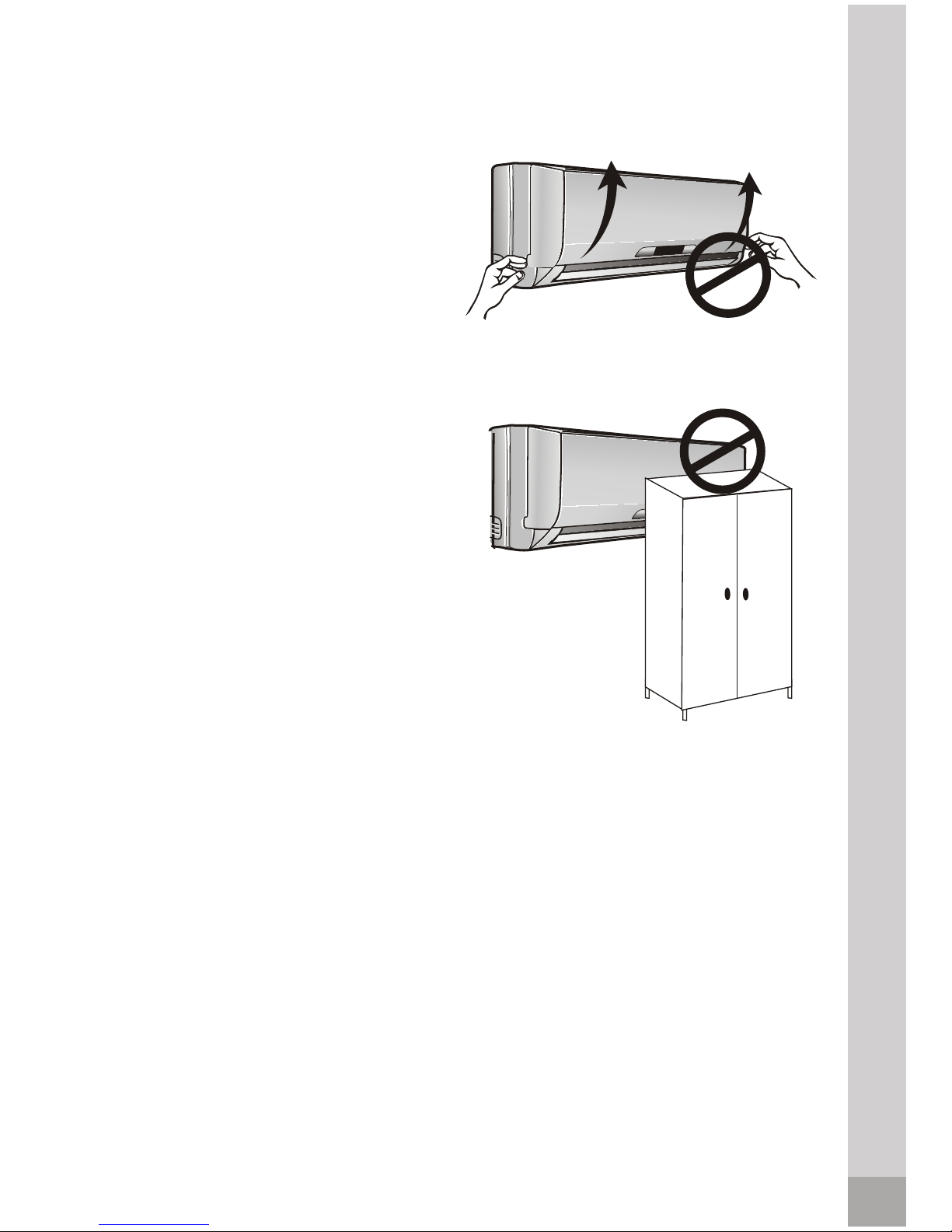

2. Do not climb on or place objects on
the outdoor unit.
3. Do not hang objects off the indoor
unit.

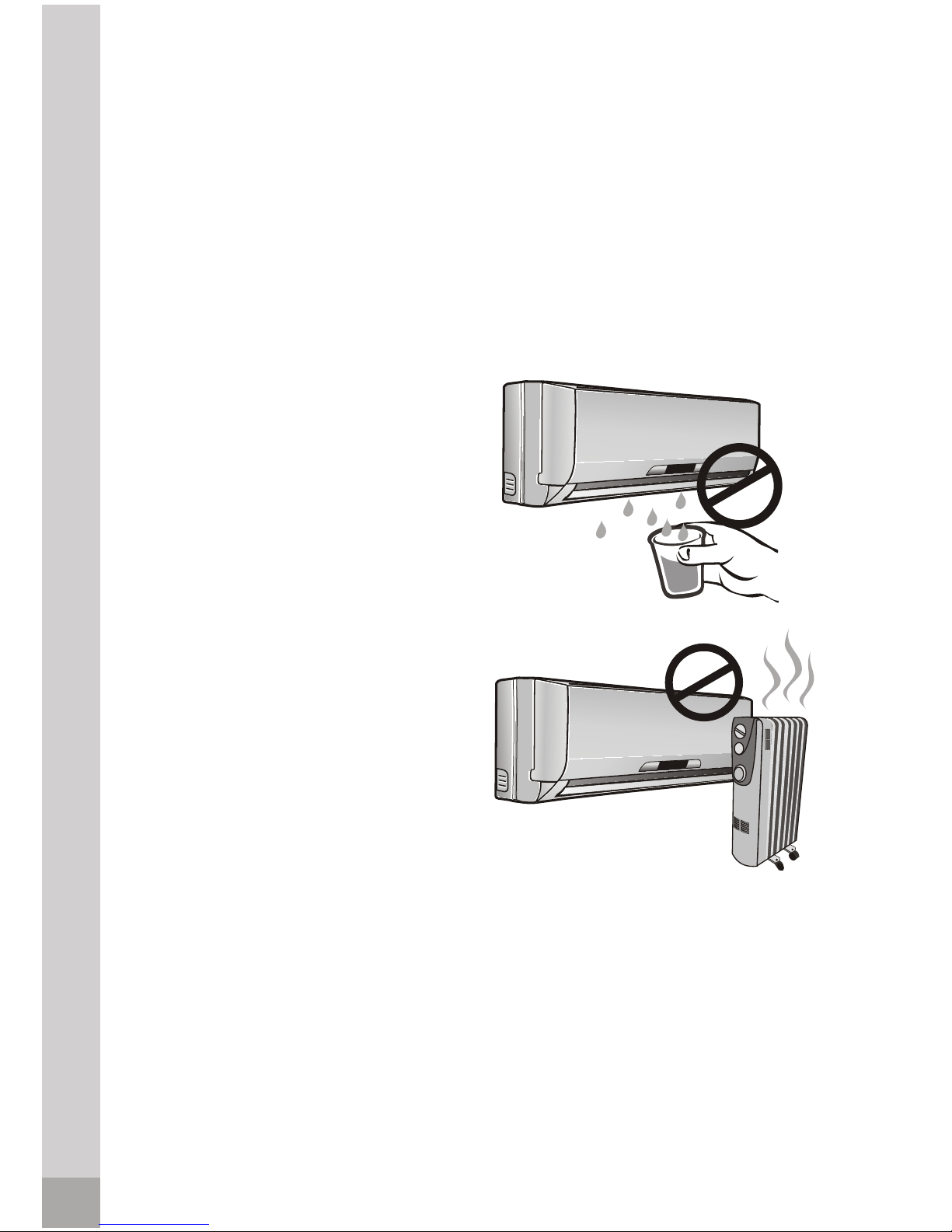

4. Do not place containers containing
water on the indoor and/or outdoor
units.
5. Turn off the air conditioner at the
power source when it will not be
used for an extended period of time.
6. Periodically check the condition of
the outdoor unit’s installation base
for any damage.
7. Do not apply heavy pressure to the
radiator fins of the indoor and/or
outdoor units.
8. Operate the indoor unit with air
filters in place.
9. Do not block or cover the intake
grille, discharge area and outlet
ports.
10.Ensure that any electrical/electronic
equipment is one yard away from
the indoor unit and outdoor unit.
11.Do not use or store flammable
gases near the indoor and/or
outdoor units.
CAUTION! Avoid Injury or
damage to the unit or other
property
Safety precautions
This appliance must be installed by a qualified licensed HVAC
technician in accordance with all applicable codes. All electrical
connections should be performed by a licensed electrician.

To prevent injury to the user or other people and property damage, the
following instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
shock.
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
switching on or off the power. It
may cause electric shock or fire due
to heat generation.
damp environment. It may cause
electric shock.
electric parts. It may cause failure of
05 Safety precautions
3. Disconnect the power if strange
machine, electric shock or fire.
2. Always ensure effective grounding.
No grounding may cause electric
4. Do not operate or stop the unit by
5. Do not operate with wet hands or in
6. Do not allow water to run into
heating appliances. It may cause
fire and electric shock.
unspecified power cord. It may
cause electric shock or fire.
9.Do not damage or use an
8. Do not use the power cord close to
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or fire.
7. Do not use the power cord near
power cord and ensure that the
is danger of fire or electric shock.
cord will not be compressed. There
10.Do not place heavy object on the

operation. It may cause electric
removed, do not touch the metal
parts of the unit. It may cause an
injury.
Safety precautions
shock or injury.
and electric shock.
It may cause failure of appliance
11.Do not open the unit during
13.Do not disassemble or modify unit.
14.When the air filter is to be
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire,
electric shock or injury.
to air flow.
not using the unit for a long time.
15.When the unit is to be cleaned,
16.Avoid direct exposure of occupants
17.Turn off the main power switch when
18.The air conditioner may be dusted
with an oil free cloth, or washed
with a cloth dampened in a solution
of warm water and mild dishwashing
detergent. Rinse thoroughly and wipe
dry. Wring excess water from cloth
before wiping around controls.
Clean filter once every two weeks.
inlets or inside of air-outlet. It may
cause failure of appliance or
accident.
concern of damage due to falling
of unit.
due to prolonged exposure. If
bracket damages, there will be
the outdoor unit will not damage
19.Ensure that the installation bracket of
20.Always insert the filters securely.
22.Do not place obstacles around air-
cause failure.
Operation without filters may
from air conditioner. It contains
12.Do not drink water drained
contaminants and could make
you sick.
dedicated power circuit. No
installation may cause fire and
electric shock.
21.Always install circuit breaker and a
06

07
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably install
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight of
the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the indoor
figure.
that the unit be installed at the
Choosing the installation site
More
More
More
More
Choosing the installation site
the unit at one of these sites, please consult your local distributor beforehand:
1. Sites with machine oil.
unit, as shown in the sideward
meter) between the unit and radio
5. There should be at least 3 feet (1
feet (2.3 meters) from the ground.
flammable gases.
7. The indoor unit must be at least 7.5
6. It must be far from fire, smoke or
center.
or television devices. It is ideal
than 6"
than 5"
than 7.5'
than 5"
1. Carefully read the installation manual before beginning.
2. Follow each step as shown.
4. Pay attention to danger and safety notices
Installation Warnings
3. Observe all local, state and national electric codes. This appliance must be
installed by a qualified licensed HVAC technician in accordance with all
applicable codes. All electrical connections should be performed by a licensed
electrician.

Outdoor Unit
1. The outdoor unit must be
installed at a convenient site
that is not exposed to strong
winds. The site should be dry
and well ventilated.
2. The site must support the weight
of the outdoor unit and allow
for vertical installation.
3. There must not be the possibility
of increased noise and vibration
at the site.
4. The unit must be installed at a
site where the noise produced
by its operation and air
discharge does not disturb the
neighbors or animals.
5. The site cannot have any
leakage of flammable gases.
space around the unit, as shown
access the installation site.
More
More
More
More
More
Choosing the installation site
in the figure.
6. The site must provide enough
7. Children must not be able to
than 1 feet
than 2 feet
than 1 feet
than 2 feet
than 6.6 feet
08

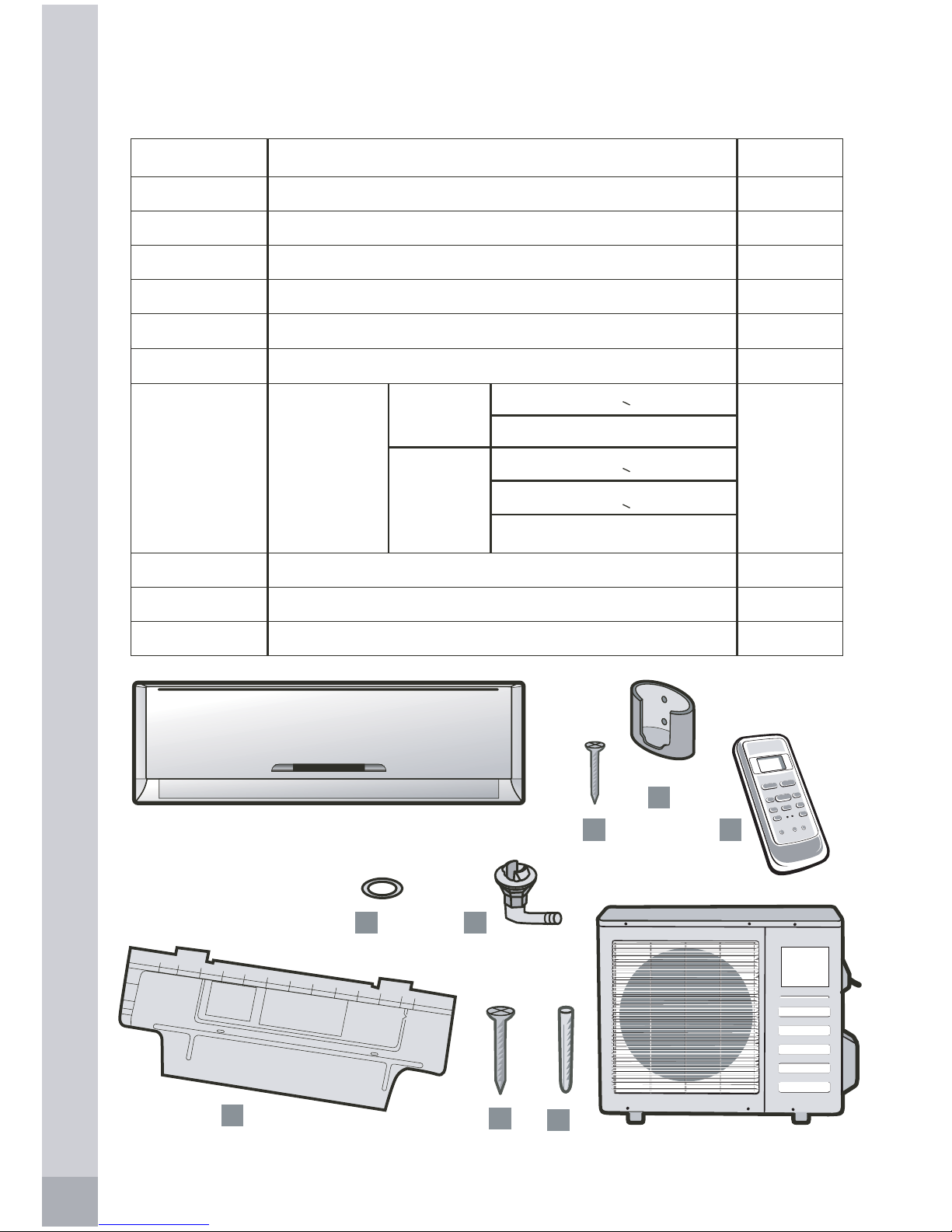

Parts list
2
54
3
1
Indoor unit
Outdoor unit
Parts list
Installation plate
Clip anchor
Seal
Drain Joint
.
1
2
3
4
5
1
2
1
1
10
8
1
1
Remote controller
Remote Controller holder
Connecting
pipe
assembly
Liquid side
Gas side
NUMBER PART NAME QTY
(capacity < 12000 Btu's)
(capacity < 12000 Btu's)
(capacity < 9000 Btu's)
(capacity > 12000 Btu's)
Ø3/8"
Ø1/4"
Ø1/2"
Ø3/8"
Ø5/8"
Self-tapping screw A #7X1"
Self-tapping screw B #7X3/4"
1
6Connecting cable
8
9
10
71
89
10 10
98
(capacity > 12000 Btu’s)
09

Attention
1. This illustration is for explanation purposes only.
5
4
23
1
Indoor unit
Outdoor
unit
6
Air filter
More
A
BC
Parts list
2. Copper tubes must be insulated independently
More than 5"
More than 6"
More than 5"
8
9
10
6
7
More than 2 feet
than 2 feet
More than 6.6 feet
More than 1 feet
10

11

Attention
Fixing the Installation Plate
Drilling the Hole
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown
2. In the case of tiled, concrete or
diameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. Fix the installation plate to the
1. Determine the position of the
installation plate and drill the
downward.
2. Always use a pipe cover with an
Installation plate
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoor unit Outdoor unit
Indoor unit installation
(B)
Indoor unit outline Installation plate
the ceiling
from the wall from the wall
Refrigerant pipe Refrigerant pipe
Capacity
< 12000 Btu's
3.15
in the figures above.
A type screws.wall with eight
hole for the pipes using the
pipe hole so that it is tilted slightly
opening when drilling.
6" or more from
5" or more
hole (left) Ø 2.56" hole (right) Ø 2.56"
5" or more
3.55"
1.77"
1.77"
10.72"
11.54"
19.27"
1.77"
36.25"
0.2"-0.28"
4. At all times securing to the wall
studs is recommended.
similar walls, create 0.2 inch
12

Connective pipe and drainage installation
Drainage

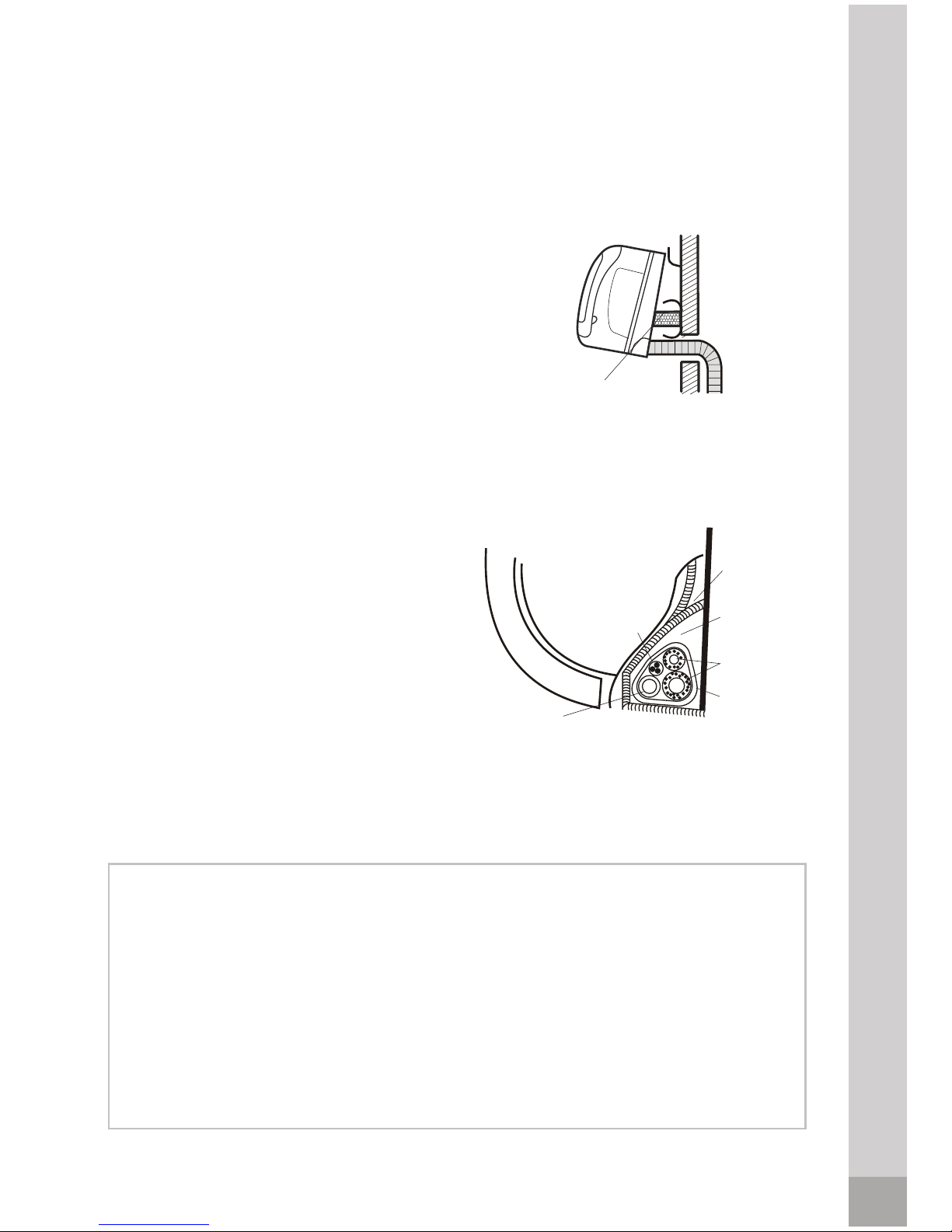

1. Run the drain hose sloping
downward. Do not install the drain
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Connective pipe
1. For the left-hand and right-hand
piping, remove the pipe cover from
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
connective pipe.
Indoor unit installation
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook of
the installation plate, move the
indoor unit from side to side to see
that it is securely hooked.
Upper hook
Lower hook
Fastening the Indoor Unit
Do not put the end
of drain hose into water.
Do not block
water flow
by a rise.
Do not block
water flow
by a rise.
piping
Pipe cover
(left)
Pipe
holder
Pipe cover
(right)
Right piping
Connective
pipe
Indoor unit
outline
Rear right
piping
Rear left
Left piping
hose as illustrated sideward.
the side panel. The pipe cover
must be kept as it may
conditioner
to any other place.
be used
the air
shown in the sideward figure. Bend
the connective pipe to be laid at
the wall. Fix the end of the
when relocating
1.69"
a height of 1.69 inches or less from
13

Attention
Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
anything else in the box.
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
5. Be sure that the drain hose is located at the lowest side of the bundle. Locating
6. Never intercross nor intertwist the power wire with any other wiring.
7. Run the drain hose sloped downward to drain out the condensed water
smoothly.
Cushioning
material
3. Piping can easily be made by
lifting the indoor unit with a
cushioning material between the
indoor unit and the wall. Get it
out after finish piping.
4. Push the lower part of the indoor
unit up on the wall, Then move
the indoor unit from side to side,
up and down to check if it is
hooked securely.
Indoor unit installation
Indoor unit
Cable
Ponding
box
Pipe room
Wrapping
belt
Drain hose
Connective
pipe
securely and evenly as shown
in the sideward figure.
piped out of room, do not put
connection
at the upper side may cause drain pan to overflow inside the unit.
4. Both of the auxiliary piping should be heat insulation.
14

1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.
2. Direct the air vent toward an area
without obstacles.
especially in areas where it is
frequently windy.
4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
Outdoor unit installation
Strong wind
Outdoor unit installation
3. Install the unit at the site where it is
exposed to as little wind as possible,
schrubs or bushes.
blocks radiating air, including
15
5. Be sure there is no obstacle which

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
Fit the seal into the drain elbow, then
insert the drain joint into the base
pan hole of outdoor unit, rotate 90
o
to
securely assemble them. Connect
the drain joint with an extension
drain hose (Locally purchased), in
case of the water draining off the
outdoor unit during the heating
Air inlet
Air
inlet
Air outlet
A
B
Outdoor unit installation
Base pan hole
of outdoor unit
Seal Drain joint
Seal
Drain pipe
+=
Drain joint installation
mode or rainy season.
A (inch) B (inch)
Outdoor unit dimension inch(WxHxD)
2.25'x1.41'x0.85'
2.56'x1.77'x0.82'
2.49'x1.94'x0.94'
2.77'x2.28'x1.10'
1.51'
1.80'
1.74'
1.84'
0.82'
0.91'
0.91'
0.95'
1.10'
2.30'x1.76'x0.77'
1.50'
separately).
or 0.32 inch diameter (Purchasedy
mount with a bolt and nut 0.39 inch
16

Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using the
following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than the
measured distance.

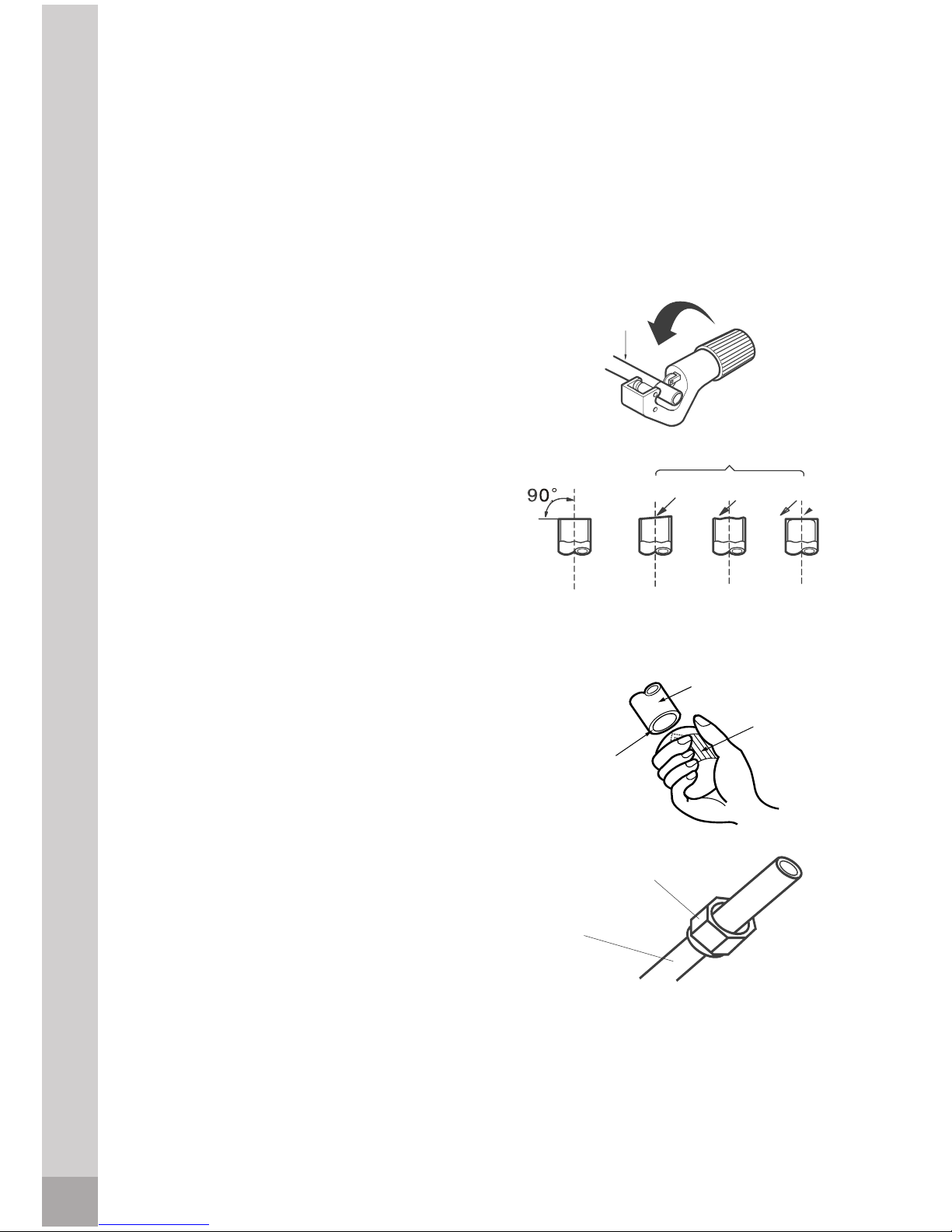

2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
tube/pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing.
indoor and outdoor unit, then put
them on pipe/tube having
possible to put them on after flaring
work)
Refrigerant piping connection
Refrigerant piping connection
Pipe
Correct Wrong
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
Remove flare nuts attached to
B) Put the end of the copper
3. Put nut on.
completed burr removal.(It is not
Note: Keep original bend so not kinking of the tube occurs.
long, loop for excess.
Unit comes with 16.4 feet tubing bundle. It is not recommended to cut. If too
the pipe length.
D) Cut the cable 4.92 feet longer than
17

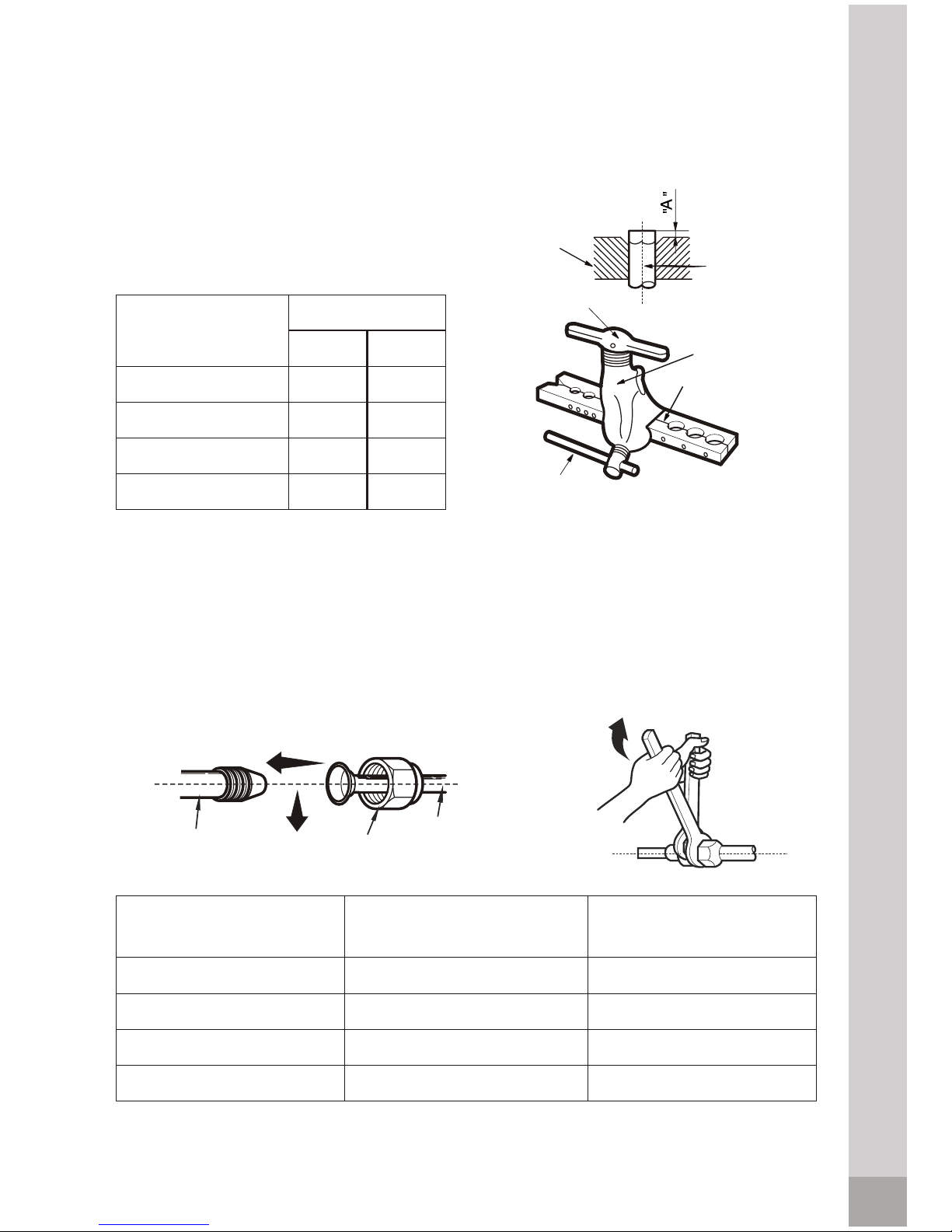

4. Flaring work.
die in the dimension shown in
the table below.
OUTER
Connection Adjustment
1. Align the pipes to be connected.
OUTER TIGHTENING
Caution: Excessive twisting may
break the nut, depending on the
installation conditions.
Refrigerant piping connection
Bar
pipe
Handle
Clamp
handle
Yoke
Red arrow mark
Flare
nut
Pipings
Indoor unit
tubing
Copper
A (inch)
Max. Min.
DIAMETER (inch)
0.051
0.063
0.071
0.095
0.028
0.039
0.039
0.087
2. Screw the flare nut with your
fingers, and then tighten it with
a spanner and torque wrench,
as shown in the following figure.
ADDITIONAL TIGHTENING
DIAMETER (inch)
Firmly hold copper pipe in a
1/4
3/8
1/2
5/8
1/4
3/8
1/2
5/8
TORQUETORQUE (lbf.in)
139 174
260 304
434 477
651 694
(lbf.in)
18

1. The inside and outside connecting
cable can be connected without
removing the front grille.
2. Connecting cable between indoor
unit and outdoor unit shall be
approved polychloroprene
sheathed flexible cord, type
cord.
3. Lift the indoor unit panel up,
remove the electrical box cover by
loosening the screw.
4. Ensure the colour of wires of
outdoor unit and the terminal Nos.
are the same to the indoors
respectively.
5. Wrap those cables not connected
with terminals with insulation
tapes, so that they will not touch
any electrical components. Secure
the cable onto the control board
with the cord clamp.
Connect the cable to the indoor unit
Electrical work
(Heating and cooling model)
(Heating and cooling model)
"Cable A"
"Cable C”
"Cable B"
or
cover
Electrical box
designation 16AWG or heavier
Code wire
1.57"
0.39"
> 12000 btu's CABLE
< 12000 btu's CABLE (Cooling model)
< 12000 btu's CABLE
1.57" 1.57"
1.57"
0.39"
0.39"
0.39"
Code wire Code wire
Code wire
20

Electrical work
COOLING MODEL
HEATING AND COOLING MODE
HEATING AND COOLING MODEL
1 2(N) 3 4 1 2(N) 3 4
or
Terminal block of indoor unit
Terminal block of indoor unit
Terminal block of indoor unit
or
"Connector A"
"Connector A" "Connector B"
To outdoor
unit
To outdoor
unit
To outdoor
unit
1 2 3 4
To Outdoor Unit
9000 and 12000 Btu's 9000 and 12000 Btu's
18000 Btu's
21

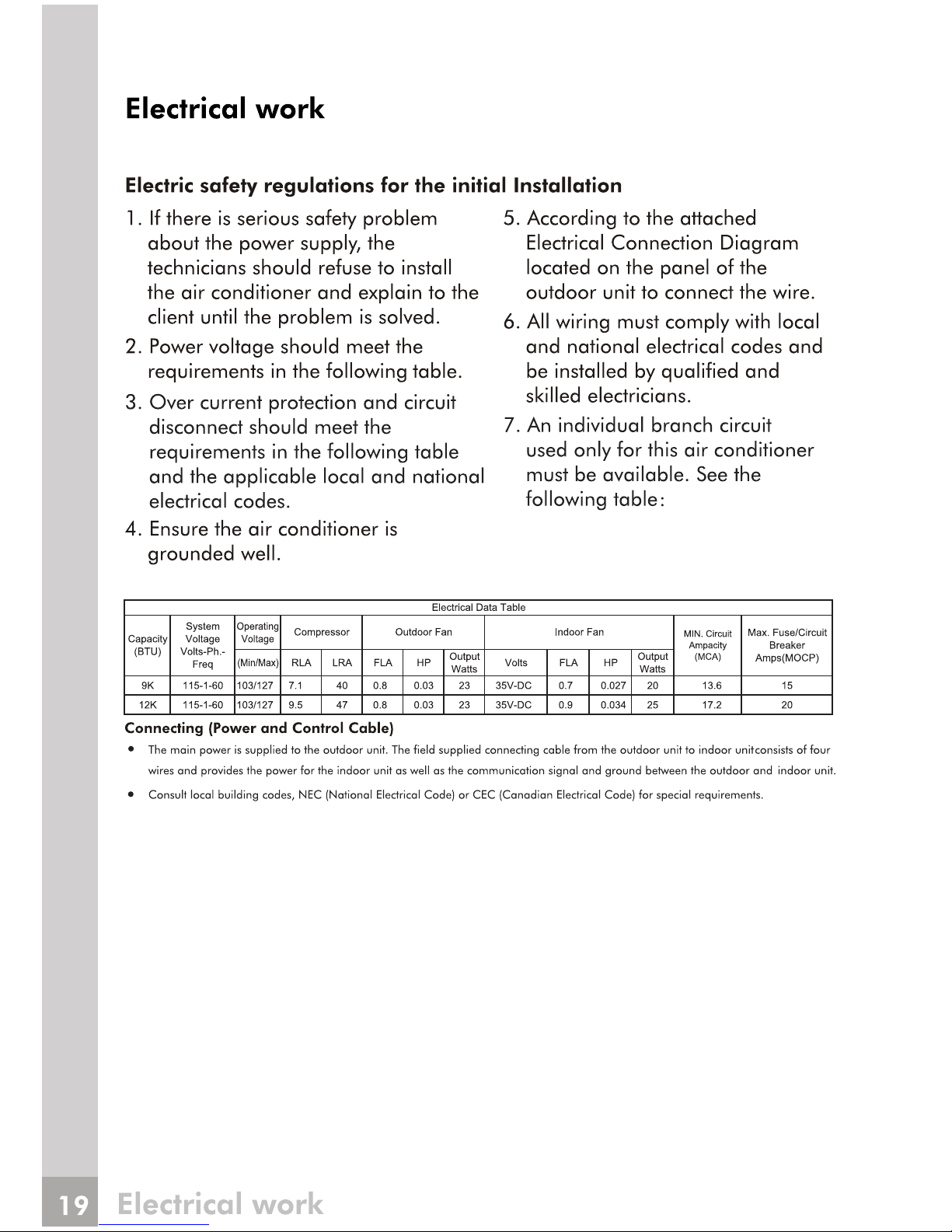

1. Remove the electrical control
board cover from the outdoor unit
by loosening the screw.
2. Connect the connective cables to
the terminals as identified with
their respective matched numbers
on the terminal block of indoor
and outdoor units. The connective
cable to power supply shallbe
approved polychloroprene
sheathed flexible cord.
3. Secure the cable onto the control
board with the cord clamp.
4. To prevent the ingress of water,
cable as illustrated in the
installation diagram of indoor and
outdoor units.
5. Insulate unused cords (conductors)
Connect the cable to the outdoor unit
Screw
Cover
Electrical work
(Heating and cooling model)
(Heating and cooling model)
"Cable D”
"Cable F”
"Cable E”
or
form a loop of the connective
with PVC-tape. Process them so
they could not touch any electrical
or metal parts.
1.57"
0.39"
Code wire
Code wire Code wire
Code wire
1.57" 1.57"
1.57"
0.39"
0.39"
0.39"
< 12000 btu's CABLE
< 12000 btu's CABLE (Cooling model)
> 12000 btu's CABLE
22
