I N S T R U C T I O N S M A N U A L
SPLIT TYPE ROOM AIR CONDITIONER
MODELS:
S5(04-07)FM_English_R410A_130320A
ATTENTION
Please read this manual completely
before operating your room air conditioner.
• FAS(C,E)09F2MBHLW
• FAS(C,E)12F2MBHLW
• FAS(C,E)18F2MBHLW
• FAS(C,E)24F2MBHLW

Contents
Welcome.........................................................................................................01
Environmental advices.........................................................................................01
Contents..........................................................................................................02
Safety precautions..........................................................................................04
Choosing the installation site.....................................................................08
Parts list.........................................................................................................10
Indoor unit installation ...........................................................................................12
Outdoor unit installation...........................................................................16

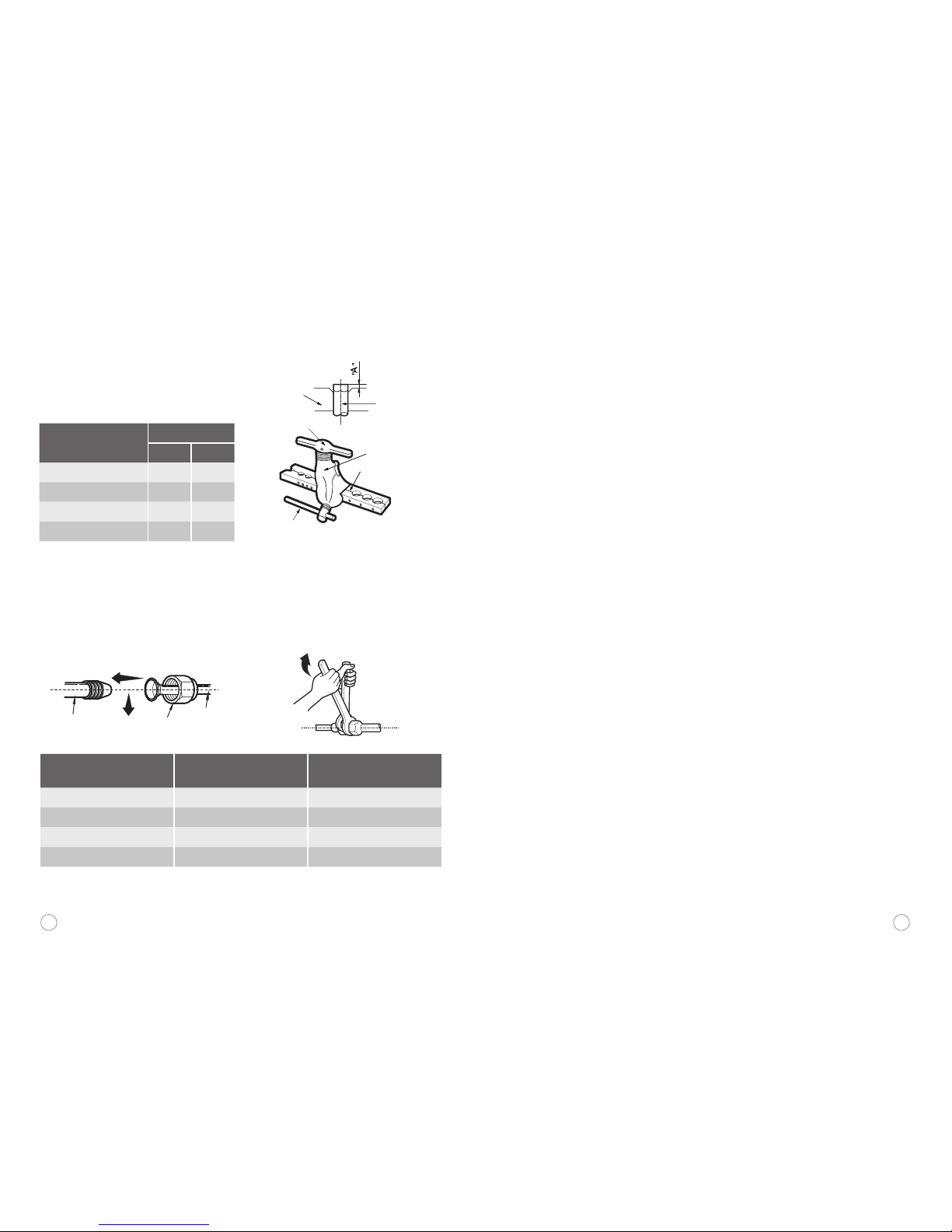

Refrigerant pipe connection...................................................................18
Electrical work.....................................................................................20
Electrical safety.................................................................................28
Operation test........................................................................................................29
Preparing the device for operation.......................................................................30

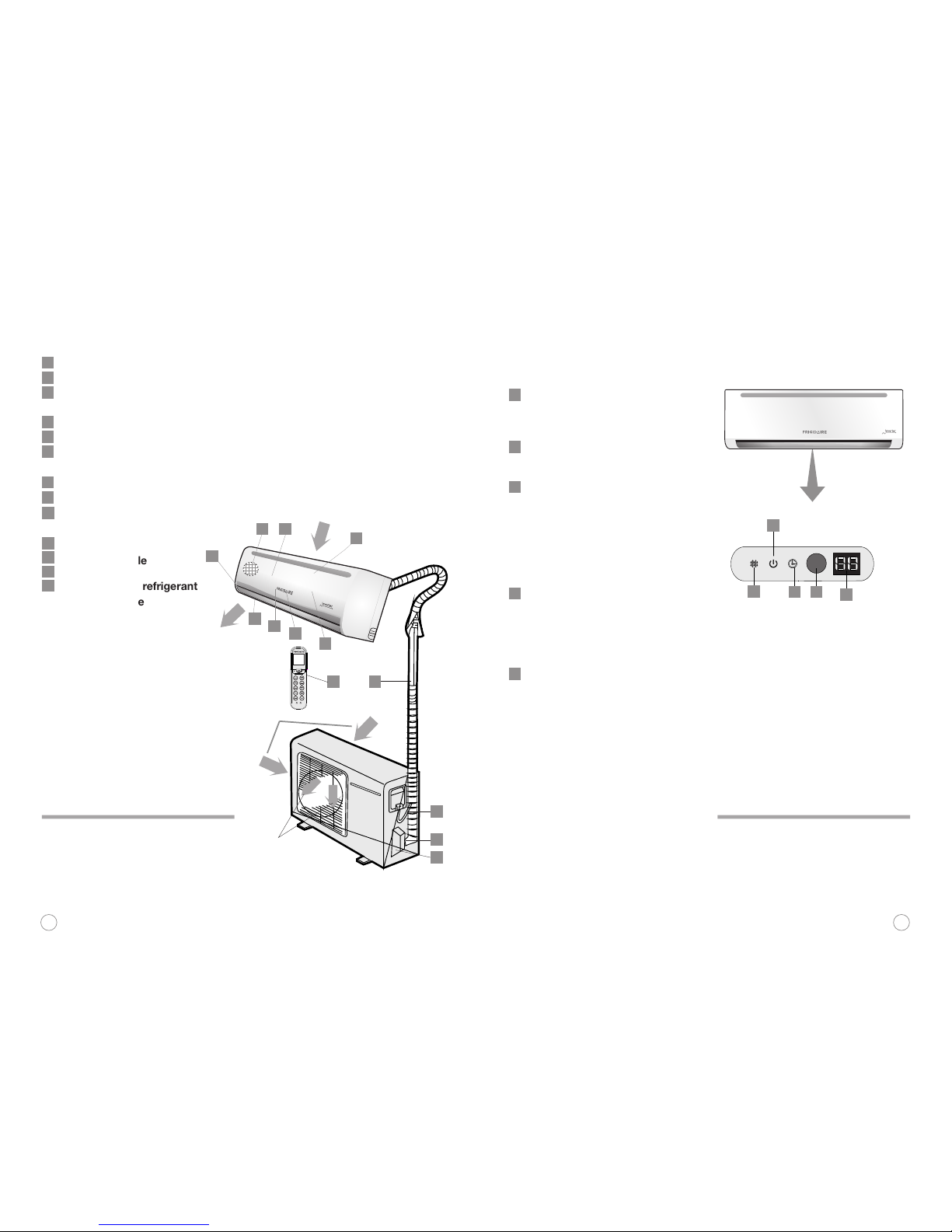

Product description..................................................................................31
Remote control....................................................................................................33
Remote control description ..................................................................................35
LCD display indicators .........................................................................................38
Clock adjustment.....................................................................................39
How the air conditioner works .............................................................................40
How to use the indoor unit.....................................................................................46
Manual operation (without remote control) ..........................................................48
Maintenance..........................................................................................49
Operation tips...................................................................................51
Solutions for problems..............................................................................53
Technical specifications........................................................................................54
01 02
Thank you for choosing Frigidaire. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Please read all of the instructions before using the air conditioner and keep this
manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product. We hope you will consider us for future purchase.
The packaging material used is
recyclable; we recommend that you
separate plastic, paper and cardboard
and give them to recycling companies.
According to WEEE (Waste of Electrical
and Electronic Equipment) guidelines,
waste from electrical and electronic
devices should be collected separately. If
you need to dispose of this appliance in
the future, do NOT throw it away with the
rest of your domestic garbage. Instead,
please take the appliance to the nearest
WEEE collection point, where available.
Environmental advices
Welcome to the world of
simple handling and no worries.

03 04

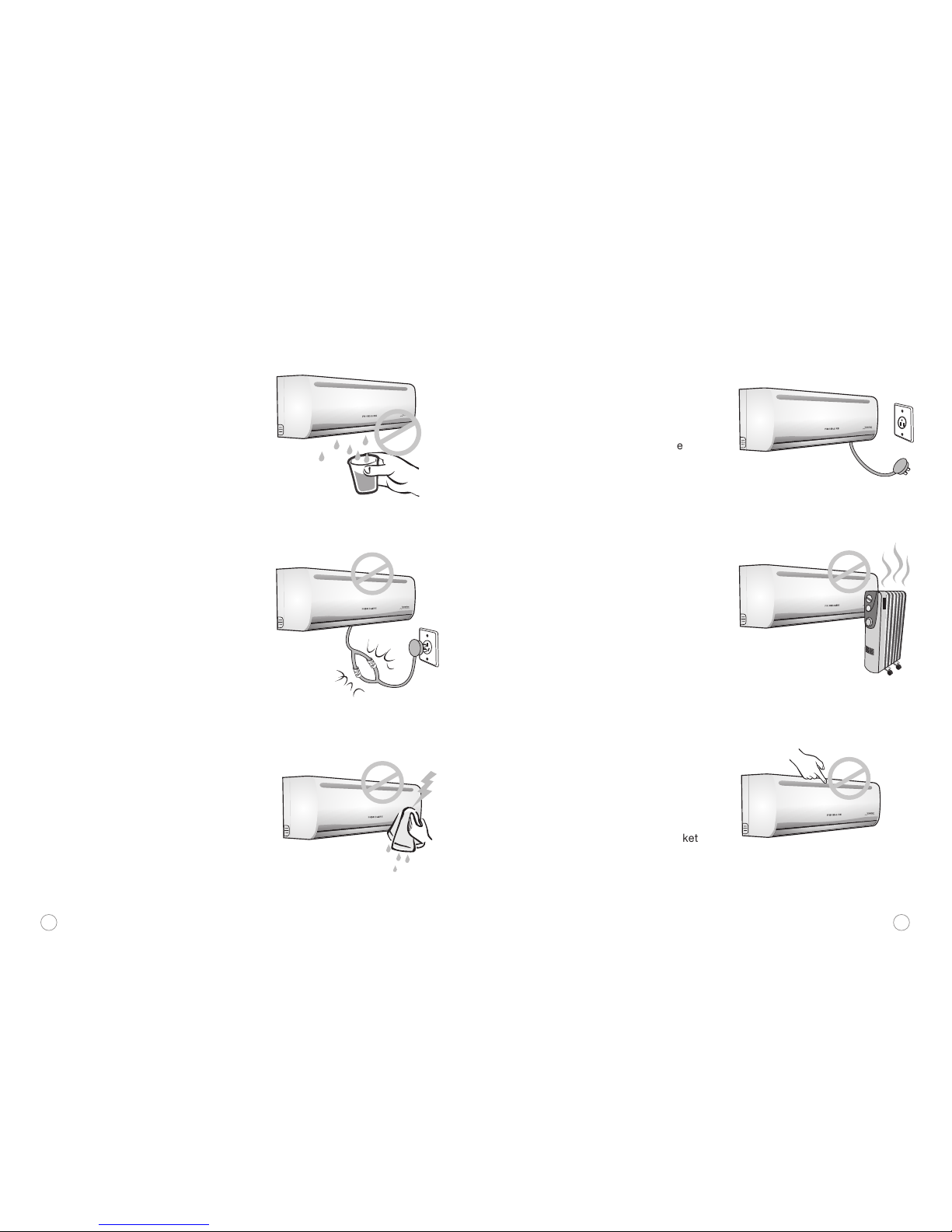

To prevent injury to the user or other people and property damage, the following
instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
Safety precautions
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length
or share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3. Always ensure effective earthing.
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
5. Keep firearms away. It may cause
fire.
6. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire
due to heat generation.
7. Do not operate with wet hands or
in damp environment. It may cause
electric shock.
8. Do not allow water to run into
electric parts. It may cause failure
of machine or electric shock.
9. Do not drink water drained from air
The air conditioner that you have
bought may be slightly different
from the one illustrated in this
manual. Please refer to the
information related to the model
you have.
This air conditioner is for
domestic use only. It is not
reccomended for commercial or
industrial use.
The air conditioner you have may
carry a different plug than the one
illustrated in this manual. The plug
that comes with the product
follows the electrical specification
of the country where it is sold.
Attention

05 06
conditioner. It contains contaminants
and could make you sick.
10.Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
12.Do not direct airflow at room
occupants only. This could damage
your health.
13.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.
14.Do not open the unit during
operation. It may cause electric
shock.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
16.Ventilate room before operating air
conditioner if there is a gas leakage
from another appliance. It may
cause explosion, fire and, burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be removed,
do not touch the metal parts of the
unit. It may cause an injury.
19.Do not clean the air conditioner
with water. Water may enter the
unit and degrade the insulation. It
may cause an electric shock.
20.Ventilate the room well when used
together with a stove, etc. An
oxygen shortage may occur.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire
and electric shock, it may cause
an injury.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
23.Do not use for special purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It
may cause deterioration of quality,
etc.
24.Stop operation and close the
window in storm or hurricane.
Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
25.Turn off the main power switch
when not using the unit for a long
time. It may cause failure of
product or fire.
26.Do not use strong detergent such
as wax or thinner. Use a soft cloth
for cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
27.Ensure that the installation bracket
of the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
there is concern of damage due to

07 08
falling of unit.
28.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may
cause failure.
29.Do not place heavy object on the
power cord and take care so that
the cord is not compressed. There
is danger of fire or electric shock.

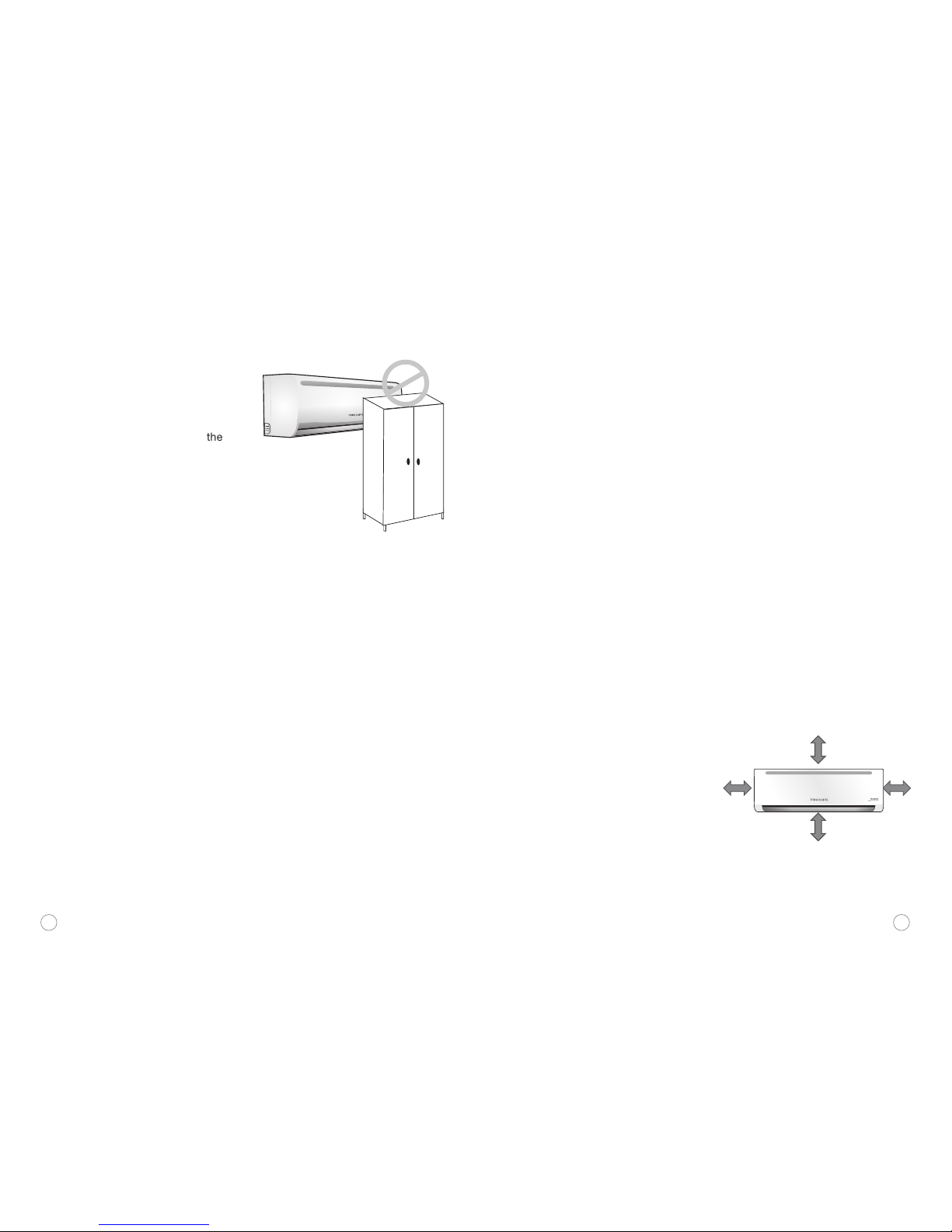

30.Do not place obstacles around air-
inlets or inside of air-outlet. It may
cause failure of appliance or
accident.
7. The indoor unit must be at least 2.3
meters (7.5 feet) from the ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably
install the unit at one of these sites, please consult your local distributor
beforehand:
1. Site with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight
of the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the
indoor unit, as shown in the
following figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is ideal
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
Choosing the installation site
More
than 15cm
More
than 12cm
More
than 200cm
More
than 12cm

09 10

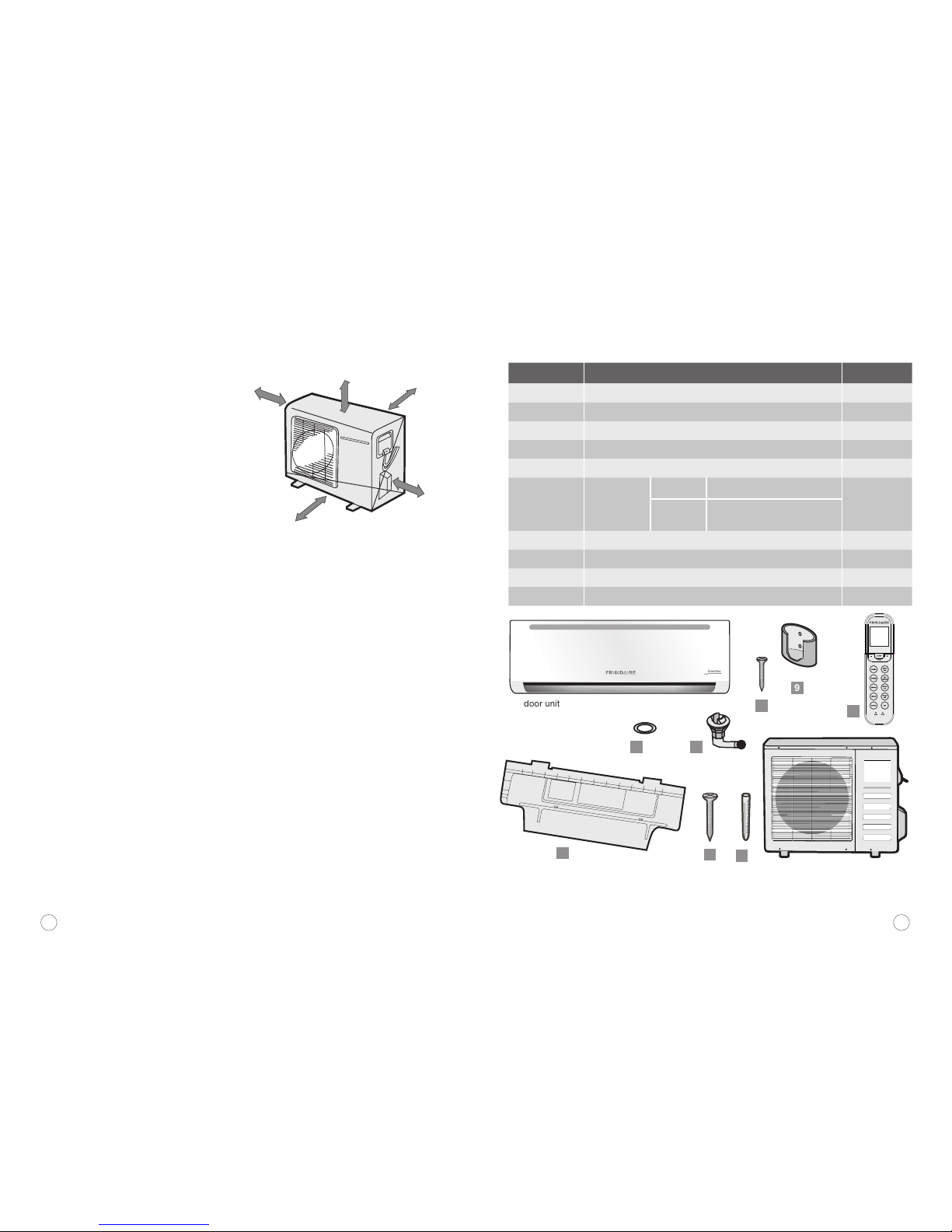

Outdoor Unit
1. The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
2. The site must support the weight
of the outdoor unit and allow for
vertical installation.
3. There must not be the possibility of
increased noise and vibration at
the site.
4. The unit must be installed at a site
where the noise produced by its
operation and air discharge does
not disturb the neighbors or
animals.
5. The site cannot have any leakage
of flammable gases.
6. The site must allow for a piping
extension of no less than 5 meters
(16 feet) and for pipes measuring
at least 10 meters (33 feet) in
length.
7. The site must provide enough
space around the unit, as shown in
the diagram.
8. Children must not be able to
access the installation site.
More
than 60cm
More
than 30cm
More
than 200cm
More
than 30cm
More
than 60cm
Parts list
NUMBERING PART NAME
Installation plate
Clip anchor
Self-tapping screw A ST3.9x25
Seal
Drain Joint
QTY.
1
2
3
4
5
6
1
5-8
5-8
1
1
Connecting
pipe
assembly*
Liquid side Ø6,35
Gas side Ø9,52
Parts you must
purchase
Ø12,7
2
54
3
1
8
7
Indoor unit
Outdoor unit
9
8
Ø16
Ø9,52
1
2
1
1
Remote controller
Self-tapping screw B ST2.9x10 (optional)
Remote controller holder (optional)
Air freshening filter(installed on Air filter)
7
8
9
10

11 12
1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
7
5
4
23
1
Indoor unit
Outdoor
unit
6
6More than 12cm
More than 12cm
Air filter
More than 200cm
More than
60cm
More than 30cm
More than 60cm
More than 15cm
A
BC
Indoor unit installation

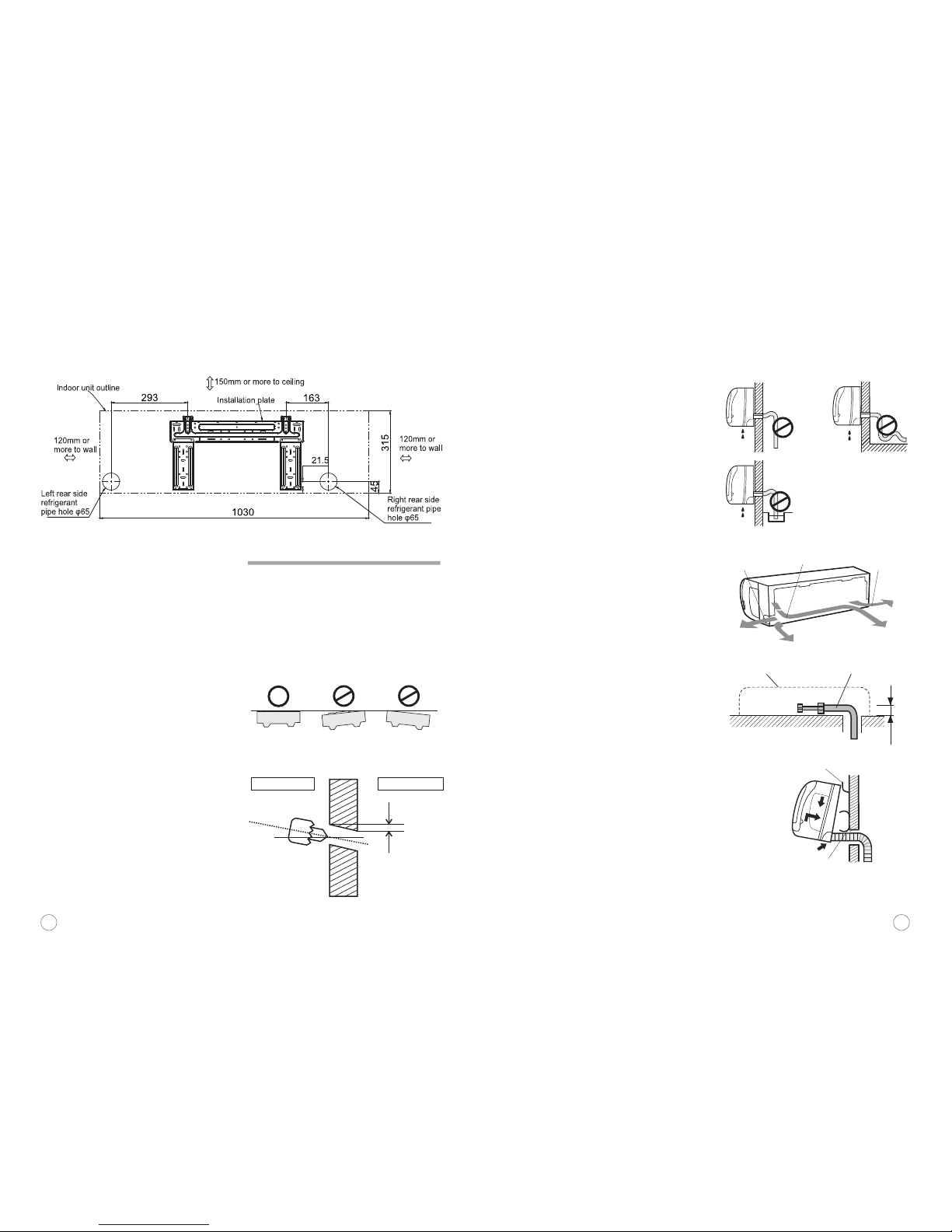

Installation plate description
2,3m or more
45
41
45
41
45
Attention

13 14
Fixing the installation plate
Drilling the Hole
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown in
the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mm-
diameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. If expansion screws are used, the
holes must measure 11x20 or
11x26, with a distance of 450 mm
between each.
4. Fix the installation plate to the wall.
1. Determine the position of the hole
for the pipe using the installation
plate and drill the pipe hole (ø
65mm) so that it is titled slightly
downward.
2. Always use a pipe cover with an
opening when drilling a metal bar.
Installation plate
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoor unit Outdoor unit
5-7mm
Do not put the end
of drain hose into water.
Do not block
water flow
by a rise.
Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Connective pipe installation
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel.
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall.
3. Fix the end of the connective pipe.
Right back
piping
Pipe cover
(left)
Pipe
holder
Pipe cover
(right)
Right piping
Connective
pipe
Indoor unit
outline
43mm
Do not block
water flow
by a rise.
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of the
indoor unit on the upper hook of the
installation plate, move the indoor
unit from side to side to see that it is
securely hooked (see Fig.10 &
Fig.11).
Fastening the Indoor Unit
Upper hook
Lower hook
24k Btu models
Attention

15 16
Piping and wrapping

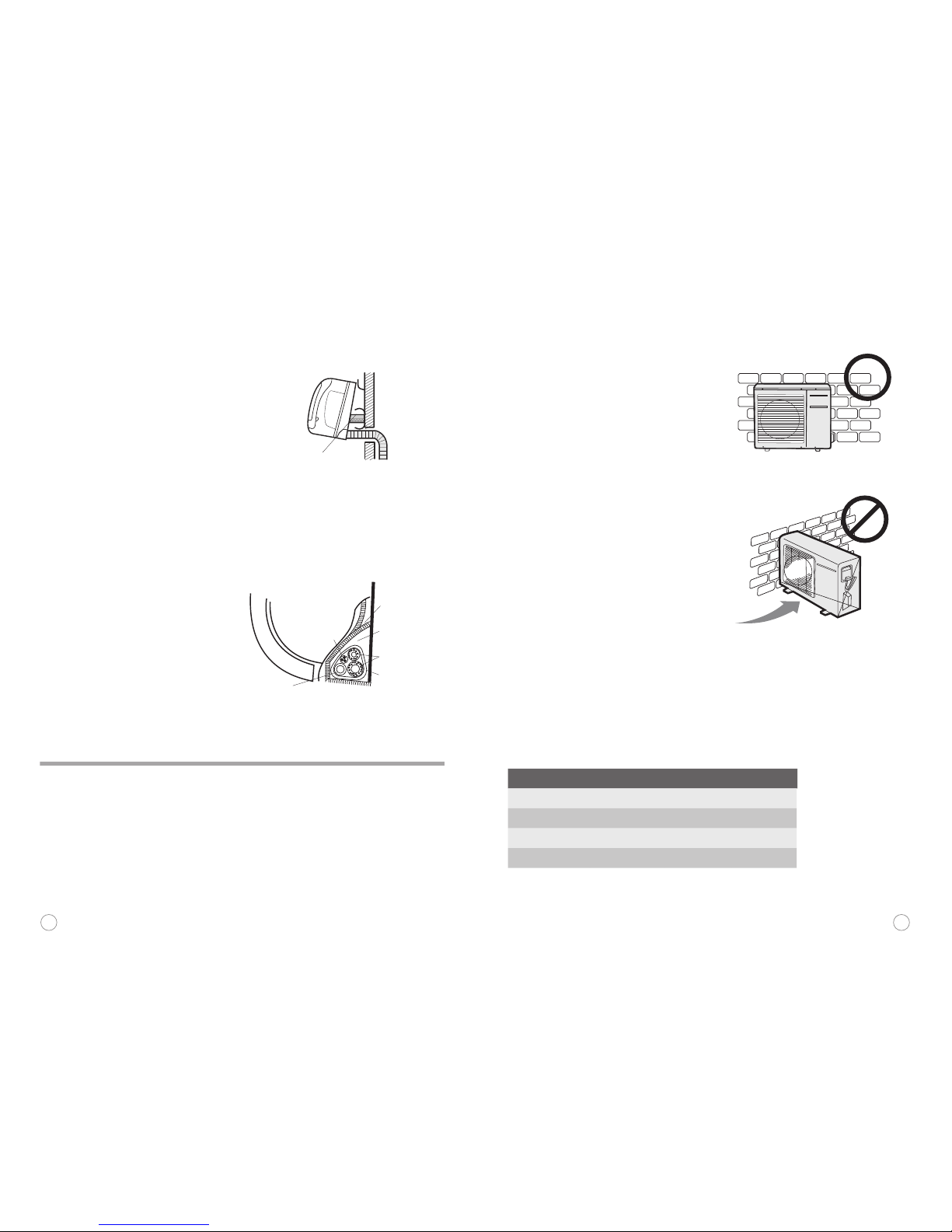

1. Bundle the tubing, connecting
cable, and drain hose with tape
securely, evenly as shown.
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
piped out of room. Do not put
anything else in the box.
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
4. Heat insulated both of the auxiliary piping.
5. Be sure that the drain hose is located at the lowest side of the bundle.
Locating at the upper side can cause drain pan to overflow inside the unit.
6. Never intercross nor intertwist the power wire with any other wiring.
7. Run the drain hose sloped downward to drain out the condensed water
smoothly.
1. Install the outdoor unit on a rigid
base to prevent increasing noise
level and vibration.
2. Determine the air outlet direction
where the discharged air is not
blocked. In the case that the
installation place is exposed to
strong wind such as a seaside,
make sure the fan operating
properly by putting the unit
lengthwise along the wall or using
a dust or shield plates.
3. Specially in windy area, install the
unit to prevent the admission of
wind. If need suspending
installation, the installation bracket
should accord with technique
requirement in the installation
bracket diagram.
4. The installation wall should be solid
brick, concrete or the same
intensity construction, or actions to
reinforce, damping supporting
should be taken. The connection
between bracket and wall, bracket
and the air conditioner should be
firm, stable and reliable.
5. Be sure there is no obstacle which
block radiating air.
Outdoor unit installation
Strong wind
Indoor unit
Cable
de conexión
Ponding
box
Pipe room
Wrapping
belt
Drain hose
Connective
pipe
3. Piping can easily be made by lifting
the indoor unit with a cushioning
material between the indoor unit
and the wall. Get it out after finish
piping.
4. Push the lower part of the indoor unit
up on the wall, then move the
indoor unit from side to side, up and
down to check if it is hooked
securely.
Cushioning
material
MODEL Width (mm)
9000 Btu
12000 Btu
18000 Btu
24000 Btu
Height (mm) Depht (mm)
680
770
905
1030
255
255
275
315
180
188
198
220
Attention

17 18
Settlement of outdoor unit
Anchor the outdoor unit with
a bolt and nut 10 or 8 tightly
and horizontally on a concrete
or rigid mount.
Drain joint installation
Fit the seal into the drain elbow, then
insert the drain joint into the base pan
hole of outdoor unit, rotate 90 to
securely assemble them.
Connecting the drain joint with an
extension drain hose (Locally
purchased), in case of the water
draining off the outdoor unit during the
heating mode.
Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using
the following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than
the measured distance.
D) Cut the cable 1.5m longer than the
pipe length.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
B) Put the end of the copper
tube/pipe in a downward direction as
you remove burrs in order to avoid
dropping burrs into the tubing.
3. Putting nut on
A) Remove flare nuts attached to
indoor and outdoor unit, then put
them on pipe/tube having completed
burr removal.(not possible to put them
on after flaring work)
Refrigerant pipe connection
Air inlet
Air
inlet
Air outlet
A
B
Base pan hole
of outdoor unit
Seal Drain joint
Seal
Drain pipe
+ =
Pipe
Correct Wrong
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
Outdoor unit dimension
mm - (WxHxD)
Mounting dimensions
A(mm) B(mm)
700x540x240
685x430x260
780x540x250
760x590x285
775x545x310
845x700x320
670x540x250
760x590x285
820x590x330
845x700x320
458
460
459
530
560
600
481
530
523
560
250
276
276
290
335
320
276
290
340
335
24k Btu models

19 20
4. Flaring work
A) Firmly hold copper pipe in a die in
the dimension shown in the table
below.
1,3
1,6
1,8
2,2
Máx.
0,7
1,0
1,0
2,0
A (mm)
Mín.
OUTER
DIAMETER (mm)
6,35
9,52
12,70
16
Connection Adjustment
1. Align the pipes to be connected.
2. Unscrew the flare nut with your
fingers and then with a wrench and
screw wrench, as shown in the
following figure.
OUTER
DIAMETER (mm)
6,35
9,52
12,70
16
TIGHTENING
TORQUE(cm)
1500 (153 kgf/cm)
2500 (255 kgf/cm)
3500 (357 kgf/cm)
4500 (459 kgf/cm)
ADDITIONAL TIGHTENING
TORQUE(cm)
1600 (163 kgf/cm)
2600 (265 kgf/cm)
3600 (367 kgf/cm)
4700 (479 kgf/cm)
Caution: Excessive torque can
break nut depending on installation
conditions.
Electrical work
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain to
the client until the problem is
solved.
2. Power voltage should be in the
range of 90%~110%of rated
voltage.
3. The creepage protector and main
power switch with a 1.5 times
capacity of Max. Current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is
grounded well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect
the wire.
6. All wiring must comply with local
and national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and
single receptacle used only for this
air conditioner must be available.
See the following table for
suggested wire sizes and fuse
specifications:
Electric safety regulations for the initial Installation
Bar
Copper
pipe
Handle
Clamp
handle
Yoke
Red arrow mark
Flare
nut
Pipings
Indoor unit
tubing

21 22
Electric safety regulations for the initial
Installation
1. If there is serious safety problem about
the power supply, the technicians
should refuse to install the air
conditioner and explain to the client
until the problem is solved.
2. Power voltage should be in the range of
90%~110%of rated voltage.
3. The surge protector and main power
switch with a 1.5 times capacity of
Max. Current of the unit should be
installed in power circuit.
4. Ensure the air conditioner is grounded
well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect
the wire.
6. All wiring must comply with local and
national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and single
receptacle used only for this air
conditioner must be avaliable. See the
following specifications:

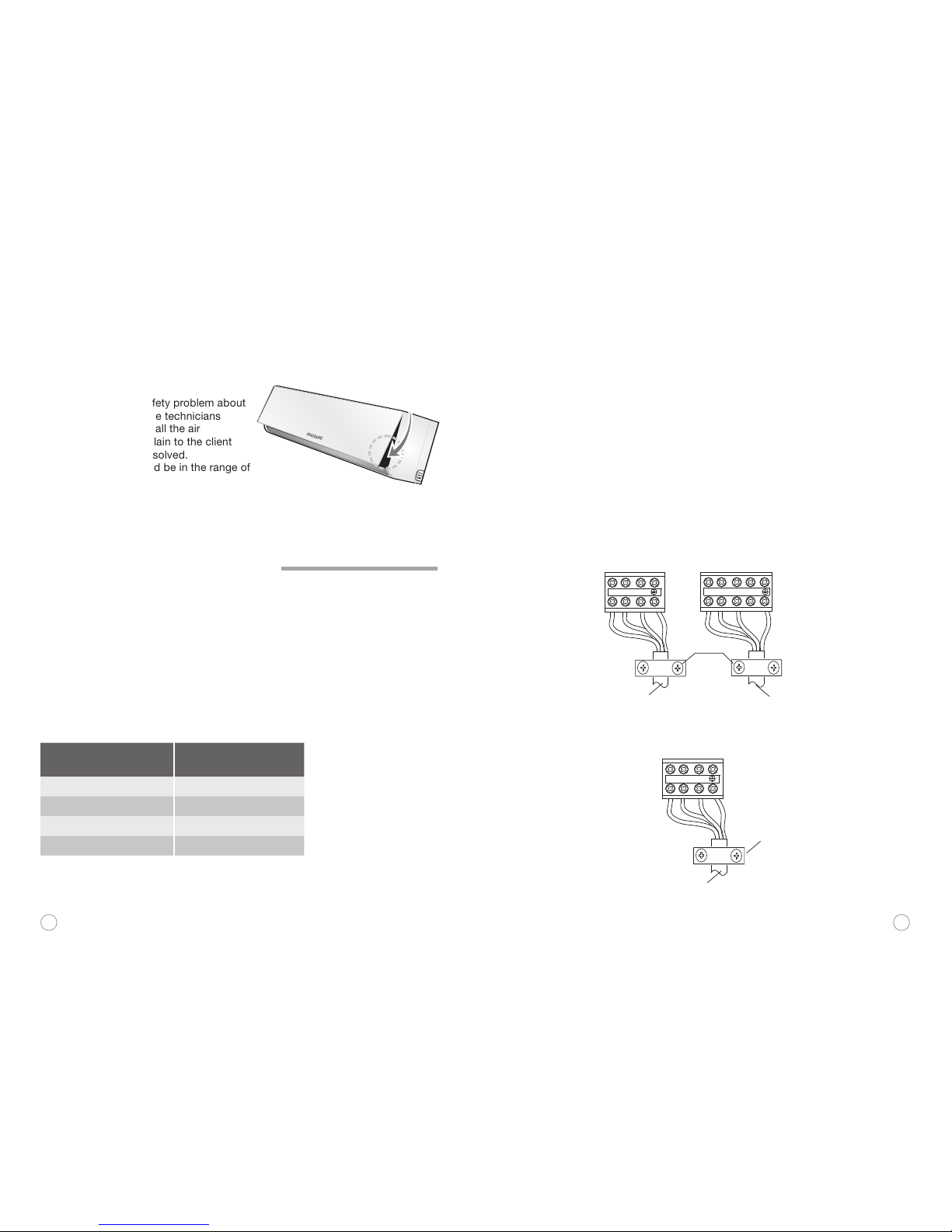

Connect the cable to the indoor unit
Electrical box
cover
Before performing any electrical work, turn off the main power to the system.
1. The inside and outside connecting cable can be connected without removing
the front grille.
2. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power cord
and interconnected cord type is H07RN-F.
3. Lift the indoor unit panel up, remove the electrical box cover by loosening the
screw.
4. Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to
the indoor respectively.
5. Wrap those cables not connected with terminals with insulation tapes, so that
they will not touch any electrical components. Secure the cable onto the
control board with the cord clamp.
Rated current
of appliance (A)
>3 and ≤6
>6 and ≥10
>10 and ≥16
>16 and ≥25
Nominal cross-sectional
area (mm2)
0.75
1
1.5
2.5
Terminal block of indoor unit
The cable size and the current
of the fuse or switch are
determined by the maximum
current indicated on the
nameplate which located on
the side panel of the unit.
Please refer to the nameplate
before selecting the cable, fuse
and switch.
For 8K,12K and18k Btu types
Attention
For 24k Btu types
Terminal block of indoor unit
To outdoor unit To outdoor unit
Cord clamp
L1 L2 S
L1 L2 S or
Terminal block of indoor unit
To outdoor unit
Cord clamp
L1 L2 S

23 24

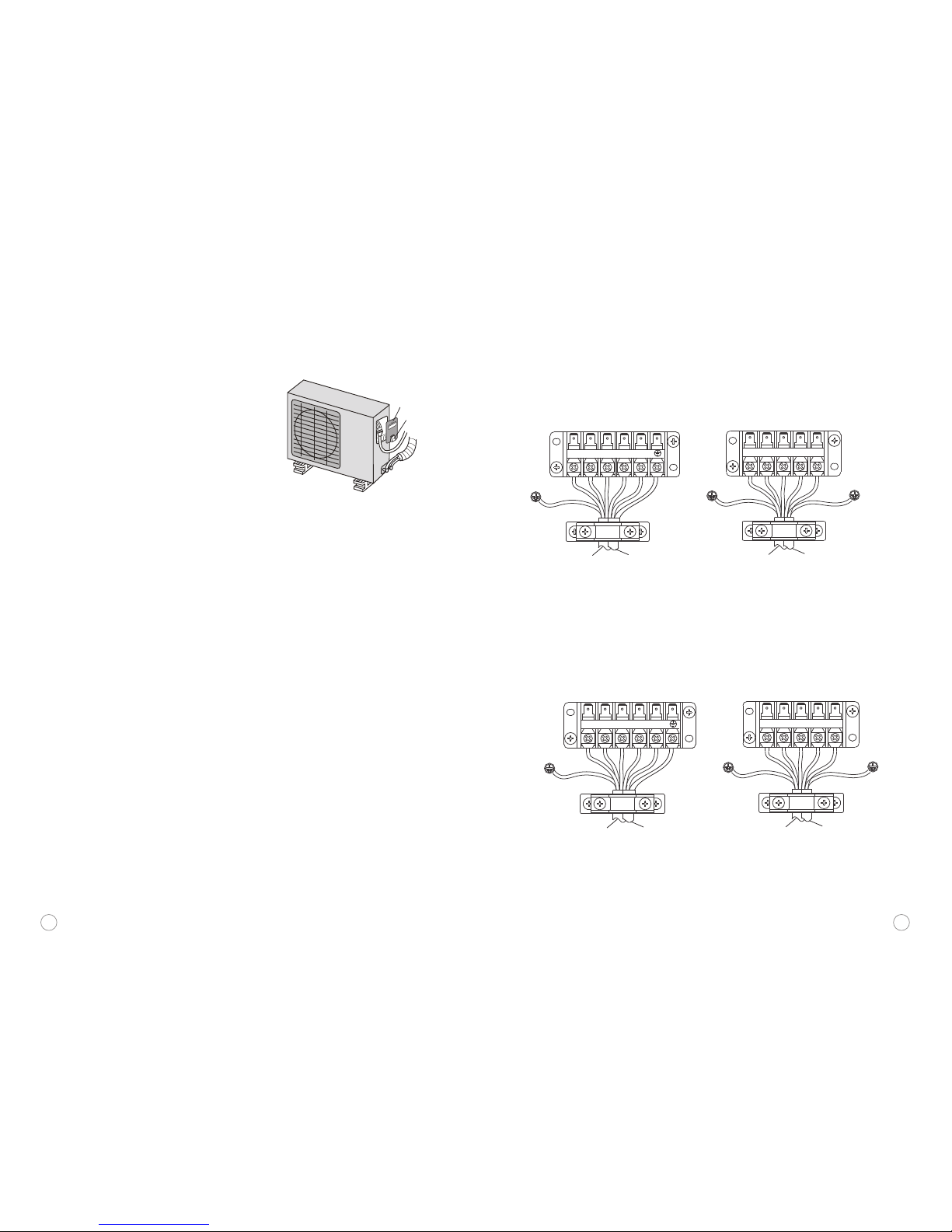

1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the connective cables to the
terminals as identified with their
respective matched numbers on the
terminal block of indoor and outdoor
units.
3. Secure the cable onto the control
board with the cord clamp.
4. To prevent the ingress of water, form a
loop of the connective cable as
illustrated in the installation diagram of
indoor and outdoor units.
5. Insulate unused cords (conductors)
with PVC-tape. Process them so they
do not touch any electrical or metal
parts.
Connect the cable to the outdoor unit
Screw
Cover
Terminal block of outdoor unit
For 8k, 12k and 18k Btu models
For 24k Btu models
Terminal block of outdoor unit
To indoor unit To indoor unit To power supply To power supply
L1 L2 S L1 L2 L1 L2 S L1 L2
(1) (2)
Terminal block of outdoor unit
To indoor unit To indoor unit To power supply To power supply
L1 L2 S L1 L2 L1 L2 S L1 L2
(1) (2)

25 26
1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
2. The screw which fasten the wiring in the casing of electrical fittings are
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of the
rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop. Vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload.
9. The means for disconnection from a power supply shall be incorporated in
the fixed wiring and have an air gap contact separation of at least 3mm in
each active (phase) conductors.
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
Air purging
Air and moisture in the refrigerant system have undesirable effects as
indicated below:
1. Pressure in the system rises.
2. Operating current rises.
3. Cooling or heating efficiency
drops.
4. Moisture in the refrigerant circuit
may freeze and block capillary
tubing.
5. Water may lead to corrosion of
parts in the refrigeration system.
6. Therefore, the indoor unit and
tubing between the indoor and
outdoor unit must be leak tested
and evacuated to remove any
noncondensables and moisture
from the system.
Air purging with vacuum pump
1. Check that each tube(both liquid and gas side tubes) between the indoor
and outdoor units have been properly connected and all wiring for the test
run has been completed. Remove the service valve caps from both the gas
and the liquid side on the outdoor unit. Note that both the liquid and the gas
side service valves on the outdoor unit are kept closed at this stage.
2. When relocate the unit to another place, perform evacuation using vacuum
pump.
3. Pipe length and refrigerant amount:
Caution in handling the packed valve
1. Open the valve stem until it hits against the stopper. Do not try to open it
further.
2. Securely tighten the valve stem cap with a spanner or the like. Valve stem
cap tightening torque (See Tightening torque table in page 19).
Air purging
metod
Less than 5 m
More than 5m
Additional amount of
refrigerant to be charged
Connective
pipe length
Use vacuum pump.
Use vacuum pump.
Half union
Refrigerant
AC
D
B
Packed valve
Gas
Indoor unitOutdoor unit
Flare nut
Stopper
Cap
Valve stem
Valve body
Liquid side:φ6.35mm
R22: (Pipe length-5)x30g/m
R410A: (Pipe length-5)x20g/m
Liquid side:φ9.52mm:
R22: (Pipe length-5)x60g/m
R410A: (Pipe length-5)x40g/m

27 28

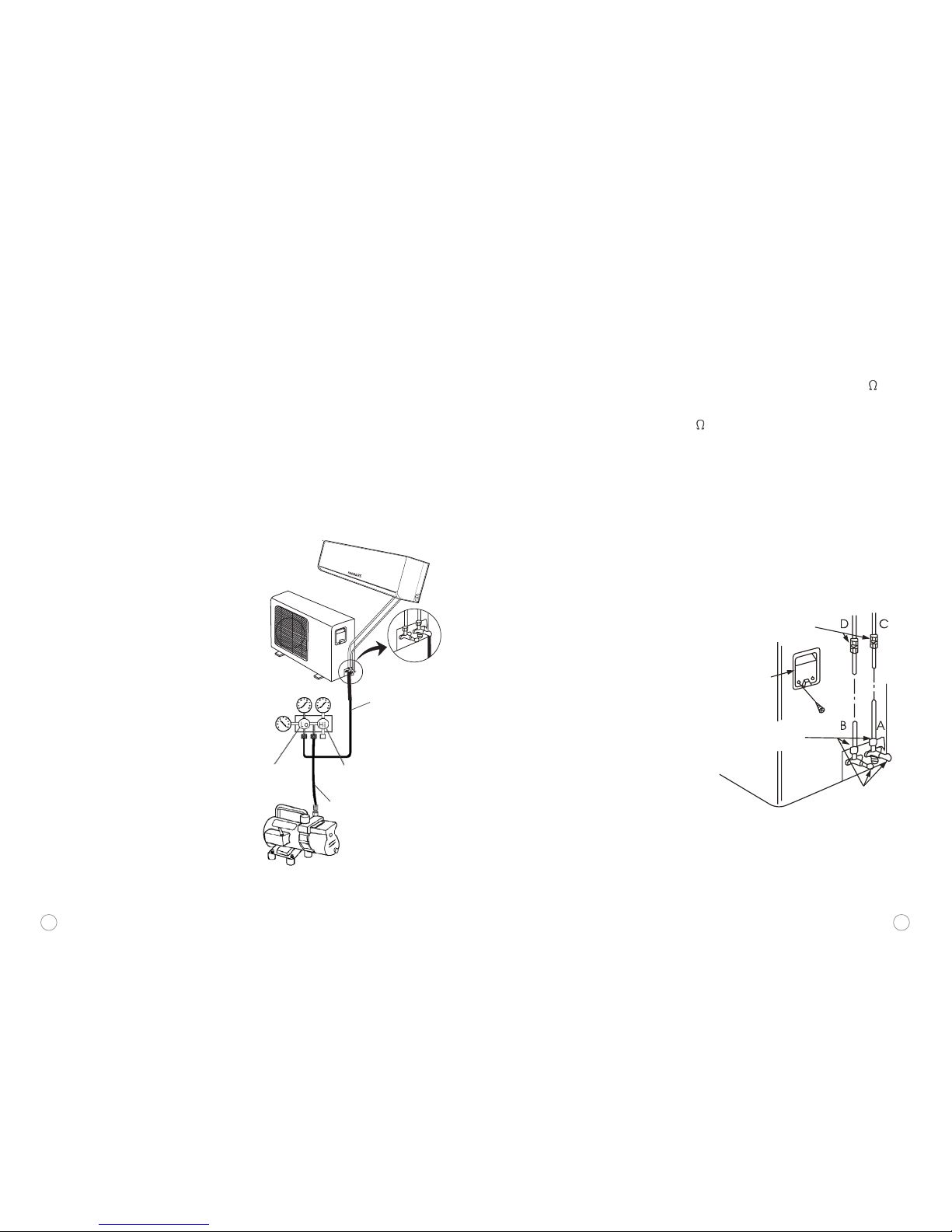

When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
1. Completely tighten the flare nuts,
A, B, C, D, connect the manifold
valve charge hose to a charge port
of the low-pressure valve on the
gas pipe side.
2. Connect the charge hose
connection to the vacuum pump.
3. Fully open the handle Lo of the
manifold valve.
4. Operate the vacuum pump to
evacuate. After starting
evacuation, slightly loose the flare
nut of the Lo valve on the gas pipe
side and check that the air is
entering (Operation noise of the
vacuum pump changes and a
compound meter indicates 0
instead of minus)
5. After the evacuation is complete,
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.
Make evacuation for 15 minutes or
more and check that the
compound meter indicates -
76cmHg (-1x10 Pa).
6. Turn the stem of the packed valve
B about 45o counterclockwise for
6~7 seconds after the gas coming
out, then tighten the flare nut
again. Make sure the pressure
display in the pressure indicator is
a little higher than the atmosphere
pressure.
7. Remove the charge hose from the
Low pressure charge hose.
Vacuum pump
Charge hose
Manifold valve
-76cm/Hg
Charge
hose
Handle Lo Handle Hi
Outdoor unit
Indoor unit
8. Fully open the packed valve stems
B and A.
9. Securely tighten the cap of the
packed valve.
Electrical safety
Perform the electric safe check after completing installation:
Gas leak check
Soap water method
Apply a soap water or a liquid neutral
detergent on the indoor unit
connection or outdoor unit
connections by a soft brush to check
for leakage of the connecting points
of th piping. If bubbles come out, the
pipes have leakage.
Leak detector
Use the leak detector to check for
leakage.
Caution
A: Lo packed valve, B: Hi packed
valve C and D are ends of indoor unit
connection.
1. Insulated resistance: The insulated resistance must be more than 2M .
2. Grounding work: After finishing grounding work, measure the grounding
resistance by visual detection and grounding resistance tester. Make sure the
grounding resistance is less than 4 .
3. Electrical leakage check (performing during test running): During test
operation after finishing installation, the serviceman can use the electroprobe
and multimeter to perform the electrical leakage check. Turn off the unit
immediately if leakage happens. Check and find out the solution ways till the
unit operate properly.
Cover
indoor unit
check point
Outdoor unit
check point

29 30
Operation test
Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.
1. Connect the power, press the
ON/OFF button on the remote
controller to turn the unit on.
2. Use the MODE button to select
COOL, HEAT, AUTO and FAN to
check if all the functions works
well.
3. When the ambient temperature is
too low(lower than 17ºC), the unit
cannot be controlled by the remote
controller to run at cooling mode,
manual operation can be taken.
Manual operation is used only when
the remote controller is disable or
maintenance necessary.
1. Contact a specialist to install the device.
2. Guarantee that the unit is appropriately fastened and complies with all of
the aforementioned safety norms.
3. Before operating the air conditioner, ensure that the air filter is installed
correctly.
4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.
5. This air conditioner was designed for use under the following conditions:
Optimum performance will be achieved within these operating temperatures.If air
conditioner is used outside of the above conditions, certain safety protection
features might come into operation and cause the unit to function abnormally.
Room relative humidity less than 80%. If the air conditioner operates in excess of
this figure, the surface of the air conditioner may attract condensation. Please
sets the vertical air flow louver to its maximum angle (vertically to the floor), and
set HIGH fan mode.
Preparing the device for operation
Manual control button
Auto/Cool
Manual control
button
Auto
Cool
or
* (-7°C~43°C cooling only / 18°C~52°C special tropical models)
** (18°C~52°C special tropical models)
Cool Heat Deshumidifier
MODE
Room TemperatureRoom TemperatureRoom Temperature
Indoor Outdoor* Indoor Outdoor Indoor Outdoor**
17°C~32°C 18°C~43°C 0°C~30°C -7°C~24°C 10°C~32°C 11°C~43°C
Attention

31 32
Product description
All the pictures in this manual are for
explanation purpose only. They may be
slightly different from the air conditioner
you purchased.
The description in the control is based
on a typical model. The functions are
the same in your air conditioner, even if
there are some differences in the
appearance.
Display panel
(indoor unit)
OPERATION
This lamp illuminates when the air
conditioner is in operation.
TIMER
Lights up during Timer operation.
DEFROST indication lamp
(Enabled on cooling & heating
models only): Lights up when the
air conditioner starts defrosting
automatically or when the warm air
control feature is activated in
heating operation.
Temperature indicator
Displays the temperature settings
when the air conditioner is
operational. Displays the
malfunction code.
Signal receiver
13
16
14
15
Front panel frame
Front panel
Air filter
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
Connector cable
Detection valve
Drain hose and refrigerant
connecting pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
17
13
14
15 16
17
Attention Attention
Air outlet
Air inlet
Outdoor unit
13
10
11
9
12
6
Air inlet
2
Air outlet
4
32
5
1
87

33 34

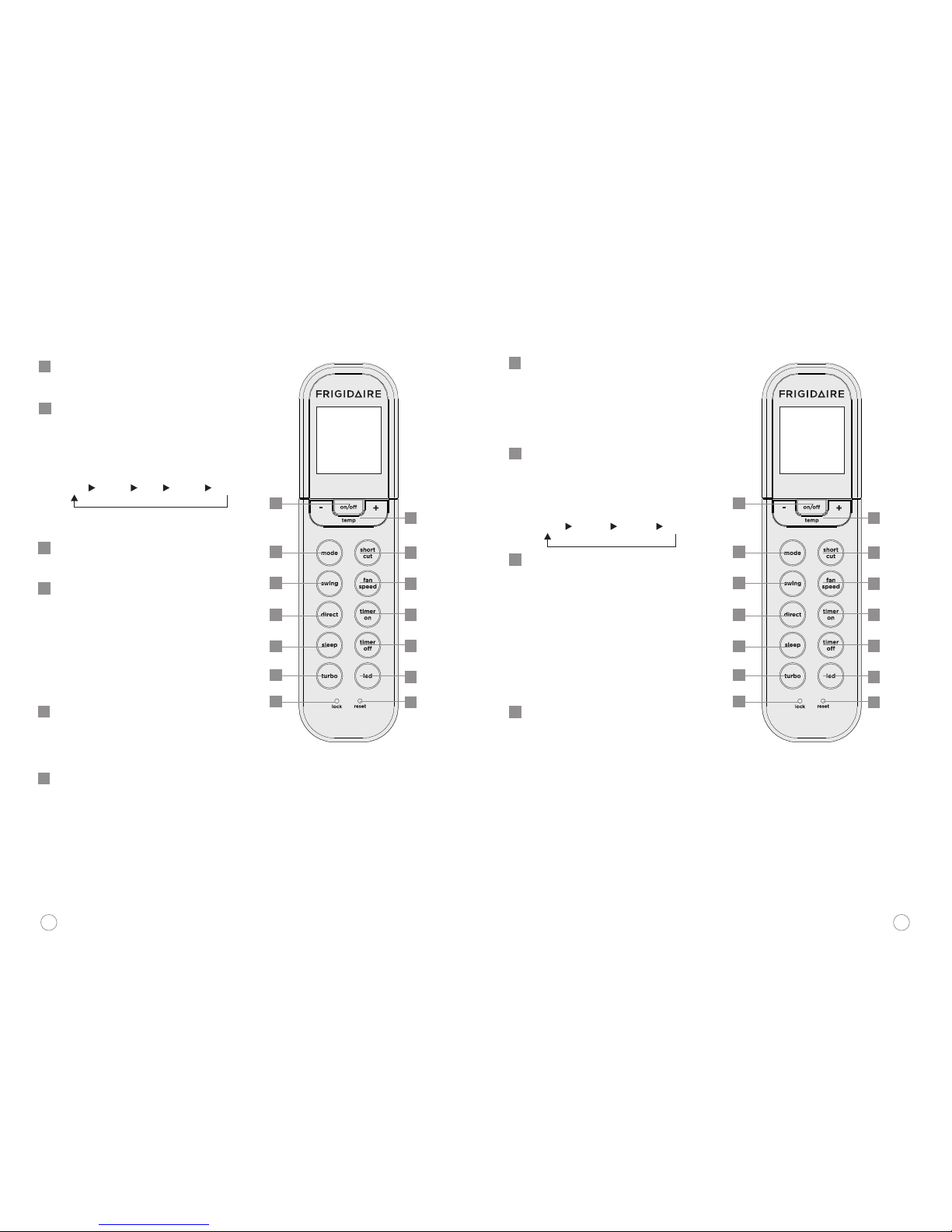

Remote control
Remote control battery
To use the remote control, it is necessary to install two (R03/Ir03x2) alkaline
AAA batteries.
1. The air conditioner will not operate if curtains, doors or other materials block
the signals from the remote controller to the indoor unit.
2. Prevent any liquid from falling into the remote controller. Do not expose the
remote controller to direct sunlight or heat. If the infrared signal receiver on
the indoor unit is exposed to direct sunlight, the air conditioner may not
function properly. Use curtains to prevent the sunlight from falling on the
receiver.
3. If other electrical appliances react to the remote controller. Either move these
appliances or consult your authorized assistance.
1. Operating Mode: AUTO, COOL, DRY,
HEAT(Cooling only model without),
and FAN.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range :
17。C~30。C.
4. Full function of LCD (Liquid Crystal
Display).
Remote control operation When should the batteries be
replaced
1. Replace the batteries when there
is no receiving beep from the
indoor unit or if the transmission
indicator on the remote controller
fails to light.
2. The remote controller is powed by
two dry batteries(R03/LR03X2)
housed in the rear part and
protected by a cover.
3. Remove the cover by pressing
and sliding off.
4. Remove the old batteries and
insert the new batteries,placing
the(+) and (-) ends correctly.
5. Reattach the cover by sliding it
back into position.
Remote control instructions
Use the remote controller within a
distance of 8 meters from the
appliance, pointing it towards the
receiver. Reception is confirmed by a
beep.
1. When the batteries are removed,
the remote controller erases all
programming.
2. After inserting new batteries, the
remote controller must be
reprogrammed.
3. Do not mix old and new batteries or
batteries of different types.
4. Do not leave the batteries in the
remote controller if they are not
going to be used for 2 or 3 months.
5. Do not dispose batteries as
unsorted municipal waste.
Collection of such waste separately
for special treatment is necessary.
Rated voltage
Lowest of voltage of CPU emiting signal
Transmission distance
Environment
3 V
2,0 V
8 m*
-5ºC ~ 60ºC
* (with 3 V, it reaches 11 m)
REMOTE CONTROLLER SPECIFICATIONS
Attention
Attention

35 36
ON/OFF: Operation starts when
this button is pressed and stops
when this button is pressed again.
MODE: Each time you push the
button, a mode is selected in a
sequence that goes from AUTO,
COOL*, DRY, HEAT and FAN, as the
following figure indicates:
* Note: Only for heating and cooling
models.
SWING: Used to stop or start
horizontal louver auto swing
feature.
SLEEP: Active/Disable SLEEP
function. If pushing more than 2
seconds, the FRESH function will
be activated, pushing more than
2seconds again to disable.
Note: While the unit is running
under SLEEP mode, it would be
cancelled if press the MODE, FAN
SPEED or ON/OFF button.
DIRECT: Used to change the louver
movement and set the desired
up/down air flow direction. The
louver changes 6° in angle for each
press.
RESET: When you press the
recessed RESET button, all current
settings are cancelled and the
control will return to the initial
settings.
1
2
3
4
Remote control description
TEMP: Push the + button to
increase setting temperature or to
increase Hour during Timer
setting. Push - the button to
decrease setting temperature or
to decrease Hour during Timer
setting.
FAN SPEED: Used to select the
Fan Speed in four steps- AUTO,
LOW, MED or HIGH. Each time
the button is pressed, the fan
speed mode is shifted.
TIMER ON: Press this button to
initiate the auto-on time
sequence. Each press will
increase the auto-timed setting in
30 minutes increments. When the
setting time displays 10H, each
press will increase the auto-timed
setting60 minutes increments. To
cancel the auto-timed program,
simply adjust the auto-on time to
0:0.
TIMER OFF: Press this button to
initiate the auto-off time
sequence. Each press will
increase the auto-timed setting in
30 minutes increments. When the
setting time displays 10H, each
press will increase the auto-timed
setting 60 minutes increments. To
cancel the auto-timed program,
simply adjust the ON/OFF auto-
off time to 0:0
5
6
7
8
9
AUTO COOL DRY HEAT* FAN
AUTO LOW MED HIGH
1
2
3
4
5
6
7
8
9
10
11 12
13
13
10
1
2
3
4
5
6
7
8
9
10
11 12
13
13

37 38
12
13
LCD display indicators
1
2
TRANSMISSION INDICATOR: This
transmission indicator lights when
remote controller transmits signals
to the indoor unit.
MODE: Displays the current
operation mode. Including
auto ( ), cool( ), dry( ),
heat( ) (Not applicable to cooling
only models), fan( ) and back to
auto( ).
ON/OFF: Displayed by pressing the
ON/OFF button. Press the ON/OFF
button again to remove.
TEMP/TIMER: Displays the
temperature setting(17°C~30°C).
When you set the operating mode
to FAN, no temperature setting is
displayed. And if in the TIMER
mode, shows the ON and OFF
settings of the TIMER.
FOLLOW ME: Displayed when
FOLLOW ME function is activated.
LOCK: Displayed when LOCK
mode is activated.
SLEEP: Displayed under sleeping
operation. Press the SLEEP button
again to remove.
FAN SPEED: Displays the
selected fan speed, AUTO(no
display) and three fan speed levels
" " (LOW) " " (MED) " " (HIGH)
can be indicated. The fan speed is
AUTO when the operating mode is
either AUTO or DRY.
1
2
3
4
5
6
8
11 TURBO*: Active/Disable TURBO
function. If pushing more than 2
seconds, the SELF CLEAN
function will be activated, pushing
more than 2 seconds again to
disable(depending on
models).During the heating
operation(only when the setting
mode is HEAT),press this button
and the unit will operate at a
setting temperature of 8°C.The
display window of indoor unit will
display FP. Press the buttons of
ON/OFF, SLEEP, FP, MODE,FAN
SPEED,UP,DOWN and
SHORTCUT while operating will
cancel the FP
LED: Disable/Active indoor screen
Display. When pushing more than
2 seconds, the FOLLOW ME
function will be activated, pushing
more than 2 seconds again to
disable.
LOCK: When you press the
recessed LOCK button, all current
settings are locked in and the
remote controller does not accept
any operation except that of the
LOCK. Press again to cancel the
LOCK mode.
14 SHORTCUT: Used to restore the current settings or resume previous settings.
On the first time connecting to the power, if push the SHORTCUT button, the
unit will operate on AUTO mode, 24°C, and fan speed is Auto.
Push this button when remote controller is on, the system will automatically
revert back to the previous settings including operating mode, setting
temperature, fan speed level and sleep feature(if activated). And transmit the
signals to the unit.
If push this button when remote controller is off, the system will only resume
the previous settings and will not transmit the signals to the unit. And the
sleep feature is disable. If pushing more than 2 seconds, the system will
automatically restore the current operation settings including operating mode,
setting temperature, fan speed, level and sleep feature (if activated).
3
4
5 67
7
1
2
3
4
5
6
7
8
9
10
11 12
13
13
F
auto cool dry heat fan
sleep follow me lock run
SET TEMP. TIMER ONOFF
