Frigidaire FD5161 User manual

INSTRUCTION MANUAL
CITRUS JUICER
MODEL NO: FD5161
Read this booklet thoroughly before using and save it for future reference

1
IMPORTANT SAFEGUARDS
Before using the electrical appliance the below basic precautions should always be followed:
1. Read all instructions and product labels and warnings carefully and look at the illustrations before
using the appliances.
2. Before using check that the voltage power corresponds to the one shown on the appliance
nameplate.
3. For Household Use only. Do not use outdoors or for commercial purpose.
4. Do not let the cord hang over the edge of table or hot surface.
5. Do not operate any appliance with a damaged cord or plug or other components are damaged or
after the appliance malfunctions or is dropped or has been damaged by any manner. Return
appliance to the nearest authorized service facility for examination, repair or electrical or
mechanical adjustment.
6. Never remove or change accessories or parts from the motor unit while the appliance is running.
Always unplug the appliance first.
7. Do not operate the appliance for other than its intended use.
8. The appliance can only be used to squeeze the citrus fruits, never use it for juicing other kind of
fruits.
9. The use of attachments & accessories & parts not recommended or sold by manufacturer may
cause fire, electric shock or injury.
10. Be sure to switch OFF the appliance after each use. Always unplug from outlet when not in use or
before putting ON or taking off the parts and before cleaning.
11. Do not leave the appliance switched ON unattended. Close supervision is necessary when any
appliance is used by or near children or infirm persons.
12. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliances by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. To protect against risk of electric shock, Do not immerse the Motor unit, plug or electrical cord into
water or other liquids. Never use any wet stuffs for cleaning the electrical components.
15. Do not place the appliance on or near the hot gas or electric burner or other high temperature
sources.
SAVE THESE INSTRUCTIONS CAREFULLY
HOUSEHOLD USE ONLY

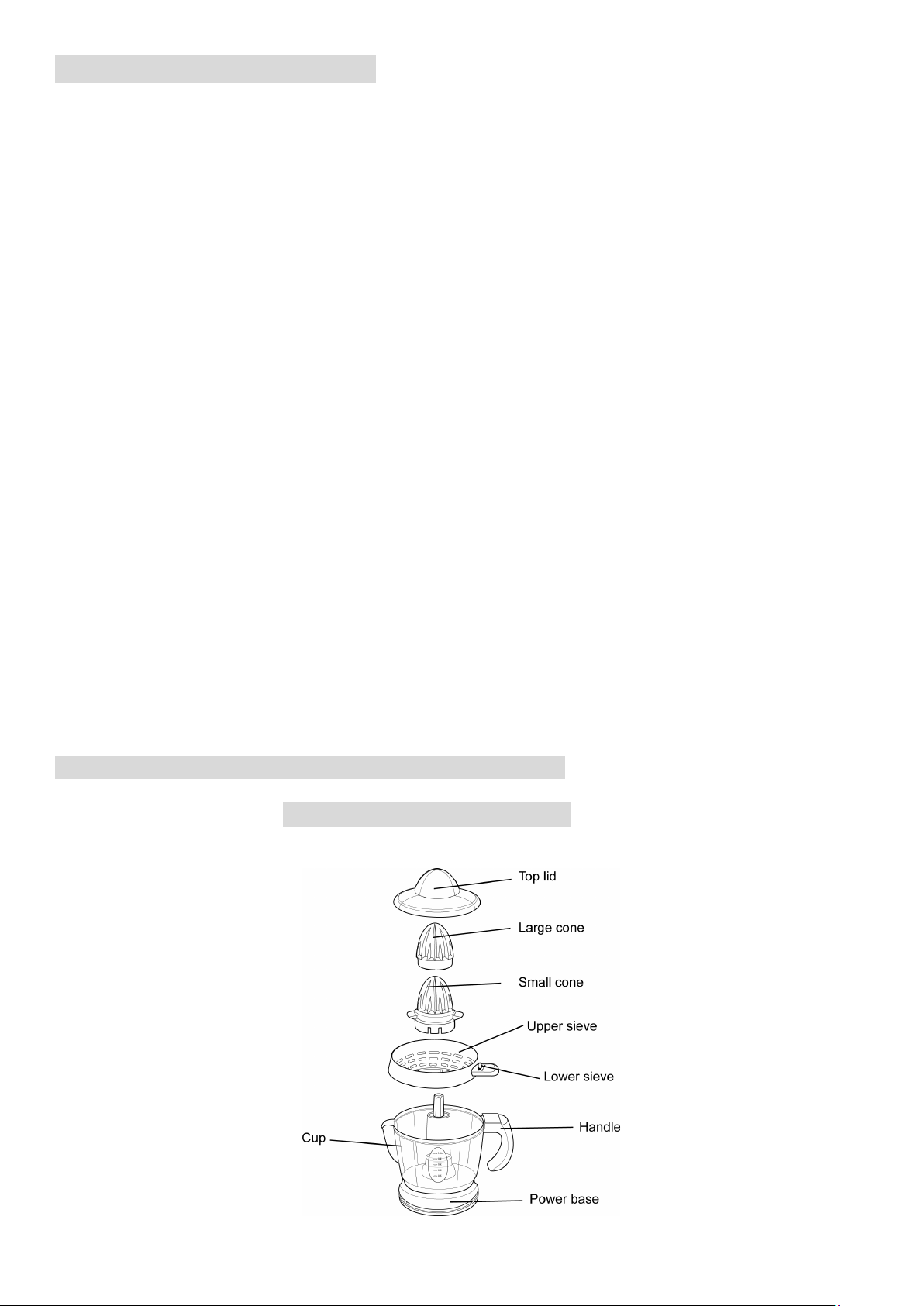

Know Your Citrus Juicer

2
Operating Your Juicer
Before the first use clean top lid, large and small cone, upper and lower sieve and cup
thoroughly under warm water.
1. Place the cup on the power base, turn the cup in clockwise until it clicks into place, then
assemble the upper sieve or upper and lower sieve into the rotating axis. When using the two
sieves together, first place the lower sieve then assemble the upper sieve, make the knob on the
lower sieve come out from the hole on the upper sieve, Turning the knob on the handle toward
left would reduce the sieve hole as illustrated in fig.1. To enlarge the holes, turn the knob in
opposite direction. You may also use only the Upper sieve separately.
2. Use the appropriate cone according to the fruit size. Small fruit can be squeezed on the smaller
cone, while for the large size fruit both the cones have to be used together i.e. the large cone put
on top of the small cone.
3. Plug the power cord into the outlet; turn the knob to select desired size of hole, to control the
flow of juice.
4. Halve the fruit, put the fruit on the cone and press it lightly, the motor will start running, then the
extracted juice will start flowing into the cup through the sieve, the roughness flesh and pith will
remain on the sieve. The motor may rotate in either direction.
Caution: Never exert excessive force when pressing the fruit to prevent from blocking
and damaging the motor.
5. Once completed the squeezing, release the hand from the cone and the motor will stop running,
the appliance now is in the idle state. You may restart it again at any time by pressing the cone
down..
Caution: The appliance shall be ON 15seconds, OFF 15seconds, and after 10 consecutive
cycles, the appliance must not be used for 30 minutes to let it cool down.
Note: The Max capacity of the cup is 1L, To avoid the spillage do not fill the cup above the
maximum level.
6. Make sure to Unplug the appliance after each use & also when not in frequent use.
7. While pouring the juice in the cup, make sure the top lid is in place. To not let the juice spoil, do
not keep the juice in the cup for longer time.
8. The power cord can be wrapped around the groove on the power base for easier storage when
not in use. Also the plug can be embedded into the bottom of base unit as illustrated in fig.2.
Cleaning and Maintenance
1. Unplug the appliance and wait till it completely cools down, before cleaning.
2. Disassemble the sieves, large and small cone, top lid and cup. Clean them in hot water. Then
rinse under running water and wipe it to dry. Please note it is not Dishwasher proof.
Caution: Never use metal polish for cleaning and do not put into dishwasher to clean.
3. Wipe the rotating axis with a soft, damp cloth, Do not immerse the power base in water or any
other liquid.
4. Assemble back all the parts together.
F
ig.1
Fig.2

3
SPECIFICATIONS:
PRODUCT CITRUS JUICER
MODEL NO: FD5161
CAPACITY 1.0L
VOLTAGE 230-240V
HERTZ 50Hz
WATTS 30W
MADE IN CHINA
ENVIRONMENT FRIENDLY DISPOSAL
IS A REGISTERED TRADEMARK USED UNDER LICENSE
FROM FRIGIDAIRE INTERNATIONAL COMPANY, U.S.A
10200 David Taylor Drive, Charlotte NC28262
U.S.A.
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working
electrical equipments to an appropriate waste disposal center.
