FRO­NIUS Symo 10.0-3-M User manual

Operating
Instructions
Fronius Symo Advanced
10.0-3-M
12.5-3-M
15.0-3-M
17.5-3-M
20.0-3-M
42,0426,0426,EN 008-21042023
EN Operating Instructions

Contents
Safety rules 7
Safety rules 9
Explanation of safety notices 9
General 9
Environmental conditions 10
Qualified personnel 10
Noise emission values 10
EMC measures 10
Data protection 11
Copyright 11
System component compatibility 11
General information 13
General 15
Device concept 15
Proper use/intended purpose 15

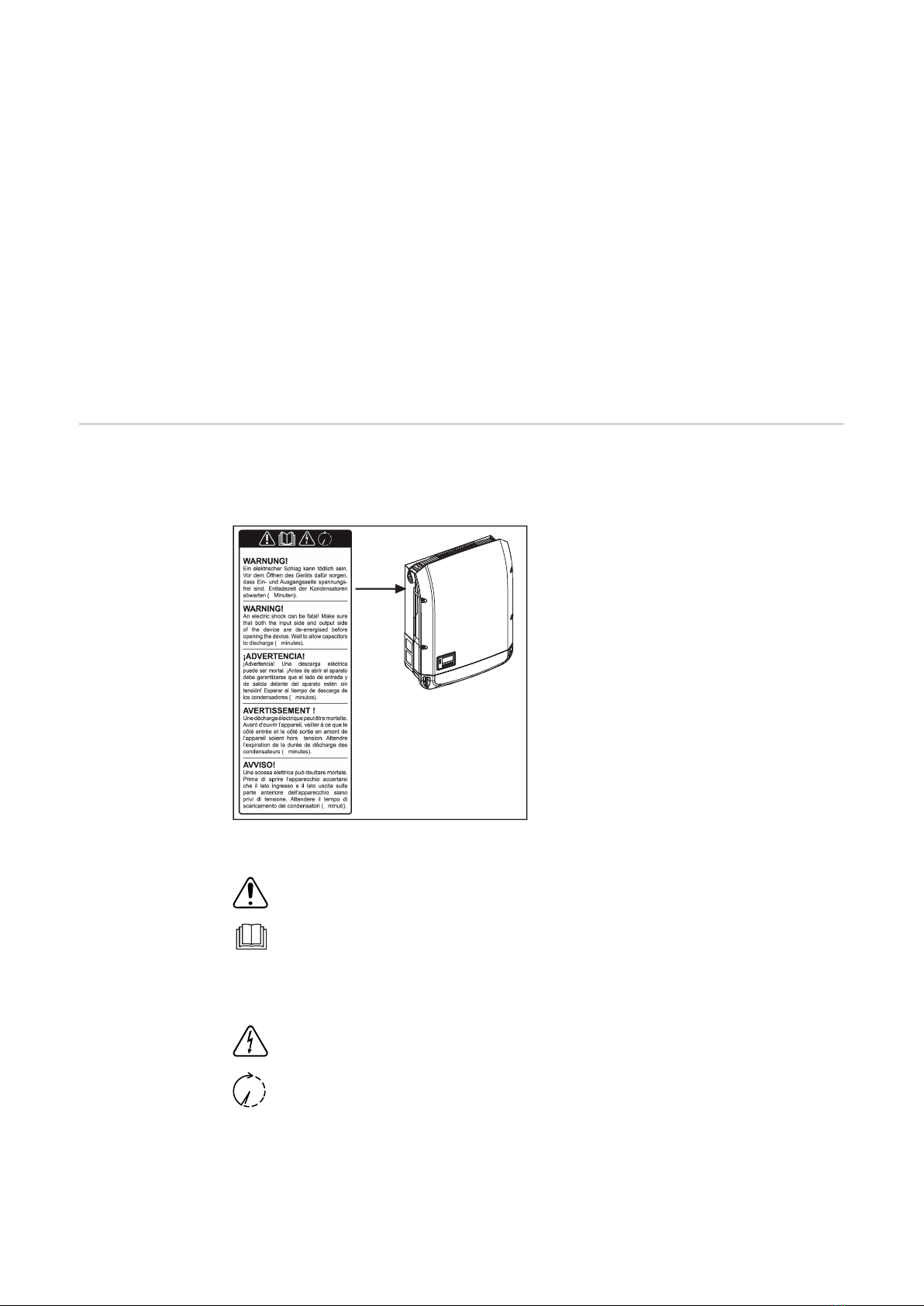

Warning notices on the device 16
AFCI - Arc Fault Circuit Interrupter (Arc Guard) 17
Data communication and Fronius Solar Net 19
Fronius Solar Net and data interface 19
Data communication area 19
Description of the "Fronius Solar Net" LED 20
Example 21
Explanation of the multifunction current interface 22
Dynamic power reduction by means of inverter 23
Fronius Datamanager 2.0 24
Controls, connections and displays on the Fronius Datamanager 2.0 24
Fronius Datamanager 2.0 during the night or when the available DC voltage is insufficient 27
Starting for the first time 27
Further information on Fronius Datamanager 2.0 29
Controls and indicators 30
Controls and displays 30
Display 31
Switching off current supply and restarting the inverter 32
Switching off the power supply to the inverter 32
Installation 33
Installation location and position 35
Explanation of safety notices 35
Safety 35
Proper use/intended purpose 36
Choice of location 37
Installation position 38
General comments regarding choice of location 39
Attaching the Mounting Bracket 41
Safety 41
Selecting wall plugs and screws 41
Recommended screws 41
Opening the inverter 41
Fitting the mounting bracket to a wall 43
Installing the mounting bracket on a mast or beam 43
Fitting the mounting bracket to metal supports 44
Do not warp or deform the mounting bracket 44
Connecting the inverter to the public grid (AC side) 45
Safety 45
Monitoring the grid 45
3
EN

Type of AC cable 45
Preparing the aluminium cables for connection 45
AC terminals 46
Cross section of the AC cable 46
Connecting the inverter to the public grid (AC) 47
Maximum fuse rating on alternating current side 48
Connection variants on multi-MPP tracker inverters 50
General 50
Multi MPP Tracker 50
Connecting solar module strings to the inverter 53
Safety 53
General comments regarding PV modules 54
DC terminals 54
Connecting aluminium cables 54
Solar module strings - checking the polarity and voltage 55
Connecting the solar module strings to the inverter 56
Data communication 58
Permitted cables for the data communication area 58
Routing data communication cables 58
Installing the Datamanager in the inverter 59
Attaching the inverter to the mounting bracket 61
Attaching the inverter to the mounting bracket 61
Starting for the first time 64
Starting the inverter for the first time 64
Notes regarding maintenance 67
Maintenance 67
Cleaning 67
Australian Conduits 68
Tightly sealing the conduits 68
Seal conduits 68
Serial Number Sticker for Customer Use 69
Serial number sticker for customer use 69
Settings 71
Navigation at the menu level 73
Activating display backlighting 73
Automatic deactivation of display backlighting / changing to the "NOW" menu item 73
Opening the menu level 73
Values displayed under the NOW menu item 74
Values displayed under the LOG menu item 74
SETUP menu item 76
Initial setting 76
Software updates 76
Navigating the SETUP menu item 76
Setting menu entries, general 77
Application example: Setting the time 77
Menu items in the Set-up menu 79
Standby 79
DATCOM 79
USB 80
Relay (floating contact switch) 81
Energy Manager(under Relay menu item) 82
Time / Date 83
Display settings 84
ENERGY YIELD 85
Fan 86
The INFO menu item 87
Measured values 87
PSS status 87
Grid status 87
Device information 87
4

Version 89
Switching the key lock on and off 90
General 90
Switching the key lock on and off 90
USB Stick as a Data Logger and for Updating Inverter Software 91
USB flash drive as a datalogger 91
Data on the USB flash drive 91
Data volume and storage capacity 92
Buffer memory 93
Suitable USB flash drives 93
USB flash drive for updating the inverter software 94
Removing the USB flash drive 94
The Basic menu 96
Access the Basic menu 96
Menu items in the Basic menu 96
Settings if the "DC SPD" option is installed 97
Appendix 99
Status diagnostics and troubleshooting 101
Status code display 101
Total failure of the display 101
Class 1 status codes 101
Class 2 status codes 102
Class 3 status codes 102
Status codes – Class 4 104
Status codes – Class 5 106
Class 6 status codes 108
Status codes – Class 7 109
Class 10 - 12 status codes 111
Customer service 111
Operation in dusty environments 111
Technical data 112
Fronius Symo Advanced 10.0-3-M 112
Fronius Symo Advanced 12.5-3-M 114
Fronius Symo Advanced 15.0-3-M 116
Fronius Symo Advanced 17.5-3-M 118
Fronius Symo Advanced 20.0-3-M 120
Explanation of footnotes 122
WLAN 122
Integrated DC disconnector Fronius Symo Advanced 10.0-12.5 122
Integrated DC disconnector Fronius Symo Advanced 15.0 - 20.0 123
Applicable standards and guidelines 124
Warranty terms and conditions, and disposal 125
Fronius manufacturer's warranty 125
Disposal 125
5
EN

6

Safety rules
7

8

Safety rules
Explanation of
safety notices DANGER!
Indicates immediate danger.
▶If not avoided, death or serious injury will result.
WARNING!
Indicates a potentially hazardous situation.
▶If not avoided, death or serious injury may result.
CAUTION!
Indicates a situation where damage or injury could occur.
▶If not avoided, minor injury and/or damage to property may result.
NOTE!
Indicates a risk of flawed results and possible damage to the equipment.
General The device has been manufactured in line with the state of the art and according
to recognized safety standards. If used incorrectly or misused, however, it can
cause:
-Injury or death to the operator or a third party
-Damage to the device and other material assets belonging to the operating
company.
All personnel involved in commissioning, maintenance, and servicing of the
device must:
-Be suitably qualified
-Have knowledge of and experience in dealing with electrical installations and
-Have fully read and precisely followed these Operating Instructions
The Operating Instructions must always be at hand wherever the device is being
used. In addition to the Operating Instructions, attention must also be paid to
any generally applicable and local regulations regarding accident prevention and
environmental protection.
All safety and danger notices on the device:
-Must be kept in a legible state
-Must not be damaged
-Must not be removed
-Must not be covered, pasted or painted over
The terminals can reach high temperatures.
Only operate the device when all protection devices are fully functional. If the
protection devices are not fully functional, there is a danger of:
-Injury or death to the operator or a third party
-Damage to the device and other material assets belonging to the operating
company
9
EN

Any safety devices that are not fully functional must be repaired by an author-
ised specialist before the device is switched on.
Never bypass or disable protection devices.
For the location of the safety and danger notices on the device, refer to the sec-
tion headed "General remarks" in the Operating Instructions for the device.
Any equipment malfunctions which might impair safety must be remedied before
the device is turned on.
This is for your personal safety!
Environmental
conditions
Operation or storage of the device outside the stipulated area will be deemed as
not in accordance with the intended purpose. The manufacturer accepts no liab-
ility for any damage resulting from improper use.
Qualified per-
sonnel
The servicing information contained in these operating instructions is intended
only for the use of qualified service engineers. An electric shock can be fatal. Do
not carry out any actions other than those described in the documentation. This
also applies to qualified personnel.
All cables and leads must be secured, undamaged, insulated and adequately di-
mensioned. Loose connections, scorched, damaged or inadequately dimensioned
cables and leads must be immediately repaired by authorised personnel.
Maintenance and repair work must only be carried out by an authorised special-
ist.
It is impossible to guarantee that bought-in parts are designed and manufac-
tured to meet the demands made on them, or that they satisfy safety require-
ments. Use only original spare parts (also applies to standard parts).
Do not carry out any alterations, installations, or modifications to the device
without first obtaining the manufacturer's permission.
Components that are not in perfect condition must be changed immediately.
Noise emission
values
The maximum sound power level of the inverter is specified in the Technical
Data.
The device is cooled as quietly as possible with the aid of an electronic temperat-
ure control system; this depends on the amount of converted power, the ambient
temperature, the level of soiling of the device, etc.
It is not possible to provide a workplace-related emission value for this device
because the actual sound pressure level is heavily influenced by the installation
situation, the power quality, the surrounding walls and the properties of the room
in general.
EMC measures In certain cases, even though a device complies with the standard limit values for
emissions, it may affect the application area for which it was designed (e.g., when
there is equipment that is susceptible to interference at the same location, or if
the site where the device is installed is close to either radio or television receiv-
ers). If this is the case, then the operator is obliged to take action to rectify the
situation.
10

Data protection The user is responsible for the safekeeping of any changes made to the factory
settings. The manufacturer accepts no liability for any deleted personal settings.
Copyright Copyright of these operating instructions remains with the manufacturer.
The text and illustrations are all technically correct at the time of printing. We
reserve the right to make changes. The contents of the operating instructions
shall not provide the basis for any claims whatsoever on the part of the pur-
chaser. If you have any suggestions for improvement, or can point out any mis-
takes that you have found in the instructions, we will be most grateful for your
comments.
System compon-
ent compatibility
All installed components in the photovoltaic system must be compatible and
have the necessary configuration options. The installed components must not re-
strict or negatively influence the functioning of the photovoltaic system.
NOTE!
Risk due to components in the photovoltaic system that are not compatible
and/or have limited compatibility.
Incompatible components may limit and/or negatively affect the operation
and/or functioning of the photovoltaic system.
▶Only install components recommended by the manufacturer in the photovol-
taic system.
▶Before installation, check the compatibility of components not expressly re-
commended with the manufacturer.
11
EN

12

General information
13

14

General
Device concept Device design:
(1) Housing cover
(2) Inverter
(3) Wall bracket
(4) Connection area incl. DC main
switch
(5) Data communication area
(6) Data communication cover
The inverter transforms the direct cur-
rent generated by the solar modules
into alternating current. This alternat-
ing current is fed into the public grid
synchronously with the grid voltage.
The inverter has been developed exclusively for use in grid-connected photovol-
taic systems; it is impossible to generate energy independently of the public grid.
Thanks to its design and the way it works, the inverter is extremely safe both to
install and to operate.
The inverter automatically monitors the public grid. Whenever conditions in the
electric grid are inconsistent with standard conditions (for example, grid switch-
off, interruption, etc.), the inverter will immediately stop producing power and in-
terrupt the supply of power into the grid.
The grid is monitored by monitoring the voltage, frequency and islanding condi-
tions.
The inverter operates fully automatically. As soon after sunrise as there is suffi-
cient energy available from the solar modules, the inverter starts monitoring the
grid. When insolation has reached a sufficient level, the inverter starts feeding
energy into the grid.
The inverter operates in such a way that the maximum possible amount of power
is obtained from the solar modules.
As soon as the power available has fallen below the level at which energy can be
fed into the grid, the inverter disconnects the power electronics completely from
the grid and stops running. It retains all its settings and stored data.
If the inverter becomes too hot, it automatically reduces the current output
power in order to protect itself.
Reasons for the inverter becoming too hot include the ambient temperature be-
ing too high or inadequate heat dissipation (e.g. if it is installed in a switch cabinet
without suitable heat dissipation).
Proper use/
intended pur-
pose
The inverter is intended exclusively to convert direct current from solar modules
into alternating current and to feed this into the public grid.
Utilisation not in accordance with the intended purpose comprises:
-Any use above and beyond this purpose
-Making any modifications to the inverter that have not been expressly ap-
proved by Fronius
-the installation of components that are not distributed or expressly ap-
proved by Fronius.
15
EN

Fronius shall not be liable for any damage resulting from such action.
No warranty claims will be entertained.
Proper use also includes:
-Carefully reading and obeying all the instructions and all the safety and
danger notices in the Operating Instructions and Installation Instructions
-Performing all stipulated maintenance work
-Installation as specified in the Installation Instructions
When designing the photovoltaic system, ensure that all components are oper-
ated within their permitted operating ranges at all times.
Observe all the measures recommended by the solar module manufacturer to
ensure that the solar module retains its properties in the long term.
Obey the regulations of the power supply company regarding connection meth-
ods and energy fed into the grid.
Warning notices
on the device
There are warning notices and safety symbols on and in the inverter. These warn-
ing notices and safety symbols must not be removed or painted over. They warn
against incorrect operation, as this may result in serious injury and damage.
Fronius Symo
Advanced 10.0-3-M/
12.5-3-M / 15.0-3-M
17.5-3-M / 20.0-3-M
5
5
5
5
5
Safety symbols:
Danger of serious injury and damage due to incorrect operation
Do not use the functions described here until you have fully read and
understood the following documents:
-These Operating Instructions
-All the Operating Instructions for the system components of the
photovoltaic system, especially the safety rules
Dangerous electrical voltage
Wait for the capacitors to discharge.
16

To comply with European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment and its implementation as national law, electrical
equipment that has reached the end of its life must be collected separ-
ately and returned to an approved recycling facility. Any device that you
no longer require must be returned to your distributor or disposed of at
an approved collection and recycling facility in your area. Ignoring this
European Directive may have potentially adverse effects on the environ-
ment and your health!
Text of the warning notices:
WARNING!
An electric shock can be fatal. Before opening the device, it must be disconnec-
ted at the input and output. Wait for the capacitors to discharge (the discharge
time is indicated on the device).
Symbols on the rating plate:
CE mark – confirms compliance with applicable EU directives and
regulations.
UKCA mark – confirms compliance with applicable UK directives and
regulations.
WEEE mark – waste electrical and electronic equipment must be
collected separately and recycled in an environmentally sound manner
in accordance with the European Directive and national law.
RCM mark – tested in accordance with the requirements of Australia
and New Zealand.
ICASA mark – tested in accordance with the requirements of the
Independent Communications Authority of South Africa.
CMIM mark – tested in accordance with IMANOR requirements for
import regulations and compliance with Moroccan standards.
AFCI - Arc Fault
Circuit Inter-
rupter (Arc
Guard)
AFCI (Arc Fault Circuit Interrupter) protects against arcing faults and in the nar-
rower sense is a protection device against contact faults. The AFCI evaluates any
DC-side faults that occur in the current and voltage curve with an electronic cir-
cuit and switches off the circuit when a contact fault is detected. This prevents
overheating on poor contacts and ideally possible fires.
CAUTION!
Danger due to incorrect or unprofessional DC installation.
The result is risk of damage and in turn, risk of fire to the PV system due to inad-
missible thermal loads that arise with an arc.
▶Check plug connections are in good condition.
▶Repair incorrect insulation as appropriate.
▶Complete connections as per the specifications.
IMPORTANT!
Fronius will not accept any costs associated with production downtimes, installer
costs, etc., that may arise as the result of a detected arc and its consequences.
Fronius accepts no liability for damage that can occur despite the presence of
the integrated Arc Fault Circuit Interrupter/extinguishing system ( e.g. caused by
a parallel arc).
17
EN

IMPORTANT!
Active PV module electronics (e.g., power optimiser) can impair the function of
the Arc Fault Circuit Interrupter. Fronius does not guarantee that the Arc Fault
Circuit Interrupter will work correctly in combination with active PV module
electronics.
Reconnection behaviour
After detection of an arc, feeding energy into the grid is interrupted for at least 5
minutes. Depending on the configuration, feeding energy into the grid is then
automatically resumed. If several arcs are detected within a period of 24 hours,
feeding energy into the grid can also be permanently interrupted until a manual
reconnection has taken place."
18

Data communication and Fronius Solar Net
Fronius Solar
Net and data in-
terface
Fronius Solar Net was developed to make system add-ons flexible to use in a
variety of different applications. Fronius Solar Net is a data network that en-
ables multiple inverters to be linked up using system add-ons.
It is a bus system that uses a ring topology. One suitable cable is sufficient for
communication between one or several inverters that are connected on the
Fronius Solar Net using a system add-on.
Similarly, every inverter on the Fronius Solar Net must be assigned a unique
number.
For instructions on how to assign a unique number, refer to the section SETUP
menu item.
Fronius Solar Net automatically recognises a wide variety of system add-ons.
In order to distinguish between several identical system extensions, each one
of them must be assigned a unique number.
More detailed information on the individual system add-ons can be found in
the relevant operating instructions or on the internet at http://www.froni-
us.com
®http://www.fronius.com/QR-link/4204101938
Data communic-
ation area
Depending on the model, the inverter may be equipped with the Fronius
Datamanager plug-in card (8).
19
EN

Ite
m Description
(1) Switchable multifunction current interface.
For a more detailed explanation, see the following section Explanation
of the multifunction current interface.
Use the 2-pin mating connector supplied with the inverter to connect to
the multifunction current interface.
(2) /
(3)
IN Fronius Solar Net connection / interface protocol
OUT Fronius Solar Net connection / interface protocol
"Fronius Solar Net" / interface protocol input and output for connecting
to other DATCOM components (e.g. inverter, Fronius sensor box, etc.)
If several DATCOM components are linked together, a terminating plug
must be connected to every free IN or OUT connection on a DATCOM
component.
For inverters with a Fronius Datamanager plug-in card, two terminating
plugs are supplied with the inverter.
(4) The "Fronius Solar Net" LED
indicates whether the Fronius Solar Net power supply is available.
(5) The "Data transfer" LED
flashes while the USB flash drive is being accessed. The USB flash drive
must not be removed while recording is in progress.
(6) USB A socket
for connecting a USB flash drive with maximum dimensions of
65 x 30 mm (2.6 x 2.1 in.)
The USB flash drive can function as a datalogger for any inverter that it
is connected to. The USB flash drive is not included in the scope of sup-
ply of the inverter.
(7) Floating switch contact (relay) with mating connector
max. 250 V AC / 4 A AC
max. 30 V DC / 1 A DC
max. 1.5 mm² (AWG 16) cable cross-section
Pin 1 = NO contact (normally open)
Pin 2 = C (common)
Pin 3 = NC contact (normally closed)
For a more detailed explanation, please see section Relay (floating con-
tact switch).
Use the mating connector supplied with the inverter to connect to the
floating switch contact.
(8) Fronius Datamanager 2.0 with WLAN antenna
or
cover for option card compartment
Note: Fronius Datamanager 2.0 is only available as an option.
(9) Cover for option card compartment
Description of
the "Fronius Sol-
ar Net" LED
The "Fronius Solar Net" LED is on:
the power supply for data communication within the Fronius Solar Net / inter-
face protocol is OK
