20125A - CASSARA TEAK LOVE SEAT
Page 1of 5

20125A - CASSARA TEAK LOVE SEAT
Page 2of 5
PART LIST : HARDWARE :
TOLS NEEDED (INCLUDED) :
T1 . ALLEN KEY 4 mm
NUMBER OF PEOPLE TO INSTALL : T2 . PHILLIP HEAD SCREW DRIVER (Not Included)
RECOMMENDED 2 PEOPLE
ASSEMBLY TIME:
APPROX 30 MINUTES T3 . GLUE PACKET (Included)
PRE ASSEMBLY INSTRUCTIONS :
1. Do not throw away packaging materials until the assembly is complete. Part might be accidentally thrown away.
ASSEMBLY INSTRUCTION:
STEP 1 :
1a. Align the dowel of the Back Rest (A) to the center hole Seat (B), DETAIL 1, then attach the Allen head Bolt
M6x70mm L(H1) and tighten it by the use of Allen Key (T1) DETAIL 1a. Be sure that the assembled Seat and
Backrest are held by one person, as stand in a side way position, while the other person prepares the Right End
Frame on step 2.
Part #
Description
QTY
A .
BACKREST
1 PC
B .
SEAT
1 PC
C .
RIGHT END FRAME
1 PC
D .
LEFT END FRAME
1 PC
Part #
Description
QTY
H1 .
ALLEN HEAD BOLT M6 X 70
mm
1 PCS
H2 .
ALLEN HEAD BOLT M6 X 50
mm
6 PCS
H3 .
WOODEN SCREW, 25 mm
2 PCS
H4 .
WOODEN SCREW, 40 mm
2 PCS
H5 .
WOODEN PLUG
4 PCS
B
T1
DETAIL 2
A
H1
A
B
DETAIL 1

20125A - CASSARA TEAK LOVE SEAT
Page 3of 5
STEP 2 :
2a. Lay the Right End Frame( C) , (a sticker on the seat base is attached to differentiate the 2 end frames) on the floor
with holes facing up . Use the packaging material to protect End Frame against the floor. See Figure 2a
2b. Attached the 3pcs of Allen Head Bolt M6x50 mm (H2) and tighten it with the Allen Key (T1) Detail 2. See Figure 2b
2c. Align the Left End Frame's mortise hole(D), to the tenon of the Seat (B) and Back Rest(A) See Figure 2c, then
follow step 2.b
STEP 3 :
3a. Let the Love Seat stand on the floor, handled by 2 persons. Press the End frame (C, D) manually against the
backrest (A) until no gap on the connections. Attach the wooden screw 25mmL (H3) on the upper part of the End
Frame(C,D) by using a Phillip head Screw Driver (T2,Not Included), Detail 3, do the same on the other ends. On
the middle part of the end frame, attach the wooden Screw 40 mm (H4) and follow as per Detail 3.
3b. Apply a glue (T3) on the edge of the Wooden Plug (H5) by a hand brush (not included) then insert it to the holes
where the Wooden Screws (H3/H4) were installed, Detail 4.
H3/H4
T2
H5
DETAIL 4
H4
H3
Figure 2a
C
B
T1
DETAIL 1
Sticker "RH"
DETAIL 2
Figure 2b
Figure 2c
A
H2
D
T3
DETAIL 3
A
B
Sticker "LH"

20125A - CASSARA TEAK LOVE SEAT
Page 4of 5
ASSEMBLY IS COMPLETE

20125A - CASSARA TEAK LOVE SEAT
Page 5of 5
Teak is an extremely durable wood and naturally requires little maintenance or care, making it an ideal material for
outdoor patio furniture. It is typically sold in one of two conditions: finely sanded in it's natural form and treated with
teak oil. If left untreated, teak will weather to a silver-gray tone which is preferable to many people. Some prefer to
maintain the wood's original golden honey tone. To achieve this look, there are a few easy methods to help you treat
your furniture that you can employ. Regardless of the look, teak remains a strong and high-quality material choice for
outdoor furniture and accents.
Use this guide to help easily maintain and care for your teak furniture. Teak wood has a natural resistance to mold and
rot; however, unsightly mildew can still form on the surface of the wood if not cared for. Regular cleanings will help
prevent discoloration on both treated and untreated wood.
Cleaning Teak Furniture
Regular cleaning of your teak will help prevent mildew build-up and potential discoloration. A quick wash with mild soap
and water and some bleach or vinegar mixed in usually does the trick. Make sure to use a soft plastic brush as metal
brushes can scratch and damage the wood's surface.
Some harder to clean stains can be removed with a store-bought teak cleaner. When cleaning your teak, always start
with the most mild cleaning solution. If that doesn't work, try something more concentrated.
2 Easy Homemade Cleaning Solutions: Mix 1 cup each of chlorine bleach and laundry detergent with 1 gallon of
warm water Mix 1 cup of vinegar with 1 gallon of warm water
To begin, clear a space to clean your furniture. For most outdoor furniture this shouldn't be a problem, for indoor teak
furniture make sure to use a drop cloth and clean in a well ventilated space. Apply your cleaning mixture to the teak
item using a soft plastic brush and scrub into the wood as you apply. Allow the mixture to sit for about 15 minutes.
Rinse thoroughly with clean water. This cleaning method may not work for teak furniture that has been left outside to
the elements for a long period of time. You may find that a more aggressive store bought solution is needed.
Oiling Teak Furniture
Oiling teak furniture is not a method for protecting the wood but rather a way to retain and enhance the wood's natural
golden color. Some people prefer this look to the natural weathering of the wood when left untreated. Oiled teak
furniture is best for indoor use as the environment is more stable. If you choose to oil furniture that will be outside you
will need to be more regular with the maintenance, by oiling the furniture every 2 to 3 months and keeping the furniture
out of direct sunlight.
Tung oil is preferred by most professionals for teak furniture but Linseed oil is also common. There are also specialized
teak oils for purchase that use additives such as UV blockers and mildew retardants. Only oil teak furniture once it has
been completely cleaned. Cleaning will remove any natural oils built up on the surface and applying a new coat of oil
will restore the original character of the wood.
When applying teak oil use a paint brush to paint the oil into the wood in even strokes. A cloth dampened with mineral
spirits should be used to wipe up any excess oil as you go. Oil that drips onto other surfaces such as painted wood or
fiberglass should be wiped away immediately to avoid staining. The amount of oil required for each teak piece will differ.
You should continue to paint on the oil until the wood no longer soaks it in, leaving oil pooled on the surface of the
wood. At this point the wood should have a matte finish without any shiny spots.
Oil should be reapplied every 2 to 3 months. With each application the teak furniture should be washed and cleaned
and fully dry before you begin.
Please contact one of Our Product Specialists for assembly assistance of questions at 1-800-537-8484 or email
[email protected]. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m.

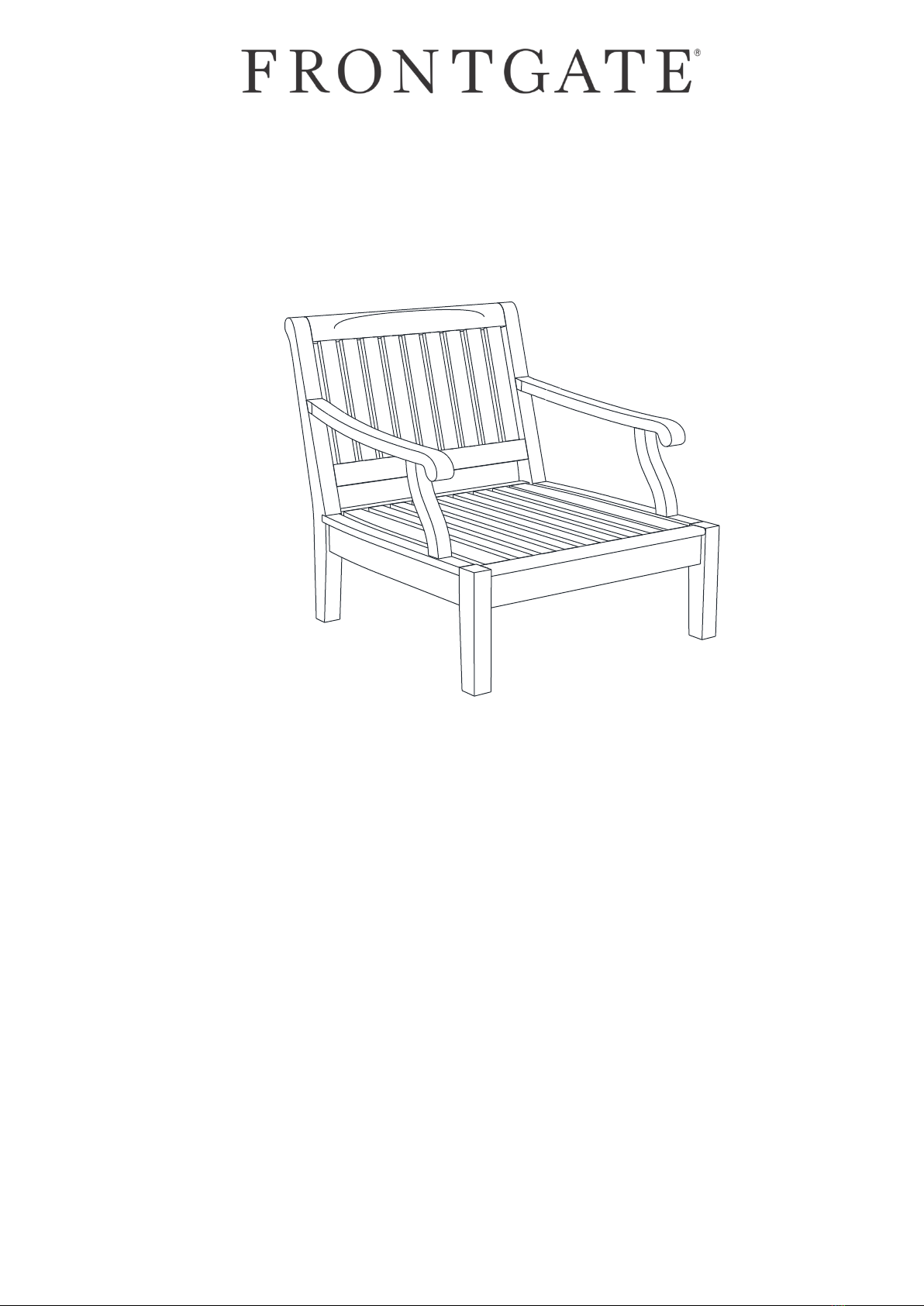

20127A –CASSARA TEAK CLUB CHAIR
Page 1of 4

20127A –CASSARA TEAK CLUB CHAIR
Page 2of 4
PART LIST : HARDWARE
TOLS NEEDED (INCLUDED) :
T1 . ALLEN KEY
NUMBER OF PEOPLE TO INSTALL : T2 . PHILLIP HEAD SCREW DRIVER (Not Included)
RECOMMENDED 2 PEOPLE
ASSEMBLY TIME: T3 .GLUE PACKET (Included)
APPROX 30 MINUTES
PRE ASSEMBLY INSTRUCTIONS :
1. Do not throw away packaging materials until the assembly is complete. Part might be accidentally thrown away.
ASSEMBLY INSTRUCTION:
STEP 1 :
1a. Lay the Right End Frame , (a sticker on the seat base is attached to differentiate the 2 end frames) on the floor
facing up the holes, DETAIL 1. Use the packaging material to protect the End Frame against the floor. See Figure
1a
1b. Attached the 3pcs of Allen Head Bolt (H1) and tighten it with the Allen Key (T1), DETAIL 2 see Figure 1b1c.
1c. Align the Left End Frame's mortise hole(D), to the tenon of the Seat (B) and Back Rest(A) See Figure 1c, then
follow step 1b
Part #
Description
QTY
A .
BACKREST
1 PC
B .
SEAT
1 PC
C .
RIGHT END FRAME
1 PC
D .
LEFT END FRAME
1 PC
Part #
Description
QTY
H1 .
ALLEN HEAD BOLT M6 X 50
mm
6 PCS
H2 .
WOODEN SCREW, 25 mm
2 PCS
H3 .
WOODEN SCREW, 40 mm
2 PCS
H4 .
WOODEN PLUG
4 PCS
Figure 1a
C
B
T1
DETAIL 1
Sticker "RH"
DETAIL 2
Figure 1b
Figure 1c
A
H1
D
Sticker "LH"

20127A –CASSARA TEAK CLUB CHAIR
Page 3of 4
STEP 2 :
2a. Let the Club Chair stand on the floor. Press the End Frame (C, D) manually against the Backrest (A) until no gap
on the connections. Attach the Wooden Screw 25mmL(H2) on the upper part of the End Frame(C,D) by using a
Phillip head Screw Driver (not included) Detail 3, do the same on the other ends. On the middle part of the frame,
attach the Wooden Screw 40mmL(H3) and follow as per Detail 3
2c. Apply a glue (T3) on the edge of the Wooden Plug (H4) by a hand brush (not included) then insert it to the holes
where the Wooden Screws (H2/H3) were installed, Detail 4
ASSEMBLY IS COMPLETE
H2/H3
T2
T3
H4
H4
H3
H2
DETAIL 4
DETAIL 3

20127A –CASSARA TEAK CLUB CHAIR
Page 4of 4
Teak is an extremely durable wood and naturally requires little maintenance or care, making it an ideal material for
outdoor patio furniture. It is typically sold in one of two conditions: finely sanded in it's natural form and treated with
teak oil. If left untreated, teak will weather to a silver-gray tone which is preferable to many people. Some prefer to
maintain the wood's original golden honey tone. To achieve this look, there are a few easy methods to help you treat
your furniture that you can employ. Regardless of the look, teak remains a strong and high-quality material choice for
outdoor furniture and accents.
Use this guide to help easily maintain and care for your teak furniture. Teak wood has a natural resistance to mold and
rot; however, unsightly mildew can still form on the surface of the wood if not cared for. Regular cleanings will help
prevent discoloration on both treated and untreated wood.
Cleaning Teak Furniture
Regular cleaning of your teak will help prevent mildew build-up and potential discoloration. A quick wash with mild soap
and water and some bleach or vinegar mixed in usually does the trick. Make sure to use a soft plastic brush as metal
brushes can scratch and damage the wood's surface.
Some harder to clean stains can be removed with a store-bought teak cleaner. When cleaning your teak, always start
with the most mild cleaning solution. If that doesn't work, try something more concentrated.
2 Easy Homemade Cleaning Solutions: Mix 1 cup each of chlorine bleach and laundry detergent with 1 gallon of
warm water Mix 1 cup of vinegar with 1 gallon of warm water
To begin, clear a space to clean your furniture. For most outdoor furniture this shouldn't be a problem, for indoor teak
furniture make sure to use a drop cloth and clean in a well ventilated space. Apply your cleaning mixture to the teak
item using a soft plastic brush and scrub into the wood as you apply. Allow the mixture to sit for about 15 minutes.
Rinse thoroughly with clean water. This cleaning method may not work for teak furniture that has been left outside to
the elements for a long period of time. You may find that a more aggressive store bought solution is needed.
Oiling Teak Furniture
Oiling teak furniture is not a method for protecting the wood but rather a way to retain and enhance the wood's natural
golden color. Some people prefer this look to the natural weathering of the wood when left untreated. Oiled teak
furniture is best for indoor use as the environment is more stable. If you choose to oil furniture that will be outside you
will need to be more regular with the maintenance, by oiling the furniture every 2 to 3 months and keeping the furniture
out of direct sunlight.
Tung oil is preferred by most professionals for teak furniture but Linseed oil is also common. There are also specialized
teak oils for purchase that use additives such as UV blockers and mildew retardants. Only oil teak furniture once it has
been completely cleaned. Cleaning will remove any natural oils built up on the surface and applying a new coat of oil
will restore the original character of the wood.
When applying teak oil use a paint brush to paint the oil into the wood in even strokes. A cloth dampened with mineral
spirits should be used to wipe up any excess oil as you go. Oil that drips onto other surfaces such as painted wood or
fiberglass should be wiped away immediately to avoid staining. The amount of oil required for each teak piece will differ.
You should continue to paint on the oil until the wood no longer soaks it in, leaving oil pooled on the surface of the
wood. At this point the wood should have a matte finish without any shiny spots.
Oil should be reapplied every 2 to 3 months. With each application the teak furniture should be washed and cleaned
and fully dry before you begin.
Please contact one of Our Product Specialists for assembly assistance of questions at 1-800-537-8484 or email
[email protected]. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m.
