FrSky TWIN Series User manual

About OTA function
For TWIN X Lite as an example, go to the [File manager], and select the FW, press the enter button, select [Flash
RX by int.OTA].Power on the receiver, select the RX, go to the [ENTER], complete the flash process, the transmit-
ter will display [Success]. Wait for 3 seconds,the receiver works properly at the moment.
Note: Please do not do the binding operation in the near range while the firmware upgrading in progress.
Note: Update the firmware after the receiver getting registered (OTA).
Version
1.0
Instruction Manual for FrSky TW GR6 Receiver
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us : [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.0
Instruction Manual for FrSky TW GR6 Receiver
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us : [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Introduction
TWIN series TW MX receiver features a new stable TW protocol which benefits from simultaneously integrating dual
active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy
solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW
protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time.
This receiver is designed for rc users who want to benefit from resilience and long range in their radio communica-
tions, typically tens of kilometers is achievable. The TW MX receiver is light weight and its smaller size occupies less
space which makes it very suitable for users who have constraints with limited installation space and weight.
As a micro receiver, the TW MX receiver is equipped with 2x 2.4G antennas. The signal output ports include one
SBUS output channel and 4 PWM output channel ports. TW MX receiver also supports telemetry functions through
FBUS / S.Port. By setting the TW MX to use FBUS protocol in the ETHOS system, the signal control and telemetry
can be connected to any device that supports FBUS protocol through only one line to achieve bidirectional transmis-
sion, also simplifying the model build using fewer wires.
In addition, TW MX also supports 4ms race mode with ultra-low latency. When combining race mode with TW series
resilient dual 2.4G solution, racers have a fast, stable, and reliable signal in racing competitions, without fear of
signal loss due to interference.
How to switch the S.Port/F.Port/FBUS (F.Port2)
Enter into the Set-Options, click the Telem.Port, and select S.Port/F.Port/FBUS (F.Port2).
How to switch SBUS channel mode
Enter into RX Settings, click [SBUS], then select SBUS-16 mode or SBUS-24 mode.
How to enter into the Race mode (down to 4ms)
Enter into Model-RF system, select the Channel Range as CH1-CH8. Click [Switch Positions] and select a switch to
start the race mode.
LED state
Green LED
-
On
Off
Red LED
Off
Off
On
Status
LoRa
FSK
Failsafe
Blue LED
On
-
Off
Registration & Automatic binding
Follow the step below to finish the Registration & binding procedure:
1. For TWIN X Lite as an example, enter into the Model, select RF System, turn on the internal module, select status
[ON] and TW MODE(Type). You can select Internal / External antenna and the power as you need, then select
[Register].
2. Connect the battery to the receiver while holding the button on the receiver. The RED LED and GREEN LED on
the receiver will be on, indicating into the [Reg] status.
3. When it shows the Register ID, RX name and UID,click [Register]. The RED LED and GREEN LED on the
receiver will flash, and the transmitter displays [Registration OK ].
4. Turn off the receiver.
5. Move the cursor to select any one of the 3 receivers [Bind].
6. Connect the battery to the receiver.
7. Select the RX, the GREEN or BLUE LED will keep lit. Then the transmitter displays [Bind successful].
Note: Once the receiver is registered, the button is not needed anymore in the binding process.
Specifications
● Frequency: Dual 2.4GHz
● Dimension: 38.1*14.6*9.5mm (L*W*H)
● Weight: 5g
● Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
● Operating Current: 60mA@5V
● Variometer Measurement Range
– Altimeter Range & Resolution: -700m to 10000m & 0.1m
– Vertical Speed Range: ±10m/s
● Voltage Measurement Range via AIN2 (External device): 0-3.3V
● Antenna connector: IPEX4
● Compatibility: TWIN series Radio & RF module in TW mode.
Features
● Simultaneous working dual 2.4G TW mode
● High-precision variometer sensor
● Black-Box function
● 4ms race mode with telemetry
● Long control range (Range varies based on the RF Power settings.)
● Over-The-Air (OTA) FW update
● 6 PWM channel ports
● SBUS Out (Supports 16CH / 24CH mode)
● FBUS / S.Port
● Inverted S.Port

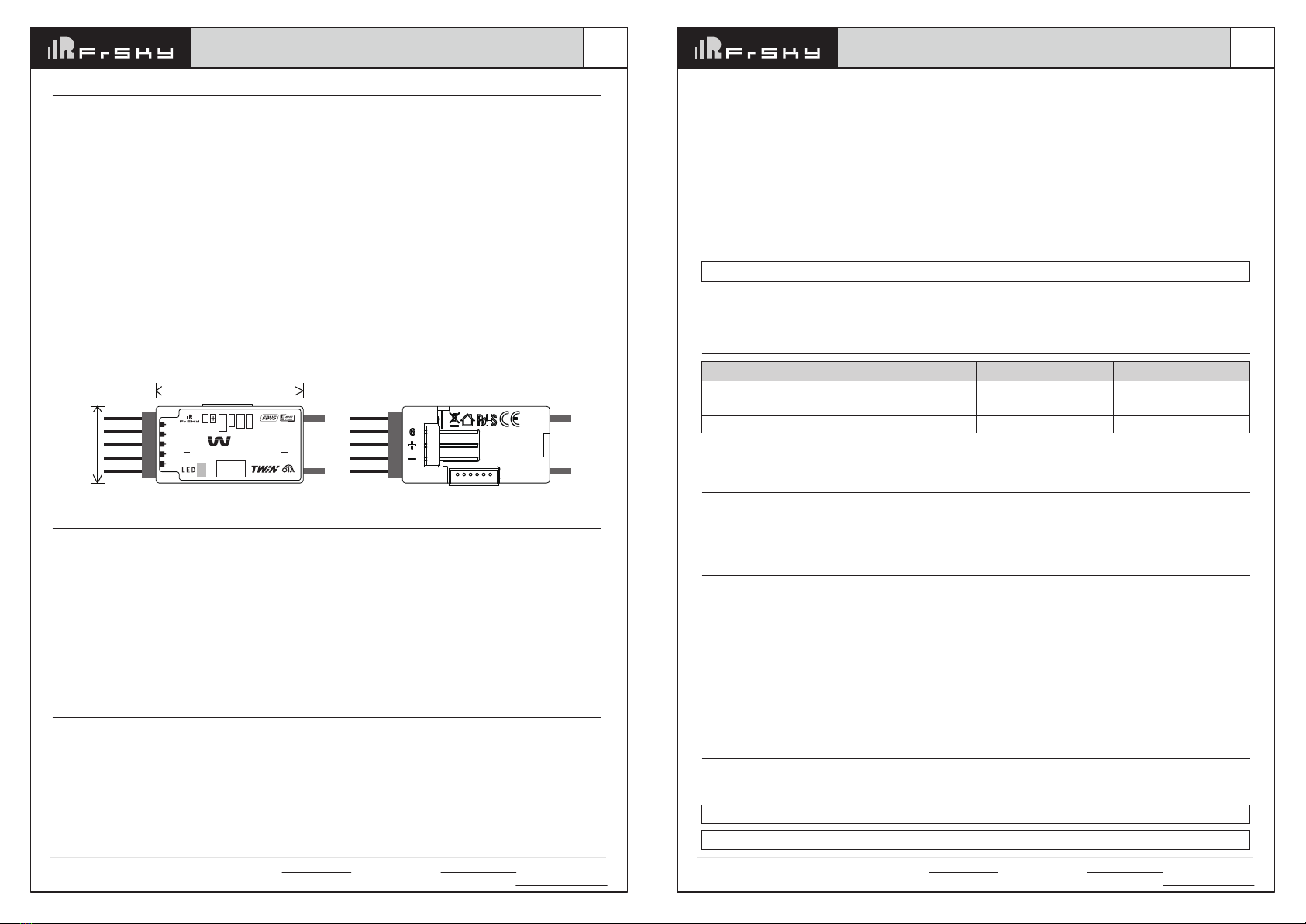

Overview
BOT
14.6mm
28mm
TOP
1
2
3
4
5
FBUS
/ S.Port
S.P
T GR6
6/24CH Telemetry & Variometer
SBUS
OUT
AIN2

FCC STATEMENT
Product certificated FCC ID：XYFTWINXLITE
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates uses and can radiate transmitter frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to transmitter
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to transmitter or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced transmitter/TV technician for help.
FrSky is continuously adding features and improvements to our products. To get the most from your product, please check
the download section of the FrSky website www.frsky-rc.com for the latest update firmware and manuals
